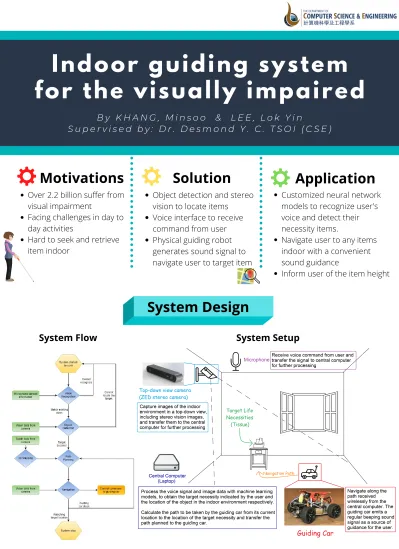

Indoor guiding system
for the visually impaired
B y K H A N G , M i n s o o & L E E , L o k Y i n
S u p e r v i s e d b y : D r . D e s m o n d Y . C . T S O I ( C S E )
Over 2.2 billion suffer from
visual impairment
Facing challenges in day to
day activities
Hard to seek and retrieve
item indoor
Motivations
Solution
Application
Object detection and stereo
vision to locate items
Voice interface to receive
command from user
Physical guiding robot
generates sound signal to
navigate user to target item
Customized neural network
models to recognize user's
voice and detect their
necessity items.
Navigate user to any items
indoor with a convenient
sound guidance
Inform user of the item height
System Flow
System Setup
Methodology
Guiding Car
Voice Recognition
Object Detection
Navigation
Application
Design and build a agile mechanical structure with battery system
Develop a PID positional controller using optical rotary encoder
Utilize Bluetooth module to form a USART communication with the central computer
Stereo Vision
Develop a pipeline by incorporating an audio convert library LibROSA and convolutional neural network (CNN) by tensorflow keras
Simplified the training process to achieve a high accuracy regardless of the accent / language (User Customization)
Implement Retinanet for its high accuracy and lower demand in training images
Increase training data set size from small user-provided images through data augmentation and segmentation with COCO public image data set
Determine the height position of objects after it has been detected by the object detector
Separate the object and the background to obtain training data automatically
(User Customization)
Translate the positional data received from object detection module
Create a real-time collision avoidance path planning system by Dynamic Window
Approach
User Customization
Operation
Only a small number of images containing target objects provided by the user are needed to
generate an effective object detector through our customization pipeline. Through the use of heavy data augmentation and automatic labeling by stereo vision, the user only needs to wait for at most one to two days of training the model prior to its deployment. The final trained model is customized to detect the target objects and fine-tuned for his/her usage.
Voice command can also be customized to different users. By recording and transforming the speech signal into different domains, a small yet effective CNN model can be retrained for each user's voice commands in a short duration of time. Through this customization procedure, the voice recognition model is able to recognize the personalized phrasing, language and ascent of the user, making our system user-friendly and easy to use.
The implementation of our user-friendly guiding procedure is visualized in the figure above. The user's voice command of a target necessity is recorded by the system's microphone and recognized by our voice recognition model when the volume is above a certain threshold. Subsequently, after the system has located the guiding car and the user, the guiding car will then approach the user followed by emitting the "beep"
sound signal. The guiding car then guides the user by navigating itself slowly towards the target necessity while maintaining the "beep" signal. Upon reaching the target
destination, it will emit a long "beep" signal to inform the user that the target necessity is in its proximity. Then, the system will inform the user of the approximate height of the target necessity such as "near shoulder level" or "near waist level". The user is now able to retrieve their target necessity without the assistance of another individual.
