(1)國立交通大學 資訊科學系 碩 士 論 文. W A P. 憑 證 轉 換 工 具 設 計 與 實 作. Design and Implementation of WAP Certificate Converter Toolkit. 研 究 生:顏志明 指導教授:袁賢銘. 中 華 民 國. 教授. 九 十 四 i. 年 六 月.

(2) WAP 憑證轉換工具設計與實作 研究生:顏志明. 指導教授:袁賢銘 教授. 國立交通大學資訊科學研究所. 摘要. 行動安全(mobile security)一直是在手持裝置上開發行動商務(m-commerce) 程式的一項重要議題。對此,無線運用協定(Wireless Application Protocol, WAP) 已訂製一系列規範標準,包括 WTLS (Wireless Transport Layer Security), WPKI (Wireless Public-Key Infrastructure), WIM (Wireless Identity Module), and WMLScript Crypto Library. 在這些標準中,一項重要的組件就是憑證(certificate) 的使用。然而,為了符合無線環境的限制,WAP 重新定義了數種憑證格式,同 時既有網際網路上通用的 X.509 憑證,也無法在未經修改情況下,直接下載到支 援 WAP 的行動裝置上使用。 在本篇論文中,我們設計和實作出一個 WAP 憑證轉換工具,提供方便的程 式及操作介面,可以將網際網路上通用的 X.509 憑證轉換成 WAP 相容憑證格式, 並套用在支援 WAP 的行動裝置上。我們所開發的這個 WAP 憑證轉換工具,可 以用來協助目前網際網路上發行 X.509 憑證的憑證中心(Certification Authority, CA),將他們發出的憑證,根據使用者的需要,動態且容易地轉換成 WAP 憑證。 就增進行動安全和考慮現行 X.509 憑證轉換成本而言,這套工具提供了相當程度 的便利性與經濟性,可以用來幫助行動商務程式之開發。 ii.

(3) Design and Implementation of WAP Certificate Converter Toolkit. Student: Chih-Ming Yan. Advisor: Shyan-Ming Yuan. Department of Computer and Information Science National Chiao Tung University. Abstract. Mobile security has been a key factor for development of m-commerce applications on hand-held devices. To enhance the mobile security, WAP (Wireless Application Protocol) has defined several standards such as WTLS (Wireless Transport Layer Security), WPKI (Wireless Public-Key Infrastructure), WIM (Wireless Identity Module), and WMLScript Crypto Library to regulate it. One important component of those standards is the use of certificate. However, for fitting the limitations in the wireless environment, WAP introduces several certificate formats in those specifications and the existing Internet X.509 certificates can not download directly to WAP-enabled handsets without any modification. In this paper, we design and implement a WAP Certificate Converter Toolkit to provide the convenient interfaces for doing the conversion from the existing Internet X.509 certificates to WAP compatible certificates that can be deployed in WAP-enabled mobile devices. The toolkit we provide can be used by the Internet CA’s (Certification Authority) to dynamically and easily transform their issued certificates into WAP certificates by the need of users. As far as enhancement of mobile security and conversion cost from Internet X.509 certificates are concerned, iii.

(4) this toolkit is convenient and economic to a large extent and can be used to help the development of m-commerce applications.. iv.

(5) Acknowledgement 回首二年研究所生涯,學習著實收穫良多。其中最要感謝的是我的指導教授 袁賢銘老師,不論在課業或研究領域上,他總是給予學生最大的自由空間,去想 像發揮其創意,這對於喜歡自我安排個性的我十分受用,也因此在這二年學習規 劃裡,沒有絲毫時間被浪費掉,日子過得忙碌而紮實。除了袁老師之外,當然要 感謝的人很多。曾經帶領過我作研究的蕭存喻、吳瑞祥和葉秉哲三位學長,經常 跟我討論論文並提供意見的高子漢學長,謝謝你們的指導跟建議。還有感謝我的 同學們:葉倫武,你總是幫我解決實驗室雜七雜八的問題;於之鈞,有你陪我談 天論地,心情再煩也會變得開朗;柯憲昌,我們一起做了研究討論,也激盪出不 少的想法;沈上謙,從你身上看到如何積極規劃安排自己;吳仁凱,經常和我談 資訊人員的心酸,也許真的有一天可以考慮去賣香雞排;高啟涵,我們二人總是 一起搭檔報告論文;還有另外二位女同學朱文如、林慧雯,妳們是實驗室的唯二 朵花。認識你們,增添二年研究所生活不少色彩。最後當然要感謝我的父母,沒 有你們無私對孩子的愛,就沒有今天的我。謹以這篇論文奉獻給我的雙親。. v.

(6) Table of Contents Acknowledgement .....................................................................................v Table of Contents .................................................................................... vi List of Figures.......................................................................................... ix List of Tables............................................................................................ xi Chapter 1 Introduction.............................................................................1 1.1.. Motivation......................................................................................................1. 1.2.. Objectives ......................................................................................................2. 1.3.. Thesis Organization .......................................................................................3. Chapter 2 Background .............................................................................5 2.1.. 2.2.. 2.3.. WAP Concept.................................................................................................5 2.1.1.. WAP 1.x .........................................................................................5. 2.1.2.. WAP 2.0 .........................................................................................7. WAP Security Mechanisms............................................................................9 2.2.1.. WTLS...........................................................................................10. 2.2.2.. WPKI ...........................................................................................12. ME Security Functionality...........................................................................14 2.3.1.. WIM.............................................................................................14. 2.3.2.. WMLScript Crypto Library .........................................................15. Chapter 3 Certificates Analysis .............................................................18 3.1.. X.509 Certificate..........................................................................................18 3.1.1.. Content.........................................................................................18. 3.1.2.. ASN.1...........................................................................................19. 3.1.3.. DER..............................................................................................22 vi.

(7) 3.1.4. 3.2.. 3.3.. Base64..........................................................................................22. WAP Certificates..........................................................................................23 3.2.1.. Profiled X.509 Certificates ..........................................................23. 3.2.2.. WTLS Certificate.........................................................................25. 3.2.3.. Hashed Certificate........................................................................28. 3.2.4.. Signed Certificate.........................................................................29. 3.2.5.. Resp Certificate............................................................................30. Signature Algorithms ...................................................................................31 3.3.1.. SHA-1 Hash Algorithm................................................................32. 3.3.2.. RSA Signature Algorithm ............................................................32. 3.3.3.. ECDSA Signature Algorithm.......................................................33. Chapter 4 Toolkit Framework and Implementation ...........................35 4.1.. Certificates Conversion Paths ......................................................................35. 4.2.. Framework Design.......................................................................................37. 4.3.. 4.4.. 4.2.1.. WAP Certificate Converter Toolkit..............................................37. 4.2.2.. Java Cryptography Architecture ..................................................38. 4.2.3.. Bouncy Castle Crypto ..................................................................39. 4.2.4.. Cryptix JCE..................................................................................39. 4.2.5.. PureTLS Toolkit...........................................................................40. 4.2.6.. Java Certificate Services ..............................................................40. Converter Library.........................................................................................40 4.3.1.. Building Blocks ...........................................................................40. 4.3.2.. CAModule....................................................................................42. 4.3.3.. ConverterFactory .........................................................................43. Converter GUI .............................................................................................44 4.4.1.. ResourceManager ........................................................................45 vii.

(8) 4.4.2.. ActionManager ............................................................................45. 4.4.3.. StatusManager..............................................................................46. 4.4.4.. UserObject ...................................................................................46. 4.4.5.. Display .........................................................................................47. Chapter 5 Experiment and Evaluation.................................................48 5.1.. 5.2.. 5.3.. Experiment 1: Certificates Conversion Paths ..............................................48 5.1.1.. Environment Configuration .........................................................48. 5.1.2.. Experiment Result........................................................................49. 5.1.3.. Evaluation ....................................................................................53. Experiment 2: Import WAP Certificates into WIM .....................................53 5.2.1.. Environment Configuration .........................................................53. 5.2.2.. Experiment Result........................................................................54. 5.2.3.. Evaluation ....................................................................................61. Experiment 3: A Simple M-Commerce Application with Crypto.signText.61 5.3.1.. Environment Configuration .........................................................61. 5.3.2.. Experiment Result........................................................................62. 5.3.3.. Evaluation ....................................................................................63. Chapter 6 Conclusions and Future Works ...........................................64 Conclusions..............................................................................................................64 Future Works............................................................................................................65. Reference..................................................................................................66. viii.

(9) List of Figures Figure 2-1: The WAP Programming Model1.x .............................................6 Figure 2-2: WAP Gateway as Protocol Switch ..............................................6 Figure 2-3: WAP 1.x Protocol Stack and TCP/IP equivalent.........................7 Figure 2-4: The WAP Programming Model 2.0 (1) .......................................8 Figure 2-5: The WAP Programming Model 2.0 (2) .......................................8 Figure 2-6: WAP 2.0 Protocol Stack and Architecture ..................................9 Figure 2-7: WTLS Internal Architecture......................................................10 Figure 2-8: SignText and WPKI ..................................................................12 Figure 4-1: WAP certificates conversion paths............................................36 Figure 4-2: Architecture of WAP Certificate Converter Toolkit ..................37 Figure 4-3: packages of WAP Certificate Converter Toolkit .......................38 Figure 4-4: Class Diagram of Building Blocks............................................41 Figure 4-5: public methods of CAModule...................................................42 Figure 4-6: ConverterFactory class..............................................................44 Figure 4-7: major components of Converter GUI........................................45 Figure 4-8: inheritance hierarchy of UserObject .........................................47 Figure 5-1: create a CA X.509 certificate ....................................................50 Figure 5-2: create a User X.509 certificate..................................................50 Figure 5-3: convert to WTLS certificate......................................................51 Figure 5-4: convert to Hashed certificate.....................................................51 Figure 5-5: convert to Signed certificate .....................................................52 Figure 5-6: convert to Resp certificate.........................................................52 Figure 5-7: import a CA X.509 certificate ...................................................55 ix.

(10) Figure 5-8: import a CA WTLS certificate ..................................................56 Figure 5-9: import a CA Hashed certificate.................................................57 Figure 5-10: import a CA Signed certificate................................................58 Figure 5-11: import a user X.509 certificate................................................59 Figure 5-12: import a user Resp certificate..................................................60 Figure 5-13: download the order for confirmation ......................................62 Figure 5-14: sign the order and submit ........................................................63. x.

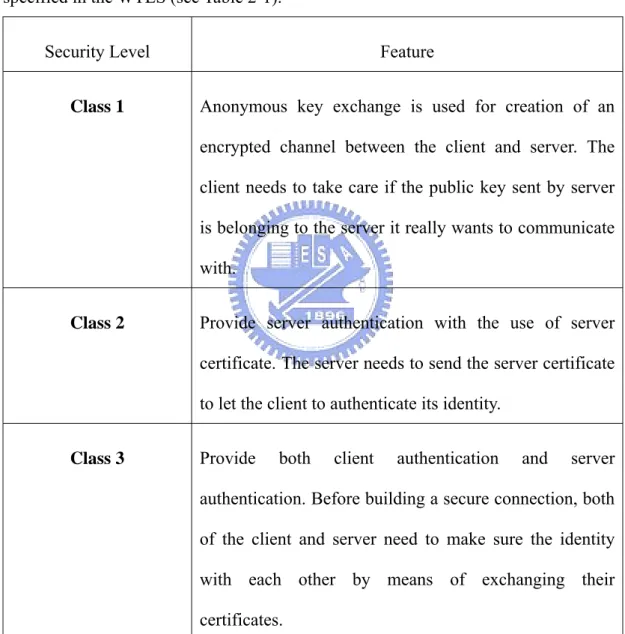

(11) List of Tables Table 2-1: classes of security level in WTLS .............................................. 11 Table 2-2: Comparison of WPKI and PKI ...................................................13 Table 2-3: Structure of command APDU.....................................................15 Table 2-4: Structure of response APDU.......................................................15 Table 2-5: Prototype of Crypto.signText......................................................16 Table 3-1: Common fields of all versions of X.509 certificate....................19 Table 3-2: ASN.1 data types used in X.509 certificate ................................21 Table 3-3: WAP Profiled X.509 certificates of CA and user........................24 Table 4-1: Wrapper classes for WAP certificates .........................................42 Table 5-1: Experiment 1 Result ...................................................................49 Table 5-2: Experiment 2 Result ...................................................................54 Table 5-3: Experiment 3 Result ...................................................................62. xi.

(12) Chapter 1 Introduction 1.1. Motivation With rapid growth and development of mobile devices, such as mobile phones, Personal Digital Assistant (PDA) and Pocket PC, today most people possess at least one of those mobile devices.. The pervasiveness and mobility of hand-held devices. lead to more and more demand to do business on them. And one of the major concerns needed to be solved in mobile e-business is the security issue. In WAP, it provides two kinds of security for this goal. One is communication security, defined in WTLS (Wireless Transport Layer Security) and TLS (Transport Layer Security). The other is end-to-end security, specified in WPKI (Wireless Public Key Infrastructure), WIM (Wireless Identity Module), and WMLScript Crypto Library. Both of them use certificates as a mean of proving identity and doing encryption operations. A certificate is a digital credential that binds the identity of a subject to a public key. Certificates are usually issued by a trusted third party named Certification Authority (CA) in a public key infrastructure. Nowadays, most CA’s like VeriSign and Thawte issue certificates based on X.509 format. However, the existing Internet X.509 certificate is not suitable to directly bring into the mobile devices without any modification because of the limitations of mobile devices such as lower computing power and less memory and storage. Although the WAP has introduced several certificate formats tailed for mobile devices in different situations, the overload and convenience to create WAP compatible certificates by the existing CA’s is still a problem. So, we develop a WAP Certificate Converter Toolkit 1.

(13) to help the CA’s to easily transform the Internet X.509 certificates they issued into WAP compatible certificates for the mobile devices.. 1.2. Objectives The purpose of this thesis is to enhance the security for increasing the mobile e-business development.. We will focus on providing a convenient toolkit for the. existing Internet CA’s to produce WAP compatible certificates for mobile applications. The objectives that we want to achieve are as follows: z. We want to be able to produce WAP compatible certificates across different WAP versions. WAP has defined a set of protocols as the standard for mobile devices manufacturers and developers to follow in the mobile world, and is still a continuous job since 1997. Until now, there are several major changes in the WAP history that result in different requirements over WAP versions. For example, before WAP 1.2, the security support in WAP is only through WTLS that just ensures the data transport between mobile devices and WAP gateways, and the CA certificates stored in the mobile devices for server authentication must be the WTLS format. Because not all of mobile devices keep up with the latest version of WAP, we need to consider the compatibility for different WAP versions. In practice, we can solve this problem by requesting a mobile device to provide its supporting WAP capability and accordingly transferring the certificate needed to it on the fly.. z. We want to be able to produce WAP compatible certificates from the existing CA’s that issue X.509 format certificates with little overhead. In the wired world, the Internet has developed a lot of complete and matured protocols to engage in e-business. And most Internet CA’s have already built 2.

(14) their public key infrastructures in accordance with those standards. Even for WAP, it models its protocols by modifying the existing Internet protocols to fit into mobile environment. So, to request the existing CA’s to build another mechanism for issuing WAP compatible certificates will increase the cost of implementation and maintenance. A feasible strategy is to provide an adaptive layer to transform the existing X.509 certificates into WAP compatible ones. The major goal of our converter toolkit is to supply such an adaptive layer to assist CA’s in doing the transformation easily for mobile applications. z. We want to be able to produce WAP compatible certificates by different people with a convenient way. We target two kinds of people to use our converter toolkit. One is the programmers and the other is the operators. For programmers, we provide a set of application programming interfaces (APIs) packed in the form of library to be used by them. For the operators, we supply a visual graphic user interface (GUI) that is friendly to do the certificates conversion and can see each field of the resulting certificate in a variety of views.. 1.3. Thesis Organization In Chapter 2, we discuss the background of WAP and its security mechanisms. In Chapter 3, we introduce the Internet X.509 certificate format, WAP certificate formats, and signature algorithms used to apply on WAP certificates. In Chapter 4, we discuss the design and implementation of our proposed converter toolkit. It will cover the conversion paths from the X.509 certificates to WAP compatible ones and the components of two interfaces – library and GUI – in detail. In Chapter 5, we conduct 3.

(15) three experiments to verify what we claim in the Objectives section and evaluate the results. In Chapter 6, we give the conclusions and show some future works.. 4.

(16) Chapter 2 Background 2.1. WAP Concept The Wireless Application Protocol (WAP) is a set of protocols made by the WAP Forum which is founded by Ericsson, Motorola, Nokia and Phone.com (formerly Unwired Planet) in June 1997. It aims to be the mobile equivalent of traditional Internet by using the existing Internet standards, mainly TCP/IP and WWW, and extending them for the wireless networks and mobile devices. In contrast to wired networks, wireless networks have several fundamental limitations. They have less bandwidth that can cause poor performance, high latency and less connection stability. Similarly, compared to desktop computers, mobile devices also have limitations to be considered, including less memory and powerful CPU, smaller displays, limited input facilities, and restricted power consumption.. 2.1.1. WAP 1.x. Programming Model Based on the request-response pattern of WWW, the WAP programming model extends it to three-tier architecture: client—gateway—server (see Figure 2-1). The middle proxy performs a bridge between the wireless network and the wired Internet (see Figure 2-2). In the side between the client and the proxy, they communicate with each other via the wireless network like GSM (Global System for Mobile Communications). On the other side, the proxy talks to the server by using wired Internet. In addition to the role of networking protocol switch, the gateway also performs the content encoder and decoder in between to make the data transfer more 5.

(17) compact in the wireless network.. Figure 2-1: The WAP Programming Model1.x (Source: [1]). Figure 2-2: WAP Gateway as Protocol Switch (Source: [2]). Protocol Stack WAP 1.x means the combination of WAP 1.1 and WAP 1.2, made in June 1999 and December 1999 respectively. Actually, the architectures of WAP 1.1 and WAP 1.2 are the same (see Figure 2-3).. 6.

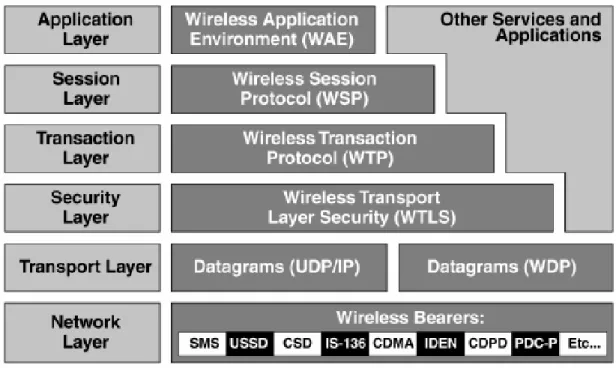

(18) Figure 2-3: WAP 1.x Protocol Stack and TCP/IP equivalent (Source: [1]). In Figure 2-3, it shows the WAP 1.x protocol stack and the equivalent TCP/IP parts. It takes the layered-architecture and modifies from the Internet TCP/IP protocol. Each layer can only communicate with its upper layer and lower layer and not all the layers are required. For example, the WTLS provides the security layer for data transfer, but it is optional. The major difference between WAP 1.1 and WAP 1.2 is the enhancement of end-to-end security that was originally lacked in WAP 1.1. The addition of protocols in WAP 1.2 about security includes WPKI, WIM, and WMLScript Crypto Library.. 2.1.2. WAP 2.0. Programming Model In WAP 2.0, the WAP gateway is not a required component any more. The mobile client can make a HTTP request directly to the web server without through the WAP gateway (see Figure 2-4). However, if you want to offer other mobile services 7.

(19) like location, privacy, and push based services, a WAP gateway is still suggested (see Figure 2-5). Figure 2-4: The WAP Programming Model 2.0 (1) (Source: [3]). Figure 2-5: The WAP Programming Model 2.0 (2) (Source: [3]). Protocol Stack WAP 2.0, published in January 2002, gives a big change to WAP and brings the wireless world closer to the Internet. It refines the WAP protocol stack by replacing the four protocols below the WAE layer in WAP 1.x. with the optimized Internet protocols, including HTTP, TLS, TCP, and IP (see Figure 2-6). Besides, it uses 8.

(20) XHTML/JavaScript in replace of original WML/WML as the new user interface language of mobile devices.. Figure 2-6: WAP 2.0 Protocol Stack and Architecture (Source: [2]). One of the problems WAP 2.0 wants to address is the security hole caused by WTLS and the gateway [9]. In WAP 1.x with WTLS/TLS, the gateway needs to decode the user’s sensitive data in WTLS format and then encode it into TLS format for sending to the web server. In such way, it will give a chance for the gateway to peek user’s sensitive data even though the tunnel between the client and gateway is safe. So, in WAP 2.0, the gateway is no longer performs the role of switch between the wireless and wired network. This improvement decreases the processing overhead in the gateway and effectively enhances the security in the tunnel.. 2.2. WAP Security Mechanisms The security services WAP provided so far can be classified into two categories: one is communication security, supplied by WTLS; the other is end-to-end security, provided by WPKI, WIM, and WMLScript Crypto Library. Communication security requires the client to authenticate the server and encrypt the transfer data between the client and server. The end-to-end security is achieved by requesting a user certificate 9.

(21) to be stored in the mobile device, and using it as the proof of identity and for encryption operations.. 2.2.1. WTLS. WTLS (Wireless Transport Layer Security) [4] is the security layer for data transfer in the WAP 1.x architecture. It is adapted from the TLS (Transport Layer Security) version 1.0 and specifically designed to provide privacy, data integrity, and authentication within the constraints of wireless networks. WTLS itself consists of five protocols (see Figure 2-7).. Figure 2-7: WTLS Internal Architecture (Source: [10]). The WTLS Record Protocol is a layered protocol, which gets messages to be transmitted from the upper layers, optionally compress the data, applies a MAC, encrypts, and transmits the result. On the contrary, the received data from the lower layer is decrypted, verified, decompressed, and then passed to the higher layers. The Record Protocol takes care of the data integrity and authentication. Above the Record Protocol, there are four protocols. The Handshake Protocol is responsible for negotiating the security parameters for a secure session. Security parameters include protocol version, compression method, and information on the use of authentication and public key techniques to generate a shared secret. The Alert Protocol is used to specify the alert messages that convey the security of messages and a description of 10.

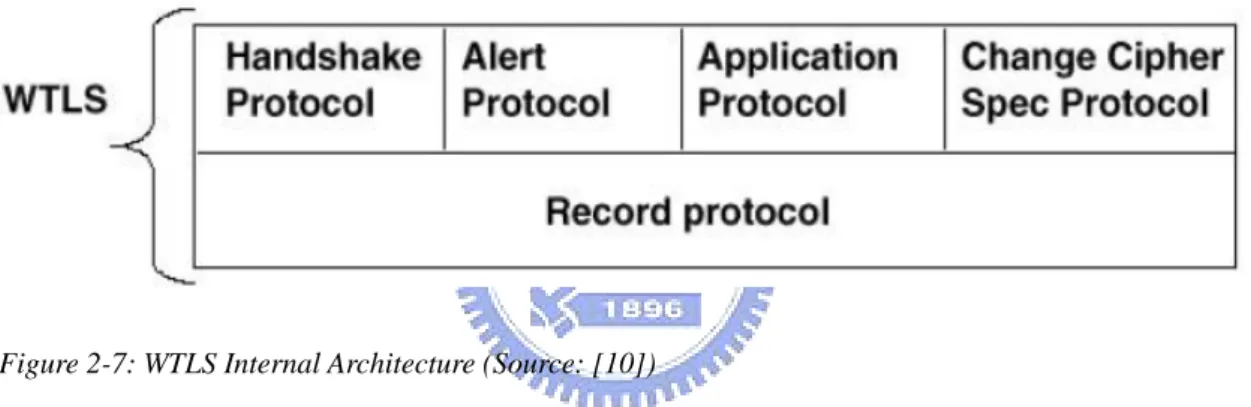

(22) this alert. The Application Protocol is the interface for the upper layers of WTLS to access the WTLS layer. The Change Cipher Spec Protocol defines the messages that are sent during the handshake phase after the security parameters have been agreed on [10]. In addition, there are three classes of security level between the client and server specified in the WTLS (see Table 2-1). Security Level. Feature. Class 1. Anonymous key exchange is used for creation of an encrypted channel between the client and server. The client needs to take care if the public key sent by server is belonging to the server it really wants to communicate with.. Class 2. Provide server authentication with the use of server certificate. The server needs to send the server certificate to let the client to authenticate its identity.. Class 3. Provide. both. client. authentication. and. server. authentication. Before building a secure connection, both of the client and server need to make sure the identity with each other by means of exchanging their certificates. Table 2-1: classes of security level in WTLS. 11.

(23) 2.2.2. WPKI. Just as WTLS is the optimized version of TLS with respect to mobile environments, WPKI (Wireless Public Key Infrastructure) [5] is an optimized extension of a traditional public key infrastructure for the wireless networks. WPKI requires the same components used in the traditional PKI (Public Key Infrastructure), including a Certification Authority (CA), a Registration Authority (RA), a repository to store certificates and Certification Revocation Lists (CRL), and an end-entity application (EE) [23]. However, the EE and RA are implemented differently and a new component called the PKI Portal is introduced. The EE is implemented in WPKI as an embedded module of the micro browser that runs in a WAP device. And the EE relies on the WMLScript Crypto Library to do the cryptographic operations. The PKI Portal typically acts as the role of RA and interoperates with the WAP devices on the wireless network and the CA on the wired network respectively (see Figure 2-8).. Figure 2-8: SignText and WPKI (Source: [5]) 12.

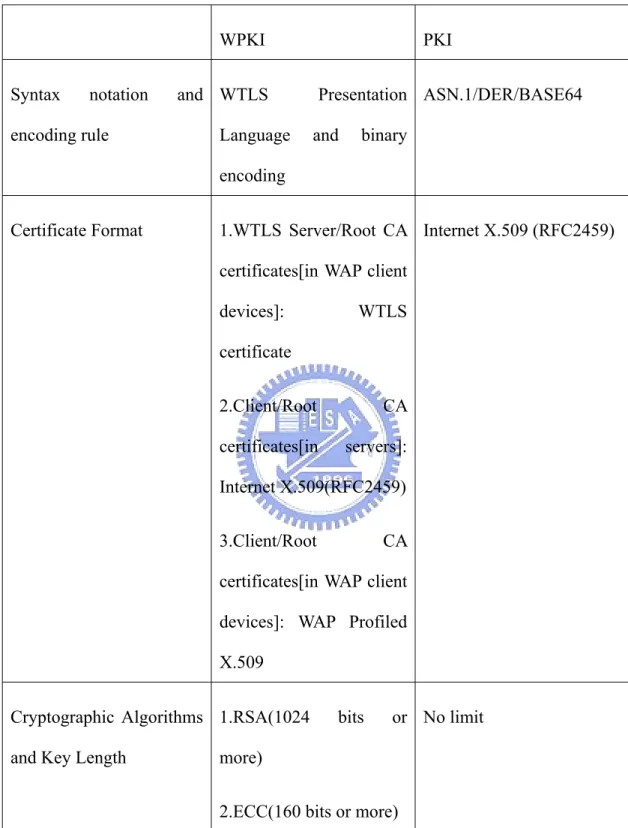

(24) Other wireless-specific adaptation in WPKI, compared to PKI, is summarized in the following table. WPKI Syntax. notation. encoding rule. PKI. and WTLS Language. Presentation ASN.1/DER/BASE64 and. binary. encoding Certificate Format. 1.WTLS Server/Root CA Internet X.509 (RFC2459) certificates[in WAP client devices]:. WTLS. certificate 2.Client/Root. CA. certificates[in. servers]:. Internet X.509(RFC2459) 3.Client/Root. CA. certificates[in WAP client devices]: WAP Profiled X.509 Cryptographic Algorithms 1.RSA(1024 and Key Length. bits. or No limit. more) 2.ECC(160 bits or more). Table 2-2: Comparison of WPKI and PKI. 13.

(25) 2.3. ME Security Functionality WAP puts two security facilities on the Mobile Equipment (ME), usually meaning the mobile devices, to activate the security functionality in the client end of WPKI. They are WIM and WMLScript Crypto Library.. 2.3.1. WIM WIM (Wireless Identity Module) [6] is a module that is tamper-resistant and can securely store sensitive data, such as certificates and private keys, and perform the computation of security operations, like generating random numbers and signatures. The objects and information data described in WIM follow the format of PKCS #15 (Public-Key Cryptography Standards #15). A WIM implementation can be an external smart card or a component embedded within the SIM (Subscriber Identity Module) card. The WIM is intended to perform both client and server authentications in WTLS and prove the user identity for end-to-end security. Communication between WIM and the entities using it is via the command-response protocol in the form of service primitives. A service primitive describes the semantics of one service and its parameters. When WIM is implemented in a smart card or SIM card, the service primitives will be implemented as card commands. A card command is described by using APDU (Application Protocol Data Units) that is the standard form of smart card command defined in the ISO7816-4. There are two types of APDU. One is command APDU whose structure is listed in Table 2-3. The other is response APDU and its structure is shown in Table 2-4.. 14.

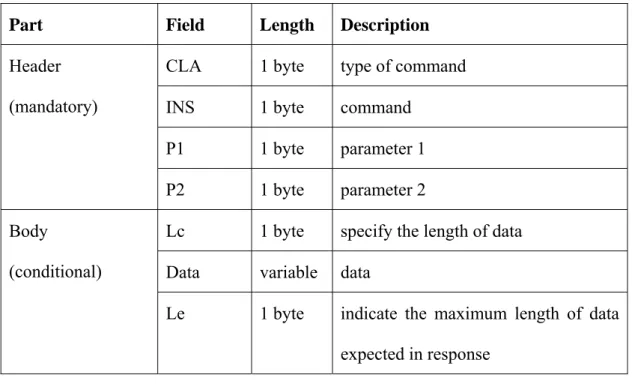

(26) Part. Field. Length. Description. Header. CLA. 1 byte. type of command. (mandatory). INS. 1 byte. command. P1. 1 byte. parameter 1. P2. 1 byte. parameter 2. Body. Lc. 1 byte. specify the length of data. (conditional). Data. variable. data. Le. 1 byte. indicate the maximum length of data expected in response. Table 2-3: Structure of command APDU. Part. Filed. Length. Description. Body. Data. variable. response data for the command APDU. SW1. 1 byte. status1. (conditional) Trailer (mandatory). after. execution. of. the. execution. of. the. command APDU SW2. 1 byte. status2. after. command APDU Table 2-4: Structure of response APDU. 2.3.2. WMLScript Crypto Library The WMLScript Crypto Library [7] is a part of WMLScript that is a script language, like the JavaScript for HTML, to manipulate the WML (Wireless Makeup Language) for better user interaction. This library is intended to use with WIM to. 15.

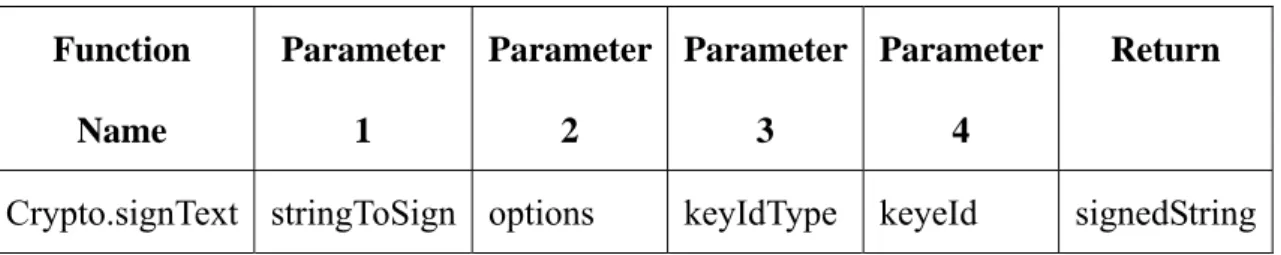

(27) provide cryptographic operations. Currently, the library only supports digital signature functionality by the WMLScript function, Crypto.signText, which asks the user to sign a string of text. The prototype of Crypto.signText is listed in the following table.. Function. Parameter. Name. 1. Parameter Parameter Parameter 2. 3. Crypto.signText stringToSign options. keyIdType. Return. 4 keyeId. signedString. Table 2-5: Prototype of Crypto.signText. z. stringToSign: String This parameter is the string to be signed. Before being signed, the string should be converted to the same encoding if it contains different character sets. The recommended encoding is UTF-8.. z. options: Integer Both of this and next parameters represent several option values that are ORed together into an integer. There are three options in this parameter: INCLUDE_CONTENT,. INCLUDE_KEY_HASH,. and. INCLUDE_CERTIFICATE. The first option, if it is set, will include the string to be signed in the result. The second option, if it is set, will include the hash value of the public key corresponding to the signature key in the result. The third option, if it is set, will include the certificate or a URL of the certificate in the result. z. keyIdType: Integer This parameter indicates the type of a key identifier specified in next parameter. There are three options. NONE means the browser may use any key and corresponding certificate in WIM. USE_KEY_HASH means the next parameter will be the SHA-1 hash value of the user public key. TRUSTED_KEY_HASH 16.

(28) means the next parameter is supplied with the SHA-1 hash value of a trusted CA public key and the browser must use a signature key issued by the trusted CA to sign the string. z. keyId: String The specified key based on the previous parameter. It can be an empty string or a string including the SHA-1 hash value of one public key or multiple, concatenated SHA-1 hash values of several public keys.. z. return: String If the signText operation is successful, the resulting string will be the Base64 encoding of SignedContent structure defined in [7].. 17.

(29) Chapter 3 Certificates Analysis As we known, most existing Internet CA’s issue certificates in the format of X.509. Among WAP versions, it introduces several certificates accustomed for the wireless environment as well. In this chapter, we will elaborate each of them in terms of content meaning, syntax description, and encoding rule. After that, we introduce the signature algorithms that are supported in the WAP specification to apply on WAP compatible certificates.. 3.1. X.509 Certificate 3.1.1. Content. An X.509 certificate [11] binds a public key to a subject represented by a naming convention called Distinguished Name (DN). Such a certificate is also named an identity certificate in that it is used to authenticate the identity of the subject. A Distinguished Name is a global name composed of the combination of Common Name (CN), Organization Unit (OU), Organization Name (O), Locality Name (L), State Name (S), and Country (C). Currently, there are four versions of X.509 certificate. Version 1 specifies the basic fields; version 2 introduces the unique identifiers of subject and issuer, and CRL (Certificate Revocation List); version 3 adds the notation of extensions; version 4 supports for the attribute certificate that is not binding a public key to a DN but to one or more attributes. Table 3-1 shows the common fields of all versions of X.509 certificate [25].. 18.

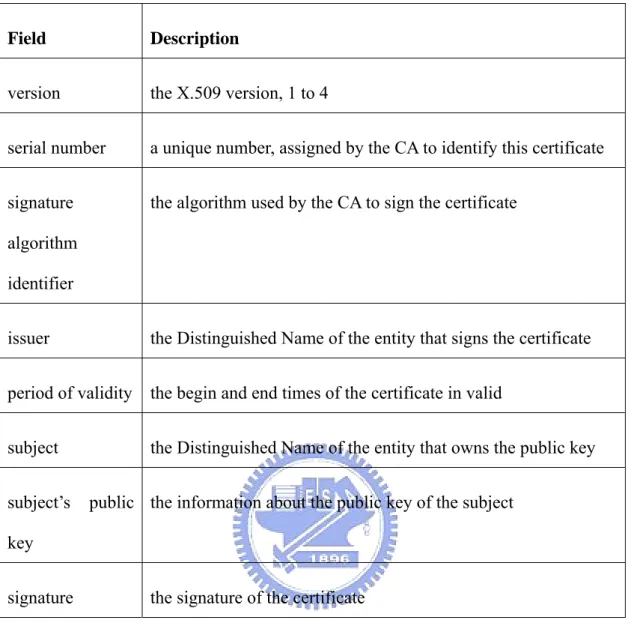

(30) Field. Description. version. the X.509 version, 1 to 4. serial number. a unique number, assigned by the CA to identify this certificate. signature. the algorithm used by the CA to sign the certificate. algorithm identifier issuer. the Distinguished Name of the entity that signs the certificate. period of validity. the begin and end times of the certificate in valid. subject. the Distinguished Name of the entity that owns the public key. subject’s. public the information about the public key of the subject. key signature. the signature of the certificate. Table 3-1: Common fields of all versions of X.509 certificate. 3.1.2. ASN.1. The X.509 standard [11] describes a certificate using the notation known as Abstract Syntax Notation One (ASN.1). As the name indicated, ASN.1 is not tied to any programming language and is designed to abstractly describe messages to be exchanged between communicating applications on different computer systems. ASN.1 consists of a set of well-defined primitive data types and methods to construct more complex data types from the primitive data types. Here, we only list some important data types that are used in the X.509 certificate in Table 3-2. 19.

(31) Data Type. Description. Boolean. two possible values are TRUE and FALSE. INTEGER. any positive or negative integer whatever its length. CHOICE. like the union type in C language, providing several alternatives to choose one. SEQUENCE. like the struct type in C language, containing data items in order. SEQUENCE OF. same to SEQUENCE except the type of each data item is the same. SET. similar to SEQUENCE except that the data items are no ordered. SET OF. same to SET except the type of each data item is the same. OBJECT. a global naming convention used to point to an object within a. Identifier GeneralizedTime. predefined hierarchy of naming space. a way to model a date and time by means of a character string: four digits for the year, two digits for the month, two digits for the day, two digits for the hour, two digits for the minute, and optionally a dot or comma and two digits for the second. By default, this way describes the local date and time. You can also use a positive (+) or negative (-) delay with respect to the universal time coordinate (UTC) to express the. 20.

(32) local date and time. If this format wants to describe the UTC, just append the ‘Z’ to the end of the character string to indicate it. UTCTime. same to GeneralizedTime except only two digits for the year. BIT STRING. a binary string of ‘0’ and ‘1’. Octet String. same to BIT STRING, emphasizing on an octet as a unit; an octet has 8 bits.. PrintableString. the alphabet that can be printable includes spaces, uppercase and lowercase letters, digits and the symbols “’”, “(“, “)”, “+”, “,”, “-“, “.”, “/”, “:”, “=”, and “?”.. UniversalString. the UCS (Universal multiple-octet coded Character Set) standard define 231 cells (each cell contains a single character) to accommodate all the alphabets of all the languages in the world. It plans 128 groups of 256 planes of 256 rows of 256 cells. Currently, only the first plane (38,885 cells) called Basic Multilingual Plane (BMP) is allocated. A character will be encoded by four bytes (UCS-4) [29].. BMPString. represent the first plane of UCS. It uses two bytes to encode a character.. UTF8String. use “UCS Transformation Format, 8-bit form” (UTF-8) to efficiently encoding a character of BMPString into variable length.. Table 3-2: ASN.1 data types used in X.509 certificate 21.

(33) 3.1.3. DER Although ASN.1 provides a good way to describe messages in an abstract manner, the content of messages requires to be encoded by some rules for transfer between communicating applications. Several encoding rules for ASN.1 exist [29]. Basic Encoding Rules (BER) is the first encoding rules of ASN.1 and the basis for the other encoding rules. BER has the format of a 3-tuple <Type, Length, Value>, TLV for short. T indicates a data type in the ASN.1. For each type, there exists an adjacent encoding rule. L points out the number of bytes that V occupies. Based on BER, there are another two encoding rules – Canonical Encoding Rules (CER) and Distinguished Encoding Rules (DER). The reason why CER and DER are created is BER allows too many encoding options for the same value such that the intermediate relaying parties may re-encode the transfer data with different options, which is not accepted for secured data like digital signature. So, CER and DER put constraints on BER to make the encoding of the same value with no degree of freedom. The major difference between CER and DER is CER allows the indefinite-length format while DER only uses a definite-length format. In practice, DER is the mostly used encoding rules for X.509 certificates.. 3.1.4. Base64 The result of DER encoding of an X.509 certificate is binary content that is not human readable and not suitable to transmit over a text-only medium like e-mail. Base64 is a way to convert unreadable characters of 8-bit ASCII character set into readable characters. The principle of Base64 is as follows. For each three bytes (8*3=24 bits) of the binary content, cut them into 4 chunks of 6-bit and encode each chunk into a Base64 character (26 = 64 characters ,‘A’ to ‘Z’, ‘a’ to ‘z’, ‘0’ to ‘9’, ‘+’ , 22.

(34) ‘/’, plus ‘=’) [14].. 3.2. WAP Certificates There are several kinds of certificates specified in WAP for different purposes. The WTLS provides the communication security for data transfer in WAP 1.x and defines three classes of security level. WTLS Class 2 requires sever authentication and thus brings the format of WTLS certificate. Moreover, the WPKI supports the end-to-end security for the need of m-commerce to ensure the not-repudiation service. In WPKI, certificates are intended to be stored in the WIM which is usually embedded in the mobile device. How to download CA certificates into WIM correctly and make user certificates more efficiently stored in WIM become two important issues. For these issues, WAP creates a profile of the X.509 certificate accustomed to the wireless environments and defines several certificate formats for the downloading mechanisms.. 3.2.1. Profiled X.509 Certificates To make the X.509 certificates to be used in the wireless networks, WAP has set profiles for X.509 certificates of different roles [8]. For the CA, it defines the least required fields for certificates stored in WIM or sent over-the-air via WAP protocols. For the user, it defines two types of certificates stored in WIM for user authentication and digital signature, respectively. In general, the WAP Profiled X.509 certificates of CA and user contain the same common fields as existing Internet X.509 certificates. The fields specific to WAP are listed in the following table.. 23.

(35) Field. CA. User. certificate serial number. less than 8 bytes. signature algorithm. z. sha1withRSAEncryption. z. ecdsa-with-SHA1. subject public key. RSA, ECC. key length. z. RSA key: at least 1024 bits. z. ECC key: at least 160 bits. keyUsage. N.A. (not available). z. RSA key: digitalSignature, keyEncipherment, nonRepudiation. z. ECC key: keyAgreement nonRepudiation. subjectKeyIdentifier. z. RSA: SHA-1 hash of the modulus of public key of the subject. z. ECC: SHA-1 hash of the x-coordinate of the elliptic curve point. authorityKeyIdentifier. same to. the subjectKeyIdentifier. subjectKeyIdentifier. of the issuer. basicConstraints. isCA. N.A.. extKeyUsage. id-kp-codeSigning. N.A.. Table 3-3: WAP Profiled X.509 certificates of CA and user. 24.

(36) 3.2.2. WTLS Certificate Before WAP 2.0, WTLS is the only way to create secure connections for data transfer. In the process of building a secure connection between the client and server, the client will need to identify the server to ensure which server it is talking to. One of ways to prove identity is using a certificate. The WTLS introduces a compact, binary encoding certificate called WTLS certificate for server authentication. Basically, the fields in the WTLS certificate are similar to the common fields of X.509 certificates. However, the WTLS certificate omits the extensions of the X.509 certificate and uses a more efficiently binary encoding rule than the DER to reduce the size in large. The presentation language of data structure in WTLS is explained as follows [4]: z. The basic block size is one byte (8 bits) and the byte ordering for a multi-byte value is big-endian that the leftmost bit is the most significant bit.. z. A comment is enclosed by the “/*” and “*/”.. z. An optional component is denoted by enclosing it in “[[]]” double brackets.. z. An opaque means one byte which the data is not interpreted.. z. A vector (single dimensioned array) is a stream of homogeneous data elements, expressed in the form of “T T’[n];” . T means a data type. T’ is a new type that is a fixed length vector of type T. The size of T’ is n bytes, where n is a multiple of the size of T.. z. A variable length vector is denoted by “T T’<floor..ceiling>”, where flooring and ceiling represent the minimum and maximum length of bytes, inclusively.. z. The basic numeric data type is unsigned by unit8. Extended numeric data types like unit16, unit24, and unit32 are the fixed length vectors of uint8.. z. They type enum is represented by “enum {e1(v1), e2(v2),…, en(vn), [[n]]} Te;”. 25.

(37) The e1(v1) means the first element and its value of enum type Te which may take n bytes as the maximum length. Without explicitly specifying n, the space of Te will be the number of bytes that can contain the largest value of its elements. z. A structure type that is much like the struct of C language is defined by: struct{ T1 f1; T2 f2; … Tn fn; } [[T]];. A WTLS certificate is defined as a structure type [4]. The syntax and meaning are listed in the following: struct { ToBeSignedCertificate to_be_signed_certificate; Signature signature; } WTLSCertificate;. struct { uint8 certificate_version; SignatureAlgorithm signature_algorithm; Identifier issuer; uint32 valid_not_before; uint32 valid_not_after; Identifier subject; PublicKeyType public_key_type; 26.

(38) ParameterSpecifier parameter_specifier; PublicKey public_key; } ToBeSignedCertificate;. select( SignatureAlgorithm ) { case anonymous: { }; case ecdsa_sha: digitally-signed struct { opaque sha_hash[20]; } case rsa_sha: digitally-signed struct { opaque sha_hash[20]; } } Signature; The certificate_version is always 1. The supporting signature algorithms are SHA1/RSA and SHA1/ECDSA. The public key types are RSA and EC. The content of the subject and issuer is organized as follows: <servicename>; <organization>; <country>[; <commonname>[; <extension> [; <extension>[…]]]] where: “; “ is a 2-character field separator. <servicename> is equivalent to Organization Unit (OU). <organization> is equivalent to Organization (O) <country> is equivalent to Country (C) 27.

(39) <commonName> is equivalent to Common Name (CN) <extension> is an attribute in the form of <type>=<value>. 3.2.3. Hashed Certificate Either in WTLS or in TLS, to verify the server identity by means of server authentication needs the trusted CA certificate that issued the server certificate, directly or indirectly. In order to provide integrity, the trusted CA certificate is downloaded in self-signed format. However, this way does not provide authentication. To provide the authentication of the trusted CA certificate, the WPKI has specifies two downloading mechanisms and each mechanism brings a new certificate format [5]. The first mechanism is called out of band hash verification and the certificate syntax is as follows: struct { uint8 version; CertDisplayName displayName; Certificate trustedCACert; opaque cainfo_url <0..28-1>; HashAlgorithm hash_alg; } TBHTrustedCAInfo; The presentation language of the hashed certificate is same to the WTLS certificate. The version must be 1 and the displayName is a name for display on the WAP client device. The trustedCACert is the original CA certificate that can be an X.509 certificate or WTLS certificate. The cainfo_url contains the CA’s URL for the client to get further information about it. The hash algorithm is SHA-1. The essential of this method is that firstly wrapping the CA certificate into a 28.

(40) TBHTrustedCAInfo structure and then hashing it with SHA-1 to calculate a hash value of 30 decimal digits. The steps to work out the hash value are as follows: Step 1: Apply SHA-1 to TBHTrustedCAInfo to get the SHA-1 digest of 160 bits. Step 2: Take the leftmost 80 bits of the SHA-1 digest and divide them into five groups, each group with 16 bits. Step 3: Each of the five groups can be expressed as a 5 decimal digits (from ‘00000’ to ‘65535’). Then, for each group, calculate the check digit by (a) Double the values of digits located at the odd positions from the left, leaving the digits at even positions unchanged, and then combine all of the digits, newly double digits and unchanged digits, into a new group of decimal digits. (b) Add the individual digits of the new group. The sum must be a number ending in zero (30, 40, 50, etc.). If the sum is not ending in zero, then the check digit (0~9) is added to make it end in zero. So, each original group of 5 decimal digits will get a check digit to append in the end. Step 4: Combine the five groups of 6 decimal digits; we get the hash value of 30 decimal digits.. 3.2.4. Signed Certificate The second mechanism for authentication of the trusted CA certificate is called signature verification method. This method is simple. It also uses the same presentation language as WTLS. To make a signed certificate, wrapping the CA certificate into a TBSTrustedCAInfo structure, signing it to get the signature, and finally. putting. both. the. TBStrustedCAInfo. and. signature. SignedTrustedCAInfo structure. The syntax is stated as follows [5]. struct { TBSTrustedCAInfo tc_info; 29. into. the.

(41) Signature signature; } SignedTrustedCAInfo;. struct { uint8 version; CertDisplayName displayName; Certificate trustedCACert; opaque cainfo_url <0.. 28-1>; Certificate signerCert; SignatureAlgorithm sig_alg; } TBSTrustedCAInfo; Several fields of the signed certificate are same to those of the hashed certificate. The only difference is that a signed certificate will take the signer’s certificate with it for the client to verify the signature in the SignedTrustedCAInfo structure.. 3.2.5. Resp Certificate The user certificates defined in WAP are WAP Profiled X.509 user certificates [8]. They can be saved in a LDAP directory or a database, or delivered to the mobile device. If the user certificate has to be delivered, the WPKI specifies three possible downloading types for it. WPKI use the certificate format defined in the following to accommodate these downloading types [5]. struct { unit8 version; CertRespType type; select (type) { case cert_info: 30.

(42) CertDisplayName display_name; Identifier ca_domain; Identifier subject; opaque url<0..255>; case cert: CertDisplayName display_name; Identifier ca_domain; Identifier subject; X509Certificate cert; case referral: opaque url<0..255>; uint32 seconds_to_wait; } } CertResponse; The first type just provides the URL about where the user certificate is located. This is the preferred downloading type of the user certificate due to the less storage in the client device. The second type will take the whole user certificate to be downloaded. The third type is only used for requesting a new user certificate from a CA and the CA responds it with the waiting time to retrieve the user certificate again.. 3.3. Signature Algorithms This section will introduce two signature algorithms – RSA and ECDSA-supported in the WPKI. Both of these two algorithms use the SHA-1 as the hash algorithm to generate the hash value of the message before creating the signature.. 31.

(43) 3.3.1. SHA-1 Hash Algorithm In cryptography, a hash algorithm is a function that takes a message of arbitrary length as input, and outputs a fixed-size unique value, namely hash value or digest. Such a function has several good properties. First, for any message of large size, the length of output is short and fixed. Second, for any two different messages, there will be two unique hash values. Third, it is very hard to derive the original message from a hash value. Therefore, a hash value can be used to serve as a representation of the input message. Secure Hash Algorithm 1 (SHA-1) [12], based on MD4, is the hash algorithm proposed by the U.S. National Institute for Standards and Technology (NIST), and adopted by WAP to calculate the hash numbers for hashed certificates. The hash value SHA-1 will produce is 160 bits of length. In addition to provide the identity of a message, SHA-1 often coordinates with the signature algorithm to provide data integrity. The algorithm details of SHA-1 and the difference between SHA-1 and MD4 can be found in [26] [27].. 3.3.2. RSA Signature Algorithm RSA signature algorithm is the first and most popular signature algorithm invented by R. L. Rivest, A. Shamir, and L. Adleman in 1978 [15]. It is belonging to the public-key cryptosystem whose security is based on the hardness of solving the factoring problem for a very big prime number. To create and verify a signature, you first need to have a key pair -- private key and public key. Below is the algorithm to create a RSA key pair [26]. Step 1: Generate two large distinct primes p and q with roughly same size Step 2: Calculate n = p*q and φ(n) = (p-1)*(q-q), where φ(n) means the number 32.

(44) of primes less and equal to n. Step 3: Choose a random positive integer e, less than φ(n) and relative prime to φ(n). Step 4: Compute d = e-1 mod φ(n), where e* e-1 ≡ 1 ( mod φ(n) ) Step 5: (n, e) is the public key; (n, d) is the private key With the key pair, we can generate a signature by a private key and verify it with the corresponding public key. The algorithms are as follows. Suppose m represents the message to be signed by the private key and H means the hash algorithm. 1. Signature Production: (a) Calculate m’ = H(m), where m’ is the hash value of m (b) Compute s = (m’)d mod n (c) s is the signature for m 2. Verification: (a) Calculate m’ = se mod n (b) Compute m’’ = H(m), where m is the message attached with the signature s (c) compare m’ to m’’; if not equal, verify failed.. 3.3.3. ECDSA Signature Algorithm Digital Signature Algorithm (DSA) is another signature algorithm that is adopted as the Digital Signature Standard by NIST. Like RSA signature algorithm, it also needs a key pair before doing signature related operations. The details about DSA key pair generation, and signature creation and verification can be found in [16]. Elliptic Curve DSA (ECDSA) is the elliptic curve analogue of the DSA by using the elliptic curve cryptosystems (ECC) as the underlying basis. The advantages of ECC include smaller key sizes, less bandwidth requirements, lower power 33.

(45) consumption. So, ECC shows its attractiveness to limited computing environments such as mobile devices. The background about ECC and the algorithms of ECDSA are also clearly explained in [16].. 34.

(46) Chapter 4 Toolkit Framework and Implementation In last chapter, we have explored the Internet X.509 certificate and WAP compatible certificates in detail and discussed the signature algorithms supported by WAP. In this chapter, we will introduce the design and implementation of our proposed converter toolkit for WAP. The ultimate goal of our toolkit is to enhance the mobile security for m-commerce. To provide the WAP compatible certificates for different purposes across several WAP versions and to assist the existing Internet CA’s easily porting their issued X.509 certificates to wireless networks with little afford, we design a converter toolkit that provides two interfaces – a library and a GUI – to decode the content of Internet X.509 certificates and then encode into WAP compatible certificates. Our target certificates include both CA certificates and user certificates. And the supporting signature algorithm we choose to implement is RSA. This is because most Internet CA’s issue X.509 certificates by using RSA signature algorithm.. 4.1. Certificates Conversion Paths Before we do the conversion, we need to have the Internet X.509 certificates first. In addition to using the existing Internet X.509 certificates as the source of conversion, out converter toolkit can also generate the WAP Profiled X.509 certificates for CA and user, respectively. With the X.509 certificates, we can make them as input to the converter toolkit to do the conversion for outputting the desired WAP certificates. In principle, the 35.

(47) certificates conversion paths can be divided into two categories (See Fig. 4-1).. Figure 4-1: WAP certificates conversion paths. The first kind of conversion paths is for the CA X.509 certificates that are self-signed by their own private keys. For a CA X.509 certificate, it can be converted into three different WAP compatible certificates. One is the WTLS certificate, which is specified in the WTLS specification for providing server authentication to build a secure connection between the client and server. The other two are essentially the wrapping of CA X.509 certificates for the downloading mechanisms defined in the WPKI specification. The second kind of conversion paths is for the user X.509 certificates that are issued by the CAs. For a user X.509 certificate to be delivered to the mobile device, it needs to be converted to the downloading format specified in the WPKI specification. As described in section 3.2.5, the user X.509 certificate can be wrapped into three 36.

(48) kinds of forms. Out converter toolkit implements the URL form which is suggested in the WPKI.. 4.2. Framework Design We implement the WAP certificate converter toolkit in Java (JDK 1.4) and build it upon the Java Cryptography Architecture. The whole framework is shown in Figure 4-2. In this section, we first describe the components of our toolkit and the utility libraries underlying it. And then, in next two sections, we discuss the implementation details of our converter toolkit.. Figure 4-2: Architecture of WAP Certificate Converter Toolkit. 4.2.1. WAP Certificate Converter Toolkit Our proposed WAP Certificate Converter Toolkit is made up of a library and a 37.

(49) friendly GUI application based on the library to provide a variety of views of all certificates talked in the Chapter 3. It contains four Java packages, shown in Figure 4-3. The library consists of dcslab.wap and dcslab.wap.cert two packages. The GUI application is implemented in the dcslab.wap.ui package. The dcslab.wap.util package provides convenient facilities supporting for both the library and the GUI application.. Figure 4-3: packages of WAP Certificate Converter Toolkit. 4.2.2. Java Cryptography Architecture One of the famous features in Java language is the tightly binding with security. Two architectures about security defined in Java are the Java Security Architecture and Java Cryptography Architecture. The former regulates the security mechanism of Java platform while the latter emphasizes on the cryptographic functionality for Java language [24]. Java Cryptography Architecture and its extension, Java Cryptography Extension, provide a service provider framework that they define the interfaces of cryptographic API, the Java Security API, and leave the implementation of those API to the 38.

(50) cryptographic service providers. Currently, in Java platform, Sun has supplied a few cryptographic service providers such as Sun, SunJCE, Sun JSSE, and SunJGSS to provide default implementation of Java Security API.. 4.2.3. Bouncy Castle Crypto Even though Sun has already supplied several cryptographic service providers, it still lacks many demanding security functionalities. For example, we can not create an X.509 certificate from the standard Java Security API, not to mention other low-level cryptographic manipulations. Moreover, the source code of Sun’s cryptographic implementation is not completed, even it can be downloaded freely, and can not be modified with arbitrary. Therefore, we need other cryptographic service providers to overcome above deficiencies. The Bouncy Castle Crypto package is an open source project that provides a Java implementation of cryptographic algorithms [17]. It makes up for the insufficiency of Sun’s service providers. In addition to easily modifying it to fit our need, it also provides quite a few convenient low-level API to manipulate cryptographic algorithms and X.509 certificates. Our converter toolkit makes use of these API to deal with ASN.1 syntax, DER encoding, and X.509 certificates.. 4.2.4. Cryptix JCE Cryptix JCE is another Java cryptographic service provider [18]. It is the chosen service provider by the PureTLS toolkit (see next section). The Java Certificate Services (see below section) also uses it to transform the binary format of X.509 certificates to the BASE64 format.. 39.

(51) 4.2.5. PureTLS Toolkit PureTLS Toolkit is the Java version of SSL implementation developed by Eric Rescorla [28]. It provides the API for Java Certificate Services to create the RSA key pair and the X.509 certificate request in PKCS #10 format. Besides, it also provides the utility for our converter toolkit to wrap a string of Distinguished Name into an X509Name object.. 4.2.6. Java Certificate Services Java Certificate Services (JCS), developed by Vladimir Silva, provide the management of X.509 certificates, including certificate request creation (CSR), CSR signature, user certificate creation, and self-signed (CA) certificate creation [13]. JCS has implemented a simple Internet CA and can create Internet X.509 certificates for CA and user. Our converter toolkit modifies it for generating the WAP Profiled X.509 certificates of CA and user.. 4.3. Converter Library 4.3.1. Building Blocks. From the previous introduction, we take advantage of the underlying libraries, especially the Bouncy Castle Crypto package, to process the stuff about X.509 certificates. However, to convert X.509 certificates to WAP compatible certificates, we need to be able to deal with the syntax and binary encoding of WAP certificates. So, we implement the presentation language specified in WTLS specification as Java classes in the dcslab.wap.cert package to provide the high-level value access and 40.

(52) low-level data encoding. A data type defined in the presentation language will extend the abstract class AbstractEncoder that implements the Encodable interface and supply the implementation of method getData() with binary encoding of its value (see Figure 4-4). The binary encoding of a data type is a 2-tuple <length, value>. The length is either explicitly defined with the data type or the least space to contain the largest value of the data type.. Figure 4-4: Class Diagram of Building Blocks. In addition, we provide four wrapper classes for WAP certificates as the unified interface for outside access. They are WTLSCert, HashedCert, SignedCert, and RespCert. The essential information encapsulated in these wrapper classes is listed in the following table. Wrapper Class. WAP certificate. MIME Type. WTLSCert. WTLSCertificate. application/vnd.wap.wtls-ca-certificate. HashedCert. TBHTrustedCAInfo. application/vnd.wap.hashed-certificate. SignedCert. SignedTrustedCAInfo. application/vnd.wap.signed-certificate. 41.

(53) RespCert. CertResponse. application/vnd.wap.cert-response. Table 4-1: Wrapper classes for WAP certificates. 4.3.2. CAModule. This class and its supporting classes provide the functionality of creation of key pairs and X.509 certificates, parsing of X.509 certificates, and DER encoding of ASN.1 syntax. CAModule acts as a CA and the Figure 4-5 shows its public methods.. Figure 4-5: public methods of CAModule. We use the RSA algorithm to generate a key pair and the key length is either 1024 bits or 2048 bits that corresponds to the requirement of WAP. The signature algorithm of the X.509 certificate is SHA-1/RSA. The process of creating a new CA X.509 certificate is as follows. Step 1, we create a public/private key pair with a random number as the seed. Step 2, we wrap the string of CA name into a X509Name object and use it, the generated public key, and other information to fill out the TBSCertificate structure. Step 3, we apply SHA-1 hash algorithm on the TBSCertificate structure to get a digest of 160-bit length and then sign the digest with RSA signature algorithm to get the signature. Step 4, the combination of TBSCertificate structure and the signature is what so called an X.509 certificate. Step 5, the content of an X.509 in Step 4 is DER encoding; that is, certain binary format. To make it human readable and can be transmitted through textual medium, we 42.

(54) transform it into the text form by Base64 encoding. Then, we insert the header “-----BEGIN CERTIFICATE-----“before it and append the footer “-----END CERTIFICATE-----“after it. The resulting text is usually what we apply for an X.509 certificate from the Internet CA. The creation of a user X.509 certificate is similar to that of a CA X.509 certificate. However, there are two differences. First, the CA certificate is self-signed; that is, the fields of subject and issuer are with the same value and the whole certificate is signed by the subject’s private key. Second, the extension fields such as keyUsage,. extKeyUsage,. basicConstraints,. subjectKeyIdentifer,. and. authorityKeyIdentifier have different meanings between a CA certificate and a user certificate.. 4.3.3. ConverterFactory. The task of CAModule is to create X.509 certificates of CA and user. Once we have the X.509 certificates, we can convert them into WAP compatible certificates by the need. The conversion is done via the ConverterFactory class (see Figure 4-6). ConverterFactory is designed as an abstract class that its subclasses have to implement. four. abstract. methods.. They. are. generateWTLSCert(),. genereateHashedCert(), generateSignedCert(), and generateRespCert(). The first three methods are to convert a CA X.509 certificate into WTLSCert, HashedCert, SignedCert, respectively. The last method is used to convert a user X.509 certificate into a RespCert. A conversion path means the transforming process from one certificate to another. For each conversion path, we design a dedicated class for the conversion job and put it as an inner static class in the ConverterFactory. The reason why we do such design 43.

(55) is we hope to concentrate the conversion capabilities on the ConverterFactory abstract class so that the concrete classes inheriting from it can easily and flexibly choose the conversion. classes. to. fulfill. the. abstract. methods.. For. example,. the. X509ConverterFactory class is a subclass of ConverterFactory and implements the four abstract methods by using the four conversion classes embedding in the ConverterFactory.. Figure 4-6: ConverterFactory class. 4.4. Converter GUI The Converter Library provides the API for programmers to do the entire conversion job. To use it needs writing programs. For convenience of use and for operators who are not good at programming, we design a GUI application to make the conversion more easily. The GUI is not only based on the Converter Library, but also further provides a variety of views for a certificate. There are four views of a certificate that our GUI can support. The field view can see the high-level value of. 44.

(56) each field of the certificate. The syntax view can show the data structure of a field. The binary view can watch the low-level binary encoding of the field. The Base64 view can look the text form of the certificate. The major components of the GUI application are depicted in Figure 4-7.. Figure 4-7: major components of Converter GUI. 4.4.1. ResourceManager ResourceManager is responsible for the creation of menus, popup menus, toolbar, menu items, and buttons. It reads a configuration file that records the information of all resources and generates above described UI stuff to hook in the main frame.. 4.4.2. ActionManager ActionManager is the manager of the states of all action objects. Basically, for a GUI application, several UI items may trigger the same action object when they are activated. To reflect the states of those UI items linking with the same action object in 45.

(57) time, ActionManager will maintain a state database to record the recent status of all action objects.. 4.4.3. StatusManager StatusManager takes responsibility for managing the status bar. The job it performs is to show the helpful information in the status bar when the mouse pointer moves on the UI items.. 4.4.4. UserObject The UserObject is a data object set in a tree node. Actually, it is a data container that encapsulates the certificate object. The inheritance hierarchy of UserObject and the containing certificate objects (in the parentheses) are shown in Figure 4-8. When a tree node is selected, the UserObject it links with will be passed to the Display (see next section) to show the detailed information of the certificate.. 46.

(58) Figure 4-8: inheritance hierarchy of UserObject. 4.4.5. Display The Display is just a collection concept. In fact, it is the displaying panel of field view, syntax view, binary view, and Base64 view. For each certificate object, there will have a corresponding Display to it. Each time the selected tree node passed the UserObject to its corresponding Display, the information of the certificate object within the UserObject will be retrieved and shows in the right regions of the displaying panel.. 47.

(59) Chapter 5 Experiment and Evaluation To evaluate our proposed converter toolkit, we conduct three experiments. The first experiment is to create WAP compatible certificates from X.509 certificates. We use the GUI version of our toolkit to do this experiment. The second experiment is to test the correctness of those certificates from the first experiment. We will import the WAP certificates created by the first experiment into a simulated WAP cell phone to see whether those WAP certificates can be accepted. In the final experiment, we demonstrate a small m-commerce application that will make a digital signature via the Crypto.signText() method with a user private key.. 5.1. Experiment 1: Certificates Conversion Paths This experiment wants to verify the conversion paths described in section 4.1. Those conversion paths will create WAP compatible certificates.. 5.1.1. Environment Configuration To do the conversion, we need to have the Internet X.509 certificates of CA and user. For simplicity, we create them directly from the GUI application. In fact, the X.509 certificates produced by our toolkit have already been the WAP Profiled ones. Even so, they still can be used as the sources of the conversion.. 48.

(60) 5.1.2. Experiment Result The test items and results are shown in the following table. Test Item. Description. Result. create a CA X.509 the CA X.509 certificate is used as the see Figure 5-1 certificate create. a. source of conversion user the user X.509 certificate is used as see Figure 5-2. X.509 certificate. the source of conversion. convert to WTLS convert the CA X.509 certificate into a see Figure 5-3 certificate. WTLS certificate. convert to Hashed convert the CA X.509 certificate into a see Figure 5-4 certificate. Hashed certificate. convert to Signed convert the CA X.509 certificate into a see Figure 5-5 certificate. Signed certificate. convert to Resp convert the user X.509 certificate into see Figure 5-6 certificate. a Resp certificate. Table 5-1: Experiment 1 Result. 49.

(61) Figure 5-1: create a CA X.509 certificate. Figure 5-2: create a User X.509 certificate. 50.

(62) Figure 5-3: convert to WTLS certificate. Figure 5-4: convert to Hashed certificate. 51.

(63) Figure 5-5: convert to Signed certificate. Figure 5-6: convert to Resp certificate. 52.

(64) 5.1.3. Evaluation The six test items will create two private keys, six certificates, and a hash value of 30 digital numbers. Four of six certificates are the converted WAP certificates whose filename extensions are .wtls, .hashed, .signed and .resp. The hash value is stored in a file with extension .hashnumbers. From the view of certificate size, DER encoding of X.509 certificates really produces more bytes than the binary encoding of WTLS certificates.. 5.2. Experiment 2: Import WAP Certificates into WIM This experiment will check the correctness of those certificates created by Experiment 1 by importing them to the WIM within a mobile phone.. 5.2.1. Environment Configuration. We use the Nokia Mobile Browser 4.0 (NMB 4.0) [19] as the simulated mobile phone. Within the NMB 4.0, there is software-based WIM called Nokia SoftID to store the imported certificates. We will import the certificates from locally and remotely. To locally import a certificate, we use the tool provided by Nokia SoftID. For remotely downloading certificates, we need the WAP gateway and the PKI Portal. We use the Nokia WAP Gateway Simulator 4.0 (NWGS 4.0) [20] and Tomcat 4.1 [22] to simulate the WAP gateway and the PKI Portal, respectively.. 53.

(65) 5.2.2. Experiment Result The test items and results are shown in the following table. Test Item. Description. Result. import a CA X.509 import the CA X.509 certificate see Figure 5-7 certificate. locally to the WIM. import a CA WTLS import the CA WTLS certificate see Figure 5-8 certificate import. locally to the WIM a. CA download the CA Hashed certificate see Figure 5-9. Hashed certificate. remotely to the WIM. import a CA Signed download the CA Signed certificate see Figure 5-10 certificate. remotely to the WIM. import a user X.509 import the user X.509 certificate see Figure 5-11 certificate. locally to the WIM. import a user Resp download the user X.509 certificate see Figure 5-12 certificate. remotely to the WIM. Table 5-2: Experiment 2 Result. 54.

(66) Figure 5-7: import a CA X.509 certificate. 55.

(67) Figure 5-8: import a CA WTLS certificate. 56.

(68) Figure 5-9: import a CA Hashed certificate. 57.

(69) Figure 5-10: import a CA Signed certificate. 58.

(70) Figure 5-11: import a user X.509 certificate. 59.

(71) Figure 5-12: import a user Resp certificate. 60.
