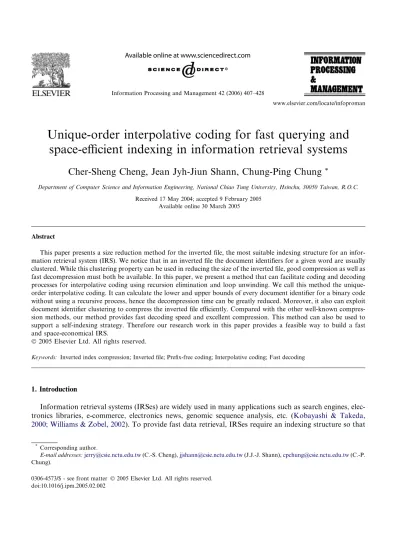

Unique-order interpolative coding for fast querying and

space-eﬃcient indexing in information retrieval systems

Cher-Sheng Cheng, Jean Jyh-Jiun Shann, Chung-Ping Chung

*

Department of Computer Science and Information Engineering, National Chiao Tung University, Hsinchu, 30050 Taiwan, R.O.C. Received 17 May 2004; accepted 9 February 2005

Available online 30 March 2005

Abstract

This paper presents a size reduction method for the inverted file, the most suitable indexing structure for an infor-mation retrieval system (IRS). We notice that in an inverted file the document identifiers for a given word are usually clustered. While this clustering property can be used in reducing the size of the inverted file, good compression as well as fast decompression must both be available. In this paper, we present a method that can facilitate coding and decoding processes for interpolative coding using recursion elimination and loop unwinding. We call this method the unique-order interpolative coding. It can calculate the lower and upper bounds of every document identifier for a binary code without using a recursive process, hence the decompression time can be greatly reduced. Moreover, it also can exploit document identifier clustering to compress the inverted file efficiently. Compared with the other well-known compres-sion methods, our method provides fast decoding speed and excellent comprescompres-sion. This method can also be used to support a self-indexing strategy. Therefore our research work in this paper provides a feasible way to build a fast and space-economical IRS.

Keywords: Inverted index compression; Inverted ﬁle; Preﬁx-free coding; Interpolative coding; Fast decoding

1. Introduction

Information retrieval systems (IRSes) are widely used in many applications such as search engines, elec-tronics libraries, e-commerce, elecelec-tronics news, genomic sequence analysis, etc. (Kobayashi & Takeda, 2000; Williams & Zobel, 2002). To provide fast data retrieval, IRSes require an indexing structure so that

*

Corresponding author.

E-mail addresses:[email protected](C.-S. Cheng),[email protected](J.J.-J. Shann),[email protected](C.-P. Chung).

(2)

the desired data can be located quickly. Compared with the signature file, the Pat tree, and the bitmap, the inverted file is the most suitable indexing structure for an IRS due to its quick response time, high compres-sion efficiency, scalability, and support for various search techniques (e.g. Boolean, ranked, phrase, and proximity queries) (Faloutsos, 1985; Frakes & Baeza-Yates, 1992; Witten, Moffat, & Bell, 1999; Zobel, Moffat, & Ramamohanarao, 1998). Compression of inverted files is essential to large-scale IRSes. This is because the total time of transferring a compressed inverted list and subsequently decompressing it is potentially much less than that of transferring an uncompressed inverted list. All the well-known inverted file compression methods trade off between compression ratio and decompression time. Can we develop a method that has both the advantages of compression ratio and fast decompression?

1.1. Inverted ﬁle compression and its diﬃculties

An inverted ﬁle contains, for each distinct term t in the collection, an inverted list of the form ILt¼ < ft; id1; id2; . . . ; idft>;

where frequency ftis the total number of documents in which t appears, and idiis the identiﬁer of the

doc-ument that contains t. To process a query, the IRS retrieves the inverted lists of the terms appearing in the query, and then performs some set operations, such as intersection (\) and union ([), on the inverted lists to obtain the answer list (Frakes & Baeza-Yates, 1992; Witten et al., 1999).

A popular compression technique (Witten et al., 1999) is to sort the document identifiers of each inverted list in increasing order, and then replace each document identifier (except the first one) with the distance between itself and its predecessor to form a list of d-gaps. For example, the inverted list <5; 13, 18, 22, 35, 42> can be transformed into d-gap representation as <5; 13, 5, 4, 13, 7>. Although every document identifier is distinct, their d-gaps show some probability distributions. Many coding methods, such as unary coding (Elias, 1975), c coding (Elias, 1975), Golomb coding (Golomb, 1966; Witten et al., 1999), skewed Golomb coding (Teuhola, 1978), batched LLRUN coding (Fraenkel & Klein, 1985; Moffat & Zobel, 1992), variable byte coding (Scholer, Williams, Yiannis, & Zobel, 2002), and word-aligned ‘‘Carryover-12’’ mechanism (Anh & Moffat, 2005), have been proposed for compressing inverted lists by estimates for these d-gaps probability distributions. The more accurately the estimate, the greater the compression can be achieved. In this paper, Golomb coding means the ‘‘Local Bernoulli model’’ described in Witten et al. (1999).

The document identifiers for any given word are not uniformly distributed, since the documents in the collection are inserted in chronological order and the wordÕs popularity changes over time (Moffat & Stu-iver, 2000). These document identifiers tend to be clustered, and inverted file compression may benefit if this clustering can be taken into account. Based on the d-gap technique, some coding methods, such as skewed Golomb coding and batched LLRUN coding, can capture clustering of documents via accurate estimates to achieve satisfactory compression performance. However, the estimates in these methods are relatively sophisticated, which require more decompression time, so they are not yet applied in real IRSes.

Recently, Moﬀat and Stuiver (2000)have proposed interpolative coding. It is independent of the esti-mates for the d-gaps probability distributions. By using clustering with a recursive process of calculating ranges and codes in an interpolative order, superior compression performance can be achieved. However, interpolative coding is computationally expensive due to a stack required in its implementation, which pro-hibits it from being widely used in real-world IRSes.

Therefore, to solve problems such as the slow response time and the large disk space required in large scale IRSes, a new method that provides high speed decoding and exploits clustering well to achieve good compression should be developed.

(3)

1.2. Research goal

In terms of query throughput rates,Trotman (2003)shows that for small inverted lists Golomb coding is recommended, whereas for large inverted lists variable byte coding is recommended. Furthermore,Anh and Moﬀat (2005)show that word-aligned ‘‘Carryover-12’’ mechanism allows a query throughput rate that is higher than Golomb coding and variable byte coding, regardless of the lengths of the inverted lists. Although these compression methods provide high query throughput rates, their compression eﬃciencies need to be improved.

In this paper, we develop a new method based on interpolative compression combined with a d-gap com-pression scheme. We call it the unique-order interpolative coding. The results of this research showed that the unique-order interpolative coding can take advantage of document identiﬁer clustering in inverted lists to achieve good compression performance. Nevertheless, the decoding speed of this new method is even faster than that of Golomb coding and word-aligned ‘‘Carryover-12’’ mechanism.

This paper is organized as follows. In Section 2, we present the interpolative coding that is the most space eﬃcient method known to compress inverted ﬁles. In Section 3, we present the unique-order interpo-lative coding. Then we show the quantitative analysis and the simulation results in Sections 4 and 5. In Sec-tion 6, we present some possible applicaSec-tions of the unique-order interpolative coding. Finally, SecSec-tion 7 presents our conclusion.

2. Interpolative coding 2.1. Algorithm description

Moﬀat and Stuiver (2000)have proposed a compression technique called interpolative coding. It makes full use of the clustering in a recursive process of calculating ranges and codes, and demonstrates superior compression performance. In this method, the storing order as well as lower bound lo and upper bound hi of every document identiﬁer x are calculated, and then function Binary_Code(x, lo, hi) is called to encode x in some appropriate manner. The simplest mechanism uses only binary code to encode x in dlog2ðhi lo þ 1Þe bits. The algorithm is described inFig. 1.

This interpolative coding is best illustrated with an example. Consider the inverted list <7; 1, 2, 5, 6, 8, 10, 13> in a collection of N = 20 documents. According to the algorithm inFig. 1, the middle item in the list, the identifier 6, is encoded. This identifier must take on a value ranged from 1 to 20. Addi-tionally, since there are three other identifiers on each side of this middle item, its possible value range is fur-ther limited to from 4 to 17. We represent this fact with (x, lo, hi) = (6, 4, 17), indicating that the document identifier x is within the range lo. . .hi. Once the coding of document identifier 6 is accomplished, the three document identifiers on the left-hand side may take on values 1–5 and those three on the right-hand side 7–20. According to the same rule, the three document identifiers on the left can be processed first, followed by those three on the right. Therefore, the complete sequence of (x, lo, hi) triples generated by algorithm Interpolative_Code are (6, 4, 17), (2, 2, 4), (1, 1, 1), (5, 3, 5), (10, 8, 19), (8, 7, 9), and (13, 11, 20). Using the sim-plest implementation of Binary_Code, the corresponding codewords are 4, 2, 0, 2, 4, 2, and 4 bits long.

Using a centered minimal binary code, the compression eﬃciency of interpolative coding can be further improved (Moﬀat & Stuiver, 2000). The centered minimal binary code works in the following way. Support that a number in the range 1. . .r is to be coded. A simple binary code assigns codewordsdlog2re bits long to

all values 1 through r, and wastes 2dlog2re_{r codewords. That is, 2}dlog2re_{r of the codewords can be}

short-ened by one bit without loss of unique decodability. These minimal codewords are then centered on the encoding range. Numbers at the extremes of the range requiring one bit more for storage than those in the center.

(4)

2.2. Observation and improvement

The major overhead of interpolative coding is that a recursive process is used to calculate the order and range of every document identiﬁer. Although a recursive process can be converted to a non-recursive one (Tenenbaum, Langsam, & Augenstein, 1990), the converted code requires a stack, which makes the coding and decoding very slow. This is why interpolative coding is not widely used in IRSes.

We observed that the calculation of the order and range for every document identiﬁer can be accelerated by storing partial results in memory. Consider a general inverted list ILt= <ft; id1, id2, . . ., idft>, where ftis

the number of documents containing term t, idk< idk+1, and all document identiﬁers are within the range 1–

N. Using the interpolative coding method inFig. 1, for every ft, we can obtain the full sequence of triples for

the list. Some examples are shown in Table 1. These triple sequences are useful for interpolative coding to calculate the order and range for each document identiﬁer. For example, consider the inverted list ILt= <ft= 5; id1= 1, id2= 2, id3= 5, id4= 7, id5= 8> for a collection of N = 10 documents. The values of

this list can be calculated using ft= 5 triples in Table 1. The full sequence of triples are (id3, 3, N 2) =

(5, 3, 8), (id1, 1, id3 2) = (1, 1, 3), (id2, id1+ 1, id3 1) = (2, 2, 4), (id4, id3+ 1, N1) = (7, 6, 9), and (id5,

i d4+ 1, N) = (8, 8, 10). Storing such a table containing a full set of triple sequences in memory is helpful

for the coding and decoding processes of interpolative coding. Compared with the method inFig. 1, this improved method eliminates need for a stack in the document identiﬁer order and range calculation, saving a large amount of time.

Fig. 1. Interpolative coding.

Table 1

Some examples of the full sequence of triples for the general inverted list

ft The full sequence of triples for the general inverted list

1 (id1, 1, N)

2 (id1, 1, N 1), (id2, id1+ 1, N)

3 (id2, 2, N 1), (id1, 1, id2 1), (id3, id2+ 1, N)

4 (id2, 2, N 2), (id1, 1, id2 1), (id3, id2+ 1, N 1), (id4, id3+ 1, N)

(5)

The triples for each ft can easily be represented as a two-dimensional array I_Triple consisting of ft

rows and 5 columns. This representation for ft= 5 is shown in Fig. 2. The ﬁrst row of the array

repre-sents the first triple, and the second row reprerepre-sents the second triple, and so forth. The first column is used to denote the index of the document identifier in the inverted list for the first element of the tri-ple. For example, I_Triple[3][1] is 2, meaning the first value of No. 3 triple is id2. The second and third

columns denote the index of the document identifier in the inverted list and the offset for the second element of the triple. For example, I_Triple[3][2] and I_Triple[3][3] are two 1s, meaning the second value of No. 3 triple is id1+ 1. Finally, the fourth and fifth columns denote the index of the document identifier in the

inverted list and the oﬀset for the third element of the triple. For example, I_Triple[3][4] and I_Triple[3][5] are 3 and 1, meaning the third value of No. 3 triple is id3 1. To make this representation more

practical and convenient, two extra values are used for each inverted list: idft+1= 0 and idft+2= N.

Therefore, the ﬁrst triple (id3, 3, N 2) inFig. 2can be represented as 3, 6, 3, 7, and 2. The algorithm

in Fig. 3can be used to generate the corresponding triples for each ftand store them in I_Triple[ft] [5].

For a sub-inverted list IL[index . . . (index + k 1)] among idlo_index+ lo and idhi_index+ hi,

Compute_I_Tri-ple(index, k, lo_index, lo, hi_index, hi) can be called to generate the corresponding triples and store them in a two-dimensional array I_Triple.

2.3. Remark

Although the procedure Compute_I_Triple inFig. 3also uses recursive process, it can be processed oﬀ-line and one can store the I_Triples of diﬀerent fts in memory. This can reduce the on-line decoding time

dramatically. With the I_Triple, one can easily ﬁnd minimal binary code in encoding an inverted list, as shown in the following:

for m :¼ 1 to ftdo

output bitstring by invoking Binary_Code(IL[I_Triple[m][1]],

IL[I_Triple[m][2]] + I_Triple[m][3], IL[I_Triple[m][4]] + I_Triple[m][5]);

However, this improved method still requires large memory space. For example, each triple contains ﬁve integers. If an integer takes 4-byte storage space, the memory requirement for a triple is 20 bytes. Therefore, in an inverted list with ftdocument identiﬁers, 20· ftbytes are required. The maximum ftin present IRSes

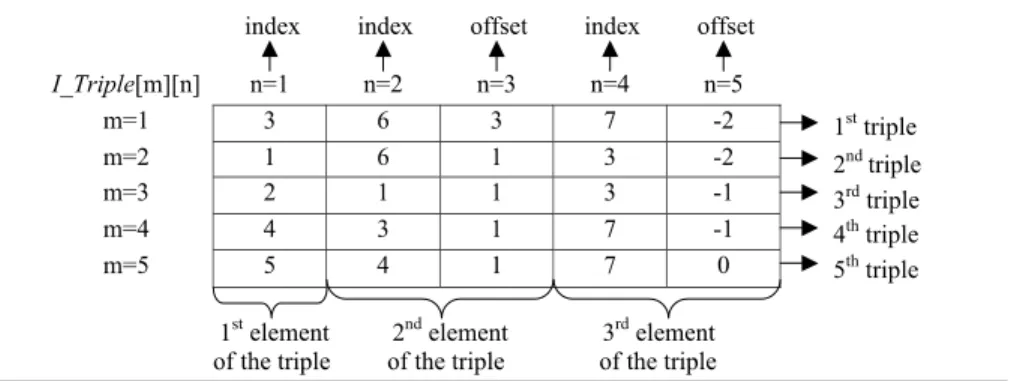

Fig. 2. Given a general inverted list ILt: <ft= 5; id1, id2, id3, id4, id5>, and set idftþ1¼ id6¼ 0 and idftþ2¼ id7¼ N . The corresponding

triples: (id3, 3, N 2), (id1, 1, id3 2), (id2, id1+ 1, id3 1), (id4, id3+ 1, N 1), (id5, id4+ 1, N) can be represented with the

(6)

can reach up to thousands or millions, which means the memory space required for I_Triple storage is ten thousands or even ten millions of bytes. This makes it impossible using memory to accelerate coding and decoding with interpolative code. Furthermore, using I_Triple to encode and decode requires extra memory access time, which makes the decoding speed slow.

3. Unique-order interpolative coding

The recursive process makes the decoding of interpolative coding slow. Although using memory to store partial results of the recursive process can accelerate the coding and decoding of interpolative coding, a large amount of memory is required to store the I_Triple for each ft. We develop a new method called

unique-order interpolative coding in which only one I_Triple is required for the entire coding and decoding process of all inverted lists no matter how many diﬀerent values of ftare present. Then we introduce loop

(7)

unwinding to replace I_Triple with constant values. The number of memory accesses to I_Triple can there-fore be reduced, which accelerates the whole process.

3.1. The coding method

This section presents the details of our proposed coding method. Two key decisions are to be made in the coding method.

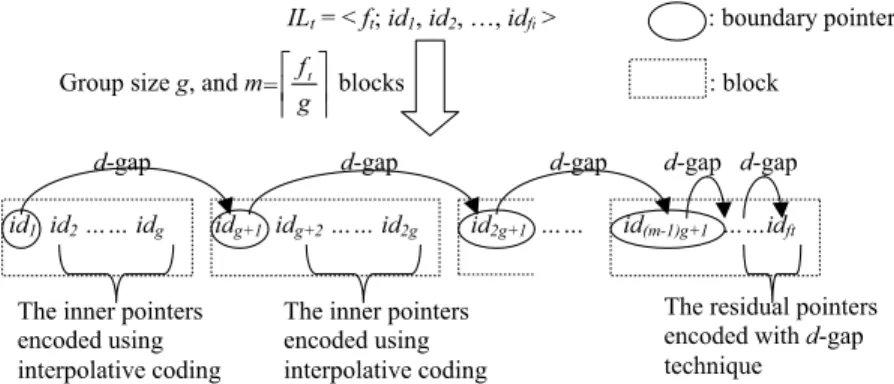

3.1.1. Decomposition of an inverted list into blocks to take advantage of interpolative coding

In an inverted list ILt= <ft; id1, id2, . . ., idft>, ftis the number of documents containing term t, idk< idk+1,

and all document identiﬁers are within the range 1–N. A group size g is ﬁrst determined. Then ILtis divided

into m¼ dft

ge blocks, each having g document identifiers except possibly the last block. We define the first

document identiﬁer in each block to be a boundary pointer, the document identiﬁers between boundary pointers to be inner pointers, and those in the last block except the boundary pointer to be residual point-ers. ILtcan then be compressed as follows. The boundary pointers and its subsequent residual pointers

to-gether can be regarded as a sub-inverted list, and a suitable d-gap compression scheme with high decoding speed can be used for compression. The inner pointers in each block are compressed via interpolative cod-ing. With this new method (seeFig. 4), each inner block contains a constant number (g 1) of inner point-ers, enabling the use of only one I_Triple in coding and decoding. Compared with interpolative coding, this new method allows document identiﬁers to be stored in a ﬁxed order, hence the name unique-order inter-polative coding. When ft6g or m = 1 or g = 1, no inner pointers are present, and we apply only a d-gap

compression scheme.

3.1.2. Choice of a suitable coding method for boundary and residual pointers

Compared with the d-gaps of a traditional d-gap compression scheme, the d-gaps of unique-order inter-polative coding extracted from every group of document identifiers are potentially much larger and may cause a decrease in compression efficiency. Therefore, a suitable coding method is required to encode the boundary pointers to improve compression efficiency. To simplify implementation, the boundary and resid-ual pointers are encoded with the same method.

In this paper, we recommend Golomb coding and r coding for encoding the d-gaps of unique-order interpolative coding. Golomb coding is very suitable for encoding the d-gaps of unique-order interpolative coding, since the d-gaps extracted from every group of document identiﬁers are roughly of the same length. Using c coding is also a relatively economical choice when the document identiﬁers in an inverted list are also close together, and the d-gaps are small. Other coding methods are not disregarded. We are still

(8)

looking for a faster and more compact coding method to encode the d-gaps of unique-order interpolative coding.

To improve the compression eﬃciency of the d-gaps of unique-order interpolative coding, the value g is subtracted from the d-gap of all boundary pointers (except the ﬁrst one) without loss of unique decodabil-ity. This approach works the best when the original d-gaps are small.

3.2. Illustration

This unique-order interpolative coding is best illustrated with an example. Given an inverted list <11; 5, 8, 12, 13, 15, 18, 23, 28, 29, 32, 33>, let the group size g be 4, the document identiﬁers 5, 15, and 29 are therefore the boundary pointers, the document identiﬁers 32 and 33 are the residual pointers, and the others are the inner pointers. Let [idi, idi+1, . . ., idj] represent idi, idi+1, . . ., idj encoded in interpolative

code. Since the two successive boundary pointers must be known before interpolative coding of the inner pointers, the boundary pointer of each block is stored before coding of the inner pointers. Therefore, the inverted list is to be stored as

<11; 5; 15;½8; 12; 13; 29; ½18; 23; 28; 32; 33>;

where [8, 12, 13] and [18, 23, 28] are in interpolative codes, and 5, 15, 29, 32, 33 in d-gaps. The resulted list is

<11; 5; 10ð¼ 15 5Þ; ½8; 12; 13; 14ð¼ 29 15Þ; ½18; 23; 28; 3ð¼ 32 29Þ; 1ð¼ 33 32Þ>:

Next, since there are three document numbers between each pair of boundary pointers, the list can be sim-pliﬁed as

<11; 5; 7ð¼ 10 3Þ; ½8; 12; 13; 11ð¼ 14 3Þ; ½18; 23; 28; 3; 1>:

In decoding, the ﬁrst two d-gaps, 5 and 7, are retrieved to obtain the ﬁrst two boundary pointers, which are 5 and 15 (=5 + 7 + 3). Interpolative coding is then used to obtain [8, 12, 13]. Then, the d-gap, 11, is retrieved to obtain the next boundary point, 29 (=15 + 11 + 3), and interpolative coding is used to obtain [18, 23, 28]. Finally, the residual pointers 32 (=3 + 29) and 33 (=1 + 32) are obtained by the remaining d-gaps.

Now, consider a general inverted list ILt= <ft; id1, id2, . . ., idft> encoded using unique-order interpolative

coding with group size g = 4, the ILtcan be represented as

< ft; id1; id5; ½id2; id3; id4;

id9; ½id6; id7; id8;

id13; ½id10; id11; id12; . . . >;

where id1, id5, id9, id13are encoded using a d-gap coding method and [id2, id3, id4], [id6, id7, id8], [id10, id11, id12]

are encoded using interpolative coding. The example list can be further represented (using triple represen-tation in Section 2) as

< ft; id1; id5 id1 3; ðid3; id1þ 2; id5 2Þ; ðid2; id1þ 1; id3 1Þ; ðid4; id3þ 1; id5 1Þ;

id9 id5 3; ðid7; id5þ 2; id9 2Þ; ðid6; id5þ 1; id7 1Þ; ðid8; id7þ 1; id9 1Þ;

id13 id9 3; ðid11; id9þ 2; id13 2Þ; ðid10; id9þ 1; id11 1Þ; ðid12; id11þ 1; id13 1Þ; . . .>:

We observed that the I_Triple for [idi, idi+1, idi+2] can be converted to the I_Triple for [idi+4, idi+5, idi+6] by

adding 4 (which is the value of g) to the indices of document identiﬁers in the I_Triple for [idi, idi+1, idi+2].

(9)

use Golomb coding to encode boundary pointers and residual pointers, this new coding method can be shown as the program inFig. 5.

3.3. Implementation optimization

This section presents how to use loop unwinding to accelerate the encoding and decoding of unique-order interpolative coding. Note that once the group size g is determined, the program inFig. 5can be fur-ther accelerated. For example, for g = 4, the following program segment inFig. 5

(10)

for i :¼ 0 to (m 1) do index :¼ i · g;

//encode boundary pointer

append Golomb_Code(IL[index + g + 1] IL[index + 1] g + 1, b) to Bitstring;

// encode inner pointers, 8 memory accesses are required for encoding each inner // pointer: 5 for I_Triple accesses and 3 for IL accesses

for j :¼ 1 to g 1 do

append Binary_Code(IL[index + I_Triple[j][1]],

IL[index + I_Triple[j][2]] + I_Triple[j][3],

IL[index + I_Triple[j][4]] + I_Triple[j][5]) to Bitstring; can be converted to

for i :¼ 0 to (m 1) do index :¼ i · 4;

// encode boundary pointer

append Golomb_Code(IL[index + 5] IL[index + 1] 3, b) to Bitstring;

// loop unwinding, only 3 memory accesses of IL are required for encoding each // inner pointer

append Binary_Code(IL[index + 3], IL[index + 1] + 2, IL[index + 5] 2) to Bitstring; append Binary_Code(IL[index + 2], IL[index + 1] + 1, IL[index + 3] 1) to Bitstring; append Binary_Code(IL[index + 4], IL[index + 3] + 2, IL[index + 5] 1) to Bitstring;

In other words, once the group size g has been determined, the I_Triple accesses in loop can be elimi-nated in unique-order interpolative coding. So the 8 3 = 5 times memory accesses for each document identiﬁer can be avoided, which in turn accelerates the encoding process. By using the same approach, the decoding of unique-order interpolative coding can also be accelerated.

4. Analysis

Give an inverted list IL = <f; id1, id2, . . ., idf>, where idk< idk+1, and all document identiﬁers are within the

range 1–N. As stated in Section 3, the ﬁrst step in unique-order interpolative coding is to determine the group size g. Once g is determined, the IL will be divided into m¼ df

ge blocks, with the ﬁrst (m 1) blocks containing

g document identifiers and the last block containing f (m 1)g document identifiers. The boundary point-ers and the residual pointpoint-ers will be coded by efficient prefix-free coding methods such as Golomb coding and ccoding, in d-gap manner, and the inner document identifiers will be coded by the interpolative coding.

Let the function F(N, f ) represent bits needed for compressing the f document identiﬁers ranging from 1 to N. Theoretically, the following approximate formulas can then be achieved (Elias, 1975; Gallager & Van Voorhis, 1975; Golomb, 1966; Mcllroy, 1982; Moﬀat & Stuiver, 2000).

Golomb coding : GðN ; f Þ 6 f 2 þ log2

N f

(11)

ccoding : cðN ; f Þ 6 f 1 þ 2 log2

N f

ð2Þ

Interpolative coding : IðN ; f Þ 6 f 2:5783 þ log2

N f

ð3Þ

If Golomb coding is used to encode the boundary pointers and residual pointers, then the maximum number of bits required to store these f (m 1)(g 1) boundary and residual pointers is

ðf ðm 1Þðg 1ÞÞ 2 þ log2

N

f ðm 1Þðg 1Þ

ð4Þ

If we use c coding to encode these pointers, then the maximum number of bits required is ðf ðm 1Þðg 1ÞÞ 1 þ 2 log2

N

f ðm 1Þðg 1Þ

ð5Þ

Based on Eq.(3), the number of bits required to code the inner pointers ((m 1) groups, (g 1) document identiﬁers in each group) is

Xm1 i¼1 ðg 1Þ 2:5783 þ log2 Ni g 1

; where Ni¼ idgiþ1 idgði1Þþ1 1 ð6Þ

Since Xm1

i¼1

Ni6N ð7Þ

and the sum of the logarithms of the (m 1) individual ranges is maximized when all Ni

g1 are equal, one

obtains Xm1 i¼1 ðg 1Þ 2:5783 þ log2 Ni g 1 6_{ðm 1Þðg 1Þ 2:5783 þ log} 2 N ðm 1Þðg 1Þ ð8Þ

Therefore, if Golomb coding is used to encode the boundary and residual pointers, then the maximum number of bits required by the unique-order interpolative coding is at most

ðf ðm 1Þðg 1ÞÞ 2 þ log2 N f ðm 1Þðg 1Þ þ ðm 1Þðg 1Þ 2:5783 þ log2 N ðm 1Þðg 1Þ ð9Þ Or if we use c coding, it is ðf ðm 1Þðg 1ÞÞ 1 þ 2 log2 N f ðm 1Þðg 1Þ þ ðm 1Þðg 1Þ 2:5783 þ log2 N ðm 1Þðg 1Þ ð10Þ

Eqs.(9) and (10)can be simpliﬁed under the condition that no residual pointers exist. For example, when f = (m 1)g + 1, Eq. (9)can be rewritten as:

(12)

f 2þ log2gþ 2:5783 ðg 1Þ þ ðg 1Þ log2 g g 1 g þ log2 N f 2 6 6 4 3 7 7 5 ð11Þ

and some examples of the maximum number of bits required for unique-order interpolative coding are de-rived in Table 2.

The results inTable 2showed that when Golomb coding is used to encode boundary pointers, the maxi-mum number of bits required in unique-order interpolative coding has inverse relationship with group size g: the maximum number of bits decreases with increase in group size g and increases with decrease in g. On the other hand, if the number of document identiﬁers is less than (g + 1), unique-order interpolative coding cannot be used. We design an experiment in Section 5 to ﬁnd a suitable group size g.

The results in Eqs.(9), (10), andTable 2can be improved if Eq.(3)can be improved. For example, the maximum number of bits required for interpolative coding to encode an inverted list with three document identiﬁers ranging from 1 to N is

log₂ðN 2Þ

d e þ logd 2ae þ logd 2be ð12Þ

since the middle item requiresdlog2ðN 2Þe bits, and the left and right items require dlog2ae þ dlog2be bits

where a, b are two positive integers and a + b = (N 1). Since log2ðN 2Þ

d e < 1 þ log2N ð13Þ

and

log₂a

d e þ logd 2be < ð1 þ log2aÞ þ ð1 þ log2bÞ < 2 þ log2

N 2 þ log2 N 2 ð14Þ hence log₂ðN 2Þ

d e þ logd 2ae þ logd 2be < 3 1:92 þ log2

N 3

ð15Þ We replace Eq.(3)with Eq.(15)when group size g = 4, and the maximum number of bits required for the unique-order interpolative coding under the condition that no residual pointers exist is therefore

f 2:76 þ log2

N f

ð16Þ

Compared with the ﬁgure inTable 2, a much tighter upper bound is obtained.

Table 2

Some examples of the maximum number of bits required for unique-order interpolative coding if Golomb coding is used to encode boundary pointers under the condition that no residual pointers exist

g Maximum number of bits required 2 _f_{3:29 þ log} 2 N f 4 f 3:25 þ log2 N f 8 f 3:05 þ log2 N f 16 f 2:88 þ log2 N f 32 f 2:76 þ log2 N f

(13)

To further understand the characteristics of unique-order interpolative coding, we conducted following experiments. We used encoding methods such as Golomb coding, skewed Golomb coding, batched LLRUN coding, interpolative coding, variable byte coding, Carryover-12 mechanism, unique-order interpolative coding 1 (group size g = 4; boundary pointers and residual pointers by Golomb coding), un-ique-order interpolative coding 2 (group size g = 4; boundary pointers and residual pointers by c coding) in compression. In the ﬁrst experiment (Table 3(a)), f = 1,000,000 gaps were drawn from a geometric distri-bution and compressed using the eight methods. The Golomb coding performs the best, since it is a min-imum-redundancy code for geometric gap distribution (Gallager & Van Voorhis, 1975). Compared with other methods, unique-order interpolative coding is not suitable for a geometric distribution when 2 <N

f <256. But when N

f increases, the performance of unique-order interpolative coding 1 improves

pro-portionally. WhenN

f 62, the results of unique-order interpolative coding 2 are satisfying. For most cases in

the ﬁrst experiment, both variable byte coding and Carryover-12 mechanism are ineﬃcient in compression. In the second experiment, for each value ofN

f the sequence of f = 1,000,000 geometrically distributed

gaps was broken into chunks of 200 contiguous values. The chunks were then placed in groups of five. In the first three chunks of each group, all gaps were multiplied by a factor of 0.1; whereas in the other two chunks all gaps were multiplied by a factor of 2.35. This process created artificial clusters of gaps much similar than the average, and about 60% of the values were coded into these clusters, while the overall aver-age gap remained the same. This better resembles the distribution of real document collections. The results are shown inTable 3(b). Compared with skewed Golomb coding, batched LLRUN coding, and interpola-tive coding, the compression efficiency of Golomb coding is not as good as others, meaning it is unable to exploit clustering well. The compression results of unique-order interpolative coding for a skewed geomet-ric distribution are better than that for a geometgeomet-ric distribution. This means that unique-order interpolative coding does take a good advantage of the clustering property. ForN

f 632, we prefer to use the unique-order

Table 3

Compression results for geometric and skew geometric distributions of f = 1,000,000 gaps: average bits per gap

Coding methods Average gap N/f

1 2 4 8 16 32 64 128 256 512 1024 2048

(a) Geometric distribution

Golomb coding 1.00 2.33 3.30 4.39 5.43 6.45 7.46 8.47 9.47 10.47 11.47 12.47 Skewed Golomb coding 1.00 2.53 3.51 4.60 5.64 6.66 7.67 8.68 9.68 10.68 11.68 12.68 Batched LLRUN coding 1.00 2.27 3.46 4.50 5.53 6.52 7.52 8.52 9.52 10.52 11.52 12.53 Interpolative coding 0.00 2.15 3.45 4.59 5.66 6.69 7.70 8.71 9.71 10.71 11.71 12.72 Variable byte coding 8.00 8.00 8.00 8.00 8.00 8.14 9.08 10.93 12.87 14.24 15.07 15.52 Carryover-12 mechanism 1.07 2.88 4.11 5.17 6.18 7.38 8.75 9.90 10.58 12.30 14.41 15.56 Unique-order interpolative coding 1 3.00 4.19 5.13 5.97 6.76 7.53 8.29 9.06 9.89 10.77 11.68 12.77 Unique-order interpolative coding 2 0.25 2.33 3.91 5.31 6.64 7.92 9.19 10.45 11.70 12.96 14.21 15.46 Self-entropy 0.00 2.00 3.24 4.35 5.40 6.42 7.43 8.44 9.44 10.44 11.43 12.43 (b) Skewed geometric distribution

Golomb coding 1.40 2.60 3.30 4.29 5.33 6.37 7.39 8.40 9.40 10.40 11.40 12.41 Skewed Golomb coding 1.80 2.31 2.92 3.76 4.80 5.79 6.80 7.82 8.82 9.83 10.83 11.83 Batched LLRUN coding 1.40 2.31 2.86 3.60 4.61 5.66 6.70 7.71 8.71 9.71 10.70 11.71 Interpolative coding 0.84 1.53 2.07 2.90 3.97 5.07 6.15 7.19 8.21 9.23 10.23 11.24 Variable byte coding 8.00 8.00 8.00 8.00 8.10 8.58 9.38 10.11 10.63 11.28 12.43 13.80 Carryover-12 mechanism 1.07 2.36 2.90 3.72 4.84 6.02 6.98 7.9 9.35 10.90 12.08 12.57 Unique-order interpolative coding 1 3.60 3.96 4.30 4.80 5.51 6.30 7.11 7.94 8.76 9.60 10.51 11.62 Unique-order interpolative coding 2 1.25 1.90 2.47 3.33 4.53 5.88 7.21 8.53 9.81 11.07 12.33 13.60 Self-entropy 0.97 1.77 2.30 3.05 4.06 5.10 6.15 7.18 8.19 9.19 10.19 11.20

(14)

interpolative coding 2; while forN

f >32, we suggest unique-order interpolative coding 1. Similar to that for

a geometric distribution, the unique-order interpolative coding 1 performs better as N

f becomes larger.

Again, both variable byte coding and Carryover-12 mechanism are ineﬃcient in compression for most cases in the second experiment. FromTable 3(b), interpolative coding can even outperform self-entropy. This is due to the fact that interpolative coding does not use the gap value in encoding directly, but instead uses a minimal binary code to encode every gap after it is converted to a triple.

5. Experiments

An experimental information retrieval system was implemented to evaluate the various coding methods. Experiments were conducted on some real-life document collections, and query processing time and storage requirements for each coding method were measured.

5.1. Document collections and queries

Five document collections were used in the experiments. Their statistics are listed in Table 4. In this table, N denotes the number of documents; n is the number of distinct terms; F is the total number of terms in the collection; and f indicates the number of document identiﬁers that appear in an inverted ﬁle.

Collection Bible is the King James version of the Bible, in which each verse is considered as a document. The second collection, DBbib, is a set of citations to papers appearing in the database literature. The third and fourth collections, FBIS (Foreign Broadcast Information Service) and LAT (LA Times), are disk 5 of the TREC-6 collection that are used internationally as a test bed for research in information retrieval tech-niques (Voorhees & Harman, 1997). The ﬁnal collection TREC includes the FBIS and LAT collections.

Since effectiveness of coding methods relies heavily on clustering of documents, inverted files for these collections were built with a Greedy-NN algorithm (Shieh, Chen, Shann, & Chung, 2003). These inverted files were then used to test the advantages and shortcomings of various coding methods.

We followed the method (Moffat & Zobel, 1996) to evaluate performance with random queries. For each document collection, 1000 documents were randomly selected to generate a query set. A query was gener-ated by selecting words from a word list of a specific document, combined by some randomly genergener-ated Boolean operators ANDs and ORs. To form the document word list, words in the document were case folded, and stop words such as ‘‘the’’ and ‘‘this’’ were eliminated. For example, a query word list may be ‘‘inverted file document collection built’’, a query may be ‘‘(inverted <AND> file <AND> document <AND> collection) <OR> built’’. For each query, there existed at least one document in the document collection that satisfied the query. The generated queries followed a Zipf-like distribution P 1/q0.55

, where P is the probability of accessing each query, and q is the popularity rank for the test query stream. This is

Table 4

Statistics of document collections

Collection

Bible DBbib FBIS LAT TREC

Documents N 31,101 32,472 130,471 131,896 262,367

# of terms F 884,746 2,320,610 72,922,893 72,087,460 145,010,353

Distinct terms n 8965 58,536 214,310 168,251 317,393

# of document identiﬁer count f 701,304 1,694,491 28,628,698 32,483,656 61,112,354

Average gap size N· n/f 398 1122 977 683 1363

(15)

widely believed to closely resemble the distribution of real queries (Breslau, Cao, Fan, Phillips, & Shenker, 1999).

5.2. Compression performance of unique-order interpolative coding

In this section, Golomb coding was used to code both boundary pointers and residual pointers. This is due to the fact that the average gap sizes in Table 4 are relatively big, Golomb coding was recommend according toTable 3(b). The compression result is shown inTable 5, and the metric used is the average number of bits per document identiﬁer BPI, deﬁned as follows:

BPI¼The size of the compressed inverted file number of document identfiers f :

For each term t, the cost of using r coding to encode the frequency ftis calculated and included in the

presented results.

Note that for group size g = 4 and g = 8, unique-order interpolative coding achieved good compression. For a simple implementation, we suggest using g = 4. In the following experiments, Golomb coding was used to code both boundary pointers and residual pointers for unique-order interpolative coding, and group size g was set to 4 unless otherwise stated.

5.3. Compression performance of diﬀerent coding methods

We now compare the eﬀectiveness of the eight coding methods: c coding, Golomb coding, batched LLRUN coding, skewed Golomb coding, interpolative coding, variable byte coding, Carryover-12 mech-anism, and unique-order interpolative coding. For each term t, the cost of using r coding to encode the fre-quency ftis calculated and included in the presented results. Moreover, any necessary overheads, such as

the complete set of models and model selectors for the batched LLRUN coding, are also calculated and included. However, the cost of storing the parameter b for each inverted list in Golomb coding (Witten et al., 1999) is not calculated nor included. This is because the parameter b for each inverted list in Golomb coding can be calculated via stored frequency ftusing WittenÕs approximation. The results are shown in

Table 6. Notice that:

1. Both variable byte coding and Carryover-12 mechanism are ineﬃcient in compression of inverted ﬁles.

Table 5

Compression performance of unique-order interpolative coding versus diﬀerent group size g Group size g Collection

1 6.11 6.20 5.27 5.31 5.49 2 5.64 5.47 4.84 4.91 4.99 3 5.61 5.31 4.80 4.89 4.94 4 5.46 5.11 4.66 4.74 4.78 5 5.52 5.13 4.71 4.80 4.82 6 5.52 5.10 4.71 4.79 4.81 7 5.47 5.04 4.65 4.74 4.75 8 5.42 4.98 4.59 4.68 4.69 9 5.47 5.01 4.64 4.72 4.73 10 5.51 5.03 4.67 4.75 4.76

(16)

2. For the other coding methods, the compression eﬃciencies of both c coding and Golomb coding are relatively low because of the simple models they use.

3. The compression eﬃciencies of batched LLRUN, skewed Golomb, interpolative, and unique order inter-polative coding methods are relatively good. This shows that clustering is a good compression aid. 4. The compression eﬃciency of unique-order interpolative coding is only inferior to that of interpolative

coding, meaning that it does take a good advantage of the clustering property.

5.4. Search performance of diﬀerent coding methods

The query processing time includes (1) disk access time, (2) decompression time, and (3) document iden-tifiers comparison time. Experiments showed that disk access time and decompression time occupy more than 90% of query processing time. And document identifier comparison time is not a function of the cod-ing method used. Therefore the search performance metric is defined as

Search TimeðSTÞ ¼ Disk Access Time ðATÞ þ Decompression Time ðDTÞ:

And the speedups of all coding methods relative to Golomb coding, for all test collections, were calculated. All experiments described in this section were run on an Intel P4 2.4GHz PC with 256MB DDR memory running Linux operating system 2.4.12. The hard disk was 40 GB, and the data transfer rate was 25 MB/s. Intervening processes and disk activities were minimized during experimentation. All decoding mechanisms were written in C, complied with gcc, and optimized as follows:

1. Replaced sub-routines with macros.

2. Careful choice for compiler optimization ﬂags.

3. Implementation used 32-bit integers, as that is the internal register size of the Intel P4 CPU. 4. Implemented the integer logarithm functiondlog2ðiÞe with a lookup table.

Let z be a 256-entry array, and z[k] bedlog2ðk þ 1Þe where 0 6 k 6 255. The function dlog2ðiÞe can be

implemented in C as follows (v is the returned value ofdlog2ðiÞe):

do {

register int_i = (i)1;

(v) =_B_i16 ? (_B_i24 ? 24 + z[_B_i24] : 16 + z[_B_i16]): (_B_i 8 ? 8 + z[_B_i8] : z[_B_i]);

} while (0);

Table 6

Compression performance of diﬀerent coding methods

Coding methods Collection

ccoding 6.58 5.96 5.38 5.63 5.63

Golomb coding 6.11 6.20 5.27 5.31 5.49

Batched LLRUN coding 5.52 4.88 4.63 4.78 4.84

Skewed Golomb coding 5.92 5.75 5.04 5.07 5.10

Interpolative coding 5.37 4.89 4.58 4.65 4.62

Variable byte coding 9.10 9.54 8.88 8.89 8.84

Carryover-12 mechanism 7.14 7.99 6.23 6.13 5.95

(17)

5. Implemented the integer logarithm functionblog2ðiÞc also with a lookup table.

The array z is the same as that used in the functiondlog2ðiÞe. The function blog2ðiÞc can be implemented

in C as follows (v is the returned value ofblog2ðiÞc):

do {

register int_i = (i);

(v) =_B_i16 ? (_B_i24 ? 23 + z[_B_i24] : 15 + z[_B_i16]): (_B_i 8 ? 7 + z[_B_i8] : z[_B_i] - 1);

} while (0);

6. A 256-entry lookup table is used to locate the exact bit location of the ﬁrst ‘‘1’’ bit in a byte.

For example, in the byte 00101000 the ﬁrst ‘‘1’’ bit is in location 3. This can accelerate the decoding pro-cess of unary codes because no bit-by-bit decoding is required.

7. Access to binary codes with masking and shifting operations, and no bit-by-bit decoding is required. With these optimizations, decoding of a document identiﬁer only required tens of ns, and no bit-by-bit decoding is required.

Other optimizations included: The Huffman code of batched LLRUN coding was implemented with canonical prefix codes (Turpin, 1998). The canonical prefix codes can be decoded via fast table look-up. And for the interpolative coding method, recursive process was transformed to non-recursive process, at the cost of an explicit stack (Tenenbaum et al., 1990).

The search performance measurements are shown inTable 7. Key ﬁndings are:

1. Although variable byte coding and Carryover-12 mechanism gave fast decoding, r coding and unique-order interpolative coding achieved higher query throughput rates. This is because the disk access time (AT) of variable byte coding and Carryover-12 mechanism is much higher than that of r coding and unique-order interpolative coding.

2. For collection DBbib, the decoding times (DT) of r coding and unique-order interpolative coding are less than that of Carryover-12. This is because a large portion of the d-gaps of frequently used query terms for DBbib is of value 1. Both r coding and unique-order interpolative coding can encode these d-gaps very economically. This also makes the decoding times of r coding and unique-order interpolative coding for these d-gaps very low.

3. Batched LLRUN coding, skewed Golomb coding, and interpolative coding gave better compression rates than Golomb coding. However, their complex decoding mechanisms prohibited them from being used in real-world IRSes.

4. Experimental results showed that r coding, Carryover-12 mechanism, and unique-order interpolative coding were recommended for real-world IRSes. Their query throughput rates were all much higher than that of Golomb coding.

5. To obtain better compression rates, Golomb coding and unique-order interpolative coding use a mini-mal binary code in their codewords. To decode a minimini-mal binary code, ‘‘toggle point’’ calculations are required and slow down query evaluation. Rice coding is a variant of Golomb coding where the value b is restricted to be a power of 2. The advantage of this restriction is that there is no ‘‘toggle point’’ cal-culation required. The disadvantage of this restriction is the slightly worse compression than that of Golomb coding. If we use Rice coding to encode the boundary and residual pointers in unique-order interpolative coding and use a simple binary code to encode the (x, lo, hi) triples for the inner pointers, there is no ‘‘toggle point’’ calculation required for unique-order interpolative coding. Table 8showed that Rice coding allowed query throughput rates of approximately 8% higher than Golomb coding, and unique-order interpolative coding without ‘‘toggle point’’ calculation allowed query throughput

(18)

rates of approximately 30% higher than Golomb coding. Experimental results further showed that the decoding time of unique-order interpolative coding without ‘‘toggle point’’ calculation is even less than that of Carryover-12 mechanism.

Table 7

Search performance of diﬀerent coding methods (AT is the disk access time, DT is the decoding time, ST = AT+DT is the search time, and SP is the performance relative to the Golomb coding)

Coding method Collection

ccoding AT(us) 125 202 1125 1168 2149 DT(us) 70 188 952 980 1696 ST(us) 195 390 2077 2148 3845 SP 1.14 1.50 1.20 1.23 1.20 Golomb coding AT(us) 131 306 1282 1321 2422 DT(us) 92 280 1200 1314 2179 ST(us) 223 586 2482 2635 4601 SP 1.00 1.00 1.00 1.00 1.00

Batched LLRUN coding

AT(us) 116 381 1101 1134 2086

DT(us) 130 192 1688 1771 3013

ST(us) 246 573 2789 2905 5099

SP 0.91 1.02 0.89 0.91 0.90

Skewed Golomb coding

AT(us) 117 331 1120 1150 2097 DT(us) 122 201 1492 1577 2696 ST(us) 239 532 2612 2727 4793 SP 0.93 1.10 0.95 0.97 0.96 Interpolative coding AT(us) 111 137 1024 995 1916 DT(us) 243 688 3094 3266 5598 ST(us) 354 825 4118 4261 7514 SP 0.63 0.71 0.60 0.62 0.61

Variable byte coding

AT(us) 214 918 3134 3489 5506 DT(us) 22 90 336 388 633 ST(us) 236 1008 3470 3877 6139 SP 0.95 0.58 0.72 0.68 0.75 Carryover-12 mechanism AT(us) 145 311 1498 1491 2566 DT(us) 52 190 765 825 1368 ST(us) 197 501 2263 2316 3934 SP 1.13 1.17 1.10 1.14 1.17

Unique-order interpolative coding

AT(us) 113 182 1066 1076 2011

DT(us) 82 169 1041 1041 1909

ST(us) 195 351 2107 2117 3920

(19)

6. Experimental results showed that a good coding method must be characterized by both high compression ratio and high decompression rate. The unique-order interpolative coding is such a good method.

6. Other applications

Unique-order interpolative coding, like interpolative coding, can be directly applied to encode strictly ascending integer sequences. One such example is encoding of within-document frequencies of inverted lists. If ranked queries are to be supported, it is also necessary to store with each document identiﬁer the fre-quency of the term appearing within that document, giving the inverted list the form:

< ft;ðid1; ft;1Þ; ðid2; ft;2Þ; . . . ; ðidft; ft;ftÞ>;

where ftis the number of documents containing term t, idk< idk+1, and ft,iis the frequency of term t in

doc-ument i, 1 6 i 6 ft. The within-document frequencies can be compressed in exactly the same manner of

compressing document pointers: if there are ftentries in an inverted list and a total of Ftoccurrences of

that term in the collection, the sequence of cumulative sums of the ft,ivalues also forms a strictly increasing

integer sequence, and all of the existing compression methods are applicable. Because the within-document frequencies are typically small, according to Table 3(b), unique-order interpolative coding should use c coding to encode within-document frequencies.Table 9shows the cost, in bits per pointer, of storing the within-document frequencies for the ﬁve test collections. Test results showed that unique-order interpola-tive coding achieved very good compression, second to only the interpolainterpola-tive coding. Considering also the performance results in Section 5.4 and implementation cost, we conclude that the unique-order inter-polative coding is very suitable for encoding within-document frequencies of inverted lists.

Unique-order interpolative coding can also support a self-indexing strategy with a little additional stor-age space. Typically, a query evaluation involves only a few document identifiers in an inverted list (Moffat & Zobel, 1996; Vo & Moffat, 1998). However, most compressed inverted lists do not support random acces-ses. An inverted list must be completely decompressed in order to be randomly accessed to any document identifier, and the full decompression is expensive. Recently, Moffat presented the skipped inverted lists (using self-indexing strategy) to support random access and reduce the query response time (Moffat & Table 8

Search performance of Rice coding and unique-order interpolative codinga_{(AT is the disk access time, DT is the decoding time,} ST = AT + DT is the search time, and SP is the performance relative to the Golomb coding)

Coding method Collection

Rice coding

AT(us) 133 286 1305 1345 2462

DT(us) 74 267 1004 1069 1808

ST(us) 207 553 2309 2414 4270

SP 1.08 1.06 1.07 1.09 1.08

Unique-order interpolative codinga

AT(us) 119 193 1128 1137 2127

DT(us) 55 141 747 772 1363

ST(us) 174 334 1875 1909 3490

SP 1.28 1.75 1.32 1.38 1.32

a _{The boundary and residual pointers are encoded in Rice codes, the (x, lo, hi) triples for the inner pointers are encoded in simple}

(20)

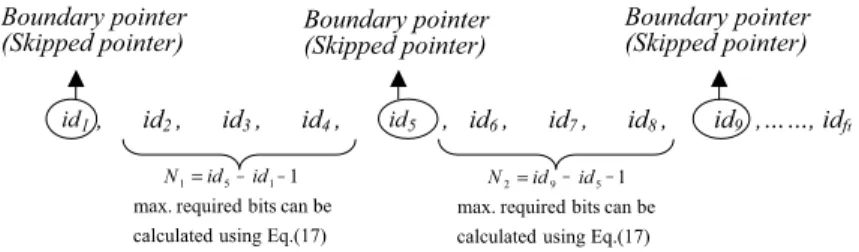

Zobel, 1996). The technique is to divide the inverted list into blocks, and store the first document identifier of each block (called critical document identifier) separately from other document identifiers. Document identifier search proceeds in two steps. The first step is searching in the critical document identifier list and the second step is searching in one targeted block. Experimental results show that the self-indexing strategy can improve response time for both Boolean AND queries and ranked queries. The only shortcom-ing of the self-indexshortcom-ing strategy is that every critical document identifier requires some extra bits to specify the location of the next critical one.

Compared with the self-indexing strategy by Moffat, the unique-order interpolative coding is more effi-cient in generating skipped inverted lists. We illustrate this with an example. InFig. 6, when the group size g = 4, each boundary pointer can be regarded as a critical document identifier in the self-indexing strategy, while the number of bits needed to store the inner pointers can be calculated using the value of the two boundary pointers and Eq.(17).

Max: required bits of inner pointers when g¼ 4 ¼

0 if N ¼ 3 2 if N ¼ 4 3ðk þ 1Þ þ 1 if 4 < N < 3 2k_{þ 3} 3ðk þ 1Þ þ 2 if 3 2k_{þ 3 6 N} 8 > > > < > > > : ð17Þ

where N is the gap of two successive boundary pointers and k¼ dlog2ðN 2Þe 2. Eq.(17) is the upper

bound of Eq.(12)(in Section 4) expressed in closed form, which can be obtained by simulation and vali-dated by experiment. Since the number of bits for each inner pointer is known, those inner pointers that are useless in set operations during query processing can be skipped easily. Such a method is called skipped unique-order interpolative coding. The results inTable 10showed that this method does not require extra

Table 9

Within-document frequency index compression of all inverted lists, in average bits per pointer

Unary coding 1.26 1.37 2.55 2.22 2.37

ccoding 1.38 1.44 2.14 2.00 2.07

Golomb coding 1.30 1.50 2.29 2.09 2.20

Batched LLRUN coding 1.38 1.44 2.14 2.00 2.05

Skewed Golomb coding 1.45 1.60 2.39 2.26 2.35

Interpolative coding 0.86 0.92 1.78 1.77 1.75

Variable byte coding 8.11 8.19 8.04 8.02 8.03

Carryover-12 mechanism 2.04 2.75 3.22 2.99 3.07

Unique-order interpolative codinga 0.96 1.02 1.92 1.76 1.84

a _{The boundary and residual pointers are encoded in r codes and group size g is 4.}

(21)

bits to specify the location of the critical document identiﬁers, and the storage consumed is even less than that of a Golomb code. This method is also simple, so we suggest that it be widely used in IRSes.

7. Conclusion

This paper proposes a novel coding method, the unique-order interpolative coding, for compressing in-verted files in IRSes. This method is much easier to implement than interpolative coding. Furthermore, it is custom designed to suit the clustering property of document identifiers, a property that has been observed in real-world document collections. Experiments with the inverted files of five test databases show that this method yields superior performance in both fast querying and space-efficient indexing. Also shown is that it can support the self-indexing strategy efficiently. This work shows a feasible way in building a responsive and storage-economical IRS.

Acknowledgement

This work was support by National Science Council, ROC: NSC92-2213-E009-065. A shorter version (Cheng, Shann, & Chung, 2004) of this paper was presented at the ITCCÕ2004, April 5–7, 2004, Las Vegas, Nevada.

References

Anh, V. N., & Moﬀat, A. (2005). Inverted index compression using word-aligned binary codes. Information Retrieval, 8(1), 151–166. Breslau, L., Cao, P., Fan, L., Phillips, G., & Shenker, S. (1999). Web caching and zipf-like distributions: evidence and implications. In Proceedings of eighteenth annual joint conference of the IEEE Computer and Communications Societies (IEEE INFOCOM Õ99), New York, March (pp. 126–134). Los Alamitos, CA: IEEE Computer Society Press.

Cheng, C. S., Shann, J. J. J., & Chung, C. P. (2004). A unique-order interpolative code for fast querying and space-eﬃcient indexing in information retrieval systems. In Pradip K. Srimani, et al. (Eds.). Proceedings of ITCC 2004 international conference on information technology: coding and communications, Las Vegas, Nevada, April (Vol. 2, pp. 229–235). Los Alamitos, CA: IEEE Computer Society Press.

Elias, P. (1975). Universal codeword sets and representations of the integers. IEEE Transactions on Information Theory, IT-21(2), 194–203.

Faloutsos, C. (1985). Access methods for text. ACM Computing Surveys, 17(1), 49–74.

Frakes, W. B., & Baeza-Yates, R. (1992). Information Retrieval: Data Structures and Algorithms. Upper Saddle River, NJ: Prentice Hall.

Fraenkel, A. S., & Klein, S. T. (1985). Novel compression of sparse bit-string preliminary report. In A. Apostolico & Z. Galil (Eds.), Combinatorial Algorithms on Words. NATO ASI Serials F (Vol. 12, pp. 169–183). Berlin: Springer-Verlag.

Gallager, R. G., & Van Voorhis, D. C. (1975). Optimal source codes for geometrically distributed alphabets. IEEE Transactions on Information Theory, IT-21(2), 228–230.

Golomb, S. W. (1966). Run Length Encoding. IEEE Transactions on Information Theory, IT-12(3), 399–401. Kobayashi, M., & Takeda, K. (2000). Information retrieval on the web. ACM Computing Surveys, 32(2), 144–173. Table 10

Compression performance of Golomb coding and skipped unique-order interpolative coding

Golomb coding 6.11 6.20 5.27 5.31 5.49

(22)

Mcllroy, M. D. (1982). Development of a spelling list. IEEE Transactions on Communications, COM-30(1), 91–99.

Moﬀat, A., & Zobel, J. (1992). Parameterised compression for sparse bitmaps. In N. Belkin, P. Ingwersen, & A. M. Pejtersen (Eds.), Proceedings of 15th annual international ACM-SIGIR conference on research and development in information retrieval, Copenhagen, June (pp. 274–285). New York: ACM Press.

Moﬀat, A., & Zobel, J. (1996). Self-indexing inverted ﬁles for fast text retrieval. ACM Transactions on Information Systems, 14(4), 349–379.

Moﬀat, A., & Stuiver, L. (2000). Binary interpolative coding for eﬀective index compression. Information Retrieval, 3(1), 25–47. Scholer, F., Williams, H. E., Yiannis, J., & Zobel, J. (2002). Compression of inverted indexes for fast query evaluation. In M. Beaulieu,

R. Baeza-Yates, S. H. Myaeng, & K. Ja¨rvelin (Eds.), Proceedings of the 25th annual international ACM SIGIR conference on research and development in information retrieval (pp. 222–229). Tampere, Finland, New York: ACM Press.

Shieh, W. Y., Chen, T. F., Shann, J. J., & Chung, C. P. (2003). Inverted ﬁle compression through document identiﬁer reassignment. Information Processing and Management, 39(1), 117–131.

Tenenbaum, A. M., Langsam, Y., & Augenstein, M. J. (1990). Data structures using C. Englewood CLiﬀs, NJ: Prentice-Hall. Teuhola, J. (1978). A Compression method for clustered bit-vectors. Information Processing Letters, 7(6), 308–311.

Trotman, A. (2003). Compressing inverted ﬁles. Information Retrieval, 6(1), 5–19.

Turpin, A. (1998). Eﬃcient preﬁx coding. Phd. thesis. Melbourne: University of Melbourne.

Vo, A. N., & Moﬀat, A. (1998). Compressed inverted ﬁles with reduced decoding overheads. In R. Wilkinson, B. Croft, & C. van Rijsbergen (Eds.), Proceedings of the 21st annual international ACM SIGIR conference on research and development in information retrieval (pp. 290–297). Melbourne, New York: ACM Press.

Voorhees, E., & Harman, D. (1997). Overview of the sixth text retrieval conference (TREC-6). In E. M. Voorhees & D. K. Harman (Eds.), Proceedings of the sixth Text REtrieval Conference (TREC-6) (pp. 1–24). Gaithersburg, MD: NIST.

Williams, H. E., & Zobel, J. (2002). Indexing and retrieval for genomic databases. IEEE Transactions on Knowledge and Data Engineering, 14(1), 63–78.

Witten, I. H., Moﬀat, A., & Bell, T. C. (1999). Managing gigabytes: Compressing and indexing on documents and images (2nd ed.). San Francisco, CA: Morgan Kaufmann Publishers.

Zobel, J., Moffat, A., & Ramamohanarao, K. (1998). Inverted files versus signature files for text indexing. ACM Transactions on Database Systems, 23(4), 453–490.

Cher-Sheng Cheng received the B.S. and M.E. degrees in computer engineering from the Department of Computer Science and Information Engineering, National Chiao Tung University, Taiwan, ROC in 1994 and 1996, respectively. Currently he is pursuing the Ph.D. degree in computer science and information engineering at the National Chiao Tung University, Hsinchu, Taiwan, Republic of China. His research interests include computer architecture, parallel and distributed systems, and information retrieval.

Jean Jyh-Jiun Shann received the B.S. degree in Electronic Engineering from Feng-Chia University, Taichung, Taiwan, Republic of China in 1981. She attended the University of Texas at Austin from 1982 to 1985, where she received the M.S.E. degree in Electrical and Computer Engineering in 1984. She was a lecturer in the Department of Computer Science and Information Engineering, National Chiao Tung University, Hsinchu, Taiwan, ROC, while working towards the Ph.D. degree. She received the degree in 1994 and is currently an Associate Professor in the department. Her current research interests include computer architecture, parallel processing, and information retrieval.

Chung-Ping Chung received the B.E. degree from the National Cheng-Kung University, Tainan, Taiwan, Republic of China in 1976, and the M.E. and Ph.D. degrees from the Texas A&M University in 1981 and 1986, respectively, all in Electrical Engineering. He was a lecturer in electrical engineering at the Texas A&M University while working towards the Ph.D. degree. Since 1986 he has been with the Department of Computer Science and Information Engineering at the National Chiao Tung University, Hsinchu, Taiwan, Republic of China, where he is a professor. From 1991 to 1992, he was a visiting associate professor of computer science at the Michigan State University. From 1998, he joined the Computer and Communications Laboratories, Industrial Technology Research Institute, ROC as the Director of the Advanced Technology Center, and then the Consultant to the General Director. He is expected to return to his teaching position after this three-year assignment. His research interests include computer architecture, parallel pro-cessing, and parallelizing compiler.
