3086 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 53, NO. 12, DECEMBER 2006
Process and Characteristics of Fully Silicided
Source/Drain (FSD) Thin-Film Transistors
Chia-Pin Lin, Yi-Hsuan Hsiao, and Bing-Yue Tsui, Senior Member, IEEE
Abstract—In this paper, high-performance fully silicided
source/drain (FSD) thin-film transistors (TFTs) with FSD and ul-trashort source/drain extension (SDE) fabricated by the implant-to-silicide (ITS) technique are studied thoroughly. Using the ITS technique, not only the implantation damage but also the silicide spiking is avoided so that the thermal budget can be decreased obviously. The offstate current (Ioff) of the FSD TFTs is equal to
(n-channel) or smaller than (p-channel) that of the conventional TFTs. At onstate, due to the FSD and the SDE structure, the parasitic resistance of the S/D region and the carrier-injection resistance between silicide and channel are reduced. Therefore, superior onstate/offstate current ratio can be obtained. The influ-ences of annealing temperature and time are also examined in this paper. A 600◦C/30-s rapid thermal annealing is sufficient to dif-fuse and activate dopants and, then, fabricate high-performance FSD TFTs. Excellent short-channel behavior of the FSD TFT is also confirmed. To conclude, the high-performance FSD TFT with low parasitic resistance fabricated by low-thermal-budget process is very promising for matrix liquid-crystal display, active-matrix organic light-emitting-diode display, and system-on-panel applications.
Index Terms—Implant-to-silicide (ITS), silicide, thin-film
tran-sistor (TFT).
I. INTRODUCTION
P
OLYCRYSTALLINE-SILICON thin-film transistors (poly-Si TFTs) are attractive for many applications including the active-matrix liquid-crystal display (AMLCD) and active-matrix organic light-emitting-diode display (AMOLED) [1], [2]. In order to integrate peripheral driving circuits on the same glass substrate, a low-temperature process (∼600◦C) without compromising device performance should be developed. Therefore, a long position-implantation annealing, which is used to activate dopants and remove implantation damages, is carried out using a furnace system at around 600 ◦C for 12–24 h after the source/drain (S/D) implantation. The prolonged process time causes lowManuscript received April 3, 2006. This work was supported by the National Science Council, Taiwan, R.O.C., under Contract NSC-93-2215-E-009-004. The review of this paper was arranged by Editor C. Lu.
C.-P. Lin is with the Taiwan Semiconductor Manufacturing Company, Hsinchu 300, Taiwan, R.O.C. (e-mail: [email protected]).
Y.-H. Hsiao is with the Macronix International Company, Hsinchu 300, Taiwan, R.O.C. (e-mail: [email protected]).
B.-Y. Tsui is with the Department of Electronics Engineering and Institute of Electronics, National Chiao-Tung University, Hsinchu 300, Taiwan, R.O.C. (e-mail: [email protected]).
Color versions of Figs. 2, 3, 10, 13, and 15 are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/TED.2006.885651
throughput in the fabrication of conventional (CN) poly-Si TFTs. To overcome this drawback, dopant activation at higher temperature of above 700 ◦C in a rapid-thermal-annealing (RTA) system has been suggested to improve the activation efficiency and throughput. Nevertheless, the high-temperature process violates the low-temperature requirement. Thus, poly-Si TFTs suffer from a substantial tradeoff between performance and throughput.
On the other hand, the use of a thinner active layer to obtain a higher driving current, lower offstate leakage current, and superior short-channel characteristics has been reported [3], [4]. Nevertheless, the high parasitic resistance due to thin S/D regions degrades device performance such as driving capability and effective field-effect mobility (µFE). Especially for the AMOLED, the high S/D parasitic resistance not only reduces the brightness but also enlarge the fluctuations of brightness [5]. To reduce this parasitic resistance, various methods such as raised-S/D, SiGe-raised-S/D, and tungsten-clad-S/D techniques were proposed [6]–[8]. Ni-salicide TFTs structure with process similar to the salicide-CMOS was also proposed to reduce the S/D parasitic resistance [9]. However, in order to suppress the leakage current induced by S/D silicide spiking of salicide TFTs, not only the poly-Si at S/D cannot be fully consumed to maintain a proper S/D junction but also an excess mask is needed to block the gate electrode. At the same time, the long dopant-activation time is still an issue in the process of salicide TFTs.
To reduce the S/D series resistance of CN TFTs, while more efficiently improving the throughput, we proposed a novel fully silicided S/D TFTs (FSD TFTs) with FSD and ultrashort S/D extension (SDE) at the interface of silicide and inverted channel by the implant-to-silicide (ITS) technique has been proposed [10], [15]. Forming a FSD by the low-temperature self-aligned salicide technique, the parasitic resistance of FSD TFTs can be decreased dramatically. Adding an extension doping in the silicon by the ITS technique at about 600 ◦C, on the other hand, not only drastically improves the contact resistance at the Ni-silicide/poly-Si junction but also abbreviates the SDE length and avoids the silicide-spiking effect. This concept has been approved in n- and p-channel FinFETs and the preliminary results have been reported [16], [17].
In this paper, we demonstrated that both n-channel FSD TFTs (FSD nTFTs) and p-channel FSD TFTs (FSD pTFTs) can be fabricated simultaneously. The detailed fabrication process of the FSD TFTs will be described. The characteristics of the proposed FSD TFTs are presented and discussed using CN TFTs and simple Schottky-barrier (SB) TFTs as comparisons.
Fig. 1. Key fabrication steps of the proposed FSD TFTs.
Furthermore, the impact of activation temperature and time of the ITS process on the characteristics of FSD TFTs are also illustrated and analyzed. Excellent short-channel effect (SCE) is also demonstrated.
II. DEVICEFABRICATION
Fig. 1 shows the key fabrication steps for the proposed FSD TFTs. Briefly, the fabrication was begun by depositing an amor-phous Si (α− Si) layer 50-nm thick at 550◦C in a low-pressure chemical-vapor deposition on 6-in Si wafers capped with a ther-mal oxide layer of 1-µm thick. The deposited α− Si layer was then crystallized by a solid-phase-recrystallization method at 600◦C in a N2ambient for 24 h. After patterning the active re-gion, a 45-nm-thick CVD gate oxide and a 100-nm-thick poly-Si layer were deposited. The poly-poly-Si layer was then patterned to form the gate electrode, as shown in Fig. 1(a). Then, a 100-nm-thick CVD oxide layer was deposited and etched to form a side-wall spacer abutting the poly-Si gate, as shown in Fig. 1(b).
Afterwards, a self-aligned silicidation process was performed to form the FSD. A thin Ni layer of 22 nm thick was deposited on the wafer. After a RTA at 500◦C for 40 s in a N2 ambient, a wet-etching step in a H2SO4/H2O2 solution was then used to selectively remove the unreacted Ni. Ni-silicide was also formed on poly-Si gate simultaneously, as shown in Fig. 1(c). The FSD region shows a sheet resistance of about 7 Ω/, whereas the nonsilicided S/D region shows a sheet resistance of about 800 Ω/. Since the poly-Si gate was also partially silicided, the gate resistance was also obviously improved by a factor of 100 compared with a nonsilicided poly-Si gate.
Fig. 2. (a) Cross-sectional TEM micrograph of the proposed FSD TFTs and the EDS analysis at (b) point “A,” and (c) point “B.”
Next, ITS process was employed to form a shallow SDE region. BF+2 ions were implanted to silicide at 35 KeV with 5× 1015 cm−2 for FSD pTFTs and P+31 ions were implanted to silicide at 30 KeV 5× 1015cm−2for FSD nTFTs. The high implantation dose is used to increase the dopant concentration of the SDE region and preserve the S/D junction characteristics [10], [12], [14]. Dopants were then diffused out of silicide to form an ultrashort SDE at the channel–S/D interface by a low-temperature RTA process in a N2ambient at temperatures of 600 ◦C, 650◦C, 700◦C, and 750◦C for 30, 90, and 150 s. Because of the low solid-state solubility of phosphorous and boron atoms in Ni silicide, they diffused out and piled up at the Si/silicide interface to form a ultrashort SDE as shown in Fig.1(d) [10]–[13]. Finally, typical oxide passivation layer deposition, contact hole patterning, and Al metallization completed the fabrication process.
The cross-sectional transmission electron microscopy (TEM) image of the proposed FSD TFTs activated at 600◦C for 30 s in a N2 ambient is shown in Fig. 2(a). From the results of energy-dispersive spectrometer (EDS) analysis at the points A and B labeled in Fig. 2(a), it is observed that the silicided S/D does not grow into the channel region and a phosphorous-doped SDE region is formed. Although we could not distinguish the oxide spacer edge from the oxide passivation layer, the silicide lateral-growth length (Ls) could still be extrapolated by sheet
resistance (Rs) measured by the four-terminal Rstest structure
3088 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 53, NO. 12, DECEMBER 2006
Fig. 3. (a) Schematic layout of the four-terminal sheet resistance (Rs) test
structure. (b) The extracted silicide lateral-growth length (Ls) as a function of
annealing time. The poly-Si linewidth is fixed at 1 µm.
cap layer was patterned to different widths (Wo) capping on
the n+-poly-Si line. Then, the exposed poly-Si regions were silicided at 500 ◦C and 600 ◦C for 10, 30, and 60 s in an RTA system. By measuring the Rs of the test structure with
different Wo, the Ls could be extracted. The extracted results
are shown in Fig. 3(b). It is noted that as the annealing time increases because of the limited Ni layer thickness the growth rate of Ls becomes slow. Then, after a 500-◦C annealing
at 30 s, the average Ls extracted from ten samples is about
26.3 nm. Moreover, Monte Carlo simulation also showed that the ions-straggle distribution of BF+2 and P+ are only 8 and 9 nm at 30 and 35 KeV, respectively, which are extremely shorter than the lateral silicide length [16], [17]. Therefore, the ion-implantation process does not damage Si layer directly. Then, the junction would be almost free of implantation damage and low junction leakage current could be expected.
For comparison, CN TFTs were fabricated, as schematically shown in Fig. 4(a). The S/D was implanted after gate patterning followed by an activation annealing at 600◦C for 24 h without silicidation. Simple SB TFTs without the ITS process step were also fabricated. The schematically cross-sectional structure is shown in Fig. 4(b). In order to improve the current–voltage (I–V ) characteristics, NH3 plasma treatment in a plasma-enhanced CVD system at 350◦C for 30 min was employed to effectively reduce trap-density and improve interface quality of channel region.
The I–V characteristics of the fabricated devices were measured using a semiconductor-parameter analyzer of model Agilent 4156C. Various device parameters, including the
Fig. 4. Schematic cross-sectional drawings of (a) CN TFT and (b) SB TFT.
threshold voltage (Vth), subthreshold swing (SS), and field-effect mobility (µFE) were extracted at a drain voltage of
|Vds| = 0.1 V. The threshold voltage is defined as the gate voltage at which yields a drain current (Ids) of 1 nA/µm. The maximum and minimum values of Ids at|Vds| = 5 V are designated as Ionand Ioff, respectively.
III. RESULTS ANDDISCUSSIONS
A. Basic Characteristics of FSD, CN, and SB TFTs
Fig. 5 compares the typical transfer characteristics of FSD and CN TFTs, both n- and p-channel. The nominal channel length (L) and channel width (W ) are 4 and 1 µm, respec-tively. The key device parameters are summarized in Table I(a). Obvious improvement in device characteristics is obtained for FSD nTFTs in comparison with CN nTFTs. As listed in Table I, the SS decreases from 0.68 to 0.45 V/Dec, the µFE increases from 16.9 to 141.5 cm2/V-sec, and the I
on/Ioff ratio increases from 1.4× 107 to 3.3× 107. Excellent FSD pTFTs are also obtained after NH3 plasma treatment. For the CN TFTs, the small driving current can be attributed to the parasitic resistance at nonsilicided S/D. On the other hand, the superior driving capability of the FSD devices is resulted from the low series resistance due to the FSD and the low contact resistance of the SDE region [18]. Since the ion-implantation process does not damage poly-Si layer directly, the junction would be free of crystalline defects. Therefore, the Ioff of FSD TFTs is almost identical to (for n-channel) or smaller (for p-channel) than that of the CN TFTs; although a very low-thermal budget (600◦C, 30 s) was used in the ITS process. It has been reported that the reverse leakage current of a P+/N diode is smaller than that of N+/P diode with the same ITS process, which is attributed to the faster diffusion coefficient of Boron than that of Phosphorous in Si [10]–[14]. For the FSD pTFT, the SDE is wide enough and the SDE region is not damaged by S/D implantation so that the Ioff of FSD pTFT is lower than that of the CN pTFT. For the FSD nTFT, the shorter SDE region due to the slower diffusion rate of Phosphorous may be depleted at high Vds so that the Ioff is higher than that of the CN ones.

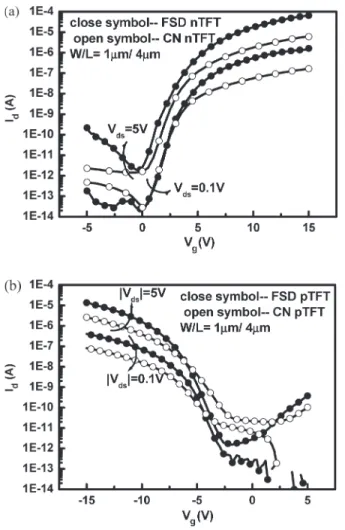

Fig. 5. Typical transfer characteristics of (a) n-channel and (b) p-channel FSD and CN TFTs after NH3plasma treatment.
Fig. 6 shows the transfer characteristics of SB nTFT and SB pTFT. The nominal channel length (L) and channel width (W ) are 4 and 1 µm, respectively. For the SB TFTs, although the resistance of the S/D electrode can be effectively reduced by the FSD structure, low driving current is observed because of the abnormal high carrier-injection resistance between silicide and channel at onstate. Moreover, at offstate, abnormal high leakage current attributed to the field emission and thermionic emission of carriers from the drain is also predicted. For example, at SB nTFTs, at offstate, holes at drain will in-ject through the SB at interface of silicide/channel and then into channel. Similar phenomena could also be deduced at p-channel devices [19]. The measured devices parameters of the SB TFTs are summarized in Table I(b). To conclude briefly, the proposed FSD devices have superior characteristics to SB and CN ones.
B. S/D Parasitic Resistance
Fig. 7 shows the typical output characteristics (Id–Vds) of the FSD and CN nTFTs at several different gate voltages with
W/L = 1 µm/4 µm. Obviously, FSD TFTs exhibit a higher
driving current than CN ones, especially under high gate bias. It is because that the channel resistance becomes smaller at high gate bias; hence, the dominant resistance is the S/D par-asitic resistance (Rp) [9]. The linear-region parasitic resistance
Fig. 6. Typical transfer characteristics of SB n- and p-channel TFTs after NH3
plasma treatment.
(Rp) can be extracted by plotting the width-normalized onstate
resistance (Ron) versus channel length (L) [19]. In Fig. 8(a), all of the Ron− L lines merge at about L = 0.31 µm and have a residual value of a gate-voltage independent Rp of
1.35 kΩ− µm. In Fig. 8(b), the extracted Rp of CN TFTs is
17.63 kΩ− µm, which is about 13 times larger than that of FSD TFTs. As a result, the FSD nTFTs have smaller Rp and
better turn-on characteristics than the CN ones.
C. Effects of Activation Temperature
The activation temperature is the most important process parameters to form SDE and to activate dopants in the ITS process. To avoid the influence of dopants segregation, a heavy dose of 5× 1015 cm−2 was used to study the effect of acti-vation temperature [21]. The transfer characteristics of FSD nTFT and pTFT experienced different activation temperatures without NH3plasma treatment are shown in Fig. 9(a) and (b), respectively. The extracted device parameters of FSD n and pTFTs are listed in Table II(a) and (b), respectively.
The devices activated at 600◦C and 650◦C result in the best performance for both FSD n and pTFTs. The slight deviation of Vth, SS, µFE, as well as Ion/Ioff current ratio may come
3090 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 53, NO. 12, DECEMBER 2006
Fig. 7. Typical output characteristics of the FSD and CN nTFTs after NH3
plasma treatment.
Fig. 8. Channel width-normalized onstate resistance (Ron) as a function of
channel length (L) of (a) FSD nTFTs and (b) CN nTFTs.
from the process deviation. By increasing the RTA temperature to higher than 650 ◦C, the degradation of absolute value of
Vth, SS, µFE, and Ntextracted using the modified Levinson’s
method are clearly observed [22], [23]. However, the offstate current (Ioff) slightly decreases with the increase of RTA temperature. It is well known that the Ioff of the TFT device is dominated by the quality of the S/D junction [24]. The continuous reduction of Ioff implies that the higher activation temperature results in longer diffusion length and higher dopant concentration of SDE.
In order to distinctly clarify the degradation mechanisms of devices with high annealing temperature, not only the effective
Fig. 9. Typical transfer characteristics of (a) n-channel and (b) p-channel FSD TFTs experienced different activation temperatures without NH3plasma
treatment.
TABLE II
EXTRACTEDDEVICEPARAMETERS OF(a) FSD nTFTsAND(b) FSD pTFTs AFTERDIFFERENTANNEALINGTEMPERATURESFROM600◦CTO750◦C
FOR30 S WITHOUTNH3PLASMATREATMENT
trap-state density (Nt) but also the sheet resistance (Rs) of S/D
and gate electrode with different activation temperatures are extracted and shown in Figs. 10 and 11, respectively. As shown in Fig. 10, at the gate electrode, as the annealing temperature increases from 600 ◦C to 750◦C, the Rsincreases obviously

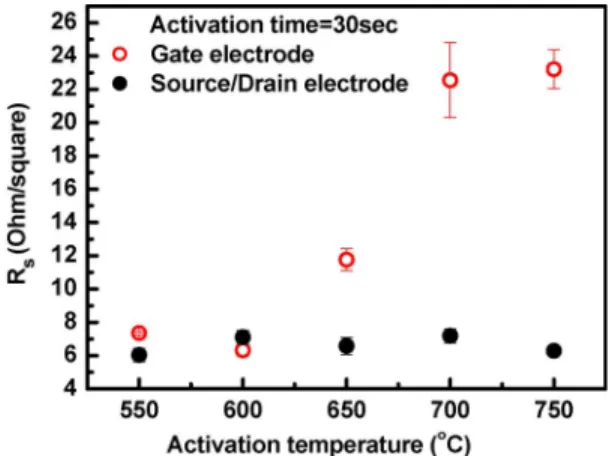

Fig. 10. Sheet resistance (Rs) of gate and S/D electrodes after annealing at
different temperatures for 30 s.
Fig. 11. Effective trap-state densities (Nt) of FSD nTFTs after annealing at
different temperatures.
from∼6.3 to 23.2 Ω/. Oppositely, at the S/D electrode, the
Rsremains stable at about 7 Ω/ even after 750-◦C annealing.
Since the S/D integrity is maintained, the device degradation mechanism may be related to the gate electrode. According to the scanning electron microscope (SEM) images of silicide at gate region, as shown in Fig. 12(a)–(d), we also demonstrated that the silicide agglomeration occurs at gate electrode after 650-◦C annealing.
The X-ray-diffraction (XRD) spectra of the silicide gate electrode after several annealing conditions are shown in Fig. 13. The main phase of Ni silicide is NiSi after 600-◦C annealing. Nevertheless, after 750-◦C annealing, both NiSi and NiSi2 were detected. It is known that the thermal stability of Ni-silicide is not as good as that of Ti-silicide or Co-silicide [25]–[28]. Annealing at temperature higher than 700 ◦C usually results in agglomeration of Ni-silicide [10]. Especially for silicide/polysilicon-stack structure, to reduce the silicide surface energy and the grain boundary energy of the polysil-icon, not only the agglomeration but the silicide inversion and intermixing phenomenon have also occurred at temperature lower than that of silicide on crystalline-Si substrate [29], [30]. It has been postulated that the layer inversion and intermixing of silicide at silicide/poly-Si gate electrode may degrade gate di-electric because of the difference in thermal expansion between silicide and polysilicon [31], [32]. Moreover, as the annealing temperature increases, the interface trap-state density of the proposed device also increases obviously, as shown in Fig. 11.
D. Effects of Activation Time
Fig. 14(a) and (b) shows the transfer characteristics of FSD p and nTFTs with different activation times at 600◦C, respec-tively. The extracted parameters are listed in Table III. For the FSD pTFTs, an activation annealing at 600 ◦C for 30 s is sufficient to achieve excellent performance and theON/OFF
current ratio can be higher than 107without using hydrogena-tion treatment. However, it should be noted that the device performance slightly degrades with the increase of activation time. Fig. 15 shows that the Rs of S/D/G electrode remains
at about 6–7 Ω/ after 600-◦C annealing for 150 s. Hence,
the most possible explanation of device degradation is dopant deactivation [33], [34]. In poly-Si, grain boundaries act as sinks for impurity segregation and also trap carriers at defects due to incomplete atomic bonding. The thermal-equilibrium con-centration for dopants increases with the increase of activation temperature, and the major driving force for deactivation is dopant supersaturation. In the ITS process, the heavy dose not only forms an ultrashort SDE but also fills grain boundaries in the short activation time. More activated dopants fill grain boundaries with the longer activation time and dopants deac-tivate during cool down from activation temperature to room temperature. Dopant deactivation reduces the concentration of the SDE and, therefore, can explain the degradation of some device performances including Vth, SS, µFE, and Ion.
For the FSD nTFTs, similar to the FSD pTFTs, an ultrashort SDE is also formed after a short activation time of 30 s. Unlike boron, phosphorus has small diffusivity [35]. A 30-s activation may be insufficient to form an intact SDE. By increasing activation time, dopants diffuse out of silicide and all of the Ni-silicide grains are surrounded by SDE. Therefore, some device characteristics such as SS and Ioffare improved. For the reduc-tion of mobility and onstate current (Ion), dopant deactivation is still a possible reason. Although Ion slightly reduces, the
Ion/Ioff ratio increases with the increase of activation time. This is explained by the obvious reduction of Ioff. According to these discussions, a 30-s RTA is a suitable activation time for both FSD n and pTFTs.
E. Short-Channel Behavior
The SCE of the FSD and CN TFTs (both n- and p-channel) as evaluated by the threshold-voltage drop with channel-length reduction is shown in Fig. 16. The ∆Vth here is defined as the differences between the Vth of short-channel devices and the
3092 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 53, NO. 12, DECEMBER 2006
Fig. 12. Plane-view SEM micrographs of the silicided gate electrode of FSD TFTs after annealing at different temperatures: (a) 600◦C; (b) 650◦C; (c) 700◦C; and (d) 750◦C.
Fig. 13. XRD spectra of the silicided gate electrode of FSD TFTs after annealing at different temperatures and times.
ascribed to long activation time and fewer grain boundary in the short-channel devices, the Vthof CN nTFTs obviously reduces from 7.11 to 2 V and that of CN pTFT reduces from−8.1 to
−3.9 V as channel length decreases from 10 to 1.2 µm [36].
On the contrary, in the FSD TFTs, the strongly resist of Vthroll off are found for both n and pTFTs. As channel length decreases from 10 to 1.2 µm, Vthof FSD nTFTs just slightly reduces from 5 to 4 V and that of FSD pTFTs reduces from−7.5 to −5 V. The excellent short-channel effect of FSD devices can be attributed to not only the shorten SDE by the low-thermal budget ITS process, but also the SDE/silicide effective trap-state density [37], [38].
IV. CONCLUSION
The concept of high-performance FSD poly-Si TFTs with ultralow parasitic resistance FSD and ultrashort SDE by a
Fig. 14. Typical transfer characteristics of (a) p-channel and (b) n-channel FSD TFTs experienced different activation times without NH3 plasma
treatment.
simple low-temperature ITS process has been proposed in pTFTs. In this paper, we reported that both FSD n and pTFTs can be fabricated simultaneously. Detailed fabrication process,
Fig. 15. Sheet resistance (Rs) of gate and S/D electrodes after annealing at
600◦C with different times.

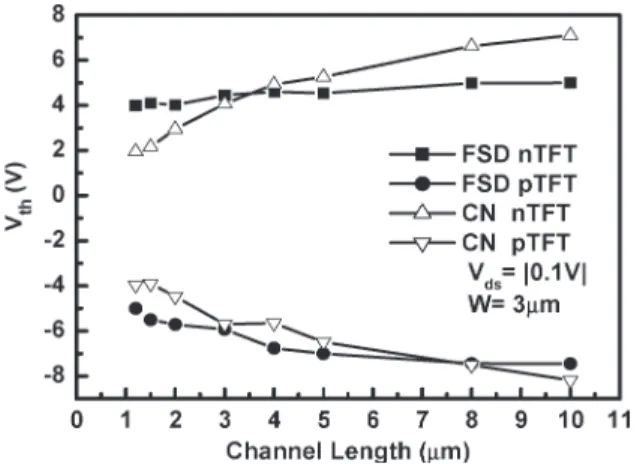

Fig. 16. Threshold voltage (Vth) roll-off of FSD and CN TFTs. The channel
width (W ) is fixed at 3 µm.
basic device characteristics, as well as the impact of activation temperature and time of ITS process are all discussed. As the annealing temperature becomes higher than 700 ◦C, silicide agglomeration occurs at gate electrode and then the electrical
plementing high-density and high-performance driver circuits on the glass panel for AMLCD, AMOLED, and system-on-panel applications.
ACKNOWLEDGMENT
The authors would like to thank the National Nano Device Laboratory staffs for their support in device fabrication.
