A Passive Broadband Impedance Equalizer
for Improving the Input Return Loss of
Electro-Absorption Modulators
Cheng Guan Lim, Member, IEEE
Abstract—Based on the context of an electro-absorption
mod-ulator integrated laser and the industry’s standard 7-pin package having a RF connector, a complete module design that incorporates a simple yet effective broadband impedance equalizer to improve the input return loss of electro-absorption modulators (EAM) is proposed. The passive broadband impedance equalizer effectively reduces the input return loss of the EAM from between 9.84 and 5.26 dB to between 11.5 and 9.35 dB over a frequency range from 4.4 to 12.2 GHz without having to add a resistor in series with the EAM or reducing the EAM absorption-layer capacitance from the value that was optimized for optimal optical performance.
Index Terms—Electro-absorption modulator (EAM), input
re-turn loss, impedance equalizer.
I. INTRODUCTION
T
HE electro-absorption modulators (EAM) [1]–[12] have excellent extinction ratio and chirp performances compared to directly-modulated laser diodes [13], and offer a cheaper solution as well as lower operating voltage [14], [15] compared to lithium niobate Mach–Zehdner modulators (MZM) [16]–[18]. Hence, these devices are indeed very at-tractive to long-reach optical fiber communications networks. In a novel long-reach passive optical network architecture put forward recently as the next generation optical access networks, it was proposed to replace the wavelength-specific lasers in the customer transmitter with 10 Gb/s EAMs [19]. By doing so, this enables centralized optical carrier distribu-tion and wavelength-independent moduladistribu-tion scheme to be employed, hence avoiding the inventory and deployment costs associated with the wavelength-specific lasers. Although the performances of EAMs are not quite comparable to that of the lithium niobate MZMs, their low operation voltage, small size, and the capability to be monolithically integrated with a distributed-feedback (DFB) laser to form an electro-absorption modulator integrated lasers (EML) [20]–[26] are the advan-tages of the EAMs over the lithium niobate MZMs. Without dispersion compensation, EMLs exhibiting a negative chirp and emitting at 1.55 m can achieve 100 km [27] oftrans-Manuscript received March 21, 2008; revised May 24, 2008. Current version published April 17, 2009.
The author was with the Department of Photonics/Institute of Electro-Optical Engineering, National Chiao Tung University, 1001 Ta Hsueh Road, Hsinchu 30010, Taiwan. He is now with the Network Photonics Research Center, National Institute of Advanced Industrial Science and Technology (AIST), Tsukuba, Ibaraki 305-8568, Japan (e-mail: [email protected]).
Digital Object Identifier 10.1109/JLT.2008.2004969
mission-span over standard single-mode optical fiber when operated at 10 Gb/s. When the above EMLs are operated at low extinction ratio, the transmission-span can be extended to 130 km [28]. Nevertheless, actual deployment limits the transmission-span of commercially available 10 Gb/s EML modules to 40 km [29]. When an amplifier is integrated with the EML, the resulting 10 Gb/s EML modules can achieve a transmission-span of 80 km [30]. Although semiconductors MZMs [31]–[34] that offer monolithic integration with a laser diode [35], [36] were developed to achieve the performances of the lithium niobate MZMs, their superb performances over EAMs and EMLs are limited to low bit-rates [37]. At higher bit-rates [38], [39], both EMLs and semiconductor MZMs have comparable performances. In addition, the monolithic integration of a semiconductor MZM with a laser diode is much more complicated and bulkier compared to EMLs.
Similar to laser diodes, EAMs have very low device resis-tance (typically around 5 ). Hence, impedance mismatch be-tween the EAM and the signal source is a concern to these de-vices as this causes signal to be reflected back to the signal source resulting in degraded signal quality. To improve the input return loss characteristics of EMLs, several techniques [40]–[42] have been proposed. However, these methods require a small resistance (typically a few ohms) to be added in series with the EAM section of the EML or the device capacitance of the EAM section of the EML be reduced from its optimized value in order to meet the RF specifications of EML modules. The disadvantages of adding a series resistor and reducing the device capacitance of the EAM section of EML are as follows. 1) The extinction ratio for a given signal magnitude is de-graded due to loss of signal voltage developed across the series resistor.
2) The chirp performance may be compromised because changing the absorption-layer thickness alters the elec-tric-field strength across the quantum-well (QW) ab-sorption-layer and changes its band structure which may impose design constraints that prohibit the optimum chirp to be achieved.
3) The EAM is operated at a lower on-level optical output power in order to achieve a sizable on-off extinction ratio because on-off extinction ratio decreases with increasing input optical power and decreasing absorption strength (thicker absorption-layer leads to weaker electric-field strength across the absorption-layer and results in weaker absorption strength).
To alleviate the above problems while enabling the specifica-tions for 10 Gb/s EML modules to be met, Lim has proposed
1052 JOURNAL OF LIGHTWAVE TECHNOLOGY, VOL. 27, NO. 8, APRIL 15, 2009
to use a lumped-element impedance-matching network (L-net-work) and to implement the L-network using distributed-ele-ment [43]. He has illustrated with a complete EML module de-sign to show that the use of L-network enables the RF specifica-tions for 10 Gb/s application to be met at less than half the device capacitance reduction from the typical optimized value as re-quired by the other techniques. To reduce signal distortion due to input return loss/reflection without adding a series resistor or re-ducing the device capacitance of the EAM from its typical opti-mized value for 10 Gb/s applications, this paper illustrates with a complete EML module design (based on the industry’s standard 7-pin package having a RF connector) that incorporates a simple yet effective broadband impedance equalizer to achieve an of less than dB for frequencies below 10 GHz or higher and a modulation bandwidth of at least 10 GHz (i.e., the RF speci-fications of 10 Gb/s EML modules). Without the series resistor, the signal voltage required to achieve any given on-off extinc-tion ratio will be lower compared to the case where a resistor is inserted in series with the same EAM. Also, by not reducing the device capacitance of the EAM from the optimized value, the EAM can be operated with the optimum performance. As will be seen later, this is made possible by connecting a capaci-tive element at both ends of the signal-feeder [44] and bonding the EML onto a short-circuited stub. In the context of this work, the unique combination of the two capacitive elements and the short-circuited stub are referred to as the broadband impedance equalizer. In contrast to [42] where the characteristic impedance of the signal-feeder was uniformly reduced from 50 to yield the appropriate reactive-trimming effect and [43] where the in-corporation of the L-network causes the signal-feeder to ex-hibit a step-change in characteristic impedance at a particular point along the signal-feeder, connecting a capacitive element at both ends of the 50 signal-feeder changes the character-istic impedance abruptly at both ends of the signal feeder. Nev-ertheless, that alone does not lead to the superior performance of the proposed EML module design. It is the unique combina-tion of the two capacitive elements and the short-circuited stub that leads to EML module design with significantly improved performance.
II. SIMULATIONMODEL ANDAPPROACH
Fig. 1(a) shows the device structure of the EAM used in this study. The corresponding equivalent electrical circuit model of the EAM is shown in Fig. 1(b) where R1 represents the de-vice resistance of the EAM, R2 the differential resistance of the EAM, C1 the capacitance of the absorption layer, C2 and C4 the intrinsic layers, C3 and C5 the iron-doped layers, C6 the poly-imide layer. The value of these circuit elements for an EAM optimized to yield good optical performance for 10 Gb/s appli-cations are 5 , 300 , 0.42, 0.732, 0.082, and 0.085 pF for R1, R2, C1, C2, and C4, C3 and C5, and C6, respectively.
Based on the industry’s standard 7-pin package with a RF connector, a suitable equivalent electrical circuit model for sim-ulating the and modulation responses is shown in Fig. 2(a). In the event of deriving this equivalent electrical circuit model of the EML module, all factors have been evaluated for their influences on the RF performances of the EML module, and all insignificant factors have been excluded. The EAM is an electrical-optical device and its modulation bandwidth is
Fig. 1. (a) Device structure of the EAM and (b) the equivalent electrical circuit model of the EAM.
limited by the device resistance and capacitance of the EAM. Thus, the modulation response of the EAM can be obtained in the simulation by connecting a termination resistor having a large value in parallel with the absorption-layer of the EAM. The configuration shown in Fig. 2(a) assumes no imperfection between the ground of the RF connector and the EML carrier. However, some finite ground imperfection between the RF connector and the EML carrier does exist in reality due to the bonding-wires that connect the ground planes of the above components. This ground imperfection can be taken into con-sideration in the simulation by using the data item component in the electrical circuit simulator of the Advanced Design System (ADS)—a well-established high-frequency simulation package developed by Agilent Technologies Corporation. Using the appropriate data item for a 2-port network, the S-parameters of the microstrip-line signal-feeder [represented by TL1 in Fig. 2(a)] on the EML carrier was simulated using ADS Mo-mentum—a physical-layer electromagnetic simulator—and loaded into the electrical circuit simulation via the data item represented by SNP1 in Fig. 2(b). In this way, the ground imperfection between the RF connector and the EML carrier of the EML module can be taken into consideration by making an appropriate connection to the reference of the data item as illustrated in Fig. 2(b). In this equivalent electrical circuit model of the EML module, Term1 represents the 50 char-acteristic impedance of the signal source, CPW1 the coplanar waveguide mounted on the 7-pin package where the signal lead of the RF connector (either a K-connector or GPO connector) is soldered, TL1 the signal-feeder on the EML carrier where the EML is bonded, R3 a thin-film resistor with a value of 50 whose purpose is to increase the real part of the EML module input resistance to around 50 , L1 the inductance of the bonding-wire connecting the signal line of CPW1 to the signal line of TL1, L2 the inductance of the bonding-wire connecting the ground of CPW1 to the ground of the EML

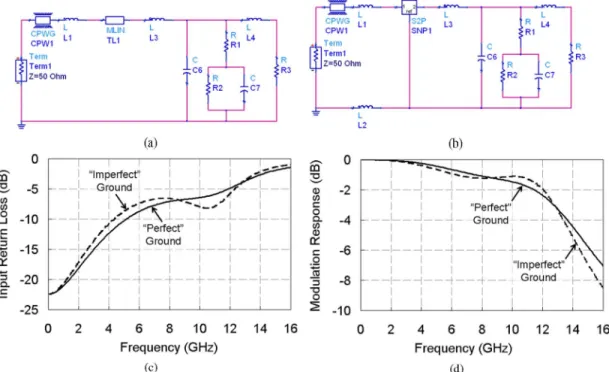

Fig. 2. Equivalent electrical circuit model of the EML module considering there is (a) no internal ground imperfection and (b) internal ground imperfection. (c) Input return loss responses and (d) modulation responses of the EML module design in (a) and (b).
carrier, L3 the inductance of the bonding-wire connecting the signal-feeder of TL1 to the bond-pad of the EAM section, L4 the inductance of the bonding-wire connecting the thin-film resistor R3 to the bond-pad of the EAM section, and C7 the total device capacitance of the EAM section.
In this work, a typical unit inductance of approximately 0.7 nH/mm was used for the bonding-wire. As a result, the values for L1, L2, L3, and L4 were 0.2 nH, 0.2 nH, 0.5 nH, and 0.5 nH, respectively. The length of TL1 was 3.4 mm and a high-frequency (HF) substrate with a thickness of 0.3 mm and a relative dielectric constant of 8.7 was used. Consequently, the width of the 50 signal-feeder (i.e., TL1) is 0.323 mm. Based on all the above parameters, the and modulation responses for the configurations shown in Fig. 2(a) and (b) were simulated and shown in Fig. 2(c) and (d), respectively. As can be observed, whether or not ground imperfection is considered does not cause a drastic difference in these re-sponses. Simulation revealed that ground imperfection causes signal reflection to increase in general. However, due to the additional parasitic inductance introduced by the bonding-wire (L2) which effectively reduces some unfavorable capacitance of the EML module input impedance over the frequency range from approximately 7 GHz to 14 GHz, a dip appears on the response. The reduction in capacitance of the EML module input impedance due to the parasitic inductance introduced by the bonding-wire (L2) is evident from the peaking of the modulation response starting at approximately 7 GHz and began to roll-off steeply at 12 GHz. Although ground imper-fection causes the modulation response to decrease sharply for frequencies above 12 GHz, the 3 dB modulation bandwidth is essentially the same as that in the case with no ground imperfection. Though the effect of ground imperfection may not be really drastic and can be made negligible by using
ribbon bonding-wires with extremely small inductance, ground imperfection has been taken into consideration in the following analysis in order to model the actual situation closely.
III. THEBROADBAND IMPEDANCEEQUALIZER AND
ITSPRINCIPLE
As noted from Fig. 2(c), the of the EML module rises above the dB mark at 4.4 GHz. To reduce the to less than dB for frequencies of beyond 10 GHz in order to meet the specification for 10 Gb/s applications, it is proposed here to incorporate a unique broadband impedance equalizer on the EML carrier to dynamically control the input impedance of the EML module. The proposed unique broadband impedance equalizer consists of two capacitive elements and a short-cir-cuited stub represented by C8, C9, and SNP2, respectively, in Fig. 3(a). To reduce the frequency-dependent signal distortion due to input reflection, two additional signal paths of which impedance is frequency-dependent were introduced. The pur-pose of introducing the above two additional signal paths is to provide a path for certain signal components, which would oth-erwise be reflected back to the signal source, to pass through. Since EAMs are voltage-operated and the above two signal paths are parallel to the EAM, the signal components flowing through C8 and C9 are not lost because the voltage of these signal components is still applied across the EAM. The idea of adding a capacitor at both end of a microstrip transmission-line to improve impedance-matching between two components of large contrasting impedance is not new. This technique had been demonstrated to improve the impedance-matching between a directly-modulated laser diode and a microwave signal source by Ghiasi et al. [44]. As will be seen in the following, the additional of a capacitor at either end of the microstrip transmission-line is not adequate to meet the
1054 JOURNAL OF LIGHTWAVE TECHNOLOGY, VOL. 27, NO. 8, APRIL 15, 2009

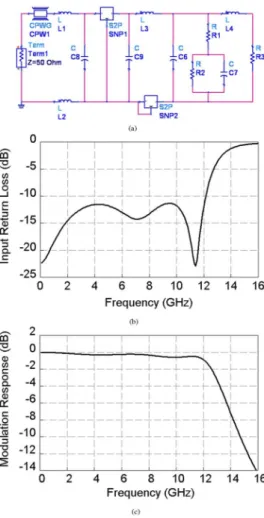

Fig. 3. (a) Equivalent electrical circuit model of the EML module with the pro-posed passive broadband impedance equalizer incorporated. (b) Nominal input return loss response and (c) nominal modulation response of the EML module design shown in Fig. 3(a).
requirement for 10 Gb/s EML modules. It will be shown in the following that a short-circuited stub [45] is necessary to extend the dB cross-over frequency beyond 10 GHz below which the is less than dB.
IV. PERFORMANCEEVALUATION
The above broadband impedance equalizer was optimized to reduce the to less than dB for frequencies of up to be-yond 10 GHz. As a result, the optimized nominal capacitance of C8 and C9 were found to be 0.26 pF and 0.46 pF respectively. The optimized length of the 50 short-circuited stub was 0.5 mm. Using the nominal value for all the circuit elements of the equivalent circuit shown in Fig. 3(a), the and mod-ulation responses are shown in Fig. 3(b) and (c), respectively. As can be observed, the frequency range over which the falls below dB has improved significantly from 4.3 GHz to 12.1 GHz. The 3 dB modulation bandwidth was unchanged at approximately 13 GHz. Compared to the original design shown in Fig. 2(b), the incorporation of the passive broadband impedance equalizer has significantly reduced the from between dB and dB to between dB and dB over the frequency range from 4.4 GHz to 12.2 GHz. The starting and ending values of the above frequency range
Fig. 4. (a) Input return loss response and (b) modulation response of the EML module design shown in Fig. 3(a) but with the short-circuited stub omitted.
correspond to the frequency at which the of the original de-sign and proposed dede-sign, respectively, rises above the dB level.
The characteristics and modulation responses for the case where the short-circuited stub was omitted are shown in Fig. 4(a) and (b), respectively. As can be observed, the rose above dB at 3.5 GHz. The dB cross-over frequency can be extended to slightly more than 7 GHz by re-optimizing the value of C8 and C9 to achieve the best response in the above case. Compared to the case in Fig. 3(c), the case where the short-circuited stub was omitted shows a wider modulation bandwidth; the former has a modulation bandwidth of approxi-mately 13 GHz whereas the latter has a modulation bandwidth of nearly 15 GHz. Nevertheless, the latter exhibits a more severe slump on the modulation response over a frequency range from 8 GHz to 12 GHz.
V. DESIGNIMPLEMENTATION
The best implementation of the EML module design shown in Fig. 3(a) would probably be the one that does not introduce additional component-count and complication compared to the original design shown in Fig. 2(b). Therefore, the best approach is to implement the capacitors (i.e., C8 and C9) of the broad-band impedance equalizer on the HF substrate of the EML car-rier. Here, the microstrip transmission-line has been chosen as a mean of illustration. Since the short-circuited stub has a length of 0.5 mm and width of 0.323 mm and the length of EMLs for 10 Gb/s applications is typically within the range from 450 m to 500 m, it would certainly be ideal to use it as the bond-pad of the EML too.
Based on the dielectric constant and thickness of the HF sub-strate used, the required dimensions to obtain the optimum value of C8 and C9 were calculated. Many combinations of length
Fig. 5. (a) One of the possible EML carrier designs that incorporates the pas-sive broadband impedance equalizer. (b) Input return loss response and (c) mod-ulation response of the EML module having the EML carrier design shown in Fig. 5(a).
and width are possible to achieve the designed value of C8 and C9, however the feasibility of these combinations depend on the space constraint of the 7-pin package. For illustration purpose, the shape of the microstrip transmission-lines that represent C8 and C9 were chosen to be square. With all the above considera-tions in mind, one possible design of the EML carrier is shown in Fig. 5(a). It is worth mentioning that the isolation resistance between the EAM and the DFB laser of the EML is typically 20 k or larger. Hence, the d.c. biasing portion for the DFB laser does not affect the HF performance of the EML and has not been included in the EML carrier design shown in Fig. 5(a) since it is not essential to the scope of this work.
The self-explanatory artwork shown in Fig. 5(a) was con-structed using the layout editor of ADS Momentum simulator. The patches that represent C8 and C9 have a side dimension of 1.006 and 1.367 mm, respectively. The length of TL1 was the same as that of the original design (i.e., 3.4 mm) so that a direct comparison with the original design can be made to make the study of the mechanism of the broadband impedance equalizer easier. One end of TL2 is connected to the ground plane on the under-side of the HF substrate via edge via and this microstrip transmission-line represents the short-circuited stub as well as the bond-pad for the EML.
VI. PERFORMANCE ANDTOLERANCEEVALUATION OF
DESIGNIMPLEMENTATION
With the design implementation shown in Fig. 5(a), the and modulation responses were simulated by importing the S-parameters of the design implementation as produced by the ADS Momentum simulator into the ADS circuit simulator. The ADS Momentum simulator is a powerful electromagnetic simulator that simulates the electromagnetic characteristics of an actual design implementation closely. Consequently, com-pared to the nominal response of this design in equivalent electrical circuit form [Fig. 3(b)], the nominal response [Fig. 5(b)] of the above design implementation exhibits a rela-tively narrower frequency range over which the is less than dB. In equivalent electrical circuit form, the design exhibits a cross-over frequency of 12.2 GHz below which the is less than dB. In the case of the above design implementation, the cross-over frequency is reduced to 11 GHz. The reduction in cross-over frequency in the latter case is attributed mainly to the parasitic inductances introduced by the implementation of C8 and C9 shown in Fig. 5(a). Correspondingly, the nominal modulation bandwidth of the design implementation [Fig. 5(c)] is reduced from approximately 13 GHz to 11.8 GHz.
Generally, the value of L1 and L2 is typically of about 0.1 nH and will not exceed 0.2 nH. Hence, some performance margin has already been incorporated by assuming the value of L1 and L2 to be 0.2 nH. As for microstrip transmission-line fabcrica-tion, very high precision can be achieved through calibrations. Hence, any possible deviations of the dimensions from the de-sign values are expected to be small enough to allow any pos-sible resulting differences in the performance of the EML mod-ules to be neglected. Having considered the above factors, the and modulation responses of the design implementation were evaluated to determine the tolerance of L3 and L4. As will be seen in the following, evaluation shows that the upper limit of the value of L3 and the lower limit of L4 are limited by the cross-over frequency and this corresponds to the first-oc-curring worst-case of the design implementation. The value of L3 should not be less than 0.31 nH and L4 should not have an inductance greater than 0.68 nH, otherwise the peak of the response at 4.5 GHz and 9.6 GHz, respectively, will rise above
dB. In either case, the modulation bandwidth was noted to be in excess of 10 GHz. The modulation response for the case where the value of L3 and L4 are 0.6 nH and 0.4 nH, respec-tively, is shown in Fig. 5(b). As is evident from the above, this case represents the first-occurring worst-case of this design im-plementation and limits the tolerance of L3 and L4 to nH.
1056 JOURNAL OF LIGHTWAVE TECHNOLOGY, VOL. 27, NO. 8, APRIL 15, 2009
Fig. 6. (a) Real part and (b) imaginary part of the input impedance of the orig-inal EML module design shown in Fig. 2(b) and the proposed EML module de-sign shown in Fig. 3(a) considering the EML carrier dede-sign shown in Fig. 5(a).
VII. MECHANISM OF THEBROADBANDIMPEDANCEEQUALIZER
In Section III, the principle of the broadband impedance equalizer was briefly explained in the context of signal flow. As that is a very general explanation, a detailed illustration of the mechanism of the broadband impedance equalizer based on the input impedance of the EML module will be presented in this section.
The real and imaginary parts of for the original design [Fig. 2(b)] and the proposed design [Fig. 3(a) with the EML car-rier design presented in Fig. 5(a)] are shown in Fig. 6(a) and (b), respectively. As can be observed, the real part of
for the original design stays at approximately 40 for fre-quencies below 4 GHz, but rises rapidly thereafter to nearly 140 at 7.5 GHz before falling rapidly to approximately 20 over the frequency range from 11 GHz to 14.5 GHz. Beyond 14.5 GHz, starts to rise rapidly again. From the re-sponse of the imaginary part of , it was noted that is inductive for frequencies below approximately 6 GHz, and increases gradually with increasing frequency to . Over the frequency range from approximately 6 GHz to nearly 9 GHz, falls sharply and becomes capacitive at 7.5 GHz. For frequencies above 8.7 GHz, increases gradually from nearly at 8.7 GHz. Above 11.4 GHz, becomes inductive. The above large variation in is the result of poor impedance matching between the EML module and the HF signal source. Consequently, the of the EML module is poor.
With the incorporation of the broadband impedance equal-izer in the proposed design, the magnitudes of the variation of
and are significantly reduced. For frequen-cies below 11 GHz, the variation of has been con-trolled to within 30 to 70 . Over a frequency range from 10 GHz to 12 GHz, decreases sharply from nearly 70 to nearly 9 , and has an average value of approximately 3 thereafter. The latter phenomenon is the result of C8 crip-pling the effect of R3. The two peaks observed on the response of is the result of C8 and C9 whose purpose is to con-trol the variation of . The input impedance of the EML modules for the proposed design is slightly capacitive for fre-quencies below approximately 1.5 GHz. Thereafter,
increases gradually with increasing frequency as in the original design. However, due to the effect of C9, starts to de-crease gradually at approximately 4.5 GHz and become capaci-tive at slightly above 6 GHz. Due to the short-circuited stub (i.e., TL2), starts to increase gradually at a frequency of nearly 7 GHz. To prevent from decreasing to the values that cause the to become greater than dB as observed in Fig. 4(a), the short-circuited stub was optimized to increase gradually over the frequency range from nearly 7 GHz to slightly above 9 GHz. As a result, was increased from to over the frequency range as stated in the above. Thereafter, C8 causes to decrease rapidly to at approximately 11 GHz. Beyond that,
increases as in the original design. As a whole, the proposed broadband impedance equalizer enables and
to be well-controlled to within and , respec-tively, which would otherwise vary from 22 to 139 and to , respectively, for frequencies below 11 GHz. Consequently, the of the proposed EML module design was kept under dB for frequencies below 11 GHz.
VIII. CONCLUSION
Without resorting to the addition of a series resistor and re-duction of the EAM device capacitance from its optimum value for 10 Gb/s applications, a simple yet effective technique has been proposed and demonstrated to greatly reduce the input re-turn loss of EAM/EML modules. Over a frequency range from 4.4 GHz to 12.2 GHz, the input return loss has been reduced to between dB and dB from between dB and dB. This is the result of improved impedance matching between the EAM and the signal source brought about by the passive broadband impedance equalizer proposed in this work. The passive broadband impedance equalizer consisted of the unique combination of two capacitive elements connected at the ends of the conventional signal feeder and a short-circuited stub onto which the EAM was bonded. The two capacitive elements created two paths for certain signal components to pass through instead of reflected back to the signal source, and the short-circuited stub trimmed off excessive unfavorable reactances over a small range of frequencies. Thus, the passive broadband impedance equalizer has a three-degree of freedom which enabled it to out-perform other impedance matching techniques reported for EAMs/EMLs. The passive broadband impedance equalizer can be easily implemented using dis-tributed elements such as the microstrip lines. Hence, it can be easily incorporated on the EAM/EML carrier. Reduced input return loss using no additional component and no series
TABLE I
PARAMETERSUSED IN THESIMULATIONS
resistor or reduction of the EAM device capacitance means EAM/EML modules with enhanced performances and lower power consumption.
APPENDIX
The information on all the circuit elements used in the simu-lations is shown in Table I.
ACKNOWLEDGMENT
The author would like to thank the Chips Implementation Center (C.I.C.) for the loan of the Advanced Design System—a popular and well-established commercial HF computer-aided-design package.
