A new privacy and authentication protocol for end-to-end
mobile users
Cheng-Chi Lee
1, Chao-Chen Yang
2and Min-Shiang Hwang
3,n,y1Department of Computer and Information Science, National Chiao-Tung University, 1001 Ta Hsueh Road,
Hsinchu, Taiwan, R.O.C.
2
Department of Computer and Information Science, Chaoyang University of Technology, 168 Gifeng E. Road, Wufeng, 413 Taichung County, Taiwan, R.O.C.
3
Department of Management Information System, National Chung Hsing University, 250 Kuo Kuang Road, 402 Taichung, Taiwan, R.O.C.
SUMMARY
In this papecr, we propose a new privacy and authentication scheme for end-to-end mobile users. There are three goals in our scheme. The first allows two end-to-end mobile users to communicate privately each other. The second allows two end-to-end mobile users to distribute a session key simply. The third allows two end-to-end mobile users to mutually authenticate. Copyright # 2003 John Wiley & Sons, Ltd.
KEY WORDS: authentication; mobile communication; privacy; security
1. INTRODUCTION
Recently, mobile communications technologies have undergone rapid development. Small mobile communication devices with numerous functions are becoming popular for people to transfer data at any place and any time. These devices provide convenience for people between destinations and far away from standard communications methods. This is bringing forth the important issue of information security, privacy and authentication in an open space. Privacy involves ensuring that an eavesdropper cannot intercept the communications information of mobile users. Authentication involves ensuring that the services are not obtained fraudulently [1–3].
In recent years, many literatures had been written on privacy and authentication for mobile communications [2,4–8]. A good security protocol for mobile communications must not only provide high security but also low computation. Recently, Yi, Okamoto, and Lam proposed an optimized protocol (denoted as the YOL protocol) for mobile network authentication and security. The YOL protocol is based on the ElGamal signature [9] and Diffie–Hellamn [10] key
Contract/grant sponsor: National Science Council, Taiwan, R.O.C.; contract/grant number: NSC91-2213-E-324 003 Received 12 March 2003
Revised 27 May 2003
y
E-mail: mshwang@mail.cyut.edu.tw
n
Correspondence to: Min-Shiang Hwang, Department of Management Information System, National Chung Hsing University, 250 Kuo Kuang Road, 402 Taichung, Taiwan, R.O.C.
distribution scheme. The protocol has two advantages. The first is that the mobile users only keep two public parameters, a large prime ðpÞ and a public key from the certification authority (CA). Therefore, the storage space of the mobile terminal for the protocol is smaller than that of other protocols. The other is that it uses a secret key cryptosystem to encrypt the communications between mobile user and base station. Therefore, the computation complexity of this protocol is smaller than that of other protocols, which use pubic key cryptosystems to encrypt communications.
However, the YOL protocol considers only that a mobile user will set up a communication session with a base station. When we extended their protocol for end-to-end mobile user communications, there existed either a security loophole or an inefficient processing problem. In this paper, we propose an efficient authentication and privacy protocol for end-to-end mobile user communications by adding a time-stamp to the YOL protocol. There are three goals in our scheme as follows.
1. It allows two end-to-end mobile users to communicate privately each other. 2. It allows two end-to-end mobile users to distribute a session key simply. 3. It allows two end-to-end mobile users to mutually authenticate.
In this paper, we extended YOL protocol for end-to-end mobile user communications. Two of our extended schemes and the YOL protocol have drawbacks shown in Section 3. Therefore, we then propose an efficient and secure authentication and privacy protocol for end-to-end mobile user communications. The proposed protocol do not only correct drawbacks shown in Section 3, but also achieve our above goals.
This paper is organized as follows. In the next section, we give an overview of the YOL protocol. In Section 3, we propose two straightforward protocols, which are extensions of the YOL protocol, to communicate privately and provide authentication for end-to-end mobile users. We also show that the two existing drawbacks in the YOL protocol, the security loophole and inefficient processing problem. In Section 4, we propose an efficient protocol to correct these drawbacks. In Sections 5, we analyse the security of our method. In Section 6, we give a discussion on our protocol. Finally, Section 7 presents our conclusions.
2. THE YOL PROTOCOL
The YOL protocol [7] used the ElGamal signature [9] and Diffie–Hellman key distribution protocol [10] for mobile network authentication and security. This is a good security protocol for mobile devices that use simple algebraic operations and have a small storage capacity. There are two procedures in this protocol. First, all mobile users and base stations must have certificates that are used to authenticate each other. In this procedure, each unit should get a certificate to be authenticated by others. To run next procedure, each unit must have a certificate which is issued by a trusted certification authority (CA). This procedure is generated by CA. Second, mutual authentication and key distribution between mobile user and base station must exist. The YOL protocol is summarized in the following:
2.1. Certification
They assumed that a mobile network includes a trusted third party (CA) which provides a public key certification service and issues a certificate to all mobile users and base stations. The CA
should be a trusted third organization. When a unit wants to get a certificate, he/she generates his/her own key pair, gives the public key as well as some proof of his/her identification to CA. The CA plays the same role as the Government in the certificate issuing process, will check the person’s identification to assure the identity of the unit.
1. Each participant (mobile user, base station, and CA) in the network generates a pair of public-secret keys. The pair of keys for a mobile user is ðym; xmÞ; where ym¼ gxmmod p: xm
is a secret number chosen randomly from GF ðqÞn
by the mobile user. p is a large prime.
q is a large factor of ðp 1Þ; and g ¼ hðp1Þ=qmod p with h is an integer satisfying 15h
5ðp 1Þ: The parameters ðp; q; h; gÞ are generated by CA. In a similar way, the pairs of keys for the base station and CA are ðyb; xbÞ and ðyca; xcaÞ; respectively.
2. The CA generates certificates CertCA;b¼ ðCb; sb; tbÞ and CertCA;m¼ ðCm; sm; tmÞ for the base
station and mobile user, respectively. Here, sb¼ grbmod p with rb is a random number
chosen by the base station from GF ðpÞn
; tb¼ sb hðCbÞ rb x1ca mod q; and Cb is a
message which contains the certificate serial number, validity period, the identity (ID), the
public key of the base station, etc. In a similar way, sm¼ grmmod p with rmis a random
number chosen by the mobile user; tm¼ sm hðCmÞ rm x1ca mod q; and Cm is a
message which contains the certificate serial number, validity period, the identity (ID), the public key of the mobile user, etc.; hðÞ is a one-way hash function [11].
2.2. Mutual authentication and key distribution
The procedures for mutual authentication between a mobile user, MS and a base station, BS, as well as the key distribution from BS to MS are shown in Figure 1. We briefly describe the procedures in the following.
1. MS sends a SETUP signal and his certification CertCA;m to BS.
2. BS verifies the validity of MS by checking the following: ysmþtm
ca s hðCmÞ
m mod p ¼ 1: ð1Þ
If the above equation holds, BS confirms that MS is a legal mobile user and then sends a
CONNECT signal, his certification CertCA;b; and ðymxb K mod pÞ to MS, where K is a
session key which is shared by MS and BS.
3. MS verifies the validity of BS by checking the following: ysbþtb
b s hðCbÞ
b mod p ¼ 1: If the
equation holds, MS confirms that BS is a legal base station and then derives the session key
K by computing yxm
b ðy
xb
m KÞ mod p ¼ K:
Finally, MS and BS can commonly share this session key, K; to encrypt and decrypt confidential message using a block cipher.
3. EXTENSION OF YOL PROTOCOL
The YOL protocol [7] is designed to set up a communication session only between a mobile user and a base station. We extended this protocol for end-to-end mobile users with the following two schemes.
3.1. SCHEME 1: end-to-end mobile users communicate with three keys
A straightforward scheme to apply the YOL protocol for end-to-end mobile user communica-tions is shown in Figure 2. This scheme uses three different keys for end-to-end mobile user
communications. In Figure 2, we assume that mobile user 1 (denoted as MS1) wants to
communicate with the mobile user 2 (denoted as MS2). Apply the YOL protocol for MS1 to
base station 1 (denoted as BS1), both MS1 and BS1can share a session key K1: In a same way,
both BS1and base station 2 (denoted as BS2) can share a session key K2; and both BS2and MS2
can share a session key K3:
There are three advantages in this method:
1. Communications privacy for end-to-end mobile users in a mobile network. 2. Key distribution for end-to-end mobile users.
3. Mutual authentication for end-to-end mobile users.
However, the disadvantage is related to the inefficiency of this scheme. If there are n base
stations between MS1and MS2; ðn þ 1Þ session keys are required. We must to do 2ðn þ 1Þ times
the encryption and decryption. It is thus inefficient for an on-line system. 3.2. SCHEME 2: end-to-end mobile users communicate with one key
In this scheme, we use only one key for end-to-end mobile users to communicate with in a mobile network. In this scheme, the main problem is key distribution; how to send the session
key to each participant. When MS1 wants to communicate with MS2: Each participant must
execute two procedures in the YOL protocol: certification, and mutual authentication and key
distribution. As in Figure 3, MS1 communicates with MS2 using only one session key. This
scheme can improve the inefficiency problem in the previous method, but there still exists a security loophole as follows
* Between MS
1 and BS1; it is similar to SCHEME 1 for mutual authentication and key
distribution.
* Between BS
1 and BS2; it is similar to SCHEME 1 for mutual authentication. Then BS1
sends ðyxb1
b2 KÞ mod p to BS2; where K is decided by BS1: When BS2 receives it, he/she
separates K from yxb1
b2 K mod p by computing ðy
xb2
b1Þ y xb1
b2 K mod p:
* Between BS
2 and MS2; it’s similar to the method between BS1 and BS2:
Finally MS1can send confidential messages to MS2using a symmetrical cryptosystem [11] with
the session key K as shown in Figure 3.
This scheme improves the disadvantage in SCHEME 1. It uses a key only for end-to-end mobile user communications in mobile network. The advantages in SCHEME 2 are the same as SCHEME 1. The disadvantage is insecurity. We explain it as follows
1. MS1 to MS2:
When MS1 communicates with MS2; they use the mutual key K to encrypt and
decrypt the confidential message. If MS2 is an illegal user, he/she can intercept
yxb1
m1 K mod p from the transmission session and separate y
xb1 m1 mod p from it by computing: yxb1 m1 K mod p K ¼ y xb1 m1 mod p: 2. MS1 to MS3:
In the next session, when MS1 wants to communicate with MS3 (mobile user 3), they
choose K1 as their session key. The illegal user, MS2; intercepts ymx1b1 K1mod p from
this session and separates K1 from it as follows.
yxb1
m1 K1mod p
yxb1
m1 mod p
¼ K1:
From now on, MS2uses the session key K1to wiretap the confidential messages between MS1
and MS3: The session key K is shared by MS1 and MS2; so MS2 can derive the session key K1
shared by MS1 and MS3 by using above two equations. In the next section, we will propose an
improved scheme to remedy this security loophole.
4. THE PROPOSED SCHEME
We have showed that the protocols for end-to-end mobile users are inefficient or insecure in Section 3. In this section, we propose a protocol to improve SCHEME 2, as discussed in Section 3. The main idea is that a time-stamp concept [12] is applied to our scheme. We added a time-stamp, T ; and a public one-way hash function f in our scheme, as shown in Figure 4, to solve the inefficiency and insecurity problems as follows:
1. MS1 to BS1:
(a) MS1 sends a SETUP signal and his/her certification CertCA;m1 to BS1:
(b) BS1 verifies the validity of the certification CertCA;m1 by checking Equation (1). If
Equation (1) holds, BS1sends a CONNECT signal, his/her certification CertCA;b1;
time-stamp T1; and yxm1b1f ðT1;X Þ K mod p to MS1; where K is a random session key; X is
equal to yxb1
m1 or y
xm1
b1 and is shared by MS1 and BS1:
(c) MS1 verifies the validity of the time-stamp and the certification Certca;b1 by checking
Equation (1). If Equation (1) holds, MS1 calculates the session key as follows:
yxm1f ðT1;X Þ
b1 y
xb1f ðT1;X Þ
m1 K mod p ¼ K:
2. BS1 to BS2: This is similar to MS1 to BS1 for mutual authentication as shown above. BS1
sends a new time-stamp T2; and ðybx2b1f ðT2;Y Þ KÞ mod p to BS2; where Y is ybx1b2or y
xb1
b2: Next,
BS2 calculates the session key K by computing
yxb2f ðT2;Y Þ
b1 y
xb1f ðT2;Y Þ
b2 K mod p ¼ K:
3. BS2 to MS2: This is similar to BS1 to BS2 for mutual authentication as shown above. BS2
sends a new time-stamp T3; and ðyxm2b2f ðT3;ZÞ KÞ mod p to MS2; where Z is y
xb2
m2 or y
xm2
b2 :
Next, MS2 calculates the session key K by computing
yxm2f ðT3;ZÞ
b2 y
xb2f ðT3;ZÞ
m2 K mod p ¼ K:
Finally, two mobile users, MS1and MS2; get the session key K: They can use this session key
to encrypt and decrypt confidential messages using a symmetrical cryptosystem [11].
5. CRYPTANALYSIS
Our scheme is an extension of the YOL protocol. For enhancing security, we added a time-stamp T and a one-way hash function f to the YOL protocol for end-to-end mobile users. Our scheme is secure against Martin and Mitchell’s attack [13].
If an attacker does not know the secret key x; it is difficult to forge a valid signature pair ðs; tÞ and obtain the session key K from yxbf ðT ;X Þ
m K mod p: This is a discrete logarithm problem
[9]. It is difficult to obtain X except that the attacker known the secret keys xm1 and xb1:
Applying the time-stamp concept in our scheme, the security of the scheme is enhanced to defend and against a replay attack. Although an attacker can intercept the time stamp T and the end-to-end mobile user certification, he/she cannot pretend to be one of them by replaying these messages. An attacker may replay the certificates to pass authentication, he/she still cannot obtain their common session K without knowing the secret key x:
Furthermore, there is no way for an attacker to obtain the secret key, so he/she cannot obtain
the session key K to wiretap the confidential messages. As in the description in Section 3, MS2is
an attacker. He/She can intercept yxb1f ðT1;X Þ
m1 and T1; but he/she cannot get the session key K by
computing yxb1f ðT0;X Þ m1 K mod xp yxb1f ðT1;X Þ m1 mod p ;
since the time-stamp T0is different from the time-stamp T1 and the X is unknown to him/her.
6. DISCUSSIONS AND COMPARISONS
A good protocol for privacy and authentication in a mobile network should involve as simple an algebraic operation as possible and occupy as small a storage space as possible. The YOL protocol [7] can achieve these purposes. However, their protocol has the following drawbacks: (1) only communications between a mobile user and a base station are considered; (2) they cannot resist the certificate replaying attack; (3) the session key may be derived by another legal mobile user described in Section 3. Our scheme can remedy these drawbacks in Section 4. We added a time-stamp against replaying attack and a one-way hash function to solve the drawbacks (3). The security of our analysis is described in Section 5. Our end-to-end protocol has all of the necessary features.
Our method has the following improvements:
1. Traditionally, privacy and authentication for end-to-end mobile communication is a large topic [5]. In the YOL protocol, only communications between a mobile user and a base station are considered.
2. In SCHEME 1 of Section 3, ðn þ 1Þ session keys and 2ðn þ 1Þ times of encryption and decryption computations are required for mobile communications. It is inefficient. In SCHEME 2 of Section 3, one session key for end-to-end mobile communications is used to avoid heavy encryption and decryption computations. This solves the inefficiency problem.
3. In the efficient scheme in Section 4, we added a time-stamp, T ; and a one-way hash function f to solve a potential security loophole. Compared with the YOL protocol, only a
multiplicative operation, xb f ðT ; X Þ; and f ðÞ were added. Therefore, the
computa-tional complexity was not increased. Communication between end-to-end mobile users was achieved and the security of the protocol was enhanced.
However, in our scheme, it also have a small shortcoming same as other mobile network that is base stations have the knowledge of that shared session key, which gives these base stations the capability to decrypting the encrypted message between the two mobile users.
In Table I, we compare the proposed schemes with YOL scheme. Although the computational complexity of our scheme is higher than YOL scheme, our scheme can achieve end-to-end security and improve the insecurity of YOL scheme. In addition, our scheme in Section 4 keeps the advantages of YOL scheme.
7. CONCLUSIONS
Yi, Okamoto and Lam proposed a good security protocol for a mobile network involving simple algebraic operations and small storage capacity. In their protocol, only mobile users setting up communications a base station was considered. In this paper, we extended their protocol to end-to-end mobile users communicating privately and authentically. Our scheme can achieve (1) privacy for end-to-end mobile users in a mobile network; (2) key distribution for end-to-end mobile users is achieved simply; (3) mutual authentication for end-to-end mobile users is also achieved. In addition the security of the protocol was also enhance.
ACKNOWLEDGEMENTS
The authors wish to thank many anonymous referees for their suggestions to improve this paper. Part of this research was supported by the National Science Council, Taiwan, R.O.C., under contract no. NSC91-2213-E-324-003.
REFERENCES
1. Min-Shiang Hwang, Cheng-Chi Lee, Wei-Pang Yang. An improvement of mobile users authentication in the integration environments. International Journal of Electronics and Communications 2002; 56(5):293–297.
2. Min-Shiang Hwang, Chii-Hwa Lee. Authenticated key-exchange in a mobile radio network. European Transactions on Telecommunications1997; 8(3):265–269.

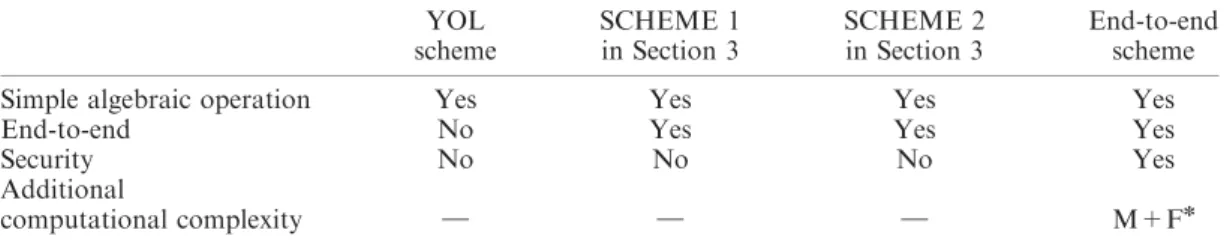

Table I. Comparisons among the four schemes.
YOL SCHEME 1 SCHEME 2 End-to-end scheme in Section 3 in Section 3 scheme
Simple algebraic operation Yes Yes Yes Yes
End-to-end No Yes Yes Yes
Security No No No Yes
Additional
computational complexity } } } M+Fn
n
3. Chii-Hwa Lee, Min-Shiang Hwang, Wei-Pang Yang. Enhanced privacy and authentication for the global system of mobile communications. Wireless Networks 1999; 5:231–243.
4. Aziz A, Diffie W. Privacy and authentication for wireless local area networks. IEEE Personal Communications 1994; 1(1):24–31.
5. Beller MJ, Chang LF, Yacobi Y. Privacy and authentication on a portable communications system. IEEE Journal on Selected Areas in Communications1993; 11:821–829.
6. Min-Shiang Hwang, Wei-Pang Yang. Conference key distribution protocols for digital mobile communication systems. IEEE Journal on Selected Areas in Communications 1995; 13(2):416–420.
7. Yi X, Okamoto E, Lam K.Y. An optimized protocol for mobile network authentication and security. ACM Mobile Computing and Communications Review1998; 2(3):37–39.
8. Zheng Y. An authentication and security protocol for mobile computing. In Mobile Communication}Technology, Tools, Applications, Authentication and Security (Proceedings of IFIP World Conference on Mobile Communica-tions), Encarnacao JL, Rabaey JM (eds). Chapman & Hall: Canberra, Australia, September 1996; 249–257. 9. ElGamal T. A public-key cryptosystem and a signature scheme based on discrete logarithms. IEEE Transactions on
Information Theory1985; IT-31:469–472.
10. Diffie W, Hellman ME. New directions in cryptography. IEEE Transactions on Information Theory 1976; IT-22: 644–654.
11. Schneier B. Applied Cryptography (2nd edn). John Wiley: New York, 1996.
12. Yae BH, Lee SC, Kim HS. A scheduling scheme for the heterogeneous multimedia services in mobile broadband systems. In Proceedings of 8th IEEE International Symposium on Personal, Indoor and Mobile Radio Communications (PIMRC’97: Helsinki; Finland, September), 1997; 1059–1063.
13. Martin KM, Mitchell CJ, Comments on an optimized protocol for mobile network authentication and security. ACM Mobile Computing and Communications Review1998; 3(2):37.
