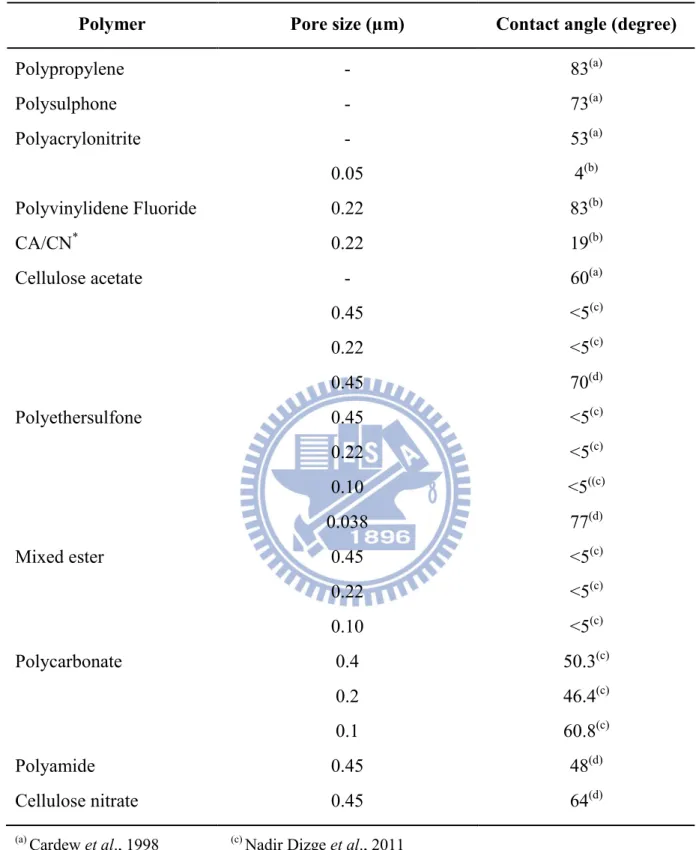

Table 2.3 Contact angle of various membrane materials used in MBRs ... 14
Table 3.1 Characteristics of applied membrane in this study ... 19
Table 3.2 Compositions of feed solution as the synthetic wastewater ... 20
Table 3.3 Summary of dyes with the applied concentration, staining targets, excitation-emission wavelength and indicated color ... 28
Table 3.4 Wave numbers and functional group of humic substances, polysaccharide and protein in FTIR experiment ... 30
Table 3.5 Excitation-emission wavelength of the five regions of EEM... 32

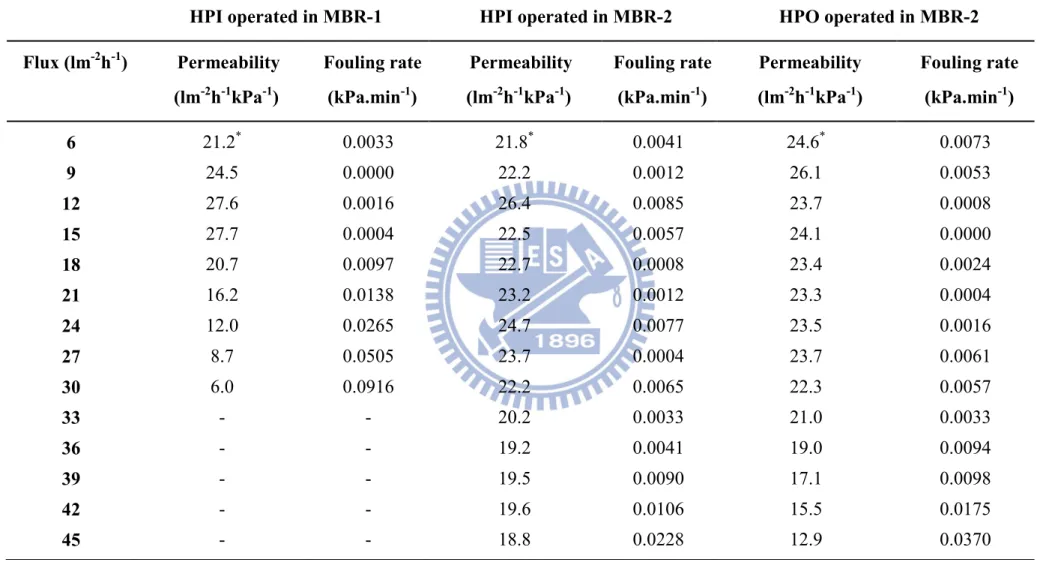

Table 4.1 Permeability and fouling rate of HPI and HPO membranes in step-flux experiments ... 40
Table 4.2 Critical flux determination ... 41
Table 4.3 The average MLSS, TOC in permeate and TOC removal ... 47
Table 4.4 Peaks location and intensity of membrane fouling compositions ... 51
Table 4.5 Summary of membrane fouling compositions in different operation conditions ... 60
viii
List of Figures
Figure 1.1 Scope of this study ... 3
Figure 2.1 Types of MBRs based on the position of membrane ... 5
Figure 2.2 Types of MBRs based on the flow directions ... 5
Figure 2.3 Definition of bound EPS and soluble EPS ... 15
Figure 3.1 Schematic of the MBR system in this study ... 17
Figure 3.2 Membrane bioreactors ... 18
Figure 3.3 Critical flux determinations by flux-step test ... 21
Figure 3.4 Preparation of fouling sample ... 23
Figure 3.5 Extraction of EPS from activated sludge in MBRs... 24

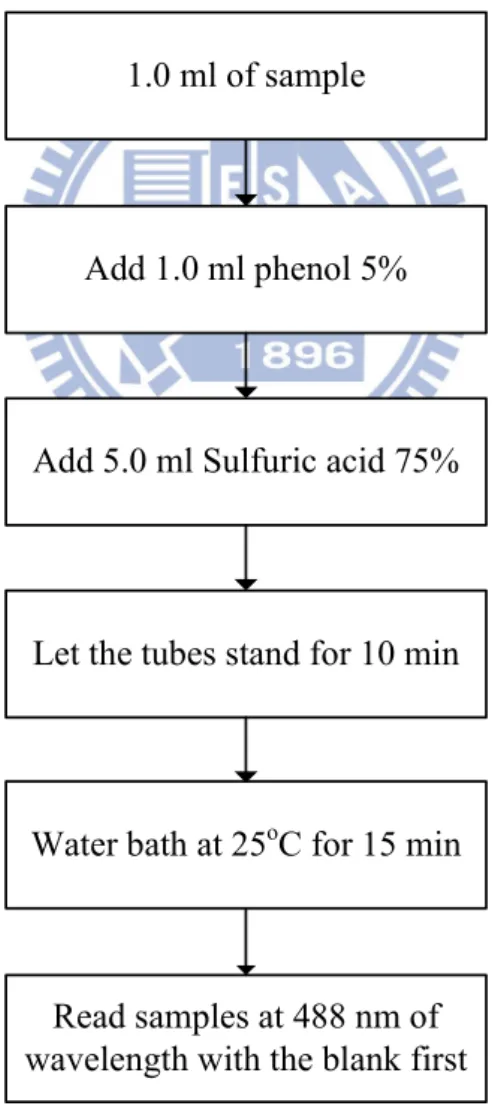

Figure 3.6 Phenol-Sulfuric acid methods for polysaccharide measurement ... 25
Figure 3.7 Bradford methods for protein measurement ... 26
Figure 3.8 Procedure of DNA, protein and polysaccharides staining ... 29

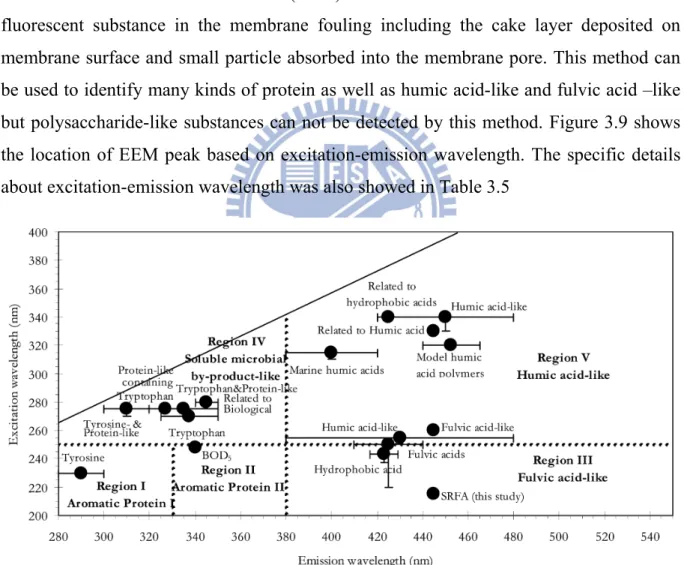

Figure 3.9 Location of EEM peak based on excitation-emission wavelength ... 31
Figure 4.1 Critical flux determination of HPI membrane in MBR-1 ... 34
Figure 4.2 Critical flux determination of HPI membrane in MBR-2 ... 35
Figure 4.3 Critical flux determination of HPO membrane in MBR-2 ... 36
Figure 4.4 Comparison of TMP changes between membranes during flux-step trials ... 36

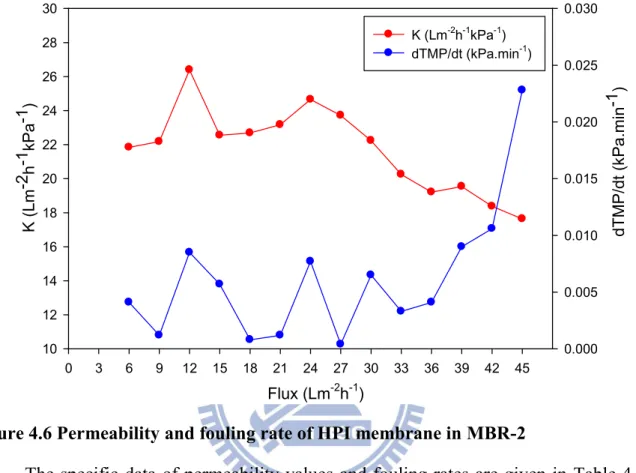

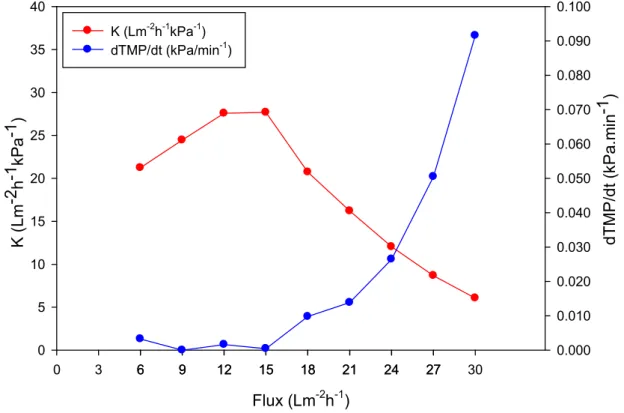

Figure 4.5 Permeability and fouling rate of HPI membrane in MBR-1 ... 37
Figure 4.6 Permeability and fouling rate of HPI membrane in MBR-2 ... 38
Figure 4.7 Permeability and fouling rate of HPO membrane in MBR-2 ... 39
Figure 4.8 Hysteresis loop for the short-term tests ... 41
Figure 4.9 Variation of TMP under various sub-critical fluxes operation ... 43
Figure 4.10 Flat-sheet membranes after long-term sub-critical fluxes operation ... 44
Figure 4.11 Operational conditions of HPI membrane with 60% of critical flux operated in MBR-1 ... 45
Figure 4.12 Operational conditions of HPO membrane with 80% of critical flux operated in MBR-2 ... 46
ix
Figure 4.13 Operational conditions of HPI membrane with 80% of critical flux operated in
MBR-2 ... 46
Figure 4.14 Operational conditions of HPI membrane with 60% of critical flux operated in MBR-2 ... 47
Figure 4.15 FTIR spectra of fouling on membrane surface ... 48
Figure 4.16 Fluorescent EEM of membrane fouling on HPI membrane operated under 60% critical flux in MBR-1 ... 52
Figure 4.17 Fluorescent EEM of membrane fouling on HPI membrane operated under 80% critical flux in MBR-2 ... 53
Figure 4.18 Fluorescent EEM of membrane fouling on HPO membrane operated under 80% critical flux in MBR-2 ... 54
Figure 4.19 Fluorescent EEM of membrane fouling on HPI membrane operated under 60% critical flux in MBR-2 ... 55
Figure 4.20 Soluble polysaccharides in cake layer and in membrane pore ... 56
Figure 4.21 Cell-bound polysaccharides in cake layer and in membrane pore ... 57
Figure 4.22 Soluble proteins in cake layer and in membrane pore ... 58
Figure 4.23 Cell-bound proteins in cake layer and in membrane pore ... 59
Figure 4.24 CLSM images of membrane fouling on HPI membrane operated under 60% critical flux in MBR-1 ... 62
Figure 4.25 CLSM images of membrane fouling on HPO membrane operated under 80% critical flux in MBR-2 ... 62
Figure 4.26 CLSM images of membrane fouling on HPI membrane operated under 80% critical flux in MBR-2 ... 63
Figure 4.27 CLSM images of membrane fouling on HPI membrane operated under 60% critical flux in MBR-2 ... 63
Figure 4.28 Vertical distribution of EPS in membrane fouling on HPI membrane operated under 60% critical flux in MBR-1 ... 64
Figure 4.29 Vertical distribution of EPS in membrane fouling on HPO membrane operated under 80% critical flux in MBR-2 ... 65
Figure 4.30 Vertical distribution of EPS in membrane fouling on HPI membrane operated under 80% critical flux in MBR-2 ... 66
Figure 4.31 Vertical distribution of EPS in membrane fouling on HPI membrane operated under 60% critical flux in MBR-2 ... 67
1
Chapter 1
Introduction
1.1 Background
The exponential increase in world population together with the industrialization all over the world results in a skyrocketing increase in daily water use and the resultant wastewater into the environment. It gradually deteriorates the quality of surface and groundwater if without proper treatment scheme.
Membrane bioreactors system has been considered as a potential effective method for treating wastewater because of many advantages over the conventional activated sludge treatment processes. MBRs provide a high treated water quality, reaching to the strict standards in all countries. Beside that, flexibility in operation, small footprint, low rate sludge production, high rate decomposition or effective in disinfection and odor control have also been recognized. However, membrane fouling has become a major cause, impeding its widespread applications.
The purpose of setting up a waste water treatment system is to treat wastewater discharged from different sources such as industrial wastewater and municipal wastewater. However, to get a success in wastewater treatment systems, the engineers are required to understand deeply about not only the system structure but also the operational mechanisms of each certain step in the treatment process. Therefore, to understand more about membrane fouling is required for operating the MBRs system effectively, especially in a field of membrane fouling under sub-critical flux operation.
Critical flux was introduced as a limit point at which membrane fouling rate is zero. According to this concept, it was said that membrane fouling during MBRs process will not occur at theoretical point of view under sub-critical flux operation. But in practice, membrane fouling always occurs under whether sub-critical flux operation or super-critical flux operation. Operated under step-flux method was applied for finding out the critical flux and then the MBR was sub-critical flux condition. Two types of membranes, hydrophilic and hydrophobic PTFE, were used.
2
In this investigation, the systems were performed under different MLSS concentration. Critical flux was firstly found and sub-critical fluxes also were calculated with 60% and 80% of critical flux. Then, the MBR system was operated with the given sub-critical flux to identify the critical factors for fouling during sub-critical flux operation. EPS compositions were determined for elucidating the main cause of membrane fouling during this stage.
1.2 Objectives
The main purposes of this research were:
- To find out the critical flux of each type membrane
- To investigate the occurrence of membrane fouling under different sub-critical fluxes operation, to analyze the composition of fouled membrane, and to investigate the causes for membrane fouling
- To compare between the MBR performances of the membrane under sub-critical flux operation.
1.3 Scope of this study
Figure 1.1 shows the scope of this study in which the membrane fouling under different sub-critical flux operation were considered. First step of this study was to identify the critical flux of HPI and HPO membrane operated under different operational conditions. After found out the critical flux, sub-critical fluxes were calculated with 60% and 80% of critical flux. In case of operating the MBR system by 60% of critical flux, HPI membranes were chosen for performing in different activated sludge (AS) concentrations (7,000 – 7,500 mg-MLSS/l and 6,000 – 6,500 mg-MLSS/l). The MBR operated with AS of 7,000 – 7,500 mg-MLSS/l was abbreviated as MBR-1. Another was MBR-2. In case of operating the MBR system by 80% of critical flux, MBR-2 was chosen to carry out the test with HPI and HPO membrane. After finishing the long-term test, EPS concentration, particle size distribution, FTIR, CLSM and EEM methods were applied to determine the fouling behavior in each case.
A comparison between HPI and HPO membrane operated under 80% critical flux in MBR-2; HPI membranes operated in MBR-2 with different sub-critical flux (60% and
3
80% of critical flux) and HPI membrane operated under the same sub-critical flux in MBR-1 and MBR-2 were also performed to identify the critical factors for fouling during sub-critical
4
Chapter 2
Literature Review
When the conventional wastewater treatment system no longer meets the stringent standards in an effort to preserve natural water resources, the emerging technology for wastewater treatment has become an urgent requirement for supplying the clean water for daily demands or discharging into the receiving sources such as lake, river, ground water or any other receiving sources. Membrane bioreactors (MBRs) offering several advantages over the conventional processes have gradually been used for satisfying these requirements in each country all over the world. Unfortunately, membrane fouling causing the decline of membrane performance leading to the increasing of operational cost has been preventing the widespread of this application. In this chapter, some concepts relating to MBRs as well as membrane fouling will be introduced.
2.1 Membrane bioreactors (MBRs)
By the late 1960s, a commercialized MBRs process was firstly introduced by Dorr-Oliver with the use of an activated sludge bioreactor coupled a cross-flow membrane (Smith et al., 1969). Due to a poor industrial development in producing a good performance of membrane at that time, the cost of membrane, obviously, was very high. Beside that, to reduce fouling occurring in MBRs process, the mixed liquor suspension in the activated sludge bioreactor was pumped at high velocity at considerable energy (up to 10 kWh per 1 m3 of water product) (Le-Clech et al., 2006). As a result, the first generation of MBRs couldn’t be applied as an emerging technology. Up to 1989s, the Japanese Government co-operated with many large companies to find out a new direction for implementing a better process for water recycling. Kubota company - a participate member of above cooperation- proposed and developed a flat-sheet submerged MBR. Yamamoto and his co-worker have pioneered in running a submerged MBR with hollow fiber membrane in this time (Yamamoto et al., 1989). The new era of using MBRs in treating wastewater has been opened ever since then
In general, MBRs are a technology combined between a direct filtration of a selectively permeable membrane and the biological degradation of activated sludge in a
5
wastewater treatment system. The solvent liquid is separated from the solution through membrane by a certain driving force based on the using purpose of the operational workers. According to the operational mode, MBRs were basically divided into two subgroups: bioreactors with membrane in external circuit and bioreactor with submerged membrane (Visvanathan et al., 2000). Bioreactors with membrane in external circuit appeared in the beginning of using membrane in wastewater treatment. Because of its inconvenience in operation as well as in operational cost, nowadays, no more authors have mentioned to this approach in their researches. In contrary, most MBRs design for wastewater treatment has been focused on the submerged membrane bioreactors. The fouling will easily be removed by shear stress caused air bubbles from aeration. Nevertheless, the operating cost as well as fouling-cleaning cost will decrease compared to the external circuit membrane bioreactor. A general setup of two types of membrane bioreactors is presented in Figure 2.1.
Figure 2.1 Types of MBRs based on the position of membrane
In addition, with different direction of feed flow, concentrate or permeate, MBRs can also be categorized into end filtration and cross-flow filtration. In case of dead-end filtration, the feed flow perpdead-endicularly moves to the membrane surface. By this way, the fouling easily deposits onto the membrane surface. Then, the operator will often replace the membrane modules. Regarding to cross-flow filtration, the feed flow moves parallel with the surface of membrane. This way is considered as a natural method to mitigate the membrane fouling without stopping the system. Figure 2.2 illustrates the two concepts above.
6 2.1.1 Membrane characteristics
Membrane characteristics are considered as the factors that contribute to the success of MBR performance such as the pore size of membrane, hydrophobic or hydrophilic membrane or membrane morphology. These mentioned factors affect membrane fouling propensity (Madaeni et al., 1999; Le-Clech et al., 2003b; Maximous et
al., 2009) and resultantly affect the performance of MBR system. The extent of this part is
to introduce some basic information about membrane material, membrane pore size and hydrophobic/hydrophilic characteristic of membrane.
2.1.1.1 Membrane materials
A membrane classification is conveniently accordant to the composition which formed the membranes. To perform with an optimal efficiency, many types of membranes have been experimented either in real MBR systems or in experimental MBR systems. During 50 years of development and application, two different types of materials, organic/polymeric materials and inorganic/ceramic materials, are used to form membranes served in many purposes of water fields (Judd, 2006). Polymeric membranes are noted as the preferred membranes in membrane system. Ceramic membranes have been successfully applied for several kind of wastewater, such as treatment of high-strength industrial waste and anaerobic applications (Le-Clech et al., 2006). However, as mentioned above, ceramic membrane cannot be used as a popular option due to the high cost compared to polymeric membranes. In conclusion, a suitable membrane materials should have some special feature to stand with the conditions of MBR system such as having a strong resistance to thermal and chemical attack, high temperature, high or low pH in the reactors and low cost. Stephenson et al. (2000) has released some membrane materials by name and simultaneously presents the advantages and disadvantages of it.
With the development of technology, the cost of membrane is day-by-day decreasing. This becomes one of the most advantages of MBR system to invest many MBR plants in most of countries even in the developing countries.
7
2.1.1.2 Membrane pore size
A range of membrane pore size used in lab-scale experiments mainly lies from 0.02 to 0.5 µm (Stephenson et al., 2000). In a submerged flat sheet system, Stephenson also showed the dependence of the decline rate of flux against membrane pore size. Membrane pore size strongly effects to the performance of membrane by rejecting the higher size of colloid, suspended solid etc…in the sludge solution that tend to form a cake layer on the membrane surface caused the decline of the effluent flux. Gander et al. (2000) revealed that the initial fouling of the larger membrane pore size dominated over the smaller pore size when conducting a series of membranes with different pore size from 0.4 to 5 µm.
It was reported that the blocking index of 0.4 µm of membrane pore size was always higher than that of 0.2 µm under the same operational conditions (Hwang et al., 2008). Beside that, many researchers have focused on the optimal performance of membrane pore size. Choo and Lee (1996) proposed that membrane with 0.1 µm pore size have a best performance with the least membrane fouling tendency compared to other 0.02, 0.5 and 1 µm of membrane pore size. A study related to the influence of four membrane types (cellulose acetate, polyethersulfone, mixed ester, polycarbonate) with three different pore sizes (0.40 – 0.45, 0.22, 0.10 µm) on cross-flow filtration was conducted by Nadir Dizge and his colleagues. In this study, cellulose acetate membrane with pore size of 0.45 µm presented a worst performance with the most rapid decline of flux among all membranes.
Some authors have found that membrane pore size exhibits a negative effect to the critical flux with the pore size from 0.01 to 0.1µm (Le-Clech et al., 2003a). Madaeni (1999) supposed that the critical flux of membrane was not dependent on the membrane pore size (although the TMP is different with the difference of the pore size). In other words, according to Madaeni, the larger the pore size, the higher the TMP produced although the flux is the same with all cases.
Table 2.1 shows the characteristics of PVDF flat-sheet membranes used in MBRs by many authors in order to making a relationship between critical flux and membrane characteristics.
8

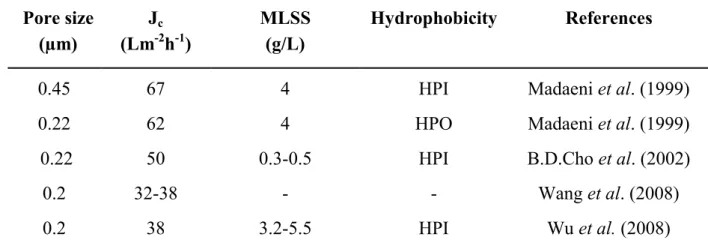

Table 2.1 Characteristics of PVDF flat-sheet membranes used in MBRs
Pore size (µm) Jc (Lm-2h-1) MLSS (g/L) Hydrophobicity References 0.45 0.22 0.22 0.2 0.2 67 62 50 32-38 38 4 4 0.3-0.5 - 3.2-5.5 HPI HPO HPI - HPI Madaeni et al. (1999) Madaeni et al. (1999) B.D.Cho et al. (2002) Wang et al. (2008) Wu et al. (2008) 2.1.2 Membrane fouling
The development of membrane fouling in a membrane bioreactor is one of the main causes for flux decline during long-term operation, preventing the wide-spread application of MBR in the wastewater treatment. It is caused by the deposition or attachment of small particles such as colloids, solutes, microorganisms, cells-debris and biomass residuals on the membrane surface. Membrane fouling mitigation has been investigated to improve the performance of membrane, and to decrease the operational cost. The carbohydrate fraction from the soluble microbial product has been accepted as the major fouling in membrane bioreactors (Clech et al., 2006; Pan et al, 2008). In which, hydrophilic carbohydrates are the predominant cause for membrane fouling (Pan et al., 2008). Another study has mentioned that the fatty acids from bacterial lipopolysaccharides are mainly related to membrane fouling (Al-Halbouni et al., 2008). Zhang et al (2006) observed the membrane fouling that follows a three stage fouling history. Stage 1 is an initial short-term rise in transmembrane pressure. Stage 2 is a long-term TMP rise or a slow fouling stage. Stage 3 is that the transmembrane pressure suddenly jump due to the fouling exceedingly deposited on the membrane surface. A review of Meng et al. (2008) has summarized the membrane fouling mechanisms as following:
• Adsorption of solutes or colloids • Deposition of sludge flocs • Formation of a cake layer
• Detachment of fouling caused by shear forces
9
Particle size plays a significant role in categorizing membrane. Three type of membrane fouling are proposed: adsorption, pore blocking and cake layer (Hong et al., 2005). With the complex compositions of membrane fouling such as colloids, solutes .etc, size of some sludge particles that is smaller than the membrane pore size tends to adsorb on pore wall and gradually fulfill the membrane pore. In a case of the sludge particle size is as same as membrane pore size, the foulants will block the membrane pore. It is called as pore blocking. Both adsorption and pore blocking are considered as irreversible fouling (Chang et al., 2002; Drews 2010) or irremovable fouling (Meng et al., 2009).
Cake layer is formed on membrane surface only when the size of sludge particle is much larger than that of membrane. A cake layer is a complex system of the interaction between not only colloids-colloids, solutes-solutes, solutes-colloids but also colloids, solutes-membrane surface. The cake layer which contributes 80% of total resistance of membrane system mainly affects to the membrane fouling formation (Lee et al., 2001). Fortunately, many researches have pointed out that cake layer is removable from the membrane surface by physical cleaning as well as is removed by shear-stress caused by aeration supported during the running of membrane bioreactors (Chu et al., 2004; Chang
et al., 2002; Le-Clech et al., 2006; Meng et al., 2009; Drews 2010).
According to the removable characteristics of membrane fouling on the membrane surface, many scientists have mentioned to membrane fouling as reversible and irreversible fouling. Reversible fouling is a type of membrane fouling that is easy to be removed by physical washing such as back flushing or relaxation. On the other hand, irreversible fouling is generally removed by chemical cleaning (Chang et al., 2002). However, Meng et al. (2008) supposed that there is existing some types of membrane fouling that neither physical washing nor chemical cleaning can be used to remove. Therefore, these authors defined three types of fouling that are removable fouling, irremovable fouling and irreversible fouling. The term of irrecoverable fouling has been proposed by Drews (2010) in which this type of membrane fouling can’t be removed by any cleaning means. This definition is familiar with the definition of Meng et al. (2008) about irreversible fouling. Table 2.2 shows various definition of reversible and irreversible fouling occurred during MBR operation.
10
Table 2.2 Definition of reversible and irreversible fouling
Cleaning methods The term of fouling References
Physical cleaning Reversible fouling
Removable fouling
Drews, (2010) Chang et al. (2002) Meng et al. (2009)
Chemical cleaning Irreversible fouling
Irremovable fouling
Drews, 2010 Chang et al. (2002) Meng et al. (2009)
None(*) Irrecoverable fouling
Irreversible fouling
Drews, (2010) Meng et al.(2009)
(*) no suitable methods used to remove fouling
Regarding to the constituents of membrane fouling, fouling can be classified into biofouling, organic fouling and inorganic fouling (Meng et al., 2009). For a long-term operation, a microbial biofilm occurs on the membrane surface due to an interaction between microbial community and membrane surface. This microbial biofilm is the accumulation of cells and microorganisms products. In other words, the free-floating microorganisms lived in the sludge solution will colonize the membrane surface by attaching on the surface and develop their biomass. The so-called “biofouling” is also referred to this microbial biofilm and all products excreted from the microbial community activities that effect to the performance of membrane systems. Biofouling is still inevitable due to the complex characteristics of microbial system (Le-Clech et al., 2006). The term of organic fouling refers to the adsorption of organic matters on the membrane surface and its pore inside due to the small size of particle and suction force pump in the system. Biopolymers such as proteins and polysaccharides are predominant in organic fouling compositions and dependent on the Food/Microorganism (F/M) ratio in which high F/M make the fouling more proteinaceous (Kimura et al., 2005).
11
Inorganic fouling contributes a small role in membrane resistance due to the low concentration in the activated sludge solution. The inorganic fouling is formed from the chemical precipitation and biological precipitation. Metal ions can easily react with the specific functional group of biopolymer such as CO32-, SO42- (Meng et al., 2009)… and deposited on the cake layer. Otherwise, inorganic fouling is also able to adsorb into the membrane pore and become the irreversible fouling. Chemical cleaning is predominant in removal of the inorganic precipitate compared to the physical cleaning.
2.2 Critical flux and sub-critical flux
The term “flux” refers to how much of clean water that flows through a unit area of membrane per unit time. When running the membrane system, the flux is determined by the following equation seen as an integral form of Darcy law (Bacchin et al., 2006).
∆ ∆
2.1 Where:
J: Permeate flux (m3m-2h-1)
∆: A transmembrane pressure (Pa) ∆: An osmotic pressure (Pa)
µ: Viscosity (Pa.s)
Rm is the resistance of original membrane; Rads is the resistance caused by surface or pore adsorption; Irreversible fouling Rirrev is caused by cake deposit or gel formation; Reversible fouling Rrev is caused by pore linking or cake deposit.
Critical flux plays an important role in operating a certain membrane bioreactor. The engineer should controls the system based on critical flux for an effective operation. Critical flux plays an important role in characterizing the membrane fouling as well as the membrane bioreactor performance. One definition for critical flux is that “The critical
flux for MF is that on start-up there exists a flux below which a decline of flux with time does not occur; above it fouling is observed. This flux is the critical flux and its value depends on the hydrodynamics and probably other variables” (Field et al., 1995). The
other definition is that the flux below which colloids do not deposit on the membrane surface (Howell, 1995). By these two definitions, membrane fouling will be noticeable at
12
a flux called “critical flux”. Above the critical flux, all type of activated sludge compositions such as colloids, suspended solid … will quickly attach on the membrane surface caused the rapid decline in flux. The term sub-critical refers to the flux below which the fouling does not. Otherwise, the strong form and weak form of critical fluxes have been developed to compare with the conventional definition (Bacchin et al., 2006). The strong form of critical flux is defined as the flux point at which the transmembrane pressure curve changes direction from linearity with the assumption of the absence of adsorption and osmotic pressure. In the presence of adsorption, the definition of the weak form of critical flux is also the same with that of the strong form of critical flux but the steady-state is different from that of pure water. Up to now, a standardized methodology has not yet been designed for exactly determining the value of the weak form of critical flux (Guglielmi et al., 2006)
Numerous methods for identifying the critical flux of a certain membrane have been proposed by a number of authors that whose research focused on the membrane area (Le-Clech et al., 2003a; Espinasse et al., 2002). Pierre Le-Clech and his colleagues have established the concept of flux-step method in 2003 (Le-Clech et al., 2003a). Flux-step method is a common method developed for determining the critical flux of membrane used in a membrane bioreactor operating at constant flux. During the flux-step test, smaller step height is required to make the test precisely (Tiranuntakul et al., 2011). Some specific hydraulic parameters obtained from this experiment such as the initial transmembrane pressure increase (∆P0), the rate of transmembrane pressure increase (dP/dt), permeability (K), and the average transmembrane pressure (Pave) are used to identify critical flux (Le-Clech et al., 2003b). This author also defined critical flux the flux at which permeability decreases to below 90% of initial permeability recorded for the first filtration step. In another paper, Guglielmi et al. (2006) proposed critical flux is the flux at which the initial permeability is higher than 90% of the initial permeability. The concentration of feed-solution, shear rate and membrane characteristics affect the value of critical flux. The critical flux has been found higher at higher cross-flow velocity, lower feed concentration and lower for hydrophobic membrane (Madaeni et al., 1999).
13
2.3 Parameters affecting membrane fouling in MBR
2.3.1 Effect of membrane hydrophobicity
An interaction between feed solution and membrane existing with two major classes: An interaction between the water and membrane and an interaction between the solutes in the water and membrane. The so-called “hydrophilicity” is referred to the high affinity of membrane surface against the water, while the low affinity is called “hydrophobicity” (Cardew et al., 1998).
A study of eight types of membrane with the same cut-off but different materials was conducted by Jonsson et al. (1995) with using a low-molecular weight hydrophobic solute (octanoic acid) as foulant to observe the performance of hydrophobic and hydrophilic membrane. As a result, the performance of hydrophilic membrane was better than that of hydrophobic membrane. Chang et al. (1999) have mentioned to the effect of this interaction mentioned above against membrane fouling in which the membrane fouling is easer deposited to the hydrophobic membrane than the hydrophilic membrane. On the other hands, the hydrophobic-hydrophobic interactions, between solutes, colloids, microbial cells and membrane, are one of the main causes effecting to membrane fouling tendency in membrane bioreactor system using hydrophobic membrane.
To determine the hydrophilic/hydrophobic characteristic of a certain membrane, a definition of contact angle was proposed. Contact angle is formed by the solid-liquid contacting interface. With the very hydrophilic membrane, the droplet is very attractable to contact with membrane surface and the contact angle is close to 0o. When the contact angle is higher than 90o, the membrane is considered as a hydrophobic membrane. Table 2.3 shows the contact angle of various membrane materials used in MBRs in some previous studies.
14
Table 2.3 Contact angle of various membrane materials used in MBRs
Polymer Pore size (µm) Contact angle (degree)
Polypropylene Polysulphone Polyacrylonitrite Polyvinylidene Fluoride CA/CN* Cellulose acetate Polyethersulfone Mixed ester Polycarbonate Polyamide Cellulose nitrate - - - 0.05 0.22 0.22 - 0.45 0.22 0.45 0.45 0.22 0.10 0.038 0.45 0.22 0.10 0.4 0.2 0.1 0.45 0.45 83(a) 73(a) 53(a) 4(b) 83(b) 19(b) 60(a) <5(c) <5(c) 70(d) <5(c) <5(c) <5((c) 77(d) <5(c) <5(c) <5(c) 50.3(c) 46.4(c) 60.8(c) 48(d) 64(d) (a)
Cardew et al., 1998 (c) Nadir Dizge et al., 2011
(b)
Claudia Laabs, 2004 (d) Mafirad et al., 2011
*
15
2.3.2 Effect of extracellulose polymeric substance (EPS)
Extracellulose polymeric substance (EPS) and soluble microbial products (SMP) which were identified as the complex high-molecular weight mixture of polymers in biomass such as activated sludge, biofilm… are the products of cell lysis. There are many different classes of macromolecular substances such as polysaccharides, protein, nucleic acids, lipid existing as the compositions of EPS (Sheng et al., 2010). Basically, EPS can be divided into two sub-classes: bound EPS and soluble EPS (Laspidou et al., 2002). Bound EPS was considered as the substances (sheaths, capsular polymers, attached organic materials) bound with the cells, whilst soluble EPS is in the solution or weakly bound with the cells. Figure 2.3 illustrates the definition of bound EPS and soluble EPS. Soluble EPS was mentioned as the different name of SMP (Laspidou et al., 2002).
EPS plays an important part in the formation of membrane fouling. It was identified as the most significant factor influencing the membrane fouling (Chang et al., 2002). In which, bound EPS have a stronger potential of fouling than other (Wang et al., 2009). Due to the importance of EPS in membrane fouling formation, many studies have focused on the characterization of EPS (Wang et al., 2009; Laspidou et al., 2002; Chang
et al., 1999). As a result, it was concluded that the major components of EPS are protein
and polysaccharide. Therefore, to study EPS and its influence to membrane fouling, protein and polysaccharide characterizations were used.
16
2.3.3 Effect of mixed liquor suspended solid (MLSS)
Mixed liquor suspended solid (MLSS) was considered as an important factor in treating wastewater in MBRs. However, the relationship between MLSS and fouling is quite complex when focusing on the effect of MLSS concentration to the membrane fouling formation (Judd, 2006). The significant impact of MLSS to membrane fouling was revealed by Le-Clech et al. (2006) with the concentration lower than 5,000 mg/l. While for the MLSS level in the range of 8,000 – 12,000 mg/l, no impact was recorded as the main factors causing membrane fouling. The fouling phenomenon was also observed by conducting an experiment with three levels of MLSS concentration of 6,000 mg/l, 12,000 mg/l and 18,000 mg/l (Brookes et al., 2006). The results showed that fouling has just been affected at the lowest concentration and no evident effect at higher MLSS concentration.
17
Chapter 3
Materials and methods
3.1 Materials
3.1.1 Membrane bioreactor
An experimental MBRs system was operated in this study with the synthesized wastewater. Figure 3.1 shows a schematic of membrane bioreactors. A 30-liter MBR was designed to conduct this experiment, with the submerged flat-sheet module supplied by King Membrane Company in Taiwan.
18
In order to keep an imposed flux as constant and to control this MBR system conveniently, an automatic control system was also designed and adjusted by ADAMview software. When the system was operating, a feedback of flow-rate signal was transferred from the flow meter to computer and the pump speed increased or decreased to adjust the flow-rate as constant as designed. Feed solution was continuously pumped into the bioreactors from a 60-liter feed solution tank. Water level of the bioreactor was controlled by using the water-level sensors in which the signal from sensors was transferred to the computer and the tap water was pumped into the bioreactor to keep the water level sustainable. Hydrochloric acid was automatically added to adjust the pH of activated sludge from 6.5 to 7.5 in order to make a sustainable environment for the microorganisms living. Air was also continuously supplied from the bottom of the tank through air diffusers below the membrane modules to maintain the aerobic condition. Two bioreactors were maintained with the MLSS concentration lies between 6,000–6,500 mg-MLSS/l and 7,000–7,500 mg-MLSS/l. The average total organic carbon (TOC) of MBRs influent was 160±10 mg/l.
19
Figure 3.2 shows the real system used in this study. A flux-step method was used to determine critical flux of each membrane type in each reactor. After critical fluxes were found, some imposed sub-critical fluxes were specified and were employed with these two types of membranes. During the running of membrane bioreactors, TOC and MLSS have daily been tested as a basic condition of membrane bioreactor running.
Only when the transmembrane pressure of system reached to 40 kPa, membranes were picked up and were pre-treated for the following experiments. A series of experimental equipment and method such as Confocal Laser Scanning Microscopy (CLSM), Excitation-Emission Matrix (EEM), Fourier Transform Infrared spectroscopy (FTIR), particle size distribution and EPS characterization have been used for characterizing the membrane fouling on membrane surface.
In this study, the flat-sheet membranes used were supplied by King Membrane Company. Two polytetrafluoroethylene (PTFE) MF membranes with a mean pore size of 0.5 µm were used. One is hydrophobic membrane and the other one is hydrophilic. The characteristics of applied membrane in this study are shown in Table 3.1.
Table 3.1 Characteristics of applied membrane in this study
Supplier Membrane type Material Pore size (µm) Hydrophobicity
King Membrane King Membrane MF MF PTFE PTFE 0.5 0.5 HPI HPO
20 3.1.2 Feed solution
The synthetic wastewater was used to feed the bioreactors, which was prepared every 3 days with the compositions showed in Table 3.2 according to a research of Ng and Hermanowicz (2005). The synthetic wastewater was contained in a 60-L tank at 4oC and continuously mixed to keep the feed solution as fresh as possible. It was supplied for the system by using a peristaltic pump on the influent stream.
Table 3.2 Compositions of feed solution as the synthetic wastewater
Component Concentration (mg/l) Organic CH3COONa Corn Starch Beef extract NH4Cl KH2PO4 2527 150 250 670 154 Inorganic MgSO4.7H2O CaCl2 FeSO4.7H2O Na2MoO4.2H2O KI 355 73 87 0.08 0.166 Stock solution CuCl2.2H2O MnCl2.4H2O ZnSO4.7H2O CoCl2.6H2O H3BO3 0.35 0.63 0.66 0.15 0.124
21
3.2 Methods
3.2.1 Flux-step method for determining critical fluxes
The flux-step method has been developed for finding the critical flux in a MBR according to the constant of flux (Le-Clech et al., 2003a). In this experiment, flux was kept at constant for observing the change of transmembrane pressure (TMP). The increase of TMP was considered as the increase of membrane fouling rate. Therefore, It is based on some specific values of some factors related to TMP such as ∆P0, dP/dt, K and Pave to determine critical flux. Le-Clech also mentioned to the step length and height as the efficient parameter in flux-step experiment in which the best choice of step length lied in the range of 15 – 30 min, the step height was 3 lm-2h-1. Figure 3.3 shows a case of using step-flux method in this study for determining critical flux at 15 min of step length and 3 lm-2h-1 of step height and the initial flux was set at 6 lm-2h-1.
Figure 3.3 Critical flux determinations by flux-step test
A concept of permeability (K) and rate of TMP increase (dP/dt) have been proposed to verify critical flux exactly. A plot of dP/dt and K against flux was generated to determine the critical flux (Le-Clech et al., 2003a; Pollice et al., 2005). These parameters (dP/dt and K) were calculated as these equations below:
Time (min) 0 15 30 45 60 75 90 105 120 135 T M P ( k P a ) -7.0 -6.5 -6.0 -5.5 -5.0 -4.5 -4.0 -3.5 -3.0 -2.5 -2.0 -1.5 -1.0 -0.5 0.0 F lu x ( L m -2 h -1 ) 0 3 6 9 12 15 18 21 24 27 30 TMP Flux
22 dP dt TMP ! "#! "! 3.1 K J 3.2 TMP ! 2 3.3
TMP' , TMP are the initial and final transmembrane pressure (kPa), respectively. J is the arbitrary permeate flux (lm-2h-1). "!, "#! are the initial and final point time of each step length (s), respectively. Pave is the average pressure of each step length (kPa).
Critical flux is defined as the flux at which K > 0.9K0, where K0 is the initial
permeability measured from the first flux-step (Le-Clech et al., 2003a). 3.2.2 Preparation of fouling sample
The samples for MLSS and TOC analysis were directly taken from the MBRs. Other experiments were done with the samples taken from the fouling layer attached on the membrane at the end of each sub-critical flux operation when the TMP reached to 40 kPa. This sampling procedure was shown in Figure 3.4. After the flat-sheet membrane was removed out of the bioreactor, a hard sheet was intermediately used to scrape off the foulants attaching on the membrane surface and simultaneously rinsed into a beaker contained deionized water. The collected sample was fulfilled up to 75 ml by deionized water and was well mixed by a magnetic stirrer.
After the fouling was scraped, the membrane was cut out from the flat-sheet and immersed into a beaker contained 300 – 350 ml of deionized water for sonication for 30 min to extract the small particle deposited into the membrane pore as well as a certain part of membrane fouling layer that couldn’t be removed by scraping step. After sonication step, the membrane would be removed out the beaker. Deionized water was added into the beaker for fulfilling the water-level up to 400 ml
23 Fouling suspended in 400 ml DI water Collection of inside membrane fouling by ultrasonic cleaner Membrane after scraping Fouling on the membrane surface Flat-sheet membrane after long-term operation 30 min Scraping Surface fouling suspended in 75 ml DI water
Figure 3.4 Preparation of fouling sample
3.2.3 MLSS and TOC measurement
Analytical method of MLSS bases on the standard methods of American Public Health Association (APHA), 1998. TOC is measured by using a TOC analyzer (TOC-5000A) supplied by the Shimadzu Corporation in Japan. Samples were filtered first by a 0.45 µm membrane filter (Nylon membrane, Millipore Millex-HN). Next, samples were acidified by adding 3-5 drops HCl in order to get rid of inorganic carbon prior to measuring.
3.2.4 Examination of Extracellulose Polymeric Substances (EPS)
3.2.4.1 Extraction of EPS
The purpose of this method is to separate bound EPS and soluble EPS from the sludge solution. This method was applied according to a study of Liu and Fang (2002) about using formaldehyde-NaOH method to extract EPS. EPS extraction from activated sludge sampled from MBRs was clearly illustrated in Figure 3.5. Firstly, 10 ml sludge was centrifuged (U-320R Boeco, Germany) at 4,000 rpm, at 4oC for 20 min to separate the sludge solution into liquid part and solid part. The liquid was filtered through 0.45 µm membrane to obtain soluble EPS. De-ion water was filled up to 10 ml to re-suspend the solid part. Then, 0.06 ml formaldehyde (36.5%) was added in to the samples and kept it at 4oC for 60 min in order to fix the cell by preventing the cell lysis. Next, 4 ml of 1 N NaOH was added into the suspension to increase pH, resulting in the dissociation of acidic group in EPS. This suspension was refrigerated at 4oC for 180 min. The samples then
24
would be centrifuged at 20,000 G at 4oC for 20 min and be filtrated by 0.2 µm membrane to remove the microbial cells. Bound EPS was obtained after purified by 3,500 Da of dialysis membrane at 4oC for 2 day to remove the extractant residues in the solution.
25
3.2.4.2 EPS determination
(a) Polysaccharide measurement
This analysis was used to detect and calculate the concentration of polysaccharide in the solution. It was first established by Dubois et al (1956) and was also known as name of phenol-sulfuric acid method. Procedure of polysaccharide measurement was shown as in Figure 3.6. A tube of 1 ml sample was prepared first. Then, 1 ml phenol 5% was added into for separating most sugars existing in the sample. The next step was that adding 5 ml sulfuric acid 75% into the mixture to remove residual phenol. Let the tube stand for 10 min and water bath at 25oC for 15 min for completely reacting. The calibration curve was plotted according to the given glucose concentration 5, 10, 20, 40, 80 mg/l, respectively. The samples were read at 488 nm of wavelength.
Figure 3.6 Phenol-Sulfuric acid methods for polysaccharide measurement 1.0 ml of sample
Add 1.0 ml phenol 5%
Add 5.0 ml Sulfuric acid 75%
Let the tubes stand for 10 min
Water bath at 25oC for 15 min
Read samples at 488 nm of wavelength with the blank first
26 (b) Protein measurement
To determine the concentration of protein in the solution, a protein determination method was applied following the method of Bradford (1976). Figure 3.7 presents the protein measurement procedures. Figure 3.7a was used when the protein concentration is in the range of 0.1 – 1 mg/ml. A calibration curve was prepared by using Bovine Serum Albumin (BSA) as protein standard.
A tube with 0.1 ml sample was prepared for the experiment. Then, 3 ml Bradford reagent was added to dye protein in the solution. The tube would be rapid mixed at ambient temperature for 5 to 45 min. The absorption of dye is from 365 to 595 nm and the 595 nm of wavelength has been used for measuring protein. In case of the protein concentration is less than 0.1 mg/ml, a procedure in Figure 3.7b is applied with the given calibration curve from 1 to 10 µg/ml.
(a) (b)
Figure 3.7 Bradford methods for protein measurement
(a) Protein measurement in range of 0.1-10 mg/ml (b) Protein measurement in range of 1-10 µg/ml
1 ml of sample
Add 1 ml Bradford reagent
Rapid mixing at ambient temperature for 5 to 45 min
Read samples at 595 nm of wavelength with the blank
first 0.1 ml of sample
Add 3 ml Bradford reagent
Rapid mixing at ambient temperature for 5 to 45 min
Read samples at 595 nm of wavelength with the blank
27
3.2.5 Confocal Laser Scanning Spectroscopy (CLSM)
The purpose of using CLSM (Leica TCS SP2 Confocal Spectral Microscope Image System, Germany) was to investigate the membrane fouling compositions inside of the membrane fouling layer which were considered as protein and polysaccharides (more details in section 2.3.2).
Protein, nucleic acid (DNA), α-D-glucopyranose polysaccharides and β-D-glucopyranose polysaccharides were stained for CLSM experiment according to a research of Chen et al., (2006). Specimens used in this measurement were prepared as a procedure showed in Figure 3.4. Four types of dyes used to stain protein, nucleic acids (DNA), α-D-glucopyranose polysaccharides and β-D-glucopyranose polysaccharides are Fluorescein isothiocyanate (FITC) (Molecular Probes, USA), Red Fluorescent Nucleic Acid Stains (SYTO 63) (Molecular Probes, USA), Concanavalin A (ConA) (Molecular Probes, USA) and Fluorescent Brightener 28 (Calcoflour white, CW) (Sigma), respectively. Table 3.3 shows a summary of dyes with the given concentration used to stain targets in this experiment and the appropriate excitation-emission wavelength of CLSM for detecting the presence of the stained targets in the specimens.
The staining steps for CLSM were presented in Figure 3.8. A membrane sample was immediately taken from the membrane flat-sheet after removed out of MBR. It was primarily washed by deionized water to remove the unnecessary substances from the membrane surface. Next, some drops of SYTO 63 with 10 µM concentration were first dripped onto membrane sample surface to stain DNA for 30 min. Then, Phosphate buffer saline (PBS) (Amresco, Canada) was used to clean the residues stain from the sample. This step was performed five times before a new stain was added. Protein molecule stained by SYTO 63 was detected by CLSM via 633 nm of excitation wavelength and 650 – 700 nm of emission wavelength. The next step is that 0.1 N NaHCO3 was added prior to FITC staining step to accelerate the efficiency of FITC staining. FITC was used to stain protein with 60 min waiting. FITC was determined via excitation at 488 nm and emission wavelength at 500 – 550 nm. The sample was washed again by PBS. ConA with the excitation-emission range of 543/ 550 – 590 nm was applied to determine the presence of α-D-glucopyranose polysaccharides for 30 min waiting. After washing by PBS, β-D-glucopyranose polysaccharides were stained by CW on the basis of excitation of 400 nm
28
and emission at 410 – 418 for 30 min. The sample was washed again to remove all the residue stains on the sample surface. Finally, the sample was stick onto the microscope slide for CLSM analysis.
Table 3.3 Summary of dyes with the applied concentration, staining targets, excitation-emission wavelength and indicated color
Dye Conc. Target Excitation
(nm) Emission (nm) Indicated color FITC SYTO 63 ConA CW 5 mg/ml 10 µM 2.5 mg/ml 5 mg/ml Protein DNA α-D-glucopyranose polysaccharides β-D-glucopyranose polysaccharides 488 633 …. 543…. 400 500 – 550 650 – 700 550 – 590 410 – 418 Green Red Cyan Blue
29
30
3.2.6 Fourier Transform Infrared (FTIR) Spectrophotometer
Fourier Transform Infrared (FTIR) spectrophotometer is the most common instrument that a large number of researchers have used to identify the functional groups of such compounds: humic substances, polysaccharide groups, protein group, etc.
Table 3.4 Wave numbers and functional group of humic substances, polysaccharide and protein in FTIR experiment
Bands (cm-1) Functional group
Humic substances: 3,400-3,300 2,940-2,900 1,660-1,630 1,620-1,600 1,590-1,517 1,460-1,450 1,400-1,390 1,280-1,200 1,170-950 O-H stretching N-H stretching Aliphatic C-H stretching C=O stretching of amide group Aromatic C=C
COO-, N-H deformation Aliphatic C-H
OH deformation, C-O stretching of phenolic OH C-O stretching, OH deformation of COOH C-O stretching of polysaccharide
Polysaccharides group: 2,940 1,370 1,170 1,120 1,040 1,000 775 Alkane Starch Tertiary alcohol Secondary alcohol Aliphatic ether Primary alcohol Ethyl Proteins group 3,300 1,640 1,540 Alcohol Alkene in aromatic Mono substituted amide
31
In this study, Attenuated total reflectance-FTIR (ATR-FTIR) (Bomem DA 8.3, Canada) was used to analyze the organic functional groups of foulants on the membrane surface. Samples were prepared from the membrane used in sub-critical flux processes. Samples were dried prior to the analytical performance. FTIR was set to scan from 4000 to 620 cm-1 with the resolution of 4 cm-1. Table 3.4 was adopted from a study of Zurasilam et al (2006). This table shows the range of wavenumber corresponding with the specific functional groups.
3.2.7 Excitation-Emission Matrix (EEM) method
Excitation-Emission Matrix (EEM) method was used to characterize the fluorescent substance in the membrane fouling including the cake layer deposited on membrane surface and small particle absorbed into the membrane pore. This method can be used to identify many kinds of protein as well as humic acid-like and fulvic acid –like but polysaccharide-like substances can not be detected by this method. Figure 3.9 shows the location of EEM peak based on excitation-emission wavelength. The specific details about excitation-emission wavelength was also showed in Table 3.5
Figure 3.9 Location of EEM peak based on excitation-emission wavelength Source: Chen et al., 2003
32

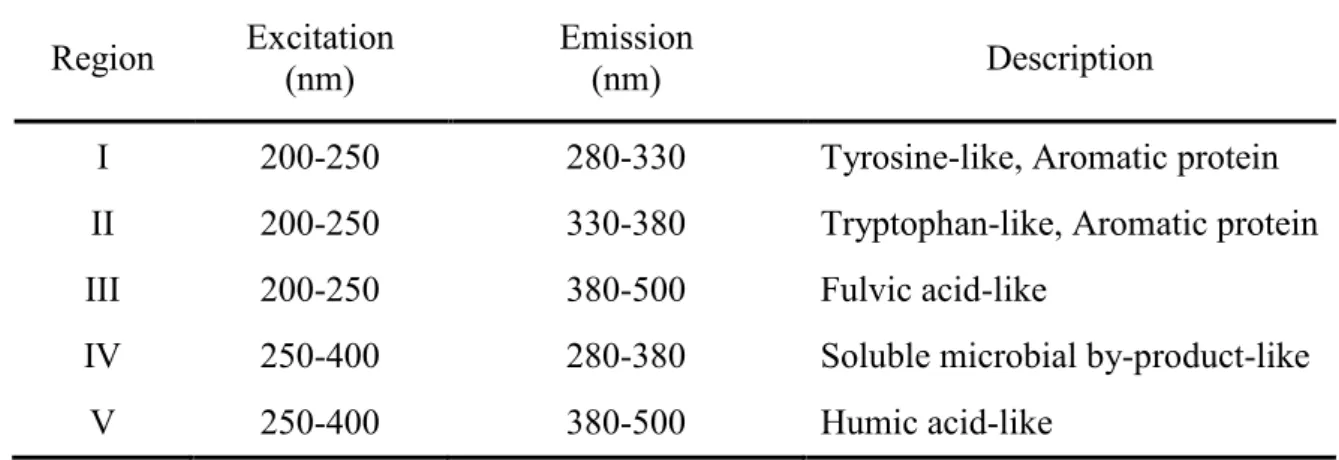

Table 3.5 Excitation-emission wavelength of the five regions of EEM
Region Excitation (nm)
Emission
(nm) Description
I 200-250 280-330 Tyrosine-like, Aromatic protein II 200-250 330-380 Tryptophan-like, Aromatic protein III 200-250 380-500 Fulvic acid-like
IV 250-400 280-380 Soluble microbial by-product-like
V 250-400 380-500 Humic acid-like
33
Chapter 4
Results and Discussions
4.1 Critical flux determination
4.1.1
Flux-step tests
Flux-step method was conducted to determine the critical flux of different membranes under different operating conditions, in which the beginning flux at 6 lm-2h-1, a step height of 3 lm-2h-1 and step length of 15 min were selected. All the parameters such as TMP and flux were automatically recorded by the computer system (as introduced in the section 3.1.1).
The flux-step experiments were divided into two stages with different purposes. In order to determine critical flux, the first stage was conducted from the beginning of experiment up to the 120th minute in case of the HPI membrane in MBR-1 with the flux from 6 to 30 lm-2h-1, while for the HPI and HPO membrane in MBR-2, it was from the beginning up to the 210th minute with the flux from 6 to 45 lm-2h-1. The second stage was conversely conducted against the first stage to observe effects of shear-stress (discussed further in section 4.1.3) to the foulants during the flux-step experiments as the descending phases. Figure 4.1~3 illustrate the critical flux determination for the HPI membrane under the activated sludge concentration (MBR-1) of 7,000 - 7,500 mg-MLSS/L, and for HPI and HPO membrane under 6,000 - 6,500 mg-MLSS/L (MBR-2), respectively.
From Figure 4.1, the TMP was almost stable when the flux increased from 6 to 18 lm-2h-1. At the flux of 21 lm-2h-1, a little change of TMP from -1.3 kPa to -1.5 kPa was observed which indicated a growing fouling appeared on the membrane. Fouling mechanism, under low flux, is considered as the absorption of small particle such as solute and colloidal fractions in sludge while flocs deposition is absent under a microscope observation (Chang et al., 2002). The sharp increase of TMP from 24 lm-2h-1 showed a large amount of membrane fouling created and therefore indicated the vicinity of the critical flux. This trend of TMP is similar in Figure 4.2-3 in which the sharp increase of TMP was observed at a flux of 33 lm-2h-1.
34 Time (min) 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 T M P ( k P a ) -7.0 -6.5 -6.0 -5.5 -5.0 -4.5 -4.0 -3.5 -3.0 -2.5 -2.0 -1.5 -1.0 -0.5 0.0 F lu x ( L m -2 h -1 ) 0 3 6 9 12 15 18 21 24 27 30 TMP (kPa) Flux (Lm-2h-1)
Comparisons in changes of TMP between HPI membranes operated in MBR-1 and MBR-2 and between HPI and HPO membrane operated in MBR-2 were plotted in Figure 4.4 so that the occurrence of membrane fouling on membranes in flux-step experiments are easily compared.
Figure 4.1 Critical flux determination of HPI membrane in MBR-1
The TMP changes of HPI membranes performed in MBR-1 (green curve) and MBR-2 (red curve) give information about the effects of activated sludge characteristics on membrane fouling. Two TMP curves seem to be linear from the flux of 6 - 18 lm-2h-1. With the consecutive flux step (from 21 lm-2h-1), the TMP line of HPI membrane operated in MBR-1 go dramatically far from the line of HPI membrane operated in MBR-2. The reason for these different trends in TMP changes may be due to the difference of activated sludge concentration. With the concentration 7,000 - 7,500 mg/L, the mixed liquor in MPR-1 would contain a higher amount of colloids, solutes, organic macromolecular such as EPS, SMP or other substances resulting from the cell lysis than that of the 6,000 - 6,500 mg-MLSS/l in MBR-2. Therefore, membranes operating with the higher MLSS concentration are easier to be fouled than those of the lower (Le-Clech et al., 2006).
Regarding to the operation of HPI and HPO membrane in MBR-2, the trends of two TMP curves (red and blue) were quite similar when the flux increased 6 to 27 lm-2h-1.
35
In the next two consecutive flux steps, the TMP of HPI membrane was slightly higher than that of HPO membrane; however, became lower after. In general, this phenomenon means that TMP of the HPI membrane seems to be more sustainable than HPO membrane in the short-term experiments of flux-step method.
Although the changes of TMP can be seen visibly, it is not easy to exactly determine the critical flux value for each case by just observing the TMP changes from these figures. The method to determine critical flux will be described further in section 4.1.2. The flux-step method performance is the first stage of this study, by which critical flux can be found and used for the next tests.
Figure 4.2 Critical flux determination of HPI membrane in MBR-2
0 30 60 90 120 150 180 210 240 270 300 330 360 390 -5.0 -4.5 -4.0 -3.5 -3.0 -2.5 -2.0 -1.5 -1.0 -0.5 0.0 0 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 TMP (kPa) Flux (Flux (Lm-2h-1) T M P ( k P a ) F lu x ( L m -2 h -1 ) Time (min)
