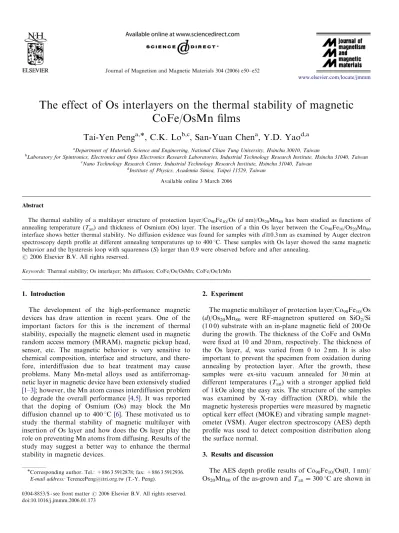

The effect of Os interlayers on the thermal stability of magnetic
CoFe/OsMn films
Tai-Yen Peng
a,, C.K. Lo
b,c, San-Yuan Chen
a, Y.D. Yao
d,aaDepartment of Materials Science and Engineering, National Chiao Tung University, Hsinchu 30010, Taiwan
bLaboratory for Spintronics, Electronics and Opto Electronics Research Laboratories, Industrial Technology Research Institute, Hsinchu 31040, Taiwan c
Nano Technology Research Center, Industrial Technology Research Institute, Hsinchu 31040, Taiwan
d
Institute of Physics, Academia Sinica, Taipei 11529, Taiwan Available online 3 March 2006
Abstract
The thermal stability of a multilayer structure of protection layer/Co90Fe10/Os (d nm)/Os20Mn80has been studied as functions of
annealing temperature (Tan) and thickness of Osmium (Os) layer. The insertion of a thin Os layer between the Co90Fe10/Os20Mn80
interface shows better thermal stability. No diffusion evidence was found for samples with d^0:3 nm as examined by Auger electron spectroscopy depth profile at different annealing temperatures up to 400 1C. These samples with Os layer showed the same magnetic behavior and the hysteresis loop with squareness (S) larger than 0.9 were observed before and after annealing.
r2006 Elsevier B.V. All rights reserved.
