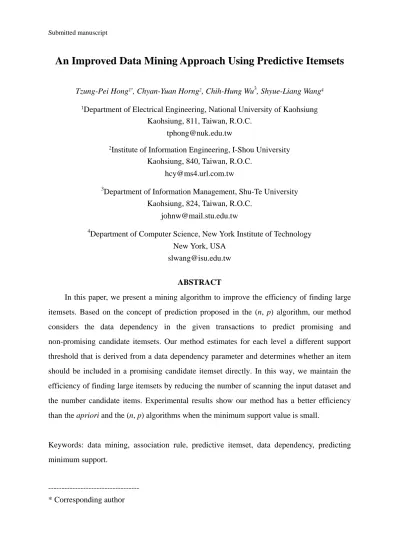

Submitted manuscript
An Improved Data Mining Approach Using Predictive Itemsets
Tzung-Pei Hong1*, Chyan-Yuan Horng2, Chih-Hung Wu3, Shyue-Liang Wang4
1Department of Electrical Engineering, National University of Kaohsiung
Kaohsiung, 811, Taiwan, R.O.C. tphong@nuk.edu.tw
2Institute of Information Engineering, I-Shou University
Kaohsiung, 840, Taiwan, R.O.C. hcy@ms4.url.com.tw
3
Department of Information Management, Shu-Te University Kaohsiung, 824, Taiwan, R.O.C.
johnw@mail.stu.edu.tw
4
Department of Computer Science, New York Institute of Technology New York, USA
slwang@isu.edu.tw
ABSTRACT
In this paper, we present a mining algorithm to improve the efficiency of finding large itemsets. Based on the concept of prediction proposed in the (n, p) algorithm, our method considers the data dependency in the given transactions to predict promising and non-promising candidate itemsets. Our method estimates for each level a different support threshold that is derived from a data dependency parameter and determines whether an item should be included in a promising candidate itemset directly. In this way, we maintain the efficiency of finding large itemsets by reducing the number of scanning the input dataset and the number candidate items. Experimental results show our method has a better efficiency than the apriori and the (n, p) algorithms when the minimum support value is small.
Keywords: data mining, association rule, predictive itemset, data dependency, predicting minimum support.
--- * Corresponding author
1. Introduction
Years of effort in data mining have produced a variety of efficient techniques. Depending
on the types of datasets processed, mining approaches may be classified as working on
transaction datasets, temporal datasets, relational datasets, or multimedia datasets, among
others. On the other hand, depending on the classes of knowledge derived, mining approaches
may be classified as finding association rules, classification rules, clustering rules, or
sequential patterns [13], etc. Among these techniques, finding association rules from
transaction datasets is usually an essential task [3][5][6][12][14][16][17][18][19][20].
Many algorithms for mining association rules from transactions are proposed, most of
which are executed in level-wise processes. That is, itemsets containing single items are
processed first, then itemsets with two items are processed. The process was repeated,
continuously adding one more item each time, until some criteria are met. The famous apriori
mining algorithm was proposed by Agrawal et al. [15][16]. The apriori iterates two phases,
the phase of candidate generation and the phase of verification. Possible large itemsets are
produced in the first phase and verified in the second phase by scanning the input dataset.
Since itemsets are processed level by level and datasets had to be scanned in each level, the
verification phase thus dominates the performance. In [10], Denwattana and Getta proposed
datasets for finding large itemsets. The (n, p) algorithm also iterates two phases, the phase of
prediction and the phase of verification. Unlike the apriori, the (n, p) algorithm predicts large
itemsets for p levels in the first phase and verifies all these p-level itemsets in the second
phase. A heuristic estimation method is presented to predict the possibly large itemsets. If the
prediction was valid, then the approach is efficient in finding the actually large itemsets.
In this paper, we propose a mining algorithm to improve the efficiency of finding large
itemsets. Our approach is based on the concept of prediction presented in the (n, p) algorithm
and considers the data dependency among transactions. As the (n, p) algorithm does, our
method iterates the same two phases but uses a new estimation method to predict promising
and non-promising candidate itemsets flexibly. The estimation mechanism computes for each
level a different support threshold derived from a data dependency parameter and determines
whether an item should be included in a promising candidate itemset directly by the support
values of items. Since we reduce the number of candidate itemsets to be verified by the new
estimation mechanism and the number of scanning of the input dataset by the concept of
prediction of the (n, p) algorithm, the performance of finding large itemsets can be improved.
The rest of this paper is organized as follows. Section 2 presents the related works of
finding large itemsets. The apriori algorithm and the (n, p) algorithm are reviewed. In Section
3, we describe our motivation and the theoretical foundation of our method. Detailed
Experimental results and the comparison on the performance of the apriori, the (n, p)
algorithm, and our method are shown in Section 5. Conclusions are given in Section 6.
2. Related Works
One application of data mining is to induce association rules from transaction data, such
that the presence of certain items in a transaction will imply the presence of certain other
items. Below we briefly reviewed the apriori and the (n, p) algorithm.
2.1. The Apriori Algorithm
Agrawal et al [12][14][16] proposes a famous mining algorithm, the apriori, based on
the concept of large itemsets to find association rules in transaction data. The apriori iterates
two phases, the phase of candidate generation and the phase of verification, at each level. At
the i-th level, i>1, itemsets consisting of i-items are processed. In candidate generation, all
possible large i-itemsets are produced by combining the unrepeated elements of (i-1)-itemsets.
In the verification phase, the input dataset is scanned and if the number of an i-itemset
appearing in the transactions is larger than a pre-defined threshold (called the minimum
support, or minsup), the itemset is considered as large. After that, these two phases iterate for
has two features, transaction identification (ID) and transaction description (Items). There are
eight items in the dataset. Assume that minsup=30%. The transaction dataset is first scanned
to count the candidate 1-itemsets. Since the counts of the items a(4), b(5), c(6), d(3), and e(4)
are larger than 6*30%=1.8, they are thus put into the set of large 1-itemsets. Candidate
2-itemsets are then formed from these large 1-itemsets by taking any two items in the large
1-itemsets and counting if their occurrences are large than or equal to 1.8. Therefore, ab, ac,
ae, bc, bd, be, cd, ce, and de then form the set of large 2-itemsets. In a similar way, abc, abe,
ace, bce, bcd, bde, and cde form the set of large 3-itemsets, abce and bcde form the set of
large 4-itemsets.
Table 1. A sample dataset of transactions ID Items 1 a b c 2 b c d e f 3 a b c e g 4 a c d 5 b c d e 6 a b c e
2.2. Denwattana and Getta’s Approach
In [10], the (n, p) algorithm tries to reduce the number of scanning datasets and
improves the efficiency of finding large itemsets by “guessing” what items should be
considered. The approach partitions candidate itemsets into two parts: positive candidate
large and the later contains itemsets guessed to be small. Initially, the (n, p) algorithm scans
the dataset to find large itemsets of 1-items. Two parameters, called n-element transaction
threshold tt and frequency threshold tf, are used to judge whether an item could compose a
positive candidate itemset. According to the n-element transaction threshold tt, only the
transactions with item numbers (lengths) less than or equal to tt are considered. The
frequency of each item appearing in transactions with j items, j tt,, is computed. If the
appearing frequency of an item is larger than or equal to tf, the item could be used to compose
a positive candidate itemset. Then, two phases, the predication process and the verification
process, are iterated. In the prediction process, positive candidate 2-itemsets C , each of 2
which has its two items satisfying the above criteria, is formed. The remaining candidate
2-itemsets not in C form 2 2
C . C3 and 3
C are then formed from only C2 in a similar
way. The positive candidate 2-itemsets which are subsets of the itemsets in C3 are then
removed from C . The same process was repeated until p levels of positive and negative 2
candidate itemsets are formed. After that, the verification process check whether the itemsets
in the positive candidate itemsets are actually large and the itemsets in the negative candidate
itemsets are actually small by scanning the dataset once. The itemsets incorrectly guessed are
then expanded and processed by scanning the dataset again.
Consider the dataset shown in Table 1 again. Suppose that minsup=30% and the
item in transactions with different lengths are shown in Table 2.
Table 2. The number of occurrences of each item in transactions of different lengths
Assume the frequency threshold tf =80%. The occurrence number of each item in
transactions with 3 items must be larger than or equal to 1.6 (2*80%) for this item to be
considered as positive. Thus, items a and c are positive. Similarly, b, c, and e are positive for
transactions with 4 items, and b, c, and e are positive for transactions with 5 items. The items
which can be used to compose positive candidate itemsets are thus the union {a, b, c, e} of
the above three sets . We obtain C ={bc, be, ab, ce, ac, ae}, and 2 2
C ={bd ,bf, bg, cd, cf, cg,
de, ef, eg, ad, af, ag, df, dg, fg}. Then, C and 3 C are formed from 3 C as2 C ={bce, abc, 3
abe, ace}, and C3=. 4
C and C are formed from 4 3 C as C4={abce}, and 4 C =. The elements in C which are subsets of those in 2
3
C are removed. Thus, we obtain C2=.
Item Occurrences of an item in transactions
Length = 3 Length = 4 Length = 5
a 2 1 1 b 1 2 2 c 2 2 2 d 1 1 1 e 0 2 2 f 0 0 1 g 0 0 1 Number of transactions 2 2 2
Similarly, the itemsets in C3 which are subsets of those in 4
C are removed. Therefore,
3
C =.
In the verification process, the dataset is scanned to check all the itemsets in Cj and
j
C , j=2,3,4. After the scan, the set of large itemsets in positive candidate sets is {abce}. The
set of small itemsets in negative candidate sets is {bf, bg, cf, cg, ef, eg, ad, af, ag, df, dg, fg}.
The itemsets de, cd, and bd in C2 are incorrectly predicted. The incorrectly predicted
itemsets are further processed. The subsets of incorrectly predicted itemsets in positive
candidate sets are first generated. These subsets are then pruned using the large itemsets
already known. Since C4 is correctly predicted, the result is . The supersets of incorrectly
predicted itemsets in negative candidate sets are also generated as {bde, cd, cde, bcde}. The
dataset is then scanned again to check these itemsets. Therefore, the itemset {bcd, bde, cde,
bcde} is large in the second scan. All the large itemsets are then collected as:
L2={bd, cd, de, ae, ac, ce, ab, be, bc}
L3={cde, bde, bcd, ace, abe, abc, bce}
L4={bcde, abce}
The same process goes on for finding L5 to L7. C5 is first generated from L4 as {abcde}
and checked to be large in the same manner. After all the large itemsets are found, the
3. Motivation
3.1. Observation
The apriori algorithm is straightforward and simple but needs to repeatedly scan the
dataset while finding the large itemsets. There have been many approaches proposed to
reduce the number of scanning datasets. The (n, p) algorithm is one of such approaches. It
scans the input dataset once in the beginning and twice in each verification process. Since p
levels of transactions are processed in an iteration, the number of scanning datasets is less
than that in the apriori. In the above example, the apriori scans the dataset 10 times; while the
(n, p) algorithm scans 5 times. In [10], it is claimed that the number of scanning the dataset
can be reduced with proper parameters n and p.
Unfortunately, in some cases, the overall performance of the (n, p) algorithm is defected
because of the verification process. In Ci and
i
C , i 2, all itemsets with lower supports are
rejected by Ci and are collected into
i
C . When generating Ci1 and 1 i C , all elements in i
C and Ci are taken into account, respectively. If there are a large number of itemsets with
supports lower than the pre-defined minsup and are included in Ci, the (n, p) algorithm also
has to compute all combinations of such itemsets and deletes them all in the verification
process. This affects the overall performance of the (n, p) algorithm. On the other hand, in
using the apriori, only the itemsets with supports higher than minsup are considered. For
in C2 and 800 items are in 2
C ; 70% elements in C2 and 99% elements in 2
C are not
large enough. It takes about (80099%)2(k-1)
computations in generating Ck, k>2,3,…,2+p,
and removes most elements in Ck in the verification phase. In the apriori, if 200120%
2-itemsets are actually large (the (n, p) algorithm may make a wrong guess), only
(200120%)2
computations are needed in generating C3 and much less than (200120%)
2
are left after verifying their supports by scanning the dataset. Though the number of scanning
the dataset in the (n, p) algorithm is less than that in the apriori, the overall performance of
the (n, p) algorithm may be not good enough. Experimental results are available in Section 5.
Therefore, the performance of the (n, p) algorithm can be further improved. One direction of
improvement is to employ better data structures, so that the generation of Ci1 and
1
i
C can
be done in a more efficient manner, such as [1][2][7][11][21]. The other direction is filtering
out the itemsets with lower supports and reduce the number of elements to be included in Ci
and Ci. This paper adopts the later approach from a point of view of probability.
3.2. Theoretical Foundation
Usually, items must have greater support values for being covered in large itemsets with
more items from a probabilistic viewpoint. For example, if minsup is 30%, then an item with
its support just greater than 30% is a large 1-itemset. Both items in a 2-itemset must, however,
At one extreme, if total dependency relations exist in the transactions, an appearance of one
item will certainly imply the appearance of another. In this case, the support thresholds for an
item to appear in large itemsets with different items are the same. At the other extreme, if the
items are totally independent, then the support thresholds for an item to appear in large
itemsets with different items should be set at different values. In this case, the support
threshold for an item to appear in a large itemset with r items can be easily derived below.
Since all the r items in a large r-itemset must be 1-large itemsets, all the supports of the
r items must be larger than or equal to the predefined minsup . Since the items are assumed
totally independent, the support of the r-itemset is s1 s2 … sr, where si is the actual
support of the i-th item in the itemset. If this r-itemset is large, its support must be larger than
or equal to . Thus:
s1 s2 … sr .
If the predictive support threshold for an item to appear in a large r-itemset is r, then: s1 s2 … sr rr …r .
Thus:
r r and r1/r.
Therefore, if the items are totally independent, the support threshold of an item should be
expected to be 1/r for being included in a large r-itemset. Since the transactions are seldom
and 1, is then used to calculate the predictive support threshold of an item for appearing in a
large r-itemset as w+(1-w)1/r. A larger w value represents a stronger item relationship
existing in transactions. w=1 means total dependency for transaction items and w=0 means
total independency. The proposed approach thus uses different predictive support thresholds
for each item to be included in promising itemsets with different numbers of items.
4. Our Method
4.1. Our Algorithm
The proposed mining algorithm aims at efficiently finding any p levels of large itemsets
by scanning a dataset twice except for the first level. The support of each item from the first
dataset scan is directly judged to predict whether an item will appear in an itemset. The
proposed method uses a higher predicting minsup for each item to be included in a promising
itemset of more items. Itemsets with different numbers of items then have different predicting
minsups for an item. A predicting minsupt is calculated as a weighted average of the possible
minsups for totally dependent data and for totally independent data. A data dependency
parameter, ranging between 0 and 1, is used as the weight.
A mining process similar to that proposed in [10] can then be adopted to find the p
levels of large itemsets. A dataset is first scanned to get the support of each item. If the
1-itemsets L1. After large 1-itemsets have been found, any more p levels of large itemsets can
be obtained by scanning a dataset twice. Candidate 2-itemsets (C2) are formed by
combination of the items in large 1-itemsets. In the meantime, the predicting minsup for an
item to be included in large 2-itemsets is estimated according to the given data dependency
parameter. If the support of an item in L1 is smaller than the predicting minsup, any candidate
2-itemset including this item will not be large with a high possibility. On the contrary, any
candidate 2-itemset with supports of all items larger than or equal to the predicting minsup
will have a high possibility of being large. The candidate 2-itemset can then be partitioned
into two parts: C2 and 2
C , according to whether the supports of all the items in an itemset
are larger than or equal to the predicting minsup.
After promising candidate 2-itemsets (C2) are generated, candidate 3-itemsets (C3) are
formed by the combining them. Similar to the process for finding candidate 2-itemsets, a new
predicting minsup for each item to be included in promising 3-itemsets is calculated.
Candidate 3-itemsets can then be partitioned into two parts: C3 and 3
C by comparing the
supports of the items included in C3 with the predicting minsup. The same procedure is
repeated until the p levels of itemsets are processed. Therefore, no dataset scan except for the
first level has been done until now. A dataset is then scanned to get the actually large itemsets
in the promising candidate itemsets and in the non-promising candidate itemsets. The
once more. Therefore, a total of two dataset scans are needed in getting the p level large
itemsets. After that, another processing phase of p levels is done. This processing is repeated
until no large itemsets are found in a phase. Let ci be the number of occurrence of each item
ai appearing in the input dataset of transactions and the support (i) of each item ai be ci /n.
INPUT: A set of n transactions with m items, the minsup , a dependency parameter w, and a level
number p.
OUTPUT: Large itmesets.
STEP 1: Check whether the support i of each item ai is larger than or equal to . If i, put ai in
the set of large 1-itemsets L1.
STEP 2: Set r=1, where r is the number of items in itemsets currently being processed. STEP 3: Set r’=1, where r’ is the number of items at an end of the last iteration. STEP 4: Set Pr = Lr, where Pr is the items predicted to be included in r-itemsets. STEP 5: Generate the candidate set Cr+1 from Lr in a way similar to that in the apriori. STEP 6: Set r=r+1.
STEP 7: Check whether the support i of each item ai in Pr-1 is larger than or equal to the predicting
minsup ’=w+(1-w)1/r
to be included in Pr. If i’, put ai in Pr.
STEP 8: Form the promising candidate itemsets Cr by choosing from Cr the itemsets with each
item existing in Pr.
STEP 9: Set the non-promising candidate itemsets Cr CrCr.
STEP 10: Set r=r+1.
STEP 11: Generate the candidate set Cr from
1
r
C in the way as the apriori does.
STEP 12: Check whether the support i of each item ai in Pr-1 is larger than or equal to the predicting
minsup ’=w+(1-w)1/r. If
i’, put ai in Pr.
STEP 13: Set the non-promising candidate itemsets CrCr Cr.
STEP 14: Remove the itemsets in Cr1, which are subsets of any itemset in Cr. STEP 15: Repeat STEP 10 to STEP 14 until r = r’ + p.
STEP 16: Scan the dataset to check whether the promising candidate itemsets, Cr'1 to Cr are
actually large and whether the non-promising candidate itemsets, Cr'1 to Cr are
actually small. Put the actually large itemsets in the corresponding sets Lr’+1 to Lr.
STEP 17: Find all the proper subsets with r’+1 to i items for each itemset which is not large in Ci, r’
+1 i r; keep the proper subsets which are not among existing large itemsets; donate them
as NC+.
STEP 18: Find all the proper supersets with i to r items for each itemset which is large in Ci, r’ +1
i r; the supersets must also have all their sub-itemsets of r’ items existing in Lr’ and cannot
include any sub-itemset in the non-large itemsets in Ci and Ci checked in STEP 16;
donate them as NC-.
STEP 19: Scan the dataset to check whether the itemsets in NC+ and NC- are large; add the large itemsets to the corresponding sets Lr’+1 to Lr.
STEP 20: If Lr is not null, r’= r’ + p and go to STEP 4 for another iteration; otherwise do STEP 21. STEP 21: Add the non-redundant subsets of large itemsets to the corresponding sets L2 to Lr.
4.2. An Example
In this section, the dataset in Table 1 is used to describe our method. Assume that minsup =
30% and w=0.5 in this example. The following processes are performed.
STEP 1: The support of each item is compared with the minsup . Since the supports of
{a}, {b}, {c}, {d}, and {e} are larger than or equal to 0.30, they are put in L1.
STEP 2: r=1.
STEP 3: r’= 1.
STEP 4: P1 is the same as L1, which is {a, b, c, d, e}.
STEP 5: The candidate set C2 is formed from L1 as C2 = {ae, be, ce, de, ad, bd, cd, ac, bc,
ab}.
STEP 6: r = r + 1 = 2.
STEP 7: The predicting minsup value for each item ’=0.50.30+(1-0.5)0.301/2=0.424.
The support of each item in P1 is then compared with 0.424. Since the supports
of {a}, {b}, {c}, {d}, and {e} are larger than 0.424, P2 is {a, b, c, d, e}.
STEP 8: The itemsets in C2 with each item existing in P2 are chosen to form promising
candidate itemsets C . Thus2 2
STEP 9: The non-promising candidate itemsets C is found as 2 2 C = C -2 2 C = . STEP 10: r = r + 1 = 3.
STEP 11: The candidate set C3 is formed from C as C2 3 = {abe, ace, ade, bce, bde, cde,
abd, acd, bcd, abc}.
STEP 12: The predicting minsup ’=0.50.30+(1-0.5)0.301/3=0.485. The support of each
item in P2 is then compared with 0.485. Since the supports of {a}, {b}, {c}, {d}
and {e} are larger than 0.485, P3 is {a, b, c, d, e }. Thus, we have C3= C3.
STEP 13: The non-promising candidate itemsets C is found as 3 C = 3 C -3 C = 3 . STEP 14: Since all itemsets in C are subsets of itemsets in 2 C , they are removed from 3
2
C =.
STEP 15: Since r (=3) < r’ + p (=4), STEP 10 to STEP 14 are repeated. r = 3+1 = 4. The
candidate set C4 is then formed from C as C3 4 = {abce, abde, acde, bcde,
abcd}. The predicting minsup value ’=0.50.30+(1-0.5)0.301/4=0.520. The
support of each item in P3 is then compared with 0.520. Since the supports of
{a}, {b}, {c}, and {e} are larger than 0.520, P4 is {a, b, c, e}. C is thus 4
formed as C = {abce}. The non-promising candidate itemsets 4 4
C is found as
4
C = C -4 C = {abde, acde, bcde, abcd}. The itemsets in 4 C which are 3
subsets of itemsets in C are removed from 4 C . Thus, we obtain 3 C ={ade, 3
STEP 16: The dataset is scanned to check whether the promising candidate itemsets of C 2
to C are actually large and whether the non-promising candidate itemsets of 4
2
C to C are actually small. The itemsets ad in 4 C , ade, abd, acd in 2 C , 3
and bcde in C are incorrectly predicted. By deleting ad, ade, abd, and acd from 4
2
C and C , the rest of elements in 3 C , 2 C , and 3 C are put into L4 2, L3, and
L4, respectively. Also, bcde is put into L4.
STEP 17: The proper subsets of the itemsets incorrectly predicted in C are generated. i
Since {ad, ade, abd, acd} is incorrectly predicted in this example, its proper
subsets not in existing large itemsets is {ad}. Thus NC+ = {ad}.
STEP 18: The proper supersets of the itemsets incorrectly predicted in C are generated. i
Since only {bcde} is incorrectly predicted in this example, its proper supersets
with 3 items and not in existing large itemsets is . Thus NC-=.
STEP 19: The dataset is scanned to find the large itemsets from NC+ and NC-. Since {ad}
is not large by verifying the dataset, the large itemsets L2 to L4 are then found as
L2={ab, bc, ac, cd, bd, de, ce, be, ae}, L3={abc, bcd, cde, bde, bce, ace, abe},
and L4={bcde, abce}.
STEP 20: Since L4 is not null, the next iteration is executed. STEP 4 to STEP 19 are then
repeated for L5 to L7. Then, we have C5 = {abcde} and L5 = L6=L7 = .
corresponding sets L2 to L4. The final large itemsets L2 to L4 are then found as
follows:
L2={ab, bc, ac, cd, bd, de, ce, be, ae},
L3={abc, bcd, cde, bde, bce, ace, abe}
L4={bcde, abce}
5. Experiments and Results
In order to demonstrate the performance of our method, several experiments are
performed. All the three methods, the apriori, the (n, p) algorithm, and our method, are
implemented in Java using the same data structure and representation. The experiments are
performed on a personal computer with a Pentium-IV 2.0 GHz CPU and Windows™. We
collect different types of datasets using the data generator provided by [4]. The following
parameters indicate the contents of the dataset. nt: the number of transactions in dataset
lt: average transaction length in the dataset
ni: the number of items in the dataset
np: the number of patterns found in the dataset
lp: average length of pattern
cp: correlation between consecutive patterns
f: average confidence in a rule vc: variation in the confidence
used in generating a dataset D.
5.1. Experiment I
First of all, we test if our algorithm performs better than the apriori does. The dataset D1
is generated with the parameters (D1, nt, 10, 25, 1000, 4, 0.15, 0.25, 0.1). We perform the two
programs with different sizes, nt=10K, 20K, 50K, 100K, of datasets and compare the
performance by speedup which is computed as (tp-to/to), where tp is the running time of the
apriori and to is the running time of ours. In this experiment, the minsup is set at 15% and
different combinations of the data dependency parameter w and transaction threshold t are
tested. The experimental result is shown in Figure 2. It seems that our method is scalable and
provides a better computational performance than the apriori with a lower w.
0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10K 20K 50K 100K DataSize Speedup (w,t)=(0.5,3) (w,t)=(0.25,3) (w,t)=(0.25,5) (w,t)=(0.5,5)
5.2. Experiment II
Next, the dataset D1 is used to test the performance of our method with different values
of minsup. We set nt=10000. The speedup is illustrated in Figure 3. Like the (n, p) algorithm,
our algorithm has a better performance when minsup is low. This is because that the apriori
exactly filters out itemsets with supports lower than minsup in each stage and reduces the
number of elements to be considered in generating candidate itemsets. In the (n, p) algorithm
and ours, we have to guess what itemsets should be considered in the prediction phase and
then to verify the predicted ones. The generation of proper subsets and supersets after the
verification phase takes a considerable time.
-1.0 0.0 1.0 2.0 3.0 4.0 5.0 6.0 15% 20% 40% 60% 80% minsup Speedup (w,t)=(0.5,3) (w,t)=(0.25,3)
Figure 3. Speedup in experimental result II with different minsup
5.3. Experiment III
According to experiments I and II, we find that the performance of our method is
datasets. We generated 5 different datasets, D2, D3, D4, D5, D6 by the changing cp and f and
remaining the rest parameters the same as that in D1. The parameters (cp, f) in D2, D3, D4, D5,
and D6 are given as (0.05, 0.75), (0.05, 0.25), (0.15, 0.75), (0.25, 0.75), and (0.25, 0.25),
respectively. Figure 4 presents the results with 10000 data in each dataset.
-2.0 0.0 2.0 4.0 6.0 8.0 0.1 0.25 0.5 0.75 w speedup D1 D2 D3 D4 D5 D6
Figure 4. Experimental result on different datasets
The data dependency parameter w seems to have an effect on the performance of the
proposed algorithm, but not on the final large itemsets. A larger w value represents a stronger
item relationship existing in transaction datasets. If the relationships of data items in
transactions have been known to be very strong, w may be set at a value close to 1. If the
relationships of data items in transactions have been known to be independent, w may be set
at a value close to 0. If the relationships of data items in transactions are unknown, w may be
respectively. Assume w=0 and minsup=30%, we obtain L1= {a, b, c, d, e} and
2
C ={ae, be, ce, ac, bc, ab},
3 C =C = 4 , 2 C = {cd, bd, ad, de}, 3
C = {bce, ace, abe, abc},
4
C =.
The itemsets that are incorrectly predicted are cd, bd, de, bce, ace, abe, and abc. L3 and
L4 are generated from the supersets of NC-={cd, bd, de} and NC-={bce, ace, abe, abc},
respectively. If w = 1, we obtain L1= {a, b, c, d, e} and
2
C =C =3 ,
4
C = {abce, abde, acde, bcde, abcd},
2
C =C =3 C =4 ,
The itemsets that are incorrectly predicted are abde, acde, and abcd. L2 and L3 are
generated from the subsets of NC+={abde, acde, abcd}. In both cases, many computations
are spent in combining the items from NC+(NC-). Generally, w = 0.5 has a better performance
than w = 0 or w = 1.
5.4. Experiment IV
performance. The dataset D2 is used to test. It seems that the best performance appear when 3
levels are considered in an iteration. Also, it is found that the data in D2 are of low
dependency (cp=0.05). This is because that the generation of Ci1 from
i
C is of O(m2)
computational complexity, where m is the number of elements in C . The more levels of i
transactions are considered in an iteration the larger n may be obtained.
-2.0 0.0 2.0 4.0 6.0 8.0 10.0 2 3 4 5 6 7 t speedup w=0.25 w=0.5 w=0.75
Figure 5. Experimental result on different levels of transactions
6. Discussions and Conclusions
From the experimental results, different values of data dependency will cause the same
large itemsets, but different predictive effects. When w=1, the non-promising candidate sets
are predicted very well, but the promising candidate sets are predicted badly; and vice versa
for w=0. By default, we set w=0.5. If the data dependency relationships in transactions can be
generating Ci1 from C . When there are many items in the dataset, e.g., 25 items in i
D1~D6, and more levels of transactions to be considered, more computation is needed in both
algorithms. However, our method provides a more accurate approach for predicting itemsets
and obtains a better performance than the (n, p) algorithm, especially when p>2.
In this paper, we have presented a mining algorithm that combines the advantages of the
apriori and the (n, p) algorithm in finding large itemsets. As the (n, p) algorithm does, our
algorithm reduces the number of scanning datasets for finding p levels of large itemsets. A
new parameter that considers data dependency is included in our method for early filtering
out the itemsets that are possibly of lower supports and thus improves the computational
efficiency.
We also conclude that the three algorithms can compete with each other and gain the best
performance on different types of datasets. There need more studies on how to tune the
parameters, such as n, p, and transaction threshold in the (n, p) algorithm and w, t in ours,
before the mining task is performed.
Acknowledgement
The authors would like to thank anonymous reviewers for their comments. The authors
would also like to thank Mr. Tsung-Te Wu who is with the department of information
conducting experiments.
References
[1] Y. Bastide, R. Taouil, N. Pasquier, G. Stumme and L. Lakhal,. “Mining frequent
patterns with counting inference,” ACM SIGKDD Explorations, Vol. 2, No. 2, pp. 66 -75,
2000.
[2] A. Bykowski and C. Rigotti, “A condensed representation to find frequent patterns,” The
12th ACM SIGACT-SIGMOD-SIGART Symposium on Principles of Database Systems,
Santa Barbara, California, USA, 2001.
[3] H. Mannila, H. Toivonen, and A.I. Verkamo, “Efficient algorithm for discovering
association rules,” The AAAI Workshop on Knowledge Discovery in Datasets, pp.
181-192, 1994.
[4] IBM, The Intelligent Information Systems Research (Quest) Group,
http://www.almaden.ibm.com/software/quest/Resources/datasets/syndata.html
[5] J. Han and Y. Fu, “Discovery of multiple-level association rules from large dataset,” The
Twenty-first International Conference on Very Large Data Bases, pp. 420-431, Zurich,
Switzerland, 1995.
Vol. 9, No. 5, pp. 812-825, 1997.
[7] M. Kryszkiewicz and M. Gajek, “Why to apply generalized disjunction-free generators
representation of frequent patterns?” The 13th International Symposium International
Symposium on Methodologies for Intelligent Systems, Lyon, France, pp. 382-392, 2002.
[8] L. Shen, H. Shen and L. Cheng, “New algorithms for efficient mining of association
rules,” The Seventh Symposium on the Frontiers of Massively Parallel Computation, pp.
234-241, 1999.
[9] M.S. Chen, J. Han and P.S. Yu, “Data mining: an overview from a dataset perspective,”
IEEE Transactions on Knowledge and Data Engineering, Vol. 8, No. 6, pp. 866-883,
1996.
[10] N. Denwattana and J. R. Getta, “A parameterised algorithm for mining association
rules,” The Twelfth Australasian Dataset Conference, pp. 45-51, 2001.
[11] J. Pei, J. Han and R. Mao, “CLOSET: an efficient algorithm for mining frequent closed
itemsets,” The 2000 ACM SIGMOD DMKD‘00, Dallas, TX, USA, 2000.
[12] R. Agrawal and R. Srikant, “Fast algorithm for mining association rules,” The
International Conference on Very Large Data Bases, pp. 487-499, 1994.
[13] R. Agrawal and R. Srikant, “Mining sequential patterns,” The Eleventh IEEE
International Conference on Data Engineering, pp. 3-14, 1995.
Third International Conference on Knowledge Discovery in Datasets and Data Mining,
pp. 67-73, Newport Beach, California, 1997.
[15] R. Agrawal, T. Imielinksi and A. Swami, “Dataset mining: a performance perspective,”
IEEE Transactions on Knowledge and Data Engineering, Vol. 5, No. 6, pp. 914-925,
1993.
[16] R. Agrawal, T. Imielinksi and A. Swami, “Mining association rules between sets of
items in large dataset,“ The ACM SIGMOD Conference, pp. 207-216, Washington DC,
USA, 1993.
[17] R. Srikant and R. Agrawal, “Mining generalized association rules,” The Twenty-first
International Conference on Very Large Data Bases, pp. 407-419, Zurich, Switzerland,
1995.
[18] R. Srikant and R. Agrawal, “Mining quantitative association rules in large relational
tables,” The 1996 ACM SIGMOD International Conference on Management of Data, pp.
1-12, Montreal, Canada, 1996.
[19] T. Fukuda, Y. Morimoto, S. Morishita and T. Tokuyama, “Mining optimized association
rules for numeric attributes,” The ACM SIGACT-SIGMOD-SIGART Symposium on
Principles of Dataset Systems, pp. 182-191, 1996.
[20] M.Wojciechowski and M. Zakrzewicz, “Dataset filtering techniques in constraint-based
[21] M. J. Zaki and C. J. Hsiao, “CHARM: an efficient algorithm for closed itemset mining,”
