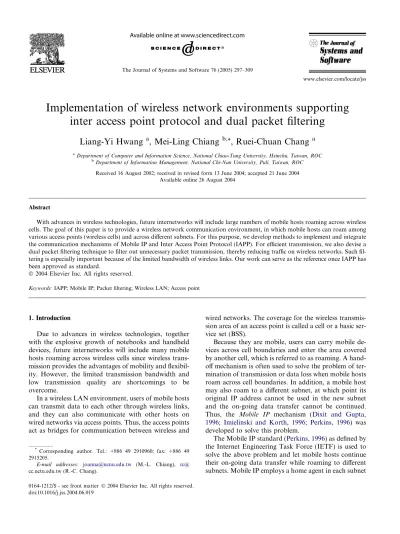

Implementation of wireless network environments supporting
inter access point protocol and dual packet filtering
Liang-Yi Hwang
a, Mei-Ling Chiang
b,*, Ruei-Chuan Chang
aaDepartment of Computer and Information Science, National Chiao-Tung University, Hsinchu, Taiwan, ROC bDepartment of Information Management, National Chi-Nan University, Puli, Taiwan, ROC
Received 16 August 2002; received in revised form 13 June 2004; accepted 21 June 2004 Available online 26 August 2004
Abstract
With advances in wireless technologies, future internetworks will include large numbers of mobile hosts roaming across wireless cells. The goal of this paper is to provide a wireless network communication environment, in which mobile hosts can roam among various access points (wireless cells) and across different subnets. For this purpose, we develop methods to implement and integrate the communication mechanisms of Mobile IP and Inter Access Point Protocol (IAPP). For efficient transmission, we also devise a dual packet filtering technique to filter out unnecessary packet transmission, thereby reducing traffic on wireless networks. Such fil-tering is especially important because of the limited bandwidth of wireless links. Our work can serve as the reference once IAPP has been approved as standard.
2004 Elsevier Inc. All rights reserved.
Keywords: IAPP; Mobile IP; Packet filtering; Wireless LAN; Access point
1. Introduction
Due to advances in wireless technologies, together with the explosive growth of notebooks and handheld devices, future internetworks will include many mobile hosts roaming across wireless cells since wireless trans-mission provides the advantages of mobility and flexibil-ity. However, the limited transmission bandwidth and low transmission quality are shortcomings to be overcome.
In a wireless LAN environment, users of mobile hosts can transmit data to each other through wireless links, and they can also communicate with other hosts on wired networks via access points. Thus, the access points act as bridges for communication between wireless and
wired networks. The coverage for the wireless transmis-sion area of an access point is called a cell or a basic ser-vice set (BSS).
Because they are mobile, users can carry mobile de-vices across cell boundaries and enter the area covered by another cell, which is referred to as roaming. A hand-off mechanism is often used to solve the problem of ter-mination of transmission or data loss when mobile hosts roam across cell boundaries. In addition, a mobile host may also roam to a different subnet, at which point its original IP address cannot be used in the new subnet and the on-going data transfer cannot be continued. Thus, the Mobile IP mechanism (Dixit and Gupta, 1996; Imielinski and Korth, 1996; Perkins, 1996) was developed to solve this problem.
The Mobile IP standard (Perkins, 1996) as defined by the Internet Engineering Task Force (IETF) is used to solve the above problem and let mobile hosts continue their on-going data transfer while roaming to different subnets. Mobile IP employs a home agent in each subnet 0164-1212/$ - see front matter 2004 Elsevier Inc. All rights reserved.
doi:10.1016/j.jss.2004.06.019
* Corresponding author. Tel.: +886 49 2910960; fax: +886 49
2915205.
E-mail addresses: [email protected] (M.-L. Chiang), rc@ cc.nctu.edu.tw (R.-C. Chang).
to keep track of the current location of the mobile host. Whenever a mobile host roams to another subnet, its home agent will encapsulate all the packets destined for the mobile host sent to the original subnet, and then forward the encapsulated packets to the mobile host according to its new location. In this way, the mobile host can roam among various subnets and can still re-ceive and transmit data as usual. Thus, even if mobile hosts roam to another subnets, their on-going data transfer can still proceed. So Mobile IP specifies how a mobile host registers with its home agent and how the home agent routes datagrams to the mobile host through a tunnel.
However, Mobile IP cannot handle the problem that occurs when a mobile host roams to a different cell but remains in the same subnet. Without a handoff mecha-nism, access points act only as the bridges for communi-cation between wired networks and wireless networks. This is because an access point would forward whatever packets it receives from wired interface to its wireless interface, regardless of whether or not the target mobile host resides in its BSS. This unnecessary packet trans-mission causes the waste of wireless bandwidth. Thus, Lucent Technologies,Digital Ocean, andAironet Wire-less Communications have collaborated to develop the Inter Access Point Protocol (IAPP) specification (Menri et al., 1998) to resolve this problem. This protocol is an IEEE 802.11 (1997) compliant wireless multi-vendor interoperatability protocol. Its primary function is to specify the handoff protocol for access points, such that their on-going data transferring can proceed while mo-bile hosts are roaming to different BSSs in the same sub-net. By conforming to the IAPP, access points made by different manufacturers can cooperate in wireless networks.
However, the Mobile IP and IAPP are defined based on different network layers. Therefore, it is desirable to provide a method and system for integrating the IP-based (Postel, 1981) Mobile IP and UDP-IP-based (Postel, 1980) IAPP communication mechanisms.
Currently, the IAPP protocol is under discussion in the IEEE 802.11 Task Group F for wireless LANs. Recently, IEEE 802.11f working group has come out a recommended practice for implementation of an Inter-Access Point Protocol on a Distribution System sup-porting wireless LAN (IEEE, 2003). Besides the same goal to ensure mobile hostsÕ roaming between access points from different vendors, this recommended prac-tice is also designed for secure exchange of mobile hostsÕ security contexts between access points during handoff period. IAPP can use a RADIUS (Rigney et al., 2000) server for authentication. Systems implementing the ori-ginal IAPP protocol can be thought of systems imple-menting the IAPP recommended practice with security level 1 (IEEE, 2003) that has no administrative or secu-rity support.
The goal of this current paper is to build a seamless wireless communication environment, in which mobile hosts can roam across different subnets and among var-ious BSSs in the same subnet. We used Linux (Bovet and Cesati, 2002) as our experimental environment due to its popularity and its advantages of stability, reliability, high performance, and comprehensive documentation. Our system implements the original IAPP protocol (Menri et al., 1998) and uses it to solve the handover problem that occurs when a mobile host roams among different BSSs in the same subnet. Moreover, the system integrates the IAPP and the existing Mobile IP techno-logy (Dixit and Gupta, 1996) to allow the mobile hosts to roam across different subnets. We also devise a dual packet filtering technique to reduce unnecessary or redundant traffic of packet transmission, thus increasing the bandwidth utilization of the wireless networks. Such filtering is especially important because of the limited bandwidth of wireless links.
Empirical results show that mobile hosts can success-fully roam among various wireless cells and across dif-ferent subnets, receiving and transmitting data as usual. A primitive performance evaluation also shows that the dual packet filtering technique can greatly im-prove transmission performance.
The rest of this paper is organized as follows. Section 2 briefly introduces the IEEE 802.11 wireless LAN, the Mobile IP, and the IAPP protocol. Related work is also discussed in this section. Section 3 presents our pro-posed system and its architecture, including the imple-mentation of access point and IAPP management program for handling IAPP related events. Section 4 presents the implementation of our dual packet filtering mechanism. Section 5 reports the experimental results of the implementation, and Section 6 presents conclu-sions.
2. Background and related work
This section begins with the introduction of wireless LAN and related services defined by IEEE 802.11, then describing the Mobile IP specification in Section 2.2 and IAPP protocol in Section 2.3. Related work is discussed in Section 2.4.
2.1. Wireless LAN architecture and related IEEE 802.11 services
In IEEE 802.11 standard (1997), a wireless LAN con-sists of one or several basic service sets (BSS) and a BSS is composed of several mobile hosts. A wireless trans-mission environment is either an ad hoc network or an infrastructure network. An ad hoc network consists of independent BSSs, in which a BSS forms a self-con-tained network and no access to a distribution system
is available. A distribution system interconnects multiple cells via access points to extend the wireless coverage area. In contrast, an infrastructure network consists of one or more BSSs and each BSS can make use of an ac-cess point to communicate with other networks through a distribution system. An access point serves as the interface between its covered wireless network and at-tached wired network, and it also plays the role of man-agement center for an individual BSS.Fig. 1shows the
wireless LAN environment of the infrastructure
network.
The IEEE 802.11 standard specifies the following distribution system services as the communication be-tween an access point and mobile hosts or distribution system:
• Association
When a mobile host initially starts, it receives the beacon from an access point, and then sends out association request to inform the access point of its entrance into the BSS. After confirmation, the mo-bile host can then communicate with other networks via this access point.
• Disassociation
This service is used to notify the access point that the mobile host has left the BSS served by it.
• Reassociation
When a mobile host roams into another BSS served by a new access point, it then sends out a reassocia-tion request to inform the new access point of its en-trance into the BSS. Again, after confirmation, the mobile host can then communicate with other net-works via this new access point.
• Distribution
This service is used when an access point wants to use a distribution system to communicate with other networks.
• Integration
This service is used for a non-802.11 wireless network to communicate with a distribution system.
2.2. Mobile IP specification
The Mobile IP standard (Perkins, 1996) is defined by the Internet Engineering Task Force (IETF), and it en-ables mobile hosts to continue their on-going data trans-ferring while roaming to different subnets. Mobile IP uses home agents and foreign agents to achieve the func-tions of handoff and data forwarding. Each agent will periodically broadcast information about itself, so that mobile hosts can know their current positions. Every mobile host must register its permanent IP address to its agent (i.e. home agent) at the initial time. This home agent is then responsible for keeping track of the current location of the mobile host after registering it.
Two different network architectures are defined in Mobile IP standard, as shown in Fig. 2and illustrated as follows:
1. Network architecture with foreign agents
When a mobile host roams into another subnet, its home agent will encapsulate all packets destined for the mobile host and then send them to the for-eign agent of the mobile host. After receiving these encapsulated packets, the foreign agent will decapsu-late these packets and then send them to the mobile host. This way of forwarding is called tunneling, as shown in Fig. 2(a).
To support roaming, this method needs not change the IP address of a roaming mobile host, and a mo-bile host needs not the capability of decapsulation. However, this network architecture must have for-eign agents to support the roaming of mobile hosts. 2. Network architecture without foreign agents
As shown inFig. 2(b), foreign agents are not needed at all in this network architecture. When a mobile host roams into another subnet, it gets a new IP ad-dress belonging to the new subnet and then informs Fig. 1. Wireless LAN architecture.
Correspondent Host
Mobile Host
Home Agent Tunneling Foreign Agent Correspondent
Host
Mobile Host
Home Agent TunnelingTunneling Foreign Agent
Correspondent Host Mobile Host Home Agent Tunneling Correspondent Host Mobile Host Home Agent Tunneling (a) (b)
Fig. 2. Mobile IP protocol: (a) with foreign agents; (b) without foreign agents.
its home agent of its new IP address. Its home agent will encapsulate all packets destined for the mobile host and then send them to the mobile host. After receiving these packets, the mobile host must decap-sulate them.
The advantage of this method is that the network architecture needs not have foreign agents. Therefore, mobile hosts can roam among existing networks that do not have any foreign agents. However, mobile hosts must have the capability of packet decapsulation.
2.3. Inter access point protocol
The current IEEE 802.11 standard addresses the physical and media access control layers of the OSI ref-erence model for wireless LANs. IEEE 802.11 does not support handover, neither does it support coordination among access points. Besides, it has no exposed interface to the Distribution System. The Inter Access Point Pro-tocol (IAPP) (Menri et al., 1998), originally proposed by the team ofLucent Technologies, Aironet Corporation, and Digital Ocean, mainly defines how access points from different vendors communicate with each other and the support of mobile hosts roaming across cells.
The proposed IAPP specification builds on the base-line capabilities of the IEEE 802.11 standard and is an extension of the IEEE 802.11 standard to support inter-operability, mobility, handover, and coordination among access points of wireless LAN. This IAPP is implemented using IEEE 802.11 management frames (i.e. association packets and reassociation packets) and UDP/IP transmission. Since UDP/IP transmission is used, each access point should have an IP address. This IAPP mainly defines the protocol header of each IAPP packet and two handling procedures that are detailed in the Section 2.3.1.
The IAPP protocol is currently under discussion in the IEEE 802.11 Task Group F for wireless LANs. Re-cently, IEEE 802.11f working group has come out a rec-ommended practice for implementation of IAPP (IEEE, 2003). In addition to ensure roaming between access points from different vendors, the system architecture also uses a RADIUS (Rigney et al., 2000) server for encryption and authentication.
Though the original IAPP and the IAPP recom-mended practice have different names for service primi-tives, and the original IAPP provides less number of service primitives, the counterpart of each service primi-tive in the original IAPP can be found in the IAPP rec-ommended practice. Our system implementing the original IAPP protocol can be thought of the system implementing the IAPP recommended practice with security level 1 (IEEE, 2003) that has no administrative or security support. Section 2.3.2 briefly highlights the
difference between the IAPP recommended practice and the original IAPP.
2.3.1. Original IAPP protocol
This protocol mainly defines the protocol header of each IAPP packet and two handling procedures: the an-nounce procedure and the handover procedure.
The announce protocol is used mainly when a new access point is initially activated and the new access point needs to notify other access points about its exis-tence. Access points can also use this protocol to ex-change information about themselves or mobile hosts. In general, there are three scenarios for the announce protocol:
• When a new access point is initially activated, it should send out an announce request to notify other access points of its existence. Other access points must then respond with announce response packets upon receiving the announce request. When receiving responses from other access points, this new access point should also respond with announce response packets, as shown inFig. 3.
• Every access point must periodically broadcast an announce request packet to notify other access points that it is still active.
• Access points can use this protocol to exchange infor-mation about themselves or their associated mobile hosts.
To complete the announce procedure, each access point must include the following data: when sending the announce request packet, it requires the Station Ser-vice ID (SSID) to indicate the BSS of the mobile host, the BSS, the channel number to show the frequency of the ac-cess point, and the physical communication type indicat-ing the wireless communication type used by the mobile host, including direct sequence or frequency hopping.
In sending an announce response, it requires the SSID, the BSS, the physical communication type, the announce cycle for recording the intervals (120 s as de-fault) between each announce response for the access
New AP All APs
Announce Request
Announce Response
Announce Response
New AP All APs
Announce Request Announce Request Announce Response Announce Response Announce Response Announce Response
point, the beacon cycle for recording intervals between each beacon, the handover timeout for indicating the time for completing the handover procedure (500 ms as default), and the channel number.

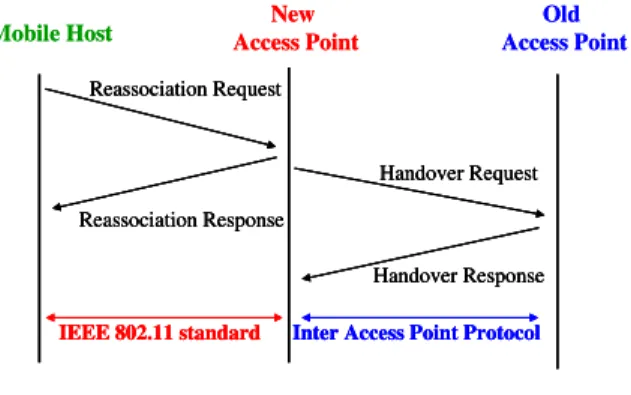

The handover protocol is used mainly when a mobile host roams to another BSS which is served by another access point, at which time the mobile host will send a reassociation request to the new access point. Then, the new access point will send out a handover request to the original access point of the mobile host to notify it about the roaming of the mobile host, and wait for the corresponding handover response, as shown in Fig. 4. This completes a handover procedure, which will allow the new access point to replace the role of the original access point and provide services for the mobile host.
To complete the handover procedure, each access point must include the following data for handover re-quest packets: the SSID, the BSS, previous BSSID, the physical address of the mobile host, and the message ID to distinguish messages and prevent repeated for-warding of the same messages. The data required to complete the handover response procedure is the same as that required to process the handover request packet.
2.3.2. IAPP recommended practice
This protocol mainly consists of three protocol se-quences: the add procedure, the move procedure, and the cache procedure. A RADIUS (Rigney et al., 2000) server can be applied for authentication and maintaining mapping of BSSID to IP addresses. This means that the new access point can discover the IP address of the old ac-cess point via RADIUS server and obtain the security information to secure the communication. TCP or UDP is used for communication between access points and UDP is used for communication between RADIUS server and access point. This protocol also uses Layer 2 frames to update the forwarding tables of Layer 2 devices. The add protocol is used mainly when a mobile host registers to a new access point by an associate request. Once an access point receives an associate request, it should send out the broadcast add request for other ac-cess points to remove stale associations if they exist.
The move protocol is like the handover protocol in the original IAPP protocol. However, on receipt of a reassociate request, the new access point should use the RADIUS protocol for authentication and encryp-tion, and to get the IP address of the old access point. Then the new access point sends a move request to the old access point, and then the old access point responds with the mobile hostÕs Context block (IEEE, 2003). The Context block is used for removing the need for reauthentication.
The cache protocol implementing the proactive cach-ing (Mishra et al., 2004) is used to avoid long handoff delay caused by IAPP communication between two ac-cess points as well as RADIUS server and acac-cess point. With proactive caching, current access point uses the cache request to distribute the security context of the mobile host to its neighboring access points before the mobile host actually handoffs.
Three security levels are possible with the IAPP capa-bilities. For level 1, the RADIUS server is not used, so that no administrative or security support exist. Then each access point should be configured with the map-ping of BSSID to IP addresses for other access points. For level 2, the RADIUS server is responsible for main-taining the mapping of BSSID to IP addresses. For level 3, the RADIUS server supports encryption and authen-tication of IAPP messages.
2.4. Related work
To provide integrated networking service,Helal et al. (2000)presented an architecture for integration between wireless LANs and wireless WANs. Similarly, their architecture uses Mobile IP as an integrative layer atop different LAN/WAN networks. However, reducing the handoff latency is not discussed in their paper.
Several studies have focused on reducing the handoff latency for mobile hosts to roam across IP networks or across access points in various aspects. Fikouras et al. (2001)proposed a method using the link-layer informa-tion to accelerate Mobile IP handoff. Through link-layer information such as the 802.11b Service Set Identifier (SSID) that provides the identity of Mobile IP agent, Mobile IP mechanisms for movement detection and periodic Mobile IP agent broadcast advertisements are not necessary. Therefore, faster Mobile IP hand-offs can be achieved. However, this method should assume that the link-layer is capable of delivering information to Mobile IP layer regarding the identity of Mobile IP agent. In contrast, our approach maintains the layer independence and uses packet filter in access pointÕs bridge program to reduce unnecessary broadcast adver-tisements from Mobile IP agent.
Mishra et al. (2004) proposed proactive caching to avoid handoff delay caused by IAPP communication between two access points as well as access point and New Access Point Old Access Point Handover Request Handover Response Mobile Host Reassociation Request Reassociation Response
IEEE 802.11 standard Inter Access Point Protocol New Access Point Old Access Point Handover Request Handover Request Handover Response Handover Response Mobile Host Reassociation Request Reassociation Request Reassociation Response Reassociation Response IEEE 802.11 standard
IEEE 802.11 standard Inter Access Point ProtocolInter Access Point Protocol
RADIUS server. Current access point of a mobile host distributes the security context of the mobile host to its neighboring access points in advance. So that when the mobile host is reassociating to its neighboring access point, context transfer from old access point to new ac-cess point is not needed. They also devised an efficient data structure, neighbor graphs (Mishra et al., 2004), to dynamically determine the set of potential neighbor-ing access points without examinneighbor-ing network topology and manually creating the set. Currently, the proposed proactive caching is included in the IAPP recommended practice (IEEE, 2003).
Similar to our implementation, their IAPP implemen-tation is inside the wireless LAN card driver and a stand-alone IAPP daemon program. Similarly, those two components use system calls and signals to commu-nicate to each other, whereas, proactive caching is implemented in their driver. However, our system does not rely on RADIUS server to maintain mapping of MAC addresses to IP addresses for all access points. Nor does our system need to transfer this mapping information from old access points. Instead, this map-ping information is maintained in our IAPP
manage-ment program, which is constructed during the
announce procedure when an access point is initiated. For a trusted environment in which authentication is not an issue, our approach does not reed a RADIUS server for obtaining old access pointÕs IP address to ful-fill the handover procedure. More reliability and effi-ciency can be achieved.
Shin et al. (2004) devised a discovery method using neighbor graphs and non-overlap graphs in the probing process to find a new access point with the best signal quality with respect to the mobile host. Their goal is to reduce the total number of probed channels as well as the total time spent waiting on each channel.
Pack and Choi (2002a,b)proposed a fast inter-access point handoff scheme for public wireless LAN. They use predicative authentication scheme to minimize the hand-off latency caused by authentication procedures at the new access point. Whereas, our work focuses on the implementation of the system supporting IAPP protocol and using dual packet filtering technique to reduce traf-fic on wireless networks and improve transmission performance.
3. System design and implementation
In this section, we present our system design and implementation, first briefly describing our system envi-ronment and architecture. Based on this architecture, we present the implementation of access points that follow the original IAPP protocol (Menri et al., 1998). On the other hands, since there have been many studies on Mo-bile IP technologies (Dixit and Gupta, 1996;Imielinski
and Korth, 1996; Perkins, 1996), we make use of the existing Mobile IP programs (Dixit and Gupta, 1996) developed at Binghamton University to reduce imple-mentation effort and focus on the integration of Mobile IP and IAPP protocol.
3.1. System environment and architecture

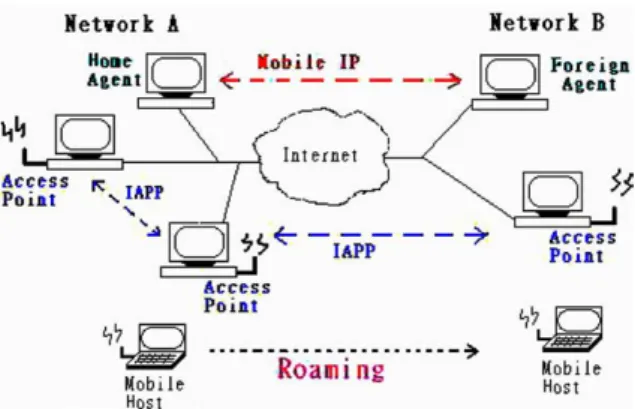

Fig. 5shows our proposed wireless environment and the system architecture. In this environment, each sub-net has one agent (home or foreign agent) to manage the whole subnet. The Mobile IP standard is used as the communication protocol among agents. Each subnet may consist of one or several access points due to the limited coverage of an access point. The original IAPP protocol is used as the transmission protocol among access points.
Because of the spirit of GNU General Public License (GPL) (Free, 1991) and open source codes, Linux (Bovet and Cesati, 2002) has gained popularity and provides the advantages of stability, reliability, high performance, and comprehensive documentation. Therefore, we used Linux as our experimental environment. Our implemen-tation mainly includes the following works:
• Access points
This work implements the wireless and wired inter-faces of access points, including the construction of hardware and software for access points.
• IAPP management program
This work implements an IAPP management pro-gram in the user level of an access point to perform IAPP communication procedure.
• Integration of Mobile IP and IAPP
To reduce implementation effort, we use the Mobile IP programs developed by Dixit and Gupta (1996). Our work mainly implements a dual packet filtering technique for reducing unnecessary or redundant packet transmission, especially when Mobile IP and IAPP are integrated.
The software architecture of our access point is de-picted in Fig. 6. The implementation is detailed in the rest of this section and in Section 4.
3.2. Implementation of access points
A wireless LAN is comprised of mobile hosts and ac-cess points. Acac-cess points act as servers, which forward MAC frames among mobile hosts and offer bridging ser-vices between wireless LANs and other IEEE 802-series LANs. Though there are access points made by many manufacturers, but they do not all follow the IAPP pro-tocol. To conform to the IAPP specification built on the baseline capabilities of the IEEE 802.11 standard (1997), an access point must be able to handle IEEE 802.11 management frames sent by mobile hosts, such as asso-ciation requests, reassoasso-ciation requests, and disassocia-tion requests, etc. Therefore, modificadisassocia-tion of wireless LAN card drivers at access points is needed to handle these requests. However, vendorsÕ driver source codes are hard to obtain. Therefore, we implemented access points ourselves.
We implemented an access point on a Pentium PC, as shown in Fig. 7. In the PC with Linux environment, a wired LAN card (i.e. an Ethernet card) and a wireless LAN card (i.e. PCMCIA wireless LAN card) were in-stalled to communicate with the wired LAN and the wireless LAN respectively. A bridge program was imple-mented to act as an interface between the wired and wireless LAN cards.
In the software implementation, we implemented wireless LAN card driver (Hwang et al., 1999) that fol-lows the IEEE 802.11 standard to process the communi-cation mechanism, including processing the association requests, reassociation requests, and disassociation requests of a mobile host.
To reduce unnecessary packet transmissions, we added a packet filter to the wireless LAN card driver of an access point. An access point uses this packet filter to determine whether it should forward packets received from the wired interface (i.e. its attached wired network) to the wireless interface (i.e. its covered wireless net-work). This packet filter examines the target address of every packet received from the wired interface; it then determines whether the target mobile host has previ-ously registered to this access point. An existing registra-tion means the target mobile host has roamed into the BSS covered by this access point. Then the access point will forward the received packets from the wired inter-face to the wireless interinter-face. In this way, packets not destined for the mobile hosts in the BSS served by this access point will not be forwarded.
3.3. IAPP management program
To enable access points to cooperate with each other using IAPP protocol and process received IAPP packets, we implemented an IAPP management program on an access point for processing the IAPP packets according to the original IAPP protocol.
This IAPP specification mainly defines two protocols to implement the functions of the IAPP: an announce protocol and a handover protocol. The announce proto-col is used to implement the coordination and manage-ment of access points. The handover protocol is used to handle handoff-related events, such as updating the ac-cess points with the current locations of mobile hosts, etc.
According to this IAPP specification, we imple-mented the IAPP management program that uses UDP/IP (User Datagram Protocol/Internet Protocol) protocol for data communication. It mainly includes two procedures, namely, announce and handover proce-dures for processing four different packet types of an-nounce request, anan-nounce response, handover request, and handover response.
Fig. 8shows the structure and operations of the IAPP management program. The IAPP management program is a user-level program and is initiated at startup. It exe-cutes in the background and is ready to perform opera-tions whenever required. Since the data in the kernel level is inaccessible to the user-level program, so the IAPP management program uses implemented system calls to obtain information about the access point (e.g. physical address, Basic Station Service ID) and the mobile host (e.g. the physical address, and the physical AP Code
Ethernet NIC Driver
Bridge Program packet filter
WLAN NIC Driver packet filter IP
TCP/UDP IAPP Management
Program User Applications
AP Code
Ethernet NIC Driver
Bridge Program packet filter
WLAN NIC Driver packet filter IP
TCP/UDP IAPP Management
Program User Applications
Fig. 6. Software architecture.
Wired LAN card Wireless LAN card Access Point Bridge program Wired LAN Wireless LAN Wired LAN card Wireless LAN card Access Point Bridge program Wired LAN Wireless LAN
address of the access point previously registered by this mobile host) from the wireless LAN card driver that is located at the kernel level.
So that the user-level IAPP management program can exchange information with the kernel-level wireless LAN card driver of an access point, the following sys-tem calls are implemented:
1. Get_AP_Info(): used to obtain information about the access point.
2. Get_MH_Info(): used to obtain information about the mobile host, including physical address (i.e. MAC address), and the physical address of the access point previously registered by the mobile host. 3. Save_PID(): used for storing the process ID of the
IAPP management program in the wireless LAN card driver.
4. Del_MH_Table(): executed by the IAPP manage-ment program for deleting the registration record of a mobile host when the mobile host roams to a new BSS.
Furthermore, when the wireless LAN card driver of an access point receives the reassociation request packet from a mobile host, it sends signals to the IAPP manage-ment program to perform the handover procedure. 3.3.1. Announce procedure
Fig. 9shows the operations of the IAPP management program in processing the announce request procedure. Whenever a new access point is initially activated, the new access point broadcasts the announce request pack-et to the same subnpack-et and to other subnpack-ets as well.
Since the router is usually configured to block broad-cast packets, so the broadbroad-cast announce request packets will be directly broadcast to the same subnet as well as other associated subnets using UDP/IP. These associ-ated subnets have been previously recorded in the access point or configured when the access point is initially activated. The information of these associated subnets determines which subnets should be selected to send the announce request packets. Since the IP address of each access point can be obtained from an announce
response packet, so the access point can establish a MAC-to-IP mapping table for storing the physical ad-dress (i.e. MAC adad-dress) and its associated IP adad-dress according to each announce response packet received. Thus, this mapping table can collect and provide the information required for sending handover request packets.
The operations of the IAPP management program are described in detail as follows. First, when the IAPP management program of an access point is initially acti-vated, it uses the Get_AP_Info system call to obtain the physical address of the wireless LAN card from the wireless LAN card driver. The physical address of the wireless LAN card acts as the Basic Service Set Iden-tification number (BSSID) of that access point. The BSSID will be filled into the header of the announce re-quest packet, which will then be broadcast to the current subnet of the access points and to other subnets. After that, the IAPP management program waits for an-nounce response packets from other access points.
Afterwards, if the IAPP management program re-ceives the announce response packets from other access points existing in the same or other subnets, then the IAPP management program will respond with an an-nounce response packet. In addition, the IAPP manage-ment program will also obtain the physical address and the IP address of the access point from the header of the announce response packets received. Then, the physical address and the IP address of the access point are kept in the MAC-to-IP mapping table for the convenience of lookup at the time of transmitting handover request packets.
This MAC-to-IP mapping table is constructed be-cause when the mobile host roams from one BSS to an-other BSS, the mobile host would register to the new access point by sending a reassociation request packet. The new access point in turn will send a handover re-quest packet to the old access point previously registered by the roaming mobile host according to its IP address. However, the reassociation request packet contains only the physical address of the old access point rather than its IP address. Thus, the IAPP management program
Wireless LAN Card Driver IAPP Management Program
System calls Signal Kernel level User level Get_AP_Inf Get_MH_Inf Save_PID Del_MH_Tab Wireless LAN Card Driver IAPP Management Program
System calls System calls Signal Signal Kernel level User level Get_AP_Inf Get_MH_Inf Save_PID Del_MH_Tab

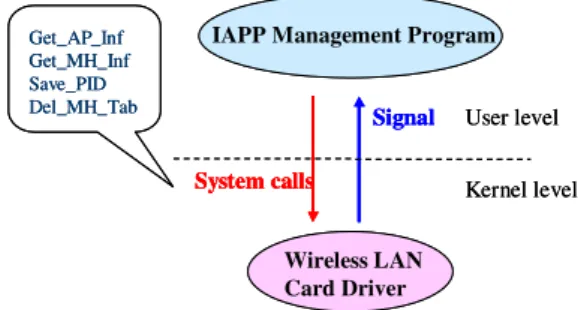

Fig. 8. The interaction of IAPP management program and wireless LAN card driver.
IAPP Management Program IAPP Management Program 1. Announce Request 2. Announce Response 3. Announce Response MAC IP address 4. adds an entry in mapping table Mapping table
Access Point Other Access Points
IAPP Management Program IAPP Management Program 1. Announce Request 2. Announce Response 3. Announce Response MAC IP address 4. adds an entry in mapping table 4. adds an entry in mapping table Mapping table
Access Point Other Access Points
will have to find the IP address of the old access point by looking up the MAC-to-IP mapping table using the physical address of the old access point as an index. After finding a match, the IP address found will be used as the destination address of the handover request pack-et. With this MAC-to-IP mapping table, it would be easy to find the associated IP address of an access point previously registered by a roaming mobile host, such that the IAPP manage program can successfully send out a handover request.
3.3.2. Handover procedure
The handover procedure is the most important proce-dure for the entire IAPP management program. When the wireless LAN card driver of an access point receives the reassociation request packet from a mobile host, the wireless LAN card driver sends a handover signal to in-form the user-level IAPP management program to pro-cess the handover procedure for the roaming mobile host. Fig. 10 shows the operations of the IAPP manage-ment program in response to a reassociation request from a roaming mobile host. When the IAPP manage-ment program receives the handover signal from the wireless LAN card driver, this indicates that a new mo-bile host has roamed to the BSS of the current access point. At that time, IAPP management program has to notify the old access point previously registered by the mobile host about the new location of the mobile host. The IAPP management program first uses the Get_MH_Info system call to get the physical address (i.e. MAC address) of the old access point of the mobile host. Then, the IAPP management program searches the MAC-to-IP mapping table to find the IP address of the old access point using its physical address as an index. The IP address found will serve as the destination ad-dress of the handover request packet. After that, the IAPP management program sends the handover request packet to the old access point according to the destina-tion address and then waits for a response.
At this time, in addition to send out the handover re-quest packets, the wireless LAN card driver of the cur-rent access point also inserts the information regarding the newly registered mobile host into the packet filter. Thus, every mobile host successfully registered in the current subnet will have a registration record in the packet filter. Accordingly, whenever the wireless LAN card driver receives an incoming packet, it first searches the packet filter to find if there is a correspondence be-tween an entry of the packet filter and the destination address of the incoming packet. If there is no match, it indicates that the mobile host has roamed away from the current BSS, so the incoming packet will not be for-warded to its destination. Eventually, the traffic on the wireless LAN can be reduced.
On the other hand, upon receiving the handover re-quest packet, the access point, which was previously reg-istered by the mobile host, will send the handover response packet and use the Del_MH_Table system call to delete the registration record of the mobile host from the packet filter in the wireless LAN card driver. Thus, checking whether the mobile host is still within the BSS can be easily performed by searching the packet fil-ter. If the mobile host has roamed to another BSS, the wireless LAN card driver will not forward the incoming packets destined for the mobile host to the wireless LAN. Consequently, the packet traffic can be effectively reduced.
4. Implementation of dual packet filtering
The IAPP communication mechanism is sufficient for processing the roaming of a mobile host in the same sub-net. However, when a mobile host is roaming across dif-ferent subnets, a Mobile IP communication mechanism is required.
According to the Mobile IP standard, each Mobile IP agent periodically broadcasts a message about itself to its own subnet. When an access point receives this broadcast packet, it also forwards it to its associated wireless LAN. Thus, it is necessary for access points to periodically forward the broadcast packets for the Mobile IP agents. On the other hand, under the infra-structure of the wireless networks, each access point also periodically broadcasts a message (i.e. beacon) about itself to the same subnet. Therefore, two kinds of broadcast message are broadcast in the wireless LANs. However, a mobile host determines its own BSS position according to the beacons of access points, rather than the packets broadcasted by the Mobile IP agents. Whereas, if an access point does not forward the broadcast packets for the Mobile IP agents, then mobile hosts will have no way to determine if they have roamed to another subnet served by another Mobile IP agent. IAPP Management Program 3. Handover Request 4. Handover Response MAC IP address
New Access Point
Wireless LAN Card Driver Packet filter 1. signal 2. Query table IAPP Management Program Wireless LAN Card Driver Packet filter 5. deletes an entry in packet filter Old Access Point
5. add a new entry in packet filter IAPP Management Program 3. Handover Request 4. Handover Response MAC IP address
New Access Point
Wireless LAN Card Driver Packet filter 1. signal 2. Query table 2. Query table IAPP Management Program Wireless LAN Card Driver Packet filter 5. deletes an entry in packet filter 5. deletes an entry in packet filter Old Access Point
5. add a new entry in packet filter 5. add a new entry
in packet filter
To further reduce unnecessary traffic on the wireless LANs, in our system, access points do not need to peri-odically broadcast packets for the Mobile IP agents. In-stead, the access point only broadcasts the message for the agent whenever required, thus preventing waste of the wireless LANs bandwidth. In our system, an access point includes another packet filter in the bridge pro-gram for analyzing the destination of the incoming broadcast packets. Only when a mobile host is register-ing to the access point, will the bridge program enable the forwarding of the broadcast packets from the Mo-bile IP agents to the wireless LAN. Then the moMo-bile host can determine if it has roamed to another subnet served by another Mobile IP agent and perform Mobile IP communication mechanism. After the mobile host fin-ishes the Mobile IP procedure, it will inform the access point and the bridge program will stop forwarding the broadcast packets from the Mobile IP agents so as to further reduce the traffic to the wireless LAN. Fig. 11 shows this packet filter in the bridge program.
The decision to implement the packet filter for filter-ing out broadcast packets from the Mobile IP agent in the bridge program of an access point instead of modi-fying Mobile IP programs is intended to preserve the flexibility and completeness of Mobile IP programs, such that even when the Mobile IP programs are chan-ged or modified, our system is not affected at all.
5. Experimental results and analysis
This section presents the experimental results and analysis for our wireless communication system. Section 5.1 describes our experimental environment. Section 5.2 measures the time needed for a mobile host to fulfill the handover procedure. Section 5.3 measures the effect of
the packet filter in the wireless LAN card driver on the transmission efficiency, which is employed to filter out packets not destined for any mobile host in the BSS. Section 5.4 measures the effect of the packet filter in the bridge program on the transmission efficiency, which is used to filter out unnecessary broadcast packets from Mobile IP agents. Section 5.5 measures the effect of the number of registered mobile hosts.
5.1. Experimental environment
We use Linux as our experimental platform.Fig. 12 and Table 1 show our experimental environment, con-sisting of two different IP subnets, with each subnet hav-ing a Mobile IP agent, represented as home agent and foreign agent respectively, to provide services on the net-work layer for mobile hosts. The Mobile IP agents com-municate with each other via Mobile IP communication mechanism, and there are several access points in the different subnets to provide services over the entire net-work. Each access point communicates with another via an IAPP communication mechanism. The mobile hosts make use of access points to communicate with wired networks.
5.2. Handoff performance
Since the time needed to fulfill the registration repre-sents the time needed to fulfill the handover procedure, this section measures the time for a mobile host to reg-ister for a new access point when it roams into a BSS serviced by the new access point. The longer the over time, the higher the data loss rate while the hand-over procedure is underway.
When a mobile host roams to another BSS, it receives a beacon (i.e. broadcast packet) from the new access point. The measured time begins from the time that a mobile host sends out the reassociation request packet to the new access point to the time when it receives the reassociation response packet from the new access point, indicating the completion of registration. The measurement was repeated ten times for a mobile host that roamed from the BSS of access point 1 to the (a) (b) Mobile IP Agent AP Broadcast Broadc ast mobile host Mobile IP Agent AP Broadcast Broadcast Broadc ast Broadc ast mobile host Mobile IP Agent AP Broadcast Broadc ast adds a packet filters
in bridge program mobile host
on registering Mobile IP Agent AP Broadcast Broadcast Broadc ast Broadc ast mobile host on registering
Fig. 11. Packet filtering used in the integration of Mobile IP and
BSS of access point 2 and then back to the BSS of access point 1. The mobility of the mobile host was not con-cerned in this evaluation since we measured the time needed to fulfill the registration including handover time.
Fig. 13 shows that an average of 4.783 ms was re-quired for a mobile host to fulfill the handover proce-dure. This also means when a mobile host roams to a new BSS, it has to wait for average 4.783 ms to continue data transmission.
5.3. The performance of the packet filter in the device driver
This section measures the effect of the packet filter in the wireless LAN card driver on the transmission effi-ciency, which we used to filter out packets not destined for any mobile hosts in the BSS. Without this packet fil-tering, the access point will forward whatever it receives from wired networks to its BSS.
Our test program was modified from NetPerf pro-gram (Hewlett, 1995), which originally repeatedly trans-mitted 64-byte packets between two PCs. The time period for this measurement lasted 10 s and we mea-sured how many packets were successfully transferred. Then the packet round trip time can be obtained. In this test environment, only one mobile host registered to the access point. This test program was performed 20 times on one pair of mobile host and fixed host. Since this test focused on the measurement of the effect of the packet
filter in the wireless LAN card driver, so the fixed and mobile hosts were located in the same subnet and the Mobile IP programs were not executed. Ten fixed hosts (PCs) and the access point reside in the same subnet. Ex-cept from the PCs in experiment, other PCs are idle dur-ing the experiments.
To explore the effect of the packet filter, our measure-ments were performed under three different network transmission environments, as follows:
Case 1. Baseline network environment
Only run our test programs on one pair of mobile host and fixed host. Other machines are all idle. Case 2. Network environment with additional traffic
In addition to running the test programs, one PC repeatedly runs Ping program for creating additional traffic on the network.
Case 3. Network environment with extra workload The test programs were running on two pairs of PCs to add the workload of transmission.

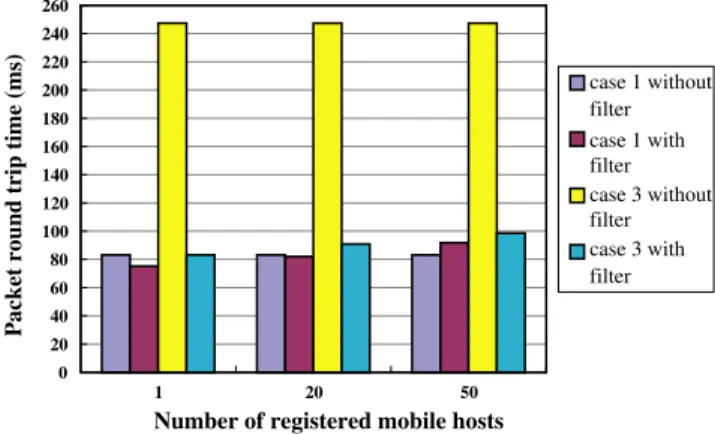

The results shown inFig. 14demonstrate that under various network environments, when a packet filter is
Mobile host Access Point Reassociation request
Reassociation response 4.783 ms
Mobile host Access Point Reassociation request
Reassociation response 4.783 ms
Fig. 13. The measured time of handover.
case 1 case 2 case 3
Packet round trip time (ms)
with filter without filter 240 220 200 180 160 140 120 100 80 60 40 20 0
Fig. 14. Effect of packet filtering in device driver under various network environments.
Table 1
Experimental platform
CPU Wired network card Wireless network card
Hardware:
Access point 1 Pentium 75 (RAM 64M) D-Link DE220 DBtel PCMCIA (2 Mbps)
Access point 2 Pentium 75 (RAM 32M) D-Link DE220 DBtel PCMCIA (2 Mbps)
Home agent Pentium 120 (RAM 40M) D-Link DE528 None
Foreign agent Pentium 90 (RAM 32M) D-Link DE220 None
Mobile host (notebook) Pentium 200 (RAM 64M) None DBtel PCMCIA (2 Mbps)
Software:
Operating system: Linux (RedHat 5.2), Kernel version 2.0.30 PCMCIA device driver: version 3.0.5
used, the transmission efficiency can be largely im-proved. The improvement of transmission efficiencies are 8.17% for Case 1, 17.23% for Case 2, and 66.55% for Case 3.
We believe that for real practical network environ-ments, the network traffic is much heavier and also many more mobile hosts will reside in the wireless net-works. By filtering out unnecessary packets, the trans-mission efficiency can be dramatically improved. 5.4. The effect of the packet filter in the bridge program
The packet filter in the bridge program is used to fil-ter out broadcast packets from the Mobile IP agent. Only in certain periods will the bridge program forward broadcast packets from Mobile IP agent to its associ-ated wireless LAN.
In this measurement, the benchmark was the same as those of previous measurements. Mobile IP programs were executed and the device drivers of access points also have packet filters. To find out the minimum improvement, the test programs were run under the baseline network environment (i.e. Case 1) and only one mobile host has registered to the access point. In this test, the Mobile IP agent sent out broadcast packets about once per second.
Fig. 15 shows the results. Though under this very light workload, the bridge program with packet filtering performed better than the program without packet fil-tering. This performance improvement is because of the reduction of transmission of broadcast packets from the Mobile IP agent and the reduction of the processing overhead for mobile hosts to handle the received broad-cast packets, such as determining whether mobile hosts have roamed to a new subnet, etc. The performance improvement would be expected to be more significant in a practical network environment with heavier work-load or with Mobile IP agents broadcasting packets more often.
5.5. The effect of the number of mobile hosts
Previous experimental results show that our dual packet filtering can greatly improve transmission effi-ciency. Those measurements were done under the envi-ronment in which only one mobile host resided in the wireless LAN. This section measures the effect of the number of mobile hosts registered to an access point on the transmission efficiency. The time to look up the filter table in the packet filter also affects the efficiency. The larger the filter table is, the longer the time required for filtering processing.
In the test, the system used sequential search to look up the filter table in the packet filter of wireless LAN driver, and assumed the worst case that the queried mo-bile host entry resided in the final entry of the filter table. The network environment was the same as those of pre-vious measurements.
Fig. 16shows that when packet filtering is used in the wireless LAN driver, the improvement of transmission efficiency ranged from 8.17% to 66.54%. However, when the number of registered mobile hosts was larger, the transmission efficiency decreased. This is because more time is needed to look up an entry in the filter table for filtering processing. Therefore, an efficient method such as hashing instead of using sequential search would be required for table lookup when the number of regis-tered mobile hosts is large.
6. Conclusions
We have successfully implemented a seamless wireless communication environment that supports IAPP proto-col and Mobile IP standard, such that a mobile host can roam among various wireless cells and across different subnets. In addition, a dual packet filtering mechanism is employed to filter out unnecessary or redundant traffic of packet transmission. One packet filter in the wireless LAN card driver of an access point determines if an without dual packet
filter (Mobile IP is not run)
with only first packet filter (Mobile IP is run)
with dual packet filter (MobileIP is run) 100 90 80 70 60 50 P ack etr
ound trip time (ms)
Fig. 15. Effect of packet filtering in bridge program.
0 20 40 60 80 100 120 140 160 180 200 220 240 260 1 20 50
Number of registered mobile hosts
Packet round trip time (ms)
case 1 without filter case 1 with filter case 3 without filter case 3 with filter
incoming packet will be forwarded to its associated wire-less LAN and the other packet filter in the bridge pro-gram of an access point controls the traffic flow towards the wireless LAN. Preliminary performance evaluation shows that transmission efficiency is greatly improved when this dual packet filtering mechanism is used.
Our implementation supporting the original IAPP protocol can be thought of the system implementing the IAPP recommended practice with level 1 security that has no RADIUS usage. For a trusted or small-scale wireless environment, this is acceptable. Besides, since it does not rely on the RADIUS server for operations, bet-ter reliability can be achieved. However, if a secure
envi-ronment is needed, a RADIUS server such as Free
RADIUS (2003)should be added.
Based on this system, several issues can be explored or enhanced, and several services can be added, such as authentication of mobile hosts on registration or handover, provision of user profiles, different quality of services (QoS) for registered mobile hosts, etc. In addition, providing the forwarding of buffered frames would be helpful for reducing the data loss rate during handoff.
References
Aironet Wireless Communications,http://www.aironet.com/>. Bovet, D.P., Cesati, M., 2002. Understanding the Linux Kernel,
second ed. OÕReilly Associates, Inc. Digital Ocean,http://www.digitalocean.com/>.
Dixit, A., Gupta, V., 1996. The User Guide of Mobile IP for Liunx, Binghamton University.
Fikouras, N.A., Ko¨nsgen, A.J., Go¨rg, C., 2001. Accelerating Mobile IP hand-offs through link-layer information, an experimental investigation with 802.11b and Internet audio. In Proceedings of the International Multiconference on Measurement, Modeling, and
Evaluation of Computer-Communication Systems (MMB), Aachen, Germany.
Free Software Foundation, Inc., 1991. GNU General Public License (GPL),http://www.linux.org/info/gnu.html>.
Free RADIUS Server Project,http://www.freeradius.org>.
Helal, S., Lee, C., Zhang, Y., Richard III, G.G., 2000. An Architecture for Wireless LAN/WAN Integration, Wireless Communications and Networking Conference.
Hewlett-Packard Company, 1995. Netperf: A Network Performance Benchmark.
Hwang, L.Y., Hwang, W.S., Lin, Y.T., Chiang, M.L., Chang, R.C., 1999. IEEE 802.11 PCMCIA wireless LAN drivers design and implementation. Technical Report, Department of Computer and Information Science, National Chiao Tung University, Taiwan, ROC.
IEEE 802.11, 1997. Draft Standard for Wireless LAN, Medium Access Control (MAC) And Physical Layer Specification.
IEEE Std 802.11F, 2003. Recommended practice for multi-vendor access point interoperability via an inter-access point protocol across distribution systems Supporting IEEE 802.11 operation. Imielinski, T., Korth, H.F., 1996. Mobile Computing.
Lucent Technologies,http://www.lucent.com>.
Menri, Moelard, Lucent Technologies, 1998. Inter-Access Point Protocol Draft.
Mishra, A., Shin, M., Arbaugh, W., 2004. Context caching using neighbor graphs for fast handoffs in a wireless network. In: Proceedings of the 23rd IEEE Conference on Computer Commu-nications (INFOCOM).
Pack, S., Choi, Y., 2002a. Fast inter-AP handoff using predictive-authentication scheme in a public wireless LAN. In: Proc. IEEE Networks 2002 (Joint ICN 2002 and ICWLHN 2002), Atlanta, USA.
Pack, S., Choi, Y., 2002b. Pre-authenticated fast handoff in a public wireless LAN based on IEEE 802.1x Model. In: Proc. IFIP PWC 2002, Singapore.
Perkins, C., 1996. IP Mobility Support, RFC 2002. Postel, J., 1980. User Datagram Protocol, RFC 768. Postel, J., 1981. Internet Protocol, RFC 791.
Rigney, C., Willens, S., Rubens, A., Simpson, W., 2000. Remote Authentication Dial In User Service (RADIUS), RFC 2865. Shin, M., Mishra, A., Arbaugh, W., 2004. Improving the latency of
802.11 hand-offs using neighbor graphs. In: 2nd International Conference on Mobile Systems, Applications, and Services (MobiSys).
