In-Kernel Relay
for Scalable
One-to-Many
Streaming
Ying-Dar Lin, Chia-Yu KuNational Chiao Tung University, Taiwan Yuan-Cheng Lai
National Taiwan University of Science and Technology Chia-Fon Hung
National Chiao Tung University, Taiwan
A
s a result of advances incompres-sion techniques and the increase of network bandwidth, streaming techniques are now widely used to distribute multimedia over the Internet. For one-to-many streaming applications, such as Internet radio and IPTV, thousands of consum-ers might request popular content from a media provider. The media provider can distribute the content using IP multicast or overlay multicast. IP multicast distributes the fan-out burden to intermediate routers to minimize duplicate media content. However, problems with group management, address allocation, and security issues can make IP multicast unavailable.1The overlay multicast technique organizes peers to forward media streams and realizes multicast transmissions using multiple unicasts in overlay networks.25Unfortunately, the duplicate uni-casts make overlay multicast less efficient than IP multicast.
In overlay networks, a relay node could be a rendezvous node in a centralized architecture or a peer in a purely decentralized architecture. A rendezvous node, such as a proxy relay server, can suffer from a large amount of fan-out burdens. In addition, a peer with limited com-puting power due to hardware limitations, such as a low-end SOHO (small office, home office) router, might be insufficient to deal with the requested media streams. Unable to deal with the fan-out burden, such relay nodes then become a bottleneck. Therefore, improving the performance of a critical node can enhance system scalability and reduce the required computing power.
Forwarded media streams can suffer from the same overhead problems as memory cop-ies and system calls. Previous works utilized a unified buffer structure with page remapping and shared memory to prevent cross-domain memory copies.69However, these approaches
lost compatibility when the operating sys-tems’ underlying buffer structure was modi-fied. The multicast relay projects performed the relay operations through the user-space socket API by altering the underlying buffer structure, but they still could not eliminate the overhead from system calls and memory copies. Alternative works proposed header-altering methods, which intercept packets in the IP layer.10 However, they suffered
maintenance overhead problems from trans-port-layer protocols that are generally applied
to multimedia streams. KStream built an in-kernel streaming relay data path over the I/O subsystems to prevent system calls and memory copies,11but memory copies among
sinks are still required. (See the ‘‘Related Works in Relay Data Paths’’ sidebar for more details.)
This article proposes an in-kernel streaming relay method for Linux-based systems called one-to-many streaming splicing (OMSS) that sup-ports both User Datagram Protocol (UDP) and TCP streaming. We use a payload-sharing mechanism to reduce the number of memory copies among multiple sinks and the worker-pool processing model to raise the service scal-ability in a multiprocessor system. Moreover, we provide differentiated QoS scheduling to guarantee the service quality of high-priority streaming sessions.
We evaluated the performance of our OMSS approach on both PC-based and embedded platforms. Our experimental results demon-strate that OMSS reduces CPU utilization for UDP and TCP streams by 56 and 59 percent, re-spectively, compared with a conventional approach. In addition, the maximum number of media subscribers on the PC-based and
The in-kernel One-to-Many Streaming Splicing (OMSS) relay method can help improve the relay data paths of critical nodes to reduce computing power for UDP and TCP streams and enhance the subscriber capacity.
embedded platforms increased from 2,200 to 4,000 and from 45 to 85, respectively.
One-to-Many Streaming Splicing
The OMSS architecture consists of a one-to-many relay data path and a relay engine. Media content is forwarded on the relay data path, whereas the relay engine manages the system resources for the relay sessions. Figure 1 shows that each relay session includes a corresponding relay data path. A one-to-many relay data path consists of a source con-nection, multiple sink connections, and a ses-sion buffer. OMSS receives media streams from the source connection while it sends the
streams to the subscribers through the sink connections. The received media content is stored in the session buffer. For real-time multimedia streaming services, we apply the slowest-sink-drop policy, which drops the packets held by the slowest sink connection, to keep new media content when the session buffer is full. OMSS then utilizes a payload-sharing mechanism to send out the media content with no memory copies.
Our approach considers a relay session’s receptions and transmissions as one source task and multiple sink tasks, respectively. The relay engine schedules and handles all tasks, utilizing the worker-pool processing model to achieve large-scale service scalability on multi-processor platforms. Moreover, we also provide priority-based task scheduling to ensure the QoS of high-priority sessions. When a source task is triggered, it is added to the class queues according to its priority assigned by the stream-ing service program. Then the worker pool assigns an idle thread to deal with the task and puts the sink tasks generated by the source task into the class queues. The sink tasks send out the media content sharing the same pay-load. These tasks forward media content until no additional content is received by the source task.
Figure 2 shows the flow chart of processing tasks. When a source task is triggered, the buffer size is examined to ensure sufficient spaces. If the buffer is full, the slowest-sink-drop policy is applied. After receiving media content and
Figure 1. One-to-many streaming splicing (OMSS) architecture. A task might enter the queue as a result of a socket event, application control, or processing result. Generate relevant sink tasks Slowest-sink drop Source task Sink task Send stream from session buffer Receive stream into session buffer Start Start Is buffer full? Yes Yes End End Yes No No No Any streams to read? Any streams to send?
Figure 2. OMSS flow chart. OMSS provides buffer management for one-to-many streaming over the socket layer and uses the slowest-sink-drop policy to reserve buffer space for newly arriving content.
Session buffer
Relay engine Fetch
tasks
One-to-many-relay data path
… Assign tasks Worker pool Scheduler Deal with incoming and outgoing tasks Class queues Priority Slowest-sink drop Payload sharing Task queue
Source connection Sink connection Source task Sink task Media stream
IEEE
putting it into the buffer, the source task invokes the corresponding sink tasks in the same relay session to send out the content. A sink task gets the content from the buffer and sends it out until there is no additional con-tent. The content can be removed after all the sink tasks have completed.
Slowest-Sink-Drop Buffer Management The OMSS design applies one-to-many stream-ing features to buffer management. When the buffer is full, the buffer manager should apply a queuing discipline to drop packets. Unlike buffer management at a router, OMSS provides buffer management for one-to-many stream-ing over the socket layer. The decision to drop packets should not affect transport-layer behaviors, such as the congestion control.
Media content delivered by the sources is stored in the session buffer. Sending this
content to a requesting set of sinks can require various amounts of time due to the different transmission qualities of the sink connections. Therefore, a slow sink connection might oc-cupy the buffer. In one-to-many streaming, tail-drop or random early detection (RED) algo-rithms might drop newly arriving media con-tent when the buffer is full. Dropping the newly arrived content forces all the sinks to lose the dropped content. That loss can result in penalties such as video lags, even though a part of the sink connections has sufficient bandwidth. To avoid this problem, we apply the slowest-sink-drop policy, which drops the content held by slowest sink connections, to re-serve buffer space for newly arriving content.
Note that the buffer management mecha-nism we choose, whether it be the slowest-sink-drop, tail-drop, or RED, does not influence the overhead, such as memory copies, in a
Related Works in Relay Data Paths
A relay data path fcontinually forwards media streams from the source to the sinks. Media streams relayed through differ-ent interfaces can incur differdiffer-ent types of overhead. We cat-egorize previous relay-data-path solutions by interface type: socket API, I/O subsystems, and IP-layer hooks. Figure A illus-trates the categories of relay data paths, and Table A summa-rizes the features and drawbacks of each.
Relay through the Socket API
The relay data paths through the socket API forward media streams with the socket interface in the user space. Initially, the incoming media streams pass through the network protocol stack. Then, the contents of the streams are stored in the source socket’s receiving queue
in the kernel space. The relay application copies content to the user-space buffer and passes it to the sending queue of the sink sockets in the kernel space. Because media streams are copied across the user and kernel spaces, the relay data paths incur system call and memory copy overhead. Icecast (www.icecast.org) and Darwin Streaming Server (DSS, http://dss.macosforge.org) be-long to this category. The former addresses TCP stream-ing, whereas the latter handles UDP streaming.
Relay at the IP-Layer Hooks
An in-kernel relay data path can prevent the overhead caused by copying data across the user and kernel spaces. To build an in-kernel relay data path, IP-layer hooks such as Netfilter (www.netfilter.org) in Linux-based systems allow kernel modules to register callback functions in the IP layer. Packets are intercepted at each hook point and passed to the corresponding callback function.
Our previous work, called kP2PADM,1examined the
performance improvement of a peer-to-peer (P2P) man-agement gateway in the kernel space. kP2PADM was implemented by the L7 filter, which is an extension of the IP-layer hooks. Our experimental results showed an in-kernel design can significantly enhance throughput and CPU utilization. However, kP2PADM did not address one-to-many relay applications and did not investigate the overhead caused by memory copies. Although kP2PADM let us eliminate the memory copies between the user and kernel spaces, we did not explore all other issues, including the overhead of memory copies among I/O subsystems interface Socket API Application Socket TCP UDP IP NIC NIC User space Kernel space IP-layer hooks
Figure A. Three categories of relay data paths.
Janua
ry
March
one-to-many relay node. This is because buffer management affects end-to-end performance rather than the system utilization of a relay node, which is the main performance metric we focus on in this study.
To realize the slowest-sink-drop mechanism, we implement the session buffer as a ring buffer. Each buffer entry has a pointer to link the corresponding memory page and a variable (user count) to indicate the number of sinks that requires the entry. Each task can trace the buffer entry with the corresponding media content. Figure 3 shows an eight-entry session buffer for five sinks. In Figure 3a, four buffer entries in the session buffer—that is, a single user count—are occupied by the slowest sink task. Using the slowest-sink-drop policy, newly arriving media content results in dropped entries, so the buffer entry with the smallest user count would be dropped. Then the user
count of the page allocated to the slowest sink task is decreased. Figure 3b shows that the entry’s user count is decreased by one because this media content is no longer required by the slowest sink. The released page is then real-located to the newly arriving content.
Payload Sharing
In a relay session, the same media stream is forwarded from a source connection to multi-ple sink connections. In previous works,11the transmissions of the same media content required duplicating it for the various sink connections. That is, a 1-to-N relay session required N memory copies, as Figure 4a shows. To avoid memory copy overhead, the OMSS payload-sharing mechanism provides only one payload that is shared by the sink connections. OMSS can reuse the payload relay data paths. Moreover, the transport-layer processing
must be handled by the callback functions because the media streams are not passed through the entire network protocol stack. The maintenance costs increase when a transport-layer protocol, especially TCP, is applied to the media streams.
TCPSP2 (www.linuxvirtualserver.org/software/tcpsp)
and Media Proxy (http://mediaproxy.ag-projects.com) both built relay mechanisms with the IP-layer hooks using header-altering methods to support one-to-one relay schemes.
Relay over the I/O subsystems
An alternative solution to in-kernel relay data paths realizes streaming relay over I/O subsystems. Such approaches cre-ate a unified interface over the I/O and network subsystems in the kernel space. The solution intercepts packets over the interface and prevents streaming relay from the overhead caused by copying data across the user and kernel spaces. Moreover, the maintenance overhead of
transport-layer protocols can be avoided because the pack-ets pass through the entire network protocol stack. KStreams made a data-abstraction layer over I/O subsys-tems.3Based on the data-abstraction layer, KStreams can
support one-to-many relay among different kinds of I/O subsystems but does not eliminate the overhead caused by memory copies from multiple sinks.
References
1. Y.-D. Lin et al., ‘‘kP2PADM: An In-Kernel Architecture of P2P Management Gateway,’’ IEICE Trans. Information and Sys-tems, vol. E91-D, no. 10, 2008, pp. 23982405. 2. D.A. Maltza and P. Bhagwata, ‘‘TCP Splice for Application
Layer Proxy Performance,’’ J. High Speed Networks, vol. 8, no. 3, 1999, pp. 225240.
3. J. Kong and K. Schwan, ‘‘KStreams: Kernel Support for Effi-cient Data Streaming in Proxy Servers,’’ Proc. Int’l Workshop on Network and Operating Systems Support for Digital Audio and Video (NOSSDAV), ACM, 2005, pp. 159164.

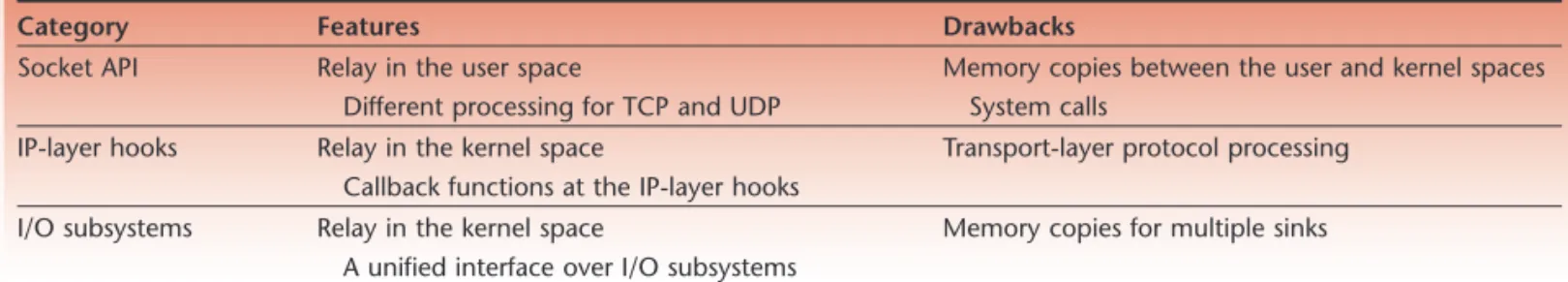

Table A. Related work in relay data paths.
Category Features Drawbacks
Socket API Relay in the user space
Different processing for TCP and UDP
Memory copies between the user and kernel spaces System calls
IP-layer hooks Relay in the kernel space
Callback functions at the IP-layer hooks
Transport-layer protocol processing I/O subsystems Relay in the kernel space
A unified interface over I/O subsystems
Memory copies for multiple sinks
IEEE
Page New source Slowest sink Page Page Page Page Page 2 1 1 1 1 2 2 3 Page Page Page Page Page 2 1 1 1 0 2 2 3 Page
Source task Sink task Buffer entry with user count
(a) (b)
Figure 3. An eight-entry session buffer for five sinks. (a) A slow sink can cause the session buffer to fill up. (b) Buffer entries are released using the head-drop policy, which only sacrifices the slowest sink.
(a) (c) L4 payload Copy Copy Session buffer Copy L4 header L3 header L2 header L4 payload L4 header L3 header L2 header L4 payload L4 header L3 header L2 header Session buffer Copy L4 payload L4 header L3 header L2 header L4 header L3 header L2 header L4 header L3 header L2 header sk_buff sk_buff L4 header IP header L2 header L4 header IP header L2 header … … end tail data head … … end Shared payload nr_frag=1 frags nr_frag=1 frags page offset = 0 size = S1 page offset = 0 size = S1 tail data head S1 (b)

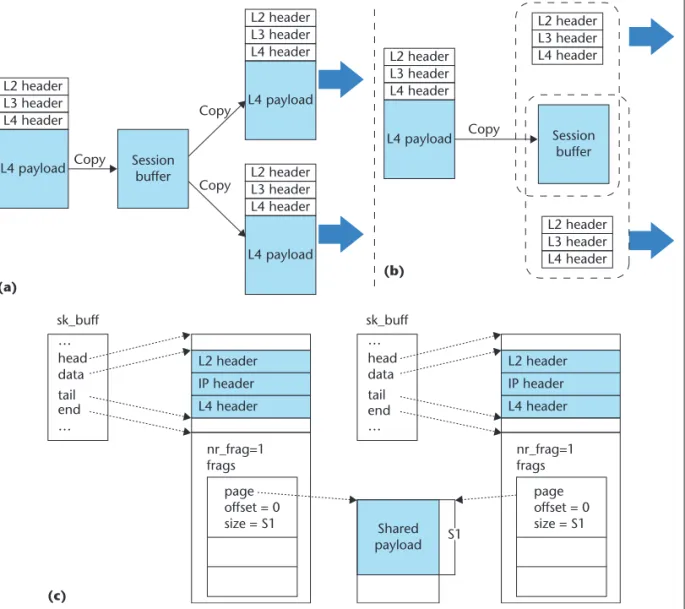

Figure 4. OMSS payload-sharing mechanism. (a) Payload copy, (b) payload sharing, and (c) sk_buff structures with a shared payload.
Janua
ry
March
OMSS provides
priority-based scheduling to
achieve a differentiated
QoS mechanism for
high-priority relay sessions.
for all the sink connections without duplicat-ing it (see Figure 4b).
A user-space solution using the socket API only requires the payload’s address and size. The socket libraries handle additional opera-tions such as fragmentation. However, to port the relay to the kernel space, we must consider the packet structure and fragmentation. In Linux-based systems, a packet is represented by the sk_buff and auxiliary data structures. The scatter-gather I/O is performed when pay-loads are stored in the memory pages, which are appended to the frags array of a sk_buff structure. Figure 5c illustrates the sk_buff struc-tures with a shared transport-layer payload. The frag entries of each sk_buff point to the shared payloads. The socket-layer function, send-page(), can send the payloads stored in discontinuous memory pages. When using sendpage(), we can simply achieve payload sharing in Linux-based systems in two steps: extracting the payload into memory pages and sending out the memory pages using sendpage(). By cooperating with the session buffer implemented by memory pages, differ-ent sinks can share the payload.
Relay Engine
When receiving media content from the source socket, a source task is triggered and put into the class queues based on its priority. The corresponding sink tasks are invoked by the source task and put into the class queues. When the worker pool contains idle threads, the scheduler selects a task to be handled. Oth-erwise, the worker pool creates new as many threads_ as the existing ones.
A task-processing model manages processes or threads to handle service tasks. There are two kinds of task-processing models. The single-thread model11 cannot fully utilize a
multiprocessor system’s computing power be-cause a single thread cannot utilize multiple processors in parallel. The per-session thread model, on the other hand, might incur context-switching overhead when the number of ses-sions grows. To achieve large-scale service capability, OMSS adopts the worker-pool pro-cessing model to handle source and sink tasks. A worker pool consists of a set of pre-spawned threads and a task assignment inter-face. Initially, each thread is idle and waits for service tasks. When a task is triggered, the worker pool assigns an idle thread to the task through the task-assignment interface. Because the threads are prespawned, the thread creation overhead is small. The idle threads in the pool incur no context switch, which eliminates the unnecessary context-switching overhead.
OMSS provides priority-based scheduling to achieve a differentiated QoS mechanism for high-priority relay sessions. Each session’s pri-ority value, which is assigned by the streaming service program, is transferred to the corre-sponding sink tasks. Tasks are then put into the class queues according to their priority val-ues. The scheduler simply selects a task from the class queues with the highest priority to guarantee the QoS of media streams.
Evaluation
We performed two tests to evaluate the OMSS approach on both PC-based and embedded platforms. The bulk fan-out test shows the maximum number of media clients that a media server can serve, and the payload-size test measures how much we can reduce mem-ory copies.
To examine the improvement of OMSS, we investigated one solution in the user space and another in-kernel solution without the payload-sharing mechanism. The user-space so-lution (Daemon) performs media-streaming relay through the socket API without the payload-sharing mechanism. To explore the load distribution of multimedia streaming applications over multiprocessor systems, Daemon uses as many threads as the number of processors. One of the threads deals with receiving media streams from the media server while the other handles the transmission to the media client. On the other hand, the in-kernel solution (OMSS-M) is the same as OMSS, except for the payload-sharing mechanism.
IEEE
Evaluation Environments
Figure 5a shows the evaluation environments for our tests. We applied two kinds of platforms to evaluate the performance of OMSS and investi-gate the bottlenecks on each platform. Using a PC-based platform with sufficient computing power, we aimed to examine network band-width usage. We then used an embedded plat-form with limited computing power to evaluate a potential bottleneck. The media server and media client are located on the same PC. The media server sends out the media streams to Relay-PC through a direct Ethernet link. Then Relay-PC forwards the streams back to media client through the same Ethernet link. A controller is connected to the devices through an out-of-band link to separate the control flows from the data flows. Figure 5b shows that the controller is connected to Relay-Embedded through a console line instead of an Ethernet link. The link capacities measured by Iperf (http://sourceforge.net/projects/iperf) were 941 and 40 Mbps, respectively (see Figure 5).
Table 1 gives the specifications of each eval-uation platform. Relay-PC is equipped with an AMD Athlon 64 X2 CPU and an Intel 82574L gigabit adapter with the scatter-gather I/O. Relay-Embedded is equipped with the Realtek RTL8186 SoC, which consists of an MIPS pro-cessor and a fast Ethernet controller with the scatter-gather I/O.
The media server is a multithreaded program that can emulate multiple media providers to send out media streams with different payload sizes and transmission rates, and the media cli-ent is a multithreaded program that can emu-late multiple media subscribers to receive media streams and report packet-loss ratios and transmission latency.
Bulk Fan-Out Test
In the bulk fan-out test, the media client creates multiple subscribers to request media streams
from the media server. Each stream sends 1,400-byte TCP/UDP payloads at 256 Kbps. Only one relay session is established. The num-ber of subscrinum-bers increases until the system ca-pacity is reached. We measured each solution’s CPU utilization on both PC and Relay-Embedded.
Relay-PC Results. Figure 6a shows Relay-PC’s CPU utilization as it dealt with UDP media streams. When the CPU utilization reaches 60 percent, Daemon is limited by the comput-ing power and capable of servcomput-ing fewer than 2,200 media subscribers because it uses only two threads to deal with the transmissions and receptions. Also, as a result of the unbal-anced workloads, one of the processors becomes overloaded while the other is underutilized. Therefore, the multiprocessor system’s comput-ing power is not fully utilized.
OMSS and OMSS-M, on the other hand, are not bounded by the computing power and can serve more than 4,000 media subscribers. Because OMSS reduces the number of memory copies using the payload-sharing mechanism, it requires less computing than OMSS-M.
Table 1. Evaluation platform specifications.
Specification Media server and client Relay-PC Relay-Embedded
Kernel 2.6.32.4 2.6.32.4 2.4.18
CPU Intel Core2 Duo E8400 at 3 GHz
AMD Athlon64X2 4000þ at 2.1 GHz
MIPS at 180 MHz
Memory 2 Gbytes 2 Gbytes 16 Mbytes
Ethernet interface Marvell 88E8056 gigabit adaptor
Intel 82574L gigabit adaptor
RTL8168 Ethernet
Figure 5. Evaluation environments. (a) Relay-PC. (b) Relay-Embedded.
Controller 192.168.0/24 Media server and media client Controller 192.168.10/24 40 Mbps 192.168.0/24 Relay-Embedded Console (a) (b) Relay-PC Media server and media client 192.168.10/24 941 Mbps Janua ry March 2013
Compared with Daemon, OMSS reduces CPU utilization by 56 percent.
Figure 6b shows the experimental results of the bulk fan-out test with TCP payloads. Dae-mon again suffers from insufficient computing
power due to the unbalanced loads. At most, Relay-PC can serve 2,000 media subscribers when the CPU utilization is 70 percent. OMSS can serve up to 3,500 media subscribers, using less computing power than OMSS-M. In this
Figure 6. CPU utilization during the bulk fan-out test. (a) UDP on Relay-PC. (b) TCP on Relay-PC. (c) TCP on Relay-Embedded. (b) 10 20 30 40 50 60 70 0 500 1,000 1,500 2,000 2,500 3,000 3,500 4,000 CPU utilization (%)
Number of media subscribers Daemon OMSS‐M OMSS 80 0 (a) 10 20 30 40 50 60 70 0 500 1,000 1,500 2,000 2,500 3,000 3,500 4,000 CPU utilization (%)
Number of media subscribers Daemon OMSS‐M OMSS 80 0 (c) CPU utilization (%) 10 20 30 40 50 60 70 0 10 20 30 40 50 60 70 80 90
Number of media subscribers Daemon OMSS‐M OMSS 100 90 80 0 IEEE MultiMedia
case, OMSS reduces CPU utilization by 59 per-cent compared to Daemon.
We noticed that CPU utilization fluctuated when the number of media subscribers exceeded 3,500 because the network band-width was exhausted. TCP started the conges-tion control and tried to retransmit the lost media content. Thus, the CPU utilization fluc-tuated with the TCP’s congestion control and retransmission overhead.
Relay-Embedded Results. Because the Linux 2.4 kernel does not support the sendpage() function for the UDP socket, we only performed the bulk fan-out test for the TCP socket on Relay-Embedded. Figure 6c shows the experi-mental results. Daemon, OMSS-M, and OMSS can serve up to 45, 80, and 85 media subscrib-ers, respectively, until the computing power is exhausted because now the network bandwidth is never a bottleneck. Based on our evaluation results for these two platforms, we see that the number of media subscribers that the platforms can serve is not proportional to the computing power of the CPUs.
The checksum computation is completed by software on Relay-Embedded and by the net-work interface card (NIC) on Relay-PC. The required computing power by the software checksum is much more than offloading to the NIC. Moreover, the protocol stacks’ data paths have different design details, such as the new API (NAPI) in the Linux kernel 2.4 on Embedded and Linux 2.6 on Relay-PC. Further maintenance overhead of the oper-ating systems might also consume the comput-ing power, so future work must investigate the relay data path to identify the overhead of the relevant functions.
Payload-Size Test
Our payload-size test looked at a one-to-800 relay session at 256 Kbps. We evaluated the per-formance of the payload-sharing mechanism for both UDP and TCP streams (see Figure 7). The cross points are revealed at the 200-byte UDP payload and the 100-byte TCP payload. Beyond those cross points, the payload-sharing mecha-nism did not enhance the performance because small payloads contributed little improvement. As the payload size increased, the memory copy overhead also grew, which shows the benefit of the payload-sharing mechanism. The payload-size test revealed a significant
improvement for media streams with large payloads.
Conclusions and Future Work
The bulk fan-out test shows that OMSS elimi-nates the CPU bottleneck and reaches link capacity. For TCP and UDP streams, the bulk fan-out test showed 56 and 59 percent im-provement, respectively, over Daemon. On the embedded platform, OMSS increased the number of concurrent streams from 45 to 85, compared with Daemon. Moreover, the payload-size test showed the benefit of the payload-sharing mechanism when the pay-load size is greater than 200 bytes.
In the future, we plan to investigate the buffer-management drop policy and compare the performance of relay mechanisms, such as IP-layer hooks and I/O subsystems. It is also necessary to look at QoS when playing multi-media under various buffer-management mechanisms, such as slowest-sink-drop, tail-drop, and RED.
The payload-sharing mechanism is currently realized by the scatter-gather I/O, but low-end platforms in future implementations might not be equipped with an NIC with the scatter-gather I/O. To make OMSS portable, we intend to design a payload-sharing mechanism with-out the scatter-gather I/O.
Lastly, we found that the number of media subscribers that PC-based and embedded plat-forms can serve is not proportional to the CPUs’ computing power. We plan to perform a bottleneck analysis of the relay data path to identify the overhead of relevant functions in both the user and kernel spaces. MM
Acknowledgments
This work was supported in part by Institute for Information Industry under the project of embedded software and living service platform and technology development, which was subsi-dized by the Ministry of Economy Affairs, Tai-wan. It was also supported in part by D-Link Corp. and Realtek Seminconductor Corp.
References
1. C. Diot et al., ‘‘Deployment Issues for the IP Multicast Service and Architecture,’’ IEEE Network, vol. 14, no. 1, 2000, pp. 7888.
2. H. Deshpande, M. Bawa, and H. Garcia-Molina, ‘‘Streaming Live Media over a Peer-to-Peer Network,’’ tech. report, Stanford InfoLab, 2001.
Janua
ry
March
3. M. Castro et al., ‘‘SCRIBE: A Large-Scale and Decentralized Application-Level Multicast Infra-structure,’’ IEEE J. Selected Areas in Comm., vol. 20, no. 8, 2002, pp. 14891499.
4. Y. Chu et al., ‘‘A Case for End System Multicast,’’ IEEE J. Selected Areas in Comm., vol. 20, no. 8, 2002, pp. 14561471.
5. N.P. Venkata et al., ‘‘Distributing Streaming Media Content Using Cooperative Networking,’’ Proc. 12th Int’l Workshop on Network and Operat-ing Systems Support for Digital Audio and Video, ACM, 2002, pp. 177186.
6. D. Peter and L.P. Larry, ‘‘Fbufs: A High-Bandwidth Cross-Domain Transfer Facility,’’ Proc. 14th ACM Symp. Operating Systems Principles (SOSP), ACM, 1993, pp. 189202.
7. J. Pasquale, E. Anderson, and P.K. Muller, ‘‘Con-tainer Shipping: Operating System Support for
I/O-Intensive Applications,’’ Computer, vol. 27, no. 3, 1994, pp. 8493.
8. A.K. Yousef and N.T. Moti, ‘‘An Efficient Zero-Copy I/O Framework for UNIX,’’ tech. report, Sun Microsystems, 1995.
9. V.S. Pai, P. Druschel, and W. Zwaenepoel, ‘‘IO-Lite: A Unified I/O Buffering and Caching System,’’ ACM Trans. Computer Systems, vol. 18, no. 1, 2000, pp. 3766.
10. D.A. Maltza and P. Bhagwata, ‘‘TCP Splice for Application Layer Proxy Performance,’’ J. High Speed Networks, vol. 8, no. 3, 1999, pp. 225240.
11. J. Kong and K. Schwan, ‘‘KStreams: Kernel Sup-port for Efficient Data Streaming in Proxy Serv-ers,’’ Proc. Int’l Workshop on Network and Operating Systems Support for Digital Audio and Video (NOSSDAV), ACM, 2005, pp. 159164.
(b) 0 10 20 30 40 50 60 70 80 90 CPU utilization (%) 0 0.2 0.4 0.6 0.8 1.0 1.2 100 200 600 1,000 1,400
Payload size (bytes)
Ratio OMSS‐M OMSS (a) 0 10 20 30 40 50 60 70 80 90 CPU utilization (%) 1.079 1.030 0.904 0.784 0.704 0 0.2 0.4 0.6 0.8 1.0 1.2 100 200 600 1,000 1,400
Payload size (bytes)
Ratio OMSS‐M OMSS 0.665 0.746 0.859 0.920 1.002 Figure 7. CPU utilization of the payload-size test. (a) UDP streams. (b) TCP streams.
IEEE
Ying-Dar Lin is professor of computer science, foun-der and director of the Network Benchmarking Lab (www.nbl.org.tw), and founder of the Embedded Benchmarking Lab (www.ebl.org.tw) at National Chiao Tung University. His research interests include design, analysis, implementation, and benchmarking of network protocols and algorithms; quality of ser-vice; network security; deep-packet inspection; P2P networking; and embedded hardware/software co-design. Lin has a PhD in computer science from the University of California, Los Angeles. He is an IEEE fellow and on the editorial boards of IEEE Transactions on Computers, Computer, IEEE Network, IEEE cations Magazine Network Testing Series, IEEE Communi-cations Surveys and Tutorials, IEEE CommuniCommuni-cations Letters, Computer Communications, Computer Networks, and IEICE Transactions on Information and Systems. Contact him at ydlin@cs.nctu.edu.tw.
Chia-Yu Ku is a doctoral student and a technical manager in the Broadband Mobile Lab at National Chiao Tung University, Taiwan. His research interests include wireless mesh networking, multichannel multiradio, mobility management, integration of wireless networks, and performance evaluation.
Ku has an MS in mathematics and computer science from National Chiao Tung University. Contact him at cyku@cs.nctu.edu.tw.
Yuan-Cheng Lai is a professor in the Department of Information Management at the National Taiwan University of Science and Technology. His research interests include wireless networks, network performance evaluation, network security, and Internet applications. Lai has a PhD in com-puter science from National Chiao Tung Univer-sity. Contact him at laiyc@cs.ntust.edu.tw. Chia-Fon Hung performed this research while at Na-tional Chiao Tung University. He is now an engineer at Realtek Semiconductor. His research interests include embedded system design, multimedia appli-cations, and performance evaluation. Hung has an MS in computer science from National Chiao Tung University. Contact him at cfhung@cs.nctu.edu.tw.
