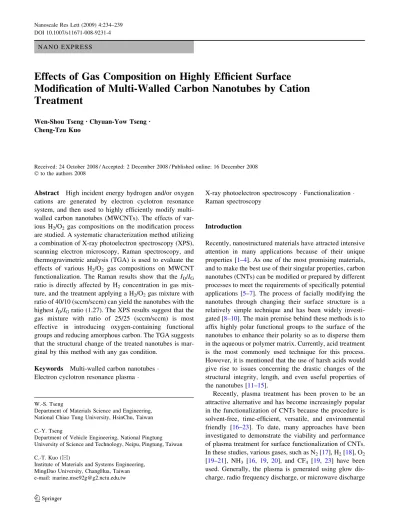

N A N O E X P R E S S
Effects of Gas Composition on Highly Efficient Surface
Modification of Multi-Walled Carbon Nanotubes by Cation
Treatment
Wen-Shou TsengÆ Chyuan-Yow Tseng Æ Cheng-Tzu Kuo
Received: 24 October 2008 / Accepted: 2 December 2008 / Published online: 16 December 2008 Ó to the authors 2008
Abstract High incident energy hydrogen and/or oxygen cations are generated by electron cyclotron resonance system, and then used to highly efficiently modify multi-walled carbon nanotubes (MWCNTs). The effects of var-ious H2/O2gas compositions on the modification process
are studied. A systematic characterization method utilizing a combination of X-ray photoelectron spectroscopy (XPS), scanning electron microscopy, Raman spectroscopy, and thermogravimetric analysis (TGA) is used to evaluate the effects of various H2/O2 gas compositions on MWCNT
functionalization. The Raman results show that the ID/IG
ratio is directly affected by H2 concentration in gas
mix-ture, and the treatment applying a H2/O2gas mixture with
ratio of 40/10 (sccm/sccm) can yield the nanotubes with the highest ID/IGratio (1.27). The XPS results suggest that the
gas mixture with ratio of 25/25 (sccm/sccm) is most effective in introducing oxygen-containing functional groups and reducing amorphous carbon. The TGA suggests that the structural change of the treated nanotubes is mar-ginal by this method with any gas condition.
Keywords Multi-walled carbon nanotubes Electron cyclotron resonance plasma
X-ray photoelectron spectroscopy Functionalization Raman spectroscopy
Introduction
Recently, nanostructured materials have attracted intensive attention in many applications because of their unique properties [1–4]. As one of the most promising materials, and to make the best use of their singular properties, carbon nanotubes (CNTs) can be modified or prepared by different processes to meet the requirements of specifically potential applications [5–7]. The process of facially modifying the nanotubes through changing their surface structure is a relatively simple technique and has been widely investi-gated [8–10]. The main premise behind these methods is to affix highly polar functional groups to the surface of the nanotubes to enhance their polarity so as to disperse them in the aqueous or polymer matrix. Currently, acid treatment is the most commonly used technique for this process. However, it is mentioned that the use of harsh acids would give rise to issues concerning the drastic changes of the structural integrity, length, and even useful properties of the nanotubes [11–15].
Recently, plasma treatment has been proven to be an attractive alternative and has become increasingly popular in the functionalization of CNTs because the procedure is solvent-free, time-efficient, versatile, and environmental friendly [16–23]. To date, many approaches have been investigated to demonstrate the viability and performance of plasma treatment for surface functionalization of CNTs. In these studies, various gases, such as N2[17], H2[18], O2
[19–21], NH3 [16, 19, 20], and CF4 [19, 23] have been
used. Generally, the plasma is generated using glow dis-charge, radio frequency disdis-charge, or microwave discharge W.-S. Tseng
Department of Materials Science and Engineering, National Chiao Tung University, HsinChu, Taiwan C.-Y. Tseng
Department of Vehicle Engineering, National Pingtung University of Science and Technology, Neipu, Pingtung, Taiwan C.-T. Kuo (&)
Institute of Materials and Systems Engineering, MingDao University, ChangHua, Taiwan e-mail: marine.mse92g@g2.nctu.edu.tw DOI 10.1007/s11671-008-9231-4
at low-vacuum pressure. The high-energy particles gener-ated in the plasma can then satisfy the chemical bonding energies on the surface of the tubes thereby initiating chemical reactions. In addition, their density and energy can be readily regulated by external parameters, such as the electromagnetic frequency, power, and gas pressure, to achieve optimum conditions for the required production scale and efficiency [16]. However, some studies mention that the nanotubes could be overheated by hyperthermal plasma [19,21].
In our previous study, through using H2/O2gas mixture
as etching gas, electron cyclotron resonance (ECR) plasma treatment was shown effective to functionalize multi-wal-led carbon nanotubes (MWCNTs) with minor negative consequences in nanotube structure [24]. In the process, high incident energy hydrogen and oxygen cations gener-ated and extracted by ECR plasma system were used to create free radical defects on the surface of the MWCNTs through ion bombardment; oxygen cations with the high reduction potential present in the ion stream were simul-taneously involved in initiating covalent bonding reactions on the surface of the tubes. The ratio of H2to O2is critical
to the process because it directly correlates with the com-position of the generated cations. In this study, the effect of gas composition on the functionalization process is inves-tigated, by providing various H2/O2 gas mixtures to the
treatment through the control of gas flow ratio. Further-more, the manner in which the gas conditions correlate with morphology and structural changes of the nanotubes will be studied through the use of some advanced instruments.
Experimental
Samples of pristine MWCNTs weighing 0.05 g sourced from a commercial organization were loaded into the stainless steel crucible and placed on the process stage of the ECR plasma system as shown in Fig.1. Chamber pressure was maintained at 4.2 9 10-3Torr. The 2.45 GHz microwave with output power of approximately 750 W was inserted into the plasma chamber through a quartz window. H2and/or O2gas mixtures were fed as etching gases with
controlled gas flow ratios of 50/0, 40/10, 25/25, 10/40, and 0/50 (H2/O2 (sccm/sccm)), which are equivalent to H2
concentrations of 100, 80, 50, 20, and 0 vol.%, respectively. A bias voltage of -250 V was applied to the process stage. When the stage temperature reached 400°C, each sample was treated for 5 min. The ionic current was monitored using a current ammeter connected to the process stage.
In order to evaluate the surface morphology and structural changes, the samples were dispersed on a silicon wafer using ethanol and measured using scanning electron microscopy
(SEM) (JEOL, JSM-6500F). The microstructure of the pristine sample was characterized by transmission electron microscopy (TEM) (JEOL, JEM-2100) through dispersing sample powders on Lacey carbon grids using ethanol. X-ray photoelectron spectroscopy (XPS) was performed to deter-mine the chemical changes at the surface of the nanotubes. Thermogravimetric analysis (TGA) (TA-500) was applied to investigate the changes in thermal stability with a heating rate of 10°C/min and an air flow of 60 mL/min. Raman spectroscopy (Jobin YVON LabRam HR800) was used to evaluate structural defects in the CNTs.
Results and Discussion
As shown in Fig.2, the SEM (Fig.2a) and TEM (Fig.2b) images show that the pristine MWCNTs are highly tangled with diameters ranging from 15 to 40 nm. The TEM image (Fig.2b) also shows that the nanotubes are with densely distributed defects. After the ECR plasma treatment with a H2/O2ratio of 40/10 (sccm/sccm), as depicted in Fig.2c, d,
the morphologies, structural and the diameter distributions of the sample do not show any observable difference in comparison with those of the pristine sample. In contrast to Fig.2b, the TEM image in Fig.2d shows that the disper-sion ability of the nanotubes is increased after the plasma treatment so that the nanotube bundle can be significantly separated. Meanwhile, the insignificant change in mor-phology and structure can also be observed when sample is treated with any gas condition.
Figure3shows the XPS survey spectra of the untreated and the ECR-plasma-treated MWCNTs. It is noted that the spectra showing the presence of carbon and oxygen on the treated and untreated samples are normalized with respect Fig. 1 Schematic of the ECR plasma apparatus
to C 1s intensity for comparison purposes. In contrast to the spectrum of the pristine MWCNTs, a higher concentration of oxygen is introduced to the surface of the nanotubes treated by the ECR plasma using any gas composition.
As a reference spectrum, the XPS C 1s spectrum of the pristine MWCNTs was recorded and is shown in Fig.4. Based on the previous studies [19, 25], the spectra are deconvoluted into five Gaussian peaks centered at 284.5, 285.1, 286.2, 287.2, and 288.9 eV. Here, the main peak at 284.5 eV originates from a graphite signal. The peak at 285.1 eV is attributed to sp3carbon [19–21,25]. The peaks at 286.2, 287.2, and 288.9 eV correspond to hydroxyl, carbonyl (or ether), and carboxyl (or ester) groups, respectively. A peak attributed to p–p* shake-up bonds is observed at 290.4 eV [20, 26]; and the peak at 283.2 eV originates from carbidic carbon [27]. Meanwhile, the
deconvolution results also show that the oxygen functional groups have been grafted onto the surface of the pristine MWCNTs with a concentration of approximately 11.2%. This is consistent with the description provided by the vendor that the raw materials were treated using mild acids prior to shipment. Furthermore, the results show that the MWCNTs are still composed of approximately 40% amorphous carbon.
For a detailed comparison, all C 1s spectra of the MWCNT samples are presented in Fig.5and the calculated results are summarized in Table 1. Note that the [O]/[C] ratio given in Table1is based on the relative percentage of three carboxyl groups to the total number of carbon atoms detec-ted. As shown in Fig.5and Table1, after the samples are treated by the plasma treatment, the XPS measurements show that the concentrations of the graphite, sp3carbons, and oxygen-containing functional groups are different accord-ing to the gas mixture composition. Also, it is clear that when the samples of the MWCNTs are treated with a H2/O2
ratio of 25/25 (sccm/sccm), the highest concentration of Fig. 2 aSEM and b TEM
images of the pristine
MWCNTs, c SEM, and d TEM images of ECR-plasma-treated MWCNTs with 5 min exposure under H2/O2gas compositions
of 40/10 (sccm/sccm)
Fig. 3 XPS survey spectra of the pristine MWCNTs and the ECR-plasma-treated MWCNTs under various H2/O2 (sccm/sccm) gas
compositions
Fig. 4 XPS C 1s spectra of the pristine MWCNTs and the five chemical species: (1) graphite; (2) sp3carbons; (3) hydroxyl groups; (4) carbonyl groups; and (5) carboxyl groups
oxygenated functional groups is achieved whilst the con-centration of amorphous carbon is minimized.
Note that the amount of surface defects is important for functional groups to form on the nanotube surface [10]. In order to evaluate the formation of defects on the nanotube surface by the ECR plasma treatment using different gas compositions, the Raman spectra of the pristine and the plasma-treated MWCNTs are presented in Fig.6. Two characteristic peaks are observed and attributed to the D and G bands. The spectra have been normalized with respect to the G band for comparison. The intensity of the D band, at frequencies around 1,344 cm-1, is correlated with structural disorder of CNTs, which originates from the defects including disordered materials, poor graphitization, functionalized carbon, and the amorphous carbon on the sidewall of nanotubes [28–30]. The G band at frequencies around 1,572 cm-1is activated by the graphite signal [30]. It is suggested that the ID/IGratio is closely associated with
the defect density on the walls of the MWCNTs [30].
Therefore, the intensity ratio can be used to evaluate the formation of defects which are preferential sites for functionalization.
As expected, all ID/IG ratios are increased after plasma
treatment with any gas composition. As shown in the inset of Fig.6, the ID/IGratio increases from 1.03 to 1.27 when
the H2 concentration increases from 0 to 80 vol.%. Note
that the ion density is very important for surface etching. By comparing the ionic current, it is found that current increases from 0.12 to 0.47 A while the H2concentration
increases from 0 to 100%. This shows that the ion density of the cation stream increases as H2concentration
increa-ses. This leads to higher ID/IGratio when H2concentration
of the etching gas is higher. However, it is also shown that the ratio decreases to 1.08 when the nanotubes are treated with pure H2gas (H2/O2of 50/0 (sccm/sccm)). This could
be because the ion bombardment under this gas condition can heavily etch the surface of the nanotubes to the extent that the concentration of amorphous carbon coated on the Fig. 5 XPS C 1s spectra of the pristine MWCNTs and the
ECR-plasma-treated MWCNTs after 5 min of exposure under various H2/
O2(sccm/sccm) gas compositions
Table 1 The MWCNT specimen treated under various H2/O2gas compositions; the characterization results of XPS; and the ID/IGratio of
Raman spectra Specimen (H2/O2
(sccm/sccm))
XPS Raman
sp2(%) sp3(%) –C–O (%) –C=O (%) –COO (%) [O]/[C]a(%) (ID/IG)
0/50 44.2 44.6 \0.1 9.4 1.7 11.1 1.03 10/40 40.5 39.5 11.9 0.8 7.3 20 1.05 25/25 42.8 26.1 13.8 17.3 \0.1 31.1 1.07 40/10 36.8 49.1 0.6 0.5 12.9 14 1.27 50/0 30.8 54 2.1 11 2.2 15.3 1.08 Pristine 48.8 40 1 8.4 1.8 11.2 0.89
a [O]/[C]: the ratio of oxygenated groups to the total number of carbon atoms detected
Fig. 6 Raman spectra of the pristine MWCNTs and the ECR-plasma-treated MWCNTs after 5 min of exposure under various H2/O2
surface could thus be raised from 40 to 54% as shown in Table1. The thick amorphous carbon can prevent defects from further forming on the surface during ion bombard-ment so that the ID/IGratio is significantly smaller than that
of the nanotubes treated with the etching gas containing 20 vol.% oxygen (ID/IG= 1.27, H2/O2 of 40/10 (sccm/
sccm)). Apart from their involvement in ion bombardment, the generated oxygen cations can also act as highly reactive chemical species which form covalent bonds with the amorphous carbon and then nanotube surface. More spe-cifically, the amorphous carbon layer is more reactive than the cylindrical walls to form volatile products with the oxygen cations. The products are then pumped out by the vacuum system. Thus, as shown in Table1, treatment using a H2/O2 mixture can increase the concentration of
oxygenated functional groups whilst also reducing the concentration of amorphous carbon. On the other hand, treatment with pure O2 gas (with the exception of
increasing the ID/IGratio) does not yield any other obvious
effects in regard to the purity of CNTs and the concen-tration of functional groups when compared with the pristine MWCNTs. This indicates that a H2/O2mixture not
only facilitates defect formation but also promotes covalent bonding in this case. Therefore, even with the addition of 20 vol.% H2(H2/O2of 10/40 (sccm/sccm)) in gas, there is
still a significant removal of amorphous carbon and for-mation of oxygen-containing groups on the nanotube surface.
Figure7 shows the weight-derivative curves of TGA analysis on the pristine MWCNT samples and the ECR-plasma-treated MWCNTs. The results show that with a decomposition temperature of 600°C, the pristine MWCNT samples are the most thermally stable with respect to
oxidative degradation. Correspondingly, the MWCNTs treated by the ECR plasma with a gas composition of 40/10 (sccm/sccm) have the lowest decomposition temperature (594 °C). It should be noted that the oxidation stability is a function of the combined effect of defects and the diameter of the nanotubes [12,31,32]. With the same diameter dis-tribution, the results are in agreement with the hypothesis that the decrease of the oxidation reaction temperature is mainly a result of the defects produced by the plasma treatment. The marginal differences between untreated and treated samples reflect the fact that the effect of gas com-position on structural integrity of the nanotubes is insignificant in this case.
Conclusions
In this article, the effects of various H2/O2 gas
composi-tions on the functionalization of MWCNTs using ECR plasma system are studied. The results of Raman spec-troscopy show that the cation treatment is effective in introducing defects to the nanotube surface; and this is affected by H2 concentration in gas mixture provided.
Meanwhile, with a H2/O2 mixture of 40/10 (sccm/sccm),
the treatment can produce nanotubes with highest ID/IG
ratio (1.27). As demonstrated by the characterization results of XPS, the gas composition strongly correlates with the functionalization extent and amorphous carbon removal. As compared to the other gas composition applied in this study, the treatment using a H2/O2mixture of 25/25
(sccm/sccm) is found to be the most effective gas mixture to graft oxygen-containing functional groups and remove the amorphous carbon on the surface of the nanotubes. Specifically, by using this gas condition to conduct the plasma treatment, the highest concentration of 31.1% (after 5 min exposure) of oxygenated functional groups on the surface of CNTs is achieved. In addition, the amorphous carbon can also be significantly removed. On the other hand, the results also indicate that the structural and mor-phological changes, if any, are marginally effected by this method with any gas composition.
