Effects of post-annealing on the structural and nanomechanical properties of Ga-doped ZnO thin films deposited on glass substrate by rf-magnetron sputtering

ContentslistsavailableatSciVerseScienceDirect

Applied

Surface

Science

jo u rn a l h om epa g e :w w w . e l s e v i e r . c o m / l o ca t e / a p s u s c

Effects

of

post-annealing

on

the

structural

and

nanomechanical

properties

of

Ga-doped

ZnO

thin

films

deposited

on

glass

substrate

by

rf-magnetron

sputtering

Szu-Ko

Wang

_,

_Ting-Chun

_Lin

_,

_Sheng-Rui

_Jian

_,

_Jenh-Yih

_Juang

_,

_Jason

_S.-C.

_Jang

_,

_Jiun-Yi

_Tseng

a_{DepartmentofMaterialsScienceandEngineering,I-ShouUniversity,Kaohsiung840,Taiwan} b_{DepartmentofElectrophysics,NationalChiaoTungUniversity,Hsinchu300,Taiwan}

c_{DepartmentofMechanicalEngineering,InstituteofMaterialsScience&Engineering,NationalCentralUniversity,Chung-Li320,Taiwan} d_{InstituteofPhysics,AcademiaSinica,Taipei11529,Taiwan}

a

r

t

i

c

l

e

i

n

f

o

Articlehistory: Received12June2011

Receivedinrevisedform17August2011 Accepted20September2011

Available online 24 September 2011 Keywords: ZnO:Gathinfilms XRD AFM Nanoindentation Hardness

a

b

s

t

r

a

c

t

Inthisstudy,theeffectsofpost-annealingonthestructure,surfacemorphologyandnanomechanical propertiesofZnOthinfilmsdopedwithanominalconcentrationof3at.%Ga(ZnO:Ga)areinvestigated usingX-raydiffraction(XRD),atomicforcemicroscopy(AFM)andscanningelectronmicroscopy(SEM) andnanoindentationtechniques.TheZnO:Gathinfilmsweredepositedontheglasssubstratesatroom temperaturebyradiofrequencymagnetronsputtering.Resultsrevealedthattheas-depositedZnO:Ga thinfilmswerepolycrystallinealbeitthelowdepositiontemperature.Post-annealingcarriedoutat300, 400and500◦C,respectively,hasresultedinprogressiveincreaseinboththeaveragegrainsizeandthe surfaceroughnessoftheZnO:Gathinfilm,inadditiontotheimprovedthinfilmscrystallinity.Moreover, thehardnessandYoung’smodulusofZnO:GathinfilmsaremeasuredbyaBerkovichnanoindenter operatedwiththecontinuouscontactstiffnessmeasurements(CSM)option.ThehardnessandYoung’s modulusofZnO:Gathinfilmsincreasedastheannealingtemperatureincreasedfrom300to500◦C,with thebestresultsbeingobtainedat500◦_C.

© 2011 Elsevier B.V. All rights reserved.

1. Introduction

Transparent conductiveoxides (TCOs) have become increas-ingly prominent in the fabrication of various devices such as heterojunction solar cells [1,2], gas sensors [3] and flat panel devices[4].Theefficiencyandperformanceofthesedevicesare largelydependentontheopticalandelectricalpropertiesofthe relevantTCOmaterials.Indiumtinoxide(ITO)isthemostwidely usedTCOduetoitshightransparencyinthevisiblerange(∼90% at550nm),lowresistivity(∼2×10−4cm)andlargework func-tion(∼4.8eV)[5].However,recentlyITOhasbecomeprohibitively expensive,inadditiontoitslackofthermalstability.Asaresult, alternativessuchastheimpurity-dopedZnOhavebeenactively investigated.GroupIIIelementsAl[6],Ga[7]andIn[8]havebeen demonstratedtoexhibitthecharacteristicsofn-typedopantsfor ZnO.Amongthem,Gaisconsideredasoneofthemost promis-ingdopants becausetheGa–O covalentbond length(1.92 ˚A) is veryclosetothatoftheZn–O(1.97 ˚A),which,inturn,isexpected to result in the possibility of obtaining wide range of doping concentrationwithminimumextentoflatticedeformation,even for highGa dopingconcentration[9]. Furthermore,it hasbeen

∗ Correspondingauthor.Tel.:+88676577711x3130;fax:+88676578444. E-mailaddress:srjian@gmail.com(S.-R.Jian).

shown that Ga is relatively oxidation resistive [10]. Previously, Ga-dopedZnOfilmshavebeenobtainedusingavarietyof depo-sition methods,namelysol–gel[11], chemical vapordeposition [12], molecularbeamepitaxy[13], pulsedlaser deposition[14] andradio-frequencymagnetronsputtering(rf-sputtering)[15,16]. Amongthem,therf-sputteringhasbeenwidelyusedforfabricating oxidethinfilmsbecauseofitsadvantagesofhighdepositionrates, lowcost,easycontrolandhighefficiencyforgrowingfilmswith goodquality.

In additiontomonitoringtheelectric and opticalproperties throughcarefulcontroloftheprocessingparameters, successful fabricationofdevicesbasedonGa-dopedZnOthinfilmsrequires betterunderstandingofthemechanicalcharacteristicsofthefilms, sincethecontactloadingduringprocessingorpackagingcan signif-icantlydegradetheperformanceofthesedevices.Therefore,there isagrowingdemandofinvestigatingthemechanical characteris-ticsofmaterials,inparticularinthenanoscaleregime.Nowadays, nanoindentationisprobablythemostprominenttechniqueused innanomechanicstoinvestigateandcharacterizethemechanical propertiesof thematerialsin thesub-micronscale.It hasbeen widelyusedtostudytheelastic–plasticandfracturepropertieson thesurfacesofbulksamples[17–19],thinfilms[20–23],aswell asforsmallstructures[24,25].Morerecently,itbecamepossible toperformcontrolledcompressionandsheartestsonsub-micron nanostructures,suchasnanopillars[26,27].

0169-4332/$–seefrontmatter © 2011 Elsevier B.V. All rights reserved. doi:10.1016/j.apsusc.2011.09.088

1262 S.-K.Wangetal./AppliedSurfaceScience258 (2011) 1261–1266

Thisstudyisthereforefocusedonnanomechanical characteriza-tionsofGa-dopedZnOthinfilmsdepositedatroom-temperatureon theglasssubstratesusingrf-sputteringsystematvariousannealing temperaturesbymeansofnanoindentationtechnique.The struc-tureandsurfacemorphologyofthinfilmswerecharacterizedusing X-raydiffraction(XRD),atomicforcemicroscopy(AFM)and scan-ningelectronmicroscopy(SEM).Changesinmechanicalproperties fortheZnO:Gathinfilmsarediscussedinconjunctionwiththe vari-ationsincrystallinestructure,grainsizeandsurfacemorphology resultedfromannealing.

2. Experimentaldetails

TheZnO:Gathinfilmsinvestigatedinthepresentstudywere depositedonCorning1737Fglasssubstratesatroomtemperature usingrf-sputteringfromaZnOtargetwithanominalGa-dopingof 3at.%.Inthiswork,thethinfilmsare∼500nmthick.Thedetailed growthprocedurescanbefoundelsewhere[28].Theas-deposited filmsweresubsequentlypost-annealedatthetemperatures rang-ingfrom300◦Cto500◦Cfor1hinatmosphere.Theheatingrate wassetat20◦C/sandittookabout30minforthefurnacetocool downtoroomtemperatureafterannealing.

Thecrystalstructure of ZnO:Gathin filmswere analyzedby X-raydiffraction(PanalyticalX’PertXRD,CuK␣,=1.5406 ˚A).A scanningprobemicroscopy(SEM,HitachiS-2700)isusedtoanalyze thethinfilmscross-sectionalstructureand,thesurfacefeatures arecarriedoutusingatomicforcemicroscopy(AFM) (Topometrix-Accures-II).Thesurfaceroughnesscanberepresentedbycenter lineaverage(Ra)androot-mean-squareaverage(RRMS)[29]inthe

followingforms: Ra= 1 n n













Thecenterlineisthelinethatdividestheprofileinsuchaway suchthatthenetdeviationiszero.BothRaandRRMSmeasurethe

averageverticaldeviationofsurfaceprofilefromthecenterline.It shouldbenotedthattheseparameterscanonlybeusedtocompare samplesurfacesgeneratedbythesamemethod[30].

Nanoindentationwasconductedatroomtemperatureusingthe MTSNanoXP®_{system(MTSCorporation,NanoInstruments}

Inno-vationCenter,OakRidge,TN,USA)withforceanddisplacement resolutionsof50nNand0.1nm,respectively.ABerkovichdiamond indenterwaspressedintothefilmsupto80nmwithastrainrate varyingfrom0.01s−1to1s−1andadditionalharmonicmovements weresimultaneouslyperformedwiththeamplitudeandfrequency beingsetat 2nmand 45Hz, respectively,following the contin-uousstiffnessmeasurements(CSM)technique[31].Theindenter wasthenheldatthepeakloadfor10sbeforeitwascompletely withdrawnfromthespecimentoavoidtheinfluenceofcreepon unloadingcharacteristics,whichwereusedtocompute mechan-icalpropertiesofthespecimen.Eachofthetestswasperformed whenthethermaldriftdroppedtolessthan0.01nm/s.Atleast20 indents,eachtwoseparatedby10␮mtoavoidmutualinteraction, wereconductedoneachsample.Itisgenerallyacceptedthatthe indentationdepthshouldneverexceed30%ofthefilmsthicknessto avoidthesubstrateeffectonhardnessandmodulusmeasurements [24].Oursamplesandtestsmethodologywereconsideredto ade-quatebasedonthisconcept.Wealsofollowedtheanalyticmethod proposedbyOliverandPharr[32]todeterminethehardnessand Young’smodulusof as-depositedandtheannealedZnO:Gathin filmsfromtheload–displacementresults.Inthiswork,hardness

Fig.1.XRDpatternsof(a)as-depositedZnO:Gathinfilm,andannealedZnO:Gathin filmsatthedifferentannealingtemperaturesof(b)300◦_C,(c)400◦_Cand(d)500◦_C.

andYoung’smodulusareobtainedasacontinuousfunctionof pen-etrationdepth.

3. Resultsanddiscussion

ThecrystalstructuresandthelevelofcrystallinityforallZnO:Ga thin films were identified by XRD, as displayed in Fig. 1. The obtainedXRDpatternscorrespondtotheindexedsixdiffraction peaksofwurtzitestructuredcrystallineZnO(JCPDS36-1451).Itis evidentthatincreasingtheannealingtemperaturenotonlyleadsto significantincreaseintheintensityofmajordiffractionpeaks,such as(002),(101),and(103)peaks,butalsoinducestheevolvement ofnewdiffractionpeaks,suchas(110)and(112),thatare other-wiseabsentintheas-depositedZnO:Gathinfilms.Thisisindicative thatannealingdoeshavenoticeableinfluencesonthe microstruc-tureofthefilms,whichtendstodrivethefilmstobecomemore equiaxial.AssumingahomogenousstrainacrosstheZnO:Gathin films,theaveragegrainsizecanbeestimatedfromthefull-width athalf-maximum(FWHM)of(002)peakusingthefollowing Sher-rer’srelation[33]:

D= 0.9

Bcos  (3)

Here,BanddenotetheX-raywavelength,theFWHMof(002) peak,andthecorrespondingBraggdiffractionangle,respectively. Theestimatedmeangrainsizesoftheas-depositedthinfilmsis 23.5nmandthatforfilmsannealedat300◦C,400◦Cand500◦C are42.2,60.4and70.8nm,respectively.Itisinterestingto com-parethecurrentresultswiththatobservedforZnOfilmsdeposited using atomic layer deposition (ALD). In that, the as-deposited

Fig.2.AFMimagesofZnO:Gathinfilms:(a)as-deposited,andannealedatthedifferentannealingtemperaturesof(b)300◦_C,(c)400◦_Cand(d)500◦_{C.Theinsetofeach}

figureshowsthecorrespondingcross-sectionalSEMimage.

ZnO thin filmsdeposited at room-temperatureappeared tobe largelyamorphous andsubsequentannealing inthesame tem-peraturerangeresultedinsmallergrainsize,namelyfrom30nm to50nm[34].

Fig.2 displaysthesurfacemorphology ofthecorresponding ZnO:Gathin filmsrevealedbyAFM.Althoughitisimpossibleto giveadirectmeasureabouttheactualgrainsizefromtheAFM images, the resultsdo exhibit apparent evolution in film grain morphologieswithincreasingannealingtemperatures.The mor-phologystartswithanappearanceofpatchedgrainclustersfor theas-depositedfilm[Fig.2(a)].Aftersubjectedto1hannealing at300◦C,itappearstoevolveintoindividuallydistinctivegrains [Fig.2(b)].Grainagglomerationsareevidentforfilmsannealedat 400◦C [Fig.2(c)].For filmsannealed at500◦C, grains evidently start toalign along somespecific orientations[Fig.2(d)]. Since thefilmsweregrownonglasssubstratesandnoepitaxialrelation

wasexpected,thesephenomenamightbeunderstoodasadirect consequenceofsurfacediffusionenabledthree-dimensionalgrain growth[34].Inthisscenario,higherannealingtemperatureslend morethermalenergytoactivateatomdiffusionand,hence, facil-itate therepairing the dislocated atomic occupanciesand even promotethecoalescenceofadjacentgrains[34,35].Asshownin thecross-sectionalSEMimagesinsertedinFig.2,thefilmsareall withcolumnarstructures.Thus,themajorgraingrowthisexpected toresultinmarkedincreaseinboththeeffectivegrainsizeand thesurfaceroughnessof theresultantfilms[34–36].Indeed,as showninFig.3,theeffectivegrainsizeestimatedfromthe Sher-rer’srelationandthesurfaceroughnessobtainedfromtheAFM measurementsforallZnO:Gathinfilmsdogiverisetoconsistent resultsasexpected.

The typical load–displacement curves for the as-deposited and the annealed ZnO:Ga thin films are displayed in Fig. 4.

1264 S.-K.Wangetal./AppliedSurfaceScience258 (2011) 1261–1266

Fig.3. Grainsize(D),averagesurfaceroughness(Ra)androot-mean-squareaverage

surfaceroughness(RRMS)ofas-depositedandannealedZnO:Gathinfilms.

The load–displacement response obtained by nanoindentation containsinformationabouttheelasticandplasticdeformationof theindentedmaterials.Thus,itisoftenregardedasa“fingerprint” of the film properties under identification. Mechanical proper-ties,suchasthehardnessand Young’smodulus,canbereadily extractedfromtheload–displacementcurveslikethosedisplayed inFig.4.Forinstance,thehardness,H,beingdefinedasthemean pressureundertheindenter,canbecalculatedasthemaximum appliedloadduringindentationmeasurement,Pmax,dividedbythe

projectionarea,Ac,ofcontactbetweentheindenterandthesample

asexpressedbelow, H=Pmax

Ac (4)

Theprojectioncontactareaisafunctionoftheindenter’sshapeand thecontactdepth,hc.Forthecaseofanidealpyramidalindenter,

theareafunction(Ac)isgivenby[32]:

Ac≈24.5h2c (5)

Thecontactdepthpriortounloadingthuscanbedirectlyestimated fromtheload–displacementdatabythefollowingexpression[32]: hc=hmax−εPmax

S (6)

whereεisthegeometricconstantand,thevalueε=0.72isgenerally usedforaconicalorpyramidalindenter[32],Sisthe experimen-tallymeasuredstiffnessoftheupperportionoftheunloadingdata, whichisgivenby:

S=dP

dh (7)

Similarly,Young’smodulusisdeterminedbyassumingthatthearea incontactremainsconstantduringinitialunloading.The relation-shipbetweenloadanddisplacementoninitialunloadingisrelated tothestiffnessofthesampleandtheindenterand,totheconstant contactareabetweenthesampleandtheindenter,andisgivenby [37]: Er= 1 2ˇhc







1 Er = 1₋

v

v

v

Poisson’sratioforthesampleand,Eiand

vi

fortheindenter.Poisson’sratioforthesampleisassumedtobe0.25 [38]and,theelasticpropertiesofthediamondindenterusedinthis studyareEi=1141GPaand

vi

ThehardnessandYoung’smodulusfor theas-deposited and the annealed ZnO:Ga thin films as a function of penetration depthobtainedusingtheanalysesdescribedaboveareillustrated in Fig. 5(a) and (b), respectively. As shown in Fig. 5(a), all of thehardness–displacementplotscanbedividedintotwostages, namely, initial increase to a maximum value and subsequent decreasetoa constantvalue. Theincreasein hardnessatsmall penetrationdepthisusuallyattributedtothetransitionbetween purelyelastictoelastic/plasticcontactandatthisstagethe hard-nessisnotaccuratelymeasuredbythemeancontactpressure.Only undertheconditionofafullydevelopedplasticzonedoesthemean contactpressurerepresentthehardness.Whenthereisnoplastic zone,oronlypartiallyformedplasticzone,themeancontact pres-sureislessthanthenominalhardness[32].Afterthefirststage, thehardnessdecreasesandreachesaconstantvalue.Theconstant characteristicofhardnessisconsistentwiththatofasingle mate-rial;therefore,thehardnessvaluesatthisstagecouldberegarded asintrinsicpropertiesofthefilms.Theobtainedhardnessforthe as-depositedZnO:Gathinfilmsandthoseannealedat300,400and 500◦Care8.5,7.4,9.6,11.8GPa,respectively.Thehardness val-uesobtainedfromtheabovementionedCSMmeasurementsforall samplesunderstudyaresummarizedinFig.5.Theinitialdropof thehardnessfrom8.5GPato7.4GPafortheas-depositedZnO:Ga thinfilmandthatannealedat300◦Cisbelievedtoresultfromthe relaxationofresidualstressinthefilmbytheannealingprocess [39].

Ontheotherhand,asdisplayedinFigs.3and5,thereisaclear tendencyshowingthat,whileincreasingtheannealing tempera-turehasevidentlyincreasedthegrainsizeofZnO:Gathinfilms, theannealingtreatmenthasledtotheincreaseoffilmhardness, aswell.Theresultsappearedtofollowthenotionoftheinverse Hall–Petcheffect[40].It hasbeenpointedoutthat dislocations areplayingtheprimaryroleintheHall–Petcheffect,whileforthe inverseHall–Petcheffectgrainboundaryslidingisprominentfor thefilmhardness[41,42].Consequently,thebehaviorsobserved heremaybeindicativethatgrainboundarystructureismore rel-evanttotheprimarymechanicalresponsesduringindentationin theZnO:Gathinfilms.Thismightalsoexplaintheabsenceof appar-entpop-ineventintheload–displacementcurvesshowninFig.4, whereinthegrainboundariesacttheprimarystrain compensa-tionsitesandhencesuppressthenucleationandpropagationof threadingdislocationsneededforexhibitingpop-ins[43].

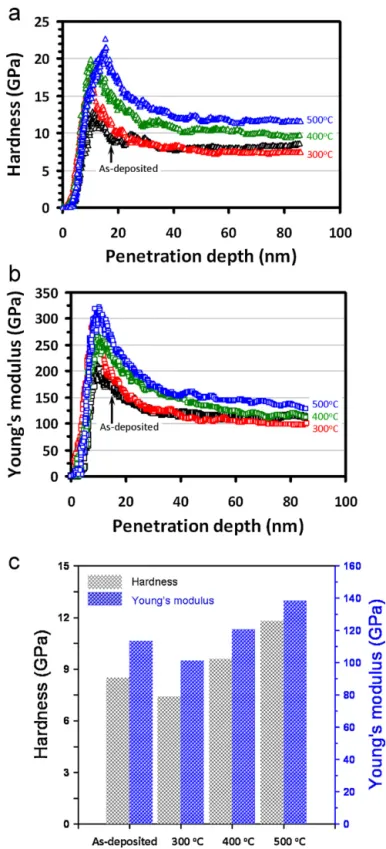

Fig.5(b)displaysaplotofYoung’smodulusofas-depositedand theannealedZnO:Gathinfilmsdeterminedusingthemethodof OliverandPharr[32].Thetendencyofvariationissimilartothe hardnessresultsillustratedinFig.5(a).ThevaluesofYoung’s mod-ulusforas-depositedfilmis113.4GPa,andthatforfilmsannealed at300,400,and500◦Care101.3,120.6,138.4GPa,respectively(see Fig.5(c)).Furthermore,thenanomechanicalpropertiesofZnOthin filmsbynanoindentationaresummarizedinTable1.

Asdiscussedabove,thenanoindentation-induceddeformation inthepresentfilmsbehavesverydifferentlyfromthoseexpected forbulkZnO [48].Namely,theinitiationofplasticdeformation, insteadofresultingfromthesuddenformationandrapidsliding ofalargenumberofdislocations,mayhavebeenmorerelevant tograinboundaryslidingand/orgrainrotations[41,42].Therefore, thegenerallylargergrains(∼40to70nm)obtainedinthecurrent

Fig.5. Nanoindentationresults:(a)thehardnessand(b)Young’smodulusvs. pen-etrationdepthcurvesofas-depositedandannealedZnO:Gathinfilms;(c)the hardnessandYoung’smodulusofas-depositedandannealedZnO:Gathinfilms.

studyascomparedtothatoftheatomic-layer-depositionZnOthin films,where grainsizeintherangeof30–50nmwereobtained [34],mayexplainthemechanicalresponsesobservedhere.Itis notedthatdopingmightalsomodifythegrainmorphologyand, hence,themechanicalbehaviorsofZnOthinfilms.For instance, Zhaoetal.[45]reportedthatborondopingcandecreasethe thick-nessofgrainboundariesinpulsedlaserdepositedZnOthinfilms, whicheventuallybroughtonimprovementoffilmshardness.

1266 S.-K.Wangetal./AppliedSurfaceScience258 (2011) 1261–1266

Table1

ThemechanicalpropertiesofZnOthinfilmsbynanoindentation.

ZnOfilms/a-SA ZnOfilms/c-SA ZnOfilms/6H-SiC ZnOfilms Al-dopedZnOfilms Ga-dopedZnOfilms

H

11.5±0.8GPa[38] 7.4±0.1GPa[38] 5.9±0.2GPa[38] 7.2–9.8GPa[34] 4.8±1.3–7.1±1.8GPa[47] 7.4–11.8GPaa

6.6±1.2GPa[44] 5.7±0.8GPa[44] 9.3–12.1GPa[45]

8.7±0.2GPa[46]

E

212.2±0.1GPa[38] 150.1±5.7GPa[38] 117.1±0.4GPa[38] 139.5–168.6GPa[34] 87.9±5.5–92.2±12.6GPa[47] 101.3–138.4GPaa

318.2±50GPa[44] 310.1±40GPa[44] 103.5–114.4GPa[45]

154±5GPa[46]

SA:sapphire.

a_{Thepresentstudy.}

4. Conclusion

Inconclusion,acombinationofXRD,AFM,cross-sectionalSEM andnanoindentationtechniqueshasbeencarriedouttoinvestigate themicrostructuralandnanomechanicalcharacteristicsofZnO:Ga thinfilmsannealedatthevarioustemperatures.

TheXRDanalysisshowedthatZnO:Gathinfilmswereequi-axial polycrystallineinnature,albeitthatpredominant(002) orienta-tionandaroughersurfacemorphologywasgraduallydeveloped withincreasingannealingtemperature.Nanoindentationresults indicatedthat,whilethegrainsizewasincreasedwithincreasing annealingtemperature,theZnO:Gathinfilmshavehardness rang-ingfrom7.4to11.8GPaandYoung’smodulusrangingfrom101.3 to138.4GPawithincreasingannealingtemperature.The appar-entinverseHall–Petcheffectisattributedtothegrainboundary dominatedmechanicalresponsesascomparedtothetraditional dislocationthreadingmechanism.

Acknowledgements

ThisworkwaspartiallysupportedbytheNationalScience Coun-cilofTaiwan,underGrantNo.:NSC100-2221-E-214-024.J.Y.J.is partiallysupportedbytheMOE-ATUprogramoperatedatNCTU. AuthorlikestothankDr.Y.-S.Lai,Dr.P.-F.Yang,Dr.G.-J.Chenand Dr.Y.-T.Chenfortheirtechnicalsupports.

References

[1]C.Lee,K.Lim,J.Song,Sol.EnergyMater.Sol.Cells43(1996)37. [2]C.G.Granqvist,Sol.EnergyMater.Sol.Cells91(2007)1529.

[3]T.Kwon,S.Park,J.Ryu,H.Choi,Sens.ActuatorsB:Chem.46(1998)75. [4]D.S.Ginley,C.Bright,MRSBull.25(2000)15.

[5]H.L.Hartnagel,A.L.Dawar,A.K.Jain,C.Jagadish,SemiconductorTransparent ThinFilms,InstituteofPhysicsPublishing,BristolandPhiladelphia,1995. [6]J.J.Ding,H.X.Chen,S.Y.Ma,Appl.Surf.Sci.256(2010)4304.

[7]X.Bie,J.G.Lu,L.Gong,L.Lin,B.H.Zhao,Z.Z.Ye,Appl.Surf.Sci.256(2009)289. [8]Y.R.Park,J.Kim,Y.S.Kim,Appl.Surf.Sci.256(2009)1589.

[9]S.J.Henley,M.N.R.Ashfold,D.Cherns,Surf.Coat.Technol.177(2004)271. [10]V.Assuncão,E.Fortunato,A.Marques,H.Águas,I.Ferreira,M.E.V.Costa,R.

Martins,ThinSolidFilms427(2003)401.

[11]C.Y.Tsay,C.W.Wu,C.M.Lei,F.S.Chen,C.K.Lin,ThinSolidFilms519(2010) 1516.

[12]A.R.Kaul,O.Y.Gorbenko,A.N.Botev,L.I.Burova,SuperlatticesMicrostruct.38 (2005)272.

[13]H.J.Ko,Y.F.Chen,S.K.Hong,H.Wenisch,T.Yao,D.C.Look,Appl.Phys.Lett.77 (2000)3761.

[14] V.Bhosle,A.Tiwari,J.Narayan,J.Appl.Phys.100(2006)033713. [15]K.Yim,C.Lee,J.Mater.Sci.18(2007)385.

[16]W.T.Yen,Y.C.Lin,P.C.Yao,J.H.Ke,Y.L.Chen,ThinSolidFilms518(2010) 3882.

[17] P.F.Yang,Y.S.Lai,S.R.Jian,J.Chen,R.S.Chen,Mater.Sci.Eng.A485(2008)305. [18]S.R.Jian,J.B.Li,K.W.Chen,J.S.C.Jang,J.Y.Juang,P.J.Wei,J.F.Lin,Intermetallics

18(2010)1930.

[19]K.W.Chen,S.R.Jian,P.J.Wei,J.S.C.Jang,J.F.Lin,Intermetallics18(2010)1572. [20] J.Chen,S.J.Bull,J.Phys.D:Appl.Phys.40(2007)5401.

[21]S.R.Jian,J.S.C.Jang,Y.S.Lai,P.F.Yang,C.S.Yang,H.C.Wen,C.H.Tsai,Mater. Chem.Phys.109(2008)360.

[22]S.R.Jian,G.J.Chen,T.C.Lin,NanoscaleRes.Lett.5(2010)935.

[23] S.R.Jian,J.Y.Juang,N.C.Chen,J.S.C.Jang,J.C.Huang,Y.S.Lai,Nanosci. Nanotech-nol.Lett.2(2010)315.

[24]X.D.Li,H.S.Gao,C.J.Murphy,K.K.Caswell,NanoLett.3(2003)1495. [25]M.K.Kang,B.Li,P.S.Ho,R.Huang,J.Nanomater.2008(2008)132728. [26] Y.H.Lai,C.J.Lee,Y.T.Cheng,H.S.Chou,H.M.Chen,X.H.Du,C.I.Chang,J.C.Huang,

S.R.Jian,J.S.C.Jang,T.G.Nieh,ScriptaMater.58(2008)890.

[27]T.H.Sung,J.C.Huang,J.H.Hsu,S.R.Jian,Appl.Phys.Lett.97(2010)171904. [28]J.Y.Tseng,Y.T.Chen,M.Y.Yang,C.Y.Wang,P.C.Li,W.C.Yu,Y.F.Hsu,S.F.Wang,

ThinSolidFilms517(2009)6310.

[29] K.Miyoshi,Y.W.Chung,SurfaceDiagnosticsinTribology:Fundamental Princi-plesandApplications,WorldScientificPublishing,Singapore,1993. [30]D.Cáceres,I.Vergara,R.González,E.Monroy,F.Calle,E.Mu ˜noz,F.Omnès,J.

Appl.Phys.86(1999)6773.

[31] X.D.Li,B.Bhushan,Mater.Charact.48(2002)11. [32]W.C.Oliver,G.M.Pharr,J.Mater.Res.7(1992)1564.

[33]B.D.Cullity,S.R.Stock,ElementofX-Raydiffraction,PrenticeHall,NewJersey, 2001,p.170.

[34] C.Y.Yen,S.R.Jian,G.J.Chen,C.M.Lin,H.Y.Lee,W.C.Ke,Y.Y.Liao,P.F.Yang,Y.S. Lai,J.S.C.Jang,J.Y.Juang,Appl.Surf.Sci.257(2011)7900.

[35]Z.B.Fang,Z.J.Yan,Y.S.Tan,X.Q.Liu,Y.Y.Wang,Appl.Surf.Sci.241(2005)303. [36] X.Q.Wei,J.Z.Huang,M.Y.Zhang,Y.Du,B.Y.Man,Mater.Sci.Eng.B166(2010)

141.

[37]I.N.Sneddon,Int.J.Eng.Sci.3(1965)47.

[38]S.R.Jian,I.J.Teng,P.F.Yang,Y.S.Lai,J.M.Lu,J.G.Chang,S.P.Ju,NanoscaleRes. Lett.3(2008)186.

[39]H.Wang,S.Zhang,Y.Li,D.Sun,ThinSolidFilms516(2008)5419.

[40]J.Schiotz,T.Vegge,F.D.DiTolla,K.W.Jacobsen,Phys.Rev.B60(1999)11971. [41]H.VanSwygenhoven,Science296(2002)66.

[42] J.Chen,W.Wang,L.H.Qian,K.Lu,ScriptaMater.49(2003)645. [43]L.Y.Lin,D.E.Kim,ThinSolidFilms517(2009)1690.

[44]V.A.Coleman,J.E.Bradby,C.Jagadish,P.Munroe,Y.W.Heo,S.J.Pearton,D.P. Norton,M.Inoue,M.Yano,Appl.Phys.Lett.86(2005)203105.

[45]S.Zhao,Y.Zhou,Y.Liu,K.Zhao,S.Wang,W.Xiang,Z.Liu,P.Han,Z.Zhang,Z. Chen,H.Lu,K.Jin,B.Cheng,G.Yang,Appl.Surf.Sci.253(2006)726. [46]R.Navamethavan,K.K.Kim,D.K.Hwang,S.J.Park,J.H.Hahn,T.G.Lee,G.S.Kim,

Appl.Surf.Sci.253(2006)464.

[47]L.Y.Lin,M.C.Jeong,D.E.Kim,J.M.Myoung,Surf.Coat.Technol.201(2006)2547. [48]S.R.Jian,J.AlloysCompd.494(2010)214.
