Design of Robust Transceiver for Precoded Uplink MU-MIMO Transmission in Limited Feedback System

DOI 10.1007/s11277-013-1540-y

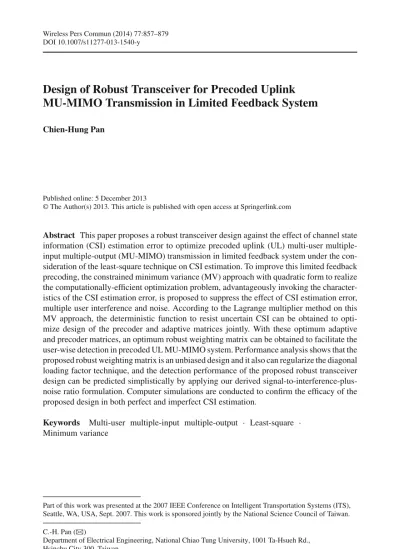

Design of Robust Transceiver for Precoded Uplink

MU-MIMO Transmission in Limited Feedback System

Published online: 5 December 2013

© The Author(s) 2013. This article is published with open access at Springerlink.com

Abstract This paper proposes a robust transceiver design against the effect of channel state

information (CSI) estimation error to optimize precoded uplink (UL) multi-user multiple-input multiple-output (MU-MIMO) transmission in limited feedback system under the con-sideration of the least-square technique on CSI estimation. To improve this limited feedback precoding, the constrained minimum variance (MV) approach with quadratic form to realize the computationally-efficient optimization problem, advantageously invoking the character-istics of the CSI estimation error, is proposed to suppress the effect of CSI estimation error, multiple user interference and noise. According to the Lagrange multiplier method on this MV approach, the deterministic function to resist uncertain CSI can be obtained to opti-mize design of the precoder and adaptive matrices jointly. With these optimum adaptive and precoder matrices, an optimum robust weighting matrix can be obtained to facilitate the user-wise detection in precoded UL MU-MIMO system. Performance analysis shows that the proposed robust weighting matrix is an unbiased design and it also can regularize the diagonal loading factor technique, and the detection performance of the proposed robust transceiver design can be predicted simplistically by applying our derived signal-to-interference-plus-noise ratio formulation. Computer simulations are conducted to confirm the efficacy of the proposed design in both perfect and imperfect CSI estimation.

Keywords Multi-user multiple-input multiple-output · Least-square · Minimum variance

Part of this work was presented at the 2007 IEEE Conference on Intelligent Transportation Systems (ITS), Seattle, WA, USA, Sept. 2007. This work is sponsored jointly by the National Science Council of Taiwan. C.-H. Pan (

B

Department of Electrical Engineering, National Chiao Tung University, 1001 Ta-Hsueh Rd., Hsinchu City 300, Taiwan

1 Introduction

An uplink (UL) multi-user multiple-input multiple-output (MU-MIMO) system [1,2] is an important wireless communication technique for the third generation partnership project (3GPP) long-term evolution (LTE) [3–5], where multiple users (i.e., mobile stations) transmit data to a base station (BS). The MU-MIMO system with the concept of space-division multiple access (SDMA) allows multiple users to BS in the same band simultaneously [2]. In the precoded UL MU-MIMO system, Liu gives contributions in [6] that the singular value decomposition (SVD)-assisted detection structure [7,8] mainly based on the assumption of perfect channel state information (CSI) estimation was developed to suppress the multiple user interference (MUI) caused by other users, where receiver transmits precoding matrices to users in the transmitted side via an error-free feedback link. However, precoding with the entire CSI feedback in [6] is impractical because the receiver sends all of the CSI to users via a limited feedback channel [9]. Additionally, this conventional detection structure [6] performs terribly due to the involvement of an inaccurate SVD [10] suffered from the effect of uncertain CSI and noise.

Recently, to avoid having to provide the entire CSI, the limited feedback precoding was developed [9], in which the receiver determines the optimal precoder from pre-design code-books and sends only the index of the selected precoder to users via the limited feedback channel. The feedback related to this index contains fewer bits because codebooks are stored in both the transmitter and receiver for the LTE system [5]. Additionally, robustness against uncertain CSI effect, attracted a lot of attention, was developed in [11–13] to improve the detection performance of the downlink transmission. For MU-MIMO precoding in the limited feedback precoding, the UL, robustness against the effect of the CSI estimation error, will be the major concerned scenario in this paper. On the other hand, the robust design in the limited feedback system has more complicated optimization problem due to the involvement of the non-linear characteristic in SVD [14,15]. These motivate us to develop a computationally-efficient convex optimization problem to optimize jointly the design of the adaptive and precoder matrices for the robust transceiver design as follows.

For the precoded UL MU-MIMO transmission [6], there is no cooperated among the UL users. By utilizing this no cooperation, we develop the user-wise (or called column-wise) detection that all columns (i.e., MUI) not in selected being detected user, constructed from partial columns of overall MU-MIMO channel, are nulled by column-wise weighting matrix iteratively. With the least-square (LS) estimation technique [16], we can formulate CSI estimation error as a random variable, exploiting property of arbitrary covariance matrix, to resist uncertain CSI for the robust transceiver design. Based on this property, the mini-mum variance (MV) approach with quadratic form advantageously [17,18] can realize a computationally-efficient optimization problem [19] to minimize the output power of joint MUI and noise subjecting to constraint while rejects the CSI estimation error. Applying the first-order approximation [19], the non-linear characteristic of SVD can be tractable in pro-posed MV approach for the expectation computation to acquire a deterministic function of adaptive matrix when the Lagrange multiplier method [19] is considered. Thus, an optimum adaptive matrix [15] can be obtained by selecting an optimum precoder matrix from codebook according to the minimization optimization problem by exploiting this deterministic function. With the optimum adaptive and precoder matrices, an optimum robust column-wise weight-ing matrix can be obtained to facilitate the user-wise detection in precoded UL MU-MIMO transmission for limited feedback system. Performance analysis shows that the proposed robust weighting matrix is an unbiased design and it also can regularize the diagonal load-ing (DL) factor technique, and the detection performance of the proposed robust transceiver

design can be predicted simplistically by applying our derived signal-to-interference-plus-noise ratio (SINR) formulation. Computer simulations are conducted to confirm the efficacy of the proposed scheme in both perfect and imperfect CSI estimation.

This paper is organized as follows. In Sect.2, system model and detection scheme is developed to improve UL MU-MIMO precoding in limited feedback system. In Sect.3, performance analysis is investigated to validate the detection performance of the proposed robust design. In Sect.4, we conduct computer simulations to confirm the effectiveness of the proposed robust design. In Sect.5, we present our conclusions. Notation: Matrices and vectors are denoted by upper and lower case boldface letters, respectively. IM is an

M× M identity matrix. For vector x, xi is its i th entry. Superscript(·)H, (·)−1and(·)†

represent Hermitian transpose. inverse and pesudoinverse operations, respectively. E{·} is an expectation operation, tr(·) is a trace operation and || · ||Frepresents Frobenius norm.

2 System Model and Detection Scheme

In this section, the robust precoded UL MU-MIMO transmission is developed from A) MV-based transceiver design in perfect CSI estimation and B) robust MV-MV-based transceiver design in imperfect CSI estimation as follows.

2.1 MV-Based Transceiver Design in Perfect CSI

In Fig.1, we here consider a precoded UL MU-MIMO system via an error-free limited feedback link that Nttransmit antennas are equipped for Q users with 1≤ q ≤ Q and Mr

receive antennas for Mr ≥ Nt are serving a BS. Considering the total transmit power of

Q users as P = N1+ N2+ · · · NQ, an equivalent UL MU-MIMO system in the limited

feedback precoding with user-wise structure under assumption that there is no cooperated among the UL users [6] can be

y= HqPqxq+ Q  i=1,i=q HiPixi    HI,qPI,qxI,q +v, (1) User 1 PRMV,1 x1,1

…

…

…

…

…

…

…

Fig. 1 A precoded UL MU-MIMO transmission for limited feedback system in which the receiver transmits the index of precoder of codebook to users via an error-free limited feedback link

where xq = [xq,1 xq,2. . . xq,Nq]T ∈ CN q×1 is the transmitted symbol vector at the

qth user, y ∈ CMr×1 _{is the received signal, the MU-MIMO channel matrix can be}

expressed from the column-wise structure as H= [H1H2. . .Hq. . .HQ] ∈ CMr×Nt with

Nt = N1+ N2+ · · · + NQ involved the complex Gaussian entries, unitary matrix Pq ∈

CN q×Nqis an precoder matrix selected from codebookF, HI,qPI,qxI,qdenotes MUI given as HI,qPI,q = [H1P1H2P2. . . Hq−1Pq−1Hq+1Pq+1. . . HQPQ] ∈ CMr×(Mr−Nq), xI,q =

[xT

1 . . . xqT−1xTq+1. . . xTQ]T ∈ C(Mr−Nq)×1are the transmit signals of users from 1≤ i ≤ Q

at i = q and v ∈ CMr×1has i.i.d. complex Gaussian entries with noise power E{vvH} = σ2

vIMr. Based on this column-wise structure for minimizing the output power of MUI and

noise jointly, the constrained minimum variance (MV) approach [17,18] determines the opti-mum weight W_{M V,q} ∈ CMr×Nq_{given as}

WMV,q, PMV,q= arg min wq,Pq∈F tr  W_qHRI,qWq  s.t. W_qHy 2 F ≈ HqPq H HqPqx 2 F, (2) where involves the distortion response due to inequality in constraint and RI,q = HI,qPI,q(HI,qPI,q)H+ σ_v2IMr ∈ CMr×Mris the output power of MUI and noise. By

apply-ing the adaptive technique in [14,15] as HqPq− BqAq

H

y ≈ HqPq

H

HqPqxq, the

optimization problem of (2) is converted into an unconstrained optimization problem and hence an optimum adaptive matrix and an optimum precoder can be obtained by applying MV approach as AMV,q, PMV,q= arg min Aq,Pq∈F trHqPq− BqAq H RI,q HqPq− BqAq  , (3) where Aqis an adaptive matrix, Pq ∈ CN q×Nqis a precoder matrix selected from codebook

F, the blocking matrix Bq ∈ CMr×(Mr−Nq)can be obtained from SVD HqPq = UqqVq

as Uq = [UD,qBq] ∈ CMr×Mr with UD,q∈ CMr×Nq, and then the cost function according

to (3) can be given as hAq, Pq  =HqPq− BqAq H RI,q HqPq− BqAq  . (4)

With∂h(Aq, Pq)/∂Aq) = 0 on (4), the optimization problem of (3) with the Lagrange

multiplier method [19] can be expressed as

Aq =



B_qHRI,qBq

₋₁

B_qHRI,qHqPq ∈ C(Mr−Nq)×Nq. (5)

By exploiting (5), various adaptive matrices can be computed via various precoder matrices selected from codebook iteratively, and thus an optimal adaptive matrix AMV,qand an optimal

precoder matrix PMV,qcan be obtained according to minimize the trace value of cost function

of (4) as AMV,q, PMV,q= arg min Aq,Pq∈F trhAq, Pq  , (6)

where the minimum optimization problem is equivalent to maximize SINR and thus an optimum weighting matrix with the MV approach can be expressed as

where the MV-based blocking matrix BMV,qis obtained from HqPMV,qand the MV-based

adaptive matrix is given as

AMV,q=



B_MVH _,qRMVI,qBMV,q

−1

B_MVH _,qRMVI,qHqPMV,q ∈ C(Mr−Nq)×Nq, ₍₈₎

where RMVI,q = HI,qPMVI,q(HI,qPMVI,q)H + σv2IMr ∈ CMr×Mr, HI,qPMVI,q =

[H1PMV,1H2PMV,2. . .Hq−1PMV,q−1Hq+1PMV,q+1. . .HQPMV,Q] ∈ CMr×(Mr−Nq) and PMV,q is a precoder matrix selected from codebook according to (6). Noted that the MV

approach in (3) under assumption that the exact CSI is available [6]; when the exact CSI is unavailable in practical implementation, the detection performance with (7) will be degraded severely resulted from the singular problem in the optimal adaptive matrix of (8) since chan-nel parameter mismatch occurs. This degrades because the suppression of CSI estimation error effect is not considered in designing the weighting matrix. Therefore, to achieve more degrees of freedom with the interference alignment technique, a computationally-efficient convex optimization problem for optimizing adaptive matrix and precoder simultaneously to resist uncertain CSI is thus developed in follows.

2.2 Robust MV-Based Transceiver Design in Imperfect CSI

In this section, the design problem of the robust MV-based transceiver to suppress the effect of the CSI estimation error, MUI and noise jointly in UL MU-MIMO system for limited feedback precoding is investigated. By exploiting the LS estimation on the formulation of uncertain CSI [18], we can obtain the deterministic function associated with optimizing jointly design of precoder and adaptive matrices by applying the first-order approximation on the expression of the estimated block matrix to achieve an optimum weighting to facilitate user-wise detection. In the imperfect CSI estimation, the estimated UL MU-MIMO channel with column-wise structure can be expressed as

ˆH =H1H2· · · HQ  +H1H2· · · HQ  =ˆH1ˆH2· · · ˆHQ  = H + H, (9) where the estimation errorH ∈ CMr×Nthas i.i.d. Gaussian entries since the entries of the noise v are Gaussian entries depicted in (1) and it involves E{Hq(Hq)H} = Nqσ

2

e

P INq×Nq

and E(H) = 0. When the CSI estimation is imperfect, the optimization problem with column-wise structure via (3) for minimizing the output power of MUI and noise to find an optimum adaptive matrix ARMV,q ∈ C(Mr−Nq)×Nqand an optimum precoder PRMV,qis

formulated as ARMV,q, PRMV,q = arg min Aq,Pq∈F tr  EˆHqPq− ˆBqAq H RI,q  ˆHqPq− ˆBqAq  s.t. EˆHqPq− ˆBqAq H HqPq  2 F ≈ 0, (10)

where the estimated blocking matrix ˆBq = Bq+ Bq ∈ CMr×(Mr−Nq)with BqHHqPq = 0

and ˆB_qHHqPq = 0, and it is obtained from SVD ˆHqPq = ˆUqˆqˆVq as ˆU= [ ˆUD,q ˆBq] ∈

CMr×Mrwith ˆU_D,q ∈ CMr×Nqand constraint particularly involves the suppression of effect of CSI estimation error. For simplicity, the constrain of optimization problem in (10) to find an optimum adaptive matrix via the expectation method is expressed as

tr  Nqσe2 P HqPq H HqPq+ AqHAq)  = EˆHqPq − ˆBqAq H HqPq  2 F , (11)

where expressed terms in (11) is a quadratic function and thus (10) with this expressed constrain can be relaxed as

ARMV,q, PRMV,q = arg min Aq,Pq∈F tr  EˆHqPq− ˆBqAq H RI,q  ˆH_qPq− ˆBqAq  s.t. tr  Nqσe2 P HqPq H HqPq+ AqHAq)  = 0, (12)

Further, we will show that the proposed optimization problem in (12) is convex as following Theorem1.

Theorem 1 If Pqand Aqare a precoder matrix and an adaptive matrix, respectively in (12),

then the optimization problem in (12) is convex.

Proof In (12), the object function is a quadratic function since RI,qhas positive entries and

ˆwH

i,qRI,qˆwi,q ≥ 0 with 1 ≤ i ≤ Nq where ˆwi,q is the i th column of ˆHqPq− ˆBqAq at the

qth user depicted in [19]. Thus, the optimization problem by exploiting the quadratic form on constrain in (12) is convex.

By applying the Lagrange multiplier method [19], the cost function according to (12) is given as fAq, Pq  = EˆHqPq− ˆBqAq H RI,q  ˆHqPq− ˆBqAq  + αNqσe2 P  HqPq H HqPq+ AHqAq  , (13)

whereα is a Lagrange multiplier. With derivative on (13) (i.e.,∂ f (Aq, Pq)/∂Aq), we have

fAq, Pq  =  E  ˆBH q RI,qˆBq  +αNqσe2 P IMr−Nq  Aq−E  ˆBH qRI,qˆHqPq  =0. (14) Without complicated search problem by applying the Lagrange scheme [18], (14) shows that the optimal weighting matrix via a computationally-efficient convex optimization problem of (12) can be obtained simplistically. However, the estimation error termBqis not easy to

evaluate the expectation due to the involvement of the non-linear characteristic in SVD. To solve this non-linear characteristic, the estimation error term of blocking matrix (i.e.,Bq)

by following the first-order approximation [19] for finding an optimum adaptive matrix can be denoted as Lemma1.

Lemma 1 Let Pq ∈F be a precoder matrix, the estimation error term of blocking matrix

can be approximated as

BH

q ≈ −BqHHqH†q, (15)

whereBqis an Mr× (Mr− Nq) complex matrix and H†qdenotes the pseudoinverse of the

matrix Hq.

Proof With ˆB_qHˆHqPq = 0 and BqHHqPq = 0, we have

B_qHHqPq+ BqHHqPq+ BqHHqPq+ BqHHqPq = 0, (16)

where ˆBq and Bq are computed from ˆHqPq and HqPq, respectively. By applying the

first-order approximation in (16),Bq can be achieved to (15) since the second-moment term

BH

To compute Aq with Lemma1, the expected values with E(Bq) = E(Hq) = 0 via

the LS technique on channel estimation in (14) can be expressed as E  ˆBH q RI,qˆHqPq = BH qRI,qHqPq, (17) and E  ˆBH qRI,qˆBq = BH q RI,qBq+ E  BH q RI,qBq  = BH q RI,qBq+ Nqσe2 P tr  H†_qRI,q  H_q† H IMr−Nq, (18)

Based on (17) and (18), a deterministic function of adaptive matrix Aqin (12) against

uncer-tain CSI can be expressed as

Aq =  αNqσe2 P IMr−Nq + B H q RI,qBq +Nqσe2 P tr  H_q†RI,q  H†_q H IMr−Nq −1 B_qHRI,qHqPq, (19)

where the adaptive matrix Aq is on average optimal choice to suppress the effect of MUI

and noise under assumption that CSI estimation error is white, and it involves two additional terms compared with the perfect channel estimation case in (5) to suppress the signal leakage effect resulted from ˆBH

q HqPq = 0. To achieve an optimum adaptive matrix, we show that

Lagrange multiplierα in (19) can be established as follows.

Property 1 Suppose that design of optimization problem in (12) is associated with the rejec-tion of interference to obtain an optimum adaptive matrix Aq, we say that Lagrange multiplier

withα = 1 can be optimally used in computing Aqof (19).

Proof See “Appendix A”.

By exploiting this deterministic function in (19), various adaptive matrices can be com-puted via various precoder matrices selected from codebook iteratively, and thus an optimal adaptive matrix ARMV,q and an optimal precoder matrix PRMV,qcan be obtained according to minimize the trace value of cost function of (13) as

ARMV,q, PRMV,q= arg min

Aq,Pq∈F

trf Aq, Pq

, (20)

where the minimum optimization problem is equivalent to maximize SINR and thus the proposed robust MV-based (RMV) weighting matrix at the qth user under assumption that exact CSI is unavailable as

ˆ

WRMV,q= ˆHqPRMV,q− ˆBRMV,qˆARMV,q, (21) where the RMV-based adaptive matrix is

ˆARMV,q=  ˆBH RMV,qˆRRMVI,qˆBRMV,q+Nqσ 2 e P  1+tr  ˆH† qˆRRMVI,q  ˆH† q H IMr−Nq −1 ˆBH RMV,qˆRRMVI,qˆHqPRMV,q, (22)

where the RMV-based blocking matrix ˆBRMV,qis obtained from ˆHqPRMV,qand ˆRRMVI,q=

ˆH₂PRMVI,2. . . ˆHq−1PRMVI,q−1ˆHq+1PRMVI,q+1 . . . ˆHQPRMVI,Q] ∈ CMr×(Mr−Nq). In (21),

we note that the design of the proposed ˆWRMV,qis simplified since the covariance matrix of

the CSI estimation error can be simply obtained via the independent characteristic between signal and noise compared with obtaining actual channel error. To improve the user-wise detection performance, we apply (21) to suppress the effect of noise, MUI and CSI esti-mation error to derive the RMV-based transceiver in the UL MU-MIMO precoding system as ˆ W_RMVH _,qy= ˆW_RMVH _,qHqPRMV,qxq+ ˆWRMVH ,q HI,qPRMVI,qxI,q+ v     ≈0 . (23) With (23), the transmit signal at the qth user can be estimated as

ˆxq = slice  ˆ W_RMVH _,qˆHqPRMV,q † ˆ W_RMVH _,qy  . (24)

By exploiting the characteristic of CSI estimation error via the LS technique in optimiza-tion problem of (12), the proposed RMV-based weighting matrix can tackle the effects of MUI, noise and parameter mismatch resulted from the CSI estimation error. Hence, an accu-rate pesudoinverse process can be obtained to improve the user-wise detection performance in (24). Based on (21) and (24), we then summarize the algorithm of the robust MV-based transceiver under the involvement of codebook in UL MU-MIMO precoding for limited feedback system as following Table1.

3 Performance Analysis

In this section, the proposed robust transceiver design to optimize the precoded UL MU-MIMO transmission is validated by applying the analyses of A) Mean characteristic B) Regularization of the DL factor C) SINR formulation and D) Computational complexity. 3.1 Mean Characteristic

In this subsection, we show that the proposed robust weighting matrix ˆWRMV,qis an unbiased

design via the mean characteristic by applying the first-order approximation. However, this analysis suffers from complicated problem in the expectation operation due to the involvement of a lot of estimated terms. To simply this analysis with the LS technique on the CSI estimation, the mean of ˆWRMV,qwill be analyzed under the consideration ofσe2 → 0 and E( ˆH) = H

as follows: E  ˆ WRMV,q| ˆH  = HqPRMV,q− E  ˆBRMV,qˆARMV,q  ≈ HqPRMV,q − Bq  B_RMVH _,qRRMVI,qBRMV,q ₋₁ B_RMVH _,qRRMVI,qHqPRMV,q, (25) where (25) is expressed in “Appendix B” and it indicates that ˆWRMV,qis an unbiased design [20] due to E  ˆ WRMV,q− WMV,q  |H= 0, (26)

Table 1 The algorithm of RMV-based transceiver

3.2 Regularization of the DL Factor

In this subsection, the regularization of the DL factor in [17,18] is emphasized to perfectly mitigate the effect of MUI, noise and CSI estimation error via the proposed robust weighting matrix in (22). Considering the LS technique [16], the key technique of the conventional DL scheme with additionalγ [17,18] in the quadratic term of (5) is

ˆA_{D L=}_{γ IMr−Nq+ ˆB}H

RMV,qˆRRMVI,qˆBRMV,q

₋₁ ˆBH

RMV,qˆRRMVI,qˆHqPRMV,q, (27)

whereγ is a DL factor and it is associated with the MIMO detection performance depicted in [17]. However, the computation ofγ in (27) is a difficult problem since it has no any feasible set corresponded to the characteristic of channel estimation error. To solve this problem in (27), the optimization ofγ can be regularized as

γ = Nqσe2 P  1+ tr  ˆH† qˆRRMVI,q  ˆH† q H , (28)

whereα = 1 in (22) gives a feasible solution for the formulation ofγ to suppress the signal leakage effect, and it also provides the ability of the matrix inversion to resist the singular problem resulted from ˆBH

RMV,qˆRRMVI,qˆBRMV,q.

3.3 SINR Formulation

In this section, the derived SINR formulation with the expectation operation is investigated to address the ability of the interference mitigation in the proposed robust design at Table1. When variance of CSI estimation error is given, this derived SINR formulation, invoking the characteristic of CSI estimation error of LS technique, based on the matrix inverse lemma of [21] and the expression ofBq can be obtained approximately.

By referring [14], we have WRMV,q = ˆWRMV,q− WRMV,q≈ HqPRMV,q− BqX1,qBRMVH ,qRRMVI,qHqPRMV,q + BRMV,qX1,qBqHRRMVI,qBRMV,qX1,qBRMVH ,qRRMVI,qHqPRMV,q + BRMV,qX1,qBRMVH ,qRRMVI,qBqX1,qBRMVH ,qRRMVI,qHqPRMV,q + BRMV,qX1,qBqHRRMVI,qHqPRMV,q + BRMV,qX1,qBRMVH ,qRRMVI,qHqPRMV,q, (29)

where X1,q is defined in “Appendix C”, WRMV,q is an exact solution of ˆWRMV,q and the

deviation isWRMV,q = ˆWRMV,q − WRMV,q referred in (43). Based on (29), the robust weight matrix multiplied by received signal can be expressed as

ˆ W_RMVH _,qy= ˆW_RMVH _,qHqPRMV,qxq+ ˆWRMVH ,q HIPRMVI,qxI+ v  = WH RMV,qHqPRMV,qxq + WH RMV,qHqPRMV,qxq + ˆWRMVH ,q HIPRMVI,qxI+ v     =iRMV,q . (30)

With (30), the expected SINR formulation in the user-wise detection can be expressed as

SINRRMV,q = E  WH RMV,qHqPRMV,qxq 2 F  EiRMV,q2_F , (31)

where signal power with B_qHHqPq= 0 can be expressed as

E  WH RMV,qHqPRMV,qxq 2 F  = T rW_RMVH _,qHqHqHWRMV,q =HH q Hq 2 F, (32)

and the composite interference power [14] can be approximately expressed as EiRMV,q2_F = trE  ˆ W_RMVH _,qRRMVI,qWˆRMV,q+ WRMVH ,qHqHqHWRMV,q  = trE  W_RMVH _,qRRMVI,qWRMV,q + WH RMV,qRRMVI,qWRMV,q+ WRMVH ,qHqHqHWRMV,q

≈ trW_RMVH _,qRRMVI,qWRMV,q+ E  WH RMV,qRRMVI,qWRMV,q  +Nqσe2 P  tr  H_qHHq+ ARMVH ,qARMV,q , (33)

where tr{E(W_RMVH _,qRRMVI,qWRMV,q)} is expressed in “Appendix C” by using (29) and

we haveW_RMVH _,qHqPRMV,q≈ (HqPRMV,q− BRMV,qARMV,q− BRMV,qARMV,q)H HqPRMV,qon computing the last term of right hand side (RHS) of (33) due to the neglect of BRMV,qARMV,q by applying the first-order approximation forARMV,q = ˆARMV,q− ARMV,q. According to (31), the average SINR formulation is

SINRRMV,avg= _Q1 Q



q=1

SINRRMV,q. (34)

When variance of CSI estimation error is given, this derived formulation in (34) can well predict the ability of interference cancellation in the proposed robust transceiver design due to the realization of the actual SINR tendency obtained by (30) as confirmed in following simulation tests. Moreover, we will show that the proposed RMV-based scheme has better SINR than the MV-based scheme as follows.

Property 2 For giving a precoder Pq ∈ F, we have SINRRMV,q ≥ SINRMV,q since

||iMV,q||2_F≥ ||iRMV,q||2_F.

Proof See “Appendix D;;. 3.4 Computational Complexity

In this subsection, the computational complexities [21] of MV-based, RMV-based and con-ventional SVD-assisted detection schemes at [6] in the precoded UL MU-MIMO systems are investigated for transmitter and receiver separately. For transmitter, it only requires mul-tiplying the symbol vector by the precoding matrix computed by receiver via an error-free feedback link as depicted in (23)-(24), which involves a complexity of_qQ₌₁N_q2showed in Table2. For receiver, Table2demonstrates that the complexities of MV-based and RMV-based systems in terms of complex multiplications are computed by following S.3∼ S.8 of Table1, where RMV-based scheme has similar computational complexity compared with MV-based scheme excepting the robust design on S.7 depicted in (5) and (19). Considering the codebook size is NP, it also shows that the proposed RMV-based scheme requires

addi-tional Q· NP·O(Mr3) multiplications compared with conventional SVD-assisted detection

due to the involvement of the robust design in S.5 ∼ S.8. However, when NP is small in

practical implementation, this additional complexity can be neglected since Mr and Mtare

consequently limited in the UL LTE system [5] and thus the proposed RMV approach is a computationally-efficient convex optimization problem to avoid the exhaustive search in the optimization problem depicted in [22].

4 Simulation Results

This section uses the proposed RMV-based, MV-based and conventional SVD-assisted detec-tion schemes in [6] to illustrate the bit error rate (BER) in the precoded UL MU-MIMO system, where RMV-based and MV-based detection schemes are established in Table2. It

Table 2 Computational complexities of UL MU-MIMO precoding systems Detection scheme Complex multiplcation counts

RMV-based detection Transmitter: N₁2+ N₂2+ · · · + N2_Q Receiver: 1) S.5: 4NqMr2+ 8MrNq2+ 9Nq3+ MrNq 2) S.6: M_r3− M_r2Nq+ MrNq 3) S.7: 26Mr3− 21Nq3− 70Mr2Nq+ 67MrNq2 4) S.8: 2M_r2Nq+ 2MrNq− Nq3 5) S.16: N_q2Mr+ Nq3+ 21Nq3 Total: Q· NP· (29r3− 65Mr2Nq+ 4NqM+ 75MrNq2− 13Nq3) + Nq2Mr+ Nq3+ 21Nq3 SVD-based detection [6] Transmitter: N₁2+ N₂2+ · · · + N2_Q Receiver: 2Mt2Mr+ Mt3/3 + Mt+ MtMr+ Q(4Mt2Nq+ 8MrNq2+ 9Nq3)

is assumed that the elements of each channel matrix are i.i.d. complex Gaussian random variable with zero mean and unit variance [22,23] as depicted in (1). The LS technique is considered for the CSI estimation and the input SNR is defined as P/σ2

v. The robust design

with performance analysis is also examined on theoretic analysis (i.e., theoretic) and com-puter simulation analysis (i.e., simulation) [24–26]. Furthermore, we consider the proposed schemes with Nt, Mr ∈ {4, 6}, N2 ∈ {2, 4}, N1 = Q = 2, P = Ntand QPSK modulation

where codebooks are created by p.157 and p.159 in [5] for N2= 2 and N2= 4, respectively

to evaluate (A) Selection of the DL factor (B) SINR performance and (C) Comparison with conventional works as following simulations.

4.1 Selection of the DL Factor

In this subsection, various DL factors (i.e.,γ ) are considered to verify the ability of the proposed based detection to resist the effect of the imperfect CSI. The proposed RMV-based DL factor is given as

γ = u ·  Nqσe2 P + Nqσe2 P tr  ˆH† qˆRI,q  ˆH† q H , (35)

where u is an adaptive factor to adapt various values ofγ to validate an optimum selection of the DL factor of (28). Moreover, a conventional DL design withγ = 5σ2

v in [17,18] is given as γ = u · 5σ2 v. (36) With SNR= 30dB for Nt = Mr = 4, N1 = N2 = Q = 2, u ∈ {0, 0.01, 0.1, 1, 10, 100, 1000, 10000}, σ2

e = 0.01 and QPSK modulation, Fig.2a demonstrates that the proposed

RMV-based DL factor with u= 1 at (35) in the proposed user-wise detection has optimum BER performance compared with others due to the robust design on optimization problem in (12) depicted in Property 1. Similarly, with different number of transmit and receive antennas as Nt = Mr = 6, N1= 2, N2= 4, Q = 2, Fig.2b also confirms that the proposed

RMV-based weighting matrix (i.e., u= 1) can regularize the selection of DL factor optimally in the proposed user-wise detection. Additionally, the conventional DL design withγ = 5σ_v2

-10 -8 -6 -4 -2 0 2 4 6 8 10-2 10-1 100 log10(u) BER Conventional DL, var = 0.01 RMV-based DL, var = 0.01 (a) -10 -8 -6 -4 -2 0 2 4 6 8 10-2 10-1 100 log10(u) BER Conventional DL, var = 0.01 RMV-based DL, var = 0.01 (b) u = 0 u = 0

Fig. 2 BER comparison for various DL factors in the proposed user-wise detection withσ_e2= 0.01, SNR = 30 dB and QPSK modulation. a Nt = Mr = 4, N1 = N2= Q = 2; b Nt = Mr = 6, N1= 2, N2=

4, Q = 2

can not regularize the selection of DL factor at u= 1 in the proposed user-wise detection to achieve optimum BER performance by comparing with Fig.2a, b, respectively. Figures also show that BER performance in the proposed user-wise detection for u∈ {0, 10000} is worse due to the involvement of the singular problem.

4.2 SINR Performance

In this simulation, different variances of CSI estimation error withσ_e2 ∈ {0, 0.001, 0.01} are considered to illustrate the SINR performance of the proposed RMV-based MU-MIMO precoding by using theoretic analysis in (34) and the computer simulation analysis (i.e., actual solution). With Nt = Mr = 4, N1 = N2 = Q = 2 and QPSK modulation, Fig.3a

0 5 10 15 20 25 30 35 100 101 102 103 SNR (dB) Output SINR (dB) Theoretic, var = 0 Simulation, var = 0 Theoretic, var = 0.001 Simulation, var = 0.001 Theoretic, var = 0.01 Simulation, var = 0.01 (a) 0 5 10 15 20 25 30 35 100 101 102 103 SNR (dB) Output SINR (dB) Theorem, var = 0 Simulation, var = 0 Theorem, var = 0.001 Simulation, var = 0.001 Theorem, var = 0.01 Simulation, var = 0.01 (b)

Fig. 3 SINR versus SNR by using theoretic analysis and simulation analysis in QPSK modulation and σ2

e ∈ {0, 0.001, 0.01}. a Nt= Mr= 4, N1= N2= Q = 2; b Nt= Mr= 6, N1= 2, N2= 4 and Q = 2

shows that the SINR performance of the proposed theoretic analysis (i.e., Theoretic) can achieve the SINR performance of the simulation analysis (i.e., Simulation) in both perfect and imperfect CSI estimation. This demonstrates that the proposed theoretic analysis can effectively predict the performance of actual SINR, and it also shows that the SINR value is increased at small CSI estimation error resulted from the smaller interference depicted in (31). Moreover, this SINR tendency, increasing SNR induced by increasing SINR, confirms that the proposed robust design can well suppress the effect of MUI and noise. This suppression is also confirmed in Fig.3b under the consideration of Nt= Mr = 6, N1= 2, N2= 4, Q = 2

and QPSK modulation. With computer simulation to compute the SINR performance, Fig.4

shows that the proposed RMV-based scheme has better SINR performance than MV-based scheme under considering various CSI error variances (i.e.,σ_e2) in SNR= 30 dB, due to the involvement the information of the CSI error variance in the optimization problem of (12) depicted in Property2.

-7 -6 -5 -4 -3 -2 -1 0 -15 -10 -5 0 5 10 15 20 25

log10(CSI error variance)

Output SINR (dB) RMV, simulation MV, simulation (a) -7 -6 -5 -4 -3 -2 -1 0 -15 -10 -5 0 5 10 15 20 25

log10(CSI error variance)

Output SINR (dB) RMV, simulation MV, simulation (b) 0 2 e 0 2 e

Fig. 4 SINR versus CSI error variance for comparison of MV-based and RMV-based UL MU-MIMO precoding in QPSK modulation and SNR = 30 dB. a Nt = Mr = 4, N1 = N2 = Q = 2; b Nt= Mr= 6, N1= 2, N2= 4 and Q = 2

4.3 Comparison of Conventional Works

In this subsection, we compare the BER performance of the proposed Rbased and MV-based with that of the conventional SVD-assisted detection [6] schemes for the perfect and imperfect CSI estimation cases. With Nt = Mr = 4, N1 = N2 = Q = 2 and QPSK

modulation for perfect CSI estimation, Fig.5a shows that the proposed Rbased and MV-based detection schemes have better detection performance than conventional SVD-assisted detection schemes in [6], due to the optimum design of adaptive and precoder matrices jointly in (7) and (21) to resist the effect of MUI and noise. Figure5a also shows that the RMV-based scheme is an unbiased design due to the involvement of the same BER performance compared with the MV-based scheme depicted in (26). For imperfect CSI estimation, Fig.5b,

Fig. 5 BER versus SNR with

Nt= Mr= 4, N1= N2= Q =

2 and QPSK modulation for comparison of various detection schemes. aσe2= 0, b σ2 e = 0.001; c σe2= 0.01 0 5 10 15 20 25 30 35 10-4 10-3 10-2 10-1 100 SNR (dB) BER SVD, var = 0 MV, var = 0 RMV, var = 0 (a) 0 5 10 15 20 25 30 35 10-3 10-2 10-1 100 SNR (dB) BER SVD, var = 0.001 MV, var = 0.001 RMV, var = 0.001 (b) 0 5 10 15 20 25 30 35 10-2 10-1 100 SNR (dB) BER SVD, var = 0.01 MV, var = 0.01 RMV, var = 0.01 (c)

Fig. 6 BER versus SNR with

Nt= Mr= 6, N1= 2, N2=

4, Q = 2 and QPSK modulation for comparison of various detection schemes. aσe2= 0, b σ2 e = 0.001; c σe2= 0.01 0 5 10 15 20 25 30 35 10-4 10-3 10-2 10-1 100 SNR (dB) BER SVD, var = 0 MV, var = 0 RMV, var = 0 (a) 0 5 10 15 20 25 30 35 10-3 10-2 10-1 100 SNR (dB) BER SVD, var = 0.001 MV, var = 0.001 RMV, var = 0.001 (b) 0 5 10 15 20 25 30 35 10-2 10-1 100 SNR (dB) BER SVD, var = 0.01 MV, var = 0.01 RMV, var = 0.01 (c)

c demonstrates that the proposed RMV-based detection substantially outperforms others particularly at high SNR region confirmed in Fig.4and Property2. Similarly, with Nt =

Mr = 6, N1 = 2, N2 = 4, Q = 2 and QPSK modulation, Fig.6also demonstrates that

the proposed RMV-based scheme can effectively improve the detection performance in the precoded UL MU-MIMO transmission compared with others.

5 Conclusions

In this paper, we have presented a robust transceiver design with joint suppression of effect of MUI, noise and CSI estimation error in UL MU-MIMO precoding for limited feedback system under considering LS technique on CSI estimation. Since robust transceiver design is difficult to be tractable, the optimization problem with considering design of the precoder and adaptive matrices on the constrained MV approach subjects to constraint the rejection of CSI estimation error developed in the use-wise detection. To validate this user-wise detection for robustness specifically, the performance analysis of robust transceiver design induced by mean characteristic, regularization of the DL factor, SINR formulation and computational complexity has been investigated. In both perfect and imperfect CSI estimation, simulations verify that the proposed RMV-based transceiver design can achieve optimal detection per-formance due to optimizing design of precoder and adaptive matrices jointly. Therefore, the proposed RMV-based transmission design is a promising solution for practical UL MU-MIMO precoding in limited feedback wireless systems at the mobile station is of major concerns.

Open Access This article is distributed under the terms of the Creative Commons Attribution License which permits any use, distribution, and reproduction in any medium, provided the original author(s) and the source are credited.

Appendix A: Proof of Property 1

Proof By referring (14), we have

E  ˆBH qHqHqHˆBq  = EBH qHqHqHB ≈ Nqσe2 P IMr−Nq. (37)

Substituting (37) to (14) for giving a precoder Pq, we have

f(Aq) ≈ E ⎧ ⎪ ⎪ ⎨ ⎪ ⎪ ⎩ ˆBH q ⎛ ⎜ ⎜ ⎝RI,q+ αHqHqH    =yyH_atα=1 ⎞ ⎟ ⎟ ⎠ ˆBq ⎫ ⎪ ⎪ ⎬ ⎪ ⎪ ⎭ Aq− BHqRI,qHqPq ≈ 0. (38)

Consideringα = 1 and xqxqH = IN q, (38) can be expressed approximately as

f(Aq) ≈ E  ˆBH q  yyHˆBqAq− RI,qHqPq  ≈ EˆBH qy  yHˆBqAq− HI,qPI,qxI,q+ v H HqPq  , (39)

where (39) holds due to the consideration of ˆB_qHy≈ HI,qPI,qxI,q+v and thus the achievement

A_opt,q = arg min Aq∈C(Mr−Nq)×Nq fAq2_F ≡ arg min Aq∈C(Mr−Nq)×Nq E     P_qHH_qH(HI,qPI,qxI,q+ v)    Interference −AH q ˆBqHy     2 F , (40) where (40) withα = 1 shows that the proposed RMV approach without giving exact CSI can realize the GSC-based approach of [14,15] to achieve the rejection of interference, and hence proof is completed. Particularly, this GSC-based approach, characterized by the rejection of interference computed from minimizing the difference between interference and blocking received signal, involves complicated optimization problem due to the requirement of exact CSI as Hqand HI,q.

Appendix B: Derivation of (25)

We simply the inverse term of estimated adaptive matrix of (22) by using the matrix inversion as(A + εX)−1≈ A−1− A−1εXA−1with a small numberε and an invertible matrix A as follows ⎛ ⎜ ⎜ ⎜ ⎝ˆBRMVH ,q ˆRRMVI,q    ≈RRMVI,q ˆBRMV,q+ Nqσe2 P (1 + tr( ˆH † qˆRRMVI,q( ˆH†q)H))IMr−Nq    ≈0 ∵σ2 e→0 ⎞ ⎟ ⎟ ⎟ ⎠ −1 ≈ (BH RMV,qRRMVI,qBRMV,q)−1−  B_RMVH _,qRRMVI,qBRMV,q ₋₁  −BH RMV,qRRMVI,qBRMV,q− BRMVH ,qRRMVI,qBRMV,q   B_RMVH _,qRRMVI,qBRMV,q ₋₁ , (41)

where (41) holds due to the consideration of the first-order approximation andσ_e2→0 for

RRMVI,q ≈ ˆRRMVI,qand hence we have E  ˆBqˆARMV,q ≈ Bq  B_RMVH _,qRRMVI,qBRMV,q −1 BH_RMV,qRRMVI,qHqPRMV,q, (42) Appendix C: Derivation of (32)

Consideringσ_e2in the SINR expression of (32), the matrix inverse in RMV-based adaptive matrix of (21) can be give as

 ˆBH RMV,qˆRRMVI,qˆBRMV,q+ Nqσe2 P  1+ tr  ˆH† qˆRRMVI,q  ˆH† q H IMr−Nq −1 ≈B_RMVH _,qRRMVI,qBRMV,q+  IMr−Nq −1 −B_RMVH _,qRRMVI,qBRMV,q+  IMr−Nq ₋₁

 −BH RMV,qRRMVI,qBRMV,q− BRMVH ,qRRMVI,qBRMV,q   B_RMVH _,qRRMVI,qBRMV,q+  IMr−Nq ₋₁ (43) where the first term of left hand side (LHS) in (43) is expressed approximately as

ˆBH

RMV,qˆRRMVI,qˆBRMV,q≈ BRMVH ,qRRMVI,qBRMV,q+ BRMVH ,qRRMVI,qBRMV,q

+ BH

RMV,qRRMVI,qBRMV,q

+ BH

RMV,qRRMVI,qBRMV,q+ ˆBRMVH ,qRRMVI,qˆBRMV,q,

(44) where the last terms in RHS of (44) with expectation operation is approximated as

E  BH RMV,qRRMVI,qBRMV,q+ ˆBRMVH ,qRRMVI,qˆBRMV,q ≈ Nqσe2 P tr(H † qRRMVI,q(Hq†)H)IMr−Nq    ≈E(BH RMV,qRRMVI,qBRMV,q) + (Mr− Nq)σe2 P IMr−Nq    ≈E(BH RMV,qRRMVI,qBRMV,q) , (45)

where the last term in RHS holds due to the consideration of first-order approximation, and the trace operation with removing the off-diagonal terms [27] is approximately computed as

tr  ˆH† qˆRRMVI,q  ˆH† q H ≈ tr  H†_qRRMVI,q  H†_q H ≈ (Mr− Nq)2 Nq , (46) and hence in (43) is denoted approximately to resist this uncertain CSI problem as

 ≈2(Mr− Nq)2

P σ

2

e. (47)

where (47) holds due to the neglect of the second-moment term [21]. Based on (43) and (47), we define X1,q = (BHRMV,qRRMVI,qBRMV,q+  IMr−Nq)−1, X2,q = BRMV,qX1,q B_RMVH _,qRRMVI,qHqPRMV,q, X3,q= BRMV,qX1,qBH_RMV,q, X4,q= (HqPRMV,q)†RRMVI,qHq PRMV,q, X5,q = BRMV,qX1,qBRMVH ,qRRMVI,q, X6,q = (HqPRMV,q)†RRMVI,qBRMV,qX1,q B_RMVH _,qRRMVI,qHqPRMV,q, X7,q = BRMV,qX1,qBHRMV,qRRMVI,q((HqPRMV,q)†)H and X8,q = BRMV,qX1,qB_RMVH _,qRRMVI,qHqPRMV,qto express tr  E  WH RMV,qRRMVI,qWRMV,q  } ≈ tr  Nqσe2 P  P_RMVH _,qtrRRMVI,q  PRMV,q + PH RMV,qtr RRMVI,qX3,qX4,q − PH RMV,qtr RRMVI,qX5,q  PRMV,q+ PRMVH ,qtr RRMVI,qX3,q  X6,q + XH 4,qtr  X₃H_,qRRMVI,q  PRMV,q + XH 4,qtr  X₃H_,qRRMVI,qX3,q  X4,q− X4H,qtr  X₃H_,qRRMVI,qX5,q  PRMV,q + XH 4,qtr  X₃H_,qRRMVI,qX3,q  X6,q

− PH RMV,qtr  X₅H_,qRRMVI,q  PRMV,q− PRMVH ,qtr  X₅H_,qRRMVI,qX3,q  X4,q + PH RMV,qtr  X₅H_,qRRMVI,qX5,q  PRMV,q − PH RMV,qtr  X₅H_,qRRMVI,qX3,q  X6,q+ X6H,qtr  X₃H_,qRRMVI,q  PRMV,q + XH 6,qtr  X₃H_,qRRMVI,qX3,q  X4,q − XH 6,qtr  X₃H_,qRRMVI,qX5,q  PRMV,q+ X6H,qtr  X₃H_,qRRMVI,qX3,q  X6,q + XH 2,qtr  H†_qRRMVI,q  H†_q H X2,q + XH 2,qtr  H†_qRRMVI,qX7,q  X8,q+ X8H,qtr  X₇H_,qRRMVI,q  H†_q H X2,q + XH 8,qtr  X₇H_,qRRMVI,qX7,q  X8,q  . (48)

Appendix D: Proof of Property 2

With (30), the interference power difference between MV-based and RMV-based schemes [14] can be addressed as iMV,q 2 F− iRMV,q 2 F≈ tr  ˆ W_MVH _,qRI,qWˆMV,q  − trWˆ_RMVH _,qRI,qWˆRMV,q  , (49) where (49) holds due to the neglect of the last term of RHS in (33) by applying the first-order approximation. According to the matrix inverse lemma [21], we have

 γ IMr−Nq + ˆB H qRI,qˆBq ₋₁ =ˆBH q RI,qˆBq ₋₁ −ˆBH q RI,qˆBq −1 γ−1_I Mr−Nq+  ˆBH q RI,qˆBq −1−1 ˆBH qRI,qˆBq −1 (50) where ˆBq is computed from ˆHqPqand thus we have

ˆA_RMV,q= ˆAq−  IMr−Nq+ γ−1ˆB H qRI,qˆBq ₋₁ ˆA_q, (51)

where the estimated adaptive matrix is obtained from the MV approach in imperfect CSI estimation given as ˆAMV,q = ˆAq =  ˆBH qRI,qˆBq ₋₁ ˆBH q RI,qˆHqPq. (52)

Based on (52), it implies that ˆ WRMV,q= ˆWMV,q+ ˆBq  IMr−Nq+ γ−1ˆB H q RI,qˆBq ₋₁ ˆAq. (53)

Substituting (53) to (49), we have iMV,q 2 F− iRMV,q 2 F≈ 2tr  ˆAH q RI,q  IMr−Nq + γ−1ˆB H q RI,qˆBq ₋₁ ˆAq  −tr  ˆAH q RI,q  IMr−Nq+ γ−1ˆB H qRI,qˆBq ₋₂ ˆAq  ≥ 0, (54)

where (54) holds due to tr{(IMr−Nq + κSHS)2} ≥ tr{IMr−Nq + κSHS} for κ ≥ 0 and SHS∈ R(Mr−Nq)×(Mr−Nq). With (31), signal power of MV-based scheme is equal to signal power of RMV-based scheme expressed as

WH RMV,qHqPRMV,qxq 2 F= WH MV,qHqPMV,qxq 2 F= HH qHq 2 F. (55)

Based on (54) and (55), SINRRMV,q≥ SINRMV,qis completely proofed.

References

1. Ko, Y., & Tepedelenlioglu, C. (2008). Distributed closed-loop spatial multiplexing for uplink multiuser systems. IEEE Transactions on Wireless Communications, 7(2), 470–474.

2. Lv, X., Zhang, T., Zeng, Z., & Wang, L. (2010). Uplink multi-user MIMO interference cancellation algorithm for LTE-A systems. In Proceedings of the IEEE ICIN (pp. VI-294-VI-297), Kunming, China. 3. Astély, D., Dahlman, E., Furuskär, A., Jading, Y., Lindstrom, M., & Parkvall, S. (2009). LTE: The evolution

of mobile broadband. IEEE Communications Magazine, 4, 44–51.

4. Lin, Z., Xiao, P., Vucetic, B., & Sellathurai, M. (2010). Analysis of receiver algorithms for LTE SC-FDMA based uplink MIMO systems. IEEE Transactions on Wireless Communications, 9(1), 60–65.

5. Farooq, K. (2009). LTE for 4G mobile broadband—Air interface technologies and performance. NY: Cambridge University Press.

6. Liu, W., Yang, L. L., & Hanzo, L. (2009). SVD-assisted multiuser transmitter and multiuser detector design for MIMO systems. IEEE Transactions on Vehicular Technology, 58(2), 1016–1021.

7. Wiesel, A., Eldar, Y. C., & Shamai, S. (2006). Linear precoding via conic optimization for fixed MIMO receivers. IEEE Transactions on Signal Processing, 54(1), 161–176.

8. Love, D. J., & Heath, R. W, Jr. (2005). Multimode precoding for MIMO wireless systems. IEEE

Trans-actions on Signal Processing, 53(10), 3674–3687.

9. Zhou, Z., & Vucetic, B. (2005). MIMO systems with adaptive modulation. IEEE Transactions on Vehicular

Technology, 54(5), 1828–1842.

10. Grossmann, M. (2009). SVD-based precoding for single carrier MIMO transmission with frequency domain MMSE turbo equalization. IEEE Transactions on Signal Processing Letters, 16(5), 418–421. 11. Botros Shenouda M., & Davidson, T. N. (2009). Convex conic formulations of robust downlink precoder

design with quality of service constraints. IEEE Journal on Selected Topics in Processing, 1(4), 714–724. 12. Shi, S., Schubert, M., & Boche, H. (2008). Downlink MMSE transceiver optimization for multiuser

MIMO system: MMSE balancing. IEEE Transactions on Signal Processing, 56(8), 3702–3712. 13. Bogale, T. E., Chalise, B. K., & Vandendorpe, L. (2011). Robust transceiver optimization for downlink

multiuser MIMO systems. IEEE Transactions on Signal Processing, 59(1), 446–453.

14. Lin, C. Y., Wu, J. Y., & Lee, T. S. (2007). Robust constrained-optimization-based linear receiver for high-rate MIMO-OFDM against channel estimation error. IEEE Transactions on Signal Processing, 55(6), 2628–2645.

15. Breed, B. R., & Strauss, J. (2002). A short proof of the equivalence of LCMV and GSC beamforming.

IEEE Transactions on Signal Processing, 9(6), 168–169.

16. Lloyd, S. (1982). Least squares quantization in pcm. IEEE Transactions on Information Theory, 28, 129–137.

17. Shahbazpanahi, S., Beheshti, M., Gershman, A. B., Gharavi-Alkhansari, M., & Wong, K. M. (2004). Minimum variance linear receivers for multiaccess MIMO wireless systems with space-time block coding.

IEEE Transactions on Signal Processing, 52(12), 3306–3313.

18. Rong, Y., Vorobyov, S. A., & Gershman, A. B. (2006). Robust linear receivers for multi-access space-time block coded MIMO systems: A probabilistically constrained approach. IEEE Journal on Selected Areas

19. Chong, E. K. P., & Zak, S. H. (2010). An introduction to optimization (3rd ed). New York: Wiley. 20. Meyr, H., Moeneclaey, M., & Fechtel, S. A. (1998). Digital communication receivers: Synchronization,

channel estimation signal processing. In Wiley series in telecommunications and signal processing. New York: Wiley.

21. Golub, G. H., & Van Loan, C. F. (1996). Matrix computations (3rd ed.). Baltimore: The Johns Hopkings University Press.

22. Vucic, N., Boche, H., & Shi, S. (2009). Robust transceiver optimization in downlink multiuser MIMO systems. IEEE Transactions on Signal Processing, 57(9), 3576–3587.

23. Pan, C. H., Lee, T. S., & Li, Y. (2007). An efficient near-ML algorithm with SQRD for wireless MIMO communications in metro transportation systems. In Proceedings of the IEEE ITSC (pp. 603–606), Seattle, WA, USA.

24. Islam, M. N., & Adve, R. (2011). Tranceiver design using linear precoding in a multiuser MIMO system with limited feedback. IET Journals in Communications, 5(1), 27–38.

25. Ubaidulla, P., & Chockalingam, A. (2009). Robust THP transceiver designs for multiuser MIMO downlink with imperfect CSIT. EURASIP Journal on Advances in Signal Processing, 2009, Article No. 8. 26. Hu, C.-C., & Yang, C.-L. (2011) Combined transceiver optimization for uplink multiuser MIMO with

limited CSI. ISRN Signal Processing 2011, Article ID 735695, 6 pp. doi:10.5402/2011/735695. 27. Otnes, R., & Tüchler, M. (2002). Soft iterative channel estimation for turbo equalization: Comparison

of channel estimation algorithm. In Proceeding of the international conference communications systems (pp. 72–76), Singapore.

Author Biography

Chien-Hung Pan received the B.S. degree in Department of Elec-tronic and Computer Engineering from National Taiwan University of Science and Technology, Taipei, Taiwan, 33 and the M.S. and Ph.D. degrees in Institute of Communications Engineering from National Chiao Tung University, Hsinchu, Taiwan. His current research focuses on multimode transmission, precoder selection and interference cancel-lation for wireless MIMO communication.
