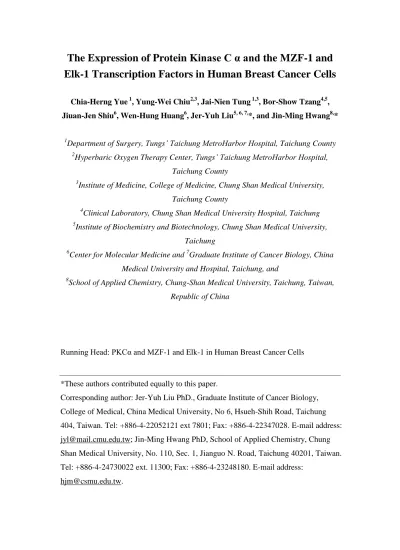

The Expression of Protein Ki
nas
e
C
α
and
the MZF-1 and
Elk-1 Transcription Factors in Human Breast Cancer Cells
Chia-Herng Yue1, Yung-Wei Chiu2,3, Jai-Nien Tung1,3, Bor-Show Tzang4,5, Jiuan-Jen Shiu6, Wen-Hung Huang6, Jer-Yuh Liu5, 6, 7,*, and Jin-Ming Hwang8,*
1
Department of Surgery, Tungs’Taichung MetroHarborHospital, Taichung County
2
Hyperbaric Oxygen Therapy Center, Tungs’Taichung MetroHarborHospital, Taichung County
3
Institute of Medicine, College of Medicine, Chung Shan Medical University, Taichung County
4
Clinical Laboratory, Chung Shan Medical University Hospital, Taichung
5
Institute of Biochemistry and Biotechnology, Chung Shan Medical University, Taichung
6
Center for Molecular Medicine and7Graduate Institute of Cancer Biology, China
Medical University and Hospital, Taichung, and
8
School of Applied Chemistry, Chung-Shan Medical University, Taichung, Taiwan, Republic of China
Running Head:PKCα and MZF-1 and Elk-1 in Human Breast Cancer Cells
*These authors contributed equally to this paper.
Corresponding author: Jer-Yuh Liu PhD., Graduate Institute of Cancer Biology, College of Medical, China Medical University, No 6, Hsueh-Shih Road, Taichung 404, Taiwan. Tel: +886-4-22052121 ext 7801; Fax: +886-4-22347028. E-mail address: [email protected]; Jin-Ming Hwang PhD, School of Applied Chemistry, Chung Shan Medical University, No. 110, Sec. 1, Jianguo N. Road, Taichung 40201, Taiwan. Tel: +886-4-24730022 ext. 11300; Fax: +886-4-23248180. E-mail address:
Abstract
The purpose of this study was to determine the correlation of the expression of PKCα with theexpressionsofElk-1 and MZF-1 in the various differentiated breast cancer cells: MDA-MB-231, Hs57BT, SKBR3, MDA-MB-468 and MCF-7 cells. The
malignant potential in the five breast cancer cells were examined by using cell
proliferation/migration/invasion assay and the protein and mRNA levelsofPKCα,
ElK-1, and MZF-1 were examined by Western blot and RT-PCR analysis,
respectively. The results showed that there were obvious signs of migration and
invasion of cells in MDA-MB-231 and Hs57BT cells, few signs of cell migration and
invasion in MDA-MB-468 cells, and no sign in SKBR3 and MCF-7 cells. Moreover,
the highest expression of PKCα, Elk-1, and MZF-1 were also observed in
MDA-MB-231 and Hs57BT cells when compared to the other breast cancer cell lines.
These findings confirm thattheelevated expression ofPKCα in breastcancercells
may be correlated with the potential of cell migration and invasion, and suggest an association between theexpression ofPKCα andthe expression of the transcription factors Elk-1 and MZF-1.
Introduction
Protein kinase C (PKC) is an important family of signaling molecules that regulate
the proliferation, differentiation, transformation, and apoptosis in cells (26). The ten PKC isoformsaredivided into conventional(cPKCs:α,βI,βII,and γ),novel(nPKCs: δ, ε, η, and θ), and atypical (aPKCs: ξ and ι/λ) subclasses, depending on their requirement for Ca2+, phosphatidylserine and diacylglycerol (29). The α-isoform of protein kinase C (PKCα) is widely expressed in tissues regulating apoptosis, proliferation, differentiation, migration, and adhesion (25). However, this isoform has
been suggested to play an important role in tumorigenesis, invasion, and metastasis (1,
12, 14, 16, 19, 22, 34, 35).In fact,overexpression ofPKCα hasbeen detected in
tissue samples of prostate, breast, high grade urinary bladder, and liver cancer by
immunohistochemistry (7, 15, 17, 32, 33).Activation ofPKCα hasalso been observed
in breast cancer cells as well as in breast tumor samples (3, 27), while other
researchers have instead found down-regulation of the PKCαprotein in breastcancer
(2, 13).Overexpression ofPKCα isassociated with decreased levelsoftheestrogen
receptors in breast cancer cells (35, 38), and causes human breast cancer cells to show
a more aggressive and metastatic phenotype, anchorage-independent growth in
soft-agar and tumorgenicity in nude mice(31). Moreover, patients with breast cancer showing aPKCδ+/PKCα
than patientswith thePKCδ+/PKCα+
phenotype (4). Therefore, it has been considered that PKCα represents an interesting and challenging research target into the development of new therapeutic agents.
Recently, our data from research into the cells of other organs has shown that the expression ofPKCα wasfound to behigher in the poorly differentiated hepatocellular carcinoma (HCC) cell lines (HA22T/VGH and SK-Hep-1) as compared with the well
differentiated ones, and theexpression ofPKCα was associated with the expressions
of Ets-like-protein 1 (ElK-1) and Myeloid Zinc Finger-1 (MZF-1) transcription
factors (9, 10, 11, 36, 37). The focus of this research is whether the correlation of PKCα with Elk-1 and MZF-1 is also found in breast cancer cells. In this study, the expression of PKCα in breast cancer cells with the potential of cell proliferation, migration, and invasion associated with the expression of the transcription factors is
Methods and Materials
Materials
Anti-Elk-1, anti-MZF-1 and β-actin polyclonal antibodies was bought from Santa Cruz Biotechnology, Inc. (Santa Cruz, CA). Horseradish peroxidase-labeled anti-mouse secondary antibody was purchased from Promega (Madison, WI). The polyclonal PKCα antibody is obtained from the rabbits since day 42 after immunization as described in previous study (32).
Cell culture
Five breast cancer cells are MDA-MB-231, Hs57BT, SKBR3, MDA-MB-468 and MCF-7 cells are purchased from the Bioresources Collection and Research Center, Food Industry Research and Development Institute (Hsinchu, Taiwan). These cell lines are cultured with their specific medium (Gibco BRL) supplemented with 10% fetal bovine serum (FBS), 100 units/ml penicillin G, and 100 µg/ml streptomycin (Sigma Chemicals Co., St. Louis, MO) in a humidified atmosphere containing 5% CO2at 37°C.
Cell proliferation assay
Cell proliferation is determined by the yellow tetrazolium MTT assay. The cells are seeded in 24-well plates at 1 × 104 cells/well and cultured in DMEM containing 10% FCS at 37°C overnight. These cells are treated with and without various plasmids and incubated for 24 or 48 hours. After incubation, the medium is replaced with fresh medium and the cells are incubated with 5 mg/mL MTT for 4 hours before
dissolving in 1 ml isopropanol for 10 minutes. The optical density at 570 nm is then measured using a spectrophotometer.
Migration assay
Migration assay is performed using the 48-well Boyden chamber (Neuro Probe, Gaithersburg, MD) plated with the 8-μm poresizepolycarbonatemembranefilters (Neuro Probe). The lower compartment is filled with DMEM containing 20 % FCS. Cells are placed in the upper part of the Boyden chamber and incubated for 12 hours, respectively. After incubation, the cells are fixed with methanol and stained with 0.05% Giemsa for 1 hour. The cells on the upper surface of the filter are removed with a cotton swab. The filters are then rinsed in distilled water until no additional stain leached. The cells are then air-dried for 20 minutes. The migratory phenotypes are determined by counting the cells that migrated to the lower side of the filter with microscopy at 200× magnification.
Invasion assay
Invasion assay is performed using a 48-well Boyden chamber with polycarbonate filters. The upper side is precoated with 10 μg/mL Matrigel (Collaborative Biomedical Products, Bedford, MA). Cells are placed in the upper part of the Boyden chamber and incubated at 37°C for 24 hours, respectively. The experimental procedures are the same as that in migration assay.
Western blot
The cultured cells are washed twice with PBS and then lysed with a lysing buffer containing 50 mM Tris/HCl (pH 7.4), 2 mM EDTA, 2 mM EGTA, 150 mM NaCl, 1 mM PMSF, 1 mM NaF, 1 mM sodium orthovanadate, 1% (v/v) 2-mercaptoethanol,
1% (v/v) Nonidet P40, and 0.3% sodium deoxycholate. The cell lysates are centrifuged at 12000×g and 4°C for 15 minutes. The supernatant is collected and the protein concentration is determined by the Bradford method. Equal amounts of protein extracts (50 µg) is subjected to 12.5% SDS-PAGE and blotted onto a polyvinylidene fluoride membrane (Millipore, Belford, MA). After blocking, the membrane is incubated with the specific anti-PKCα antibody (1:500), anti-Elk-1 (1:500), anti-MZF-1 (1:500) or β-actin antibody (1:2000). The blots are then incubated with HRP-conjugated anti-mouse or anti-rabbit antibody (1:3000) at room temperature for 2 hours. Proteins are detected by the enhanced chemiluminescence detection system (Amersham Pharmacia Biotech, Piscataway, NJ).
RNA isolation and RT-PCR analysis
Total RNA is isolated from cell specimens by the guanidinium
thiocyanate-phenol method. The extract integrity is assessed by 1.5% agarose gel electrophoresis and RNA is visualized by ethidium bromide staining. The total amount of RNA is determined spectrophotometrically. RT-PCR assay is performed according to De Petro et al.(6) with slight modifications. An aliquot of total RNA (1 µg) is reverse transcribed. The RT product (2 µL) is diluted with the PCR buffer (50 mM KCl, 10 mM Tris-HCl, and 2 mM MgCl2) to a final volume of 50 µL, containing 0.5 µM dNTPs (final concentration, 0.8 mM) and 0.5 unit of Super-Therm Taq DNA polymerase (Southern Cross Biotechnology, Cape Town, South Africa). PCR is performed on a GeneAmp PCR system 2400 (Applied Biosystems, Foster City, CA). The oligonucleotide primers used in RT-PCR are as described previously(11). The PCR products are analyzed by 1.5% agarose gel electrophoresis and direct visualization after SYBR Green I (Cambrex Bio Science Rockland, Inc., Rockland,
ME) staining. The agarose gels are scanned and analyzed using the Kodak Scientific 1D Imaging System (Eastman Kodak Company, New Haven, CT).
Statistical Analysis
Data were expressed as mean ± SEM and analyzed using analysis of variance (ANOVA). Student’s t-test was used in two-group comparisons. P<0.05 was considered to be statistically significant.
Results
Cell Proliferation, Migration, and Invasion
The malignant potential in the five breast cancer cells were examined by using cell proliferation/migration/invasion assay. In the results, the highest proliferation rate was exhibited by MCF-7 cells at a doubling time of 38.5 hours, and the slowest proliferation rate was exhibited by SKBR3 cells at a doubling time of 65.1 hours.
The results also show that the potentials of cell migration and invasion in MDA-MB-231 and Hs57BT cells were highest amongst the tested cells (Fig. 2 and 3). Furthermore, MDA-MB-468 cells have shown little signs of migration and invasion, while SKBR3 and MCF-7 cellsdidn’tshow any signsof migration.
ExpressionsofPKCα and Elk-1 and MZF-1
The protein levels ofPKCα,ElK-1 and MZF-1 were examined by using Western blot analysis. In the results, the PKCαexpressions were significantly higher in MDA-MB-231 and Hs57BT cells than those in the other three cells while PKCα expression in MDA-MB-468 and MCF-7 cells were not detected (Fig. 4). In RT-PCR assays, the mRNA expressions of PKCαin MDA-MB-231 and Hs57BT cells were also significantly higher than those in the other three cells (Fig 5). Statistical analysis of the above findings indicates that the expression of PKCa in breast cancer cell lines is significantly correlated with the potential of cell migration and invasion (P<0.05), but not with the rate of cell proliferation.
The ElK-1 and MZF-1 expressions were also the highest in MDA-MB-231 and Hs57BT cells (Fig. 4). In RT-PCR assays, the mRNA expressions of ElK-1 and MZF-1 were also the highest in MDA-MB-231 and Hs57BT cells, similar to the
results of PKCα(Fig 5). These results indicate that high expression ofPKCα genehas some correlation with the expression of Elk-1 and MZF-1 genes in human breast cancer cells.
Discussion
In thisstudy,wefound thatPKCα expression,cell migration, and cell invasion were significantly higher in MDA-MB-231 and Hs 578T cells than those in SKBR3, MDA-MB-468 and MCF-7 cells. These results indicate that the elevated expression of PKCα in MDA-MB-231 and Hs 578T cells may be correlated with the potential of cell migration and invasion. These phenomena were similar to a previous report done on Human HCC cells,which in theresultsalso showed increased PKCα expression as well as increased cell migration and invasion in poorly differentiated HA22T/VGH and SK-Hep-1 cells (11, 36). Moreover, many papers about experiments of the same nature havebeen published which show thatPKCα expression ismorepronounced in MDA-MB-231 when compared to MCF-7 and SKBR3 (18) and thatno PKCα was present in MDA-MB-468 (23). These results confirmed that PKCαlevelishigherin MDA-MB-231 than that in the other breast cancer cell lines (20, 21)
The significance of PKC expression and activity in breast cancer had been demonstrated in a previous study to be higher than that in normal breast tissue (8, 28). It was also shown that the increase in urokinase plasminogen activator (uPA) secretion level in MDA-MB-231 cells, correlated with cell migration and invasion (5), can be induced by PKCα activation (24, 30) through the AP-1 and NF-kappaB signal pathways and makes the cells estrogen receptor-negative, highly invasive, and chemotherapy-resistant. Moreover, when PKCα genes are transfected to nonmetastatic MCF-7 cells, a more aggressive neoplastic phenotype is produced, and an increase in uPA expression is observed (31, 35). The results of this study reveal thatPKCα expression iscorrelated with cellmigration and invasion in breastcancer and is in agreement with the studies mentioned above.
Our previous study showed that ElK-1 and MZF-1 expression were increased in poorly differentiated HCC cells and demonstrated that they were able to regulate PKCα expression (11). Similarly, the present data also shows that the expression of PKCα may beassociated with theexpression ofthetranscription factorsElk-1 and MZF-1, as both protein and mRNA expressions of PKCα, Elk-1 and MZF-1 in MDA-MB-231 and Hs57BT cells were significantly higher than those in the other three cells (Fig.4 and 5). These phenomena were confirmed by real-time RT-PCR analysis (data dot shown). Moreover, to confirm the connection between PKCα and the two transcription factors Elk-1 and MZF-1, a shRNA knockdown assay was performed and showed that the reduction of Elk-1 or MZF-1 expression in the MDA-MB-231 cell lines decreased the expression of PKCα(data not shown, in preparation for publication). These results indicate a significant relationship between the expression of the two transcription factors and PKCα in MDA-MB-231 cells and that high expression ofPKCα genein human breast cancer cells may be regulated by the Elk-1 and MZF-1 genes.
Acknowledgements
This work was supported by the grants from the National Science Council, Republic of China (NSC 98-2320-B-039-042-MY3) and from Chung Shan Medical University and Tungs’ Taichung MetroHarbor Hospital, Republic of China (CSMU–TTM-097-002), as well as by the Taiwan Department of Health Clinical Trial and Research Center of Excellence (DOH99-TD-B-111-004) and in part by the
Taiwan Department of Health Cancer Research Center of Excellence
References
1. Ahmad, S. and Glazer, R.I. Expression of the antisense cDNA for protein
kinase C alpha attenuates resistance in doxorubicin-resistant MCF-7 breast
carcinoma cells. Mol. Pharmacol. 43: 858-862, 1993
2. Ainsworth, P.D., Winstanley, J.H.R., Pearson, J.M., Bishop, H.M. and Garrod,
D.R. Protein kinase C alpha expression in normal breast, ductal carcinoma in
situ and invasive ductal carcinoma. Eur. J. Cancer 40: 2269-2273, 2004.
3. Ali, S., Al-Sukhun, S., El-Rayes, B., Sarkar, F., Heilbrun, L. and Philip, P.
Protein kinases C isozymes are differentially expressed in human breast
carcinomas. Life Sci. 84: 766-771, 2009.
4. Assender, J.W., Gee, J.M.W., Lewis, I., Ellis, I.O., Robertson, J.F.R. and
Nicholson, R.I., Protein kinase C isoform expression as a predictor of disease
outcome on endocrine therapy in breast cancer. Br. Med. J. 60: 1216-1221,
2007.
5. Blasi, F. Proteolysis, cell adhesion, chemotaxis, and invasiveness are regulated
by the u-PA-u-PAR-PAI-1 system. Thromb. Haemost. 82(2): 298-304, 1999.
6. De Petro, Tavian, G., D., Copeta, A., Portolani, N., Giulini, S. and Barlati, S.
and tissue-type PA messenger RNAs in human hepatocellular carcinoma.
Cancer Res. 58: 2234-2239, 1998.
7. Fournier, D.B., Chisamore, M., Lurain, J.R., Rademaker, A.W., Jordan, V.C.
and Tonetti, D.A. Protein kinase C alpha expression is inversely related to ER
status in endometrial carcinoma: possible role in AP-1-mediated proliferation
of ER-negative endometrial cancer. Gynecol. Oncol. 81: 366-372, 2001.
8. Gordge, P.C., Hulme, M.J., Clegg, R.A. and Miller, W.R. Elevation of protein
kinase A and protein kinase C activities in malignant as compared with normal
human breast tissue. Eur. J. Cancer 32: 2120-2126, 1996.
9. Hsieh, Y.H., Wu, T.T., Huang, C.Y., Hsieh, Y.S. and Liu, J.Y. Suppression of
tumorigenicity of human hepatocellular carcinoma cells by antisense
oligonucleotide MZF-1. Chin. J. Physiol. 50: 9-15, 2007.
10. Hsieh, Y.H., Wu, T.T., Huang, C.Y., Hsieh, Y.S., Hwang, J.M. and Liu, J.Y.
p38 Mitogen-Activated Protein Kinase Pathway Is Involved in Protein Kinase
Cα-Regulated Invasion in Human Hepatocellular Carcinoma Cells. Cancer
Res. 67: 4320-4327, 2007.
11. Hsieh, Y.H., Wu, T.T., Tsai, J.H., Huang, C.Y., Hsieh, Y.S. and Liu, J.Y.
PKCα expression regulated by Elk-1 and MZF-1 in human HCC cells.
12. Jiang, X.H., Tu, S.P., Cui, J.T., Lin, M., Xia, H.H.X., Wong, W.M., Chan,
A.O.O., Yuen, M.F., Jiang, S.H. and Lam, S.K. Antisense Targeting Protein
Kinase C α and β 1 Inhibits Gastric Carcinogenesis. Cancer Res. 64(16):
5787-5794, 2004.
13. Kerfoot, C., Huang, W. and Rotenberg, S.A. Immunohistochemical analysis of
advanced human breast carcinomas reveals downregulation of protein kinase
C α. J. Histochem. Cytochem. 52: 419-422, 2004.
14. Koivunen, J., Aaltonen, V., Koskela, S., Lehenkari, P., Laato, M. and Peltonen,
J. Protein Kinase Cα/β Inhibitor Go6976 Promotes Formation of Cell
Junctions and Inhibits Invasion of Urinary Bladder Carcinoma Cells. Cancer
Res. 64: 5693-5701, 2004.
15. Koren, R., Ben Meir, D., Langzam, L., Dekel, Y., Konichezky, M., Baniel, J.,
Livne, P.M., Gal, R. and Sampson, S.R. Expression of protein kinase C
isoenzymes in benign hyperplasia and carcinoma of prostate. Oncol. Rep. 11:
321-326, 2004.
16. Lahn, M., Kohler, G., Sundell, K., Su, C., Li, S., Paterson, B.M. and Bumol,
T.F. Protein kinase C alpha expression in breast and ovarian cancer. Oncology
17. Langzam, L., Koren, R., Gal, R., Kugel, V., Paz, A., Farkas,A., and Sampson,
S.R., Patterns of protein kinase C isoenzyme expression in transitional cell
carcinoma of bladder. Am. J. Clin. Pathol. 116: 377-385, 2001.
18. Lindemann, R.K., Braig, M., Ballschmieter, P., Guise, T.A., Nordheim, A. and Dittmer,J.Protein kinaseCα regulatesEts1 transcriptionalactivity in invasive breast cancer cells. Int. J. Oncol. 22: 799-805, 2003.
19. Liu, B., Maher, R.J., Hannun, Y.A., Porter, A.T. and Honn, K.V. 12 (S)-HETE
enhancement of prostate tumor cell invasion: selective role of PKC alpha. J.
Natl. Cancer Inst. 86: 1145-1151, 1994.
20. Lonne, G., Cornmark, L., Zahirovic, I., Landberg, G., Jirstrom, K. and Larsson,
C. PKCαexpression isamarkerforbreastcanceraggressiveness. Mol. Cancer,
9:76, 2010.
21. Magnifico, A., L. Albano, S. Campaner, M. Campiglio, S. Pilotti, S. Menard, and E. Tagliabue, Protein Kinase Cα determines HER2 fate in breast carcinoma cells with HER2 protein overexpression without gene amplification.
Cancer Res. 67: 5308-5317, 2007.
22. Mandil, R., Ashkenazi, E., Blass, M., Kronfeld, I., Kazimirsky, G., Rosenthal,
KinaseCα and Protein KinaseCδ Play OppositeRolesin theProliferation and Apoptosis of Glioma Cells. Cancer Res. 61: 4612-4619, 2001.
23. Mao, M., Fang, X., Lu, Y., Lapushin, R., Bast Jr, R.C. and Mills, G.B.
Inhibition of growth-factor-induced phosphorylation and activation of protein
kinase B/Akt by atypical protein kinase C in breast cancer cells. Biochem. J.
352: 475-482, 2000.
24. Morse-Gaudio, M., Connolly, J.M. and Rose, D.P. Protein kinase C and its
isoforms in human breast cancer cells: relationship to the invasive phenotype.
Int. J. Oncol. 12: 1349-1354, 1998.
25. Nakashima, S. Protein kinase Cα(PKC α):regulation and biologicalfunction.
J. Biochem. 132: 669-675, 2002.
26. Newton, A.C. Protein kinase C: structure, function, and regulation. J. Biol.
Chem. 270: 28495-284958. 1995.
27. Ng, T., Squire, A., Hansra, G., Bornancin, F., Prevostel, C., Hanby, A., Harris,
W., Barnes, D., Schmidt, S. and Mellor, H. Imaging protein kinase Calpha
activation in cells. Science 283: 2085-2089, 1999.
28. O'Brian, C.A., Vogel, V.G., Eva Singletary, S. and Ward, N.E. Elevated
protein kinase C expression in human breast tumor biopsies relative to normal
29. Ohno, S. and Nishizuka,Y. Protein kinase C isotypes and their specific
functions: prologue. J. Biochem. 132: 509-511, 2002.
30. Sliva, D., English, D., Lyons, D. and Lloyd, F.P. Protein Kinase C Induces
Motility of Breast Cancers by Upregulating Secretion of Urokinase-Type
Plasminogen Activator through Activation of AP-1 and NF-κB. Biochem.
Biophys. Res. Commun. 290: 552-557. 2002
31. Sun, X.G. and Rotenberg, S.A. Overexpression of protein kinase Calpha in
MCF-10A human breast cells engenders dramatic alterations in morphology,
proliferation, and motility. Cell growth differ. 10: 343-352, 1999.
32. Tsai, J.H., Tsai, M.T., Su, W.W., Chen, Y.L., Wu, T.T., Hsieh, Y.S., Huang,
C.Y., Yeh, K.T. and Liu, J.Y. Expression of protein kinase C alpha in biopsies
and surgical specimens of human hepatocellular carcinoma. Chin. J. Physiol.
48: 139. 2005
33. Varga, A., Czifra, G., Tallai, B., Nemeth, T., Kovacs, I., Kovacs, L. and Biro,
T. Tumor grade-dependent alterations in the protein kinase C isoform pattern
in urinary bladder carcinomas. Eur. Urol. 46: 462-465. 2004
34. Wang, X.Y., Repasky, E. and Liu, H.T. Antisense Inhibition of Protein Kinase Cα ReversestheTransformed Phenotype in Human Lung Carcinoma Cells. Exp. Cell Res. 250: 253-263. 1999
35. Ways, D.K. and Kukoly, C.A. MCF-7 breast cancer cells transfected with
protein kinase C-alpha exhibit altered expression of other protein kinase C
isoforms and display a more aggressive neoplastic phenotype. J. Clin. Invest.
95: 1906. 1995
36. Wu, T.T., Hsieh, Y.H., Hsieh, Y.S. and J.Y. Liu, Reduction of PKCα
decreases cell proliferation, migration, and invasion of human malignant
hepatocellular carcinoma. J. Cell. Biochem. 103(1): 9-20. 2008
37. Ying, T.H., Hsieh, Y.H., Hsieh, Y.S. and Liu, J.Y. Antisense oligonucleotide
Elk-1 suppresses the tumorigenicity of human hepatocellular carcinoma cells.
Cell Biol. Int. 32: 210-216. 2008
38. Zhang, Y., Zhao, H., Asztalos, S., Chisamore, M., Sitabkhan, Y. and Tonetti,
D. Estradiol-Induced Regression in T47D: A18/PKCalphaTumors Requires
the Estrogen Receptor and Interaction with the Extracellular Matrix. Mol.
Legends
Fig. 1. Cell growth in five breast cancer cells. Cell growth was determined 1~4 days
after subculture using the MTT assay as described in Materials and Methods.
Absorbance values obtained from untreated cells on day 0 after subculture were taken
as 100%. Data are presented as means±SE of three replicates from three independent
experiments.
Fig. 2. Cell migration (A) and Statistical analysis (B) of cell migration in five breast
cancer cells. The migration assays were performed on cell cultures as described in
Materials and Methods. Data are presented as means±SE of three replicates from
three independent experiments.
Fig. 3. Cell invasion (A) and statistical analysis (B) in five breast cancer cells. The
invasion assays were performed on cell cultures as described in Materials and
Methods. Data are presented as means±SE of three replicates from three independent
experiments.
Fig. 4.TheexpressionsofPKCα and two transcription factorsin fivebreastcancer cells. The protein levels of PKCα, Elk-1, and MZF-1 were detected by Western blotting as described in Materials and Methods. β-actin was used as an internal
Fig. 5.ThemRNA ofPKCα and two transcription factorsin fivebreastcancercells. The mRNA levels of PKCα, Elk-1, and MZF-1 were detected by RT-PCR as described in Materialsand Methods.Β2-MG was used as an internal control.
