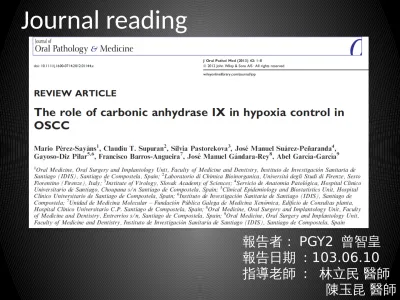

Journal reading
報告者: PGY2 曾智皇 報告日期 : 103.06.10 指導老師 : 林立民 醫師 陳玉昆 醫師
1. Introduction
2. CA-IX expression and prognosis in OSCC 3. CA-IX expression in other HNSCCs
4. Relationship between CA-IX and
chemoresistance or radioresistance
5. The relationship between CA-IX and other molecules
6. Role of CA-IX as therapeutic target against cancer
7. Conclusions
1. Introduction
2. CA-IX expression and prognosis in OSCC 3. CA-IX expression in other HNSCCs
4. Relationship between CA-IX and
chemoresistance or radioresistance
5. The relationship between CA-IX and other molecules
6. Role of CA-IX as therapeutic target against cancer
7. Conclusions
Introduction
• Hypoxia and tumor cell proliferation
determine response to surgery, CT, and RT
• Tumor hypoxia
a. The promotion of genetic instability b. The invasive capacity of tumor cells c. Metastasis
d. Worsening of the clinical evolution
loss of the apoptotic capacity of cells
• Among the hypoxia markers, we will focus on the exogenous hypoxia markers, mainly 2-
nitroimidazole, pimonidazole, and EF-5
• In addition to exogenous markers, there are endogenous hypoxia markers, controlled by hypoxia-related genes, formed by HIF-1
• HIF-1
a. Related to the von Hippel-Lindau (vHL) tumor suppressor protein during oncogenesis
b. Controls several target genes that involve the energy metabolism, angiogenesis (VEGF) and transmembrane carbonic anhydrases (CAs)
• CAs are transmembrane Zn metalo-enzymes
catalyze reversible hydration of carbon dioxide in carbonic acid
involved in respiration and acid-base equilibrium
• CA-IX and CA-XII are the two tumor-related carbonic anhydrases
• CA-IX is largely expressed in tumor cell lines and shows moderate-low expression in a
healthy gastrointestinal tract
• CA-IX expression has been thoroughly described in different tumors
however, this has not been so for head and neck carcinomas
1. Introduction
2. CA-IX expression and prognosis in OSCC 3. CA-IX expression in other HNSCCs
4. Relationship between CA-IX and
chemoresistance or radioresistance
5. The relationship between CA-IX and other molecules
6. Role of CA-IX as therapeutic target against cancer
7. Conclusions
1. Introduction
2. CA-IX expression and prognosis in OSCC 3. CA-IX expression in other HNSCCs
4. Relationship between CA-IX and
chemoresistance or radioresistance
5. The relationship between CA-IX and other molecules
6. Role of CA-IX as therapeutic target against cancer
7. Conclusions
• Hoogsteen et al 2005
a. Analyzed CA-IX expression and IdUrd in a series of 60 HNSCC cases, including 3 OSCC cases
b. Joint expression of CA-IX and IdUrd
responsible for repopulation and disease progression
• Le et al 2007
a. Elevated correlation of hypoxia levels and CA- IX
b. CA-IX not related to any of the prognostic variables
• Kaanders et al 2002
a. Studied distribution of pimonidazole and CA- IX
b. Patients with hypoxic tumors and low
vascular density showed worse locoregional control
Although no relation was found between CA-IX expression and treatment outcome
• HNSCCs
a. Hypoxic tumors by definition
b. Frequently diagnosed in very advanced stages
c. In HPV-positive cases that normally have better prognosis
• Brockton et al 2011
Showed that a high stromal expression of CA- IX is related to a reduced average survival in p16-negative tumors
• Kong et al 2009
a. 44% (36 of 82) HNSCC cases under study presented a strong HPV pyrosequencing signal
b. No relation with tumor hypoxia and CA-IX expression
1. Introduction
2. CA-IX expression and prognosis in OSCC 3. CA-IX expression in other HNSCCs
4. Relationship between CA-IX and
chemoresistance or radioresistance
5. The relationship between CA-IX and other molecules
6. Role of CA-IX as therapeutic target against cancer
7. Conclusions
• Koukourakis et al 2001
a. CA-IX expression (26.6%, 20 of 75) takes place mainly in tumors with low
vascularization (CD-31), necrosis areas
b. CA-IX expression related to a poor overall response
These results were confirmed by Jonathan et al and Beasley et al
• Bhattacharya et al 2004
a. HNSCC xenograf
b. Lack of microvessels in well-differentiated
areas of the xenograf related to hypoxia and positive for CA-IX
a limited use of chemotherapeutic drugs resistance to Irinotecan therapy
c. Hypoxia promoted the creation of resistant cell subpopulations
• Chintala et al 2010
a. The effect of Se-methylselenocysteine in HNSCC cell lines and xenografs
b. In cells and hypoxic areas, the combination of both drugs
1. reduced HIF-1a levels 2. lowered CA-IX levels
• Zheng et al 2010
a. Transformed an OSCC into PYM resistant and crossresistant to paclitaxel, Adriamycin, mitomycin
b. Application of CA inhibitor, acetazolamide, and CA-IX silencing with oligonucleotides PH ↑ in resistant cells
increase of chemosensitivity to PYM
Eriksen et al 2007
a. CA-IX as prognostic marker in a series of 320 HNSCCs undergoing radiotherapy +
nimorazole
b. CA-IX is not related to any clinical and pathological, prognostic parameters
• Patients treated with ARCON vs. conventional surgery ± radiotherapy
the hypoxia and vascula density levels have no influence on treatment response
• Jonathan et al 2006
Relationship between CA-IX and the lack of locoregional control
disappears when tumors are treated with ARCON
*accelerated radiotherapy combined with carbogen and nicotinamide
Koukourakis et al 2006
Joint expression of HIF-2a and CA-IX is responsible for poor CHART results
* Continuous hyperfractionated accelerated radiotherapy
1. Introduction
2. CA-IX expression and prognosis in OSCC 3. CA-IX expression in other HNSCCs
4. Relationship between CA-IX and
chemoresistance or radioresistance
5. The relationship between CA-IX and other molecules
6. Role of CA-IX as therapeutic target against cancer
7. Conclusions
HIF
• HIF-1a transcription is the regulating factor in cellular response to hypoxia
• In the case of OSCC, HIF-1a prevents apoptosis of tumor cells
• Zhu et al 2010 OSCC cell lines are cultivated with 1% O2 expression of mRNA CA-IX is
regulated by HIF-1a
• Chintala et al 2010
Application of Se-methylselenocysteine combined with irinotecan
HIF-1a ↓ CA-IX ↓
• Koukourakis et al
a. CA-IX expression worse survival rates b. HIF-2a worse locoregional control
c. Joint expression provoked an additive effect
confirm relation between both markers
• Eckert et al 2010 HIF-1a & CA-IX
a. low expression of both proteins survived an average of 54.8 months
b. high HIF-1a and low CA-IX expression survived an average of 37.6 months;
tumor-related death risk was 4.97-fold
• Roh et al 2009
Statistically significant relationship between CA-IX and HIF-1a and HIF-2a
• Winter et al
Not confirm a positive correlation with HIF-1a nor HIF-2a
Ki-67
• Kim et al 2007 CA-IX & Ki-67
a. Correlation between both b. Established three patterns:
(1) high risk (elevated CA-IX ⁄ Ki-67)
(2) low risk (low CA-IX ⁄ Ki- 67)
(3) moderate risk (one of the two is elevated)
The high-risk group was an independent prognostic factor for average survival and disease-free survival
• Kondo et al 2011
no relationship between Ki-67 expression and CA-IX
GLUT-1
• Schutter et al 2005 CA-IX & GLUT-1 (glucose transporter-1)
a. CA-IX expression was not related to 1. any of the clinical, pathological, or prognostic parameters
2. the expression of GLUT-1
• Kondo et al 2011 & Jonathan et al 2006
not found relation between GLUT-1 expression and CA-IX
Erythropoietin (Epo) and erythropoietin receptor (EpoR)
• Winter et al 2005
a. Tried to link tumor hypoxia and its main marker, CA-IX, with Hb, Epo, and EpoR
b. Positive correlation in CA-IX and Epo, but not EpoR
c. No correlation between Hb and Epo or EpoR
Other molecules
• Le et al 2007
significant relationship between intense CA-IX expression and hypoxia-related proteins:
BNIP3L, LOX, CTGF, Ephrin A1, GAL-1
• Le et al 2007
Positive correlation between the expression of CA-IX and Galectin-1 and their relation with
treatment outcome
• Silva et al 2010
Co-expression of CA-IX and MVP (major vault protein) confers tumors a significantly lesser chance of locoregional control
• Gee et al 2010
a. Abnormally high levels of microRNA hsa-miR- 210 in 46 HNSCC patients
b. Statistically significant relationship between hypoxia markers such as HIF-1a, the TWIST1 gene, and CA-IX
c. Locoregional recurrence with a smaller average survival
• Schutter et al 2006
a. Analyzing the relation between micro- satellite alterations and HNSCC tumor hypoxia
b. LOH (loss of heterozygosity) is very frequent in regions close to p53, specifically in
D17S799, in patients that simultaneously showed high CA-IX expression
supporting the theory of the relationship between p53 and hypoxia
1. Introduction
2. CA-IX expression and prognosis in OSCC 3. CA-IX expression in other HNSCCs
4. Relationship between CA-IX and
chemoresistance or radioresistance
5. The relationship between CA-IX and other molecules
6. Role of CA-IX as therapeutic target against cancer
7. Conclusions
• CA-IX and XII are predominantly found in tumor cells
• Hydrating carbon dioxide to protons and
bicarbonate, these CAs contribute significantly to the extracellular acidification of solid
tumors
• CA-IX is overexpressed in many tumors in response to the HIF pathway
• Design campaigns of inhibitors against this novel, recently validated antitumor target
• Obtaining compounds that specifically target the tumor-associated isoforms CA-IX and XII
• Coumarin and thiocoumarins are the most important such new CAIs
Lou Y et al 2011
Pacchiano F et al 2011
• The most interesting CAIs reported to date are the ureido-sulfonamide and the glycosyl
coumarin (low nanomolar CA-IX selective inhibitors)
which strongly inhibit the growth of both primary tumors and metastases in several animal models of breast cancer
• Similar animal model of breast cancer cell lines which does not express CA-IX has been used as negative control
no effects on the growth of the tumors have been evidenced afer treatment with sulfonamide ⁄ coumarin CAIs
demonstrated the potential of CA-IX inhibition for designing antitumor ⁄
antimetastatic agents possessing a novel mechanism of action
Zatovicova M et al 2010
• M75 is a highly specific anti-CA-IX mAb targeting the PG domain of CA-IX
used in immunohistochemical and western blot studies for evidencing CA-IX
Siebels M et al 2011
• WX-G250 (Girentuximab) is another anti-CA-IX chimeric monoclonal antibody in phase III
clinical trials as adjuvant therapy for the treatment of non-metastasized RCC
• Tumor-associated CAs are indeed almost ideal targets for designing novel and innovative
anticancer drugs
• Interfere with tumor acidification by a
mechanism of action not yet exploited by the classical cytostatic drugs
1. Introduction
2. CA-IX expression and prognosis in OSCC 3. CA-IX expression in other HNSCCs
4. Relationship between CA-IX and
chemoresistance or radioresistance
5. The relationship between CA-IX and other molecules
6. Role of CA-IX as therapeutic target against cancer
7. Conclusions
• Hypoxia in solid tumors is a decisive factor for the outcome of HNSCCs
• Hypoxia in solid tumors with chemoresistance and the failure of radiotherapy, both
conventional and concomitant, in which CA-IX seems to play an important role
• Several mAbs (girentuximab, and its 124I- radiolabelled variant) targeting CA-IX
in advanced clinical trials both for a. treatment
b. imaging of hypoxic tumors overexpressing this enzyme
• Two small molecule CA-IX inhibitors 1. sulfonamide
2. glycosyl coumarin
both for imaging and treatment of solid tumors and metastases in which CA-IX is present
• Further studies of these tumors are needed to confirm
a. the use of CA-IX as a prognostic marker b. evaluate its possible inhibition with
minimal adverse effects
c. reducing the risk of metastasis
d. favoring the action of chemotherapeutic drugs and radiotherapy
