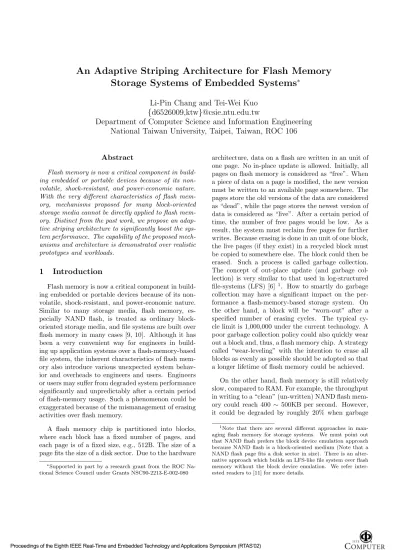

An Adaptive Striping Architecture for Flash Memory
Storage Systems of Embedded Systems
∗Li-Pin Chang and Tei-Wei Kuo
{d6526009,ktw}@csie.ntu.edu.tw
Department of Computer Science and Information Engineering
National Taiwan University, Taipei, Taiwan, ROC 106
Abstract
Flash memory is now a critical component in build-ing embedded or portable devices because of its non-volatile, shock-resistant, and power-economic nature. With the very different characteristics of flash mem-ory, mechanisms proposed for many block-oriented storage media cannot be directly applied to flash mem-ory. Distinct from the past work, we propose an adap-tive striping architecture to significantly boost the sys-tem performance. The capability of the proposed mech-anisms and architecture is demonstrated over realistic prototypes and workloads.
1
Introduction
Flash memory is now a critical component in build-ing embedded or portable devices because of its non-volatile, shock-resistant, and power-economic nature. Similar to many storage media, flash memory, es-pecially NAND flash, is treated as ordinary block-oriented storage media, and file systems are built over flash memory in many cases [9, 10]. Although it has been a very convenient way for engineers in build-ing up application systems over a flash-memory-based file system, the inherent characteristics of flash mem-ory also introduce various unexpected system behav-ior and overheads to engineers and users. Engineers or users may suffer from degraded system performance significantly and unpredictably after a certain period of flash-memory usage. Such a phenomenon could be exaggerated because of the mismanagement of erasing activities over flash memory.
A flash memory chip is partitioned into blocks, where each block has a fixed number of pages, and each page is of a fixed size, e.g., 512B. The size of a page fits the size of a disk sector. Due to the hardware
∗Supported in part by a research grant from the ROC
Na-tional Science Council under Grants NSC90-2213-E-002-080
architecture, data on a flash are written in an unit of one page. No in-place update is allowed. Initially, all pages on flash memory is considered as “free”. When a piece of data on a page is modified, the new version must be written to an available page somewhere. The pages store the old versions of the data are considered as “dead”, while the page stores the newest version of data is considered as “live”. After a certain period of time, the number of free pages would be low. As a result, the system must reclaim free pages for further writes. Because erasing is done in an unit of one block, the live pages (if they exist) in a recycled block must be copied to somewhere else. The block could then be erased. Such a process is called garbage collection. The concept of out-place update (and garbage col-lection) is very similar to that used in log-structured file-systems (LFS) [6] 1. How to smartly do garbage collection may have a significant impact on the per-formance a flash-memory-based storage system. On the other hand, a block will be “worn-out” after a specified number of erasing cycles. The typical cy-cle limit is 1,000,000 under the current technology. A poor garbage collection policy could also quickly wear out a block and, thus, a flash memory chip. A strategy called “wear-leveling” with the intention to erase all blocks as evenly as possible should be adopted so that a longer lifetime of flash memory could be achieved.
On the other hand, flash memory is still relatively slow, compared to RAM. For example, the throughput in writing to a “clean” (un-written) NAND flash mem-ory could reach 400 ∼ 500KB per second. However, it could be degraded by roughly 20% when garbage
1Note that there are several different approaches in
man-aging flash memory for storage systems. We must point out that NAND flash prefers the block device emulation approach because NAND flash is a block-oriented medium (Note that a NAND flash page fits a disk sector in size). There is an alter-native approach which builds an LFS-like file system over flash memory without the block device emulation. We refer inter-ested readers to [11] for more details.
collection happens. If there is significant locality in writes, the overheads of garbage collection could be much higher because of wear-leveling. The through-put could even deteriorate down to less than 50% of the original performance. The performance under the current flash memory technology might not satisfy ap-plications which demand a higher write throughput.
The purpose of this paper is to investigate the per-formance issue of flash-memory storage systems with a striping architecture. The idea is to use I/O paral-lelism in speeding up a flash-memory storage system. As astute readers may notice, such an approach in I/O parallelism could not succeed without further investi-gation on garbage collection issues. In this paper, we shall propose an adaptive striping mechanism designed for flash-memory storage system with the considera-tion of garbage collecconsidera-tion.
In the past few years, researchers [1, 5, 7] have started investigating the garbage collection problems of flash-memory storage systems with a major ob-jective in reducing both the number of erasings and the number of live-page copyings. In particular, Kawaguchi and Nishioka [1] proposed a greedy pol-icy and a cost-benefit polpol-icy. The greedy polpol-icy al-ways recycles the block with has the largest number of dead pages. The cost-benefit policy assigns each block a value and runs a value-driven garbage collec-tion policy. Kawaguchi and Nishioka observed that with the locality of the access pattern, garbage collec-tion could be more efficient if live-hot data could be avoided during the recycling process, where hot data are data which are frequently updated. Chiang, et al. [7] improved the garbage collection performance by adopting a better hot-cold identification mecha-nism. Douglis, et al. [4] observed that the overhead of garbage collection could be significantly increased when the capacity utilization of flash memory is high, where the capacity utilization denotes the ratio of the number of live pages and the number of total pages. For example, when the capacity utilization was in-creased from 40% to 95%, the response time of write operations may drop by 30%, and the lifetime of a flash memory chip may be reduced up to a third. Chang and Kuo [3] investigated the performance guarantee of garbage collection for flash memory for hard real-time systems. A greedy-policy-based real-time garbage col-lection mechanism was proposed to provide a deter-ministic performance.
Distinct from the past work, we focus on the ar-chitecture of a flash-memory storage system. A joint striping and garbage-collection mechanism for a
flash-memory storage system is proposed with the objective to significantly boost the performance. We propose to adopt a striping architecture to introduce I/O paral-lelism to flash-memory storage systems and an adap-tive bank assignment policy to capture the character-istics of flash memory. We formulate a simple and effective garbage collection policy for striping-based flash-memory storage systems and investigate the ef-fects of striping on garbage collection. The contribu-tions of this paper are as follows:
• We propose a striping architecture to introduce I/O parallelism to flash-memory storage systems. Note that storage systems are usually the slowest systems for many embedded application systems. • We propose an adaptive striping-aware bank as-signment method to improve the performance of garbage collection.
• We investigate the tradeoff of striping and garbage collection to provide insight for system design.
The rest of this paper is organized as follows: In Section 2, the motivation of this paper is presented, and the architecture of a striping NAND-flash storage system is introduced. Section 3 presents our adaptive striping architecture. The proposed policy is evalu-ated by a series of experiments over realistic workloads in Section 4. Section 5 briefly introduces our policy for garbage collection. Section 6 is the conclusion.
2
Motivation and System Architecture
NAND flash is one kind of flash memory specially designed for block storage systems of embedded sys-tems. Most flash-memory storage systems, such as SmartmediaT M, and CompactF lashT M, now adopt NAND flash. The operation model of NAND flash, in general, consists of two phases: setup and busy phases. For example, the first phase (called “setup” phase) of a write operation is for command setup and data transfer. The command, the address, and the data are written to proper registers of flash memory in order. The second phase (called “busy” phase) is for busy-waiting of the data being flushed into flash memory. The operation of reads is similar to that of writes, except that the sequence of data transfer and busy-waiting is inverted. The phases of an erase is as the same as those of a write, except that no data trans-fer is needed in the setup phase. The control sequence of read, write, and erase are illustrated in Figure 1(a).
Cmd Busy READ Data Cmd Busy WRITE Data Cmd Busy ERASE (a) Bank 1 Setup busy Bank 0 Setup busy Setup busy Setup busy
(b)
Figure 1: (a) Control Sequences of Read, Write, and Erase. (b) Parallelism for Multiple Banks.
Interval Documented (µs) Measured (µs)
Esetup 0.25 31 Ebusy 2,000 1,850 Wsetup 26.65 616 Wbusy 200 303 Rsetup 26.55 348 Rbusy 10 Negligible
Table 1: NAND-Flash Performance (Samsung K9F6408U0A 8MB NAND flash memory)
The purpose of this paper is to investigate the performance issue of NAND-flash storage systems for embedded applications because of the popularity of NAND flash. While the setup phase of an operation is done by a driver and consumes CPU time, CPU is basically free during the busy phase. Because of the design of NAND flash, the busy phase of a write (/ an erase) usually takes a significant portion of time for each operation, compared to the elapsed time of the first phase. The performance characteristics of a typical NAND flash over an ISA bus is summarized in Table 1, where Wsetup (/Rsetup/Esetup) and Wbusy(/ Rbusy / Ebusy) denote the setup time and the busy time of a write (/read/erase), respectively.
The motivation of this research is to investigate the parallelism of multiple NAND banks to improve the performance of flash-memory storage systems, where a bank is a flash unit that can operate independently (Note that a dedicated latch and a decode logic are needed for each independent bank.). When a bank operates at the busy phase, the system can switch im-mediately to another bank such that multiple banks can operate simultaneously, whenever needed, to in-crease the system performance, as shown in Figure 1(b). For example, a write request, which consists of 3 pages writes, needs 3*(606+303) = 2,727 µs to com-plete without striping. But it requires only 3*606+303 = 2,121 µs to complete if we have two independent banks. As a result, the response time is reduced by 23%. Note that Ebusy is far more than Esetup over an ISA-based NAND flash. When a higher speed bus
Garbage Collection AP Address Translation Striped Write #2Striped Write #2 Striped Write #1Striped Write #1 Flash Memory Banks FTL driver File system (FAT, ext2...)
MTD driver fwrite(file,data) Block write (LBA,size) flash write (bank,block,page) Control signals AP AP AP
Multi-banked Flash Memory Driver
Figure 2: System Architecture.
other than ISA is adopted, Wsetup and Esetup (and
Rsetup) could be much reduced, and we surmise that
the performance of the system can be further improved under the idea of striping. As astute readers may no-tice, performance improvement will be much more sig-nificant if Wsetup < Wbusy, since a higher parallelism can be achieved.
An ordinary NAND-flash storage system consists of a NAND-flash bank, a Memory-Technology-Device (MTD) driver, and a Flash-Translation-Layer (FTL) driver, where a MTD driver provides functionality such as read, write, and erase. A FTL driver provides transparent access for file systems and user applica-tions via block device emulation. When a striping NAND-flash storage system is considered, the MTD and FTL drivers must be re-designed accordingly to take advantage of multiple banks. The system archi-tecture is illustrated in Figure 2. The modification of a MTD driver can be done straightforwardly: Basically, a MTD driver may no longer block and wait for the completion of any write or erase because several banks are now available. We shall discuss it again later. The major challenges of a striping architecture are on the FTL driver. In this paper, we will address this issue and propose our approaches for striping-aware garbage collection.
3
An Adaptive Striping Architecture
In this section, a multi-bank address translation scheme is presented, and then different striping poli-cies for the proposed striping architecture are pre-sented and discussed.
User Area Spare Area spare LBA= 3; ECC=...; Status=...; . . . . . . LBA (array index) Physical address (bank,block,page) physical address (bank,block,page) Access LBA = 3
Address Translation Table
(In RAM) Flash memory 0,0,0 0,0,1 0,0,2 0,0,3 0,0,4 0,0,5 0,0,6 0,0,7 0,1,0 0,1,1 0,1,2 0,1,3 0,0,3 0,0,1 0,0,6 0,0,4 0,4,7 0,1,0 1,2,1 0,1,2 2,1,3 0 1 2 3 4 5 6 7 8 9 10 11
Figure 3: Address Translation Mechanism.
3.1
Multi-Bank Address Translation
The flash-memory storage system provides the file system a collection of logical blocks for reads/writes. Each logical block is identified by a unique logical block address (LBA). Note that each logical block is stored in a page of flash memory. Because of the adop-tion of out-place update and garbage collecadop-tion, the physical location of a logical block might change from time to time. For the rest of this paper, when we use the term “logical block”, it is for a logical block viewed by the file system. When we say “block”, we mean the block of flash memory, where a block consists of a fixed number of pages, and each page can store one logical block.
In order to provide transparent data access, a dy-namic address translation mechanism is adopted in the FTL driver. The dynamic address translation is usually accomplished by using an address translation table in main memory, e.g., [1, 5, 7, 9]. In our multi-bank storage system, each entry in the table is a triple (bank num, block num, page num), indexed by LBA. Such a triple indicates that the corresponding logical block resides at Page page num of Block block num of Bank bank num. In a typical NAND flash memory, a page consists of a user area and a spare area, where the user area is for the storage of a logical block, and the spare area stores the corresponding LBA, ECC, and other information. The status of a page can be either “live”, “dead”, or “free” (i.e., “available”). Whenever a write is processed, the FTL driver first finds a free page and then writes the written data and the cor-responding LBA to the user area and the spare area, respectively. The pages store the old versions of data of the written logical block (if it exists) are considered as “dead”. The address translation table is updated
accordingly. Whenever a system is powered up, the address translation table is re-built by scanning the spare area of all pages. As an example shown in Fig-ure 3, when a logical block with LBA 3 is accessed, the corresponding table entry (0,0,6) shows that the logi-cal block resides at the 7th page (i.e., (6+1)th page) of the first block on the first bank.
3.2
Bank Assignment Policies
Three kinds of operations are supported on flash memory: read, write, and erase. Reads and erases do not need any bank assignment because they are al-ready stored in specific locations. Writes would need a proper bank assignment policy to utilize the paral-lelism of multiple banks. When the FTL driver re-ceives a write request, it will break the write into a number of page writes. There are basically two types of striping for write requests: static and dy-namic striping:
Under the static striping, the bank number of each page write is derived based on the corresponding LBA of the page as follows:
Bank address = LBA % (number of banks)
The formula is close to the definition of RAID-0. Each sizable write is striped across banks “evenly”. However, the static bank assignment policy could not actually provide even usages of banks, as shown in the experimental results in Section 4.2. As a result, a sys-tem adopts the static bank assignment policy might suffer from a large number of data copyings (and thus a degraded performance level) and different wearing-out time for banks because of the characteristics of flash. The phenomenon is caused by two reasons: (1) the locality of write requests, and (2) the uneven ca-pacity utilization distribution among banks.
To explain the above phenomenon, we shall first define that an LBA is “hot” if it is frequently written; otherwise the LBA is “cold” (we may refer written data as hot data if their corresponding LBA’s are hot for the rest of this paper). Obviously, hot data will be invalidated sooner than cold data do, and they usu-ally left dead pages on their residing banks. Since a static bank assignment policy always dispatches write requests to their statically assigned banks, some par-ticular banks might have many hot data on them. As a result, those banks would need to do a lot of garbage collecting. On the other hand, the banks which have a lot of cold data on them would have a high capacity utilization, since cold data would reside on their
as-signed banks for a longer period of time. Due to the uneven capacity distribution among banks, the per-formance of garbage collection on each bank may also vary since the performance highly depends on the ca-pacity utilization [4, 6].
To resolve the above issue, we propose a dynamic bank assignment policy as follows: When a write re-quest is received by the FTL driver, we propose to scatter page writes of the write request over banks which are idle and have free pages. The parallelism of multiple banks is achieved by switching over banks without having to wait for the completion of issued page-writes. The general mechanism is to choose an idle bank that has free pages to store the written data. One important guideline is to further achieve the “fair-ness” of bank usages by analyzing the attributes (hot or cold) of the written data: Before a page write is assigned a bank address, the attributes of the written data must be identified. We propose to write hot data to the bank that has the smallest erase-count (which is number of erases ever performed on the bank) for the consideration of wear-leveling, since hot data will contribute more live page copyings and erases to the bank. The strategy in writing hot data prevents hot data from clustering on some particular banks. On the other hand, cold data are written to the bank that has the lowest capacity utilization to achieve a more even capacity utilization over banks. The strategy in writ-ing cold data intends to achieve a more even capac-ity utilization distribution since cold data will reside at their written locations for a longer period of time. Because flash memory management already adopts a dynamic address translation scheme, it is very easy and intuitive to implement a dynamic bank assign-ment policy in FTL. We shall explore the performance issues of the above two policies in Section 4.2.
3.3
Hot-Cold Identification
As we mentioned in the pervious section, we need to identify the attributes of the written data. The pur-pose of this section is to propur-pose a hot-cold identifica-tion mechanism. Note that the hot-cold identificaidentifica-tion mechanism does not intend to capture the whole work-ing set. Instead, the mechanism aims at analyzwork-ing if the requested LBA’s are frequently written (updated). The proposed hot-cold identification mechanism consists of two fixed-length LRU lists of LBA’s, as shown in Figure 4. When the FTL driver receives a write request, the two-level list will examine each LBA associates with the write to determine the “hotness” of the written data: If a LBA already exists in the
New element with LBA is added if the LBA does not exist in any list. Element is discarded if the
candidate list is full.
Element is promoted if the LBA already exists in the
candidate list. Element is demoted if
the hot list is full.
Candidate list Hot list
Figure 4: Two-Level LRU Lists.
first-level LRU list, i.e., the hot list, then the data is considered hot. If the LBA does not exist in the hot list, then the data is considered cold. The second-level list, called the candidate list, stores the LBA’s of recently written data. If a recently written LBA is written again in a short period of time, the LBA is considered hot, and it is promoted from the candidate list to the hot list. If the hot list is already full (when a LBA is promoted from the candidate list to the hot list), then the last element of the hot list is demoted to the candidate list. If the promoted LBA already ex-ists in the hot list, it will be moved to the head of the hot list. Under the two-level list mechanism, we only need to keep tracks of hot LBA’s, which is a relatively small subset of all possible LBA’s [2]. This mecha-nism is very efficient and the overhead is very low, compared with the mechanism proposed in [7] which always keeps the last access time of all LBA’s.
4
Experimental Results
A multi-bank NAND-flash prototype was built to evaluate the proposed adaptive striping architecture. Since the performance of garbage collection highly de-pends on the locality of access pattern, we evaluated the prototype under three different access patterns: trace-driven, sequential, and random. The traces of the trace-driven access pattern were collected by emu-lating web-surfing applications over a portable device, and the characteristics of the traces are shown in Ta-ble 2. Sequential and random access patterns were generated by modifying the requested LBA’s of the gathered traces. Other parameters (arrival time, re-quest size, etc.) remained the same. In the following experiments, the trace-driven access pattern was used unless we explicitly specified which one was used. The capacity of the NAND-flash-based storage system was set as 8MB, the block size of the flash memory chips was 16KB, and the number of banks varied over ex-periments. The performance of the evaluated NAND flash memory (e.g., the setup time and the busy time
of operations) is summarized in Table 1. Note that some of the experiments were performed over a soft-ware simulator when the hardsoft-ware was not available. For example, those experiments require a NAND flash memory which had a block size equal to 8KB.
The primary performance metrics of the experi-ments is on the soft real-time performance of the flash-memory embedded systems, e.g., the average response time of write requests. We shall measure the effi-ciency of striping, although the average response time of writes also indirectly reflects that of reads. As as-tute readers may point out, the performance improve-ment of striping could be even more significant if the performance metrics also consider the response time of reads because the intervals of Rsetup and Rbusy are more close (see documented figures in Table 1), compared to those of Wsetup and Wbusy. The ratio-nale behind this measurement is to provide an explicit impacts of striping on the system performance over writes (which are much slower than reads) and also to reflect the efficiency of garbage collection, because it introduces live page copyings.
Another performance metric is the number of live page copyings because it directly reflects the perfor-mance of garbage collection. A fewer number of live page copyings indicates the better efficiency of garbage collection and a smaller number of block erasings. A small number of block erasings implies the better en-durance of flash memory and a less impact on writes’ response time. Note that we did not measure the blocking time of flash-memory access here because the performance of the systems in handling flash-memory access could be observed by the primary performance metrics, i.e., response time of write requests.
The performance evaluation consisted of two parts: The first part evaluated the performance improvement of the proposed striping architecture under different bank configurations. The second part evaluated the performance of the proposed dynamic bank ment policy versus a RAID-similar static bank assign-ment policy.
4.1
Performance of the Striping
Architec-ture
Under a striping architecture, the performance im-provement depended on the degree of parallelism be-cause a higher degree indicated a higher concurrency of operations and a better throughput. This part of the experiments evaluated the performance improve-ment of the proposed striping architecture under
dif-File system FAT32
Applications Web Browser & Email Client
Sector Size/Page Size 512 Bytes
Duration 3.3 Hours
Final Capacity Utilization 71% (Initially Empty)
Total Data Written 18.284 MB
Read / Write Ratio 48% / 52%
Mean Read Size 8.2 Sectors
Mean Write Size 5.7 Sectors
Inter-Arrival Time Mean: 32 ms
Standard Deviation: 229 ms
Locality 74-26 (74% of Total Requests
Access 26% of Total LBA’s)
Length of the Two- 512 (Hot) / 1024 (Candidate)
Level LRU List

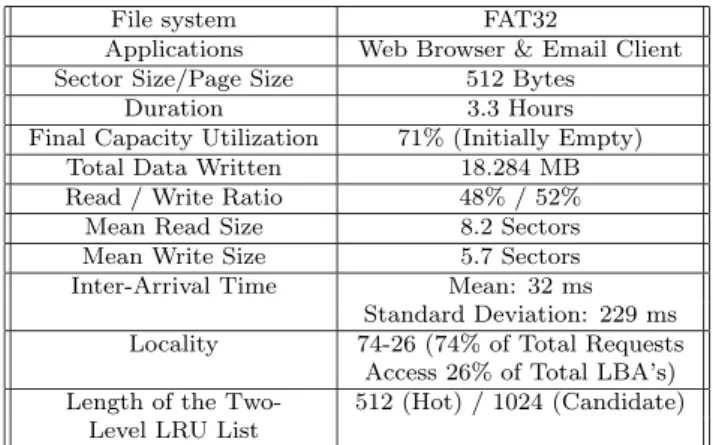

Table 2: Characteristics of Traces.
ferent bank configurations. We must point out that the setup time of an operation implied the best par-allelism we can achieve under a striping architecture. The setup time depended on the hardware interface we used to communicate with the flash memory, and a shorter setup time implied a potentially higher de-gree of parallelism because the system could switch over banks quickly. In this part of performance eval-uation, we used typical NAND-flash over an ISA bus with characteristics shown in Table 1. When a higher performance bus such as PCI is used, we surmise that the performance improvement of a striping architec-ture could be even more significant.
Figure 7(a) shows the average response time of writes under various numbers of banks of an 8MB-flash storage system. The X-axis reflects the number of write requests processed so far in the experiments. The first experiment measured the performance im-provement by increasing the numbers of banks in the experiments. Figure 7(a) shows that the system per-formance was substantially improved when the num-ber of banks increased from one to two because of more parallelism in processing operations. However, when the number of banks increased from two to four, the improvement was not so significant because Wsetup was larger than Wbusy. Note that the garbage collec-tion started happening after 3,200 write requests were processed in the experiments (due to the exhaustion of free pages). As a result, there was a significant performance degradation after the garbage collection activities began. Additionally, we also evaluated the performance of the cost-benefit policy [1] in the one-bank (not striped) experiments to make a performance comparison. The results showed that our system had a shorter response time than the cost-benefit policy did after the garbage collection activities began, even
8MB flash, Block Size = 16KB
Ba
Write 10 sectors Write 10 sectors
4MB flash, Block Size = 16KB Bb1 Write 5 sectors 4MB flash, Block Size = 16KB Bb0 Write 5 sectors (a) (b)
Figure 5: An Example of 10-Sector Writes with/without Striping.
the striping mechanism was not activated. It demon-strated that our garbage collection policy was also very efficient. We shall discuss our garbage collection pol-icy in Section 5.
Figure 7(b) shows the number of live page copy-ings during garbage collection. The larger number of live page copyings, the more system overheads were. Note that a write request might consist of one or more page writes. Therefore, in the one-bank experiment (as shown in Figure 7(b)), the system wrote 37,445 pages (≈ 18MB, please see Table 2) , and made copies of 5,333 pages for garbage collecting. We should point out that Figure 7(b) reveals the tradeoff between strip-ing and garbage collection: We observed that a system with a large number of banks could have a large num-ber of live page copyings. The tradeoff had a direct im-pact on the performance of the 4-banks experiments, as shown in Figure 7(a): That is, the average response time of the 4-bank system was a little bit longer than that of the 2-bank system after 8,000 write requests were performed. To identify the cause of the phe-nomenon, we provide an example as shown in Figure 5 for explanation:
In Figure 5(a), 10 pages were written to a 8MB flash bank called Ba. If the 8MB flash bank was split into two 4MB flash banks, and a striping architecture was adopted, 5 pages would be written to each of Bb0 and Bb1, as shown in Figure 5(b). Although the bank size (and the amount of data written to Bb0 and Bb1) were reduced by a half, however, the block size remained 16KB. Theoretically, we could consider that the block size of Bb0 and Bb1 as being doubled. The garbage collection performance would be degraded when the block size increased, as reported in [4, 7], since poten-tially more live pages could be involved in the recy-cling of blocks. Such a conjecture could be proved by observing the live-page copyings under striping when the page size was 8KB (a half of 16KB), as shown in Figure 7(b).
As shown in Figure 7(b), the extra live page copy-ings could be removed by using a NAND flash memory which has a smaller block size. However, the block size of a typical NAND flash memory currently in market is 16KB. Another approach to remove the extra live page copyings is to lower the overall capacity utilization of the flash memory. For example, with 1MB extra free space added, the number of live page copying of a 4-bank system is significantly reduced. As a result, we concluded that when several banks were adopted to-gether without fixing the size of a flash-based storage system, the system performance improvement would be much more significant because the number of live page copyings might not increase under the new con-figuration.
Figure 7(c) shows the software-simulated perfor-mance improvement of striping when a more efficient bus was adopted for NAND-flash storage systems. We reduced the Wsetup from 606us to 50us and remained Wbusy as 303us (as shown in Table 1), where the doc-umented Wsetup was those shown on the data sheet [8], and 606us was that measured on our prototype. It was shown that the performance improvement of 4-bank striping was now much more than that of 2-4-bank striping, as shown in Figure 7(a), because a higher parallelism was possible.
4.2
Performance under Different Bank
Assignment Policies and Workloads
The second part evaluated the performance of the proposed dynamic bank assignment policy versus a RAID-similar static bank assignment policy under dif-ferent numbers of banks.
Figure 7(d) shows the performance of the flash memory storage system under the static bank assign-ment policy and the dynamic bank assignassign-ment pol-icy. The X-axis reflects the number of write requests processed so far in the experiments. The garbage col-lection started happening after 3,200 writes were pro-cessed in the experiments. When garbage collection started happening (after 3,200 write requests), the dy-namic bank assignment policy greatly outperformed the static bank assignment policy. The rapid perfor-mance deterioration of the static bank assignment pol-icy was because of the uneven usages of banks. Figure 7(e) shows the erase count and the capacity utilization of each bank of a 4-bank system. We could observe that the dynamic bank assignment policy could pro-vide a more even usages of banks. A better perfor-mance was delivered, and a longer overall lifetime of flash memory banks could be provided.
Experiments were also performed to compare the performance of different policies under different ac-cess patterns. Two additional acac-cess patterns were evaluated: a random access pattern and a sequential access pattern. The experiments were performed on a 4-bank system, and the results are presented in Fig-ure 7(f). Under the sequential access pattern, there was no noticeable performance difference between the dynamic bank assignment policy and the static bank assignment policy. That was because data were se-quentially written and invalidated. Under the random access pattern, since data were written and invalidated randomly, the performance of the garbage collection was pretty poor. But the dynamic bank assignment policy flexibly dispatched page writes among banks, as a result, the dynamic bank assignment policy outper-formed the static bank assignment policy under the random access pattern.
5
Remark: Garbage Collection Issues
A flash memory storage system could not succeed without the support of a good garbage collection pol-icy. In our system, we implemented a hot-cold aware garbage collection policy to incorporate with the pro-posed striping mechanism, by fully utilizing the hot-cold identification mechanism described in Section 3.3. We shall discuss important issues for garbage collec-tion in this seccollec-tion.
5.1
Hot-Cold Separation
Any block in flash memory may be erased to recy-cle dead pages in the block if any available space is needed. During the recycling process, any live pages in the block must be copied to some available space. Pages that store hot data usually have a high chance to become dead in the near future. As a result, an efficient garbage collection policy must prevent from copying hot-live data. It is necessary to identify the “hotness” of data and store them at proper place so that the copying of hot-live pages can be minimized. An improper placement of hot data could result in a serious degradation of the system performance. In this section, we shall introduce a separation policy in locating pages for hot and cold data.
The bank assignment policy (please see Section 3.2) determines which bank the write will be used, and the block assignment policy determines which block the write will be used. The purpose of the hot-cold separa-tion policy is to propose a hot-cold aware block assign-ment policy. In order to reduce the possibility in
mix-Hot pointer Cold pointer Hot pointer Cold pointer Hot pointer Cold pointer Hot pointer Cold pointer
A write request consists of 4 page writes
1 Grid = 1 Block, 32 Pages
= Block has no free pages = Block has free pages
Figure 6: Hot-Cold Data Separation with Hot/Cold Pointers.
Page Attribute Cost Benefit Hot (live) 2 0 Cold (live) 2 1
Dead 0 1
Free N/A N/A
Table 3: The Cost and Benefit Functions of Pages
ing hot and cold data inside the same block, we pro-pose to store hot data and cold data separately. Each bank is associated with two pointers: “hot pointer” and “cold pointer”. The hot pointer points to a block (called hot block) that is currently being used to store hot data. The cold pointer points to the block (called cold block) that is currently being used to store cold data. The proposed method in the separation of hot and cold data is illustrated in Figure 6. An experiment was performed over a 4-bank system without the the hot-cold identification and separation mechanism. As shown in Figure 7(b), the mechanism did substantially reduce the number of live page copyings for garbage collection.
5.2
A Block-Recycling Policy
A highly efficient cost-benefit policy for block re-claiming is proposed in this section. Distinct from the cost-benefit policies proposed in the previous work, e.g., [1, 7]2, the value (called “weight” in our system) of each block is only calculated by integer operations in this paper. The adoption of integer operations in a cost-benefit policy is very useful in some embedded system without any floating-point support.
When a run of garbage collection begins, the weight
2The cost-benefit value is calculated by age∗(1−u)
2u in [1] and
u+c 1−u in [7].
of each block is calculated by the attributes of each page in the block. The weight is calculated by the following formula:
weight =ni=1(benef it(pi)− cost(pi))
The block with the largest weight should be recy-cled first, where n is the number of pages in a block, and Piis the i−th page in the block. Functions Cost() and Benef it() of pages are shown in Table 3. During block recycling, the handling of a live page consists of one read and one write, and the cost of a live page is defined as 2, regardless of whether the data on the page is hot or cold. Here 2 stands for the cost of the read and the write of live page copying. As we pointed out earlier, the copying of a live-hot page is far uneconomic than the copying of a live-cold page. As a result, we set the benefit of copying a live-cold page and a live-hot page as 1 and 0, respectively. The benefit of the reclaiming of a dead page is one because one free page is reclaimed. It’s cost is zero because no page copying is needed. Note that a free page is not entitled for reclaiming. The weight calculation of blocks can be done incrementally when the attribute of pages changes (e.g., from live to dead).
6
Conclusion
This paper proposed a dynamic striping architec-ture for flash memory storage systems with the ob-jective to significantly boost the performance. Dis-tinct from the past work, we focus on the architec-ture of a flash memory storage system. We propose to adopt a striping architecture to introduce I/O paral-lelism to flash-memory storage systems and an adap-tive bank assignment policy to capture the charac-teristics of flash memory. We formulate a simple but effective garbage collection policy with an objective to reduce the overheads of value-driven approaches and to investigate the tradeoff of striping and garbage col-lection to provide insight for further system design. The capability of the proposed methodology was eval-uated over a multi-bank NAND flash prototype, for which we have very encouraging results.
For future work, we shall further explore flash mem-ory storage architectures, especially over interrupt-driven frameworks. With interrupt-interrupt-driven flash con-trollers, an even more independent and large scale system architecture is possible in the future. More research in these directions may be proved very re-warding.
Acknowledgements
We would like to thank Samsung Electronics Com-pany and M-System for their kindly providing us the NAND flash evaluation board and the related circuit design example, and Pou-Yuan Technology Corp. for her technical support.
References
[1] A. Kawaguchi, S. Nishioka, and H. Motoda,“A Flash Memory based File System,” Proceedings of the USENIX Technical Conference, 1995. [2] C. Reummler and J, Wilkes, “UNIX disk
ac-cess patterns,” Proceedings of USENIX Technical Conference, 1993.
[3] L. P. Chang, T. W. Kuo,“A Real-time Garbage Collection Mechanism for Flash Memory Storage System in Embedded Systems,” The 8th Interna-tional Conference on Real-Time Computing Sys-tems and Applications, 2002.
[4] F. Douglis, R. Caceres, F. Kaashoek, K. Li, B. Marsh, and J.A. Tauber, “Storage Alterna-tives for Mobile Computers,” Proceedings of the USENIX Operating System Design and Imple-mentation, 1994.
[5] M. Wu, and W. Zwaenepoel, “eNVy: A Non-Volatile, Main Memory Storage System,” Pro-ceedings of the 6th International Conference on Architectural Support for Programming Lan-guages and Operating Systems, 1994.
[6] M. Rosenblum, and J. K. Ousterhout, “The De-sign and Implementation of a Log-Structured File System,” ACM Transactions on Computer Sys-tems, Vol. 10, No. 1, 1992.
[7] M. L Chiang, C. H. Paul, and R. C. Chang, “Manage flash memory in personal communicate devices,” Proceedings of International Sympo-sium on Consumer Electronics, 1997.
[8] Samsung Electronics Company,“K9F6408U0A 8Mb*8 NAND Flash Memory Datasheet”. [9] SSFDC Forum, ”SmartMediaT M Specification”,
1999.
[10] Compact Flash Association, “CompactF lashT M 1.4 Specification,” 1998.
[11] Journaling Flash File System (JFFS) and Journaling Flash File System 2 (JFFS2), http://sources.redhat.com/jffs2/jffs2-html/
0 5,000 10,000 15,000 20,000 25,000 30,000 35,000 40,000 1600 2400 3200 4000 4800 5600 6400 7200 8000 8800 Write Requests Processed So Far
W
rite Request Response Time (us)
4 Banks 2 Banks 1 Bank
Cost-Benefit Policy (Un-Striped)
0 2,000 4,000 6,000 8,000 10,000 12,000 14,000 16,000 800 1600 2400 3200 4000 4800 5600 6400 7200 8000 8800 Write Requests Processed So Far
Number of Live-Page Copyings
4 Banks, Block Size=16K 2 Banks, Block Size=16K 1 Banks, Block Size=16K 2 Banks, Block Size=8K(simulated) 4 Banks, 1MB extra space(simulated) 4 Banks, no Hot-Cold 0 2,000 4,000 6,000 8,000 10,000 12,000 14,000 1600 2400 3200 4000 4800 5600 6400 7200 8000 8800 Write Requests Processed So Far
W
rite Request Response Time (us)
4 Banks 2 Banks 1 Bank 0 5,000 10,000 15,000 20,000 25,000 30,000 35,000 40,000 45,000 1600 2400 3200 4000 4800 5600 6400 7200 8000 8800 Write Request Processed So Far
W
rite Request Response Time (us)
8 Banks, Dynamic 4 Banks, Dynamic 8 Banks, Static 4 Banks, Static 0 5,000 10,000 15,000 20,000 25,000 30,000 35,000 40,000 45,000 1600 2400 3200 4000 4800 5600 6400 7200 8000 8800 Write Request Processed So Far
W
rite Request Response Time (us) Dynamic, Random Static, Random
Dynamic, Sequential Static, Squential
(a)Average Response Time of Writes under Different Bank Configurations
(b)Performance of Garbage Collection under Different Bank Configurations
(c)Performance Improvement with Less Flash Setup Time (Simulation).
(d) Average Response Time of Writes under Different Bank Assignment Policies
(f)Average Response Time of Writes under Different Access Patterns and Bank Assignment Policies (A 4-Bank
System).
Bank 0 Bank 1 Bank 2 Bank 3 Erase counts (Dynamic) 350 352 348 350 Erase counts (Static) 307 475 373 334 Capacity Utilization (Dynamic) 0.76 0.76 0.76 0.76 Capacity Utilization (Static) 0.72 0.81 0.77 0.74
(e)The Usages of Banks under the Dynamic and Static Bank Assignment Policy (A 4-Bank System).
