JOURNAL OF LIGHTWAVE TECHNOLOGY, VOL. 22, NO. 6, JUNE 2004 1583
Design and Analysis of
Separate-Absorption-Transport-Charge-Multiplication
Traveling-Wave Avalanche Photodetectors
Jin-Wei Shi, Yin-Hsin Liu, and Chee-Wee Liu, Senior Member, IEEE
Abstract—This paper proposes a novel type of avalanche photodiode—the separate-absorption-transport-charge-multipli-cation (SATCM) avalanche photodiode (APD). The novel design of photoabsorption and multiplication layers of APDs can avoid the photoabsorption layer breakdown and hole-transport prob-lems, exhibit low operation voltage, and achieve ultra-high-gain bandwidth product performances. To achieve low excess noise and ultra-high-speed performance in the fiber communication regime (1.3 1.55 m), the simulated APD is Si-based with an SiGe–Si superlattice (SL) as the photoabsorption layer and traveling-wave geometric structures. The frequency response is simulated by means of a photo-distributed current model, which includes all the bandwidth-limiting factors, such as the dispersion of microwave propagation loss, velocity mismatch, boundary reflection, and multiplication/transport of photogenerated carriers. By properly choosing the thicknesses of the transport and multiplication layers, microwave propagation effects in the traveling-wave structure can be minimized without increasing the operation voltage significantly. A near 30-Gb/s electrical bandwidth and 10 avalanche gain can be achieved simultaneously, even with a long device absorption length (150 m) and low operation voltage ( 12 V). In addition, the ultrahigh output saturation power bandwidth product of this simulated TWAPD structure can also be expected due to the large photoabsorption volume and superior microwave-guiding structure.
Index Terms—Avalanche photodetector, avalanche photodiode (APD), high gain-bandwidth-product avalanche photode-tector, high-saturation-power photodetector, Si–SiGe-based photodetector, Si–SiGe-based superlattice (SL), traveling-wave photodetector, ultra-high-speed photodetector.
I. INTRODUCTION
T
HE rapid growth in Internet traffic has created an urgent need to increase the channel bandwidth capacity of fiber-optic communication systems. As a key component in these transmission systems, ultra-high-speed photodetectors are able to not only increase the transmission capability in a single channel, but also reduce the required number of channels and complexity of management in a wavelength-division-mul-tiplexing (WDM) fiber communication system [1]. ThereManuscript received May 29, 2003; revised February 4, 2004. This work was supported in part by the National Science Council of Taiwan under Grant NSC 92-2218-E-008-011.
J.-W. Shi is with the Department of Electrical Engineering, National Central University, Taoyuan 320, Taiwan (e-mail: [email protected]).
Y.-H. Liu and C.-W. Liu are with the Department of Electrical Engineering and the Graduate Institute of Electronic Engineering, National Taiwan Univer-sity, Taipei 10617, Taiwan, and also with the Electronics Research and Ser-vice Organization (ERSO), Industrial Technology Research Institute (ITRI), Hsinchu 31040, Taiwan.
Digital Object Identifier 10.1109/JLT.2004.829230
are two major trends in the development of these high-speed photodetectors: 1) to obtain high-bandwidth-efficiency (sensi-tivity) products and 2) to improve the saturation output current under intense light illumination [2]. To achieve high-band-width-efficiency product performance, avalanche photodiodes (APDs) are preferred due to their internal gain and high sensi-tivity as compared with p-i-n photodiodes [3]–[6]. Ultra-high gain-bandwidth products with low excess noise performance of APDs have been demonstrated [4], [7] by optimizing the material [7], [8] or epilayer structures [4], [9], [10] of the mul-tiplication layers. To obtain a high output saturation current, several photodetector technologies based on properly designed edge-coupled structures have been demonstrated to enhance power-bandwidth products. By reducing the optical modal ab-sorption constant [11] or by achieving uniform photoabab-sorption [12] in edge-coupled structures with long device-absorption lengths, the output saturation current can be improved in a waveguide photodetector (WGPD) or traveling-wave photode-tector (TWPD) [11], [13]. To avoid serious electrical bandwidth degradation in these devices having large areas (length), su-perior microwave-guiding electrode structures are necessary. Recently, record-high-peak output-power-bandwidth-product performance has been achieved by metal–semiconductor–metal TWPD structures [14].
In this paper, we propose a novel type of avalanche photo-detector with a traveling-wave geometric structure, i.e., separate-absorption-transport-charge-multiplication (SATCM) traveling-wave avalanche photodiode (TWAPD). By incor-porating novel epilayer structures of APDs and the geometry structure of the TWPD, the proposed devices can achieve supe-rior microwave-guiding property, large photoabsorption volume with high power-bandwidth product, and high-gain-band-width-product performances. The photo-distributed current model is used to simulate the frequency response of the de-vice [15]. This model can easily take into account all the microwave propagation effects and the internal response time of photogenerated carriers [15], and its accuracy has also been verified by means of experiments [16]. The modeled epilayer structures of APDs are Si-based with an SiGe–Si superlattice (SL) photoabsorption layer for telecommunication wavelength (1.3 1.55 m) applications [17], [18]. Conventional Si-based APDs exhibit much lower multiplication noise, shorter multi-plication time, and larger gain-bandwidth product [7], [8], [19] than III–V-based APDs, because Si has very dissimilar electron ( ) and hole ( ) impact ionization coefficients, and the ratio ( ) of these coefficients is the lowest among any reported

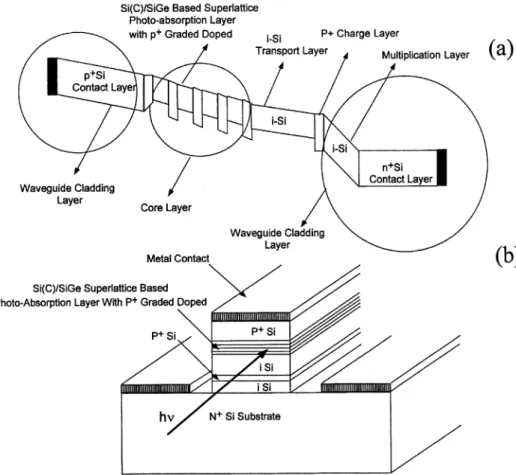

Fig. 1. (a) Conceptual band diagram and (b) cross-sectional view of the Si(C)–SiGe-based SATCM TWAPD.
semiconductor materials [19]. However, the wide absorption bandgap ( 1.1 m) of Si prevents it from being applied to long-wavelength (1.3 1.55 m) optical communications. Re-cently, several research groups have demonstrated the excellent noise and gain-bandwidth-product (GBP) performance of In-GaAs–Si-heterostructure-based APDs by using a wafer-bonding technique in the long-optical-communication-wavelength regime [7], [8], [19]. The incorporation of the SiGe alloy on the Si substrate is another way to achieve long-wavelength absorp-tion in Si-based photodetectors [17], [18], [20]–[26]. However, the demonstrated quantum efficiency of these photodetectors is much lower than the reported values of III–V-based photode-tector’s due to the relatively small photoabsorption constant of the strained SiGe alloy and the critical thickness constraint. The drawback of a small photoabsorption constant can be com-pensated by properly increasing the device-absorption length in the edge-coupled structure [18], [21]–[23], [27]. In addition, the low optical modal absorption constant also implies a more uniform and diluted photoabsorption process, lower density of photogenerated carriers, and higher output saturation power [11], [13], [27], [28]. According to our simulation results, this novel structure can exhibit 30-Gb/s electrical bandwidth and 10 avalanche gain simultaneously under low oper-ation voltage ( 12 V) even with a long absorption length (150 m). The proposed device structure and the implication of the simulation results in this paper can not only be applied to the example Si–SiGe-based APD, but also serve as general guide-lines for designing III–V-based TWAPDs or waveguide APDs
(WGAPDs) [29]–[31] with long device length, high-speed and high-saturation output power, and low operation voltage.
II. DEVICESTRUCTURE
The conceptual band diagram and cross-sectional view of the proposed device are shown in Fig. 1(a) and (b), respectively. All of the important parameters used in our simulation are given in Table I. As shown in Fig. 1(b), three metal electrodes collect the photocurrent and act together as a coplanar waveguide (CPW) to support a photo-excited microwave-guiding mode. The optical wave-guiding structure is implemented using a ridge optical waveguide as in regular p-i-n TWPD [32]. The topmost -doped Si layer and -doped Si substrate serve as the cladding layers. The core layer, which is sandwiched between two cladding layers and acts as a photoabsorption layer, is composed of Si–SiGe SL. Si–SiGe quantum-well (QW)-based photodetectors with thick (over hundreds of ) barriers usually suffer from the hole-trapping problem under high-speed operation [20], [25]. In our design, we assume that the thick-ness of the barrier and well of the SiGe–Si SL are thin enough ( 33 ) [33] to minimize this problem. The carbon-doped or undulating growth technique can also be applied in the SL to further increase its critical thickness [23], [25], [26], [34]. The composition of the simulated SL is Si Ge –Si to achieve an appropriate value of the optical absorption constant (100 cm ) in the long-wavelength regime ( 1.3 m) [17], [26]. In traditional separate-absorption-charge-multiplication
SHI et al.: DESIGN AND ANALYSIS OF SATCM TRAVELING-WAVE AVALANCHE PHOTODETECTORS 1585

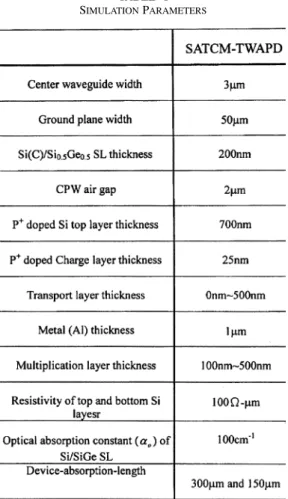

TABLE I SIMULATIONPARAMETERS
(SACM) APDs, the photoabsorption layers are lightly and uni-formly doped. Under avalanche operation, these layers suffer parts of applied bias voltages and are fully depleted [3], thereby enhancing the drift velocities of both photogenerated electrons and holes. However, under such high-bias voltage, these layers might suffer from the avalanche breakdown problem [3], [35], which can seriously degrade the GBP performance of APDs [3], [35]. As shown in Fig. 1(a), the photoabsorption layer in our proposed structure is the heavily graded doped SL, which can not only prevent the absorption layer breakdown, but also eliminate transport problems in photogenerated holes [2]. The multiplication layer is made of Si, which is sandwiched in between an Si substrate and a charge layer [3], which serves as an electric-field buffer layer [32] to provide better control of the electric-field profile. Only photogenerated elec-trons form the -graded doped photoabsorption layer will drift through the transport layer and initiate the impact ionization process in the multiplication layer. The appropriate magnitude of the electric field must be located in these two layers to obtain a short drift time of photogenerated electrons and to initiate the avalanche breakdown process, respectively. In order to further reduce the operation voltage and multiplication time of APDs, the multiplication layer must be thin enough [3], [4], [19], [29], [37]. However, this approach will increase the device capacitance and reduce the microwave propagation velocity, which will limit the speed performance seriously, especially for the long-absorption-length TWPDs [15]. With an additional transport layer in our novel structure as shown in Fig. 1(a),
the tradeoff between operation voltage and device capacitance can almost be eliminated. By properly adjusting the thick-nesses and doping levels of the transport layer and the charge layer, the speed performance can be improved significantly because the drift time of electrons with saturation velocity is not a critical bandwidth-limiting factor compared with the multiplication time and response time of the velocity mismatch in long-absorption-length TWPDs [15]. As compared with the traditional APD, we can reduce its device capacitance by increasing the thickness of the photoabsorption layer; however, the tradeoff between the drift time of the photogenerated hole and the resistance–capacitance (RC) bandwidth limitation will seriously limit its optimized speed performance [15], [32]. Our proposed APD structure also has the potential for improving the output-saturation-power-bandwidth-product performances [14] by increasing the device-absorption length [13], [15], [27] with less bandwidth degradation due to the reduction in device capacitance and microwave loss by incorporating the transport layer. Recently, by use of the diluted photoabsorption tech-nique and evanescent edge-coupled structure, the high-power performance of SACM APD has been demonstrated in [28]. We employed the commercial computer-aided design (CAD) tool [38] to design and optimize the electrical-field distribution in the simulated structure. Fig. 2 shows the electric-field distribution for a well-designed APD with and without a charge layer. The thickness and doping density of each layer are shown in the inset table. By incorporating a charge layer, the operation voltage can be reduced significantly (25 versus 15 V) under the same operation gain ( ), and the magnitude of the elec-tric field in the transport layer can be not only lower than that of the breakdown field ( 300 kV cm), but also high enough ( 100 kV cm) to saturate the velocity of the electrons. The relationship between the gain and electric field will be discussed in details. The -graded doped photoabsorption SL, which does not have an external applied electric field, has a built-in electric field to accelerate the diffusion process of photogenerated electrons and to avoid the breakdown problem.
III. BANDWIDTHSIMULATIONMODEL OF THEDEVICE
The propagation characteristics of photo-excited microwaves and optical waves in the traveling-wave structure are important with respect to our electrical bandwidth simulation. We modeled the electrical transmission line of this novel TWAPD using a hy-brid-CPW-equivalent circuit model since its accuracy has been verified by the full-wave analysis technique [32]. The equiv-alent circuit model of the TWAPD structure is similar to the model of a traditional p-i-n TWPD, which is given in [32] and [39], except for the additional depletion capacitance and the se-rial impedance, which represent the multiplication layer and the charge layer, respectively. To simulate the optical waveguide in the TWAPD, we used the effective-index method to calculate the optical confinement factor and velocity. The optical refrac-tive index of SiGe–Si SL ( ) can be determined as follows [18]:

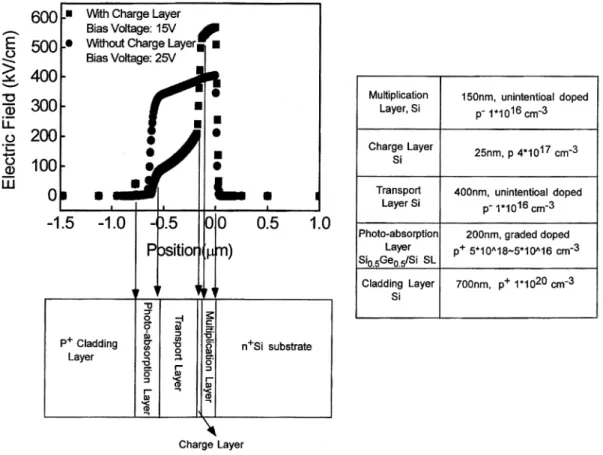

Fig. 2. Electric-field distributions versus positions in the structure of a SATCM APD with (squares) and without (circles) a charge layer.
where and are the thicknesses of the well and barrier, respectively, with a resulting SL period of 66 Å. The indexes of Si Ge alloy ( ) and bulk Si ( ) at a wavelength close to 1300 nm are 3.81 and 3.51, respectively [18], [40].
The velocity-mismatch bandwidth can be calculated using a photo-distributed current model with [15]
(2) where is the output photocurrent at the load end, which is a function of the microwave angular frequency . is the de-vice-absorption length. is the microwave propagation con-stant, which can be obtained from the equivalent circuit model as discussed previously. is the propagation constant of the photo-induced charge with
(3) where , , and are the optical group velocity, optical ab-sorption constant of the photoabab-sorption layer, and optical con-finement factor, respectively. The boundary reflection effect is a critical bandwidth-limiting factor, especially for the long-ab-sorption-length TWPDs [15]. In order to model the bandwidth degradation caused by the load circuit mismatch effect, we can describe the total transmission efficiency using the formula [15] (4)
where is the
re-flection coefficient between the transmission line (with ) and load impedance (with but without dispersion). is the corresponding transmission coefficient. This equation is obtained by summing the endless boundary reflections between the open input end and the load end with maximum transmission normalized to 1.
The multiplication time and transport time of photogenerated carriers also limit the speed performance of simulated TWAPDs. In our case, the transport time is dominated by the drift time of photogenerated electrons traveling through the -graded doped photoabsorption layer and the transport layer. The fre-quency response of the transport time [39] is calculated by
(5)
where . is the total drift
time of photogenerated electrons, which pass through the pho-toabsorption and transport layers. This expression can be de-rived by assuming triangular impulse photocurrent responses for electrons [39]. We assume that the applied electric field in the transport layer is high enough to saturate the velocity of photo-generated electrons, as shown in Fig. 2, and that the drift time ( ) in this layer can, thus, be obtained. The drift time ( ) of photogenerated electrons in a uniformly doped photoabsorption layer can be expressed as [41], [42]
SHI et al.: DESIGN AND ANALYSIS OF SATCM TRAVELING-WAVE AVALANCHE PHOTODETECTORS 1587
where is the thickness of the photoabsorption layer. and are the diffusion coefficient and thermal velocity of elec-trons in Si material, respectively. At room temperature, the value of is over cm s [43], and the diffusion coefficient can be determined based on the mobility and Einstein relation. The mobility can be obtained as follows [43]:
cm
V s (7)
( cm ) is the distribution of the dopant, which is a function of the depth “ ”. We assume a linear distribution of the acceptor-doping concentration, which varies from to
cm .
By applying the graded doped technique to the photoabsorp-tion layer, we can further reduce due to the built-in electric field [41]. This effect is considered in
(8) where and represent, respectively, the drift time of photogenerated electrons under a built-in electric field and the net transport time, which includes the drift and diffusion pro-cesses in the graded doped photoabsorption layer. can be determined by [43]
(9) where is the velocity of electrons. We assume that the max-imum velocity, calculated using (9), is the saturation velocity ( cm s) of electrons in Si. Because the mobility is a function of thickness as shown in (9), we have to modify the term in (6) as follows [43]:
(10) In order to simulate the avalanche gain ( ) and multiplica-tion time ( ), we have to determine the impact ionization co-efficients of each electron ( ) and hole ( ). The values for these coefficients can be obtained using [19]
(11) where is the electric field in units of volts per centimeter. Equation (11) is obtained for silicon using a “reach-through” structure similar to a SAM APD [19]. can thus be obtained by [19]
(12) where is the thickness of the multiplication layer. This gain equation is only valid for electrons injected into a multiplication
Fig. 3. Thickness of the multiplication layer versus the voltage across the multiplication layer for different desired operation gains (M ). Square: M = 10. Circle: M = 20. Triangle: M = 30.
layer. The gain for hole-initiated avalanche breakdown can be obtained by simply exchanging and . Through the use of (11) and (12), the multiplication time can be obtained as follows [44]:
(13) where is a number varying slowly from 1/3 to 2 as varies from to [44]. is the multiplication-region transit time, which can be expressed as . is the saturation ve-locity of electrons in Si. The frequency response of the multi-plication process can be expressed as [45]
(14) By multiplying (2), (4), (5), and (14), the net frequency response can be obtained [45].
IV. DESIGNCONCEPTS ANDBANDWIDTHSIMULATION
By using the bandwidth simulation model discussed previ-ously, we can analyze and design the epilayer structure of this novel TWAPD. Fig. 3 shows the required bias voltage across the multiplication layer versus to obtain the desired . Re-ducing the thickness of the multiplication layer can reduce the operating voltage of APDs, but a thin multiplication layer will usually result in a huge amount of dark current. The minimum thickness of the multiplication layer is 100 nm for high-speed operation with a reasonably low dark current [29].
The thickness of the photoabsorption layer determines the optical confinement factor and device-absorption length. In order to get a shorter device-absorption length and a higher ve-locity-mismatch bandwidth limit, a thick SiGe layer is required. Nevertheless, the critical thickness of the SiGe layer on the Si substrate limits the maximum thickness of the SiGe layer. On the other hand, the built-in electric field, which is caused by graded doping in this layer, will decrease when the thick-ness of the absorption layer increases. The tradeoff between the drift time in the photoabsorption layer and the device-absorp-tion length must be optimized in the TWAPD design. Fig. 4 shows the net bandwidth versus the thickness of the photoab-sorption layer under different total intrinsic layer (multiplication

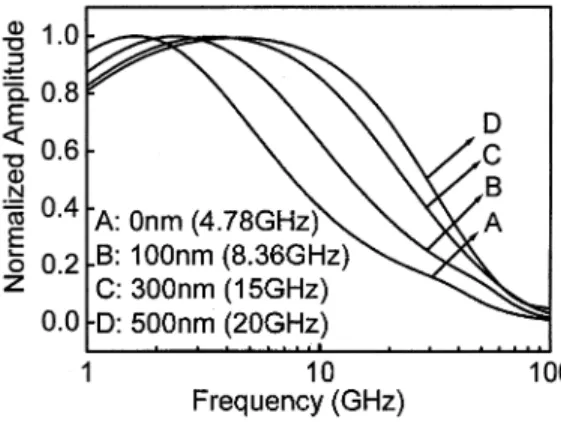

Fig. 4. Thickness of the photoabsorption layer versus the electrical bandwidth for different thicknesses of the intrinsic layer (multiplication layer with transport layer).
Fig. 5. Net frequency responses without consideration of the boundary reflection effect under different thicknesses of the transport layer. The thicknesses of traces A D are 0, 100, 300, and 500 nm, respectively.
layer and transport layer) thicknesses. The device is simulated with (without gain), and its device-absorption length is assumed to be [2]. We can clearly see that the op-timum absorption-layer thickness slightly varies from 300 to 200 nm when the thickness of the intrinsic layer increases from 100 to 500 nm. A thick intrinsic layer implies a higher mi-crowave velocity and higher velocity-mismatch bandwidth limit [15]. Thus, properly reducing the optical confinement factor, in-creasing the device-absorption length, and reducing the trans-port time of photogenerated electrons in the absorption layer can optimize the speed performance.
The thicknesses of the multiplication and transport layers se-riously affect the electrical bandwidth and operation voltage of the SATCM TWAPD. Fig. 5 shows the simulated frequency response of a TWAPD with different thicknesses of the trans-port layer. The thickness of the multiplication layer is 100 nm. The thickness of photoabsorption layer is 200 nm with a cor-responding device-absorption length ( ) 300 m. The operation gain is fixed at 10. We assume a perfect match load, which is integrated with the simulated TWAPD and that the boundary reflection effect can, thus, be neglected. The elec-trical bandwidth improves significantly ( 14 to 25 GHz) as the thickness of the transport layer increases. In practical applications, impedance mismatch between the external load and TWPD usually occurs due to size-difference-induced reflec-tion [15] or the imaginary part of the characteristic impedance of a p-i-n-based TWPD. Serious bandwidth degradation due
Fig. 6. Net frequency response with consideration of the boundary reflection effect for different thicknesses of the transport layer. The thicknesses of traces A D are 0, 100, 300, and 500 nm, respectively.
to the boundary reflection effect, especially for the long-ab-sorption-length TWPDs, is thus unavoidable [15]. The charac-teristic impedance of the TWADP increases significantly due to the incorporation of a transport layer. Higher characteristic impedance can support better impedance matching between the external load and TWPD and results in less electrical bandwidth degradation [15]. Fig. 6 shows the frequency response of the TWAPD with different thicknesses of the transport layer and consideration of the boundary reflection effect. We assume a standard 50- load at the output end of the TWAPD. Compared with Fig. 5, more significant bandwidth enhancement ( versus ) can be observed.
The GBP is one of the most important figures of merit for APDs. Through the use of this parameter, we can further de-termine the optimum thicknesses of transport and multiplica-tion layers. Fig. 7(a) shows the optimum thickness of the mul-tiplication layer for maximum GBP value. The thickness of the photoabsorption layer is 200 nm with corresponding device-absorption length ( ) 300 m. The maximum voltage for each trace is selected such that the multiplication gain will be 60. Traces A F represent different thicknesses of the transport layer. When the thickness of the transport layer is less than 200 nm, an optimum thickness of the multiplica-tion layer for the maximum GBP value exists because, for a long-absorption-length TWAPD with an extremely thin total in-trinsic layer (multiplication layer and transport layer), the dom-inant bandwidth-limiting factor is the boundary reflection or the velocity mismatch, not the multiplication time. Because of the increase of the multiplication layer thickness, the improvement of the characteristic impedance, microwave velocity, and GBP can thus be expected [15]. In Fig. 7(b), we plot the thickness of the transport layer versus GBP to determine the optimum thick-ness of the transport layer. Traces A E represents different thicknesses of the multiplication layer. With a thin multiplica-tion layer (100 nm), as shown in trace A, GBP increases signifi-cantly with the thickness of the transport layer, and its optimum thickness is about 500 nm. A thick transport layer can reduce the value of device capacitance, velocity mismatch, and the band-width limitation in boundary reflection effect significantly, es-pecially in the case of TWAPD with a thin multiplication layer, which represents a large device capacitance.
Fig. 8 shows the frequency responses due to different band-width-limiting factors in a well-designed SATCM TWAPD.
SHI et al.: DESIGN AND ANALYSIS OF SATCM TRAVELING-WAVE AVALANCHE PHOTODETECTORS 1589

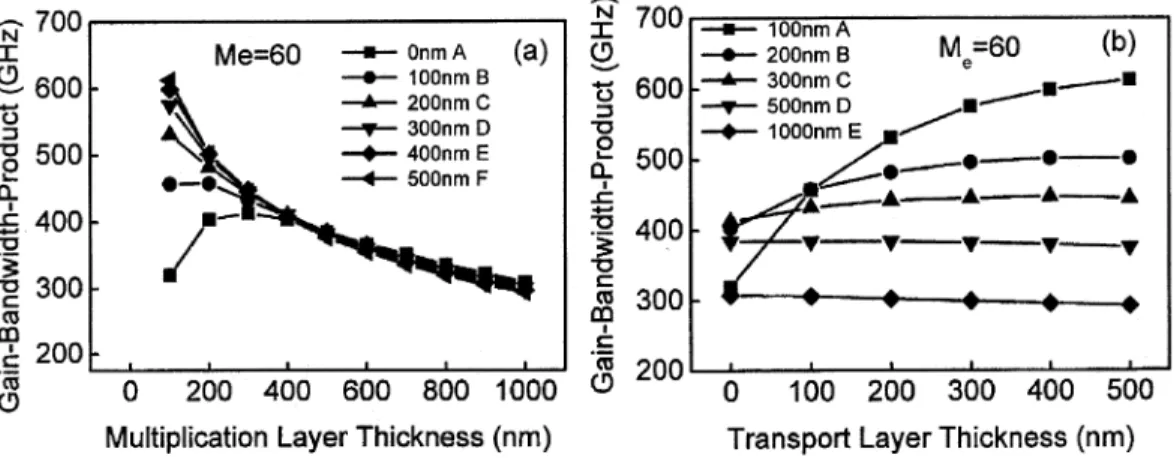

Fig. 7. GBP versus the (a) multiplication layer and (b) transport layer thickness. Each trace in (a) and (b) represents different transport layer and multiplication layer thicknesses, respectively. The operation gain (M ) of each simulated data point is fixed at 60.
Fig. 8. Frequency responses due to different bandwidth-limiting factors for a well-designed SATCM TWAPD. Trace A: Net frequency response. Trace B: Carrier drift time. Trace C: Velocity mismatch with microwave loss and the boundary reflection effect. Trace D: Multiplication time.
The important parameters of this simulated device are labeled in this figure. We choose that the value of device-absorption length is equal to 150 m for the maximum bandwidth-respon-sivity product (quantum efficiency bandwidth gain). We can clearly see that the dominant bandwidth limitation, such as the velocity mismatch or microwave loss, in the traditional p-i-n-based TWPD with a long device-absorption length, is minimized in our structure. The speed performance of our sim-ulated structure can thus be further improved by increasing the built-in electric field in the doped SiGe–Si SL photoabsorption layer, which can be achieved using a graded bandgap [43] or chirp SL technique [46].
V. CONCLUSION
This paper has proposed a novel type of avalanche pho-todetector: the SATCM TWAPD, which can improve the GBP and output-power-bandwidth product and reduce the operation voltage of traditional APDs. The analysis and bandwidth simulation presented in this paper have focused on a general example of an edge-coupled traveling-wave structure based on Si and SiGe materials due to its excellent breakdown property and high-speed/power applications in the communication wavelength. A photo-distributed current model, which includes the microwave propagation effects, transport time, and multiplication time of photogenerated
carriers, has been used to conduct the simulation. According to our calculations, the electrical bandwidth and microwave propagation characteristics of the simulated TWAPD can be improved significantly almost without affecting the operation voltage by means of an additional transport layer. In addition, with a heavily doped photoabsorption layer and a large ratio in the Si multiplication layer, we can almost eliminate the hole-transport and photoabsorption layer breakdown problems in the traditional APD structure and achieve a high-GBP per-formance. In a well-designed Si–SiGe-based SATCM TWAPD with a thin multiplication layer, relatively thick transport layer, and a long device-absorption length, the bandwidth-limiting factors, such as the velocity mismatch and the multiplication time, can be minimized, and the ultra-high-output-power-band-width-product performance can also be expected due to its small optical modal photoabsorption constant, the low density of photogenerated carriers, the large photoabsorption volume, and the superior microwave-guiding structure. The electrical bandwidth can be further increased by applying a bandgap engineering technique to the doped photoabsorption layer to shorten the drift time of photogenerated electrons.
