RECONFIGURABLE DISCRETE COSINE TRANSFORM PROCESSOR
FOR OBJECT-BASED VIDEO SIGNAL PROCESSING
Po-Chih Tseng, Chao-Tsung Haung, and Liang-Gee Chen
DSP/IC Design Lab, Graduate Institute of Electronics Engineering,
Department of Electrical Engineering, National Taiwan University, Taipei, Taiwan
E-Mail:
{pctseng, cthuang, lgchen}@video.ee.ntu.edu.tw
ABSTRACT
In this paper, a novel reconfigurable discrete cosine trans-form processor is proposed to pertrans-form the Shape-Adaptive DCT (SA-DCT) algorithm, which is a dominating compu-tational kernel of various object-based video signal process-ing. The SA-DCT algorithm is analyzed in detail to capture important architecture design issues and then design effi-cient hardware architecture. A dynamically reconfigurable datapath is proposed to meet the run-time reconfigurable computational requirement of SA-DCT. Besides, a proto-typing chip has been implemented to prove the feasibility of proposed architecture. This reconfigurable DCT proces-sor supports complete functions of SA-DCT and therefore suitable for high-end and high-quality object-based video applications.
1. INTRODUCTION
Object-based video coding, such as MPEG-4 natural video coding [1], provides not only significantly better coding effi-ciency but also rich functionalities for object-based manip-ulation and interactivity. In order to support object-based video coding, several new coding techniques have been de-veloped for the description of image regions, which are no longer squared as in conventional block-based video cod-ing but are allowed to be of arbitrary shape [2]. Among these techniques, the Shape-Adaptive DCT (SA-DCT) pro-posed by Sikora [3] was reported to be able to achieve bet-ter coding efficiency and has also been adopted by MPEG-4. In addition to video coding, SA-DCT has also been ap-plied to various object-based video signal processing appli-cations, such as region-based fractal image compression [4] and object-based video watermarking [5].
Since SA-DCT has its efficiency advantages mainly at high bit-rates, it clearly aims at high quality video applica-tions, such as Digital TV and HDTV. These high-end
ap-This work was supported in part by MOE Program for Promoting Aca-demic Excellence of Universities under the grant number 89E-FA06-2-4-8, in part by National Science Council, Republic of China, under the grant number 91-2215-E-002-035, and in part by MediaTek Inc.
plications highly demand hardware acceleration solutions rather than pure software solutions. Therefore, a hardware accelerator of SA-DCT would be a necessity for object-based video systems. In the literature, there were numerous proposals for hardware realizations of conventional DCT, such as matrix decomposition based architecture [6] and distributed arithmetic based architecture [7]. However, these proposals targeted only at squared block-size DCT and un-able to be extended to support SA-DCT. Although there was one proposal taregting SA-DCT, it did not equip with com-plete functions of SA-DCT but only part of them [8].
In this paper, we propose a reconfigurable DCT pro-cessor for object-based video signal processing, which is a complete hardware architecture of SA-DCT based on dy-namically reconfigurable datapath. The algorithm analysis, architecture design, and chip implementation of proposed architecture will be discussed in detail in the following sec-tions.
2. ALGORITHM ANALYSIS
SA-DCT is applied to those 8x8 blocks located on the bound-ary of an arbitrarily shaped image segment. If the segment is a squared 8x8 region, then SA-DCT is equivalent to con-ventional 8x8 DCT. The idea of SA-DCT is to apply 1-D DCT transforms vertically and then horizontally according to the number of active pixels in the rows and columns of the block, respectively.

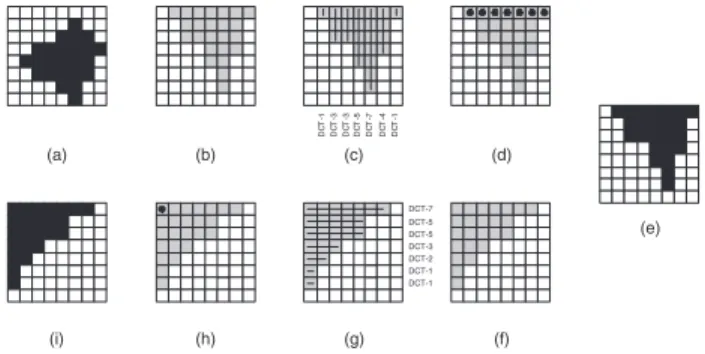

Fig. 1 illustrates the processing flow of SA-DCT for-ward transform. Fig. 1(a) shows a possible example of an 8x8 image block segmented into two regions, foreground (black part) and background (light part). To perform the vertical transformation of the foreground, the length of each column of the foreground is calculated, and the columns are shifted and aligned to the upper border as shown in the gray region of Fig. 1(b). Then as in Fig. 1(c), depending on the number of active pixels N of each particular column, a 1-D N-point DCT is applied to the first N pixels of the column. After the vertical transformation, the lowest DCT coefficients (DC values) of columns are produced as in Fig.
,,
DC T -1 DC T -3 DC T -3 DC T -5 DC T -7 DC T -4 DC T -1 DCT-7 DCT-5 DCT-5 DCT-3 DCT-2 DCT-1 DCT-1 (a) (b) (c) (d) (e) (f) (g) (h) (i)
Fig. 1. Processing Flow of SA-DCT Forward Transform
1(d), and the segment distribution is shown in Fig. 1(e). To perform the horizontal transformation, the length of each row is calculated, and the rows are shifted and aligned to the left border as shown in Fig. 1(f). Then, horizontal 1-D N-point DCT adapted to the length of each row is performed as shown in Fig. 1(g). After the horizontal transformation, The lowest DCT coefficient (DC value) for this image seg-ment is produced as in Fig. 1(h) and the final location of the resulting DCT coefficients is shown in Fig. 1(i). The SA-DCT inverse transform is similar to forward transform with reverse processing flow. Based on above description, SA-DCT algorithm can be divided into four steps from the computational point of view.
Step 1: Vertically shift and align all active pixels of each
column to the most upper position.
Step 2: Applly variable-length 1-D DCT to each column
of the vertically shifted and aligned texture data with length equal to the number of active pixels.
Step 3: Horizontally shift and align all active intermediate
coefficients of each row to the most left position.
Step 4: Applly variable-length 1-D DCT to each row of
the horizontally shifted and aligned texture data with length equal to the number of active pixels.
3. ARCHITECTURE DESIGN
According to the algorithm analysis in Sec. 2, several ar-chitecture design issues are addressed and summarized as follows:
A.Row-Column Method: Since both forward and inverse
transforms of SA-DCT are performed by 1-D variable-length DCT/IDCT separately along one direction then the other, the suitable 2-D architecture design choice would be the row-column method. Direct 2-D method which induces more complex data flow would further complicate SA-DCT com-putation. Besides, the separability property of 2-D DCT/IDCT exploited by row-column method allows the transform to be applied along one dimension then the other. This property is identical to the inherent separable computational charac-teristic of SA-DCT.
B.Formation of Segment Distribution Statuses: In order
to provide proper segment distribution statuses for both for-ward and inverse transforms of SA-DCT, the formation of segment distribution statuses according to the original shape information should be carefully considered.
C.Alignment of Input Texture or Coefficient Data: In
or-der to efficiently perform the shift shift) and align (re-align) operations in forward (inverse) transform of SA-DCT, the alignment operation of input texture or coefficient data should also be taken into account.
D.Variable-Length 1-D DCT/IDCT: The variable-length
1-D DCT/IDCT are the kernel operations of SA-DCT. In or-der to efficiently perform these operations, specially-designed flexible hardware architecture must be considered.
Shape Formation Shape Transpose Memory Texture Transpose Memory Segment Distribution Statuses Texture/ Coefficient Input Coefficient/ Texture Output Original Shape Information Forward / Inverse Selection Texture Alignment Variable-Length 1-D DCT/IDCT Texture Processing
Fig. 2. Architecture of Reconfigurable DCT Processor
Based on these design issues, we propose a reconfig-urable DCT processor shown in Fig. 2 for SA-DCT. The Shape Formation receives the original shape information as input. Based on the original shape information and for-ward/inverse selection control signal, proper segment dis-tribution statuses will be generated and sent to Texture Pro-cessing. The Shape Transpose Memory is used by Shape Formation to transpose the shape information from one di-rection to another. There are two modules within Texture Processing: the Texture Alignment and Variable-Length 1-D 1-DCT/I1-DCT. When Texture Processing receives the tex-ture or coefficient input data and segment distribution sta-tuses generated by Shape Formation, the Texture Alignment will perform the alignment of texture or coefficient data. The shifted and aligned input data are then processed by the Variable-Length 1-D DCT/IDCT to perform corresponding DCT operations. The Texture Transpose Memory is used by the Texture Processing to transpose input data in row-column method. The more detailed operations of proposed architecture will be discussed in following subsections.
3.1. Shape Formation
Shape Formation generates necessary segment distribution statuses for texture data processing in row direction and column direction according to original input shape infor-mation. Fig. 3 shows the architecture of shape forinfor-mation. Original shape information of processed 8x8 block ordered
in column direction is taken as input. The input is first pro-cessed by Shape Counter, in which the number of pixels of each column within object is calculated. The calculated shape number is then used as input of Shift and Align PLA table to look up the shifted and aligned segment distribution value. The output then becomes column-wise shifted and aligned shape information ordered in column direction. The output of Shift and Align PLA is used as input and one-bit by one-bit written into the Shape Transpose Memory. At the same time, the transposed shape information is read out from the Shape Transpose Memory. This transposed shape information is the required column-wise shifted and aligned shape information ordered in row direction.Since the re-quired successive order in forward and inverse transforms of SA-DCT is different, these two shape information are thus processed by the Delay Line to adjust the proper out-put timing phases. Forward Inverse Selection control signal is then used to select out the corresponding segment distri-bution status for the first and second directions in forward and inverse transform.
Shape Counter PLA Table Shape Transposition Memory
Delay Line Second Direction
First Direction Original Shape
Column-Wise
Forward/ Inverse
Fig. 3. Architecture of Shape Formation
3.2. Texture Processing
Texture Processing processes the input 2-D texture or co-efficient data according to the segment distribution statuses to generate the 2-D transformed coefficient or reconstructed texture data. As shown in Fig. 4, There are three key mod-ules in Texture Processing:
Texture Alignment Texture Transposition Memory Variable-Length 1-D DCT/IDCT Forward/ Inverse Shape Info Texture Input Texture Output
Fig. 4. Architecture of Texture Processing
A.Texture Alignment: According to the segment
distribu-tion statuses, the input 2-D texture or coefficient data can be (re-)shifted and (re-)aligned column by column or row by row to the corresponding shifted and aligned position.
B.Variable-Length 1-D DCT/IDCT: The Variable-Length
1-D DCT/IDCT processes the input 2-D texture or
coeffi-cient data column by column or row by row with corre-sponding length.
C.Texture Transpose Memory: Due to the row-column
method approach for 2-D transform, the Texture Transpose Memory can transpose the processed 8x8 block data from column order to row order in forward transform or row order to column order in inverse transform.
The major challenge of architecture design for Texture Processing is to adaptively process the input texture or coef-ficient data according to segment distribution statuses gen-erated by Shape Formation. During run-time processing, the datapath of Texture Processing has to be dynamically reconfigured as different hardware configurations according to different segment distribution statuses. In order to meet this special computational requirement, we propose a dy-namically reconfigurable datapath for Texture Processing. Fig. 5 shows the basic concept of proposed dynamically reconfigurable datapath. Context Generation Datapath Section A Dynamically Decoding A Datapath Section B Dynamically Decoding B ... Datapath Section Z Dynamically Decoding Z Run-Time Dynamic Information Input Data Output Data Pass Through Stage by Stage
Fig. 5. Dynamically Reconfigurable Datapath
The basic concept of proposed dynamically reconfig-urable datapath is to use the so-called ”context” information to pass the run-time dynamic information throughout entire datapath. As shown in Fig. 5, the run-time dynamic infor-mation is processed by the Context Generation to generate the context information passed throughout entire datapath. Assume that the entire datapath is composed of several sec-tions such as the Section A – Z in Fig. 5. The context information is then passed through these datapath sections. When the context information arrives at one datapath sec-tion, a corresponding dynamically decoding logic takes this context as input to decode the dynamic control signals to the datapath section for dynamically reconfiguration. At the same the, the dynamically reconfigured datapath section takes the entire datapath input or previous section output as the input to perform the data processing in current configu-ration. Based on the basic concept of proposed dynamically reconfigurable datapath, the detailed architecture of Texture Processing in forward transform configuration is illustrated in Fig. 6.
4. CHIP IMPLEMENTATION
A prototyping chip has been implemented to prove the feasi-bility of proposed architecture. This chip was implemented
under TSMC 0.35µm CMOS 1P4M process by cell-based
Context Generation Dynamically Decoding Texture Alignment Dynamically Decoding S2P Dynamically Decoding ADDSUB Dynamically Decoding MULTIPLIERS Dynamically Decoding ACCUMULATORS Dynamically Decoding Texture Alignment Dynamically Decoding P2S Texture Memory Controller Texture Transpose Memory Variable-Length 1-D DCT/IDCT Column-Wise SDS Row-Wise SDS Texture Input Coefficient Output
Fig. 6. Detailed Architecture of Texture Processing
IC design flow. Table 1 shows the key features of the pro-totyping chip and Fig. 7 shows the photograph. The chip could operate up to 66MHz to achieve 66M samples/sec throughput rate.
Table 1. Key Features of Prototyping Chip
Technology TSMC 0.35µm 1P4M CMOS Process
Package 80 CQFP
Die Size 2.75 x 2.75 mm 2
Core Size 1.93 x 1.93 mm 2
Transistor Count 160K
Max Clock Rate 66MHz
Power Consumption 180mW @ 3.3V, 66MHz TTM ST M Variable-Length
1-D DCT/IDCT
Shape Formation Texture AlignmentFig. 7. Photograph of Prototyping Chip
5. CONCLUSION
We have proposed a reconfigurable DCT processor for SA-DCT. The SA-DCT algorithm is analyzed in detail to cap-ture important architeccap-ture design issues and then design ef-ficient hardware architecture. A dynamically reconfigurable
datapath is proposed to meet the run-time reconfigurable computational requirement of SA-DCT. Besides, a proto-typing chip has been implemented to prove the feasibility of proposed architecture. This reconfigurable DCT proces-sor supports complete functions of SA-DCT and therefore suitable for high-end and high-quality object-based video applications.
6. REFERENCES
[1] Information Technology – Coding of Audio-Visual
Ob-jects – Part 2: Visual, ISO/IEC 14496-2, 2001.
[2] A. Kaup, “Object-based texture coding of moving video in mpeg-4,” IEEE Transactions on Circuits and Systems
for Video Technology, vol. 9, no. 1, pp. 5–15, Feb. 1999.
[3] T. Sikora and B. Makai, “Shape-adaptive dct for generic coding of video,” IEEE Transactions on Circuits and
Systems for Video Technology, vol. 5, no. 1, pp. 59–62,
Feb. 1995.
[4] K. Belloulata and J. Konrad, “Fractal image compres-sion with region-based functionality,” IEEE
Transac-tions on Image Processing, vol. 11, no. 4, pp. 351–362,
Apr. 2002.
[5] J. Guo and P. F. Shi, “Object-based watermarking
scheme robust to object manipulations,” IEE
Electron-ics Letters, vol. 38, no. 25, pp. 1656–1657, Dec. 2002.
[6] A. Madisetti and Jr. A. N. Willson, “A 100mhz 2-d 8x8 dct/idct processor for hdtv applications,” IEEE
Trans-actions on Circuits and Systems for Video Technology,
vol. 5, no. 2, pp. 158–165, Apr. 1995.
[7] M. T. Sun, T. C. Chen, and A. M. Gottlieb, “Vlsi imple-mentation of a 16x16 discrete cosine transform,” IEEE
Transactions on Circuits and Systems, vol. 36, no. 4, pp.
610–617, Apr. 1989.
[8] T. Le and M. Glesner, “Flexible architectures for dct of variable-length targeting shape-adaptive transform,”
IEEE Transactions on Circuits and Systems for Video Technology, vol. 10, no. 8, pp. 1489–1495, Dec. 2000.
