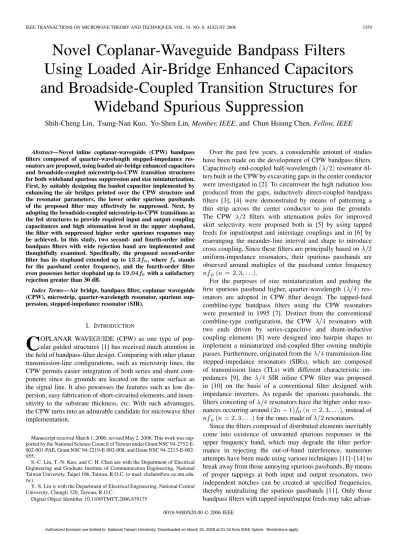

Novel Coplanar-Waveguide Bandpass Filters
Using Loaded Air-Bridge Enhanced Capacitors
and Broadside-Coupled Transition Structures for
Wideband Spurious Suppression
Shih-Cheng Lin, Tsung-Nan Kuo, Yo-Shen Lin, Member, IEEE, and Chun Hsiung Chen, Fellow, IEEE
Abstract—Novel inline coplanar-waveguide (CPW) bandpass filters composed of quarter-wavelength stepped-impedance res-onators are proposed, using loaded air-bridge enhanced capacitors and broadside-coupled microstrip-to-CPW transition structures for both wideband spurious suppression and size miniaturization. First, by suitably designing the loaded capacitor implemented by enhancing the air bridges printed over the CPW structure and the resonator parameters, the lower order spurious passbands of the proposed filter may effectively be suppressed. Next, by adopting the broadside-coupled microstrip-to-CPW transitions as the fed structures to provide required input and output coupling capacitances and high attenuation level in the upper stopband, the filter with suppressed higher order spurious responses may be achieved. In this study, two second- and fourth-order inline bandpass filters with wide rejection band are implemented and thoughtfully examined. Specifically, the proposed second-order filter has its stopband extended up to13 3 0, where 0 stands for the passband center frequency, and the fourth-order filter even possesses better stopband up to19 04 0with a satisfactory rejection greater than 30 dB.
Index Terms—Air bridge, bandpass filter, coplanar waveguide (CPW), microstrip, quarter-wavelength resonator, spurious sup-pression, stepped-impedance resonator (SIR).
I. INTRODUCTION
C
OPLANAR WAVEGUIDE (CPW) as one type of pop-ular guided structures [1] has received much attention in the field of bandpass-filter design. Comparing with other planar transmission-line configurations, such as microstrip lines, the CPW permits easier integration of both series and shunt com-ponents since its grounds are located on the same surface as the signal line. It also possesses the features such as low dis-persion, easy fabrication of short-circuited elements, and insen-sitivity to the substrate thickness, etc. With such advantages, the CPW turns into an admirable candidate for microwave filter implementation.Manuscript received March 1, 2006; revised May 2, 2006. This work was sup-ported by the National Science Council of Taiwan under Grant NSC 94-2752-E-002-001-PAE, Grant NSC 94-2219-E-002-008, and Grant NSC 94-2213-E-002-055.
S.-C. Lin, T.-N. Kuo, and C. H. Chen are with the Department of Electrical Engineering and Graduate Institute of Communication Engineering, National Taiwan University, Taipei 106, Taiwan, R.O.C. (e-mail: [email protected]. tw).
Y.-S. Lin is with the Department of Electrical Engineering, National Central University, Chungli 320, Taiwan, R.O.C.
Digital Object Identifier 10.1109/TMTT.2006.879175
Over the past few years, a considerable amount of studies have been made on the development of CPW bandpass filters. Capacitively end-coupled half-wavelength resonator fil-ters built in the CPW by excavating gaps in the center conductor were investigated in [2]. To circumvent the high radiation loss produced from the gaps, inductively direct-coupled bandpass filters [3], [4] were demonstrated by means of patterning a thin strip across the center conductor to join the grounds. The CPW filters with attenuation poles for improved skirt selectivity were proposed both in [5] by using tapped feeds for input/output and interstage couplings and in [6] by rearranging the meander-line interval and shape to introduce cross coupling. Since these filters are principally based on uniform-impedance resonators, their spurious passbands are observed around multiples of the passband center frequency
.
For the purposes of size miniaturization and pushing the first spurious passband higher, quarter-wavelength res-onators are adopted in CPW filter design. The tapped-feed combline-type bandpass filters using the CPW resonators were presented in 1995 [7]. Distinct from the conventional combline-type configuration, the CPW resonators with two ends driven by series-capacitive and shunt-inductive coupling elements [8] were designed into hairpin shapes to implement a miniaturized end-coupled filter owning multiple passes. Furthermore, originated from the transmission-line stepped-impedance resonators (SIRs), which are composed of transmission lines (TLs) with different characteristic im-pedances [9], the SIR inline CPW filter was proposed in [10] on the basis of a conventional filter designed with impedance inverters. As regards the spurious passbands, the filters consisting of resonators have the higher order reso-nances occurring around , instead of
for the ones made of resonators. Since the filters composed of distributed elements inevitably come into existence of unwanted spurious responses in the upper frequency band, which may degrade the filter perfor-mance in rejecting the out-of-band interference, numerous attempts have been made using various techniques [11]–[14] to break away from those annoying spurious passbands. By means of proper tappings at both input and output resonators, two independent notches can be created at specified frequencies, thereby neutralizing the spurious passbands [11]. Only those bandpass filters with tapped input/output feeds may take
Fig. 1. Three-dimensional physical layout of the proposed second-order in-line CPW bandpass filter loaded by air-bridge enhanced capacitors and fed by microstrip-to-CPW transition structures for wideband rejection.
tage of these notches to suppress the spurious responses. For the sake of removing the second harmonic response of con-ventional microstrip parallel coupled-line filters, omnigenous notions to equalize the even- and odd-mode velocities were reported [12]–[14] such as perturbing the shapes of couple-line sections, employing the suspended coupled microstrips on a substrate with a proper suspension height, etc. By using various dissimilar SIRs, wide-stopband filters may be accom-plished [15]. However, the utilization of dissimilar resonators for spurious suppression demands long tuning period and destructs the symmetry of the whole filter structure.
Up to now, the focus of the published literature was mainly on the improvement of the out-of-band attenuation performance of microstrip-type filters. Little attention has been drawn to the spurious-suppression methods suitable for filters of CPW type [16], [17], especially to those adequate for the inline CPW bandpass filter. The particular pattern of via-holes was used in the double-surface CPW filter [16] to reduce the spurious responses. Another four-pole bandpass filter was introduced in [17] using the two asymmetric parallel-coupled CPW stages at the input/output terminated ends to generate the two sepa-rated transmission zeros for cancelling the harmonic passband occurring at .
As mentioned above, very few published documents were reported to achieve wide rejection band and effective sup-pression of the spurious passbands, especially for the inline CPW bandpass filter design. In this paper, novel inline CPW bandpass filters with very wide rejection band are proposed. The proposed filter configuration is composed of CPW SIRs, which are loaded by the air-bridge enhanced capacitors for lower order spurious suppression, as well as size reduction, and are coupled to the input/output ports through the mi-crostrip-to-CPW transition structures for higher order spurious attenuation. Fig. 1 shows one demonstration of a proposed second-order inline CPW filter for wide stopband performance. The loaded lumped-element capacitors are implemented by means of enhancing the air-bridge strips printed over the CPW structure. By properly adjusting the loaded capacitors, the odd-number spurious passbands of proposed filters may essentially be destructed. Moreover, the transmission zero
Fig. 2. Equivalent transmission-line model of the proposed=4 SIR loaded by a lumped-element capacitor (Y = 1=Z ; Y = 1=Z ; R = Z =Z = Y =Y ).
inherently associated with the air-bridge enhanced capacitors may suitably be allocated to cancel the second spurious pass-band, thereby effectively suppressing the lower order spurious passbands. In addition, by adopting the broadside-coupled mi-crostrip-to-CPW transitions as the input/output fed structures so as to provide required input/output capacitive couplings at the passband and also to give a high attenuation level in the upper stopband, the remaining unsuppressed higher order spurious passbands of proposed filter may effectively be attenuated. In this study, the concepts of spurious destruction, lower order spurious cancellation, and higher order spurious attenuation are demonstrated by the full-wave simulation of a proposed second-order filter. By making full use of the above-mentioned spurious-suppression mechanisms, second- and fourth-order inline CPW bandpass filters are implemented with the stop-bands extended up to and .
II. SIRSLOADED BYAIR-BRIDGEENHANCEDCAPACITORS
A. Resonance Condition
The equivalent transmission-line model of the proposed SIR loaded by a lumped-element capacitor is shown in Fig. 2. The resonator is composed of two transmission-line sections with unequal characteristic impedances. The section with open-circuited termination has a characteristic impedance and electrical length , while the section with short-circuited termination owns characteristic impedance and electrical length . A lumped-element capacitor with capacitance is attached between the two sections. For this proposed resonator, the input admittance seen from the open-end side and the input impedance seen form the short-end side are simply given by
(1) (2) where denotes the susceptance of the loaded capac-itor. The proposed resonator (Fig. 2) exhibits parallel or series resonances when or , both leading to the res-onance condition
(3) where represents the impedance ratio between low- and high-impedance sections. With the aid of the
Fig. 3. Normalized length versus the length ratio withC (in picofarads) as parameters.
simple (3), the fundamental and higher order resonant frequen-cies may easily be calculated. Note that these results reduce to those in [9] when , as expected.
To demonstrate the effect of the loaded capacitor, Fig. 3 shows the relationship between the length ratio and the normalized resonator length for . Here, the value of has been fixed to be 50 and the center frequency is set to be 1.5 GHz to facilitate the calculation. One can easily observe from Fig. 3 that the larger the capacitance, the more evident the capacitor reduces the normalized length. Equiv-alently, the size of the proposed resonator may be reduced by simply increasing the loaded capacitor without requiring large impedance difference between low- and high-impedance sections. It is known that a very low impedance ratio sometimes is not achievable under the fabrication process limit since low requires extremely wide or narrow metal-strip width. Wide metal-strip width may cause transverse resonance, while narrow metal-strip width may increase the conductor loss. With the aid of our proposed resonator, the requirement of enforcing low for resonator miniaturization may be prevented.
B. Physical Realization and Model Extraction
Bond wires or air bridges are common in CPW design for suppressing the unwanted modes such as the slot-line mode. Thin wires are usually introduced to keep original circuits unperturbed. The loaded capacitor for the proposed resonator can simply be implemented by enhancing the conventional air bridges. The three-dimensional physical realization and the top-/bottom-plane layouts of the proposed SIR loaded by air-bridge enhanced capacitor are shown in Fig. 4(a) and (b). The physical widths and are determined by the impedance ratio of the resonator, while the lengths and are governed by the length ratio. By employing a metal strip printed over the CPW structure and connecting two ends of the strip to CPW grounds through via-holes, an air-bridge enhanced capacitor can be constructed. The strip not only plays the role of suppressing the unwanted modes, but also serves as

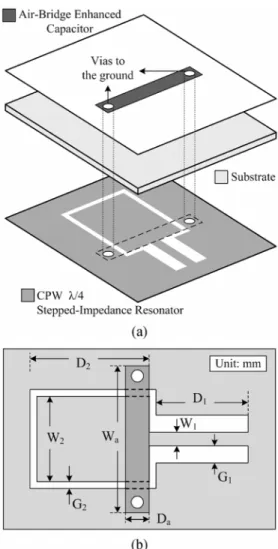

Fig. 4. (a) Three-dimensional physical layout. (b) Top-/bottom-plane layouts of the proposed CPW=4 SIR loaded by air-bridge enhanced capacitor with di-mensions labeled(W = 1:02; G = 1:27; W = 6:35; G = 0:51; W = 11:56; D = 1:78).
a shunt capacitor across the middle of SIR. As observed from Fig. 4, the region formed by the CPW center conductor and the metal strip of the air-bridge span provides the metal–insu-lator–metal capacitance. However, due to the fringing effect, step discontinuity, and some parasitic effects, this structure becomes too complicated to be analyzed.
Although the use of via-holes is somewhat of a drawback, in-dustry may build large number of via-holes without adding too much cost and complexity in the modern fabrication process. Alternatively, the use of via-holes provides the advantage that facilitates the designers to extend microwave components from planar structure to three-dimensional topology. Therefore, the occupied size of components may become miniaturized, as ex-pected. In this study, by making good use of via-holes, one may build loaded capacitors in the CPW structure with satisfactory large capacitance.
Actually, the enhanced air-bridge structure behaves capaci-tive at lower frequency band, but resonates at higher frequency. The lumped-element model shown in Fig. 5(a) may be adopted to characterize this structure by setting two ports at low- and high-impedance lines separately. The inductors , , and capacitors are contributed by discontinuity effects. The
Fig. 5. (a) Lumped-element model. (b) Simplified RLC resonator model of the proposed air-bridge enhanced capacitor.
kernel portion of the enhanced air bridge is modeled by the cou-pling capacitor and the LC resonant tank ( and ). Each element value for this model may be extracted from full-wave simulated scattering parameters through optimization. Since the enhanced air bridge behaves like a series resonator, it can approximately be modeled as a series RLC resonator, as shown in Fig. 5(b). As a matter of fact, the model in Fig. 5(a) may show better agreement with the real structure, but its applica-tion will be restricted. Accordingly, the simplified model [see Fig. 5(b)] is used in the following discussion. In the beginning, the approximate parameters for the simplified series resonator model may be extracted using the equations given in [18]. The relationship between the transmission coefficient and
and may be expressed as
(4) From (4), one may evaluate the values of and , as given by
(5a)
(5b) where represents the series resonant frequency, , and and are the frequencies at which .
Fig. 6 illustrates the comparison between full-wave simu-lated and simplified model results including the transmission coefficient and the imaginary part of “ ,” which is one of the -matrix parameters. The air-bridge enhanced struc-ture is fabricated on a Rogers RO4003 substrate of thickness 0.508 mm, dielectric constant 3.38, metal thickness 17 m, and loss tangent 0.0027. The diameter of via-holes is 1 mm. The dimensions for the simulated structure are annotated in Fig. 4. The extracted element values of the simplified model are nH and pF. Note that the responses for full-wave simulation and a simplified model coincide well over a wide frequency range. In the lower frequency band, this simplified model may be reduced to only a capacitor left since the inductor will be of minor significance. Therefore,
Fig. 6. Comparison of the results, for the structure shown in Fig. 4(a), from full-wave simulation and a simplified model. Here,C represents one of the ABCD-matrix parameters of the structure.
Fig. 7. Top-/bottom-plane layouts of the broadside-coupled microstrip-to-CPW transition for higher order spurious attenuation withW to be adjusted. (W = 1:12; D = 1:1; W = 6:35; G = 0:51, the substrate thickness h = 0:508, the dielectric constant " = 3:38).
the equivalent loaded capacitance of this structure approxi-mately equals . The related simulated result of using only is also included in Fig. 6 for comparison.
III. BROADSIDE-COUPLED MICROSTRIP-TO-CPW TRANSITIONSTRUCTURE
A broadside-coupled microstrip-to-CPW transition structure [19], [20] is adopted to feed the proposed inline CPW bandpass filter, as shown in Fig. 1. As a transition, this structure should provide a broadband transmission behavior. However, as a fed structure for the proposed CPW filter, it is only required to im-plement the predetermined capacitive coupling level. Therefore, the condition that the longitudinal coupled-strip length should approximately equal half-wavelength is no longer of necessity. For spurious suppression, the broadside-coupled mi-crostrip-to-CPW transition structure should properly be designed so as to provide required feeding capacitance for the filter at the center frequency and to give a large insertion loss in the higher frequency band. Shown in Fig. 7 is the corresponding circuit layout fabricated on the 0.508-mm-thick RO4003 substrate for higher order spurious suppression and 1.5-GHz filter application. Here, the conductor and slot widths ( and ) of the CPW portion are specified by the required impedance for the SIR. The required metal–insulator–metal capacitance essentially determines the coupled-strip length

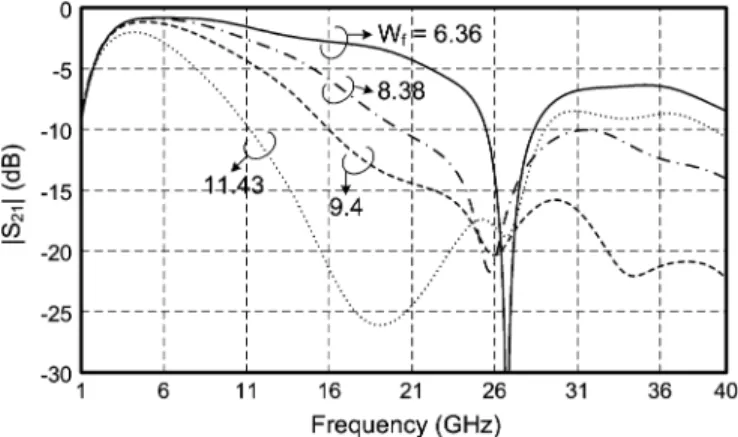

Fig. 8. Simulated frequency responses of the structure in Fig. 7 for various values ofW . (Unit: millimeters).
. The remaining dimension left to be adjusted is with mm being fixed in characterizing this structure. Fig. 8 depicts the four sets of full-wave simulated frequency results under the selected dimensions for .
When just equals , a deep transmission notch occurs at 26.64 GHz, which is the frequency at which becomes a full-wavelength-long microstrip counterpart. Equivalently, the length measured from the open end of the upper microstrip to the feed-line center is equal to a half-wavelength. Physically, this notch may be associated with the fundamental resonance of a strip structure for which the oppositely directed vertical-cou-pled electric-field distributions between the overlapped portion of microstrip and CPW would be cancelled along the half-wave-length resonator; thus, no signal would pass through this tran-sition. As increases, the attenuation ability degrades gradu-ally in the higher frequency band and the notch gets unobvious. Note that the response around 1.5 GHz remains unaltered, im-plying that the required capacitive coupling is almost unchanged as is changed. Note that a critical value of 11.4 mm of resulting in unfavorable rejection at high frequency over 25 GHz is observed in Fig. 8. In other words, needs to be adjusted for our specification of the rejection band. In this demonstrated case, the optimal value of for a high rejection level at high frequency ranges from 9.2 to 10.42 mm.
IV. FILTERDESIGN
For the proposed CPW filter with loaded air-bridge enhanced capacitors, its design procedure needs to be clearly specified. Based on the filter synthesis technique developed by Matthaei
et al. [21], the general design equations for the proposed
th-order filter, which is composed of SIRs together with loaded capacitors, will systematically be established here.
Given the desired filter specification of center frequency and factional bandwidth , Fig. 9 reveals the equivalent circuit of our proposed bandpass filter of order loaded by lumped-element capacitors. The filter is made of SIRs, which are coupled alternatively to - and -inverters. Each resonator is comprised of two joined transmission-line sections with impedances and , and electrical lengths and . The loaded capacitor for the resonator has a capacitance . The equivalent circuits for the - and -inverter blocks
shown in Fig. 9 are presented in Fig. 10(a) and (b). Defining and with and given by (1) and (2), the susceptance and reactance slope parameters can be obtained from their definitions as follows:
(6) With the derived susceptance and reactance slope parameters, one may express the filter design parameters as
(7) where are the element values of the low-pass prototype filter. With the - and -inverter values calculated from (7), the corresponding capacitances, inductances, and electrical lengths may be found using the formulas for the conventional impedance and admittance inverters comprised of lumped and transmission-line elements [22]. As a result, the complete de-sign formulas for the inline bandpass filter with loaded capacitors are established.
In this study, the -inverters at input and output stages will be implemented by the broadside-coupled microstrip-to-CPW transitions, as shown in Fig. 7, to provide suitable capacitive coupling at low frequency and spurious attenuation at high fre-quency. For the other values, they are all realized by using the gap capacitors between the open ends of CPW SIRs, as shown in Fig. 11(a). The -inverters are realized by the shunt inductors implemented between the short ends of CPW SIRs, as shown in Fig. 11(b). Note that the electrical length and may be converted to physical CPW lengths denoted as and through the propagation constants for different CPW imped-ances and of resonators.
V. MECHANISMS OFWIDEBANDSPURIOUS-SUPPRESSION
A. Spurious Destruction
Very wide rejection band may potentially be achieved for the inline coplanar filter when appropriate spurious-suppres-sion mechanisms are used. Based on the second-order filter with the equivalent circuit shown in Fig. 12, the concept for spu-rious destruction will qualitatively be discussed. At center fre-quency, the proposed filter (Fig. 12) is simply the cascade of two SIRs loaded by capacitors. On the foundation of the theory established by Matthaei et al. [21], an inline bandpass filter

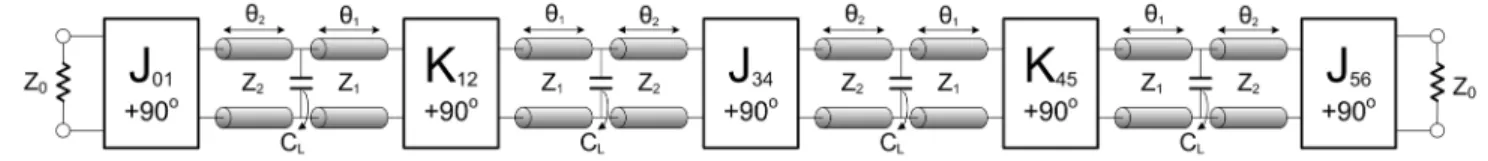

Fig. 9. Equivalent circuit of the proposedNth-order bandpass filter using =4 SIRs with loaded lumped-element capacitors.
Fig. 10. (a) J-inverter network realized by series capacitor C . (b) K-inverter network realized by shunt inductor L between res-onatorsi and (i + 1).
Fig. 11. Realizations ofJ- and K-inverters (capacitor and inductor) adopted in the proposed CPW filter. (White region: slot. Gray region: conductor.)
Fig. 12. Equivalent circuit of the proposed second-order bandpass filter with absence of odd-number spurious passbands.
using TLs as its distributed elements requires - and -in-verters placed alternatively between the resonant elements to produce a passband at a designated frequency. It implies that once the placement of - and -inverters does not follow the above-mentioned rule, the filter passband may be destructed. In-stead of constructing the center passband, our proposed filter does exactly the opposite to destruct the spurious passband at . Our effort is to arrange an improper placement of - and -inverters at first spurious passband on the basis of the second-order filter. One can easily observe that there are four sections of
TABLE I
REQUIREDPARAMETERS FORSECOND-ORDERBANDPASSFILTERSHOWN IN
FIG. 12 WITHABSENCE OFODD-NUMBERSPURIOUSPASSBANDS
TL in the second-order filter using capacitor-loaded SIRs. The two loaded capacitors may be considered as another two -inverters realized by shunt capacitors. By properly choosing the values of , impedance ratio , and length ratio , the first spurious resonance can be pushed up to the fre-quency around . The frequency-dependent elec-trical lengths and at will be times their electrical lengths at , i.e.,
, under the assumption that the electrical lengths are proportional to the frequency. Moreover, the capacitor-loaded SIR must appropriately be designed to give and , which are simultaneously close to 90 . As a re-sult, after the absorption of electrical lengths from - and -in-verters at , the second-order filter configuration designed at behaves approximately like a cascade of -90 TL- -90 TL- -90 TL- -90 TL- , equivalently a fourth-order filter with resonators at . Since the - and -inverters are improperly arranged as expected, the spurious passband at eventually will not appear.
A circuit-level simulation is conducted to demonstrate the spurious-destruction technique. To this end, a second-order filter is designed with center frequency GHz, and 3-dB fractional bandwidth of 10% for Chebyshev re-sponse. Choosing pF, , and , the corresponding electrical lengths of resonators will be . The required design parameters for the second-order filter evaluated from (7) are listed in Table I. The calculated first five higher order spurious resonances are at 6.44, 11.07, 16.2, 21.57, and 26.45 GHz ( and ), respectively, as shown in Fig. 13 (bottom half). Since the and at are 108.4 , which would be close to 90 after the absorption of electrical lengths from the - and -inverters at , the con-dition for resonance destruction is met. The circuit simulation is carried out by AWR Microwave Office to get the frequency responses presented in Fig. 13 (upper half). Apparently, over the frequency range of 1.0–30 GHz, the filter only exhibits the spurious passbands around and , while the passbands at and are completely absent. In conclusion, the odd-number spurious resonances ( etc.) will entirely be destructed due to the notion of improper inverter arrangement.

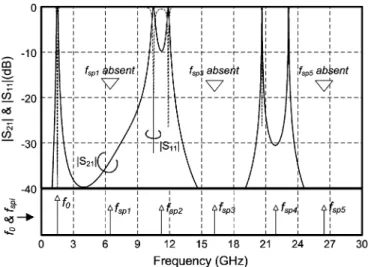

Fig. 13. Frequency responses of the proposed second-order filter (top half) de-scribed in Table I and the correspondingith spurious (harmonic) frequencies denoted asf (bottom half).
Fig. 14. Curve to relate transmission-zero frequencies, inherently associated with the air-bridge enhanced capacitor, to capacitor strip widthW (Fig. 4).
B. Spurious Cancellation
A transmission zero is inherently created by the air-bridge enhanced capacitor structures discussed in Section II. Adjusting the dimensional sizes of strip, the transmission-zero position can be moved downward or upward to the specified frequency point. Based on the structure in Fig. 4 with all dimensions identical, ex-cept for , the relation between the transmission-zero frequen-cies inherently associated with the air-bridge enhanced capac-itor and the capaccapac-itor strip width is plotted in Fig. 14. One can easily observe that the wider the strip, the lower the trans-mission-zero frequency. Intuitively, the related element values of the simplified model would be altered by adjusting the width , but the would only slightly be changed. To predict the generation of the transmission zero, the inductor presented in the simplified model for air-bridge enhanced capacitor needs to be included into the equivalent circuit of the proposed filter. En-suring that the series resonance of the LC tank occurs exactly at , the spurious passband arising there will be suppressed. Once this spurious is cancelled, the next repeated passband for the demonstrated second-order filter listed in Table I will appear at 21.57 GHz .
C. Higher Order Spurious Attenuation
Thus far, three spurious passbands have been either de-structed or suppressed with the innovative use of the air-bridge enhanced capacitors. The next effort is focused on the suppres-sion of the rest of higher order resonances. The broadside-cou-pled microstrip-to-CPW transition described in Section III holds the possibility to attenuate the passed signal in the higher frequency band exceeding . As illustrated in Fig. 8, the microstrip-to-CPW transition structure resembles a low-pass structure when the dimensional sizes are optimally tuned. By designing the strip length (Fig. 7) ranging from 9.2 to 10.42 mm, the higher order spurious passbands not lower than may be attenuated. Of course, when fabricating this structure in a different substrate, this range might be different.
Eventually, the key steps to realize the proposed filter with a wide stopband are worthy of mention and are concluded as follows. First of all, the values of and should prop-erly be chosen to make the utilized SIR with and ap-proximately equal to 90 after the electrical-length absorption from inverters at the first spurious frequency so that the odd-number spurious resonances may entirely be destructed. The capacitor width (Fig. 4) is then suitably adjusted such that the inherent transmission zeros associated with the air-bridge enhanced capacitor is allocated around , thereby canceling the second spurious passband around . Finally, the spurious passbands not lower than is attenu-ated by optimally tuning the dimension (Fig. 7) of the mi-crostrip-to-CPW transition structures. By combining the above-mentioned spurious-suppression schemes, a very-wide rejection band can be accomplished in the proposed filter configuration.
VI. FILTERIMPLEMENTATION ANDRESULTS
Sufficient information for designing the inline CPW bandpass filters loaded by air-bridge enhanced capacitors with very-wide rejection bandwidth has been provided. To validate the design procedures, several filters based on the proposed structures are fabricated and thoughtfully examined.
A. Second-Order Filter
Spurious-destruction technique has been detailed quali-tatively by simulating a second-order filter as an example in Section V. Further verification is done by fabricating the second-order filter with center frequency of 1.5 GHz, 3 dB-fractional bandwidth of 10% on the FR4 substrate ( mm, ). The SIRs possess the first four predicted spurious resonances at 6.69, 10.24, 16.7, and 19.77 GHz with the given parameters
, and pF. Accordingly, the corresponding electrical lengths of SIRs are and . Since and at are 123.45 and 109.45 , which are close to 90 after the electrical-length absorption from in-verters, the resonance-destruction condition is met. The filter design parameters evaluated from (7) are listed in Table II. The air-bridge enhanced capacitor is designed with the extracted nH and pF to result in a transmission zero around 9.31 GHz for cancelling the spurious passbands at 9.56 GHz . Note that the second spurious passband of the
Fig. 15. Top-/bottom-plane layouts of the proposed second-order bandpass filter loaded by air-bridge enhanced capacitors described in Table II.(W = 1:02; G = 1:27; W = 6:35; G = 0:51; D = 5:9;D = 6:93; s = 2:9; d = 0:76; W = 10:74; D = 1:78; D = 0:79; W = 9:02).

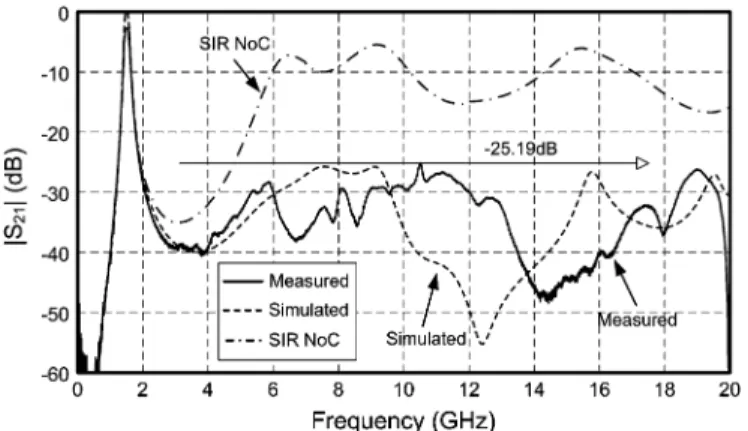

Fig. 16. Measured/simulated frequency responses of the proposed second-order filter fabricated on the 0.508-mm-thick FR4 substrate. (The second-order filter constructed by SIRs with identicalR without loaded C is also included as “SIR-NoC” for comparison.)
fabricated filter shifts approximately 0.68 GHz lower than the calculated one. It is due to some parasitic effects of the CPW resonators using air-bridge enhanced capacitors not taken into consideration when calculating by (3). However, the resonance frequencies are still predicted accurately enough for our design. The physical layout is presented in Fig. 15 with dimensions labeled.
The full-wave simulated result with the dielectric loss ex-cluded is shown in Fig. 16 together with the measured result for comparison. During the simulation, it is found that the loss obviously influences the in-band insertion loss, but is of minor significance on the out-of-band rejection. The fabricated filter has a center frequency at 1.549 GHz, measured 3-dB fractional bandwidth of approximately 11.27%, minimum insertion loss of 2.723 dB, and minimum passband return loss of 15.5 dB. The filter has a miniature size of only , where stands for the wavelength of 50- CPW at center frequency. This second-order bandpass filter possesses a stopband extended up to 20 GHz with a rejection level better than 25.19 dB.
structures. Note that the simulated result of the conventional inline CPW filter with identical without loaded is also presented in Fig. 16. It is found that the rejection level has been significantly improved in our proposed second-order filter.
B. Fourth-Order Filter
Intuitively, the attenuation level of the stopband can further be reinforced by increasing the filter order. Another fourth-order bandpass filter loaded by air-bridge enhanced capacitors is implemented on a 0.508-mm-thick RO4003 substrate. Since the fourth-order filter is symmetric with respect to [see Fig. 17(a)], only the design parameters on the left-hand side of the equivalent circuit are presented in Table II. This filter is de-signed with GHz, 3-dB fractional bandwidth % for the Chebyshev response. The equivalent circuit of this filter is illustrated in Fig. 17(a). Shown in Fig. 17(b) are the layouts of the fourth-order filter with dimensions labeled. The extracted and of the simplified equivalent model related to the di-mensions of the air-bridge enhanced capacitor are 0.23 nH and 1.14 pF with respect to mm and mm. The SIRs loaded by capacitors in this design have
param-eters, and
pF to satisfy the spurious-destruction condition. Accordingly, the predicted first four spurious resonances of utilized resonators are 6.58, 11.37, 16.85, and 22.22 GHz ( and ). The loaded air-bridge enhanced capacitors introduce an inherent transmission zero in the proximity of 9.83 GHz to cancel the second spurious passband at 9.92 GHz . The offset of the second spurious passband is also due to the parasitic effects of the utilized SIRs not taken into consideration. The broadside-coupled microstrip-to-CPW transition has been optimally adjusted to possess mm to increase the attenuation level exceeding 20 GHz.
Consequently, a very wide-stopband inline CPW filter has been fabricated. Its measured and simulated results are shown in Fig. 18. This fourth-order filter has a center frequency of 1.48 GHz, measured 3-dB fractional bandwidth of approx-imately 11.27%, minimum insertion loss of 1.73 dB, and minimum passband return loss of 15.5 dB. The proposed filter has a miniature size of only . The stopband is ex-tended up to 28.18 GHz with a rejection level better than 30 dB. Note that the simulated results of a conventional in-line CPW filter using uniform-impedance resonators with the same specification is also included in Fig. 18 as a curve “In-line UIR” for reference. Remarkably, more than eight spurious passbands associated with the filter using a uniform-impedance resonator are suppressed in our proposed filter.
Note that there is some discrepancy between measured and simulated results from 5 to 13 GHz due to the inaccuracy of aligning the top- and bottom-plane layouts in the printed-circuit board fabrication. However, the level and trend of the measured out-of-band response are still predicted by the simulated one,

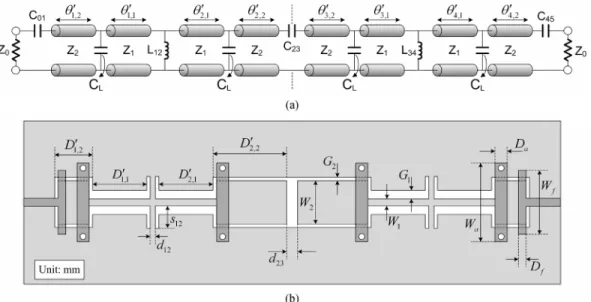

Fig. 17. (a) Equivalent circuit. (b) Top-/bottom-plane layouts of the proposed fourth-order CPW bandpass filter loaded by air-bridge enhanced capacitors de-scribed in Table II. (W = 1:02; G = 1:27; W = 6:35; G = 0:51; D = 5:05; D = 7:95; s = 3:3; d = 0:76; D = 7:95; D = 10:8; d = 1:63;W = 1:12; D = 9:4; W = 11:56; D = 1:78).
(a)
(b)
Fig. 18. (a) Narrowband and (b) wideband measured/simulated frequency re-sponses of the proposed fourth-order filter described in Table II fabricated on the 0.508-mm-thick RO4003 substrate.
thereby verifying the three spurious suppression mechanisms, as mentioned in Section V.
Fig. 19. Rectangular housing structure for the second-order filter in Fig. 15. (W = 30:48 mm, L = 41:66 mm, H = 15:24 mm). Note that the bold black lines represent the housing boundary and “O” indicates the coordinate origin.
VII. HOUSINGEFFECTS
For system application, the filter is usually surrounded by the metallic housing for preventing unnecessary interferences. Physically, the housing may cause unwanted cavity resonances to degrade the wideband spurious-suppression characteristic. It is very complicated to conduct the simultaneous design of the housing and filter. Therefore, a separate design of housing is es-sential from the practical point-of-view.
Note that the cavity resonances would eventually appear no matter how the housing is arranged and reshaped. An approach to effectively suppress the unwanted cavity resonances is to at-tach the absorbing material inside the housing walls.
Shown in Fig. 19 is a typical rectangular housing structure for the proposed second-order filter in Fig. 15. Curve 1 of Fig. 20 exhibits the simulated result of the filter with housing (but without the absorbing material). Obviously, the wideband spurious-suppression characteristic has been destructed due to the cavity resonances and the first spurious passband occurs at the resonant frequency of the cavity associated with the mode. By attaching the absorbing material on the top

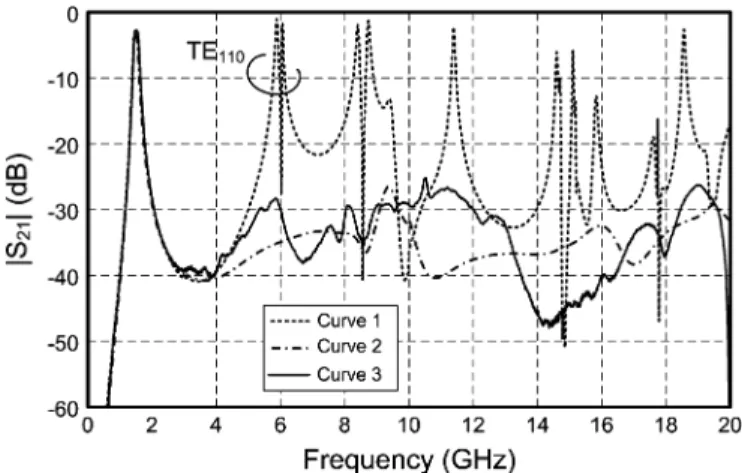

Fig. 20. Results of the second-order filter with and without the housing. (Curve 1: housing only, Curve 2: with absorber, Curve 3: without housing.)
and bottom walls of the housing, those unwanted resonances disappear, as shown in the simulated Curve 2 in Fig. 20. The ability of spurious suppression is recovered as well. Note that the measured result of the second-order filter (Curve 3) is also included in Fig. 20 for comparison.
VIII. CONCLUSION
To the authors’ knowledge, the inline CPW bandpass filters loaded by capacitors with wideband spurious suppression have never been presented. The filters composed of SIRs loaded by lumped-element capacitors with an absence of an odd number of spurious passbands are originally investigated in this study. Based on the mechanisms of the spurious destruction, the spurious cancellation due to the transmission zero inherently associated with the air-bridge enhanced capacitor structure, and the higher order spurious attenuation provided by broad-side-coupled microstrip-to-CPW transition, the implemented fourth-order inline CPW filter has its stopband significantly extended up to 19.04 with a rejection level better than 30 dB. The implemented filter occupies a size also smaller than that of the conventional one due to the use of resonators loaded by lumped-element capacitors. Since all occupied capacitors are realized in a dual-plane vertical configuration, the proposed inline CPW filters are especially suitable for the multilayer fabrication process.
ACKNOWLEDGMENT
The authors would like to thank Dr. C.-H. Wang, National Taiwan University, Taipei, Taiwan, R.O.C., for his valuable dis-cussions and suggestions on this topic.
REFERENCES
[1] C. P. Wen, “Coplanar waveguide: A surface strip transmission line suit-able for nonreciprocal gyromagnetic device applications,” IEEE Trans.
Microw. Theory Tech., vol. MTT-17, no. 12, pp. 1087–1090, Dec. 1969.
[2] D. F. Williams and S. E. Schwarz, “Design and performance of coplanar waveguide bandpass filters,” IEEE Trans. Microw. Theory
Tech., vol. MTT-31, no. 7, pp. 558–566, Jul. 1983.
[3] J. K. A. Everard and K. K. M. Cheng, “High performance direct cou-pled bandpass filters on coplanar waveguide,” IEEE Trans. Microw.
Theory Tech., vol. 41, no. 9, pp. 1568–1573, Sep. 1993.
pp. 401–402, Mar. 1999.
[6] H. Kanaya, J. Fujiyama, R. Oba, and K. Yoshida, “Design method of miniaturized HTS coplanar waveguide bandpass filters using cross cou-pling,” IEEE Trans. Appl. Supercond., vol. 13, no. 2, pp. 265–268, Jun. 2003.
[7] K. Wada, Y. Noguchi, E. Higashino, and J. Ishii, “Tapped-feed combline-type coplanar waveguide resonator bandpass filters,” in
IEEE MTT-S Int. Microw. Symp. Dig., Feb. 1995, pp. 141–146.
[8] T. Tsujiguchi, H. Matsumoto, and T. Nishikawa, “A miniaturized end-coupled bandpass filter using=4 hair-pin coplanar resonators,” in
IEEE MTT-S Int. Microw. Symp. Dig., Jun. 1998, pp. 829–832.
[9] M. Sagawa, M. Makimoto, and S. Yamashita, “Geometrical structures and fundamental characteristics of microwave stepped-impedance resonators,” IEEE Trans. Microw. Theory Tech., vol. 45, no. 7, pp. 1078–1085, Apr. 1997.
[10] A. Sanada, H. Takehara, and I. Awai, “Design of the CPW in-line =4 stepped-impedance resonator bandpass filter,” in Proc.
Asia–Pa-cific Microw. Conf., Dec. 2001, pp. 633–636.
[11] J.-T. Kuo and E. Shih, “Microstrip stepped impedance resonator band-pass filter with an extended optimal rejection bandwidth,” IEEE Trans.
Microw. Theory Tech., vol. 51, no. 5, pp. 1554–1559, May 2003.
[12] T. Lopetegi, M. A. G. Laso, J. Hernández, M. Bacaicoa, D. Benito, M. J. Garde, M. Sorolla, and M. Guglielmi, “New microstrip ‘wiggly-line’ filters with spurious passband suppression,” IEEE Trans. Microw.
Theory Tech., vol. 49, no. 9, pp. 1593–1598, Sep. 2001.
[13] T. Lopetegi, M. A. G. Laso, F. Falcone, F. Martin, J. Bonache, J. Garcia, L. Perev-Cuevas, M. Sorolla, and M. Guglielmi, “Microstrip ‘wiggly-line’ bandpass filters with multispurious rejection,” IEEE
Microwave Wireless Compon. Lett., vol. 14, no. 11, pp. 531–533, Nov.
2004.
[14] J.-T. Kuo, M. Jiang, and H.-J. Chang, “Design of parallel-coupled mi-crostrip filters with suppression of spurious resonances using substrate suspension,” IEEE Trans. Microw. Theory Tech., vol. 52, no. 1, pp. 83–89, Jan. 2004.
[15] S.-C. Lin, P.-H. Den, Y.-S. Lin, C.-H. Wang, and C. H. Chen, “Wide-stopband microstrip bandpass filters using dissimilar quarter-wavelength stepped impedance resonators,” IEEE Trans.
Microw. Theory Tech., vol. 54, no. 3, pp. 1011–1018, Mar. 2006.
[16] T. Tsujiguchi, H. Matsumoto, and T. Nishikawa, “A miniaturized double-surface CPW bandpass filter improved spurious responses,”
IEEE Trans. Microw. Theory Tech., vol. 49, no. 5, pp. 879–885, May
2001.
[17] J. Gao and L. Zhu, “Asymmetric parallel-coupled CPW stages for har-monic suppressed=4 bandpass filters,” Electron. Lett., vol. 40, no. 18, pp. 1122–1123, Sep. 2004.
[18] C.-C. Chang, C. Caloz, and T. Itoh, “Analysis of a compact slot res-onator in the ground plane for microstrip structures,” in Proc.
Asia–Pa-cific Microw. Conf., Dec. 2001, pp. 1100–1103.
[19] J. J. Burke and R. W. Jackson, “Surface-to-surface transition via elec-tromagnetic coupling of microstrip and coplanar waveguide,” IEEE
Trans. Microw. Theory Tech., vol. 37, no. 3, pp. 519–525, Mar. 1989.
[20] L. Zhu and W. Menzel, “Broad-band microstrip-to-CPW transition via frequency-dependent electromagnetic coupling,” IEEE Trans. Microw.
Theory Tech., vol. 52, no. 5, pp. 1517–1522, May 2004.
[21] G. Matthaei, L. Young, and E. Jones, Microwave Filters, Impedance
Matching Networks, and Coupling Structures. New York: McGraw-Hill, 1964, pp. 427–440, 464–471.
[22] J. S. Hong and M. J. Lancaster, Microstrip Filter for RF/Microwave
Applications. New York: Wiley, 2001, pp. 56–63.
