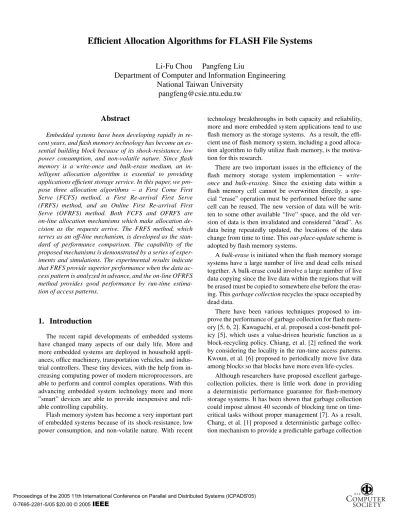

Efﬁcient Allocation Algorithms for FLASH File Systems

Li-Fu Chou

Pangfeng Liu

Department of Computer and Information Engineering

National Taiwan University

[email protected]

Abstract

Embedded systems have been developing rapidly in re-cent years, and flash memory technology has become an es-sential building block because of its shock-resistance, low power consumption, and non-volatile nature. Since flash memory is a write-once and bulk-erase medium, an in-telligent allocation algorithm is essential to providing applications efficient storage service. In this paper, we pro-pose three allocation algorithms – a First Come First Serve (FCFS) method, a First Re-arrival First Serve (FRFS) method, and an Online First Re-arrival First Serve (OFRFS) method. Both FCFS and OFRFS are on-line allocation mechanisms which make allocation de-cision as the requests arrive. The FRFS method, which serves as an off-line mechanism, is developed as the stan-dard of performance comparison. The capability of the proposed mechanisms is demonstrated by a series of exper-iments and simulations. The experimental results indicate that FRFS provide superior performance when the data ac-cess pattern is analyzed in advance, and the on-line OFRFS method provides good performance by run-time estima-tion of access patterns.

1. Introduction

The recent rapid developments of embedded systems have changed many aspects of our daily life. More and more embedded systems are deployed in household appli-ances, ofﬁce machinery, transportation vehicles, and indus-trial controllers. These tiny devices, with the help from in-creasing computing power of modern microprocessors, are able to perform and control complex operations. With this advancing embedded system technology more and more ”smart” devices are able to provide inexpensive and reli-able controlling capability.

Flash memory system has become a very important part of embedded systems because of its shock-resistance, low power consumption, and non-volatile nature. With recent

technology breakthroughs in both capacity and reliability, more and more embedded system applications tend to use flash memory as the storage systems. As a result, the effi-cient use of flash memory system, including a good alloca-tion algorithm to fully utilize flash memory, is the motiva-tion for this research.

There are two important issues in the efﬁciency of the ﬂash memory storage system implementation –

write-once and bulk-erasing. Since the existing data within a

ﬂash memory cell cannot be overwritten directly, a spe-cial “erase” operation must be performed before the same cell can be reused. The new version of data will be writ-ten to some other available “live” space, and the old ver-sion of data is then invalidated and considered ”dead”. As data being repeatedly updated, the locations of the data change from time to time. This out-place-update scheme is adopted by ﬂash memory systems.

A bulk-erase is initiated when the ﬂash memory storage systems have a large number of live and dead cells mixed together. A bulk-erase could involve a large number of live data copying since the live data within the regions that will be erased must be copied to somewhere else before the eras-ing. This garbage collection recycles the space occupied by dead data.

There have been various techniques proposed to im-prove the performance of garbage collection for flash mem-ory [5, 6, 2]. Kawaguchi, et al. proposed a cost-benefit pol-icy [5], which uses a value-driven heuristic function as a block-recycling policy. Chiang, et al. [2] refined the work by considering the locality in the run-time access patterns. Kwoun, et al. [6] proposed to periodically move live data among blocks so that blocks have more even life-cycles.

Although researchers have proposed excellent garbage-collection policies, there is little work done in providing a deterministic performance guarantee for ﬂash-memory storage systems. It has been shown that garbage collection could impose almost 40 seconds of blocking time on time-critical tasks without proper management [7]. As a result, Chang, et al. [1] proposed a deterministic garbage collec-tion mechanism to provide a predictable garbage colleccollec-tion

(2)

mechanism.

The focus of this research is to emphasize the impor-tance of allocation strategy, so that the system requires less times for garbage collection. In time-critical systems we must consider both efficient garbage collection and alloca-tion mechanism. A good allocaalloca-tion algorithm greatly im-proves garbage collection time by reducing the number of flash memory blocks required to realize a data update pat-tern. This motivates us to develop intelligent data alloca-tion algorithms to reduce the resource consumpalloca-tion for flash memory storage systems.

The rest of this paper is organized as follows: Section 2 introduces the ﬂash memory operation and allocation model. Section 3 presents three allocation algorithms. Sec-tion 4 summarizes the experimental results and SecSec-tion 5 concludes with possible future research directions.

2. Flash Memory Allocation Model

This section describes the allocation model for flash memory file systems. There are two major architectures in flash memory design: NOR flash and NAND flash [10]. NOR flash is a kind of EEPROM and NAND flash is de-signed for data storage. This paper focuses on NAND flash as a storage for embedded system. NAND also has a bet-ter price/capacity ratio compared to NOR flash. We will de-scribe the properties of flash memory systems and the allo-cation problem we would like to resolve.

2.1. Flash Memory Systems

A ﬂash memory system is a collection ofn cells. Each

cell in the ﬂash memory has a unique ID, therefore the cells

are denoted byc0, c1, c2, . . . c_n−1.B cells are grouped into

a block and we assume that there areF blocks, denoted by

b0, b1, b2, . . . , bF −1. As a result the cells in block bk are

cB∗k, cB∗k+1, cB∗k+2, cB∗k+3, . . . , cB∗(k+1)−1.

Each ﬂash memory cell can be in one of the following three states – free, used, and invalid. A free cell has no data in it, a used cell has data written into in it, and an invalid cell has a data that is no longer valid. On the other hand, a block can be in one of the following two states – active,

inactive. An active blocks has valid data written in some of

its cells, and an inactive block only has free or invalid cells. Initially all cells are free. When a data is written into a free cell, the cell becomes used. Unlike a sector in a hard disk, a written cell cannot be rewritten. If we would like to rewrite a data stored a cell, we need to write it to another free cell, and mark the original cell invalid. Invalid cells can be put back into the free state only through an “erase” op-eration. However, a block can be erased only when every cell of the block is free or invalid. That means only

inac-tive blocks can be erased. After the erase operation all cells

become free and new data can be written into them. On the other hand, if any cell of a block is in the used state the block is active, and we cannot erase it.

2.2. Page Access Pattern

A ﬁle is divided into several pages denoted by

p0, p1, p2, . . . , pm−1. Each ﬁle page has the same size and

can fit into a memory cell. The pages of the file will be writ-ten into allocated flash memory cells. We assume that the file operation will be performed in pages, and we will con-centrate on those pages that are modified. As a result, file modification operation can be modeled as a se-quence of page (and flash memory cell) modification. This sequence is called the page access pattern.

2.3. Flash Memory Access

After we define the file access pattern and flash mem-ory model, we formally define the access of flash memmem-ory. Access to the flash memory can be divided into two cate-gories – reading and writing. Since only the write operation changes the state of cells and the allocation status of flash memory, we just need to focus on the write operations. That is, we simply ignore the read operations in the page access pattern.

We divide the process of writing to the flash memory into three stages. In the first stage, we transform the file modi-fication process into a page access pattern. In the second stage, we use a function f to map each page in the page ac-cess pattern to a free cell. This function is called page

allo-cation function. We then apply functionf on the page

ac-cess pattern obtained from the ﬁrst stage and allocate a cell for each page in the page access pattern. At the third stage,

the page of the page access patternp_k will be allocated a

memory cell c_f(pk₎, decided in the second stage, and the

state of cellc_f(pk₎ is set to “used”. If the same page

ap-peared in the page access pattern before, we set the state of the cell it was previously allocated “invalid”.

3. Algorithms

3.1. First Come First Serve Allocation

The First Come First Serve Allocation algorithm places pages according to their arrival time, with the first coming page occupying the first available flash memory cell. This strategy is very intuitive for the following reasons. First, FCFS is very easy to implement and we can simply place the pages without any complex computation. Secondly, it seems reasonable that the first incoming page will become invalid first, so that if we apply FCFS the blocks could be reused in the earliest possible time. As a result FCFS may

(3)

require less memory blocks for the same page access pat-tern.

We use a block list to store the flash memory blocks. We allocate block from the block list for the incoming pages. Initially the block list contains all the blocks of the flash memory, and the blocks are ordered in increasing identifi-cation number order.

FCFS places each page into memory cell according to its arrival time. That is, the first page is placed into the first po-sition of the first blocks in the block list; the second page is placed into the second position of the first blocks in the block list, and so on. In other words, we start placing the pages into the second block in the block list only when the cells of the first block are all used. As a result we place the pages into blocks sequentially one block at a time.

The ﬂash memory recycles blocks when necessary. If a block becomes inactive, it can be erased and become ready to use again. If FCFS ﬁnds that a block becomes inactive, it erases the block and moves it to the end of the block list so it can be reused.

During the FCFS allocation procedure, we keep track of the total number of the active blocks. At the end, the maxi-mum of these active blocks number is the number of blocks required by FCFS for this access pattern. Figure 1 gives the FCFS pseudo code.

for each page in the page access pattern { Place the page into the first available cell from the block list.

If the page appeared before, mark the cell it previously resided invalid.

If the block the page previously resided now becomes inactive, erase it and move it to the end of the block list. }

Figure 1. The pseudo code for First Come First Serve Allocation (FCFS) algorithm.

3.2. First Re-arrival First Serve Allocation

Despite the fact that FCFS is intuitive and easy to im-plement, it does not perform well in practice. Instead of placing pages according to their arrival time, we propose another strategy called First Re-arrival First Serve (FRFS) that places pages according to their re-arrival time. A page

re-arrives when the same page appears again in the page

access pattern. And the re-arrival time is the time when the page re-arrives. if a page does not re-arrive in the access pat-tern, its re-arrival time is set to inﬁnity

The intuition that we use the re-arrival time to allocate cells is that we want to reuse blocks as soon as possible, so that the allocation could uses the minimal number of blocks. By assigning those pages that will be marked invalid ﬁrst, the ﬁrst used block will be reused at the earliest possible time.

FRFS algorithm has three stages. In the ﬁrst stage FRFS computes the re-arrival time of each page by scanning through the entire access pattern. Note that FRFS needs to know the page access pattern in advance in order to com-pute the re-arrival time. The re-arrival time of those pages that do not appear again is set to inﬁnity. Figure 1 gives the computation of the re-arrival time.

In the second stage FRFS allocates a cell for each page. We sort the page sequence by their re-arrival time and as-sign each of them a ordinal order according to its re-arrival time. The page having the earliest re-arrival time is assigned 0, the page with the second earliest re-arrival time is as-signed 1, and so on. Table 1 illustrates an access pattern, the re-arrival time of each page, and the ordinal numbers they are assigned according to their re-arrival time.

T 1 2 3 4 5 6 7 8 9 10 11 12 13

P a b c b a a d b d a d d a

R 5 4 i 8 6 10 9 i 11 13 12 i i

O 1 0 9 3 2 5 4 10 6 8 7 11 12

Table 1. FRFS timestamps each page and computes its arrival time. Note that the

re-arrival timeimeans inﬁnity.

In the third stage FRFS places the pages into the blocks according to the ordinal number they are assigned from the

second stage. If the page has ordinal numberk, it will be

placed into thek%B-th cell of the k/B-th block in the block

list, whereB is the number of pages in a block. Note that

when a page re-arrives, we need to set the status of the cell it previously resided to be invalid. Similar to FCFS, if FRFS ﬁnds that a block becomes inactive, it erases the block and moves it to the end of the block list so it can be reused. We also keep track of the number of active blocks, and at the end the maximum of these active block numbers is the num-ber of blocks required by FRFS. Figure 2 gives the pseudo code for FRFS.

3.3. Online First Re-arrival First Serve Allocation

Despite the fact that FRFS performs much better than FCFS, as we shall see in the experimental results, FRFS may not be practical since it needs to know the entire ac-cess pattern in advance. However, in practice it is impossi-ble to obtain this knowledge beforehand, and most of the time we are required to to make an allocation decision as

(4)

Compute the re-arrival time for each page Compute an order of re-arrival time.

for each page in the page access pattern { Let k be the ordial number

Place the page into the k % B-th cell of the k / B-th block in the block list.

If the same page appeared before, mark the cell it previously resided invalid.

If the block the page previously resided becomes inactive, erase it and move it to the end of the block list.

}

Figure 2. The pseudo code of First Re-arrival First Serve Allocation (FRFS) algorithm.

soon as a page request arrives. As a result, we have to mod-ify FRFS so that it will be able to adapt to the on-line sce-nario.

We observe that most of the page access patterns contain certain amount of “regularity”. By regularity we mean that the interval between the same page appears and re-appears is more or less the same. In the next section we will for-mally deﬁne this interval regularity, and describe evidences that this regularity does exist in ﬁle access trace records col-lected in real systems. Based on this observation, we mod-ify our FRFS algorithm to explore the interval regularity, and build an on-line FRFS (OFRFS) that can correctly es-timate the time a page will re-appear. Namely we use the interval obtained from the history and the time it lastly ap-peared to estimate when the same page will reappear, and allocate the page for it accordingly.

The online FRFS uses two essential data structures. The ﬁrst data structure is a block list as in FRFS, and the sec-ond one is a prediction table that contains prediction infor-mation for all the pages that have appeared. For actual im-plementation the prediction table will be placed in random access memory of the embedded devices, so that we can ac-cess the prediction information fast. Each page in the pre-diction table contains two important data – the estimated

ar-rival interval for this page (denoted byα) and the last time

it appeared (denoted byβ).

Initially, the prediction table is empty. When a new page

appears, we set its estimated arrival intervalα to a default

valuev, which is the mean value of the intervals of all pages

we have observed in the past. Then we set the last arrival timeβ of this page to the current time, and insert this en-try into the prediction table. If an incoming page is already present in the prediction table, we update the estimated

in-terval as a linear combination of the previousα, and the

length of interval between the current time and the

previ-ously arrival timeβ. Formally, we compute the new

esti-mated interval length as the following Equation 1, where

α∗_{is the new estimated interval length,}_{t is the current time,}

andr is the constant between 0 and 1 [9], and by deﬁnition

we set the previously arrival timeβ to the current time.

α∗_{= rα + (1 − r)(t − β)} ₍₁₎

We now complete the online FRFS implementation after we know how to estimate the re-arrival time for each page. When a page appeared we ﬁrst obtain its estimated re-arrival interval from the prediction table. Then we add the new esti-mated interval and the current time together as the predicted re-arrival time. When FRFS allocates a cell for the incom-ing page, it needs to “skip” certain number of cells, for those pages that will have re-arrival time smaller than the current page. The reason is that by allocating the order the pages reappear, blocks of cells can be reused as soon as possi-ble. Therefore, we need to count the total number of pages which will have smaller estimated re-arrival time.

We now describe the process of counting the number of pages that will have smaller estimated re-arrival time than the current page, so that we may skip the right number of cells during allocation. When the current page arrives, its

re-arrival time is the sum of its estimated intervalα and

the current time. Now for the other pages, by adding its

es-timated intervalα to its last arrival time β, we obtain the

time it will arrive and be allocated into a cell we reserved for it. However, the time this page is expected to leave the reserved cell is the sum of twice of their estimated inter-valα and the last arrival time β – the re-arrival time of this page after being allocated into the reserved cell. For each of

the other pagesp we compare the sum of twice of its

esti-mated interval and the last arrival time with the sum of the estimated interval of the current page and the current time.

If the pagep has a smaller re-arrival time, we reserve a cell

for it.

During the estimation process, we do not know the sta-tus of every pages that will eventually appear, and we only know the predicted re-arrival time of those pages that have appeared in the past. As a result we simply count the num-ber of pages that we are aware of that have a smaller pre-dicted re-arrival time than the current page. Let us denote this number of other pages that will reappear earlier than

the current page as S. After knowing S, we look for the

(S + 1)-th free cell in the block list and put the page into it.

3.4. Hybrid Online Allocation

Despite that our online FRFS allocation algorithm allo-cates pages in an on-line manner with the aid of prediction table, we do not have sufﬁcient information to deduce the re-arrival time for those pages that have very little informa-tion in the predicinforma-tion table. When a new page arrives, we

(5)

Initialize the prediction table

for each page in the page access pattern { If the page did not appear before, set the estimated interval to a default value and insert it into prediction table, otherwise, re-calculate the estimated interval.

Use the sum of current time and estimated interval as the predicted re-arrival time.

Use the sum of the previous arrival time and twice of the estimated interval as predicted re-arrival time for other pages.

Count the number of pages which have smaller re-arrival time than the current page in prediction table. Let the number be S. Place the page into the (S+1)-th free cell in the block list.

}

Figure 3. The pseudo code of On-line First Re-arrival First Serve Allocation (OFRFS) al-gorithm.

which is the mean value of the intervals of all pages we have observed in the past. This could seriously mislead the pre-diction since even when the page access pattern does have certain regularity, the interval of one page could be very dif-ferent from the other. Setting the estimated interval of all pages to the same initial constant seems questionable. To overcome this problem we modify our allocation algorithm as follows: If the number of the times a page has appeared is small, we do not use the estimated interval from the pre-diction table to predict its re-arrival time. Instead we allo-cate these page with the naive FCFS method. We will re-fer to this algorithm as the Hybrid Online Allocation

Algo-rithm. This algorithm solves the problem that the estimated

interval is not correct because of insufﬁcient data in the pre-diction table.

4. Experimental Results

4.1. Regularity of Page Access Pattern

In order to predict the re-arrival time of a particular page, we must have certain confidence in the “regularity” of the page access pattern. In this section we formally define the regularity, and demonstrate that it does exist in the trace files we collected from real systems. In order to quantify this in-terval regularity, for each page we calculate the mean value and standard deviation of the intervals the same page reap-pears. We then for each page calculate the ratio of the stan-dard deviation to mean value of these intervals. This ratio

is denoted byR, and a small value of R indicates that the

page reappears in a predictable pattern. We use this ratioR

as the criterion to judge the regularity of page access pat-tern.

Since each page has its own ratioR of standard deviation

to mean interval length, the distribution ofR from all pages

is a good indicator of how well we will be able to predict the

re-arrival time. We construct thisR histogram as follows.

We ﬁrst ﬁnd the maximum ratioR among all pages and

de-note it asR_M. TheR domain is then divided to produce 100

equally sized sub-domains, denoted byr₀, r₁, . . . , r₉₉. The

range ofr_kis betweenR_M∗ k/100 and R_M∗ (k + 1)/100.

We then construct the histogram by counting the number of pages that will fall into each sub-domain. Figure 4 gives the histogram on the left.

To compute the probability of the event that a page has a

speciﬁed range ofR, we put a weight on the each page. The

weight of a page is the frequency that this page appears in the trace ﬁle. Now each page has a weight, so we can com-pute its weighted contribution towards the overall distribu-tion. We now compute the sum of weight for all pages from

a sub-domain ofR, and divided it by the total weight from

all pages. This quantity is indeed the probability of the event

that a page has a speciﬁed range ofR.

Now we calculate the accumulated probability of these ratio values. We are interested in the calculation that given a

ﬁxed probabilityp, what is the minimum ratio value R∗that

the event of having the random variableR smaller or equal

toR∗ is at leastp? Formally we have P r(R ≤ R∗) ≥ p.

For the sub-domainrk we sum up the probability of

sub-domainsr0, r1, . . . , r_k, and plot the accumulated

probabil-ity in the right hand side of Figure 4.

We have three trace files collected in three different real systems. The first trace file is collected from an FAT32 file system. Applications are a web browser and an email client. The second trace is a disk trace downloaded from BYU Trace Distribution Center [4]. This disk trace file is from a TPC-C database benchmark with 20 warehouses, with one client running one iteration. The database system is Postgres 7.1.2, and the trace is collected with DTB v1.1 from Red-hat Linux kernel 2.4.13. The third trace is collected from an FAT32 file system. The applications include web browser, text editor, P2P software, and email client. It is collected with Microsoft tracelog v5.0.

From Figure 4, as we setp to 90%, R∗equals 31, 3, 49

respectively in each of the three trace records. We conclude thattrace2has higher regularity thantrace1, which in turn

has higher regularity thantrace₃.

4.2. Experimental Guidelines and Results

We implemented four algorithms – First Come First Serve (FCFS), First Re-arrival First Serve (FRFS), Online

(6)

0 50 100 150 200 250 0 10 20 30 40 50 60 70 80 90 100 number of pages percentage of Rm ’analysis_trace_0_0.pl’ 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0 10 20 30 40 50 60 70 80 90 100 possibility percentage of Rm ’analysis_trace_0_1.pl’ 0 50 100 150 200 250 300 350 400 0 10 20 30 40 50 60 70 80 90 100 number of pages percentage of Rm ’analysis_trace_1_0.pl’ 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1 0 10 20 30 40 50 60 70 80 90 100 possibility percentage of Rm ’analysis_trace_1_1.pl’ 0 20 40 60 80 100 120 140 0 10 20 30 40 50 60 70 80 90 100 number of pages percentage of Rm ’analysis_trace_2_0.pl’ 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0 10 20 30 40 50 60 70 80 90 100 possibility percentage of Rm ’analysis_trace_2_1.pl’

Figure 4. The histogram and accumulated probability of the three trace records.

First Re-arrival First Serve (OFRFS) and Hybrid Online (HO). For each trace ﬁle, we compare their performance

under different access patterns lengthN. We conducted

ex-periments for different values ofN, which is set to 2n∗ 256

forn = 1, 2, 3, . . . till the maximum value depending on the length of trace ﬁles. For each of these page access pat-terns we run the three allocation algorithms for 100 times and compare the average number of requested blocks.

Figure 5 plots the relation between the length of the page access pattern and the average number of requested blocks for each trace ﬁle.

Observations From Figure 5 we have the following

obser-vations. First for each trace file, the average number of re-quested blocks of FCFS is larger than that of FRFS. Sec-ondly, the average number of requested blocks of OFRFS is less than that of FCFS in the first trace file, almost the same as that of FCFS in the second trace file, and actually larger than that of FCFS in the third trace file. Thirdly, the aver-age number of requested blocks of HO is only larger than FRFS, and is smaller than that of OFRFS in all trace files.

Explanations There are two reasons that FRFC

outper-forms FCFS. First FRFS permutes the pages of the page ac-cess pattern in an order obtained from their re-arrival time. Consequently we put those pages that will become invalid earlier into the ﬁrst blocks. When the last page in the ﬁrst block arrives again, the block can immediately be erased

0 100 200 300 400 500 600 700 800 900 0 50000 100000 150000 200000 250000 300000

Average Number of Requested Blocks

Lenght of Page Access Pattern

FCFS FRFS OFRFS HO 0 50 100 150 200 250 300 0 200000 400000 600000 800000 1e+06 1.2e+06

FCFS FRFS OFRFS HO 0 50 100 150 200 250 300 350 400 0 20000 40000 60000 80000 100000 120000 140000

FCFS FRFS OFRFS HO

Figure 5. The average number of the re-quested blocks from the four allocation algo-rithms on the three trace ﬁles.

and re-used. This accelerates the rate of producing re-usable blocks and decreases the number of requested blocks. Sec-ondly, every page access pattern has some pages that ex-ist forever, which we call infinite pages, and these infinite pages do not re-appear. Consequently the infinite pages oc-cupy the cells they reside forever. In FRFS allocation algo-rithm, these infinite pages are of infinite re-arrival time, so they are all allocated to the last possible blocks. In our im-plementation we allocate these infinite pages separately in a different block area, so that they will not be distributed among those blocks that could be reused, causing those blocks not being able to be reused. As a result FRFS avoids the case that infinite pages interfere the recycle process and this also decreases the final number of requested blocks.

We observe that OFRFS performs quite differently in dif-ferent trace ﬁles. The reason seems to be that the regularity

(7)

of the trace ﬁles, i.e. the regularity oftrace2is higher than

that oftrace1, which is higher than that oftrace3. As a

re-sult the average number of requested blocks of OFRFS is larger than that of FCFS in the third trace ﬁle, because the third trace ﬁle has the least regularity among all three and OFRFS cannot precisely predict the re-arrival time of each page.

From the experiments we know that FCFS performance improves when the trace file has high regularity, i.e., the av-erage number of requested blocks by FCFS in the second trace file is smaller than that in the first trace file. Similarly the performance of OFRFS also improves from the first to the second trace file. Although OFRFS is sensitive to regu-larity, it seems that FCFS is even more sensitive, so its per-formance degrades much more than OFRFS does.

The performance of HO is only second to FRFS, and the average number of requested blocks of HO is smaller than that of OFRFS and FCFS in all trace files. HO eliminates the situation that we allocated page according to wrongly predicted re-arrival time, due to insufficient data in the pdiction table. If we do not trust the estimated interval, we re-sort to allocating the page in FCFS scheme. It is not until we have sufficient data to make reasonably correct interval es-timation before we allocate the pages according to OFRFS scheme. This ensures that the performance of HO is at least as good as that of FCFS. The experimental results have ver-ified this.

5. Conclusion

This paper discusses efficient allocation algorithms for flash file systems. The goal is to allocate a flash memory cell for each incoming page from a file access pattern so that the number of requested blocks for the file access pat-tern is reduced. We also implemented these algorithms and conduct experiments to compare their performances.

From the experimental result, and consisting with our in-tuition, the First Re-arrival First Serve (FRFS) method out-performs the First Come First Serve (FCFS) method. How-ever FRFS may not be practical since it needs to know the entire access pattern in advance in order to make the alloca-tion decisions. In practice this global knowledge is impos-sible to obtain, and most of the time we are required to allo-cate pages in an on-line manner. Nevertheless, FRFS illus-trates a very important idea that if we can allocate pages according to their re-arrival time, we can reuse block as soon as possible and the number of requested blocks will decrease.

In our empirical study we demonstrated that ﬁle ac-cess patterns usually do have regularity. With this observa-tion, we can predict the re-arrival time of each page from the history. This motivates us to allocate the page into the cell according the predicted re-arrival time, instead of the

real re-arrival time. The Online First Re-arrival First Serve (OFRFS) method also exhibited good performance as we observed in Chapter 4. OFRFS performs exceptionally well when the length of ﬁle access pattern increases, so that it can predict next arrival time of each page precisely, and al-locate pages accordingly. This reduces the number of re-quested blocks for the same access pattern, when compared with FCFS.

The current scope of this paper does not consider the life cycle of ﬂash memory. That is, most ﬂash memories only guarantee a limited number of erase and re-write cycles, and typical values are guaranteed up to 10,000 times [8]. Our allocation algorithm focuses on the number of requested blocks and do not take the number of erase and re-write op-erations into consideration. It is possible that if an allocation algorithm does not evenly distribute the erase and re-write operations to all cells, some cells may be worn out much earlier than the others are. As a result, our future work in-cludes a more balanced cell allocation strategy by which the number of operations is balanced on all cells. This broader and more complex cost measurement model will certainly be more realistic, and hence more practical.

References

[1] L.-P. Chang and T.-W. Kuo. A real-time garbage collection mechanism for ﬂash-memory storage systems in embedded systems. In Preceedings of the 8th International Conference

on Real-Time Computing Systems and Applications, 2002.

[2] M. L. Chiang, C. H. Paul, and R. C. Chang. Manage ﬂash memory in personal communicate devices. In Proceedings

of IEEE International Symposium on Consumer Electronics,

1997.

[3] S. E. Company. K9f2808u0b 16mb*8 nand ﬂash memory data sheet.

[4] K. Flanagan. Byu trace distribution center. http://tds.cs.byu.edu/tds/index.jsp.

[5] A. Kawaguchi, S. Nishioka, and H. Motoda. A ﬂash memory based ﬁle system. In Proceedings of the USENIX Technical

Conference, 1995.

[6] H.-J. Kim and S.-G. Lee. Memory management for ﬂash storage system. In Proceedings of the Computer Software

and Applications Conference, 1999.

[7] V. Malik. Jffs2 is broken. In Mailing List of Memory

Tech-nology Device (MTD) Subsystem for Linux, June 28th 2001.

[8] O. Pfeiffer and A. Ayre. Using

ﬂash memory in embedded applications. http://www.esacademy.com/faq/docs/ﬂash/index.htm. [9] A. Silberschatz, P. B. Galvin, and G. Gagne. Operating

Sys-tem Concepts Sixth Edition. John Wiley & Sons, Inc., 2003.

[10] Wikipedia. Flash memory.
