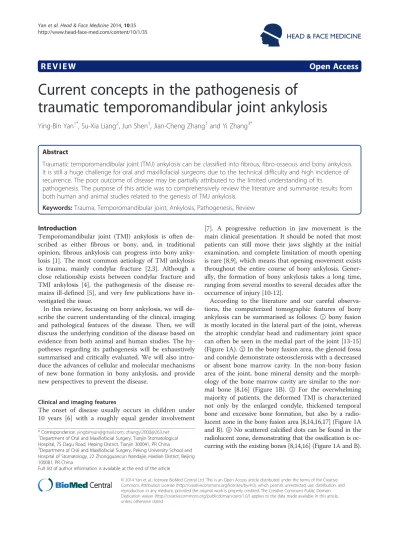

R E V I E W Open Access
Current concepts in the pathogenesis of
traumatic temporomandibular joint ankylosis
Ying-Bin Yan1*, Su-Xia Liang2, Jun Shen1, Jian-Cheng Zhang1and Yi Zhang3*
Abstract
Traumatic temporomandibular joint (TMJ) ankylosis can be classified into fibrous, fibro-osseous and bony ankylosis.
It is still a huge challenge for oral and maxillofacial surgeons due to the technical difficulty and high incidence of recurrence. The poor outcome of disease may be partially attributed to the limited understanding of its
pathogenesis. The purpose of this article was to comprehensively review the literature and summarise results from both human and animal studies related to the genesis of TMJ ankylosis.
Keywords: Trauma, Temporomandibular joint, Ankylosis, Pathogenesis, Review
Introduction
Temporomandibular joint (TMJ) ankylosis is often de- scribed as either fibrous or bony, and, in traditional opinion, fibrous ankylosis can progress into bony anky- losis [1]. The most common aetiology of TMJ ankylosis is trauma, mainly condylar fracture [2,3]. Although a close relationship exists between condylar fracture and TMJ ankylosis [4], the pathogenesis of the disease re- mains ill-defined [5], and very few publications have in- vestigated the issue.
In this review, focusing on bony ankylosis, we will de- scribe the current understanding of the clinical, imaging and pathological features of the disease. Then, we will discuss the underlying condition of the disease based on evidence from both animal and human studies. The hy- potheses regarding its pathogenesis will be exhaustively summarised and critically evaluated. We will also intro- duce the advances of cellular and molecular mechanisms of new bone formation in bony ankylosis, and provide new perspectives to prevent the disease.
Clinical and imaging features
The onset of disease usually occurs in children under 10 years [6] with a roughly equal gender involvement
[7]. A progressive reduction in jaw movement is the main clinical presentation. It should be noted that most patients can still move their jaws slightly at the initial examination, and complete limitation of mouth opening is rare [8,9], which means that opening movement exists throughout the entire course of bony ankylosis. Gener- ally, the formation of bony ankylosis takes a long time, ranging from several months to several decades after the occurrence of injury [10-12].
According to the literature and our careful observa- tions, the computerized tomographic features of bony ankylosis can be summarised as follows: ① bony fusion is mostly located in the lateral part of the joint, whereas the atrophic condylar head and rudimentary joint space can often be seen in the medial part of the joint [13-15]
(Figure 1A).② In the bony fusion area, the glenoid fossa and condyle demonstrate osteosclerosis with a decreased or absent bone marrow cavity. In the non-bony fusion area of the joint, bone mineral density and the morph- ology of the bone marrow cavity are similar to the nor- mal bone [8,16] (Figure 1B). ③ For the overwhelming majority of patients, the deformed TMJ is characterized not only by the enlarged condyle, thickened temporal bone and excessive bone formation, but also by a radio- lucent zone in the bony fusion area [8,14,16,17] (Figure 1A and B).④ No scattered calcified dots can be found in the radiolucent zone, demonstrating that the ossification is oc- curring with the existing bones [8,14,16] (Figure 1A and B).
* Correspondence:yingbinyan@gmail.com;zhangyi2000@263.net
1Department of Oral and Maxillofacial Surgery, Tianjin Stomatological Hospital, 75 Dagu Road, Heping District, Tianjin 300041, PR China
3Department of Oral and Maxillofacial Surgery, Peking University School and Hospital of Stomatology, 22 Zhongguancun Nandajie, Haidian District, Beijing 100081, PR China
Full list of author information is available at the end of the article
HEAD & FACE MEDICINE
© 2014 Yan et al.; licensee BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.
Yan et al. Head & Face Medicine 2014, 10:35 http://www.head-face-med.com/content/10/1/35
Pathology Human data
According to the imaging features mentioned above, the radiolucent zone representing the fusion interface of the 2 traumatic articular surfaces should be the focus of histo- logical examinations. However, due to the difficulty in op- erating, the specimens available for histological analysis from patients are limited to the ankylosed condyle or in- complete tissue from the radiolucent zone; intact anky- losed joints may only be obtained by autopsy.
Previously published data on the histological manifesta- tions of traumatic TMJ ankylosis are very rare. In 1957, through examining a post-mortem specimen of partial fi- brous ankylosis secondary to injury, Blackwood [18] found an enlarged condyle, a flattened surface of the glenoid fossa, and dense avascular fibrous tissue filling the cavity of the condyle. Sarma and Dave [13] analysed 60 speci- mens and found that all of the samples were composed of two parts. The non-adhesive part demonstrated an atro- phic condylar articular surface, and the bony-adhesive part presented with new bone formation. According to the findings of Wu et al. [10], fibrous ankylosis is shown as fi- brous tissue intruding into the bone marrow of the con- dyle with degeneration of the condylar cartilage, whereas bony ankylosis manifests as new bone formation on the
rough ankylotic surface of the condyle with slight bone degeneration.
Recently, Li et al. [19] analysed 10 specimens including 1 of fibrous ankylosis and 9 of bony ankylosis. In par- ticular, to acquire histological information in the radio- lucent zone, they carefully protected this part of the tissue during the operation [19]. They found fibrous and cartilaginous tissue in the joint space of fibrous anky- losis. The tissue in the radiolucent zone of bony anky- losis was cartilage and new bone matrix, and bony fusion was formed by new osteophytes progressing to- wards the centre of the ankylotic mass [19]. They con- cluded that bony ankylosis was formed by endochondral ossification and osteophyte proliferation [19].
Data from animal models
The specimens from patients can only represent one stage of the disease, which is often the end stage. There- fore, the true pathological course is generally vague and nondescript, especially for the early stage. Although an animal model exactly mimicking human disease has not been established to date, the existing models provide useful information for the pathological changes of dis- ease. According to animal models, the typical patho- logical feature of fibrous ankylosis is abundant fibrous connective tissue occupying the joint space with or with- out cartilage on the traumatic articular surfaces [20-22].
It is noteworthy that fibro-osseous ankylosis, not fibrous ankylosis, is the intermediate form of bony ankylosis ac- cording to animal studies [22]. The histological charac- teristic of fibro-osseous ankylosis, enabling distinction from fibrous ankylosis, is the presence of plenty of cartil- aginous tissue in the joint space [22-24], which ultim- ately forms the bony bridge between the condyle and the temporal bone, namely bony ankylosis [22].
The underlying condition of the disease Human data
The reason for the occurrence of traumatic TMJ ankylosis is still a mystery, partly due to the low incidence of anky- losis after TMJ trauma [6,25], and the long latent period between the cause and effect. Laskin [6] generalized the factors related to disease, including the age of the patient, severity of trauma, pattern of condylar fracture, duration of immobilization, and location of the disc. Patients characterized with young [6,26], severe TMJ trauma [6], communited condylar fracture [6,26,27] or sagittal frac- ture [11,26-28], or those with medially dislocated con- dylar fracture [14], prolonged immobilization of the mandible [6], and disc displacement [6,28] are prone to developing ankylosis. In addition, close contact of the 2 injured articular surfaces, which results in a shorter dis- tance for bone healing, also plays an important role in the development of ankylosis [11].
Figure 1 The computerized tomographic features of TMJ bony ankylosis. In A, the red circle refers to the bony fusion area located in the lateral part of the joint, in this area, a radiolucent zone can be observed. The green circle refers to the atrophic condylar head and rudimentary joint space located in the medial part of the joint. In B, the red circle shows osteosclerosis in the bony fusion area, and a radiolucent zone can also be observed in this area. The green arrow indicates that bone mineral density and morphology of the bone marrow cavity in the non-bony fusion area were normal. In A and B, the white arrows indicate excessive bone formation around the joint. Note in the radiolucent zone, no scattered calcified dots can be found.
Yan et al. Head & Face Medicine 2014, 10:35 Page 2 of 12
http://www.head-face-med.com/content/10/1/35
Data from animal models
Animal studies will contribute to verification of the pre- disposing factors suggested by clinical observations. The animal models related to traumatic TMJ ankylosis in the past 40 years are summarized in Table 1. Restricted jaw movement is not the determinant factor, but rather the promoting agent for ankylosis [29,30]. Discectomy and injury to both articular surfaces are the prerequisites of TMJ ankylosis [31,32]. For bony ankylosis, Yan et al. [22]
emphasized the key role of primary severe trauma to the glenoid fossa through a contrasting experiment because minor damage to the glenoid fossa only led to fibrous ankylosis. Recently, it has been shown in rats that protein-energy malnutrition may be a predisposing fac- tor for TMJ fibrous ankylosis [33].
In a sheep model created by Miyamoto et al. [31], disc- ectomy and severe injury to both articular surfaces were performed; however, the outcome was still fibrous anky- losis. The reason why bony ankylosis is not achieved, we believe, may lie in the fact that this group excised a 5 mm condylar head, meaning that the distance for bone healing between the 2 injured articular surfaces was too long. As an illustration for this suggestion, Cheung et al. [23]
employed similar induction methods in addition to bone graft in the joint, and achieved bony ankylosis. Bone grafts can promote bony ankylosis because they not only provide osteoconductive scaffold, but also shorten the length of bone healing.
When the underlying condition is discussed, the con- formity between animal models and human disease should be taken into account. There are considerable differences in the TMJ size, anatomy, and function between experimental animals and humans. We must also admit that marked differences exist between disc displacement and discectomy, and between condyle fracture and artificial injury to articular surfaces. In par- ticular, severe experimental injury to the glenoid fossa seems to be obviously deviated from the clinical situa- tions because the fossa is not typically eroded in daily practice. In short, what we have learnt definitely is that bony TMJ ankylosis is incredibly difficult to duplicate in animal models unless resorting to extremes such as grafting in the surgical joint [23] or severe experimental trauma to both of the articular surfaces [22]. However, since the true traumatic microenvironment of TMJ ankylosis in human beings has not been identified, the animal models are invaluable aids to gain insights into the pathogenesis of the disease although none of these exactly mimics the human disease.
Taken together, current evidences suggest that the underlying condition of traumatic TMJ bony ankylosis includes disc displacement or rupture, severe damage to both articular surfaces, and close contact of traumatic articular surfaces (See Figure 2).
The pathogenesis: existing hypotheses and evaluations Intra-articular haematoma
From a classical viewpoint, the pathogenesis of bone for- mation after trauma is secondary to haemarthrosis [15,44].
Trauma to the condyle can cause disruption of the capsu- lar ligament and adjoining periosteum, resulting in hae- marthrosis. When the intra-capsular haematoma following condylar fracture organizes, bone formation can occur from the disrupted periosteum or from metaplasia of non- osteogenic connective tissue [15,44], and bony ankylosis eventually develops. The hypothesis can clearly explain how the bony fusion develops.
It is noteworthy that failure to induce ankylosis by the haemarthrosis experiment [40] cannot negate the rational- ity of the hypothesis. The injection of blood into the joint space is different from an intra-articular haematoma caused by the impaction of the condylar head against the articular fossa. In the latter, the underlying bone marrow space of the condyle is exposed, which may delivery mes- enchymal stem cells (MSCs) into the joint space for osteo- blastic differentiation [45,46]. In addition, even simple autologous blood injection into the TMJ can effectively treat chronic recurrent TMJ dislocation through fibrotic changes of the joint [47,48], which indicates that the organization of haematoma secondary to condylar fracture can restrict jaw movement and provide a favourable envir- onment for bony fusion.
However, the hypothesis has flaws. If bony ankylosis is only a simple organization and ossification of an intra- capsular haematoma, then it should be similar to normal fracture healing. However, the history of bony ankylosis is much longer, and, there is still a radiolucent zone in the bony fusion area for most patients [8].
Extracapsular haematoma
Ferretti et al. [14] suggest it is not intra-capsular haema- toma but extra-capsular haematoma that makes a differ- ence during the development of ankylosis according to the fact that the bony fusion often locates in the juxta- articular area [13]. They state that traumatic TMJ anky- losis is inappropriate tissue differentiation after condylar fracture, and repeated opening movements can cause the disruption of angiogenesis and a failure of osteogen- esis. Therefore, sufficient immobility is a prerequisite for ankylosis [14]. In this hypothesis, the inhibitory effect of opening movement on ankylotic bone formation is taken into account. However, most patients with ankylosis did not treat their original TMJ injury by intermaxillary fix- ation [14]. Additionally, this hypothesis can not yet ex- plain the long history of bony ankylosis.
Distraction osteogenesis
Meng et al. [49] consider that distraction osteogenesis of the lateral pterygoid muscle during the healing process
Yan et al. Head & Face Medicine 2014, 10:35 Page 3 of 12
http://www.head-face-med.com/content/10/1/35
Table 1 Animal models related to traumatic TMJ ankylosis in the past 40 years Author Year Animal Age/weight Group n Last Time-
point
Induction methods Results
Bilateral/
unilateral
Condyle Disc Glenoid fossa Others
Stevenson [30]
1979 Baboon Juvenile 1 1 32 weeks Bilateral Not handled Not handled Not handled Prolonged
immobilization until sacrifice
No ankylosis
Juvenile 2 1 32 weeks Bilateral Bilateral fracture Not handled Not handled Prolonged immobilization
until sacrifice
No ankylosis
Juvenile 3 2 32 weeks Bilateral Bilateral fracture Bilateral discectomy
Not handled Immobilization for 6 weeks
No ankylosis
Juvenile 4 2 32 weeks Bilateral Bilateral fracture Bilateral discectomy
Not handled Prolonged
immobilization until sacrifice
Fibrous ankylosis
Markey et al. [34]
1980 Monkey 23–27 months
1 2 1 year Unilateral Intracapsular condylar fracture
Not handled Not handled Intermaxillary fixation for
10 weeks
No ankylosis
22–26 months
2 2 8 months Unilateral Intracapsular condylar fracture with inversion of condylar head
Not handled Not handled Intermaxillary fixation for
10 weeks
No ankylosis
22–26 months
3 2 6 months Unilateral Intracapsular condylar fracture with inversion of condylar head
Discectomy Removal of temporal surface until bleeding
Intermaxillary fixation for
10 weeks
No ankylosis
Hohl et al.
[35]
1981 Monkey 1–2 years 1 2 16 months Unilateral Morcellate condylar head
Discectomy Decorticated Bone graft in
joint space
One was complete ankylosis, the other partial ankylosis.
Ishimaru and Goss [36]
1992 Sheep Adult/60 kg 1 5 3 months Unilateral Removal of fibrous layer and underlying cartilage
of the condyle
Not handled Not handled No Osteoarthritis: eburnated
condyle with osteophytes, thin or perforated discs, and temporal surface proliferation Ogi et al.
[37]
1996 Sheep Adult/60 kg 1 4 6 months Bilateral Removal of fibrous layer and cartilage of the bilateral
condyle
3 months later removal the unilateral disc
Not handled No No ankylosis: fibrous repair of the articular surfaces
Yao et al.
[38]
1999 Minipig Young 1 6 6 months Unilateral Transverse fracture Not handled Not handled No TMJ adaptive changes
2 6 6 months Unilateral Longitudinal fracture (namely Sagittal condylar
fracture)
Not handled Not handled No No ankylosis: bifid condyle
deformity and adhesion between disc and condyle
Yanetal.Head&FaceMedicine2014,10:35Page4of12http://www.head-face-med.com/content/10/1/35
Table 1 Animal models related to traumatic TMJ ankylosis in the past 40 years (Continued) Miyamoto
et al. [32]
1999 Sheep Adult 1 6 3 months Unilateral Exision of 5 mm condylar head
Not handled Removal of temporal surface until bleeding
No No ankylosis: fibrous repair of the articular surfaces 2 6 3 months Unilateral Exision of 5 mm
condylar head
discectomy Removal of temporal surface until bleeding
No Fibrous ankylosis
Miyamoto et al. [39]
2000 Sheep Adult 1 6 3 months Unilateral Exision of 5 mm condylar head
discectomy Removal of temporal surface until bleeding
No Fibrous ankylosis
2 6 3 months Unilateral Exision of 5 mm condylar head
discectomy Removal of temporal surface until bleeding
Insertion of intra-articular bone fragment
More extensive fibrous ankylosis with isolated bony
island in the joint space Miyamoto
et al. [29]
2000 Sheep Adult 1 9 3 months Unilateral Exision of 5 mm condylar head
discectomy Removal of temporal surface until bleeding
No Fibrous ankylosis
2 9 3 months Unilateral Exision of 5 mm condylar head
discectomy Removal of temporal surface until bleeding
Limit jaw movements by
a wire
Fibrous ankylosis was hastened at early stage, but
not at advanced stage Ozten et al.
[40]
2004 Guinea pigs
Young/
250 g
1 10 2 months Bilateral / unilateral
Not handled Not handled Not handled Autologous
blood injection into joint space
No ankylosis
2 10 2 months Bilateral / unilateral
Damage the articular surface by
blunt trauma
Preservation of disc
Damage the articular surface by blunt trauma
No They claimed fibrous tissue formed in the joint, and ankylosis was achieved.
3 10 2 months Bilateral / unilateral
Condyle neck fracture
Not handled Not handled No No ankylosis
4 10 2 months Bilateral / unilateral
Excision of condyle head
Not handled Not handled no They claimed marked
osseous tissue formed, and ankylosis was achieved.
Long and Goss [41,42]
2007 Sheep 2-year-old 1 10 12 weeks Unilateral Type B intracapsular condylar fracture
Disc displacement
Not handled No Osteoarthritis with
progressive changes toward ankylosis Cheung
et al. [23]
2007 Minipig and goat
About 40 kg for minipig,
22 kg for gaots
1 3
+ 3
3 months Bilateral Exision of 8 mm condylar head
Discectomy on one side, disc preservation on
the other side
Not handled on the side of disc preservation, roughed the glenoid fossa on the
side of discectomy
Autogenous bone graft on
the side of discectomy
Fibrous ankylosis or fibro- bony ankylosis on the side of
discectomy, no ankylosis on the side of disc preservation Goat About 27 kg 2 3 3 months Bilateral Exision of 8 mm
condylar head
Discectomy Roughed the glenoid fossa Autogenous bone graft
bony ankylosis on both sides
Porto et al.
[20]
2008 Rat Adult 1 30 90 days Unilateral Damaged by a file Disc removal Damaged by a file No Fibrous ankylosis, no bony bridge was observed Li et al.
[21]
2009 Rat 1-month- old/growing
1 12 12 weeks Unilateral Damage to the condylar cartilage
with displaced subcondylar head
fracture
Damaged the attachments of
disc
Not handled No Fibrous ankylosis
Yanetal.Head&FaceMedicine2014,10:35Page5of12http://www.head-face-med.com/content/10/1/35
Table 1 Animal models related to traumatic TMJ ankylosis in the past 40 years (Continued) 2 12 12 weeks Unilateral Displaced
subcondylar head fracture
Not handled Not handled No No ankylosis
Porto et al.
[43]
2011 Rat Adult 1 18 60 days Unilateral Damaged by a file Disc removal Damaged by a file Bone graft in joint space
Fibrous ankylosis, no bony bridge was observed 2 18 60 days Unilateral Damaged by a file Disc removal Damaged by a file Stem cells
placed in joint space
Fibrous ankylosis with cartilage, but no bony bridge
was observed Rodrigues
et al. [33]
2011 Rat Adult 1 15 3 months Unilateral Not handled Not handled Not handled A hypoprotein
diet
Atrophy of the fibrocartilage of the articular surfaces 2 15 3 months Unilateral Condylar fracture Not handled Not handled A hypoprotein
diet
Fibrous ankylosis
3 15 3 months Unilateral Condylar fracture Not handled Not handled An ordinary diet
Fracture healing normally
Yan et al.
[22]
2013 Sheep About 20 kg 1 6 6 months Bilateral Sagittal condylar fracture
Discectomy on one side, disc preservation on
the other side
Not handled on the side of disc preservation, minor damage to the glenoid fossa
on the side of discectomy
No Fibrous ankylosis on the side of discectomy, no ankylosis
on the side of disc preservation About 20 kg 2 7 6 months Bilateral Sagittal condylar
fracture
Discectomy on one side, disc preservation on
the other side
Not handled on the side of disc preservation, severe damage to the glenoid fossa
on the side of discectomy
No Fibro-bony ankylosis and bony ankylosis on the side of
discectomy, no ankylosis on the side of disc preservation
Yanetal.Head&FaceMedicine2014,10:35Page6of12http://www.head-face-med.com/content/10/1/35
of sagittal condylar fracture plays an important role in the genesis of traumatic TMJ ankylosis. However, dis- traction osteogenesis seems to exist only in the sagittal fracture, not in other fracture types with a high risk of causing ankylosis. Furthermore, new bone formation in distraction osteogenesis always responds to the direction of tensile. Since the tensile from the lateral pterygoid muscle is primarily horizontal, this may partly contribute to the horizontal enlargement of the condyle [50-52].
However, distraction osteogenesis is not associated with vertical bone formation of the condyle and thickening of the temporal bone. Last but not least, the hypothesis can not well explain how the 2 traumatic articular surfaces fuse.
Genetic predisposition
Based on the low incidence of ankylosis after condylar fracture [6,25] and the infrequent patients with TMJ anky- losis even after arthroscopy, Hall [53] suggests that it is not trauma but genetic predisposition that is related to traumatic TMJ ankylosis. A recent report described how Shox2-deficiency led to TMJ fibrous ankylosis in mice [54]. In addition, mice with a loss of function mutation in the ank gene (ank/ank mice) not only develop a phenotype of ankylosing spondylitis [55], but also develop fibrous an- kylosis in the TMJ [56]. However, whether ANKH, a hu- man homolog of the murine ank gene, is a susceptibility factor for human TMJ ankylosis has not been determined [56]. Recently, studies have revealed that mutations of the PLCB4 and GNAI3 genes cause auriculocondylar syn- drome which is characterized by TMJ ankylosis as a com- mon clinical manifestation [57-59].
The core idea of Hall’s hypothesis is that the genesis of traumaic TMJ ankylosis is dependent on the genetic pre- disposition, rather than the severity of TMJ trauma.
However, no family clustering of traumatic TMJ anky- losis has been found to date, which does not support the
role of genetic factors in disease susceptibility. This hy- pothesis can not explain why only unilateral ankylosis occurs for patients with bilateral condylar fractures since the bilateral TMJs of a certain person possess the same hereditary background.
In addition, a better explanation for the low incidence of traumatic TMJ ankylosis may be the lack of underlying condition mentioned above for most patients with TMJ trauma. Our animal model does not support Hall’s hypoth- esis. A contrasting experiments was performed using the animal model. The results showed that condylar fracture with disc preservation did not induce ankylosis; however, when condylar fracture and discectomy were provided, relatively milder injury to the glenoid fossa could lead to fi- brous ankylosis, whereas serious trauma of the glenoid fossa resulted in bony ankylosis [22] (Table 1). Our expe- riments demonstrated all of the sheep developed bony an- kylosis as long as the induced conditions were provided, regardless of the genetic predisposition, indicating that the severity of TMJ trauma determined the outcomes [22].
It is noteworthy that there is marked geographic vari- ation in the perceived frequency of TMJ ankylosis in- deed, namely a number of patients with TMJ ankylosis in developing countries and the relative scarcity of this disorder in developed countries [26]. However, the most plausible reason for this phenomenon may be an in- creased incidence of condylar fractures and unavailability of appropriate care for patients in developing countries [11], rather than different hereditary background.
Taken together, the current evidence suggests that the role of genetic factors in the genesis of traumatic TMJ ankylosis has not yet been identified, and deserved to be further studied.
Hypertrophic non-union and its supplement
In a new hypothesis recently proposed by Yan et al. [60], a series of similarities between traumatic TMJ bony ankylosis
Figure 2 The schematic diagram of our hypotheses.
Yan et al. Head & Face Medicine 2014, 10:35 Page 7 of 12
http://www.head-face-med.com/content/10/1/35
and hypertrophic non-union, including medical history, aetiology, imaging features, histology, and turnover of dis- ease, were revealed. The hypothesis that the disease course was similar to the hypertrophic non-union was based on the following two prerequisites. Firstly serious TMJ trauma establishes a suitable microenvironment for the bone heal- ing of the 2 articular surfaces, namely creating the un- derlying condition of bony ankylosis. Secondly, the bone healing of the injured articular surfaces is inhibited by the interference of the opening movement [60]. The hypothesis can easily explain why the incidence of ankylosis secondary to condylar fracture is so low, because very few injured joints can meet the underlying condition of ankylosis. In addition, when taking the opening movement into account, the long clinical course and the radiolucent zone of bony ankylosis can be clearly explained by the hypothesis.
Arakeri et al. [5] considered that the traumatic TMJ ankylosis did not follow the characteristic events of frac- ture healing because it involved the fusion of 2 different bony surfaces. Indeed, in anatomy, hypertrophic non- union often involves in only one bone, whereas TMJ an- kylosis consists of 2 bones and even a disc. However, in biology, we believe that healing between different bony surfaces, such as vascularized bone graft or arthrodesis, is generally the same process as fracture healing. In fact, we have confirmed the similarity between bony ankylosis and fracture healing by histological analysis and molecu- lar examination in a sheep model [22,61,62]. From a broader point of view, arthrodesis, the artificial bony an- kylosis, is normal bone healing under the strict fixation of a joint; traumatic TMJ bony ankylosis is the course of hypertrophic non-union under the interference of opening movement; and TMJ fibrous ankylosis, which is postulated to be an independent pathological process different from bony ankylosis [22], can be regarded as atrophic non-union [63].
The hypothesis of hypertrophic non-union can explain the radiolucent zone of bony ankylosis. However, it only points out the phenomenon of the excessive bone appos- ition around the joint, rather than explaining the causes.
Yan et al. [62] therefore proposed a supplementary hy- pothesis by taking into account the complex mechanical microenvironment after condylar fracture. In this theor- etical model, cyclic shear force from the condylar gliding and the dynamic compressive loading from the impact of the condyle against the glenoid fossa are postulated [62]. They suggested that the shear force was the cause of the radiolucent zone, and the increased compressive loading due to disc displacement could stimulate new bone formation around the joint [62]. From this per- spective, condylar motion plays dual effects on the bone formation of TMJ bony ankylosis. Their hypotheses can be summarized by the following schematic diagram (Figure 2).
Hypercoagulable state of blood
One interesting phenomenon about traumatic TMJ an- kylosis is that a few injured joints ankylose; most do not.
Recently, Bhatt et al. [64] attributed the low incidence of ankylosis to specific body physiology and the response to trauma. Based on 4 cases who had bilateral traumatic TMJ ankylosis with extrahepatic portal venous obstruc- tion (EHPVO) secondary to protein C deficiency, Bhatt et al. [64] postulated that the hypercoagulability of blood might be a susceptibility factor for TMJ ankylosis.
This hypothesis is very interesting, and potentially pro- vides a reasonable explanation for the low incidence of traumatic TMJ ankylosis. However, not all patients with TMJ ankylosis without EHPVO have hypercoagulable state [64]. In addition, the hypothesis does not consider the underlying condition for traumatic TMJ bony anky- losis. In fact, according to the hypothesis of hypertrophic non-union [60], the reason that most patients with con- dylar fracture do not develop ankylosis may only be the lack of the underlying condition, as mentioned above.
Cellular and molecular mechanisms of new bone formation
Type of new bone formation
It is well known that 2 different types of new bone for- mation, endochondral and intramembranous ossification, occur during the embryonic development and postnatal growth. Fracture healing, which is considered to recapi- tulate the process of skeletal development, takes place mainly through endochondral and partially intramembra- nous bone formation.
For TMJ bony ankylosis, new bone formation is not ec- topic, but orthotopic, because it is in continuity with the existing bones according to the imaging findings men- tioned above [8]. Data from animal models [22-24] and human specimens [19,65,66] demonstrate that new bone formation between the 2 articular surfaces is mainly attrib- utable to endochondral ossification, although intramem- branous bone formation may also contribute to this [15].
Whether chondroid ossification, a distinctive pattern of bone formation characterized by chondrocyte-like cells in a calcified bone-like matrix [67], occurs in TMJ bony anly- kosis is unclear.
Cellular and molecular mechanisms
Under physiological circumstances, osteogenesis depends on the osteogenic cells, growth factors and their interac- tions. For bony ankylosis, the new bone formation is not physiological but pathological, because the continued osteogenesis replaces the normal structure of the articula- tion and it seems that no remodelling takes place. How- ever, osteoblasts, which are derived from mesenchymal stem cells (MSCs), are the only bone-forming cells. In
Yan et al. Head & Face Medicine 2014, 10:35 Page 8 of 12
http://www.head-face-med.com/content/10/1/35
addition, increasing evidences support the hypothesis that similar signaling molecules and pathways, for example BMP and Wnt signalling, may be employed in both physio- logical and pathological bone formation [68,69]. Therefore, in the current situation where the pathogenesis of the trau- matic TMJ bony ankylosis is unclear, answers for the two following questions will contribute to advancing our un- derstanding about the cellular and molecular mechanisms of the disease. One is where the MSCs participating in ankylotic bone formation are located, and the other is whether BMP/Wnt signalling is involved in ankylotic bone formation.
For the first question, Xiao et al. [70] provided a rational explanation. They consider that, like the hypertrophic non-union tissue [71], the radiolucent zone tissue in bony ankylosis should also contain MSCs. By using ankylosed specimens from 8 patients, they found that the radiolucent zone-related cells possess the properties of MSCs but with lower proliferation and osteogenic differentiation capacity compared to mandibular bone marrow stem cells [70].
Their studies provide cytological evidence for the hypoth- esis of hypertrophic non-union, and demonstrate that the radiolucent zone may be a potential reservoir of MSCs for ankylosed bone formation.
Wnts are secreted glycoproteins highly conserved be- tween species, and there are at least 19 Wnt ligands [72]. The Wnt pathway plays vital roles in embryonic bone development, postnatal regulation of bone mass and bone regeneration [73-76]. The canonical Wnt sig- nalling is essential for osteoblast lineage differentiation, and mesenchymal precursor lacking canonical Wnt sig- nalling can not differentiate into osteoblast instead of chondrocyte [77].
BMPs are members of the transforming growth factor β (TGF-β) family well known for their osteogenic poten- tial. As the main regulator of chondrocyte proliferation, survival and differentiation, BMP signalling has a re- markable ability to induce endochondral bone formation [78]. BMP2 is necessary for the initiation of frature heal- ing [79,80], BMP4 and BMP7 play an importance role in the late stage of endochondral ossification [81].
The potential roles of BMP/Wnt signalling in trau- matic TMJ bony ankylosis were recently studied using animal models or human specimens [61,62,65,66]. Kim et al. [66] found that the hyperplastic chondroid tissues in a human ankylosed sample were positive for BMP-4 but sparse for BMP-2, indicating that BMP signaling may be involved in the ankylosed bone formation through endochondral ossification. However, Pilmane and Skagers [65] demonstrated the lack of BMP2/4 expression in an- kylotic bone instead of the rich expression of TGF-β, indi- cating that bony ankylosis is the disorders of cellular differentiation with compensatory intensification of cellu- lar proliferation.
Based on a reliable animal model, Yan et al. [61,62]
demonstrated that BMP and Wnt signalling, which play important roles in bone healing, might be activated dur- ing the development of traumatic TMJ bony ankylosis.
By exploring the differential expressions of genes regu- lating bone formation among TMJ fibrous ankylosis, bony ankylosis and condylar fracture healing, they found that the activity of osteogenesis in bony ankylosis was higher than that in fibrous ankylosis, but lower than in condylar fracture [62]. These results provided evidence supporting the hypothesis of hypertrophic non-union at the molecular level. The results indicated that the higher activity of BMP and Wnt signalling in the bony ankylosis compared to fibrous ankylosis was the molecular base leading to continuous new bone formation [62].
The prevention of bony ankylosis
According to the hypotheses of hypertrophic non-union, once TMJ trauma establishes the microenvironment for the bone healing of the 2 articular surfaces, the deve- lopment of ankylosis is unavoidable. In this situation, whether the outcome is fibrous or bony ankylosis de- pends on the severity of the primary TMJ trauma. Rela- tively milder injury of TMJ leads to fibrous ankylosis, whereas serious TMJ trauma results in bony ankylosis [22]. Therefore, clinically, the fundamental method for the prevention of TMJ ankylosis is to eliminate the underlying condition of ankylosis. For example, when sa- gittal fracture of condyle with disc displacement occurs, the glenoid fossa may also suffer primary severe trauma, and the microenvironment probably meets the under- lying condition of ankylosis. Such patients should be operated upon in a timely manner for reduction and fix- ation of the condylar fracture and reposition of the dis- placed disc to avoid the development of ankylosis.
One of the important goals of the treatment of TMJ ankylosis is to maintain normal mouth opening. In fact, patients with fibrous ankylosis often open their mouth wider than those with bony ankylosis. According to the hypotheses of hypertrophic non-union, when the under- lying condition of ankylosis is to be provided, the mouth opening will exert a dual effect on the new bone forma- tion indeed (Figure 2). However, in the early phase after TMJ trauma, the active jaw-opening exercises can in- crease the tissue deformation in the joint space and pro- mote the formation of fibrous tissue, thus probably converting bony ankylosis into fibrous ankylosis. There- fore, initiating jaw-opening exercises as soon as possible after condylar fracture is necessary for the prevention of bony ankylosis.
Besides increasing the mechanical instability between the 2 injured articular surfaces through mouth-opening exercises, other methods for inhibiting bone formation or fracture healing, such as non-steroidal anti-inflammatory
Yan et al. Head & Face Medicine 2014, 10:35 Page 9 of 12
http://www.head-face-med.com/content/10/1/35
drugs [82], low-dose irradiation [83,84], antagonists of BMP and Wnt signalling pathways [76,85] and so on, may also be beneficial for the prevention of bony ankylosis.
However, like mouth-opening exercises, those means can only convert bony ankylosis into fibrous ankylosis rather than prevent the onset of bony ankylosis.
It is well known that MSCs, possessing the property of pluripotency, play important roles during the course of bone healing. Changing the cell lineage determination of MSCs by manipulating specific transcription factors may be another suitable prophylactic method for bony an- kylosis. We believe that FGF21, a key mediator of Pero- xisome proliferator-activated receptor-γ (PPARγ) might be such a promising drug [86]. FGF21 can stimulate adipo- cyte differentiation of the MSCs while suppressing osteo- blast differentiation [87,88], thus resulting in the formation of fat pads and the inhibition of new bone formation in the joint space. The fat pads can separate the condyle from the glenoid fossa, serving as physical barrier and mech- anical buffer [89,90], ultimately prohibiting the onset of bony ankylosis, and even avoiding the occurrence of fibrous ankylosis.
Conclusion
The true traumatic microenvironment leading to TMJ an- kylosis has not been identified. Although animal models and clinical observations have provided new evidence about the pathogenesis of traumatic TMJ bony ankylosis, the biological events and molecular mechanisms are far from being comprehensively understood. The hypotheses of hypertrophic non-union and its supplement seem to grasp the nature of bony ankylosis and explain the de- velopment of the disease. A series of recent clinical and experimental studies have preliminarily verified the hy- potheses at the cellular and molecular levels. Current data suggest that targeting pathways such as BMPs and Wnt signalling is likely to convert bony ankylosis into fibrous ankylosis. Alternatively, promoting MSCs of the radiolucent zone into adipocyte differentiation using FGF21 may be a promising strategy to prohibit the on- set of bony ankylosis, and even avoid the occurrence of fibrous ankylosis.
Abbreviations
ank:Progressive ankylosis; ANKH: Progressive ankylosis gene; BMP: Bone morphogenetic protein; EHPVO: Extrahepatic portal venous obstruction;
FGF21: Fibroblast growth factor-21; GNAI3: Guanine nucleotide-binding protein (G protein),α inhibiting activity polypeptide 3; MSCs: Mesenchymal stem cells; PLCB4: Phospholipase C,β4; PPARγ: Peroxisome proliferator-activated receptor-γ; Shox2: Short stature homeobox 2; TGF-β: Transforming growth factor β; TMJ: Temporomandibular joint; Wnt: Wingless-related MMTV integration site.
Competing interest
The authors declare that they have no competing interests.
Authors’ contributions
YBY drafted the manuscript and wrote the text. SXL drafted the manuscript and helped with writing the text. JS and JCZ drafted the manuscript and
reviewed it critically. YZ revised the final version of the manuscript. All authors read and approved the final manuscript.
Authors’ information
Yan YB is an Associate Clinical Professor at the Department of Oral and Maxillofacial Surgery of Tianjin Stomatological Hospital. Liang SX is an Associate Clinical Professor at the Department of Operative Dentistry and Endodontics of Tianjin Stomatological Hospital. Shen J is a Professor at the Department of Oral and Maxillofacial Surgery of Tianjin Stomatological Hospital. Zhang JC is a Clinical Professor at the Department of Oral and Maxillofacial Surgery of Tianjin Stomatological Hospital. Zhang Y is a Head Professor at the Department of Oral and Maxillofacial Surgery of Peking University School and Hospital of Stomatology.
Acknowledgements
This investigation was supported by the National Natural Science Foundation of China (81300901) and Tianjin Natural Science Foundation
(14JCQNJC12500) (Y.-B. Yan).
Author details
1Department of Oral and Maxillofacial Surgery, Tianjin Stomatological Hospital, 75 Dagu Road, Heping District, Tianjin 300041, PR China.
2Department of Operative Dentistry and Endodontics, Tianjin Stomatological Hospital, 75 Dagu Road, Heping District, Tianjin 300041, PR China.
3Department of Oral and Maxillofacial Surgery, Peking University School and Hospital of Stomatology, 22 Zhongguancun Nandajie, Haidian District, Beijing 100081, PR China.
Received: 16 March 2014 Accepted: 25 August 2014 Published: 4 September 2014
References
1. Miller GA, Page HL Jr, Griffith CR: Temporomandibular joint ankylosis:
review of the literature and report of two cases of bilateral involvement.
J Oral Surg 1975, 33:792–803.
2. El-Sheikh MM: Temporomandibular joint ankylosis: the Egyptian experience. Ann R Coll Surg Engl 1999, 81:12–18.
3. Valentini V, Vetrano S, Agrillo A, Torroni A, Fabiani F, Iannetti G: Surgical treatment of TMJ ankylosis: our experience (60 cases). J Craniofac Surg 2002, 13:59–67.
4. Long X: The relationship between temporomandibular joint ankylosis and condylar fractures. Chin J Dent Res 2012, 15:17–20.
5. Arakeri G, Kusanale A, Zaki GA, Brennan PA: Pathogenesis of post-traumatic ankylosis of the temporomandibular joint: a critical review. Br J Oral Maxillofac Surg 2012, 50:8–12.
6. Laskin DM: Role of the meniscus in the etiology of posttraumatic temporomandibular joint ankylosis. Int J Oral Surg 1978, 7:340–345.
7. Bello SA, Aluko Olokun B, Olaitan AA, Ajike SO: Aetiology and presentation of ankylosis of the temporomandibular joint: report of 23 cases from Abuja, Nigeria. Br J Oral Maxillofac Surg 2012, 50:80–84.
8. Yan Y, Zhang Y, Sun Z, Li J, Xiao E, An J: The relationship between mouth opening and computerized tomographic features of posttraumatic bony ankylosis of the temporomandibular joint. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2011, 111:354–361.
9. Topazian RG: Etiology of Ankylosis of Temporomandibular Joint: Analysis of 44 Cases. J Oral Surg Anesth Hosp Dent Serv 1964, 22:227–233.
10. Wu XG, Hong M, Sun KH: Severe osteoarthrosis after fracture of the mandibular condyle: a clinical and histologic study of seven patients.
J Oral Maxillofac Surg 1994, 52:138–142.
11. He D, Ellis E 3rd, Zhang Y: Etiology of temporomandibular joint ankylosis secondary to condylar fractures: the role of concomitant mandibular fractures. J Oral Maxillofac Surg 2008, 66:77–84.
12. Long X, Li X, Cheng Y, Yang X, Qin L, Qiao Y, Deng M: Preservation of disc for treatment of traumatic temporomandibular joint ankylosis.
J Oral Maxillofac Surg 2005, 63:897–902.
13. Sarma UC, Dave PK: Temporomandibular joint ankylosis: an Indian experience. Oral Surg Oral Med Oral Pathol 1991, 72:660–664.
14. Ferretti C, Bryant R, Becker P, Lawrence C: Temporomandibular joint morphology following post-traumatic ankylosis in 26 patients. Int J Oral Maxillofac Surg 2005, 34:376–381.
Yan et al. Head & Face Medicine 2014, 10:35 Page 10 of 12
http://www.head-face-med.com/content/10/1/35
15. Sawhney CP: Bony ankylosis of the temporomandibular joint: follow-up of 70 patients treated with arthroplasty and acrylic spacer interposition.
Plast Reconstr Surg 1986, 77:29–40.
16. Aggarwal S, Mukhopadhyay S, Berry M, Bhargava S: Bony ankylosis of the temporomandibular joint: a computed tomography study. Oral Surg Oral Med Oral Pathol 1990, 69:128–132.
17. Tanaka H, Westesson PL, Larheim TA: Juxta-articular ankylosis of the temporomandibular joint as an unusual cause of limitation of mouth opening: case report. J Oral Maxillofac Surg 1998, 56:243–246.
18. Blackwood HJ: Intra-articular fibrous ankylosis of the temporomandibular joint. Oral Surg Oral Med Oral Pathol 1957, 10:634–642.
19. Li JM, An JG, Wang X, Yan YB, Xiao E, He Y, Zhang Y: Imaging and histology of traumatic temporomandibular joint ankylosis. Oral Surg Oral Med Oral Pathol Oral Radiol 2014, doi:10.1016/j.oooo.2014.05.007.
20. Porto G, Vasconcelos B, Silva V Jr: Development of temporomandibular joint ankylosis in rats: a preliminary experimental study. Int J Oral Maxillofac Surg 2008, 37:282–286.
21. Li Z, Zhang W, Li ZB: Induction of traumatic temporomandibular joint ankylosis in growing rats: a preliminary experimental study.
Dent Traumatol 2009, 25:136–141.
22. Yan YB, Zhang Y, Gan YH, An JG, Li JM, Xiao E: Surgical induction of TMJ bony ankylosis in growing sheep and the role of injury severity of the glenoid fossa on the development of bony ankylosis. J Craniomaxillofac Surg 2013, 41:476–486.
23. Cheung LK, Shi XJ, Zheng LW: Surgical induction of temporomandibular joint ankylosis: an animal model. J Oral Maxillofac Surg 2007, 65:993–1004.
24. Wang X, Zhang Y, Li JM: Experimental establishment of animal model of temporomandibular joint ankylosis secondary to condylar sagittal fracture. Beijing Da Xue Xue Bao 2011, 43:903–907.
25. Hong M: TMJ reconstruction of the intracapsular condylar vertical fracture. Zhonghua Kou Qiang Yi Xue Za Zhi 1990, 25:346–348. 383.
26. Rowe NL: Ankylosis of the temporomandibular joint. J R Coll Surg Edinb 1982, 27:67–79.
27. Zhang Y, He DM, Ma XC: Posttraumatic temporomandibular joint ankylosis: clinical development and surgical management. Zhonghua Kou Qiang Yi Xue Za Zhi 2006, 41:751–754.
28. Duan DH, Zhang Y: A clinical investigation on disc displacement in sagittal fracture of the mandibular condyle and its association with TMJ ankylosis development. Int J Oral Maxillofac Surg 2011, 40:134–138.
29. Miyamoto H, Kurita K, Ogi N, Ishimaru JI, Goss AN: Effect of limited jaw motion on ankylosis of the temporomandibular joint in sheep. Br J Oral Maxillofac Surg 2000, 38:148–153.
30. Stevenson TR, Evaskus DS, Laskin DM: Role of the meniscus in TMJ ankylosis -a histologic study [Abstract]. J Dent Res 1979, 58(Special Issue A):269.
31. Miyamoto H, Kurita K, Ishimaru J, Goss AN: A sheep model for
temporomandibular joint ankylosis. J Oral Maxillofac Surg 1999, 57:812–817.
32. Miyamoto H, Kurita K, Ogi N, Ishimaru JI, Goss AN: The role of the disk in sheep temporomandibular joint ankylosis. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 1999, 88:151–158.
33. Rodrigues L, Correa L, Luz JG: Healing of displaced condylar process fracture in rats submitted to protein undernutrition. J Craniomaxillofac Surg 2011, 39:73–78.
34. Markey RJ, Potter BE, Moffett BC: Condylar trauma and facial asymmetry:
an experimental study. J Maxillofac Surg 1980, 8:38–51.
35. Hohl TH, Shapiro PA, Moffett BC, Ross A: Experimentally induced ankylosis and facial asymmetry in the macaque monkey. J Maxillofac Surg 1981, 9:199–210.
36. Ishimaru J, Goss AN: A model for osteoarthritis of the temporomandibular joint. J Oral Maxillofac Surg 1992, 50:1191–1195.
37. Ogi N, Kurita K, Handa Y, Goss AN: The short-term effect of discectomy on the osteoarthrotic temporomandibular joint in sheep. Int J Oral Maxillofac Surg 1996, 25:319–324.
38. Yao J, Zhou J, Hu M: Comparative experimental study between longitudinal fracture and transverse fracture of mandibular condyle.
Zhonghua Kou Qiang Yi Xue Za Zhi 1999, 34:178–180.
39. Miyamoto H, Kurita K, Ogi N, Ishimaru J, Goss AN: The effect of an intra-articular bone fragment in the genesis of temporomandibular joint ankylosis. Int J Oral Maxillofac Surg 2000, 29:290–295.
40. Oztan HY, Ulusal BG, Aytemiz C: The role of trauma on
temporomandibular joint ankylosis and mandibular growth retardation:
an experimental study. J Craniofac Surg 2004, 15:274–282.
41. Long X, Goss AN: A sheep model of intracapsular condylar fracture. J Oral Maxillofac Surg 2007, 65:1102–1108.
42. Long X, Goss AN: Pathological changes after the surgical creation of a vertical intracapsular condylar fracture. Int J Oral Maxillofac Surg 2007, 36:834–837.
43. Porto GG, Vasconcelos BC, Fraga SN, Castro CM, Andrade ES: Development of temporomandibular joint ankylosis in rats using stem cells and bone graft. Int J Oral Maxillofac Surg 2011, 40:1414–1420.
44. Norman JE: Ankylosis of the temporomandibular joint. Aust Dent J 1978, 23:56–66.
45. Oe K, Miwa M, Sakai Y, Lee SY, Kuroda R, Kurosaka M: An in vitro study demonstrating that haematomas found at the site of human fractures contain progenitor cells with multilineage capacity. J Bone Joint Surg (Br) 2007, 89:133–138.
46. Hasegawa T, Miwa M, Sakai Y, Niikura T, Lee SY, Oe K, Iwakura T, Kurosaka M, Komori T: Mandibular hematoma cells as a potential reservoir for osteoprogenitor cells in fractures. J Oral Maxillofac Surg 2012, 70:599–607.
47. Daif ET: Autologous blood injection as a new treatment modality for chronic recurrent temporomandibular joint dislocation. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2010, 109:31–36.
48. Gulses A, Bayar GR, Aydintug YS, Sencimen M, Erdogan E, Agaoglu R:
Histological evaluation of the changes in temporomandibular joint capsule and retrodiscal ligaments following autologous blood injection.
J Craniomaxillofac Surg 2013, 41:316–320.
49. Meng FW, Zhao JL, Hu KJ, Liu YP: A new hypothesis of mechanisms of traumatic ankylosis of temporomandibular joint. Med Hypotheses 2009, 73:92–93.
50. Liu CK, Liu P, Meng FW, Deng BL, Xue Y, Mao TQ, Hu KJ: The role of the lateral pterygoid muscle in the sagittal fracture of mandibular condyle (SFMC) healing process. Br J Oral Maxillofac Surg 2012, 50:356–360.
51. Jiang X, Hu KJ, Deng TG, Liu CK, Xue Y, Liu P, Cheng P: The role of the lateral pterygoid muscle in the new bone formation in the sagittal fractured mandibular condyle examined by Micro-CT. J Pract Stomatol (Chin) 2013, 29:176–180.
52. Cheng P, Liu CK, Liu P, Deng TG, Jiang X, Hu KJ: Histological study on effects of lateral pterygoid muscle on condyle morphology reconstruction in healing process of sagittal fracture of condyle.
Stomatology (Chin) 2013, 33:73–77.
53. Hall MB: Condylar fractures: surgical management. J Oral Maxillofac Surg 1994, 52:1189–1192.
54. Gu S, Wei N, Yu L, Fei J, Chen Y: Shox2-deficiency leads to dysplasia and ankylosis of the temporomandibular joint in mice. Mech Dev 2008, 125:729–742.
55. Braem K, Lories RJ: Insights into the pathophysiology of ankylosing spondylitis: contributions from animal models. Joint Bone Spine 2012, 79:243–248.
56. Huang B, Takahashi K, Sakata T, Kiso H, Sugai M, Fujimura K, Shimizu A, Kosugi S, Sato T, Bessho K: Increased risk of temporomandibular joint closed lock: a case-control study of ANKH polymorphisms. PLoS One 2011, 6:e25503.
57. Rieder MJ, Green GE, Park SS, Stamper BD, Gordon CT, Johnson JM, Cunniff CM, Smith JD, Emery SB, Lyonnet S, Amiel J, Holder M, Heggie AA, Bamshad MJ, Nickerson DA, Cox TC, Hing AV, Horst JA, Cunningham ML: A human homeotic transformation resulting from mutations in PLCB4 and GNAI3 causes auriculocondylar syndrome. Am J Hum Genet 2012, 90:907–914.
58. Kido Y, Gordon CT, Sakazume S, Bdira EB, Dattani M, Wilson LC, Lyonnet S, Murakami N, Cunningham ML, Amiel J, Nagai T: Further characterization of atypical features in auriculocondylar syndrome caused by recessive PLCB4 mutations. Am J Med Genet A 2013, 161:2339–2346.
59. Gordon CT, Vuillot A, Marlin S, Gerkes E, Henderson A, AlKindy A, Holder- Espinasse M, Park SS, Omarjee A, Sanchis-Borja M, Bdira EB, Oufadem M, Sikkema-Raddatz B, Stewart A, Palmer R, McGowan R, Petit F, Delobel B, Speicher MR, Aurora P, Kilner D, Pellerin P, Simon M, Bonnefont JP, Tobias ES, Garcia-Minaur S, Bitner-Glindzicz M, Lindholm P, Meijer BA, Abadie V, et al: Heterogeneity of mutational mechanisms and modes of inheritance in auriculocondylar syndrome. J Med Genet 2013, 50:174–186.
60. Yan YB, Duan DH, Zhang Y, Gan YH: The development of traumatic temporomandibular joint bony ankylosis: a course similar to the hypertrophic nonunion? Med Hypotheses 2012, 78:273–276.
61. Yan YB, Li JM, Xiao E, An JG, Gan YH, Zhang Y: A pilot trial on the molecular pathophysiology of traumatic temporomandibular joint bony
Yan et al. Head & Face Medicine 2014, 10:35 Page 11 of 12
http://www.head-face-med.com/content/10/1/35
