OBDD-Based Evaluation of
k-Terminal Network
Reliability
Fu-Min Yeh, Shyue-Kung Lu, and Sy-Yen Kuo, Fellow, IEEE
Abstract—An efficient approach to determining the reliability
of an undirected -terminal network based on 2-terminal relia-bility functions is presented. First, a feasible set of ( 1) ter-minal-pairs is chosen, and the 2-terminal reliability functions of the ( 1) terminal-pairs are generated based on the edge ex-pansion diagram using an OBDD (ordered binary decision dia-gram). Then the -terminal reliability function can be efficiently constructed by combining these ( 1) reliability expressions with the Booleanand operation. Because building 2-terminal reliability functions and reducing redundant computations by merging re-liability functions can be done very efficiently, the proposed ap-proaches are much faster than those which directly expand the en-tire network or directly factor the -terminal networks. The effec-tiveness of this approach is demonstrated by performing experi-ments on several large benchmark networks. An example of ap-preciable improvement is that the evaluation of the reliability of a source-terminal 3 10 all-terminal network took only 2.4 seconds on a SPARC 20 workstation. This is much faster than previous fac-toring-algorithms.
Index Terms—Factoring, network reduction, network reliability,
Ordered Binary Decision Diagram (OBDD), terminal-pair relia-bility.
ACRONYMS1
EED_BFS algorithm based on edge expansion diagram with breadth-first-search ordering
OBDD ordered binary decision diagram SDP sum of disjoint products
st source-terminal.
NOTATION
a graph whose edges can fail -independent of each other, with known probabilities
-terminal reliability of network a node in a -terminal node set edge in a network,
Boolean variable of ,
, [success, failure] probability of ; , [contraction, deletion] operation on links
Manuscript received July 6, 1999; revised September 15, 2001. Responsible Editor: J. A. Nachlas.
F.-M. Yeh is with the Electronic System Research Division, Chung-Shan Institute of Science and Technology, Taoyuan, Taiwan - R.O.C. (e-mail: [email protected]; [email protected]).
S.-K. Lu is with the Department of Electronic Engineering, Fu-Jen Catholic University, Taipei, Taiwan - R.O.C. (e-mail: [email protected]).
S.-Y. Kuo is with the Electrical Engineering Department, National Taiwan University, Taipei, Taiwan - R.O.C. (e-mail: [email protected]).
Digital Object Identifier 10.1109/TR.2002.804736
1The singular and plural of an acronym are always spelled the same.
network with contracted edge network with deleted edge
[positive, negative] cofactor of function pathset of
-working pathset function of number of nodes.
I. INTRODUCTION
Definitions
• -success path-set: the edges between the specified ter-minal-pairs
• -direct: direct construction method
• fixed_source: the source node is fixed in a feasible set • fixed_sink: the sink node is fixed in a feasible set • merged_source: successive source merging for a feasible
set
• feasible set: the nodes in the set are covered and con-nected by ( ) terminal-pairs
• -source to -terminal reliability: at least 1 process can be successfully executed .
The most general network reliability problem in the literature is the -terminal problem. Given a set of target nodes with , the -terminal reliability is for a given node
, there exists at least 1 working path from to all other nodes in . This reliability is the sum of the probabilities of dis-joint success paths; but the complexity of identifying all disdis-joint success paths is exponential (a well-known NP-hard problem) [1], [11]. Therefore, the determining -terminal reliability for a network is very time-consuming. Most existing researches on -terminal reliability [2]–[5] focus on speeding up the calcula-tions by reducing the computation efforts as much as possible. References [2]–[5] emphasize improving the factoring of a net-work with several “minimal sum of disjoint edges” based re-duction rules. Generally, the factoring algorithms [2]–[5] with reduction rules are recognized, in the literature, as the most effi-cient algorithms in dealing with -terminal reliability problem. The factoring algorithms [2]–[5] use the cofactor-theorem to partition the network based on in each step directly. Then they
recursively factor and until the
ter-minals are fully contracted or disconnected. The edge cofactors are disjoint with respect to each other; therefore, the reliability can be obtained by summing all disjoint path products. They also use the network reduction rules to reduce the number of sub-problems. Although these methods are demonstrated with reasonable efficiency on small-scale networks, they have 3 in-herent drawbacks:
444 IEEE TRANSACTIONS ON RELIABILITY, VOL. 51, NO. 4, DECEMBER 2002
1) determining the sum of disjoint product forms is ineffi-cient for large Boolean functions,
2) tree-based factoring algorithm does not consider the merging of isomorphic sub-problems to avoid redundant computations,
3) factoring an entire network directly has exponential com-plexity.
Thus, factoring algorithms using tree-based partitioning are inevitably very time-consuming on large networks, even if a problem contains many isomorphic sub-graphs.
For determining -terminal reliability, 4 assumptions are made:
1) The network is modeled as an undirected graph.
2) The and , , are known for each link.
3) Nodes are fault free.
4) All failure events are mutually -independent.
To overcome these inherent drawbacks, this paper presents an efficient approach to determine the reliability of an undirected -terminal network based on the 2-terminal reliability function.
1) A feasible set of ( ) terminal-pairs is chosen. 2) All the 2-terminal reliability functions for the ( )
ter-minal-pairs, respectively, are derived based on edge ex-pansion diagram using OBDD.
3) The -terminal reliability function can be efficiently ob-tained by combining these ( ) reliability expressions with Boolean operations.
Because constructing 2-terminal reliability functions [6] and reducing the redundant computations by merging reliability functions as proposed in this paper can be done very efficiently, this approach is much faster than expanding or factoring the entire network directly [2]. The effectiveness of this approach is demonstrated by performing experiments on large networks. Experimental results show that the time required to evaluate the reliability of a st3 10 all-terminal network was only 2.4 seconds on a SPARC 20 workstation, which is appreciably better than the factoring algorithms.
Section II introduces the OBDD representation of a network, and proposes efficient procedures to calculate the proba-bilities of the OBDD-based functions. Section III describes a brute-force method that searches all working edges of a -terminal network. Section IV presents efficient methods to evaluate -terminal reliabilities based on terminal-pair relia-bility functions; and proposes an extension of this algorithm for evaluating -source to -terminal network reliability. Section V demonstrate the effectiveness of these algorithms by implementing them on large networks.
II. PRELIMINARIES
The representation and manipulation of Boolean functions based on OBDD are introduced. Then the inherent drawbacks of the previous algorithms based on event-tree partition are il-lustrated by an example. The OBDD [7] is based on the de-composition of a Boolean function, the “Shannon expansion.” A Boolean function can be decomposed in terms of a Boolean variable as:
(1)
Fig. 1. Various representations of a Boolean function.
A node and its descendants in an OBDD represent a Boolean function , where or node label , one outgoing edge is directed to the subgraph representing , and the other to . In following a path from the root to a terminal node, simply take successive cofactors of a function until it reduces to a constant. From the results in [8], the size of a OBDD with inverted-edges is 7% smaller than a noninverted one, and the speed of manipu-lation for the inverted one is about twice that for the noninverted one.
Fig. 1(a) shows Boolean representations of the truth table; Fig. 1(b) shows the OBDD, and Fig. 1(c) shows the OBDD with inverted edges of a Boolean function;
• a circle node represents the decision-variable node; • a dashed line represents the value 0;
• a solid line represents the value 1;
• a terminal value (in rectangle) corresponds to True(1) or False(0);
• a dot on an edge represents: the function following this edge is complemented.
In Fig. 1, the size of OBDD is 6, with 4 nonterminal nodes and 2 terminal nodes. However, the size of OBDD with inverted edge is the most compact, which is only 4 with 3 nonterminal nodes and 1 terminal node. One useful property of OBDD is that all the paths are mutually disjoint. Hence, one can evaluate the probability of a Boolean function represented by the OBDD. An operation on 2 OBDD-based functions can be decomposed in terms of a variable as follows:
(2) These Boolean operations include AND, OR, NOT, and deter-mining the size of the on-set for a function. Equation (2) can be realized by applying an algorithm which traverses the argument graphs to recursively-apply the operation to subgraphs. A more detailed description of the algorithms for constructing and ma-nipulating an OBDD is in [7], [8].
Fig. 2 illustrates the construction and manipulation steps of the Boolean function
and or and
First, for a given Boolean function, a global variable ordering must be determined. Then each step of evaluation and the re-sulting OBDD representations are depicted.

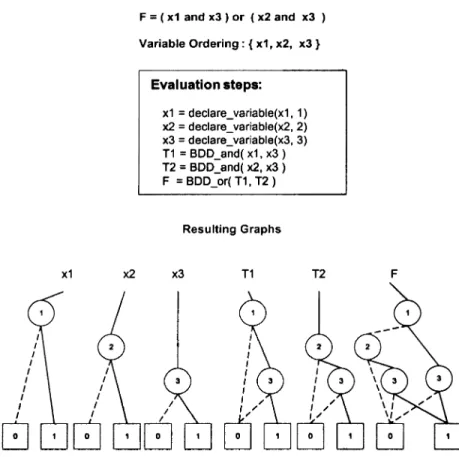

Fig. 2. OBDD generated from a Boolean equation.
The OBDD is based on a Shannon expansion: a set of disjoint decomposed functions. Thus, the OBDD can be recognized as a graph-based set of disjoint products. Given the probability of each variable, the reliability of an OBDD-based function can be recursively evaluated by:
(3) a variable of ,
is partitioned into 2 disjoint sets, and . Instead of modifying the original OBDD node structure, a hash table [9] is used to avoid the redundant computations of the
isomorphic shared nodes in of
Fig. 3.
If a terminal node is encountered, return the value of the terminal node. To avoid the redundant computation of the bdd_node, an isomorphism check is performed. If a node has been evaluated and found in the hash table, then directly return the value of the probability; else recursive call the procedure with a negative cofactor and a positive cofactor. The final probability is achieved by combining the results of the positive cofactor and the negative cofactor based on (3). If the top node contains the flag of the inverted edge, then swap the success probability and the failure probability of the variable and compute the probability based on (3). Fig. 4 shows the steps of the probability evaluation in every node of the OBDD. For each OBDD node, the values of the bdd_result are also shown in the boxes. This procedure uses 10 multiply operations and 5 additions overall. During the process of calculating the success probability, the number of multiply operations and additions is of the same order as the number of OBDD nodes. Therefore, the size of OBDD strongly dominates the efficiency of this algorithm. More detailed descriptions are in [6].
Fig. 3. Algorithm for evaluating probability, based on OBDD. III. CONSTRUCTION OF THE -TERMINALRELIABILITY
FUNCTIONS
Several definitions and the concept of sharing isomorphic graphs are introduces. Then the -terminal reliability can be evaluated by an edge expansion diagram using OBDD. An ex-ample illustrates this approach.
A graph consists of 2 sets: is the node set, and is the edge set. Two nodes , are connected if there exists a path from to . A set of nodes are connected if there ex-ists a path for each pair of these nodes. These connected paths are: -success paths. The -success path set is composed of the edges which are either directly connected to the nodes or indi-rectly via a chain working path [11]. Therefore, the -terminal reliability is the probability that at least 1 -success path set ex-ists.
446 IEEE TRANSACTIONS ON RELIABILITY, VOL. 51, NO. 4, DECEMBER 2002

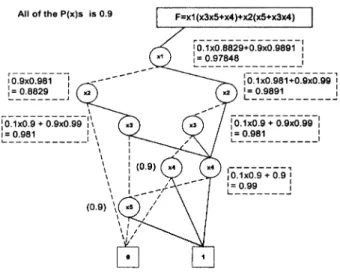

Fig. 4. Determination of probability for an OBDD function.
Definition: Two networks are -terminal reliability isomor-phic if and only if their corresponding edges, nodes, -terminal nodes, and success probability of any two corresponding edges are equivalent.
According to this definition, the calculations of -terminal reliabilities of several networks can be reduced to the calcula-tion for just 1 of these networks if these networks (graphs) are -terminal reliability isomorphic: the reliability of 1 network is also the reliability of its isomorphic counterparts. Therefore, the computation effort can be reduced appreciably.
Based on the material in this paper so far, all -success paths for a -terminal network can be expressed as a -terminal relia-bility function or a -pathset function. Once the reliarelia-bility func-tion is obtained, the network reliability can be efficiently ob-tained by recursively evaluating all the OBDD-based reliability functions as stated in Section II. Instead of the conventional tree-based factoring partitions [2]–[5], a graph-based heuristic approach which can avoid the redundant computation of iso-morphic subgraphs for the construction of all -success paths is described in the following 4 steps.
1) To avoid redundant constructions of a -pathset function, first examine if a graph contains isomorphic subgraphs. If iso-morphic subgraphs exist in computing the hash table, then di-rectly return the result. Otherwise, expand the graph with edges connected to the source. Let ( ) be success edges incident to the source node. Expand the given network, , into
new sub-networks according to ( ). Sub-network
corresponds to edge, , for a total of sub-networks.
2) For the sub-network ( ), perform -terminal
contraction to obtain a new network, , in which the nodes originally incident with are lumped into a new node, and all the edges originally connected to the new node can not be deleted. Then the parallel edges are merged into a new edge by Boolean . The internal -working pathset function of is determined by:
(4) 3) Remove redundant-nodes to avoid redundant expansions. A node other than the terminal nodes is redundant if only 1 node is connected to it.
4) For each network, , repeat steps 1–3 until all terminals are reached, and then return . The final reliability function of the network is obtained by recursively combining the results of intermediate -working pathset functions.
For network partitioning, -terminal networks have higher complexity than 2-terminal networks. The main difference during the expansion is in step 2. For a 2-terminal network, there exist no simple paths which are parallel from 1 node. When an expansion edge is chosen, all the other edges originally connected to the expanded node can be deleted. Therefore, many sub-networks can be reduced. In contrast, in a -terminal network, there might exist outgoing parallel paths from 1 node. By using the expanding approach directly, no edges can be further removed. Therefore, only a few edges can be removed, and the number of derived sub-networks might be still very large. The expansion approach for a -terminal network still has a serious difficulty due to the huge number of subproblems generated, even if many isomorphic sub-networks have been identified. Another difficulty is that the edge functions change during the expansion. This change also dramatically reduces the number of isomorphic graphs, and increases the processing time.
Fig. 5(a) shows a 2-terminal network; Fig. 5(b) shows a 3-ter-minal network based on the edge expansion diagram. In the 2-terminal network, the expanded node is chosen first. Then, according to its success edges , , , network is parti-tioned into sub-networks , and a terminal node . is obtained by deleting and while merging nodes and . For and , repeat steps 1–3 until a terminal node is reached. Then the logic value is returned. Before expanding a net-work, first see if a graph contains isomorphic subgraphs; if they exist in computing the hash table, then return their results di-rectly. The checking of isomorphism can be used to avoid re-dundant computations due to isomorphic reliability networks. The partitioning of the 2-terminal edge expansion diagram re-sults in 3 nonterminal nodes and 1 isomorphic subgraph .
In Fig. 5(b), node is chosen first for expansion. According to its success edges, and , network is partitioned into and . is obtained by deleting and merging with in . For and , repeat steps 1–3 until terminal #3 is reached, and return the logic value . Before expanding a network, isomorphism is first checked. The -terminal edge-ex-pansion diagram in Fig. 5(b) contains 5 nonterminal nodes and 1 isomorphic graph . A redundant node appears during the expansion of with edge . Sub-network contains a re-dundant node, which can be eliminated to terminate the par-titioning earlier. Although this approach has reasonable per-formance for small-scale networks, it generates an enormous number of sub-networks for large networks—because few edges can be deleted and the edge functions are not the same during the partitioning.
IV. FASTCONSTRUCTION OF THE -TERMINALRELIABILITY FUNCTIONS
Intuitively, the reliability function of an undirected -ter-minal network can be derived through the reliability functions of its ( edge) 2-terminal sub-networks: a set of nodes requires edges in order to be connected. In this case,
(a) (b) Fig. 5. Edge-expansion diagrams. (a) 2–terminal edge-expansion diagram. (b) 3–terminal edge-expansion diagram. “edges” between 2 terminal nodes are all the paths between
those 2 terminal nodes. Instead of constructing the -terminal reliability function by edge expansion diagram directly, this section presents a new approach.
1) Sufficient conditions for deriving the -terminal relia-bility function by a set of ( ) terminal-pair reliability functions are derived.
2) Efficient algorithms for selecting a feasible set are pre-sented.
3) The algorithm for a -terminal network is extended to an “ -source to -terminal” network.
A. A Feasible Set for an Undirected -Terminal Network Notation:
: reliability function of an undirected -terminal net-work.
: a terminal-pair in the set of terminals : a terminal-pair reliability function
: a Boolean operation.
A feasible-set for an undirected -terminal network is a set where all the nodes are covered and connected by these ( ) terminal-pairs.
Theorem 1: can be obtained by Boolean of all the reliability functions of the ( ) 2-terminal networks in a feasible-set.
Proof: The reliability of an undirected -terminal network is the probability that the network has at least 1 working -suc-cess path, i.e., there must exist a suc-suc-cess path between 2 arbi-trary different nodes out of these terminal-nodes. The reli-ability function for a 2-terminal network includes all the paths between 2 terminal-nodes. Therefore, the reliability function for
Fig. 6. Two feasible sets for a 3-terminal network.
an undirected -terminal network can be derived by connecting all the ( ) 2-terminal networks if this terminal-pair set can cover all the nodes. Therefore, the reliability function for an undirected -terminal network can be denoted as
The set of ( ) terminal-pairs is a feasible-set for an undi-rected -terminal network.
Fig. 6 is an example to illustrate theorem 1. Three nodes, , , are specified as terminal nodes. The simple working
paths of this network are , , , ,
, . The reliability function can be derived as Boolean of these paths:
Network
This method of directly searching all working paths is a di-rect-construction-method. From theorem 1, the 2 terminal pairs ( ) and ( ) can be chosen to cover the 3 terminal nodes: . The reliability functions for pairs ( )
448 IEEE TRANSACTIONS ON RELIABILITY, VOL. 51, NO. 4, DECEMBER 2002
respectively. The procedure to check for equivalence is: and
Network and
An alternative feasible set is and . The
func-tion [ and ] is also equal to Network . To
simplify this discussion, the preceding expressions use sum-of-product form. Instead of “sum of sum-of-product” form, OBDD for Boolean operations can be used.
B. The Fixed-Sink Algorithm
This section presents an efficient algorithm to generate the -terminal reliability functions based on 2-terminal reliability functions. Instead of choosing the set based on a fixed source or arbitrary pairs, a fixed-sink algorithm is used to implement the whole idea. A hash table [9] is used to store the intermediate results of 2-terminal pair subgraphs and their OBDD-based re-liability functions during the edge expansions [6]. Due to these ( ) 2-terminal pairs having the same sink, the hash table can be reused among different terminal-pair constructions. Thus this strategy avoids the redundant evaluation of isomorphic graphs during the process of building reliability functions of various terminal pairs; i.e., this method does not need to clear the inter-mediate hash table of subgraphs during edge expansions of all ( ) 2-terminal pairs because the sink is intact. All the iso-morphic graphs can be identified and their corresponding com-putations can be reduced to just 1 calculation. The procedures to compute the -terminal reliabilities are described here.
1) Use an heuristic approach to find a good variable ordering for the OBDD-based -terminal reliability function. 2) Choose a feasible set by making the sink intact.
3) The reliability function for an undirected -terminal net-work is derived through Boolean of the reliability functions of all 2-terminal pairs in the feasible set. 4) Recursively evaluate the probabilities of all the nodes in
the OBDD to obtain the -terminal network reliability. Given an undirected -terminal network, this fixed sink
al-gorithm for determining the
relia-bility of a network is shown in Fig. 7. First, choose an ( ) pair, where is an arbitrary node. Variable orderings for the network are obtained by the breadth-first-search approach [10]. The source node , , has the longest distance from by breadth-first-search traversal. Then make this sink node fixed and iteratively process all the ( ) pathset functions by the terminal-pair algorithm based on edge expansion diagrams, and Boolean these ( ) expressions to generate the -terminal reliability function. Once the OBDD-based reliability function has been derived, the reliability can be efficiently obtained by
re-cursively applying . For most cases, this
al-gorithm avoids exponential expansion caused by the direct con-struction approach.
Fig. 7. AFixed sink algorithm for a k-terminal network.
Fig. 8. Determination of the reliability of am 1 k-terminal network. The longest 2-terminal pairs built first will have more isomor-phic subgraphs and the corresponding OBDD functions, which can be shared with other 2-terminal constructions.
In the manipulations as well as the applications of OBDD, the efficiency is dominated by the size of OBDD for representing a given function. The OBDD size strongly depends on the input-variable ordering. However, the best algorithm for finding the optimal ordering has a complexity of ; but this ap-proach is not realistic. Therefore, a simple, efficient BFS [10] method is used to obtain a good variable-ordering. This BFS method has the complexity , number of edges in a network.
Although the fixed-sink algorithm is very efficient for lating -terminal reliability, there exist a few redundant calcu-lations when processing these ( ) 2-terminal expressions. Therefore, an additional criterion for successively combining these ( ) 2-terminal reliability functions is applied to re-duce the number of sub-networks. This additional criterion is: The selected nodes can be grouped, marked, and treated as a terminal node (referred as the Merged_source algorithm). This criterion can terminate network partitioning early when multiple terminals exist.
(a) (b) Fig. 9. K-terminal networks. (a) 2–terminal networks. (b) jKj jV j=2
C. Evaluation of Reliabilities for the -Source to -Terminal Networks
The application of a distributed computer network for an “ -source to -terminal” problem is that a process can dupli-cate on different nodes ( -source), which requires -resource files distributed on different nodes during program execution. The “ -source to -terminal” reliability is the probability that at least 1 process can be successfully executed. This algorithm is similar to the -terminal algorithm. The unique feature of this algorithm is that it requires the user to manipulate Boolean operations on the reliability functions for each source to the terminal nodes. The formulation is:
(5) set of -terminal nodes,
set of sources,
reliability function for a ( )
terminal network,
reliability function for an -source to -ter-minal network.
The complete algorithm is in Fig. 8: Procedure MK_ter-minal(). First, arbitrarily select 1 node from , and 1 terminal from , such that the ( ) pair has the largest distance. Then the global variable ordering for an OBDD is obtained by breadth-first-search traversing. Equation (5) is applied for direct construction of an -source to -terminal reliability function based on the terminal-pair algorithm. Finally, the reliability is obtained by recursively evaluating all nodes of this OBDD.
V. EXPERIMENTALRESULTS
This approach for determining the reliability of an undirected -terminal network has been implemented on a SPARC 20
450 IEEE TRANSACTIONS ON RELIABILITY, VOL. 51, NO. 4, DECEMBER 2002
TABLE I
COMPARISONRESULTS FORALL-TERMINALNETWORKRELIABILITIES
TABLE II

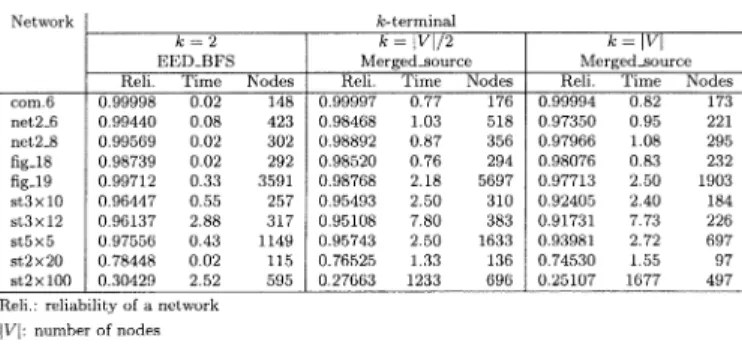

COMPARISONRESULTS FORk-TERMINALNETWORKRELIABILITIES
workstation with 128 Mbytes memory. All of these programs are written in C language. Experimental results are compared with previous work [2]. Ten benchmark networks [Fig. 9(a) and (b)] are used in these experiments. The upper bound of the OBDD size is 1500k in terms of shared OBDD with inverted edges. The success probabilities of all nodes are 0.9.
Directly finding all -success disjoint paths for a -terminal network requires exponential computation-time. In general, this complexity is also much higher than that for a 2-terminal network. Only the approach in [2] seems to have dealt with large -terminal networks. It uses a factoring theorem and net-work-reduction rules to calculate the reliability of a -terminal network. Table I compares the results in this paper with those in [2]. The _Direct column denotes direct construction of a -terminal reliability network by edge expansion diagram. The Fixed_source column uses the proposed fixed source method based on Boolean all ( ) 2-terminal reliability functions. The results of the fixing-sink approach are shown in the column: Fixed_sink. An alternate reduction rule during the Boolean of all ( ) 2-terminal functions is applied to the fixing-sink approach; the results are in the Merged_source column. The columns of Time record the CPU times consumed; the columns of Nodes indicate the number of OBDD nodes generated for each method, respectively.
Another attractive property of these methods using OBDD is that the reliability expression is unique when these 4 reliability functions have the same variable ordering. This property can also be used to verify whether the new algorithm is correct or not. For example, to check the correctness of these reliability values obtained using various methods ( _direct, fixed_sink, fixed_source, and fixed_sink_MT), just check whether these 4 OBDD-based reliability functions are equivalent or not. The
verification results show that these 4 OBDD are exactly equiv-alent; their OBDD sizes are shown in Table I.
Table I shows that the proposed methods are appreciably better than those in [2]. The computation time for a st3 10 all-terminal network is only 2.4 seconds on a SPARC 20 workstation. It is much faster than the 1994 seconds required by the factoring algorithm in [2] on a Macintosh microcomputer. The rate of time increase for every addition of a stage in this approach is about 2.5, which is only half of that in [2].
• Fixed_source approach: the hash table becomes invalid once the sink is changed for various terminal-pairs; there-fore, the computation for the Fixed_source approach is in-efficient.
• Fixed_Sink method: this can avoid these redundant com-putations and has better results.
• Merged_source strategy: this has the best time-perfor-mance among the 4 approaches, due to the effectiveness of increasing the hashing rate and reducing the number of sub-networks (as mentioned in Section IV-B).
Table II presents the reliability evaluation results for
-ter-minal networks with , , and . In
gen-eral, the time overhead of determining the all-terminal reliabil-ities for the networks in Fig. 9 is sufficiently low. For example, the time required for a st3 network is only about 4 times that of the original 2-terminal network. These results are appre-ciably better than those of the direct construction method, which has exponential time complexity. The number of OBDD nodes for each method is limited within an acceptable range such that the proposed approaches can efficiently solve all the problems within a reasonable amount of time.
Table II shows that the probabilities of -terminal networks are between the 2-terminal networks and all-terminal networks. The reliability of a 2-terminal network is the highest among
, , and . In contrast, the all-terminal
networks exhibit the lowest reliability. Although the number of 2-terminal reliability expressions for all-terminal networks is twice than that for -terminal networks, the processing time only increases by 0.2% on average. The reason is that the evaluation of reliability functions of 2-terminal networks can be terminated immediately when the number of termination nodes increases.
