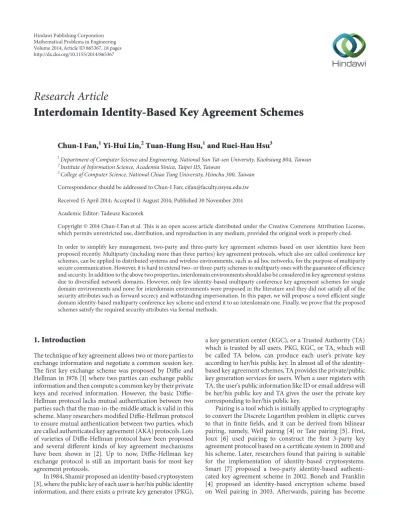

Research Article
Interdomain Identity-Based Key Agreement Schemes
Chun-I Fan,
1Yi-Hui Lin,
2Tuan-Hung Hsu,
1and Ruei-Hau Hsu
31Department of Computer Science and Engineering, National Sun Yat-sen University, Kaohsiung 804, Taiwan
2Institute of Information Science, Academia Sinica, Taipei 115, Taiwan
3College of Computer Science, National Chiao Tung University, Hsinchu 300, Taiwan
Correspondence should be addressed to Chun-I Fan; [email protected] Received 15 April 2014; Accepted 11 August 2014; Published 30 November 2014 Academic Editor: Tadeusz Kaczorek
Copyright © 2014 Chun-I Fan et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. In order to simplify key management, two-party and three-party key agreement schemes based on user identities have been proposed recently. Multiparty (including more than three parties) key agreement protocols, which also are called conference key schemes, can be applied to distributed systems and wireless environments, such as ad hoc networks, for the purpose of multiparty secure communication. However, it is hard to extend two- or three-party schemes to multiparty ones with the guarantee of efficiency and security. In addition to the above two properties, interdomain environments should also be considered in key agreement systems due to diversified network domains. However, only few identity-based multiparty conference key agreement schemes for single domain environments and none for interdomain environments were proposed in the literature and they did not satisfy all of the security attributes such as forward secrecy and withstanding impersonation. In this paper, we will propose a novel efficient single domain identity-based multiparty conference key scheme and extend it to an interdomain one. Finally, we prove that the proposed schemes satisfy the required security attributes via formal methods.
1. Introduction
The technique of key agreement allows two or more parties to exchange information and negotiate a common session key. The first key exchange scheme was proposed by Diffie and Hellman in 1976 [1] where two parties can exchange public information and then compute a common key by their private keys and received information. However, the basic Diffie-Hellman protocol lacks mutual authentication between two parties such that the man-in-the-middle attack is valid in this scheme. Many researchers modified Diffie-Hellman protocol to ensure mutual authentication between two parties, which are called authenticated key agreement (AKA) protocols. Lots of varieties of Diffie-Hellman protocol have been proposed and several different kinds of key agreement mechanisms have been shown in [2]. Up to now, Diffie-Hellman key exchange protocol is still an important basis for most key agreement protocols.
In 1984, Shamir proposed an identity-based cryptosystem [3], where the public key of each user is her/his public identity information, and there exists a private key generator (PKG),
a key generation center (KGC), or a Trusted Authority (TA) which is trusted by all users. PKG, KGC, or TA, which will be called TA below, can produce each user’s private key according to her/his public key. In almost all of the identity-based key agreement schemes, TA provides the private/public key generation services for users. When a user registers with TA, the user’s public information like ID or email address will be her/his public key and TA gives the user the private key corresponding to her/his public key.
Pairing is a tool which is initially applied to cryptography to convert the Discrete Logarithm problem in elliptic curves to that in finite fields, and it can be derived from bilinear pairing, namely, Weil pairing [4] or Tate pairing [5]. First, Joux [6] used pairing to construct the first 3-party key agreement protocol based on a certificate system in 2000 and his scheme. Later, researchers found that pairing is suitable for the implementation of identity-based cryptosystems. Smart [7] proposed a two-party identity-based authenti-cated key agreement scheme in 2002. Boneh and Franklin [4] proposed an identity-based encryption scheme based on Weil pairing in 2003. Afterwards, pairing has become
Volume 2014, Article ID 865367, 18 pages http://dx.doi.org/10.1155/2014/865367
an important mathematic foundation of cryptography. There are many identity-based key agreement schemes, which have been proposed in the literature [7–11], based on pairings.
A conference key agreement scheme is a variety of a multiparty key agreement or group key agreement scheme, but it is different from conference key distribution scheme. In a conference key distribution scheme, a session conference chair decides the conference key and then broadcasts it to every member in this session conference. In particular, in a conference key agreement scheme, we must guarantee that the protocol satisfies the following three properties.
(1) Each conference key is negotiated by all session members.
(2) Every session member can compute the conference key via the same algorithm.
(3) No session member can predict or preselect the conference key.
The first formal security analysis in an identity-based two-party key agreement scheme was introduced by Chen and Kudla [9] and they improved the first identity-based key agreement scheme based on pairings [7]. Chen and Kudla proved that their protocol is secure on the security model of Bellare and Rogaway [12]. Later, Al-Riyami and Paterson also proposed four kinds of tripartite authenticated key agreement protocols by improving Joux’s scheme [13], and they showed that their scheme is secure. Unfortunately, Shim and Woo [14] pointed out that their scheme has some weaknesses. Furthermore, there are several conference key agreement schemes based on bilinear pairing which have been proposed in the literature [15–19], but they are all insecure, where their security weaknesses will be shown in Section3of the paper.
Section 4 will present two new hard problems, the 𝑛-Linear Diffie-Hellman (𝑛-LDH) problem and the Decisional 𝑛-Linear Diffie-Hellman (𝑛-DLDH) problem, on which our key agreement schemes are based.
In Section5, we will propose a novel efficient identity-based conference key agreement scheme by combining the concepts of [16, 19]. In addition to a single TA, we also discuss how the users, who have registered with distinct TAs, negotiate a common conference key. Moreover, in order to formally demonstrate the security of our proposed schemes, we adopt the random oracle method, which was proposed by Bellare and Rogaway [12], to prove the security of our schemes under some well-known assumptions. We will define several security attributes in the third part of Section2and formally prove the security of our schemes in Section6. Finally, we also provide performance comparison to demonstrate that our proposed schemes are more efficient than others.
Our contributions are summarized as follows.
(1) We find some security flaws in the schemes of [15–19]. (2) We introduce two new hard problems.
(3) We propose interdomain identity-based conference key agreement schemes.
(4) We formally prove that our schemes completely sat-isfy all of the security attributes.
2. Preliminaries
In this section, we review the concept of pairing which includes definitions, computationally hard problems, and security attributes of key agreement based on pairings.
2.1. Pairing. Pairing [20] in an elliptic curve cryptosystem is
a function which maps a pair of elliptic curve points to an element of a multiplicative group in a finite field. It has been applied to key agreement, signatures, broadcast encryption, and identity-based encryption widely. In the following, we will review the definitions and properties of pairings.
2.1.1. Bilinear Pairing. We briefly describe the concept of
bilinear pairing [20]. Let(G1, +) and (G2, +) be abelian groups written in additive notation with prime order𝑞 and identity elements𝑂1 and 𝑂2, respectively, such that𝑞𝑃 = 𝑂1 and 𝑞𝑄 = 𝑂2, where∀𝑃 ∈ G1and∀𝑄 ∈ G2. Suppose that(G𝑇, ∗) is a cyclic group of order𝑞 written in multiplicative notation with identity element1𝑇. Now we have the groups(G1, +), (G2, +), and (G𝑇, ∗). The mapping function is
𝑒 : G1× G2→ G𝑇. (1) Typically,G1 andG2 are subgroups of the points on an elliptic curve over a finite field andG𝑇 is a subgroup of a multiplicative group over a finite field.
In addition, the following additional properties must be satisfied: (i) bilinearity ∀𝑃, 𝑃∈ G 1, 𝑄, 𝑄∈ G2, 𝑒(𝑃+𝑃, 𝑄) = 𝑒(𝑃, 𝑄)⋅𝑒(𝑃, 𝑄) and 𝑒(𝑃, 𝑄+𝑄) = 𝑒(𝑃, 𝑄) ⋅ 𝑒(𝑃, 𝑄), 𝑒(𝑎𝑃, 𝑄) = 𝑒(𝑃, 𝑄)𝑎= 𝑒(𝑃, 𝑎𝑄) for all 𝑎 ∈ Z∗ 𝑞; (ii) nondegeneracy
∀𝑃 ∈ G1, with 𝑃 ̸= 𝑂1, ∃𝑄 ∈ G2 such that 𝑒(𝑃, 𝑄) ̸= 1𝑇,
∀𝑄 ∈ G2, with 𝑄 ̸= 𝑂2, ∃𝑃 ∈ G1 such that 𝑒(𝑃, 𝑄) ̸= 1𝑇,
∀𝑃 ∈ G1 and∀𝑄 ∈ G2,𝑒(𝑃, 𝑂2) = 𝑒(𝑂1, 𝑄) = 1𝑇;
(iii) computability
if 𝑃 ∈ G1 and 𝑄 ∈ G2, there exists an efficient algorithm which can compute𝑒(𝑃, 𝑄) in polynomial time.
The schemes in Section3use symmetric bilinear pairing, so they setG1= G2. In order to make the following decisional problems remain hard, we set G1 ̸= G2 and there is no polynomial-time computable isomorphism𝜙 : G1 → G2, such that𝜙(𝑃) = 𝑄, where 𝑃 is a generator of G1and𝑄 is a generator ofG2.
2.2. Hard Problems
(1) The Discrete Logarithm (DL) problem:
given𝑃, 𝑃 ∈ G1, find an integer𝑥 ∈ Z∗𝑞 such that 𝑃= 𝑥𝑃.
(2) The Computational Diffie-Hellman (CDH) problem: for𝑥, 𝑦∈𝑅Z∗𝑞, given(𝑃, 𝑥𝑃, 𝑦𝑃) ∈ G31, compute𝑥𝑦𝑃. (3) The Decisional Diffie-Hellman (DDH) problem:
for𝑥, 𝑦∈𝑅Z∗𝑞, given(𝑃, 𝑥𝑃, 𝑦𝑃, 𝑧𝑃) ∈ G41where𝑧 = 𝑥𝑦 (mod 𝑞) or 𝑧∈𝑅Z∗
𝑞is decided by flipping a coin. Output “Yes” if 𝑧 = 𝑥𝑦 (mod 𝑞); otherwise output “No”.
(4) The Divisible Computational Diffie-Hellman (DCDH) problem [21]: for𝑥, 𝑦∈𝑅Z∗𝑞, given(𝑃, 𝑥𝑃, 𝑦𝑃) ∈ G31, compute𝑥𝑦−1𝑃.
(5) The Decisional Linear Diffie-Hellman (DLDH) prob-lem in G1 [22, 23]: for 𝑥1, 𝑥2, 𝑥3, 𝑥4∈𝑅Z∗𝑞, given (𝑃, 𝑥1𝑃, 𝑥2𝑃, 𝑥1𝑥3𝑃, 𝑥2𝑥4𝑃, 𝑍) ∈ G6
1, where𝑍 = (𝑥3+ 𝑥4)𝑃 or 𝑍∈𝑅G1is decided by flipping a coin. Output “Yes” if𝑍 = (𝑥3+ 𝑥4)𝑃; otherwise output “No”. This hard problem was first proposed by Boneh et al. [22] in 2004 and then Boyen and Waters [23] extended it to asymmetric bilinear groups in 2006. (6) The co-Bilinear Diffe-Hellman (co-BDH) problem
[4]: given (𝑃1, 𝑎𝑃1, 𝑏𝑃1) ∈ G31 and (𝑃2, 𝑎𝑃2, 𝑐𝑃2) ∈ G3
2 in asymmetric bilinear map groups(G1, G2, G𝑇), compute𝑒(𝑃1, 𝑃2)𝑎𝑏𝑐∈ G𝑇.
We propose the variant-CDH problem and extend the DLDH problem to the 𝑛-LDH and 𝑛-DLDH problems. We will prove that they are also hard in Section4.
(7) The Variant Computational Diffie-Hellman (variant-CDH) problem: given (𝑃1, 𝑎𝑃1, 𝑏𝑃1) ∈ G31 and (𝑃2, 𝑎𝑃2) ∈ G2
2, compute𝑎𝑏𝑃1.
(8) The n-Linear Diffie-Hellman (𝑛-LDH) problem: given 𝑃, 𝑥𝑖𝑃’s, and 𝑥𝑖𝑥𝑛+𝑗𝑃’s ∈ G1for all𝑖, 𝑗 with 1 ≤ 𝑖, 𝑗 ≤ 𝑛, 𝑖 ̸= 𝑗, and 𝑛 ≥ 2, compute (𝑥𝑛+1+ 𝑥𝑛+2+ ⋅ ⋅ ⋅ + 𝑥2𝑛)𝑃. (9) The Decisional n-Linear Diffie-Hellman (𝑛-DLDH)
problem: given𝑍, 𝑃, 𝑥𝑖𝑃’s, and 𝑥𝑖𝑥𝑛+𝑗𝑃’s ∈ G1for all𝑖, 𝑗 with 1 ≤ 𝑖, 𝑗 ≤ 𝑛, 𝑖 ̸= 𝑗, and 𝑛 ≥ 2, where 𝑍 = (𝑥𝑛+1+ 𝑥𝑛+2+ ⋅ ⋅ ⋅ + 𝑥2𝑛)𝑃 or 𝑍∈𝑅G1is decided by flipping a coin. Output “Yes” if𝑍 = (𝑥𝑛+1+ 𝑥𝑛+2+ ⋅ ⋅ ⋅ + 𝑥2𝑛)𝑃; otherwise output “No”.
2.3. Security Attributes. There are some security definitions
in the identity-based key agreement schemes based on pairing [13,14]. We describe them as follows.
Known Session Key Security. A key agreement protocol should
produce a unique common secret key, which is called a session key, for every session. The protocol should still achieve this goal when an adversary has learned all of the other session keys.
(Perfect) Forward Secrecy. Forward secrecy is that any
adversary cannot derive previous session keys from compromised long-term private keys of one or more parties.
Partial forward secrecy is that one or more (not all) parties’
long-term private keys are corrupted but any adversary cannot get any previous session keys which were established by these parties. Perfect forward secrecy means that any adversaries cannot derive previous session keys even though they have obtained the long-term private keys of all parties. In ID-based systems, perfect forward secrecy implies that TA’s and all users’ long-term private keys are corrupted but any previous session key established by the registered users cannot be derived by adversaries. We also call it TA forward
secrecy.
Key-Compromise Impersonation. A protocol can resist
key-compromise impersonation if an adversary cannot imperson-ate some users even though the other users’ long-term privimperson-ate keys were disclosed.
Man-in-the-middle attack is a special case of key-compromise impersonation in ID-based systems. If an adver-sary intercepts messages, retransmits them, and then com-municates with users without being detected in the key agree-ment protocol, we say that he succeeds in impersonation.
Withstanding key-compromise impersonation also covers unknown key-share resilience. It is the basic security attribute for key agreement scheme. Some users cannot have a key agreement with the other users without the knowledge of them. If some users cannot impersonate the others, they cannot run the key agreement scheme for them.
Key Control. It should be impossible for any participant (or
an adversary) to preselect a value as a session key or predict the value of the session key.
3. Security Problems in the Previous Schemes
In the section, we briefly introduce security weaknesses on the schemes [15–19, 24–26]. The details of the security problems in these schemes are in the Appendices.
Shi et al. [19] proposed an ID-based authenticated group key agreement protocol in 2005. The design of the protocol is efficient because it only takes one round to finish a group key agreement and it needs no exponentiation computation besides a pairing computation. We find that the protocol does not resist key-compromise impersonation since the users do not verify the messages with one another in the protocol. Moreover, it only achieves partial forward secrecy.
Du et al. [15] proposed an ID-based authenticated group key agreement protocol in 2003 and improved it in the same year. Both of them does not achieve perfect forward secrecy. Although they embed a signature scheme to verify the messages, both of the protocols still suffer from key-compromise impersonation found by Zhang and Chen [29]. In the attack of [29], the adversaries collect the messages of the user in the previous session and replay them after modifying the messages. Zhang and Chen [30] also attacked Choi et al. [24] with the same method in 2004. The protocol
of Zhang et al. [18] in 2005 has the same security problem as Du’s since they embed the same signature scheme in the protocol.
Kim et al. [17] aims to design a one-round key agreement protocol. But we find that the protocol cannot even achieve known session key security. Anyone can compute the session key through collecting the broadcasting messages.
Zhou et al. [26] proposed two schemes, one is one-round and the other is two-round. We find that both of them cannot withstand key-compromise impersonation. For the first scheme, the other users can collide to impersonate the user𝑈𝑖. For the second one, the user𝑈1can impersonate any other user he wants. We also find that the protocol of Yao et al. [25] is not immune to key-compromise impersonation, either. A user can impersonate another by rebroadcasting the messages. The work of [31] improved the flaw but did not provide any formal proofs. Yuan et al. [27] improved it with formal proofs.
4. Three New Hard Problems
We formally prove our proposed problems, the Variant Computational Diffie-Hellman problem, the𝑛-Linear Diffie-Hellman problem, and the Decisional 𝑛-Linear Diffie-Hellman problem, being hard by using problem reduction and generic model, respectively.
4.1. The Variant Computational Diffie-Hellman (Variant-CDH) Problem
Theorem 1. The variant-CDH problem is hard if the co-BDH
problem is hard.
Proof. Suppose that there exists an oracle which can solve
the variant-CDH problem with nonnegligible probability. We will prove that the oracle can help us to solve the co-BDH problem with nonnegligible probability. Given any parameters of the co-BDH problem,(𝑃1, 𝑎𝑃1, 𝑏𝑃1) ∈ G31and (𝑃2, 𝑎𝑃2, 𝑐𝑃2) ∈ G3
2, we input(𝑃1, 𝑎𝑃1, 𝑏𝑃1) and (𝑃2, 𝑎𝑃2) into the variant-CDH oracle. The oracle will output𝑎𝑏𝑃1. Then, we solve the co-BDH problem by computing𝑒(𝑎𝑏𝑃1, 𝑐𝑃2) = 𝑒(𝑃1, 𝑃2)𝑎𝑏𝑐.
4.2. The𝑛-Linear Diffie-Hellman (𝑛-LDH) Problem
Theorem 2. The 𝑛-LDH problem is hard if and only if the
DCDH problem is hard.
Proof. (1)𝑛-LDH ⇒ DCDH. Suppose that there exists an
ora-cle which can solve the𝑛-LDH problem with nonnegligible probability. We will prove that the oracle can help us to solve the DCDH problem with nonnegligible probability.
For any DCDH triple(𝑃, 𝑥𝑃, 𝑦𝑃), we convert them into the𝑛-LDH oracle’s input parameters which are shown in(2):
[ [ [ [ [ [ [ [ [ 𝑥1𝑃 𝑥2𝑃 . . . 𝑥𝑛−1𝑃 𝑥𝑛𝑃 ⊥ 𝑥2𝑥𝑛+1𝑃 . . . 𝑥𝑛−1𝑥𝑛+1𝑃 𝑥𝑛𝑥𝑛+1𝑃 𝑥1𝑥𝑛+2𝑃 ⊥ . . . 𝑥𝑛−1𝑥𝑛+2𝑃 𝑥𝑛𝑥𝑛+2𝑃 ... ... ... ... 𝑥1𝑥2𝑛−1𝑃 𝑥2𝑥2𝑛−1𝑃 . . . ⊥ 𝑥𝑛𝑥2𝑛−1𝑃 𝑥1𝑥2𝑛𝑃 𝑥2𝑥2𝑛𝑃 . . . 𝑥𝑛−1𝑥2𝑛𝑃 ⊥ ] ] ] ] ] ] ] ] ] . (2)
We randomly pick 𝑡2, 𝑡3, . . . , 𝑡𝑛 ∈ Z∗𝑞 and 𝑄1, 𝑄2, . . . , 𝑄𝑛−1∈ G∗1, compute𝑄𝑛= 𝑥𝑃 − 𝑄1− 𝑄2− ⋅ ⋅ ⋅ − 𝑄𝑛−1, and set other parameters in(3): [ [ [ [ [ [ [ [ [ 𝑦𝑃 𝑡2𝑦𝑃 𝑡3𝑦𝑃 . . . 𝑡𝑛−1𝑦𝑃 𝑡𝑛𝑦𝑃 ⊥ 𝑡2𝑄1 𝑡3𝑄1 . . . 𝑡𝑛−1𝑄1 𝑡𝑛𝑄1 𝑄2 ⊥ 𝑡3𝑄2 . . . 𝑡𝑛−1𝑄2 𝑡𝑛𝑄2 ... ... ... ... ... 𝑄𝑛−1 𝑡2𝑄𝑛−1 𝑡3𝑄𝑛−1 . . . ⊥ 𝑡𝑛𝑄𝑛−1 𝑄𝑛 𝑡2𝑄𝑛 𝑡3𝑄𝑛 . . . 𝑡𝑛−1𝑄𝑛 ⊥ ] ] ] ] ] ] ] ] ] . (3)
Equation(2)is equal to(3); that is,𝑥1𝑃 = 𝑦𝑃, 𝑥2𝑃 = 𝑡2𝑥1𝑃 = 𝑡2𝑦𝑃, 𝑥3𝑃 = 𝑡3𝑥1𝑃 = 𝑡3𝑦𝑃, . . . , 𝑥𝑛𝑃 = 𝑡𝑛𝑥1𝑃 = 𝑡𝑛𝑦𝑃 in row 1, 𝑥2𝑥𝑛+1𝑃 = 𝑡2𝑥1𝑥𝑛+1𝑃 = 𝑡2𝑄1, 𝑥3𝑥𝑛+1𝑃 = 𝑡3𝑥1𝑥𝑛+1𝑃 = 𝑡3𝑄1, . . . , 𝑥𝑛𝑥𝑛+1𝑃 = 𝑡𝑛𝑥1𝑥𝑛+1𝑃 = 𝑡𝑛𝑄1in row 2 (suppose that𝑥1𝑥𝑛+1𝑃 = 𝑄1),𝑥1𝑥𝑛+2𝑃 = 𝑄2,𝑥3𝑥𝑛+2𝑃 = 𝑡3𝑥1𝑥𝑛+2𝑃 = 𝑡3𝑄2, . . . , 𝑥𝑛𝑥𝑛+2𝑃 = 𝑡𝑛𝑥1𝑥𝑛+2𝑃 = 𝑡𝑛𝑄2 in row3, . . ., and 𝑥1𝑥2𝑛𝑃 = 𝑄𝑛,𝑥2𝑥2𝑛𝑃 = 𝑡2𝑥1𝑥2𝑛𝑃 = 𝑡2𝑄𝑛, 𝑥3𝑥2𝑛𝑃 = 𝑡3𝑥1𝑥2𝑛𝑃 = 𝑡3𝑄𝑛, . . . , 𝑥𝑛−1𝑥2𝑛𝑃 = 𝑡𝑛−1𝑥1𝑥2𝑛𝑃 = 𝑡𝑛−1𝑄𝑛 in row𝑛 + 1. The oracle will output (𝑥𝑛+1 + 𝑥𝑛+2+ 𝑥𝑛+3+ ⋅ ⋅ ⋅ + 𝑥2𝑛−1+ 𝑥2𝑛)𝑃. Thus, we have that
𝑥𝑃 = 𝑄1+ 𝑄2+ ⋅ ⋅ ⋅ + 𝑄𝑛−1+ 𝑄𝑛
= 𝑥1𝑥𝑛+1𝑃 + 𝑥1𝑥𝑛+2𝑃 + ⋅ ⋅ ⋅ + 𝑥1𝑥2𝑛−1𝑃 + 𝑥1𝑥2𝑛𝑃 = (𝑥𝑛+1+ 𝑥𝑛+2+ ⋅ ⋅ ⋅ + 𝑥2𝑛−1+ 𝑥2𝑛) 𝑥1𝑃
= (𝑥𝑛+1+ 𝑥𝑛+2+ ⋅ ⋅ ⋅ + 𝑥2𝑛−1+ 𝑥2𝑛) 𝑦𝑃.
(4)
From(4), we can get𝑥𝑦−1𝑃 = (𝑥𝑛+1+𝑥𝑛+2+⋅ ⋅ ⋅+𝑥2𝑛−1+𝑥2𝑛)𝑃. (2)𝑛-LDH ⇐ DCDH. Suppose that there exists an oracle which can solve the the DCDH problem with nonnegligible probability. We will prove that the oracle can help us to solve the𝑛-LDH problem with nonnegligible probability, too.
For any 𝑛-LDH tuple in (2), we input (𝑥1𝑥𝑛+2𝑃, 𝑥1𝑃), (𝑥1𝑥𝑛+3𝑃, 𝑥1𝑃), . . . , (𝑥1𝑥2𝑛𝑃, 𝑥1𝑃), and (𝑥2𝑥𝑛+1𝑃, 𝑥2𝑃) into the oracle. Then the oracle outputs 𝑥𝑛+2𝑃, 𝑥𝑛+3𝑃, . . . , 𝑥2𝑛𝑃, and𝑥𝑛+1𝑃, respectively.
Finally, we can compute 𝑥𝑛+1𝑃 + 𝑥𝑛+2𝑃 + ⋅ ⋅ ⋅ + 𝑥2𝑛𝑃 = (𝑥𝑛+1+ 𝑥𝑛+2+ ⋅ ⋅ ⋅ + 𝑥2𝑛)𝑃 to solve the 𝑛-LDH problem.
We use a way similar to [22] to prove the 𝑛-DLDH problem being hard. In the generic model, elements ofG1, G2, andG𝑇are encoded as unique random strings, whereG1 andG2are additive groups andG𝑇is a multiplicative group. There is a bilinear pairing function𝑒 : G1× G2 → G𝑇. Let 𝑆1, 𝑆2, and 𝑆𝑇 be the sets of strings. The opaque encoding of the elements of G1 is modeled as an injective function
𝜁1 : Z𝑞 → 𝑆1, where𝑆1 ⊂ {0, 1}∗, which maps all𝑎 ∈ Z𝑞 to the string representation𝜁1(𝑎) of 𝑎𝑃 ∈ G1. Analogous mapping𝜁2 : Z𝑞 → 𝑆2and𝜁𝑇 : Z𝑞 → 𝑆𝑇map all𝑎 ∈ Z𝑞 to the string representation𝜁2(𝑎) of 𝑎𝑃 ∈ G2and𝜁𝑇(𝑎) of 𝑔𝑎 ∈ G
𝑇, where𝑔 = 𝑒(𝑃, 𝑃).
4.3. The Decisional𝑛-Linear Diffie-Hellman
(𝑛-DLDH) Problem
Theorem 3. Let A be an algorithm that solves the 𝑛-DLDH
problem in the generic bilinear group model with at most𝑞𝑘
oracle queries. Let𝑥𝑖’s,𝑥𝑛+𝑗’s, and𝑧 ∈ Z𝑞be chosen at random,
where1 ≤ 𝑖, 𝑗 ≤ 𝑛, and 𝑛 ≥ 2, 𝜁1,𝜁2, and𝜁𝑇 are random
encoding functions for 𝐺1,𝐺2, and𝐺𝑇, and 𝑏 ∈ {0, 1} is a
random bit. Let𝑤𝑏 = 𝑧 and 𝑤1−𝑏 = ∑𝑛𝑗=1𝑥𝑛+𝑗mod𝑞. The
probability is Pr [ [ A (𝜁1, 𝜁2, 𝜁𝑇; 1, 𝑥𝑖’𝑠, 𝑥𝑖𝑥𝑛+𝑗’𝑠, 𝑤0, 𝑤1) = 𝑏 : ∀𝑖, 𝑗, 𝑥𝑖, 𝑥𝑛+𝑗∈ Z∗ 𝑞, 1 ≤ 𝑖, 𝑗 ≤ 𝑛, 𝑖 ̸= 𝑗, 𝑛 ≥ 2, 𝑏 ∈ {0, 1} ] ] =1 2 + 2 (𝑛2+ 3 + 𝑞 𝑘)2 𝑞 . (5)
Proof. B plays the following game with A. B maintains
the lists 𝐿1 = {(𝐹1,𝑠, 𝜁1,𝑠) : 𝑠 = 0, 1, 2, . . . , 𝜏1 − 1}, 𝐿2 = {(𝐹2,𝑡, 𝜁2,𝑡) : 𝑡 = 0, 1, 2, . . . , 𝜏2 − 1}, and 𝐿𝑇 = {(𝐹𝑇,𝑢, 𝜁𝑇,𝑢) : 𝑡 = 0, 1, 2, . . . , 𝜏𝑇− 1}. Let 𝑋𝑖’s,𝑋𝑖𝑋𝑛+𝑗’s, 𝑊0, and𝑊1 (∀𝑖, 𝑗, 1 ≤ 𝑖, 𝑗 ≤ 𝑛, 𝑖 ̸= 𝑗) be indeterminate. All𝐹1,𝑠’s, 𝐹2,𝑡’s, and𝐹𝑇,𝑢’s ∈ Z𝑞[𝑋𝑖’s,𝑋𝑖𝑋𝑛+𝑗’s,𝑊0, 𝑊1] are polynomials and𝜁1,𝑠’s,𝜁2,𝑡’s,𝜁𝑇,𝑢’s∈ {0, 1}∗are distinct strings. At the beginning of the game,B sets 𝐹1,0 = 1, 𝐹1,1 = 𝑋1, 𝐹1,2= 𝑋2, . . . , 𝐹1,𝑛 = 𝑋𝑛,𝐹1,𝑛2+1= 𝑊0,𝐹1,𝑛2+2 = 𝑊1,𝐹2,0= 1,
𝐹𝑇,0 = 1, and the following polynomials: [(⊥, 𝐹1,𝑛+1 = 𝑋2𝑋𝑛+1, . . . , 𝐹1,2𝑛−2 = 𝑋𝑛−1𝑋𝑛+1, 𝐹1,2𝑛−1 = 𝑋𝑛𝑋𝑛+1), (𝐹1,2𝑛= 𝑋1𝑋𝑛+2,⊥, . . . , 𝐹1,3𝑛−3 = 𝑋𝑛−1𝑋𝑛+2, 𝐹1,3𝑛−2 = 𝑋𝑛𝑋𝑛+2), . . . , (𝐹1,𝑛2−2𝑛+3 = 𝑋1𝑋2𝑛−1, 𝐹1,𝑛2−2𝑛+4 = 𝑋2𝑋2𝑛−1, . . . , ⊥
, 𝐹1,𝑛2−𝑛+1 = 𝑋𝑛𝑋2𝑛−1), (𝐹1,𝑛2−𝑛+2 = 𝑋1𝑋2𝑛, 𝐹1,𝑛2−𝑛+3 =
𝑋2𝑋2𝑛, . . . , 𝐹1,𝑛2 = 𝑋𝑛−1𝑋2𝑛,, ⊥)], where the symbol “⊥”
means emptiness and B gives A the distinct strings 𝜁1,0, 𝜁1,1, . . . , 𝜁1,𝑛2+2,𝜁2,0, and𝜁𝑇,0. In the initial list index, the
numbers of the records in𝐿1,𝐿2, and𝐿𝑇 are𝜏1 = 𝑛2+ 3, 𝜏2= 1, and 𝜏𝑇= 1, respectively, where 𝜏 = 𝜏1+𝜏2+𝜏𝑇= 𝑛2+5. At any step in the game,A can make the group and pairing queries.B performs and responds to A as follows.
Group Action.A gives B two operands 𝜁1,𝑠, 𝜁1,𝑡 and a sign
bit, where0 ≤ 𝑠, 𝑡 < 𝜏1.B sets 𝐹1,𝜏1← 𝐹1,𝑠± 𝐹1,𝑡. If𝐹1,𝜏1= 𝐹1,𝑙 for some𝑙 < 𝜏1,B sets 𝜁1,𝜏1 ← 𝜁1,𝑙. Otherwise,B sets 𝜁1,𝜏1 to be a string in {0, 1}∗ distinct from 𝜁1,0, 𝜁1,1, . . . , 𝜁1,𝜏1−1. Finally,B adds (𝐹1,𝜏1, 𝜁1,𝜏) to the list 𝐿1, gives𝜁1,𝜏1toA, and sets𝜏1 ← 𝜏1+ 1. The group action queries in 𝐺2and𝐺𝑇are simulated similarly.
Pairing.A gives B two operands 𝜁1,𝑠and𝜁1,𝑡with0 ≤ 𝑠 < 𝜏1
and0 ≤ 𝑡 < 𝜏2.B sets the product 𝐹𝑇,𝜏𝑇 ← 𝐹1,𝑠𝐹2,𝑡. If𝐹𝑇,𝜏𝑇 = 𝐹𝑇,𝑙for some𝑙 < 𝜏𝑇,B sets 𝜁𝑇,𝜏𝑇 ← 𝜁𝑇,𝑙. Otherwise,B sets
𝜁𝑇,𝜏𝑇to be a string in{0, 1}∗distinct from𝜁𝑇,0, 𝜁𝑇,1, . . . , 𝜁𝑇,𝜏𝑇−1. Finally,B adds (𝐹𝑇,𝜏𝑇, 𝜁𝑇,𝜏𝑇) to the list 𝐿𝑇, gives𝜁𝑇,𝜏𝑇toA, and sets𝜏𝑇← 𝜏𝑇+ 1.
Consider the operation that B performs: (1) B adds/subtracts all polynomials in the list𝐿1,𝐿2, and𝐿𝑇by any A’s query. (2) B produces any of two polynomials in 𝐿1 and 𝐿2 to generate a new polynomial in 𝐿𝑇. For any variant 𝑋𝑛+𝑗, it occurs within the monomials 𝑋1𝑋𝑛+𝑗, 𝑋2𝑋𝑛+𝑗, . . . , 𝑋𝑛+𝑗−1𝑋𝑛+𝑗, 𝑋𝑛+𝑗+1𝑋𝑛+𝑗, . . . , 𝑋2𝑛𝑋𝑛+𝑗 in 𝐿1 and 𝐿𝑇 lists and it occurs no monomial in 𝐿2 list. Therefore,B cannot produce any polynomial that contains the monomial 𝑐𝑋𝑛+𝑗’s in 𝐺1 or 𝐺2 and the monomial 𝐹2,𝑡𝑋𝑛+𝑗’s in𝐺𝑇for any coefficient𝑐 ̸= 0 and any nonzero monomial𝐹2,𝑡in𝐿2in the available operations.
After at most 𝑞 queries, A terminates and returns a guess ̂𝑏 ∈ {0, 1}. The distinct values of operands provide no information to A because they are random bit strings. Therefore, the probability thatA wins the game in the generic model is1/2.
However, when B randomly chooses 𝑥𝑖’s, 𝑥𝑛+𝑗’s, and 𝑧 ∈ Z, sets 𝑤𝑏 = ∑𝑛𝑗=1𝑥𝑛+𝑗 and 𝑤1−𝑏 = 𝑧, and assigns 𝑋1 ← 𝑥1, 𝑋2 ← 𝑥2, . . . , 𝑋2𝑛 ← 𝑥2𝑛, 𝑊𝑏 ← 𝑤𝑏, and 𝑊1−𝑏 ← 𝑤1−𝑏, a nontrivial equality relation may occur and giveA some information that is not revealed in the generic model; that is, for some𝐹1,𝑠 ̸= 𝐹1,𝑡 (and𝐹𝑇,𝑠 ̸= 𝐹𝑇,𝑡, resp.) and𝑠, 𝑡 < 𝜏1(and𝑠, 𝑡 < 𝜏𝑇, resp.),𝐹1,𝑠(𝑥𝑖’s,𝑥𝑖𝑥𝑛+𝑗’s,𝑤0, 𝑤1) =𝐹1,𝑡(𝑥𝑖’s,𝑥𝑖𝑥𝑛+𝑗’s,𝑤0, 𝑤1) (and𝐹𝑇,𝑠(𝑥𝑖’s,𝑥𝑖𝑥𝑛+𝑗’s,𝑤0, 𝑤1) = 𝐹𝑇,𝑡(𝑥𝑖’s, 𝑥𝑖𝑥𝑛+𝑗’s, 𝑤0, 𝑤1), resp.).
The probability of the occurrence is computed according to the following lemma.
Lemma 4 (see [32]). Let 𝑞 be prime and let 𝑡 ≥ 1. Let 𝐹(𝑋1, 𝑋2, . . . , 𝑋𝑘) ∈ 𝑍/𝑞𝑡[𝑋
1, 𝑋2, . . . , 𝑋𝑘] be a nonzero
poly-nomial of total degree𝑑. Then for random 𝑥1, 𝑥2, . . . , 𝑥𝑘 ∈
𝑍/𝑞𝑡, the probability that𝐹(𝑥
1, 𝑥2, . . . , 𝑥𝑘) = 0 is at most 𝑑/𝑞. By Lemma 4, all polynomials in the𝐿1 have degree at most 2, so that, for some𝑠, 𝑡 and 𝐹1,𝑠 ̸= 𝐹1,𝑡, the probability of 𝐹(𝑥𝑖’s,𝑥𝑖𝑥𝑛+𝑗’s,𝑤0, 𝑤1) = 𝐹1,𝑠(𝑥𝑖’s,𝑥𝑖𝑥𝑛+𝑗’s,𝑤0, 𝑤1) − 𝐹1,𝑡(𝑥𝑖’s, 𝑥𝑖𝑥𝑛+𝑗’s,𝑤0, 𝑤1) = 0 is at most 2/𝑞. The degree of polynomials in the𝐿2is 0. All polynomials in the𝐿𝑇have degree at most 2, so that, for some𝑠, 𝑡 and 𝐹𝑇,𝑠 ̸= 𝐹𝑇,𝑡, the probability of 𝐹(𝑥𝑖’s,𝑥𝑖𝑥𝑛+𝑗’s,𝑤0, 𝑤1) = 𝐹𝑇,𝑠(𝑥𝑖’s, 𝑥𝑖𝑥𝑛+𝑗’s, 𝑤0, 𝑤1) − 𝐹𝑇,𝑡(𝑥𝑖’s, 𝑥𝑖𝑥𝑛+𝑗’s,𝑤0, 𝑤1) = 0 is at most 2/𝑞. Therefore, A wins the game with the probability𝜀 ≤ 1/2 + (𝜏1
2)(2/𝑞) + (𝜏2𝑇)(2/𝑞). Since𝜏1+ 𝜏𝑇≤ 𝑛2+ 4 + 𝑞𝑘, we have𝜀 ≤ 1/2 + (𝑛2+ 4 + 𝑞𝑘)2/𝑞, where the advantage is not greater thanO(𝑞2𝑘/𝑞).
5. Our Key Agreement Schemes
In this section, we propose two conference key agreement schemes. The first scheme is designed for the situation where the users who register with a single TA (single domain) want to negotiate a session conference key. Furthermore, the second scheme makes it possible for the users in distinct groups who register with different TAs (interdomain) to negotiate a session conference key. In addition, we will prove
the security of the two proposed schemes in Section6 and compare them with others in Section7.
5.1. The Proposed Scheme in Single TA
Setup. TA inputs a security parameter𝜅 into a setup algorithm
which returns groupsG1,G2, andG𝑇(G1 ̸= G2) of prime order𝑞 with 𝑞 ∈ {0, 1}𝜅, a suitable bilinear mapping 𝑒 : G1 × G2 → G𝑇, generators𝑃 ∈ G1,𝑃 ∈ G2, and three hash functions𝐻 : {0, 1}∗ → G1, 𝐻1 : G1 → {0, 1}𝑙,𝐻2 : G1× {0, 1}∗ → {0, 1}𝑙, and𝐻
3 : G1 → {0, 1}𝑙where𝑙 is the output length of the hash functions. TA randomly generates a long-term private key𝑠 ∈ Z∗𝑞and the public key(𝑠𝑃, 𝑠𝑃) and then publishes⟨𝑞, 𝑒, G1, G2, G𝑇, 𝑃, 𝑠𝑃, 𝑃, 𝑠𝑃, 𝐻, 𝐻1, 𝐻2, 𝐻3⟩.
Extract. When a user𝑈𝑖registers a public identity (ID), such
as an email address, with TA, TA will check whether the ID belongs to the user. If true, TA issues a long-term private key 𝑠𝑄𝑖to𝑈𝑖where𝑄𝑖= 𝐻(TA’s ID‖𝑈𝑖’s ID) is𝑈𝑖’s public key.
Conference Key Agreement. Suppose that there are 𝑛 legal
users𝑈1, 𝑈2, . . ., and 𝑈𝑛who want to negotiate a conference key. Our conference key agreement scheme contains three rounds described as follows.
Round 1: every user𝑈𝑖 (1 ≤ 𝑖 ≤ 𝑛) randomly picks an integer𝑟𝑖 ∈ Z∗𝑞 as a blinding factor, and then𝑈𝑖 computes 𝑏𝑖= 𝑟−1
𝑖 𝑃 and broadcasts 𝑏𝑖to all users who join this session. The flow is shown in Algorithm1.
Round 2: after𝑈𝑖receives all𝑏𝑗’s(1 ≤ 𝑗 ≤ 𝑛, 𝑗 ̸= 𝑖), she/he randomly picks an integer𝑘𝑖 ∈ Z∗𝑞 as an ephemeral key and computes𝐵𝑖 = (𝑘𝑖𝑏1, 𝑘𝑖𝑏2, . . . , 𝑘𝑖𝑏𝑖−1, ⊥, 𝑘𝑖𝑏𝑖+1, . . . , 𝑘𝑖𝑏𝑛), and then𝑈𝑖broadcasts𝐵𝑖. The flow is shown in Algorithm2.
Round 3: for all𝐵𝑖’s in Round 2, we can rearrange them as shown in(7). When receiving𝐵𝑗’s,𝑈𝑖only stores𝑘𝑗𝑏𝑖 (1 ≤ 𝑗 ≤ 𝑛, 𝑗 ̸= 𝑖) and drops other useless information 𝑘𝑗𝑏𝑡’s(1 ≤ 𝑗 ≤ 𝑛, 1 ≤ 𝑡 ≤ 𝑛, 𝑡 ̸= 𝑖). For example, 𝑈1stores column 1 and 𝑈2stores column 2 in(7). Then𝑈𝑖computes𝐾 as follows:
𝐾 = 𝑟𝑖∑𝑛 𝑗=1 𝑘𝑗𝑏𝑖 = 𝑟𝑖⋅ (𝑘1𝑟−1𝑖 + 𝑘2𝑟𝑖−1+ ⋅ ⋅ ⋅ + 𝑘𝑖𝑟−1𝑖 + ⋅ ⋅ ⋅ + 𝑘𝑛𝑟−1𝑖 ) 𝑃 = (𝑘1+ 𝑘2+ ⋅ ⋅ ⋅ + 𝑘𝑖+ ⋅ ⋅ ⋅ + 𝑘𝑛) 𝑃. (6) All𝐵𝑖’s in Round 2 𝑈1 𝑈2 . . . 𝑈𝑖 . . . 𝑈𝑛 𝐵1 ⊥ 𝑘1𝑟−12 𝑃 . . . 𝑘1𝑟𝑖−1𝑃 . . . 𝑘1𝑟𝑛−1𝑃 𝐵2 𝑘2𝑟−1 1 𝑃 ⊥ . . . 𝑘2𝑟𝑖−1𝑃 . . . 𝑘2𝑟𝑛−1𝑃 ... ... ... d ... ... ... 𝐵𝑖 𝑘𝑖𝑟−1 1 𝑃 𝑘𝑖𝑟−12 𝑃 . . . ⊥ . . . 𝑘𝑖𝑟𝑛−1𝑃 ... ... ... ... ... d ... 𝐵𝑛 𝑘𝑛𝑟−1 1 𝑃 𝑘𝑛𝑟−12 𝑃 . . . 𝑘𝑛𝑟𝑖−1𝑃 . . . ⊥ (7) 𝑈𝑖 computes 𝛼 = 𝐻1(𝐾), 𝑇𝑖 = 𝛼𝑠𝑄𝑖 + 𝑟𝑖−1𝑠𝑃, and 𝛽𝑖 = 𝐻2(𝑇𝑖, 𝛼), and then she/he broadcasts (𝑇𝑖, 𝛽𝑖). When 𝑈𝑖 receives all (𝑇𝑗, 𝛽𝑗)’s (1 ≤ 𝑗 ≤ 𝑛, 𝑗 ̸= 𝑖), she/he first
verifies all𝛽𝑗’s by checking if𝐻2(𝑇𝑗, 𝛼) = 𝛽𝑗for each𝑗. If they are true,𝑈𝑖randomly chooses𝑎1, 𝑎2, . . . , 𝑎𝑛 ∈ Z∗𝑞, computes 𝑉𝑖 = 𝑒(∑𝑛𝑖=1𝑎𝑖𝑏𝑖+ 𝛼 ∑𝑛𝑖=1𝑎𝑖𝑄𝑖, 𝑠𝑃), and verifies whether 𝑉𝑖= 𝑒(∑𝑛𝑖=1𝑎𝑖𝑇𝑖, 𝑃) or not. If true, 𝑈
𝑖accepts𝐾 and computes the session conference key SCK= 𝐻3(𝐾). Algorithm3illustrates the flow in Round 3.
5.2. The Proposed Scheme in Distinct TAs. Our single domain
conference key agreement scheme can be extended to an interdomain conference key agreement scheme. Interdomain means that there are distinct domains with different TAs’, respectively. In this subsection, we present our interdomain conference key scheme. Assume that there are 𝑚 Trusted Authorities TA1, TA2, . . ., and TA𝑚 and 𝑚 user groups 𝐺1, 𝐺2, . . ., and 𝐺𝑚 who register with the 𝑚 distinct TAs, respectively. In the proposed scheme, the users in𝑚 different groups can negotiate a session conference key SCK via the following process.
Setup. TA𝑖,𝑖 ∈ {1, 2, . . . , 𝑚}, inputs a security parameter 𝜅
into a setup algorithm which returns two groups G1, G2, and G𝑇 (G1 ̸= G2) of prime order𝑞 ∈ {0, 1}𝜅, a suitable bilinear mapping𝑒 : G1 × G2 → G𝑇, generators𝑃 ∈ G1, 𝑃 ∈ G2, and three hash functions 𝐻 : {0, 1}∗ → G1, 𝐻1 : G1 → {0, 1}𝑙, 𝐻
2 : G1 × {0, 1}∗ → {0, 1}𝑙, and 𝐻3 : G1 → {0, 1}𝑙where𝑙 is the output length of the hash functions. TA𝑖randomly generates a long-term key𝑠𝑖 ∈ Z∗𝑞 and public key(𝑠𝑖𝑃, 𝑠𝑖𝑃) and then publishes ⟨𝑞, 𝑒, G1, G2, G𝑇, 𝑃, 𝑠𝑖𝑃, 𝑃, 𝑠𝑖𝑃, 𝐻, 𝐻1, 𝐻2, 𝐻3⟩.
Extract. When a user 𝑈𝑗 in group 𝑖 registers a public ID
with TA𝑖, TA𝑖 will check whether the ID belongs to the user. If true, TA𝑖 issues private key𝑠𝑖𝑄𝑖,𝑗to the user, where 𝑄𝑖,𝑗= 𝐻(TA𝑖’s ID‖𝑈𝑖,𝑗’s ID) is the public key and𝑈𝑖,𝑗denotes user𝑈𝑗who has registered with TA𝑖.
Interdomain Conference Key Agreement. Suppose that users in
𝑚 distinct domains or groups want to negotiate a conference key. Let𝑛ℎ(1 ≤ ℎ ≤ 𝑚) be the number of users in the ℎth domain and𝑁 be the number of the total users (𝑁 = 𝑛1+ 𝑛2 + ⋅ ⋅ ⋅ + 𝑛𝑚). Our interdomain conference key agreement protocol contains three rounds where Round 1 and Round 2 are similar to those of the proposed single domain conference key protocol.
Round 1: every user𝑈𝑖,𝑗randomly picks an integer𝑟𝑖,𝑗 ∈ Z∗
𝑞 and then broadcasts𝑏𝑖,𝑗 = (𝑟𝑖,𝑗)−1𝑃 to the users who join this session.
Round 2: after receiving 𝑏ℎ,𝑙’s (1 ≤ ℎ ≤ 𝑚, 1 ≤ 𝑙 ≤ 𝑛ℎ, ℎ ̸= 𝑖, 𝑙 ̸= 𝑗), 𝑈𝑖,𝑗 computes 𝑘𝑖,𝑗𝑏ℎ,𝑙, where 𝑘𝑖,𝑗∈𝑅Z∗
𝑞 is 𝑈𝑖,𝑗’s ephemeral key, and broadcasts 𝐵𝑖,𝑗 = (𝑘𝑖,𝑗𝑏1,1, 𝑘𝑖,𝑗𝑏1,2, , . . . ,𝑘𝑖,𝑗𝑏1,𝑛1, . . . , 𝑘𝑖,𝑗𝑏𝑖,1,. . . , 𝑘𝑖,𝑗𝑏𝑖,𝑗−1, ⊥ , 𝑘𝑖,𝑗𝑏𝑖,𝑗+1, . . . , 𝑘𝑖,𝑗𝑏𝑖,𝑛𝑖, . . . , 𝑘𝑖,𝑗𝑏𝑚,1, . . . , 𝑘𝑖,𝑗𝑏𝑚,𝑛𝑚).
Round 3: when receiving 𝐵ℎ,𝑙’s,𝑈𝑖,𝑗 only stores 𝑘ℎ,𝑙𝑏𝑖,𝑗’s (1 ≤ ℎ ≤ 𝑚, 1 ≤ 𝑙 ≤ 𝑛ℎ, ℎ ̸= 𝑖, and 𝑙 ̸= 𝑗) and drops other useless information𝑘ℎ,𝑙𝑏𝑢,V’s(1 ≤ ℎ ≤ 𝑚, 1 ≤ 𝑙 ≤ 𝑛ℎ, 1 ≤ 𝑢 ≤
Round1 𝑈𝑖 𝑈1, 𝑈2, . . . , 𝑈𝑖−1, 𝑈𝑖+1, . . . , 𝑈𝑛 Pick𝑟𝑖∈𝑅Z∗𝑞 Compute𝑏𝑖= 𝑟−1𝑖 𝑃 Broadcast𝑏𝑖 → 𝑏1, 𝑏2, . . . , 𝑏𝑖−1, 𝑏𝑖+1, . . . , 𝑏𝑛 ←
Algorithm 1: Round 1 of the first conference key protocol.
Round2 𝑈𝑖 𝑈1, 𝑈2, . . . , 𝑈𝑖−1, 𝑈𝑖+1, . . . , 𝑈𝑛 Pick𝑘𝑖∈𝑅Z∗𝑞 Compute 𝑘𝑖𝑏𝑗= 𝑘𝑖𝑟−1 𝑗 𝑃 (1 ≤ 𝑗 ≤ 𝑛, 𝑗 ̸= 𝑖) 𝐵𝑖= (𝑘𝑖𝑏1, 𝑘𝑖𝑏2, . . . , 𝑘𝑖𝑏𝑖−1, ⊥, 𝑘𝑖𝑏𝑖+1, . . . , 𝑘𝑖𝑏𝑛), Broadcast𝐵𝑖 → 𝐵1, 𝐵2, . . . , 𝐵𝑖−1, 𝐵𝑖+1, . . . , 𝐵𝑛 ←
Algorithm 2: Round 2 of the first conference key protocol.
𝑚, 1 ≤ V ≤ 𝑛𝑢, 𝑢 ̸= 𝑖, and V ̸= 𝑗). Then 𝑈𝑖,𝑗computes every domain’s key𝐾ℎas follows:
𝐾ℎ= 𝑟𝑖,𝑗∑𝑛ℎ 𝑡=1 𝑘ℎ,𝑡𝑏𝑖,𝑗 = 𝑟𝑖,𝑗(𝑘ℎ,1𝑟𝑖,𝑗−1+ 𝑘ℎ,2𝑟−1𝑖,𝑗 + ⋅ ⋅ ⋅ + 𝑘ℎ,𝑛ℎ𝑟−1𝑖,𝑗) 𝑃 = (𝑘ℎ,1+ 𝑘ℎ,2+ ⋅ ⋅ ⋅ + 𝑘ℎ,𝑛ℎ) 𝑃. (8) 𝑈𝑖,𝑗computes𝐾 = ∑𝑚ℎ=1𝐾ℎ,𝛼 = 𝐻1(𝐾), 𝑇𝑖,𝑗 = 𝛼𝑠𝑖𝑄𝑖,𝑗+ 𝑟−1
𝑖,𝑗𝑠𝑖𝑃, and 𝛽𝑖,𝑗 = 𝐻2(𝑇𝑖,𝑗, 𝛼), and then she/he broadcasts (𝑇𝑖,𝑗, 𝛽𝑖,𝑗). When 𝑈𝑖,𝑗receives all messages,𝑈𝑖,𝑗first verifies all 𝛽ℎ,𝑙’s by examining if𝐻2(𝑇ℎ,𝑙, 𝛼) = 𝛽ℎ,𝑙for eachℎ and 𝑙 (1 ≤ ℎ ≤ 𝑚, 1 ≤ 𝑙 ≤ 𝑛ℎ, ℎ ̸= 𝑖, and 𝑙 ̸= 𝑗). If all 𝛽ℎ,𝑙’s are correct, 𝑈𝑖,𝑗randomly chooses𝑁 integers 𝑎ℎ,𝑙’s, where each𝑎ℎ,𝑙∈ Z∗𝑞, computes 𝑉ℎ,𝑙 = ∏𝑚ℎ=1𝑒(∑𝑛ℎ
𝑙=1𝑎ℎ,𝑙𝑏ℎ,𝑙 + 𝛼 ∑𝑛𝑙=1ℎ 𝑎ℎ,𝑙𝑄ℎ,𝑙, 𝑠ℎ𝑃), and checks if𝑉ℎ,𝑙 = 𝑒(∑𝑚ℎ=1∑𝑛ℎ
𝑙=1𝑎ℎ,𝑙𝑇ℎ,𝑙, 𝑃). If it is true, 𝑈𝑖,𝑗 accepts𝐾 and computes the session conference key SCK = 𝐻3(𝐾).
6. Security Proof
Bellare-Rogaway random oracle model [12, 33], which was extended by Blake-Wilson et al. [34], is suitably modified and adapted in analyzing the security of key agreement protocols like those in the literatures [9,13]. In this section, we modify Bellare-Rogaway random oracle model and adopt the similar concepts and definitions in [8] to set our security game.
Definition 5 (game environment). Let adversaryA be a
prob-abilistic polynomial time Turing machine andB a simulator to simulate this game forA. Let I = {𝑈1, 𝑈2, . . . , 𝑈𝑞} be all users andU the group users who follow our first identity-based conference key(IDCK) scheme, where 𝑞 is the order ofG1andU ⊆ {𝑈1, 𝑈2, . . . , 𝑈𝑞}. In the game, we allow A to make the following types of queries.
(1) Execute(Π𝑠
U): when A makes the Execute query, B simulates U to run the first IDCK protocol Π (Section5.1) and responds with all public messages (i.e.,(𝑏𝑖, 𝐵𝑖, 𝑇𝑖, 𝛽𝑖)’s for all 𝑈𝑖’s∈ U) in the 𝑠th session. (2) Send(Π𝑠
̃
U, 𝑚): when A makes the Send query with a set of users ̃U ⊂ U and a message 𝑚 which is the set of(𝑏𝑗, 𝐵𝑗, 𝑇𝑗, 𝛽𝑗)’s broadcast by the users in ̃U, B simulates all 𝑈𝑖’s ∈ U − ̃U to interact with A by broadcasting the messages(𝑏𝑖, 𝐵𝑖, 𝑇𝑖, 𝛽𝑖)’s of 𝑈𝑖’s in the 𝑠th session.
(3) Reveal(Π𝑠
U): B reveals the session conference key SCK which was held byU in the 𝑠th session.
(4) Corrupt(𝑈𝑖): B responds with the long-term private key of𝑈𝑖.
(5) Test(Π𝑠
U): when A makes the Test query, B returns the broadcast messages of the𝑠th session and gives the adversary either the session key of the𝑠th session or a random string.A then outputs a bit to decide whether the string is the session key or not.
Round3 𝑈𝑖 𝑈1, 𝑈2, . . . , 𝑈𝑖−1, 𝑈𝑖+1, . . . , 𝑈𝑛 Compute 𝐾 = 𝑟𝑖∑𝑛 𝑗=1 𝑘𝑗𝑏𝑖= (𝑘1+ 𝑘2+ ⋅ ⋅ ⋅ + 𝑘𝑖+ ⋅ ⋅ ⋅ + 𝑘𝑛) 𝑃 𝛼 = 𝐻1(𝐾) 𝑇𝑖= 𝛼𝑠𝑄𝑖+ 𝑟−1 𝑖 𝑠𝑃 𝛽𝑖= 𝐻2(𝑇𝑖, 𝛼) Broadcast(𝑇𝑖, 𝛽𝑖) → (𝑇1, 𝛽1), (𝑇2, 𝛽2), . . . , (𝑇𝑖−1, 𝛽𝑖−1), (𝑇𝑖+1, 𝛽𝑖+1), . . . , (𝑇𝑛, 𝛽𝑛) ← Verify: 𝛽1, 𝛽2, . . . , 𝛽𝑖−1, 𝛽𝑖+1, . . . , 𝛽𝑛 𝑉𝑖= 𝑒 (∑𝑛 𝑖=1 𝑎𝑗𝑏𝑖+ 𝛼∑𝑛 𝑖=1 𝑎𝑖𝑄𝑖, 𝑠𝑃)? = 𝑒 (∑𝑛 𝑖=1 𝑎𝑖𝑇𝑖, 𝑃)
Compute session conference key SCK =𝐻3(𝐾)
Algorithm 3: Round 3 of the first conference key protocol.
(6)𝐻 (⋅): when a participant inputs a string to 𝐻, it responds with the hashed value of the string and the hashed value will be recorded.
(7)𝐻1(⋅): when a participant inputs a message 𝑚 ∈ G1 to𝐻1, it responds with the hashed value of𝑚 and the hashed value will be recorded, too.
(8)𝐻2(⋅): when a participant inputs (𝑚1, 𝑚2), where 𝑚1∈ G1and𝑚2∈ {0, 1}∗, to𝐻2, it responds with the hashed value of(𝑚1, 𝑚2) and the hashed value will be recorded, too.
6.1. Correctness
Theorem 6 (correctness). In the presence of a benign
adver-saryA, all the parties always accept holding the same session conference key, which is distributed randomly and uniformly in
{0, 1}𝜅, where𝜅 is the security parameter.
Proof. Every user 𝑈𝑖 can generate a valid message
(𝑏𝑖, 𝐵𝑖, 𝑇𝑖, 𝛽𝑖) by following our proposed single domain scheme (Section5.1), verify the correctness of the message 𝑉𝑖 = 𝑒(∑𝑛𝑖=1𝑎𝑖𝑏𝑖 + 𝛼 ∑𝑛𝑖=1𝑎𝑖𝑄𝑖, 𝑠𝑃) = 𝑒((𝑎 1𝑟1−1 + 𝑎2𝑟−12 + ⋅ ⋅ ⋅ + 𝑎𝑛𝑟−1 𝑛 )𝑃 + (𝛼𝑎1𝑄1 + 𝛼𝑎2𝑄2 + ⋅ ⋅ ⋅ + 𝛼𝑎𝑛𝑄𝑛), 𝑠𝑃) = 𝑒(𝑎1(𝛼𝑠𝑄1 + 𝑟−11 𝑠𝑃) + 𝑎2(𝛼𝑠𝑄2 + 𝑟2−1𝑠𝑃) + ⋅ ⋅ ⋅ + 𝑎𝑛(𝛼𝑠𝑄𝑛 + 𝑟−1 𝑛 𝑠𝑃), 𝑃) = 𝑒(∑𝑛𝑖=1𝑎𝑖(𝛼𝑠𝑄𝑖 + 𝑟𝑖−1𝑠𝑃), 𝑃) = 𝑒(∑𝑛𝑖=1𝑎𝑖𝑇𝑖, 𝑃), and negotiate a common session conference key SCK= 𝐻3(𝐾).
In our proposed interdomain scheme (Section 5.2),𝑈𝑖𝑗 can generate a valid message(𝑏𝑖𝑗, 𝐵𝑖𝑗, 𝑇𝑖𝑗, 𝛽𝑖𝑗) and verify the correctness of the message because
𝑉ℎ,𝑙=∏𝑚 ℎ=1 𝑒 (∑𝑛ℎ 𝑙=1 𝑎ℎ,𝑙𝑏ℎ,𝑙+ 𝛼∑𝑛ℎ 𝑙=1 𝑎ℎ,𝑙𝑄ℎ,𝑙, 𝑠ℎ𝑃) = 𝑒 ((𝑎1,1𝑟1,1−1+ 𝑎1,2𝑟1,2−1 + ⋅ ⋅ ⋅ + 𝑎1,𝑛1𝑟1,𝑛−11) 𝑃 + (𝛼𝑎1,1𝑄1,1+ 𝛼𝑎1,2𝑄1,2+ ⋅ ⋅ ⋅ + 𝛼𝑎1,𝑛1𝑄1,𝑛1) , 𝑠1𝑃) ⋅ 𝑒 ((𝑎2,1𝑟2,1−1+ 𝑎2,2𝑟2,2−1+ ⋅ ⋅ ⋅ + 𝑎2,𝑛2𝑟−12,𝑛2) 𝑃 + (𝛼𝑎2,1𝑄2,1+ 𝛼𝑎2,2𝑄2,2+ ⋅ ⋅ ⋅ + 𝛼𝑎2,𝑛2𝑄2,𝑛2) , 𝑠2𝑃) ⋅ 𝑒 ((𝑎𝑚,1𝑟𝑚,1−1 + 𝑎𝑚,2𝑟𝑚,2−1 + ⋅ ⋅ ⋅ + 𝑎𝑚,𝑛𝑚𝑟𝑚,𝑛−1𝑚) 𝑃 + (𝛼𝑎𝑚,1𝑄𝑚,1+ 𝛼𝑎𝑚,2𝑄𝑚,2+ ⋅ ⋅ ⋅ + 𝛼𝑎𝑚,𝑛𝑚𝑄𝑚,𝑛𝑚) , 𝑠𝑚𝑃) = 𝑒 (𝑎1,1(𝛼𝑠1𝑄1,1+ 𝑟1,1−1𝑠1𝑃) + 𝑎1,2(𝛼𝑠1𝑄1,2+ 𝑟1,2−1𝑠1𝑃) + ⋅ ⋅ ⋅ +𝑎1,𝑛1(𝛼𝑠1𝑄1,𝑛1+ 𝑟−11,𝑛1𝑠1𝑃) , 𝑃) ⋅ 𝑒 (𝑎2,1(𝛼𝑠2𝑄2,1+ 𝑟2,1−1𝑠2𝑃) + 𝑎2,2(𝛼𝑠2𝑄2,2+ 𝑟2,2−1𝑠2𝑃) + 𝑎2,𝑛2(𝛼𝑠2𝑄2,𝑛2+ 𝑟−1 2,𝑛2𝑠2𝑃) , 𝑃 ) ... ⋅ 𝑒 (𝑎𝑚,1(𝛼𝑠𝑚𝑄𝑚,1+ 𝑟𝑚,1−1𝑠𝑚𝑃) + 𝑎𝑚,2(𝛼𝑠𝑚𝑄𝑚,2+ 𝑟𝑚,2−1𝑠𝑚𝑃)
+ ⋅ ⋅ ⋅ + 𝑎𝑚,𝑛𝑚(𝛼𝑠𝑚𝑄𝑚,𝑛𝑚+ 𝑟−1𝑚,𝑛𝑚𝑠𝑚𝑃) , 𝑃) = 𝑒 (∑𝑚 ℎ=1 𝑛ℎ ∑ 𝑙=1 𝑎ℎ,𝑙(𝛼𝑠ℎ𝑄ℎ,𝑙+ 𝑟ℎ,𝑙−1𝑠ℎ𝑃) , 𝑃) = 𝑒 (∑𝑚 ℎ=1 𝑛ℎ ∑ 𝑙=1 𝑎ℎ,𝑙𝑇ℎ,𝑙, 𝑃) . (9)
6.2. Known Session Key Security. After given broadcast
mes-sages and previous session keys according to theIDCK scheme, an adversary makes a Test query and then receives a random string or a current session key. The adversary can continue asking for broadcast messages and other session keys. If no polynomial-time adversary can decide whether the received string is the current session key or not with nonnegligible advantage, we say that theIDCK scheme satisfies known session key security.
Definition 7 (known session key security). An IDCK
scheme is with known session key security if no polynomial-time adversary can decide if a challenge string is a current session key or a random string under the knowledge of previous session keys with the probability at least(𝜀 + 1/2) where𝜀, called the advantage, is nonnegligible.
Theorem 8. If an adversary A can (𝑡, 𝑞𝐸, 𝑞𝑆, 𝑞𝐶, 𝑞𝑅, 𝑞𝐻1
𝜀)-decide whether the string received from a Test query is the
session key SCK held byΠℓU or not with advantage at least
𝜀, where 𝑡 is the running time and 𝑞𝐸, 𝑞𝑆, 𝑞𝐶, 𝑞𝑅, and𝑞𝐻1 are the numbers of making Execute queries, Send queries, Corrupt
queries, Reveal queries, and 𝐻1 queries, respectively, there
exists an algorithm which can solve the𝑛-DLDH problem with
advantage at least𝜀in time𝑡, where
𝜀≥𝑞𝜀 0, 𝑡≈ 𝑡 + 𝑞𝐸O (𝑡𝐸) + +𝑞𝑆O (𝑡𝑆) + 𝑞𝐶O (𝑡𝐶) + 𝑞𝑅O (𝑡𝑅) + 𝑞𝐻1O (𝑡𝐻1) + O (𝑛2) , (10) 𝑞0 = 𝑞𝐸 + 𝑞𝑆 + 𝑞𝐶 + 𝑞𝑅 + 𝑞𝐻,𝑡𝐸, 𝑡𝑆, 𝑡𝐶, 𝑡𝑅, and 𝑡𝐻1 are
the computing time of the Execute oracle, the Send oracle, the
Corrupt oracle, the Reveal oracle, and𝐻1oracle, respectively.
Proof. Initially, we construct a simulatorB which prepares
the pairing parameters and simulates the system as follows. B randomly picks 𝑠 ∈ Z∗
𝑞 as the system master private key and computes(𝑠𝑃, 𝑠𝑃) as the system master public key. B computes each user’s long-term public/private key pair (𝑄𝑖, 𝑠𝑄𝑖). B allows A to make the following queries
(i) Execute(Π𝑡
U):A can request U that is a set of users who are chosen by itself to run the key agreement protocol in session 𝑡. B follows the protocol (Sec-tion 5.1) to produce every (𝑟𝑖, 𝑏𝑖, 𝐵𝑖, 𝑇𝑖, 𝛽𝑖, 𝑘𝑖), and
𝐾 = ∑𝑈𝑖∈U𝑘𝑖𝑃, and then records them. Finally, B responds every(𝑏𝑖, 𝐵𝑖, 𝑇𝑖, 𝛽𝑖) to A, where 𝑈𝑖∈ U. (ii) Send(Π𝑡̃U, 𝑚): if A actively broadcasts the messages
of users ̃U ⊂ U to run the key agreement protocol in session 𝑡, B follows the protocol (Section 5.1) to produce every(𝑟𝑖, 𝑏𝑖, 𝐵𝑖, 𝑇𝑖, 𝛽𝑖, 𝑘𝑖) and generate the session conference key in the end of the protocol and then records them. Finally,B responds (𝑏𝑖, 𝐵𝑖, 𝑇𝑖, 𝛽𝑖) toA for each 𝑈𝑖∈ U − ̃U.
(iii) Reveal(Π𝑡U): if Π𝑡U does not exist,B creates Π𝑡U.B returns the session conference key SCK= 𝐻3(𝐾). (iv) Corrupt(𝑈𝑖): B returns (𝑄𝑖, 𝑠𝑄𝑖) to A.
(v) 𝐻1(𝑚): after given 𝑚 ∈ G1,B randomly chooses 𝛼 ∈ {0, 1}𝜆, returns𝐻
1(𝑚) = 𝛼, and stores (𝑚, 𝛼) in a list, called𝐻1-list.
(vi) Test(Πℓ
U∗):B guesses that A will send a Test query
at the ℎth session in advance. If A makes a Test query at theℓth session, where ℓ ̸= ℎ, B randomly answers “YES” or “NO” to the 𝑛-DLDH problem. WhenA makes a Test query at the ℓth session, where ℓ = ℎ, B checks whether there exists 𝑈𝑖which has been corrupted or not, where𝑈𝑖 ∈ U∗and|U∗| = 𝑛. If one of them has been corrupted, B returns ⊥ and aborts the game. Otherwise, B is given the parameters of an instance of the𝑛-DLDH problem, 𝑍, 𝑃, and (𝑥𝑖𝑃, 𝑥𝑖𝑥𝑛+𝑗𝑃)’s for all 𝑖, 𝑗 with 1 ≤ 𝑖, 𝑗 ≤ 𝑛, and𝑖 ̸= 𝑗, and takes the advantage of A to decide whether𝑍 = (𝑥𝑛+1+ 𝑥𝑛+2 + ⋅ ⋅ ⋅ + 𝑥2𝑛)𝑃 or not. B sets the public messages(𝑏𝑖∗, 𝐵∗𝑖, 𝑇𝑖∗, 𝛽𝑖∗) of every user inU∗in theℓth session as follows.
First,B forms 𝑏1∗ = 𝑥1𝑃, 𝑏2∗ = 𝑥2𝑃, . . . , 𝑏𝑛∗ = 𝑥𝑛𝑃, 𝐾∗ = 𝑍, 𝛼∗= 𝐻1(𝐾∗), and prepares 𝐵∗𝑖 = (𝑥1𝑥𝑛+𝑖𝑃, 𝑥2𝑥𝑛+𝑖𝑃, . . . , 𝑥𝑖−1𝑥𝑛+𝑖𝑃,⊥, 𝑥𝑖+1𝑥𝑛+𝑖𝑃, . . . , 𝑥𝑛𝑥𝑛+𝑖𝑃), for each𝑈𝑖∗ ∈ U∗; that is,
𝑈∗ 1 𝑈2∗ . . . 𝑈𝑖∗ . . . 𝑈𝑛∗ 𝐵∗1 ⊥ 𝑥2𝑥𝑛+1𝑃 . . . 𝑥𝑖𝑥𝑛+1𝑃 . . . 𝑥𝑛𝑥𝑛+1𝑃 𝐵∗2 𝑥1𝑥𝑛+2𝑃 ⊥ . . . 𝑥𝑖𝑥𝑛+2𝑃 . . . 𝑥𝑛𝑥𝑛+2𝑃 ... ... ... d ... ... ... 𝐵∗ 𝑖 𝑥1𝑥𝑛+𝑖𝑃 𝑥2𝑥𝑛+𝑖𝑃 . . . ⊥ . . . 𝑥𝑛𝑥𝑛+𝑖𝑃 ... ... ... ... ... d ... 𝐵∗ 𝑛 𝑥1𝑥2𝑛𝑃 𝑥2𝑥2𝑛𝑃 . . . 𝑥𝑖𝑥2𝑛𝑃 . . . ⊥ (11) B sets 𝑇∗ 𝑖 = 𝑠𝛼∗𝑄𝑖 + 𝑠𝑥𝑖𝑃 and computes 𝛽𝑖∗ = 𝐻2(𝑇∗ 𝑖, 𝛼∗) and SCK∗ = 𝐻3(𝐾∗), where 1 ≤ 𝑖 ≤ 𝑛. B responds every (𝑏𝑖∗, 𝐵∗𝑖, 𝑇𝑖∗, 𝛽∗𝑖) and SCK∗toA. A can continue making the queries of Execute(Π𝑡U),
Send(Π𝑡U), Reveal(Π𝑡U), and Corrupt(𝑈𝑖), where 𝑡 ̸= ℓ and
𝑈𝑖∉ U∗, untilA outputs a bit 𝑏. If SCK∗is the key in sessionℓ fromA’s point of view, A will output 𝑏 = 1; otherwise, 𝑏 = 0. If𝑏 = 1, B outputs “YES”; that is, 𝑍 = (𝑥𝑛+1+𝑥𝑛+2+⋅ ⋅ ⋅+𝑥2𝑛)𝑃; otherwise,B outputs “NO”.
If the adversary can compromise known session key security of the scheme with advantage at least 𝜀, B can
solve the𝑛-DLDH problem with the advantage at least 𝜀 ≥ (1/𝑞0) (1/2 + 𝜀) + (1/2)((𝑞0− 1)/𝑞0) − 1/2 = 𝜀/𝑞0.
By Theorem 8, we can solve the 𝑛-DLDH problem in polynomial time with nonnegligible advantage if there exists a polynomial-time adversary that can break the known session key security with nonnegligible advantage of the proposed single domain key agreement scheme.
As for the proof of the interdomain case, we can let𝑛 be the number of the total users from all domains; that is,𝑛 = 𝑁. Then, by the proof of Theorem8, the𝑛-DLDH problem can be solved if the adversary can distinguish the session key from a random string in the proposed interdomain key agreement scheme.
6.3. Key-Compromise Impersonation. An adversary is given
all users’ long-term keys by making Corrupt queries except the one that he claims to impersonate. If no adversary can output the correct messages of the user with nonnegligi-ble probability, the IDCK scheme can withstand key-compromise impersonation.
Definition 9 (key-compromise impersonation). AnIDCK
scheme can withstand key-compromise impersonation if no adversary can have nonnegligible probability to impersonate a user without the long-term private key of the user.
Lemma 10 (the forking lemma [35]). Let𝑇𝑖 = 𝛼𝑠𝑄𝑖+ 𝑟𝑖−1𝑠𝑃
be a valid authentic parameter of user𝑈𝑖, where𝑠𝑄𝑖 is 𝑈𝑖’s
private key,𝑠𝑃 is TA’s public key, 𝑟𝑖−1is randomly chosen by𝑈𝑖,
and𝛼 is a hashed value of 𝐾 shared by all users. Let A be a probabilistic polynomial time Turing machine. Given only the
public data of the key agreement scheme as input, ifA can find,
with nonnegligible probability, a valid authentic parameter𝑇𝑖
with 𝛼, then, with nonnegligible probability, a replay of this machine, with the same random tape and a different value returned by the random oracle, can output two valid authentic
parameters𝑇𝑖with𝛼 and 𝑇𝑖with𝛼, such that𝛼 ̸= 𝛼.
Lemma 11 (the splitting lemma [36]). Let𝐴 ⊂ 𝑋×𝑌 such that Pr[(𝑥, 𝑦) ∈ 𝐴] = |𝐴|/(|𝑋| × |𝑌|) ≥ 𝛿. For any 𝜌 < 𝛿, define 𝐵 = {𝑥 ∈ 𝑋 | Pr [(𝑥, 𝑦) ∈ 𝐴] ≥ 𝛿 − 𝜌} and 𝐵 = 𝑋 \ 𝐵. Then
the following statements hold:
(1) Pr[𝑥 ∈ 𝐵] = |𝐵|/|𝑋| ≥ 𝜌, (2)∀𝑥 ∈ 𝐵, Pr [(𝑥, 𝑦) ∈ 𝐴] ≥ 𝛿 − 𝜌, (3) Pr[𝑥 ∈ 𝐵 | (𝑥, 𝑦) ∈ 𝐴] ≥ 𝜌/𝛿.
Lemma 12. Assume that 𝑒(∑𝑛𝑖=1𝑎𝑖𝑏𝑖 + 𝛼 ∑𝑛𝑖=1𝑎𝑖𝑄𝑖, 𝑠𝑃) = 𝑒(∑𝑛𝑖=1𝑎𝑖𝑇𝑖, 𝑃). Let 𝐸 be an event that occurs if there is at least
one𝑇𝑖such that𝑒(𝑎𝑖𝑏𝑖+ 𝛼𝑎𝑖𝑄𝑖, 𝑠𝑃) ̸= 𝑒(𝑎𝑖𝑇𝑖, 𝑃). Then, the
probability Pr[𝐸] ≤ 1/2𝑞, where𝑞 is a security parameter.
Proof. The proof is using the technique of the small exponents
test in [37]. If𝑒(𝑎𝑖𝑏𝑖+ 𝛼𝑎𝑖𝑄𝑖, 𝑠𝑃) ̸= 𝑒(𝑎𝑖𝑇𝑖, 𝑃) for some 𝑖, then 𝑇𝑖 ̸= 𝑠𝑏𝑖+ 𝑠𝛼𝑄𝑖. That is, there exists𝑐𝑖 ̸= 0 (mod 𝑞) such that 𝑇𝑖= 𝑠𝑏𝑖+ 𝑠𝛼𝑄𝑖+ 𝑐𝑖𝑃. Let𝑇𝑗 = 𝑠𝑏𝑗 + 𝑠𝛼𝑄𝑗 + 𝑐𝑗𝑃 where ∀𝑗 ∈ {1, . . . , 𝑛} − {𝑖} and𝑐𝑗 ∈ {0, . . . , 𝑞 − 1}. As 𝑒(∑𝑛𝑖=1𝑎𝑖𝑏𝑖 + 𝛼 ∑𝑛𝑖=1𝑎𝑖𝑄𝑖, 𝑠𝑃) = 𝑒(∑𝑛𝑖=1𝑎𝑖𝑇𝑖, 𝑃), ∑𝑛 𝑖=1𝑐𝑖𝑎𝑖≡ 0 (mod 𝑞). Hence, 𝑎𝑖≡ −𝑐𝑖−1(𝑐1𝑎1+ 𝑐2𝑎2+ ⋅ ⋅ ⋅ + 𝑐𝑖−1𝑎𝑖−1+ 𝑐𝑖+1𝑎𝑖+1+ ⋅ ⋅ ⋅ + 𝑐𝑛𝑎𝑛) (mod 𝑞). Since 𝑎𝑖is randomly chosen fromZ∗𝑞, Pr[𝐸] ≤ 1/2𝑞.
Theorem 13. If an adversary A can (𝑡, 𝑞𝑆, 𝑞𝐶, 𝑞𝑅, 𝑞𝐻, 𝑞𝐻1,
𝜀)-impersonate a user𝑈𝑖∗ without the long-term private key of
𝑈∗
𝑖 with probability at least𝜀, where 𝑡 is the running time, 𝑞𝑆,
𝑞𝐶,𝑞𝑅,𝑞𝐻, and𝑞𝐻1 are the numbers of making Send queries,
Corrupt queries, Reveal queries,𝐻 queries, and 𝐻1 queries,
respectively, there exists an algorithm to solve the variant-CDH
problem with probability at least𝜀in time𝑡, where
𝜀≥ ((1/|U|) (1 − 1/ |U|) (1 − 1/2 ℎ) (𝜀 − 1/2𝑞) 2 ) 2 , 𝑡≈ 2 (𝑡 + 𝑞𝑆O (𝑡𝑆) + 𝑞𝐶O (𝑡𝐶) + 𝑞𝑅O (𝑡𝑅) + 𝑞𝐻O (𝑡𝐻) + 𝑞𝐻1O (𝑡𝐻1)) + O (𝑛2) , (12)
ℎ is the length of 𝐻1’s output,U is a set of users, and 𝑡𝐻is the
computing time of𝐻 oracle.
Proof. At first, B inputs 𝜅 to generate pairing parameters
and a variant-CDH tuple(𝑃, 𝑎𝑃, 𝑏𝑃, 𝑃, 𝑎𝑃) ∈ G1, where 𝑎, 𝑏∈𝑅Z∗𝑞. We will show thatB can solve the variant-CDH problem with the assistance of an adversaryA. B’s task is to compute and output the value𝑐𝑃 = 𝑎𝑏𝑃.
B simulates the system as follows. We define (𝑎𝑃, 𝑎𝑃) as the system master public key andB does not know the master private key𝑎. 𝐻 and 𝐻1are two random oracles simulated byB to respond the queries to 𝐻 and 𝐻1, respectively.B randomly chooses one user 𝑈𝑖∗ and let 𝑏𝑃 be 𝑈𝑖∗’s long-term public key. Except𝑈𝑖∗,B computes other users’ long-term public/private key pairs by𝐻. B allows A to make the following queries.
(i)𝐻 (⋅): after given 𝑚 ∈ {(TA’s ID‖𝑈𝑖’s ID) | 1 ≤ 𝑖 ≤ 𝑞}, B responds the query, 𝐻(𝑚), and maintains the 𝐻-list as follows.
If𝑚 = (TA’s ID‖𝑈𝑖∗’s ID),B returns 𝐻(𝑚) = 𝑏𝑃 and stores a record(𝑈𝑖∗, 𝑏𝑃, ⊥, ⊥) in the 𝐻-list. Otherwise, B randomly chooses 𝑢𝑖 ∈ Z∗
𝑞, returns𝐻(𝑚) = 𝑢𝑖𝑃, and stores a record (𝑈𝑖, 𝑢𝑖𝑃, 𝑢𝑖𝑎𝑃, 𝑢𝑖) in the 𝐻-list, where 𝑢𝑖𝑃 and 𝑢𝑖𝑎𝑃 are the long-term public and private keys, respectively, of𝑈𝑖.
(ii)𝐻1(⋅): after given 𝑚 ∈ G1,B randomly chooses 𝛼 ∈ {0, 1}ℓ, returns𝐻1(𝑚) = 𝛼, and stores a record (𝑚, 𝛼) in the𝐻1-list.
(iii) Execute(Π𝑡
U): A can choose U and ask B to run the key agreement protocol. B returns the public messages (𝑏𝑖, 𝐵𝑖, 𝑇𝑖, 𝛽𝑖)’s of all 𝑈𝑖’s in U to A. B produces the messages as follows.
If𝑈𝑖∗ ∈ U, B picks 𝑘𝑖, 𝑧, 𝛼∈𝑅Z∗𝑞 and computes𝑏𝑖 = 𝑧𝑃 − 𝛼𝑏𝑃 = (𝑧 − 𝛼𝑏)𝑃, 𝑇𝑖= 𝑧𝑎𝑃, and 𝛽𝑖= 𝐻2(𝑇𝑖, 𝛼). For each of the other𝑈𝑗’s ∈ U, B randomly picks 𝑟𝑗, 𝑘𝑗 ∈ Z∗𝑞 and computes𝑏𝑗 = 𝑟−1𝑗 𝑃, 𝑇𝑗 = 𝛼𝑢𝑗𝑎𝑃 + 𝑟𝑗−1𝑎𝑃, and 𝛽𝑗 = 𝐻2(𝑇𝑗, 𝛼). Thus, B can follow the
