Curved polymer nanodiscs by wetting nanopores of anodic aluminum
Curved polymer nanodiscs by wetting nanopores of
anodic aluminum oxide templates with polymer
nanospheres
†
Mu-Huan Chi, Yi-Huei Kao, Tzu-Hui Wei, Chih-Wei Lee and Jiun-Tai Chen*
Although nanostructures with diverse morphologies have been fabricated, it is still a great challenge to prepare anisotropic two-dimensional (2-D) nanostructures, especially non-planar disc-like nanostructures. In this work, we develop a simple method to prepare curved polymer nanodiscs with regular sizes by wetting polymer nanospheres in the nanopores of anodic aluminum oxide (AAO) templates. Polystyrene (PS) nanospheres are first fabricated by using a non-solvent-assisted template wetting method. By annealing the PS nanospheres in the nanopores of AAO templates, curved PS nanodiscs can be produced. The length and morphology of the curved PS nanodiscs can be controlled by the wetting conditions such as the annealing temperatures and times. For some stacked nanospheres, the annealing process can result in the formation of helix-like nanostructures. To demonstrate the universality of this work, this approach is also applied to poly(methyl methacrylate) (PMMA), another common polymer, and similar results are obtained.
Introduction
In the past two decades, nanomaterials have received much attention because of their unique properties, which are different from those in the bulk state.1Different methods have
been developed to prepare zero-dimensional (0-D) or one-dimensional (1-D) nanostructures.2–5 These nanostructures
have been studied intensively and are applied in many different elds such as photoelectric devices, microuidics, catalysts, separation membranes, sensors, or drug delivery.6–11Recently,
two-dimensional (2-D) nanostructures have also attracted great interest and can be produced by different methods. 2-D nano-materials such as graphene nanoplates, zinc oxide (ZnO) discs, or silver discs are prepared and can be applied in photoelectric devices, sensors,at panels, and purication.12–16While most studies on 2-D nanostructures focus on metals or inorganic materials, organic or polymer based 2-D nanostructures are less studied.
In 1993, Ho et al. developed a stretching method, which can be used to prepare anisotropic 2-D polymer microstructures with regular sizes.17 In 2006, Champion et al. modied this
method to prepare polymer microdiscs.18Other groups
contin-ually optimized this method to fabricate anisotropic 2-D poly-mer structures, but most structures prepared by this method are
still on the micron scale.19In 2012, Liu et al. also successfully
fabricated polymer nanodiscs from nanospheres by stirring polymer nanospheres in mixed solvents.20Despite these works,
it is still a great challenge to prepare anisotropic two-dimen-sional (2-D) nanostructures, especially non-planar disc-like nanostructures. Here, we develop a simple template-based wetting method to prepare curved polymer nanodiscs by wetting polymer nanospheres in the nanopores of anodic aluminum oxide (AAO) templates.
The template-based wetting method has been widely used to prepare polymer nanomaterials with different geometries.21–24
Polymer solutions or melts are introduced to the nanopores of the porous templates by wetting.25Aer the solidication of the
polymers in the nanopores, polymer nanostructures can be formed aer the porous templates are selectively removed. One of the main advantages of using the template method is that the sizes of the prepared nanostructures can be controlled by the pore sizes of the porous templates. Various polymer nano-structures have been prepared in the past, and properties and morphologies, which are not present in the bulk, are observed.26,27 Different polymer nanostructures such as
nano-tubes, nanorods, nanowires, and nanospheres have been fabricated by the template wetting method.28–32
Porous AAO membranes are commonly used as templates for fabricating various metal, inorganic, and polymer nano-materials.33 AAO templates are made by the electrochemical
oxidation of aluminum foils, and hexagonally packed nano-pores can be prepared by using a two-step anodization process.34The interpore distances, pore diameters, and
thick-nesses of the AAO templates can be changed by the anodization
Department of Applied Chemistry, National Chiao Tung University, Hsinchu, Taiwan 30050. E-mail: [email protected]
† Electronic supplementary information (ESI) available: SEM images of AAO templates and polymer nanostructures, and OM images of deposited polymer particles. See DOI: 10.1039/c3nr04431a
Cite this:Nanoscale, 2014, 6, 1340
Received 20th August 2013 Accepted 12th November 2013 DOI: 10.1039/c3nr04431a www.rsc.org/nanoscale
PAPER
Published on 13 December 2013. Downloaded by National Chiao Tung University on 29/04/2014 00:39:13.
View Article Online
conditions such as the anodization voltage, the working temperature, the anodization time, the electrolyte concentra-tion, and the electrolyte solution type.35
In this work, we successfully prepared anisotropic, curved polymer nanodiscs by wetting polymer nanospheres in the nanopores of AAO templates. PS nanospheres arerst prepared by the non-solvent-assisted template wetting method, which was recently developed by Lee et al.29Aer thermal annealing,
wetting of the PS nanospheres in the nanopores of AAO templates occurs, resulting in the formation of curved PS nanodiscs. By changing the pore sizes of the AAO template or the conditions of thermal annealing, the morphologies of the PS nanodiscs can be controlled. In addition to PS, poly(methyl methacrylate) (PMMA) is also used. This study not only provides a simple method to fabricate curved polymer nanodiscs, but also leads to a deeper understanding of the wetting phenom-enon in conned geometries.
Results and discussion
The concept of fabricating the curved polymer nanodiscs is mainly based on the idea of annealing polymer nanospheres in the nanopores of porous templates. The templates we use are the AAO templates, as shown in the SEM images (Fig. S1a and b†). The average pore diameter is 230 nm, and the average pore length is 60 mm. The experimental scheme and the schematic illustration of the formation of curved polymer nanodiscs are shown in Fig. 1 and 2, respectively. Atrst, PS nanospheres in the nanopores of AAO templates are prepared by the non-solvent-assisted template wetting method, which was developed by Lee et al.29Normally, polymer nanotubes are
produced in the nanopores of AAO templates when a polymer solution is used to wet the nanopores. The formation of nano-tubes is caused by the precipitation of the polymer chains on the walls of the AAO templates aer the solvents are evaporated. By adding a non-solvent such as water aer the nanopores are lled by a polymer solution, water forms wetting layers on the walls of the AAO templates, resulting in the formation of nanospheres or nanorods instead of nanotubes.29The
forma-tion of nanospheres or nanorods is determined by the polymer concentrations. Lee et al. also demonstrated that the aspect
ratio (length divided by the diameter) of the polymer nanorods increased with the polymer concentration.29For our study here,
polymer concentrations in the range of 1.5 to 3 wt% are used, in which polymer nanospheres can be generated.
Aer the solvent is evaporated by a vacuum system, polymer nanospheres are formed. The AAO templates containing PS nanospheres are annealed in an oven with different annealing temperatures and times. When the annealing temperatures are above the glass transition temperature of PS (100C), the PS
nanospheres can wet the pore walls of the AAO template to reduce the surface energy. Finally, curved PS nanodiscs are formed.
The polymer nanostructures at different stages are examined by both SEM and TEM. Fig. 3a shows the PS nanospheres prepared by using the non-solvent-assisted template wetting method. The AAO templates are dissolved by a NaOH(aq.)
solu-tion, and the nanospheres aggregate together. The SEM image shows that almost all PS nanospheres are in a spherical shape,
Fig. 1 Experimental scheme to prepare curved polymer nanodiscs.
Fig. 2 Schematic illustration of the formation of curved polymer nanodiscs in the nanopores of AAO templates.

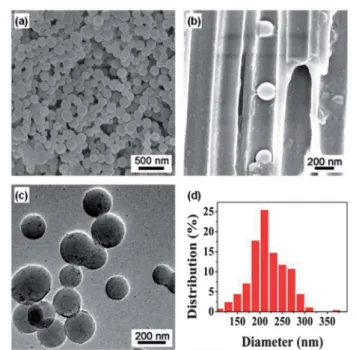

Fig. 3 PS (Mw ¼ 78.5 kg mol1) nanospheres by using the non-solvent-assisted template wetting method with a PS solution (1.5 wt%): (a) SEM image; (b) cross-sectional SEM image; (c) TEM image; (d) plot of the size distribution of the PS nanospheres.
Paper Nanoscale
Published on 13 December 2013. Downloaded by National Chiao Tung University on 29/04/2014 00:39:13.
even though some nanostructures are in a elliptical shape. To check the locations and the sizes of the nanospheres inside the nanopores, cross-sectional SEM images in which the AAO templates are still present are taken, as shown in Fig. 3b. The cross-sectional samples are prepared by breaking AAO template containing PS nanospheres. Although some nanospheres have already fallen out of the nanopores during the preparation of the cross-sectional samples, some other nanospheres are still attached to the walls of the nanopores. The nanospheres are separated from each other in the nanopores, and the distances between adjacent nanospheres are mainly determined by Ray-leigh instability.29For most nanospheres, the separation of the
nanospheres can ensure that the wetting of a nanosphere on the pore wall of the AAO template is not affected by the wetting of other nanospheres. For some nanospheres, which are in contact or close to other nanospheres, interesting morphologies can be formed aer the thermal annealing process, which will be demonstrated later in this work. To conrm the solid nature of the nanospheres, TEM is also performed, as shown in Fig. 3c. The sizes of the nanospheres from the TEM image agree well with those from the SEM images. The sizes of individual nanospheres are measured, and the size distribution of the nanospheres prepared by using 1.5 wt% PS (Mw ¼ 78.5 kg
mol1) solution is displayed in Fig. 3d. The average diameter of these PS nanospheres is240 nm, which is close to the average pore size of the AAO template (230 nm). The size distribution of the nanospheres is attributed to the distribution of the pore size of the AAO template and the non-uniform polymer concentrations in the nanopores.
Nichols and Mullins have studied the Rayleigh-instability-type transformation for solid cylinders.36They found that the
perturbation on the cylinder surface with the maximum growth rate has a wavelengthlm¼ 2p
ffiffiffi 2 p
R0¼ 8:89R0, where R0is the
initial radius of the cylinder. The radius of the transformed nanosphere can be obtained as r¼ 1.88R0. Since the average
diameter of the PS nanospheres is measured to be240 nm, the undulation wavelength, which is equal to the interspacing between the nanospheres, can be calculated to be570 nm. The interspacing between nanospheres can be simply increased by using AAO templates with larger pore diameters.
Aer the samples are thermally annealed at 130 C for
30 min, AAO templates are selectively removed by NaOH(aq.),
and curved PS nanodiscs are obtained, as shown in Fig. 4a. The shapes of the curved PS nanodiscs are similar to those of commercial potato chips. Wetting of the polymer nanospheres in the cylindrical nanopores occurs during the thermal annealing process. When the annealing temperature is higher than the glass transition temperature of PS, the nanospheres within AAO nanopores can have enough mobilities to wet the wall surface of the AAO nanopores, which possess high surface energies.37Similar to the situation of a snow ball melting inside
a water pipe, the PS nanospheres wet the curved walls and spread out in all directions. From the SEM (Fig. 4b) and TEM (Fig. 4d) images with higher magnications, we can conrm that the thicknesses throughout the curved PS nanodiscs are almost the same, implying that the PS chains wet the curved wall uniformly.
To quantitatively compare the wetting of the PS nanospheres in different conditions, the axis of the nanostructures along the cylindrical nanopores is dened as the z-axis. Since the wetting length along the peripheral direction is difficult to be measured from the electron microscopy images, we only measure the wetting lengths along the z-axis direction under different annealing conditions. By assuming that the wetting rates of the PS chains in different directions are the same and the gravity effect can be ignored, we presume that the wetting lengths along the peripheral direction are similar to the wetting lengths along the z-axis, even though polymers may actually have a preferential wetting direction along the z-axis direction. For example, when the polymer chains wet half of the perimeter of the wall surface of the nanopores, the wetting length along the peripheral direction is (1/2)pD0, where D0is the average
diam-eter of the AAO nanopores (230 nm). Therefore, the wetting length along the peripheral direction can be calculated to be 361 nm, which is also the wetting length along the z-axis. For the curved PS nanodiscs shown in Fig. 4a, which are annealed at 130C for 30 min, the average wetting length along the z-axis is 433 nm with the standard deviation of 117 nm. The distri-bution of the wetting length along the z-axis is because of the diameter distribution of the PS nanospheres and the pore size distribution of the AAO template.
We alsond that the wetting length of the polymer nano-spheres can be affected by the annealing temperature and the annealing time. Fig. S2† shows the SEM images of PS (Mw ¼
78.5 kg mol1) nanostructures by annealing PS nanospheres at different temperatures (150, 170, 190, and 210C) for 30 min. At
high annealing temperatures, the PS melts wet more the pore
Fig. 4 Curved PS (Mw ¼ 78.5 kg mol1) nanodiscs by thermally annealing PS nanospheres in the nanopores of AAO templates: (a and b) SEM images; (c and d) TEM images with different magnifications. The PS nanospheres are first prepared by the non-solvent-assisted template wetting method with a PS solution (1.5 wt%), followed by an annealing process at 130C for 30 min.
walls of the AAO templates, and the wetting lengths along the z-axis direction are longer. More irregular edges of the curved PS nanodiscs, however, are generated because more defects on the pore walls are encountered by the front of the wetting polymer melts. Fig. S3† shows the SEM images of PS (Mw ¼ 78.5 kg
mol1) nanostructures by annealing PS nanospheres at 130C for different times (20 min, 40 min, 1 h and 2 h). At longer annealing times, the PS melts wet more the pore walls of the AAO templates, and the wetting lengths along the z-axis direc-tion are longer. Similar to the effect of higher annealing temperatures, more irregular edges of the curved PS nanodiscs are generated because more defects on the pore walls are encountered by the front of the wetting polymer melts.
The quantitative relationships of the length of the curved polymer nanodiscs and the annealing conditions are also studied. As mentioned previously, we only measure the wetting lengths along the z-axis direction, which are indicated in the graphical illustration and the SEM image (Fig. 5a and b). By measuring the wetting length of the curved PS nanodiscs along the z-axis direction, we study the effect of annealing conditions on the wetting behavior of PS nanospheres.
First, the wetting lengths along the z-axis direction are measured for the PS (Mw¼ 78.5 kg mol1) samples annealed at
different temperatures for 25 min. As shown in Fig. 5c, a linear relationship is observed at temperatures from 130–170C. The
average wetting length of curved PS nanodiscs increases with the annealing temperature because of the decreased viscosities of the polymer melts. When the annealing temperature increases, the viscosities of polymer melts are decreased, and
polymer chains exhibit higher mobilities and wet faster the wall surfaces of the AAO nanopores.
As shown in Fig. 5c, the measured values of the wetting lengths reach a plateau region, in which the wetting lengths are 570 nm, when the annealing temperature is higher than 170
C. The plateau region is caused by the temperature-dependent
viscosities of the polymer melts. The viscosity of a polymer melt is decreased with increased temperatures until a plateau is reached at a critical temperature.38Therefore, the viscosities of
the polymer melts above a critical temperature are similar, resulting in similar values of the wetting lengths.
We also study the effect of annealing time on the wetting lengths at axed annealing temperature. Fig. 5d shows the plot of the length of curved PS (Mw¼ 78.5 kg mol1) nanodiscs versus
the annealing time, while the samples are annealed at 130C. The average length increases linearly with the annealing time until a plateau is reached aer annealing for 1 h. When the samples are annealed at the same temperatures, the wetting rates of the polymer melts on the pore walls of the AAO templates are the same. The wetting fronts of the polymer melts advance on the wall surfaces and form wetting layers withnite thicknesses that are controlled by the interactions between air, polymer melts, and the alumina walls. Therefore, the wetting length increases with the annealing time until a maximum wetting length is reached. A further increase of the wetting length is not possible because of the volume conservation of the curved PS nanodiscs and the original PS nanospheres. There-fore, the wetting lengths of the polymer nanospheres can be controlled by changing both the annealing temperatures and the annealing times. Changing the annealing temperatures, however, is time-saving and is thus a better way to achieve the desired morphologies and the wetting lengths.
When the polymer nanospheres are formed in the nanopores of the AAO templates by using the non-solvent-assisted template wetting method, the polymer chains are packed loosely. Aer thermal annealing, a reduction of the volume occupied by the polymer chains is expected. In order to discuss the relationship between the diameters of the original polymer nanospheres and the sizes of the curved polymer nanodiscs, we suppose that the volume is conserved before and aer the thermal annealing processes. By assuming that the original polymer nanospheres are all spherical, the volume of the orig-inal polymer nanospheres can be described by the following equation:
Vs¼ (4/3)pR3¼ (1/6)pD3 (1)
where Vs, R, and D represent the volume, the radius, and the
diameter of the polymer nanospheres, respectively. Since the surface tension of the polymer melts and the interfacial tension between the polymer melts and the alumina walls are not changing at the same annealing temperature, the polymer melts are expected to form curved discs with similar shapes at long annealing times. By assuming that the thickness over the whole curved polymer nanodisc (H) is constant, the volume of the curved polymer nanodiscs can be described by the following equation:
Fig. 5 (a) The illustration of a curved PS nanodisc. The length and perimeter are indicated in the graph. (b) SEM image of a curved PS nanodisc. The length is indicated as a red line in the graph. (c) The plot of the length of curved PS (Mw¼ 78.5 kg mol1) nanodiscsversus the annealing temperature. The samples are annealed for 25 min. (d) The plot of the length of curved PS (Mw¼ 78.5 kg mol1) nanodiscsversus the annealing time. The samples are annealed at 130C.
Paper Nanoscale
Published on 13 December 2013. Downloaded by National Chiao Tung University on 29/04/2014 00:39:13.
Vp¼ p(Lz/2)2H ¼ (1/4)pLz2H (2)
where Vpis the volume of the curved polymer nanodisc, Lzis the
length along the z-axis, and H is the thickness of the curved polymer nanodisc. The volumes before and aer thermal annealing processes are assumed to be conserved (Vs¼ Vp), and
eqn (1) and (2) can be rewritten as:
D3¼ (3/2)L
z2H (3)
From eqn (3), the wetting lengths (Lz) of the curved polymer
nanodiscs increase with the diameters of the original polymer nanospheres. Therefore, the maximum wetting lengths from larger nanospheres are longer.
For most experiments done in this work, polystyrene (PS) is used. To demonstrate the universality of this simple approach, this method is also applied to poly(methyl methacrylate) (PMMA), another common polymer. Similar to the results from PS, curved PMMA nanodiscs can be prepared by using this method, as shown in Fig. S4.† But the morphologies of the curved PMMA nanodiscs are not as well-dened as those of the curved PS nanodiscs. This result might be due to the lower degradation resistance of PMMA to the electron beams in the SEM measurement than that of PS. Still, this result demon-strates that this simple method can be applied to fabricate other types of curved polymer nanodiscs once appropriate wetting conditions are used. Acrylonitrile–butadiene–styrene (ABS) copolymer, a commonly employed polymer material in industry, is also used in this work, and curved ABS nanodiscs are fabricated, as shown in Fig. S5.† Further studies such as electroplating may be applied to these curved nanodiscs to obtain curved metal nanodiscs. In the future, we will apply this method to multicomponent polymer materials such as block copolymers, polymer blends, or polymer composites.
In addition to curved polymer nanodiscs, other morphol-ogies can also be fabricated by this method. For example, helix-like polymer nanostructures and connected polymer nanodiscs are observed aer the annealing process, as shown in Fig. 6. Once the polymer nanospheres are fabricated by the non-solvent-assisted template wetting method, most polymer nanospheres in the nanopores of the AAO templates are sepa-rated. The average separation distances between the nano-spheres are determined by the undulation wavelengths of the polymer solutions during the Rayleigh-instability-type trans-formation process, as described by Lee et al.29 Some
nano-spheres, however, are not separated and are stacked on top of each other or merged together, resulting in the formation of helix-like polymer nanostructures or connected polymer nano-discs. Examples of the merged nanospheres are displayed in the ESI (Fig. S6†).
There are three possible reasons to explain why some nanospheres are stacked or merged together. First, vibrations during the transportation of the nanosphere-containing AAO samples from the desiccator to the oven may cause the nano-spheres, which originally adhere to the wall of the nanopores, to stack on top of other nanospheres. Second, the undulation and the separation processes induced by Rayleigh instability may
not be completed because of the non-uniform polymer concentrations in the nanopores, resulting in the formation of merged polymer nanospheres. Third, the stacking of the nanospheres might be due to the original defects of the nano-pores of the AAO templates.
Depending on the arrangements of the stacked or merged nanospheres, a special polymer nanostructure can be formed. If the stacked or merged nanospheres are attached to the pore walls in different orientations, helix-like polymer nano-structures can be formed, as shown in Fig. 6a and b. If the stacked or merged nanospheres are attached to the pore walls on the same sides, connected polymer nanodiscs can be formed, as shown in Fig. 6c and d. These results are observed in both the PS and the PMMA systems. But these kinds of helix-like or connected polymer nanostructures are more oen observed in samples annealed at higher temperatures or longer times. With higher temperatures or longer times, the wetting lengths of the polymer nanospheres on the pore walls increase. When the wetting lengths are larger than the distances between two adjacent nanospheres, the helix-like or connected polymer nanostructures can be formed. These kinds of nanostructures can be effectively avoided by using appropriate annealing conditions, and well-dened curved polymer nanodiscs can be produced in a large quantity.
It has been studied that the shape of non-spherical polymer particles is essential for affecting their functionalities and properties. For example, Yunker et al. studied that the coffee ring effect, which is commonly seen in polymer spheres, can be eliminated by using ellipsoidal polymer particles.39 The air–
water interfaces are deformed signicantly by the anisotropic shape of the particles. Therefore, strong interparticle capillary interactions are produced, leading to the uniform deposition of particles. We have used the spherical polymer nanospheres and curved polymer nanodiscs to study the coffee ring effect. Aqueous solutions containing polymer particles are dropped on
Fig. 6 (a) Graphical illustration of helix-like polymer nanostructures and (b) their corresponding SEM image; (c) graphical illustration of connected polymer nanostructures and (d) their corresponding SEM image. Both samples are obtained by annealing PMMA (Mw¼ 68.5 kg mol1) nanospheres at 150C for 5 h.
cleaned wafers, followed by a drying process in air. The optical microscopy images are shown in Fig. S7.† Although the coffee ring effect can be observed for both samples, more curved polymer nanodiscs are observed in the center of the dried regions. The results imply that the dynamic behaviors of poly-mer nanospheres and curved polypoly-mer nanodiscs in aqueous solutions are different. Still, more detailed studies need to be performed in the future.
Conclusions
We successfully prepared curved PS nanodiscs by using AAO templates. Aer post-thermal treatment, the polymer spheres in the nanopores transform to curved polymer nano-discs by wetting on the pore walls of the AAO templates. By changing the experimental conditions such as the annealing temperature and the annealing time, the average lengths of the curved nanodiscs can be controlled. In addition to curved PS nanodiscs, curved PMMA and ABS nanodiscs are also obtained. In the case of stacked polymer nanospheres, helix-like polymer nanostructures are formed aer the wetting process. In the future, we will apply this method to other types of polymers including block copolymers, polymer blends, or polymer–metal composites to develop self-assembled anisotropic nano-structures. Compared with isotropic polymer nanospheres, the curved polymer nanodiscs may have interesting dynamic behaviors in aqueous solutions. Therefore, the curved polymer nanodiscs would be useful in applications such as drug delivery and sensing.
Experimental section
Materials
Polystyrene (PS, Mw¼ 78.5 kg mol1, PDI ¼ 1.05) and
poly-(methyl methacrylate) (PMMA, Mw¼ 68.5 kg mol1, PDI¼ 1.25)
were purchased from Polymer Source Inc. Acrylonitrile–buta-diene–styrene (ABS) copolymers were obtained from Chi Mei Corporation. Anhydrous dimethylformamide (DMF) was obtained from Tedia Company. AAO templates (Anodisc 13) with the average diameters of 0.2 mm were purchased from Whatman. Deionized water was produced by Milli-Q Millipore.
Fabrication of polymer nanospheres in the nanopores of AAO templates
The polymer nanospheres were prepared by the non-solvent-assisted template wetting method.29 The AAO templates were
rst dipped into a polymer solution (PS or PMMA 1–5 wt% in DMF) for 10 s. Aer the templates were taken out from the solution, the surfaces of the templates were rst cleaned by delicate task wipers (Kimtech) to remove the solution outside the nanopores, followed by a wiping process on the surface with pure DMF. The AAO templates lled with polymer solutions were then dipped into deionized water for 1 min. Subsequently, the water was poured out, and the samples were dried under vacuum.
Fabrication of curved polymer nanodiscs by wetting polymer nanospheres in the nanopores of AAO templates
The samples with polymer nanospheres in the nanopores of AAO templates were thermally annealed in an oven with temperatures from 120 to 220C and annealing times from 10 min to 8 h. Aer the samples were cooled to room temperature, the samples were dipped in 5 wt% NaOH(aq.) to selectively
remove the AAO templates. Finally, the solutions wereltered through membranelters (0.1 mm, Millipore) and were washed by deionized water.
Structure analysis and characterization
A scanning electron microscope (SEM) (JEOL, JSM-7401F) with an accelerating voltage of 5 kV was used to study the polymer nanostructures. Before SEM measurements, the polymer nanostructures were dried in a desiccator under vacuum and were coated with 4 nm platinum. A transmission electron microscope (TEM) (JEOL, JEM-2100) with an accelerating voltage of 200 kV was also used to investigate the morphologies of the polymer nanostructures.
