Precise image alignment using
cooperative neural-fuzzy networks with
association rule mining
–based
evolutionary learning algorithm
Chi-Yao Hsu
Yi-Chang Cheng
Sheng-Fuu Lin
Precise image alignment using cooperative neural-fuzzy
networks with association rule mining
–based
evolutionary learning algorithm
Chi-Yao HsuYi-Chang Cheng Sheng-Fuu Lin
National Chiao-Tung University Department of Electrical Engineering 1001 Ta Hsueh Road
Hsinchu, Taiwan 300
E-mail: [email protected]
Abstract. Precise image alignment is considered a critical issue in indus-trial visual inspection, since it performs an accurate pose to the object in inspected images. Recently, image alignment based on neural networks has become very popular due to its performance at speed. However, such a method has difficulty when applied to the alignment of images on a large range of affine transformation. To address this, a cooperative neural-fuzzy network (CNFN) with association rule mining-based evolutionary learning algorithm (ARMELA) is proposed. Unlike traditional neural network–based approaches, the proposed CNFN utilizes a coarse-to-fine alignment pro-cedure to adapt image alignment to a larger range of affine transformation. The proposed ARMELA combines the self-adaptive method and associa-tion rules selecassocia-tion method to self-adjust the structure and parameters of the neural-fuzzy network. Furthermore, L2 regularization is adopted to control ARMELA such that the convergence speed increases. Experimen-tal results show that the performance of the proposed scheme is superior to the traditional neural network methods in terms of accuracy and robust-ness.© 2012 Society of Photo-Optical Instrumentation Engineers (SPIE). [DOI: 10.1117/ 1.OE.51.2.027006]
Subject terms: cooperative neural-fuzzy network; association rule mining; self-adaptive method; L2 regularization.
Paper 110878 received Jul. 25, 2011; revised manuscript received Dec. 17, 2011; accepted for publication Dec. 27, 2011; published online Mar. 12, 2012.
1 Introduction
Among industrial applications, such as object orientation, automatic visual inspection, assembly automation, and robotic machine vision, image alignment is the most widely used. For instance, in an industrial inspection system, objects appearing in images are not always aligned with the desired position or orientation. Therefore, an accurate geometric transformation of image alignment is desirable.
The problem of precise image alignment has been well studied in several fields. In Ref. 1, Liu et al. point out that image alignment techniques are broadly classified as feature-based2,3 and area-based matching approaches.4–6 In feature-based methods, the features of the sensed image and reference image represented by salient control points are usually detected first, and then the correspondence between these two images can be found by matching the descriptions of the features. Although features-based methods have been widely applied in many image registration tasks, they have difficulties to detect the respective features in less detailed images and are heavily dependent on control points. In area-based methods, such as correlation-like methods, they are popular for real-time applications because of simplicity and hardware implementation.7,8 The main constraints of these
methods are high computational complexity and are not sui-table for complicated geometric deformation.
In Ref. 9, Amintoosi et al. pointed out that area-based methods produce better results than results with low sig-nal-to-noise ratio (SNR) from feature-based methods.
Moreover, Zitova and Flusser indicated10 that area-based methods are preferably applied to less detailed images and that the captured images generally have less detail in an industrial inspection system. Therefore, the area-based meth-ods are recommended in this paper.
In area-based fields, the most commonly used geometric transformation for image alignment is affine transformation, which consists of scaling, rotation, and translation. Next, global features of sensed images fed to a neural network are a widespread technique for estimation of affine transfor-mation. In other words, neural networks are helpful in designing image alignment systems.
In recent years, neural network–based image alignment utilizing global features has been a relatively new research subject.11–15In Ref.11, Elhanany et al. presented a
feedfor-ward neural network (FNN) to align images through 144 dis-crete cosine transform (DCT) coefficients as the feature vectors. Although such an approach has successfully aligned several deformed and noisy images, it still needs a larger dimension of feature vector to represent an image sufficiently in the unorthogonality of DCT-based space. To improve such approach, Wu and Xie12utilized low-order Zernike moments to replace DCT to estimate affine parameters. In their experi-ments, the alignment results were not satisfied. Recently, Xu and Guo13have adopted an isometric mapping (ISOMAP) method to reduce the dimension of the feature vector. For FNN improvement, Xu and Guo used a Bayesian regulariza-tion method to generalize the FNN.14 They have shown in some comparative experiments that FNN with regulariza-tion indeed performs better than that without regularizaregulariza-tion. In addition to FNN-based methods, Sarnel et al.15 used
a radial basis function neural network (RBFNN) to align images. According to their results, the training time of a RBFNN has been reduced, and the alignment accuracy and robustness against noise are better than those of FNN-based methods.
However, a major drawback of the existing neural net-work–based methods is that they have difficulty when applied to align images on a large range of affine transfor-mation (i.e., large range of affine parameters). The reason is that a large range of affine parameters would lead to a large amount of training data such that the mapping surface becomes more complex. To solve such a phenomenon, a large-sized neural network is required, but this network is often difficult to train. Thus, applying a one-stage neural net-work to estimate a large range of affine parameters accurately is almost impossible.
In this paper, a cooperative neural-fuzzy network (CNFN) is proposed to overcome the problem produced by the one-stage neural network. The notion of this approach is to divide the large-sized network into several small cooperative net-works, aiming to gradually reduce the image alignment error and finally obtain the desired accuracy. The cooperative network presented in this study indicates that each network manages a certain range of affine parameters and that the net-works cooperate to adapt image alignment to a larger range of affine transformation. Such a phenomenon can be consid-ered a coarse-to-fine alignment of the sensed image and the reference image. Moreover, based on the concept of the cooperative networks, this study proposes a self-organized training data–creating method that generates an appropriate training set for each network. The benefits of this method are that it not only provides a self-organized training set but also prevents the yielding redundant training data. Finally, this paper develops an association rule mining-based evolutionary learning algorithm (ARMELA) that com-bines self-adaptive method (SAM) and association rules selection method (ARSM) to tune the structure and para-meters of the network automatically. Moreover, L2 regular-ization is utilized to control ARMELA such that the convergence speed increases. Therefore, these operations can make the structure and parameters of neural-fuzzy net-works become more robust.
The rest of this paper is organized as follows. In Sec.2, the proposed image alignment system is introduced. Sec-tion 3 describes ARMELA. The experimental results are
presented in Sec. 4. The conclusion is presented in the last section.
2 The Proposed Image Alignment System

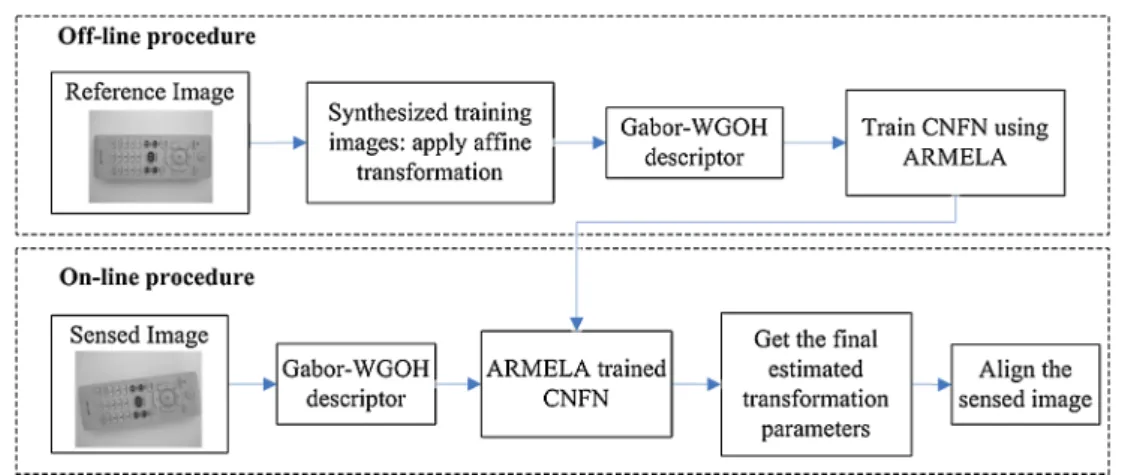

This section describes the proposed image alignment system that contains off-line and on-line procedures for training and executing the CNFN, respectively. Figure 1 illustrates the two procedures of the proposed approach, which will be explained in detail to show how the image alignment system works.
2.1 Off-Line Procedure
The objective of the off-line procedure is to train the CNFN. The four main parts of the procedure are creating synthesized training images, generating the Gabor-weighted gradient orientation histogram (WGOH) descriptor, yielding self-organized training data, and training the CNFN. These parts are described as follows.
2.1.1 Creating synthesized training images
The synthesized training images can be generated by apply-ing various combination of translation, rotation, and scalapply-ing transformations within a predefined range. The transforma-tion model is affine transformatransforma-tion, which is described by the following matrix equations:
x2 y2 ¼ s cosθ − sin θ sinθ cosθ x1− xc y1− yc þ xcþ Δx ycþ Δy ; (1) whereðx1; y1Þ is the original image coordinate, ðx2; y2Þ is the
transformed image coordinate, s is a scaling factor,ðΔx; ΔyÞ is a translation vector,θ is a rotation angle, and ðxc; ycÞ is the
center of rotation.
2.1.2 Generating Gabor-WGOH descriptor
The main idea of a WGOH descriptor was inspired by a scale invariant feature transform (SIFT) descriptor.16It was intro-duced by Bradley et al.17 to show its high speed. This
descriptor calculates the orientation histograms within a region and uses the magnitude of the gradient at each pixel and the two-dimensional Gaussian function to weight the histogram.18However, using the pixel difference to com-pute the gradient is sensitive to noise. To avoid such sensitivity, Moreno et al.combined a Gabor filter with the
WGOH descriptor to suppress noise.19 Thus, we adopt the Gabor-WGOH descriptor in representing an image.
To create the Gabor-WGOH descriptor, each image is split into 4× 4 subimages. On each pixel of the subimage, the gradient magnitude and orientation are computed using the Gabor filter. Next, the 8-bin orientation histograms, which are weighted by the gradient magnitude and the Gaus-sian function, are calculated within each subimage. The 8-bin histograms of 16 subimages are then concatenated into a 128-element feature vector. To lower the dimension of the feature vector, we further employ the principal com-ponent analysis method to reduce the 128-elemet feature vec-tor into a 33-element one. Therefore, each image can be represented by a 33-elemet feature vector.
2.1.3 Yielding self-organized training data
After describing the Gabor-WGOH descriptor, we propose a self-organized training data–creating method to provide an appropriate training data set for training neural networks. The major advantages of the proposed training data–creating method are that it can prevent the generation of the redundant data and supply a self-organized training data set for training a neural network efficiently. The steps for yielding the self-organized training data are as follows:
Step 1: First, generate a small training data set fStraing.
Then, utilize this data set to train a neural network. Step 2: Input a fixed number of testing data setsfStestg into
the neural network to create the alignment alignment errorfEtestg.Check each errorfEtestðiÞg∶
If EtestðiÞ > PdError; then fStestðiÞg → insert
fStraing
and ErAcc¼ ErAcc þ 1: for i¼ 1; 2; : : : ; Ntest;
(2) where PdError is the predefined error, ErAcc is the accumulator of large error counts, and Ntest is the
number of the test data set.
Step 3: If ErAcc < ter, then accumulate the Loop
Num¼ Loop Num þ 1. Otherwise, set Loop Num¼ 0. The symbol ter indicates the threshold
of the error accumulator, and LoopNum means the accumulating number of loop.
Step 4: If Loop Num> loop thresholdtloop terminate the
training and output the training setfStraing.
Other-wise, go to step 2 to run recursive training. In Step 2, the insert testing data is the data that the neural network does not perform well. Therefore, inserting such data can enhance the learning ability of the neural network and prevent the selection of the redundant training data. Moreover, from Step 4, Loop Num> tloop means that the
amount of training data set has converged. At this time, it also indicates that the training data set is self-organized. Thus, we can utilize the self-organized training data–creating method to provide the training data for training CNFNs.
2.1.4 Training the CNFN
The notion of the CNFN is to combine several networks to all cooperate in adapting to a large range of affine transfor-mation. The aim of this operation is to improve the traditional one-stage neural network, which can cause a large amount of training data; such a network is difficult to train. The coop-erative networks can be considered a coarse-to-fine alignment of the captured image and the reference image.

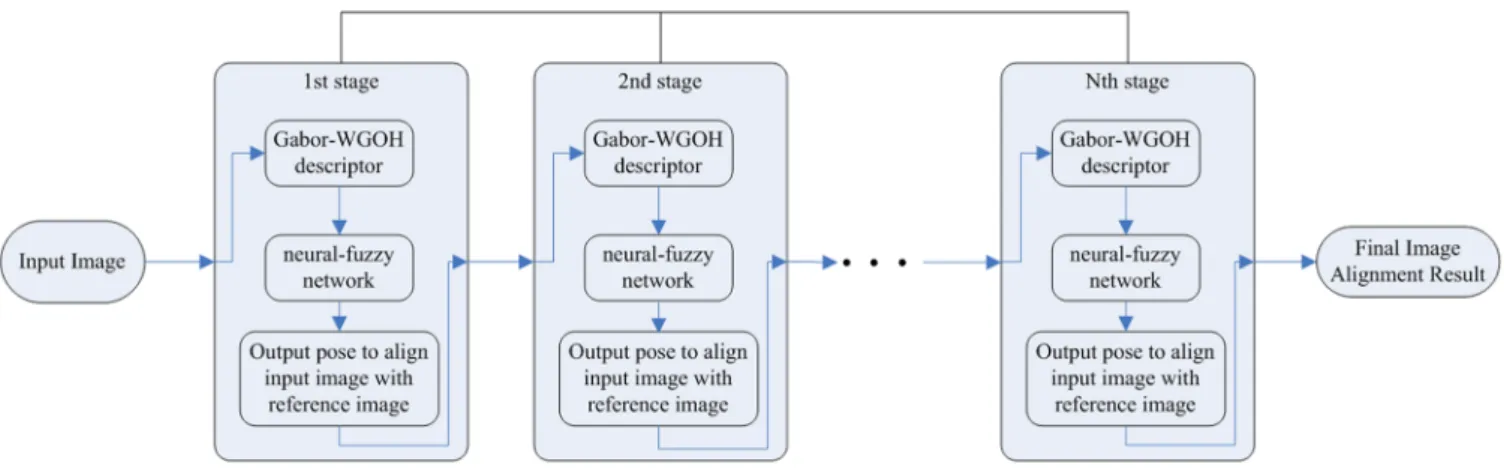

Figure2presents the process of the CNFN. Based on this figure, each stage deals with a certain range of affine para-meters, and all the stages cooperate to obtain a large range of affine parameters. As an input image with an unknown pose, the CNFN gradually reduces the pose difference between the input and the reference images. Thus, the final pose with respect to the reference image can be written as the following equation:
Pfinal¼ P1þ P2þ : : : þ PN; (3)
where P1, P2, and PNindicates the estimated pose from first,
second, and Nth stages of the neural network.
To perform training CNFN with providing the training data, this study proposes an ARMELA to accomplish it. In CNFN, once the range of affine parameters of each stage has been determined, each network can be trained inde-pendently. Thus, the learning process of each stage of CNFN is identical. Regarding this fact, only a one-stage ARMELA
is discussed. The details of ARMELA are introduced in Sec.3.
2.2 On-line Procedure
In the on-line phase, the sensed image is sent to the Gabor-WGOH descriptor to extract a feature vector and is then fed into ARMELA-trained CNFN to estimate the transformation parameters, which include the scaling factor s, rotation angle θ, and translation (Δx, Δy), to be incorporated into aligning images. Specifically, the proposed CNFN performs N-stages of the neural-fuzzy network (Fig. 2) to align the sensed image with the reference image gradually. Thus, the image alignment error will be reduced by stage. Finally, the best aligning pose with the reference image will be obtained. 3 Association Rule Mining-based Evolutionary
Learning Algorithm
In this work, ARMELA is based on a Takagi-Sugeon-Kang (TSK)-type neural-fuzzy network (TNFN)20 employing a linear combination of the crisp inputs as the consequent part of a fuzzy rule. The structure of the TNFN is shown in Fig.3. In the TNFN, the firing strength of a fuzzy rule is calculated by performing the “AND” operation on the truth values of each variable to its corresponding fuzzy sets by: uð3Þij ¼Y n i¼1 exp −½u ð1Þ i − mij 2 σ2 ij ; (4) where uð1Þi ¼ xiand u ð3Þ
ij are the outputs of the first and third
layers, and mij and σij are the center and the width of the
Gaussian membership function of the jth term of the ith input variable xi, respectively.
The output node of the fuzzy system integrates all of the actions recommended by the third and forth layers and acts
as a defuzzifier with: y¼ uð5Þ¼ Σ M j¼1u ð4Þ j Σ M j¼1u ð3Þ j ¼ Σ M j¼1u ð3Þ j w0jþ Σ n i¼1wijxi Σ M j¼1u ð3Þ j ; (5)
where uð5Þis the output of the fifth layer, wijis the weighting
value with ith dimension and jth rule node, and M is the num-ber of a fuzzy rule.
After determining the structure of the neural-fuzzy net-work, we discuss further the learning process of ARMELA. Instead of multi-groups cooperation-based symbiotic evolu-tion (MGCSE)21encoding the whole fuzzy rule into a chro-mosome, the proposed ARMELA encodes an antecedent part of a fuzzy rule into a chromosome. The consequent part of a fuzzy rule used in ARMELA is then estimated using L2 regularization. Such an operation not only reduces the number of parameters that must be trained but also increases the convergence speed. The following describes the details of the L2 regularization:
3.1 Regularization
Assume a TSK-type neural fuzzy model composed of m fuzzy rules in the following form:
Rj∶IF x1is A j 1: : : and xn is A j n; THEN yj¼ w j oþ wj1x1þ : : : þ w j nxn; (6)
where j¼ 1; : : : ; m and Ajiis the linguistic part with respect to input i and Rule j. From Eq. (6), the output can be written as follows: y¼ Σm j¼1ujyj Σm j¼1uj ¼ ^u1y1þ ^u2y2þ : : : þ ^umym; (7)
where uj is the firing strength of Rule j, and
^uj¼ uj∕ðu1þ : : : þ umÞ. Thus, expressing the equation
above into the following form is possible: y¼ ^u1ðw10þ w11x1þ : : : þ w1nxnÞ þ : : : þ ^umðwm0 þ w m 1x1þ : : : þ wmnxnÞ ¼ aW; (8) where W¼ ½WT 1 · · · WTmT, Wj¼ ½w j 0 · · · w j nT, j¼ 1; : : : m and a¼ 2 6 6 6 4 ^u1^u1x1 · · · ^u1xn ^u2^u2x1 · · · ^u2xn .. . ^um^umx1 · · · ^umxn 3 7 7 7 5 T :
As y and a are known values, the only unknown value is the consequent part W. Suppose a given set of training inputs and desired outputs is fxðtÞ; ydðtÞgMt¼1 Equation (8) can be
rewritten as:
AW ¼ Yd; (9)
where A¼ ½að1Þ að2Þ · · · aðMÞT.
In general, in most cases of the proposed alignment sys-tem, the number of training sets (i.e., M) is always much greater than the dimensions of each training picture. Regard-ing this fact, Eq. (9) is always an overdetermined system. Thus, a least-square method can be utilized to obtain an approximate solution. However, to obtain the smooth
estima-tion, the regularization is adopted. Thus, this method is called the L2 regularization. By using L2 regularization, the approximation solution is obtained as follows:
^
W ¼ ðATAþ λIÞ−1ATY
d; (10)
whereλ is a regularization parameter that adjusts the smooth-ness. Therefore, by obtaining Eq. (10), we complete the esti-mation of the consequent part of the fuzzy rules.
The chromosome structure to construct the TNFNs in ARMELA is discussed and shown in Fig.4. In this figure, each antecedent part of a fuzzy rule represents a chromosome selected from a group, Psizedenotes that there are Psizegroups
in a population, and Mkindicates that there are Mkrules used
in the TNFN construction.
3.2 ARMELA Procedure
The evolutionary process of ARMELA in each group involves seven major operators: initialization, SAM, ARSM, fitness assignment, reproduction strategy, crossover strategy, and mutation strategy. Figure5presents the learning process.
The detailed learning processes of ARMELA are described as follows:
Fig. 4 Chromosome structure to construct the TNFN in ARMELA.
Fig. 5 Learning process of ARMELA.
Table 1 Transactions in the ARSM.
Transaction index Groups Performance Index
1 1,4,8 g
2 2,4,7,10 b : : : : : : : : : Transaction Num 1,3,4,6,8,9 g
3.2.1 Initialization
Before ARMELA learning is applied, the initial groups of individuals should be generated. The initial groups of ARMELA are generated randomly within a fixed range. The following formulations show how to generate the initial chromosomes in each group:
Deviation∶chrg;c½p ¼ random½σmin; σmax;
where p¼ 2; 4; : : : ; 2n; g ¼ 1; 2; : : : ; Psize;
c¼ 1; 2; : : : ; NC;
(11)
Mean∶chrg;r½p ¼ random½mmin; mmax;
where p¼ 1; 3; : : : ; 2n − 1;
(12)
where Chrg;c represents cth chromosome in the gth group,
NC is the total number of chromosomes in each group, p
represents the pth gene in a Chrg;c and ½σmin; σmax
½mmin; mmax represent the predefined range to generate the
chromosomes.
3.2.2 Self-adaptive method
To select fuzzy rules automatically, the proposed ARMELA adopts our previous research (i.e., the SAM22) to determine
the suitability of the TNFN models with different fuzzy rules. The SAM encodes the probability vector VMk, which stands for the suitability of a TNFN with Mkrules. In addition, in
SAM, the minimum and maximum numbers of rules must be predefined to limit the number of fuzzy rules to a certain bound, that is,½Mmin; Mmax. The processing steps of SAM
are described as follows:
Step 1: Update the probability vectors VMk according to the following equations:
VMk¼ VMkþ ðUptvalueMk λÞ; if Avg ≤ fitMk VMk¼ VMk− ðUptvalueMk λÞ; otherwise
(13)
Fig. 6 Example of visual inspection images: (a) reference image, (b) transformed image with a scale of 0.9, a rotation of 10 deg, a vertical transla-tion of 5, and a horizontal translatransla-tion of 10.
Table 3 Affine parameters range of three-stage CNFNs.
Affine parameter
The coarse range of affine parameter
The medium range of affine parameter
The fine range of affine parameter Scale [0.7 to 1.3] [0.85 to 1.15] [0.9 to 1.1] Rotation (degrees) [−100 to 100] [−50 to 50] [−5 to 5] Vertical translation (pixels) [−100 to 100] [−30 to 30] [−5 to 5] Horizontal translation (pixels) [−100 to 100] [−30 to 30] [−5 to 5] Table 2 Target alignment range.
Affine parameter The range of affine parameter Scale [0.7 to 1.3]
Rotation (deg) [−100 to 100] Vertical translation (pixels) [−100 to 100] Horizontal translation (pixels) [−100 to 100]
Avg¼ X
Mmax
Mk¼Mmin
fitMk∕ðMmax− Mminþ 1Þ; (14)
UptvalueMk ¼ fitMk∕ X Mmax Mk¼Mmin fitMk; (15) if FitnessMk ≥ ðBestFitnessMk
− Thread Fitness valueÞ then fitMk ¼ fitMk þ FitnessMk;
(16)
where VMk is the probability vector, λ is a prede-fined threshold value, Avg is the average fitness value in the whole population, BestFitnessMk is the best fitness value of TNFN with Mk rules,
and fitMk is the sum of the fitness values of the TNFN with Mk rules.
Step 2: Determine the selection times of TNFN with different rules according to the probability vectors as follows: RpMk ¼ ðSelectionTimesÞ ðVMk∕TotalVelocyÞ;
for Mk¼ Mmin; Mminþ1; : : : ; Mmax;
(17)
TotalVelocy¼ X
Mmax
Mk¼Mmin
VMk; (18)
where selection_Times is the total selection times in each generation, and RpMk is the selection times of
TNFN with Mkrules in one generation.
Step 3: Accumulator calculation: If the current best combi-nation of chromosomes does not improve, then the accumulator can be computed as follows:
if BestFitnessg¼ BestFitness;
then Accumulator¼ Accumulator þ 1;
(19)
where BestFitnessg is the best fitness value of the
best combination of chromosomes in the gth gen-eration, and Best_Fitness is the best fitness value of the best combination of chromosomes in the cur-rent generations.
3.2.3 The association rule selection method
Following the selection times determined by SAM, the selec-tion steps, including the selecselec-tion of chromosomes and groups, are performed. In chromosome selection, chromo-somes are randomly selected from groups. In the group selection, this paper proposes the use of ARSM to determine the suitable groups for chromosome selection. To prevent the selected groups from falling into the local optimal solution, ARSM uses a transaction built action and an association rule mining action to select the well-performing groups. The details of ARSM are described in the following actions:
Fig. 7 Recursive training curve of performing the self-organized train-ing data–yielding method: (a) coarse range, (b) medium range, and (c) fine range.
Step 1: Transaction built action.
The aims of this action are twofold: to accumulate the transaction set and to select groups. Regarding the accumulation of transaction set, the transactions are built using the following equations:
if FitnessMk ≥ ðBest FitnessMk − Thread Fitness valueÞ Transactionj½i ¼ TFC Rule SetMk½i then Performance Index¼ g;
(20)
if FitnessMk <ðBest FitnessMk − Thread Fitness valueÞ Transactionj½i ¼ TFC Rule SetMk½i then Performance Index¼ b;
(21)
where i¼ 1; 2; : : : ; Mk, Mk¼ Mmin; Mminþ1; : : : ;
Mmax, j¼ 1; 2; : : : ; TransactionNum, the
FitnessMk is the fitness value of TNFN with Mk
rules, ThreadFitnessvalue is a predefined value, TransactionNum is the total number of transactions, Transactionj½i is the ith item in the jth transaction,
TFC Rule SetMMk½i is the i is the ith group in the Mk groups used for chromosomes selection, and
Performance Index¼ g and Performance Index ¼ b represent the good and bad performance, respec-tively. Hence, transactions have the form shown in Table 1. As shown in Table 1, the first transaction indicates that the three-rule TNFN formed by the first, fourth, and eighth groups have“good” perfor-mance. In contrast, the second transaction indicates that the four-rule TNFN formed by the second, fourth, seventh, and the tenth groups have “bad” performance.
Regarding the group selection, ARSM selects groups using the following equation:
if Accumulator≤ Normal times Group Index¼ Random½1; Psize;
(22)
where i¼ 1; 2; : : : Mk, Mk¼ Mmin,Mminþ1; : : : ;
Mmax, Accumulator is used to determine which
action should be adopted, GroupIndex½i is the selected ith group of the Mkgroups, and PSize
indi-cates that there are PSize groups in a population in
ARMELA. If the best fitness value does not improve for a sufficient number of generations (Normal Times), then ARSM selects groups accord-ing to the association rule minaccord-ing action.
Step 2: Association rule mining action.
In the transaction-built action, suitable groups are randomly selected from populations. In the associa-tion rule mining acassocia-tion, suitable groups are selected according to the association rules. To consider the association rules further, they can be found using three steps: (1) obtain the frequently occurring groups from FP-growth, (2) generate association rules, and (3) select suitable groups. The details of these three steps are presented as follows. i. Finding frequently occurring groups:
In this step, only good groups, whose perfor-mance index is “g” in Table1, are performed by finding the frequently occurring groups; bad groups are left out. Thus, frequently occur-ring groups can be found according to the pre-defined Minimum_Support, which stands for the minimum fraction of transactions contain-ing the item set. After Minimum_Support is defined, this paper adopts the FP-growth algo-rithm23 to perform frequent pattern mining. In FP-growth, frequently occurring groups can be found by exploring the FP-tree.23 After exploring the frequently occurring groups in the FP-tree, FP-growth data mining is com-pleted by the concatenation of the suffix group23with the generated frequently occurring
groups. Thus, in this paper, frequent groups denote the frequently occurring groups found by FP-growth algorithm.
ii. Generating association rules.
To produce the association rules with good per-formance, the frequent groups must combine with the groups with bad performance shown in Table 1 to count the confidence degree, which can be computed by the following for-mula:
confidenceðfrequent groups ⇒ goodÞ ¼ Pðgoodjfrequent groupsÞ
¼ suppðfrequent groups ∪ goodÞ
suppðfrequent groups ∪ goodÞ þ suppðfrequent groups ∪ badÞ; (23)
where Pðgoodjfrequent groupsÞ is the condi-tional probability, frequent groups∪ good or bad is the union of frequent groups and good or bad performance, and suppðfrequent groups ∪ good or badÞ is the counts of frequent groups
with good or bad performance occurring in transactions. Then, the rule is valid if confidenceðfrequent groups ⇒ goodÞ
where minconf is the minimal confidence given by a user or an expert. Hence, we can infer that if a rule satisfies Eq. (24), then the frequent groups can be considered as the suitable groups. For example, if the confidence off2; 5; 8g ⇒< fgg is larger than the minimum confidence, we produce this association rule, which indicates that the combination of the second, fifth, and eighth groups have “good” performance. After doing so, the frequent groups are con-ducted to produce association rules and generate the Associated Good Pool, which contains all frequent groups that satisfy Eq. (24).
iii. Selecting suitable groups.
After the association rules are constructed, ARSM selects groups according to the asso-ciation rules. The group indexes are selected from the associated good groups according to the following equations:
if Normal Times < Accumulator ≤ ExploreTimes then GroupIndex½i ¼ w; where w¼ Good ItemSet½q
¼ Random½AssociatedGood Pool; (25)
where q¼ 1; 2; : : : ;Associated Goodpool Num, i¼ 1; 2; : : : Mk, Mk¼ Mmin, Mminþ1;
: : : ; Mmax, Explore Times is a predefined
value that judge to perform the association rule mining action, Associated Good Pool is the sets of good item set obtained from the association rules, Associated Good Pool Num is the total number of sets in Associated Good Pool, and GoodItemSet½i presents a good item set randomly selected from Asso-ciated Good Pool. In the Eq. (25), if Mk is
greater than the size of GoodItem Set, the remaining groups are selected using Eq. (22). Step 3: If the best fitness value does not improve for a suf-ficient number of generations (Explore Times), ARSM selects groups based on the transaction built action and sets Accumulator¼ 0.
Step 4: After the Mkgroups are selected, Mkchromosomes
are selected from Mk groups as follows:
Chromosome Index½i ¼ q; (26)
where q¼ Random½1; Nc, i ¼ 1; 2; : : : ; k, Nc is
the total number of chromosomes in each group, and ChromosomeIndex½i is the index of a chromo-some that is selected from the ith group.
3.2.4 Fitness assignment
To assign the fitness value of an individual, the following detailed steps in the fitness value assignment are performed:

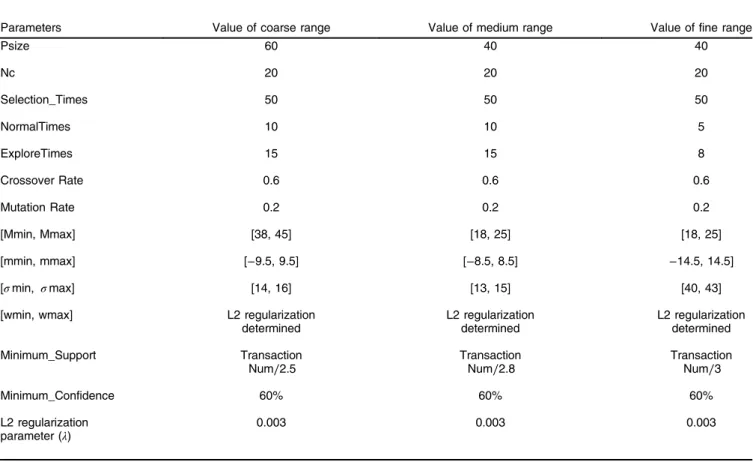

Table 4 Initial parameters of ARMELA training.
Parameters Value of coarse range Value of medium range Value of fine range
Psize 60 40 40 Nc 20 20 20 Selection_Times 50 50 50 NormalTimes 10 10 5 ExploreTimes 15 15 8 Crossover Rate 0.6 0.6 0.6 Mutation Rate 0.2 0.2 0.2 [Mmin, Mmax] [38, 45] [18, 25] [18, 25] [mmin, mmax] [−9.5, 9.5] [−8.5, 8.5] −14.5, 14.5] [σ min, σ max] [14, 16] [13, 15] [40, 43] [wmin, wmax] L2 regularization
determined L2 regularization determined L2 regularization determined Minimum_Support Transaction Num∕2.5 Transaction Num∕2.8 Transaction Num∕3 Minimum_Confidence 60% 60% 60% L2 regularization parameter (λ) 0.003 0.003 0.003
Fig. 8 Alignment results of different systems: (a) ground truth, (b) proposed system, (c) DCT, (d) FFT, (e) KICA, and (f) ISOMAP.

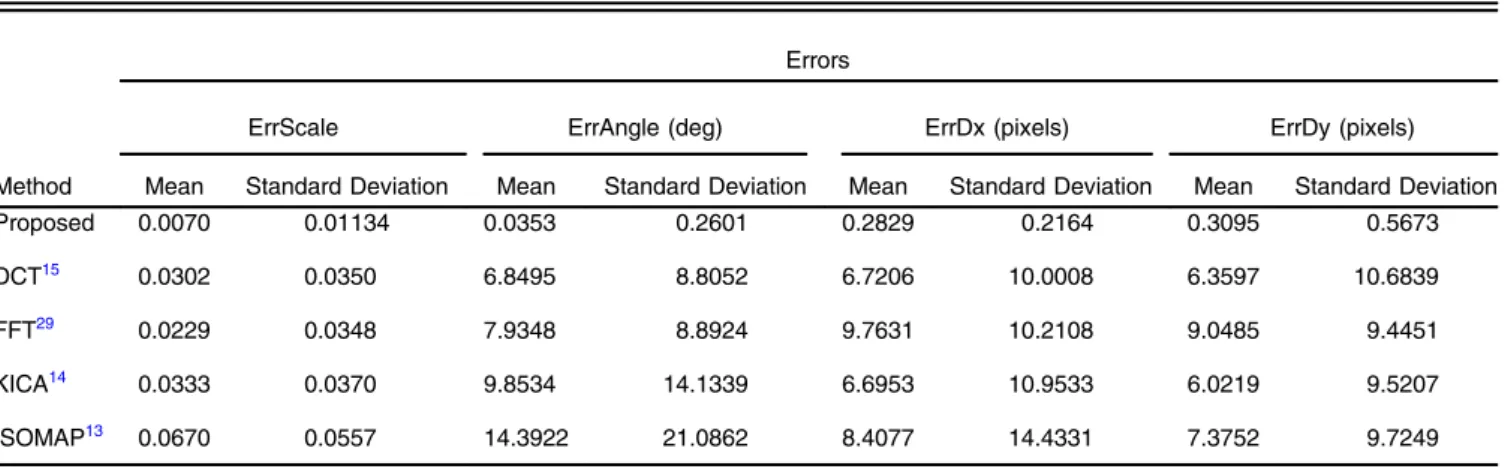

Table 5 Alignment errors in different image alignment systems.
Method
Errors
ErrScale ErrAngle (deg) ErrDx (pixels) ErrDy (pixels) Mean Standard Deviation Mean Standard Deviation Mean Standard Deviation Mean Standard Deviation Proposed 0.0070 0.01134 0.0353 0.2601 0.2829 0.2164 0.3095 0.5673 DCT15 0.0302 0.0350 6.8495 8.8052 6.7206 10.0008 6.3597 10.6839 FFT29 0.0229 0.0348 7.9348 8.8924 9.7631 10.2108 9.0485 9.4451 KICA14 0.0333 0.0370 9.8534 14.1339 6.6953 10.9533 6.0219 9.5207 ISOMAP13 0.0670 0.0557 14.3922 21.0862 8.4077 14.4331 7.3752 9.7249
Step 1: Choose Mkantecedent part of fuzzy rules using L2
regularization to construct a TNFN RpMktimes from
Mk groups with size NC. The Mk groups are
obtained from the ARSM.
Step 2: Evaluate every TNFN that is generated from Step1 to obtain a fitness value. In this paper, the fitness value is designed according to the following formu-lation:
Fitness Value¼ 1∕ð1 þ Eðy; ¯yÞÞ; (27)
where Eðy; ¯yÞ ¼X
N i¼1
ðyi− ¯yiÞ2; (28)
where yiand y −
irepresents the desired and predicted
values of the ith output, respectively, Eðy; ¯yÞ is an error function and N represents the number of the training data in each generation.
Step 3: Divide the fitness value by Mkand accumulate the
divided fitness value to the selected antecedent part of fuzzy rules with their fitness value records. Step 4: Divide the accumulated fitness value of each
chro-mosome from Mk groups by the number of times
that it has been selected.
3.2.5 Reproduction strategy
This study utilizes our previous research, namely, elite-based reproduction strategy (ERS),21 to perform reproduction. In ERS, every chromosome in the best combination of Mk
groups must be kept by performing the reproduction step. In the remaining chromosomes in each group, this study uses the roulette-wheel selection method24for the
reproduc-tion process. The well-performing chromosomes in the top half of each group25 proceed to the next generation. The other half is created by executing crossover and mutation operations on the chromosomes in the top half of the parent individuals.

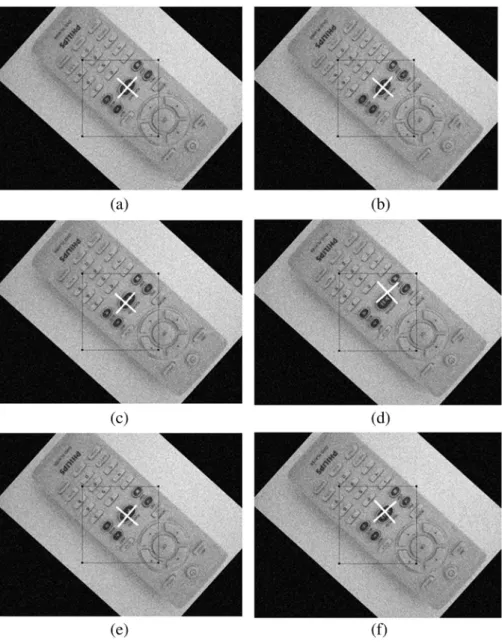

Fig. 9 Alignment results of different systems under a 10-dB SNR condition: (a) ground truth, (b) the proposed system, (c) DCT, (d) FFT, (e) KICA, and (f) ISOMAP.
3.2.6 Crossover strategy
The main method to attain the inheritance of parents is the crossover operator, the operation of which occurs for a selected pair with a crossover rate. In this paper, a two-point crossover strategy24 is adopted. The benefits of the two-point crossover are the ability to introduce a higher degree of randomness into the selection of genetic material26 and the ability to yield better performance than one-point crossover.27
3.2.7 Mutation strategy
Mutation can randomly alter the allele of a gene. In this paper, uniform mutation24 is adopted. The mutated gene is
drawn randomly from the domain of the corresponding vari-able. The major advantage of uniform mutation is its ability to provide new and highly diverse information for a popu-lation.28
• Termination condition.
The aforementioned seven operators are performed repeatedly and are stopped when the number of generations reaches a predefined value or when the fit-ness value is greater than the fitfit-ness limit.
4 Experimental Results
In this section, the visual inspection images with a size of 640× 480 pixels are utilized to verify the utility of the pro-posed alignment method. Figure6demonstrates such images whose left and right sides are the reference and transformed images, respectively. In this figure, the dashed window of the image represents the template window with a size of 200× 200 pixels, and the cross sign denotes the reference location of the template. Furthermore, Table2defines the target align-ment range for aligning the visual inspection images. All image alignment systems mentioned in this section are implemented to reach the target alignment range.

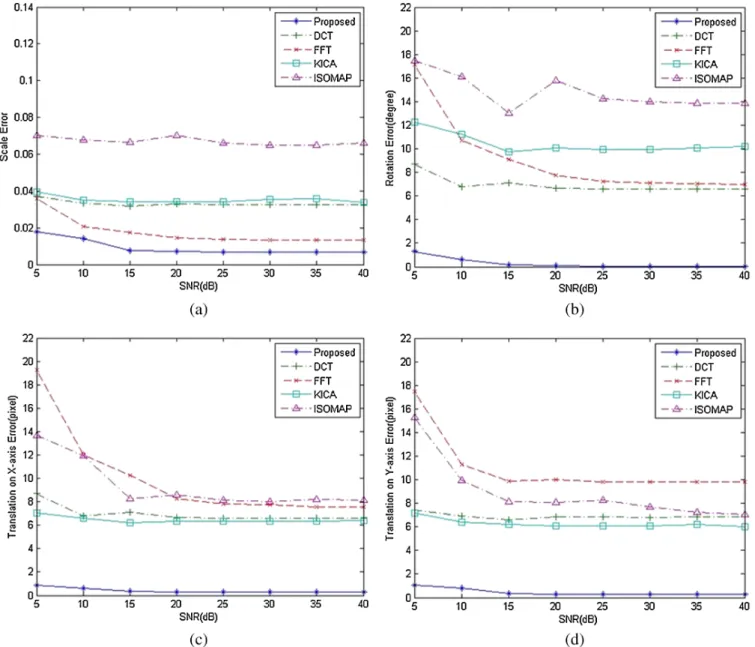

Fig. 10 Comparison of the average affine transformation errors using the proposed method, DCT, FFT, KICA, and ISOMAP under various SNRs: (a) error with respect to scale, (b) rotation, (c) translation on X-axis, and (d) translation on Y-axis.
All experiments are performed by using an Intel Core i7 860 chip with a 2.8 GHz CPU, a 3G memory, and the Matlab 7.5 simulation software.
4.1 Cooperative Neural-Fuzzy Network with the ARMELA Training
To achieve the target alignment range defined in Table2, we choose three ranges of affine parameters described in Table3
to accomplish the three-stage CNFNs. In this table, each range contains a single neural-fuzzy network, and these ranges cooperate to adapt to a coarse image alignment level. For the supply suitable training data for networks, this paper uses the self-organized training data-yielding method to generate 1165, 137, and 219 training data for coarse, medium, and fine alignment ranges, respectively. The map of recursive loop versus increased training data for each range defined in Table 3 is shown in Fig. 7. Based on this figure, the number of the increased training data decreases gradually and then self-organizes.
Prior to performing the training, the initial parameters of ARMELA are given in Table 4. Based on the training feature vectors and initial parameters, we perform the
coarse, medium, and fine ARMELA training individually. These three-stage training stops when the fitness is greater than the predefined value. Therefore, once the training process has been performed, our image alignment system can be concluded to reach the target range defined in Table2.
4.2 Comparison with Existing Neural Network-based Image Alignment Systems
To compare the proposed system with other existing neural network-based systems,13–15,29 this paper carefully imple-ments these systems according to the descriptions in their original paper. In this experiment, two typical comparisons including the alignment accuracy and robustness are dis-cussed in the following parts.
4.2.1 Alignment accuracy
In the training phase, as utilizing the same number of training images (i.e., 1165þ 137 þ 219 ¼ 1521) as in the proposed CNFN on traditional neural network–based methods13–15,29 can yield large alignment error, we randomly generate
another 4400 training images from the target alignment range described in Table2for training traditional methods. In the testing phase, we examine the alignment accuracy of the pro-posed and other systems by using the same 600 testing images randomly generated from the target alignment range. Figure 8 presents an example of a synthesized testing image on five different systems. The cross sign in Fig. 8
denotes the estimated results. In this figure, the proposed sys-tem can estimate more accurate position and orientation of the cross sign than other systems.
To proceed to analyze the alignment accuracy, Table 5
describes the average and standard deviation error of five image alignment systems for 15 runs using different testing images. From this table, the proposed system exhibited the lowest alignment error than other systems. The result indi-cates that the proposed CNFN not only gets much higher alignment accuracy but also using fewer training data to reach better performance than other one-stage neural net-work methods.
4.2.2 Alignment Robustness
In this subsection, we verify further the robustness of the pro-posed image alignment system by adding different levels of random Gaussian noise. To achieve the aim of testing the robustness, 600 testing images are randomly generated with the addition of various strengths of Gaussian noise to examine different image alignment systems.
Figure9 illustrates an image alignment example under a 10-dB SNR condition. From this figure, the proposed system depicts more accurate cross sign location than other methods. Figures 10(a)–10(d) present the results of the absolute errors of the affine parameters under eight levels of SNR. As shown in these figures, the proposed system demonstrates much lower affine parameters error than other systems. This result indicates that the adopted Gabor-WGOH descriptor is not disturbed by a high noise level, and so is the proposed ARMELA-trained CNFN.
4.3 Real-Image Alignment Testing
In addition to the synthesized images, real-image testing cases are used to verify the alignment performance of the proposed system. Figures11(a)–11(e)depict the experimen-tal results of aligning the same real image utilizing the pro-posed system, discrete cosine transform (DCT), FFT, kernel independent component analysis (KICA), and ISOMAP, respectively. The proposed system demonstrates a more pre-cise position and rotation of the cross sign than other sys-tems. Thus, applying the proposed image alignment system to real-image alignment cases is feasible.
5 Conclusion
In this paper, the use of a CNFN with an ARMELA to perform image alignment tasks is proposed. The proposed CNFN offers a larger range of affine transformation and higher alignment accuracy in comparison with other traditional one-stage neural network–based approaches. Moreover, the self-organized training data-creating method can supply proper training data and prevent the selection of redundant ones for each stage of CNFN such that the total amount of training data decreases. The proposed ARMELA is a useful learning method for training CNFN such that the trained network can
estimate affine parameters accurately. This evidence can be found in the experimental results of both synthesized and real-images cases. The results show that the proposed align-ment system can reach a high accuracy and noise robustness level. In summary, this finding is helpful in developing accu-rate and robust image alignment systems.
Although the proposed model can demonstrate high per-formance, it still has some limitations. Specifically, as the application problem becomes more complicated, the number of cooperative neural-fuzzy networks would increase. Such condition leads the proposed model to suffer from the diffi-culty of choosing the suitable number of cooperative net-works. If the unsuitable number of networks is chosen, the overall system will yield large estimated errors. There-fore, future works should identify a well-defined method to determine the number of cooperative neural-fuzzy networks automatically. Moreover, the noise consideration is only the Gaussian case and it is not sufficient in every case. Thus, in future studies, more noise cases should be considered to demonstrate the robustness of the proposed algorithm. Acknowledgments
The authors thank the reviewers for their constructive com-ments and suggestions.
References
1. X. J. Liu, J. Yang, and H. B. Shen,“Automatic image registration by local descriptors in remote sensing,”Opt. Eng.47(8), 087206 (2008). 2. X. M. Peng, W. Chen, and Q. Ma,“Feature-based nonrigid image regis-tration using Hausdorff distance matching measure,”Opt. Eng.46(5), 057201 (2007).
3. D. Skea et al.,“A control point matching algorithm,”Pattern Recogn.26 (2), 269–276 (1993).
4. S. Manickam, S. D. Roth, and T. Bushman,“Intelligent and optimal normalized correlation for high-speed pattern matching,” NEPCON. WEST 2000, February 27–March 2 (2000).
5. R. J. Althof, M. G. J. Wind, and J. T. Dobbins,“A rapid and automatic image registration algorithm with subpixel accuracy,”IEEE Trans. Med. Imag.16(3), 308–316 (1997).
6. L. M. G. Fonseca and B. S. Manjunath,“Registration techniques for multisensor remotely sensed imagery,” Photogrammetric Eng. Remote Sens. 62(9), 1049–1056 (1996).
7. S. Kaneko, I. Murase, and S. Igarashi,“Robust image registration by increment sign correlation,”Pattern Recogn.35(10), 2223–2234 (2002). 8. G. D. Evangelidis and E. Z. Psarakis,“Parametric image alignment using enhanced correlation coefficient maximization,” IEEE Trans. Pattern Anal. Mach. Intell.30(10), 1858–1865 (2008).
9. M. Amintoosi, M. Fathy, and N. Mozayani,“Precise image registration with structural similarity error measurement applied to superresolution,” EURASIP Journal on Advances in Signal Processing 2009, Article ID 305479, 7 pages (2009).
10. B. Zitova and J. Flusser,“Image registration methods: A survey,” Image Vis. Comput. 21(11), 977–1000 (2003).
11. I. Elhanany et al.,“Robust image registration based on feedforward neural networks,” in Proceedings of IEEE International Conference on System, Man and Cybernetic, Vol. 2, pp. 1507–1511, IEEE, New York, NY, USA (2000).
12. J. Wu and J. Xie,“Zernike moment-based image registration scheme utilizing feedforward neural networks,” in Proceedings of the 5th World Congress on Intelligent Control and Automation, Vol. 5, pp. 4046–4048, IEEE, New York, NY, USA (2004).
13. A. B. Xu and P. Guo,“Isomap and neural networks based image regis-tration scheme,” Lect. Notes Comput. Sci. 3972, 486–491 (2006). 14. A. B. Xu and P. Guo,“Image registration with regularized neural
net-work,” Lect. Notes Comput. Sci. 4233, 286–293 (2006).
15. H. Sarnel, Y. Senol, and D. Sagirlibas,“Accurate and robust image registration based on radial basis neural networks,” in IEEE Interna-tional Symposium on Computer and Information Sciences, pp. 1–5, SPRINGER, New York, NY, USA (2008).
16. D. Lowe,“Distinctive image features from scale-invariant keypoints, ”
Int. J. Comput. Vis.60(2), 91–110 (2004).
17. D. M. Bradley et al.,“Real-time image-based topological localization in large outdoor environments,” in Proceedings of IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pp. 3670–3677, IEEE, New York, NY, USA (2005).
18. M. Hofmeister, M. Liebsch, and A. Zell,“Visual self-localization for small mobile robots with weighted gradient orientation histograms,” in 40th International Symposium on Robotics (ISR), pp. 87–91, AER-ATP, Spain (2009).
19. P. Moreno, A. Bernardion, and J. S. Victor, “Improving the SIFT descriptor with smooth derivative filters,” Pattern Recogn. Lett. 30 (1), 18–26 (2009).
20. T. Takagi and M. Sugeno,“Fuzzy identification of systems and its appli-cations to modeling and control,” IEEE Trans. Syst. Man Cybern. 15(1), 116–132 (1985).
21. Y. C. Hsu, S. F. Lin, and Y. C. Cheng,“Multi groups cooperation based symbiotic evolution for TSK-type neuro-fuzzy systems design,”Expert Syst. Appl.37(7), 5320–5330 (2010).
22. S. F. Lin and Y. C. Cheng,“Two-strategy reinforcement evolutionary algorithm using data-mining based crossover strategy with TSK-type fuzzy controllers,” Int. J. Innovat. Comput. Control 6(9), 3683–3885 (2010).
23. J. Han, J. Pei, and Y. Yin,“Mining frequent patterns without candidate generation,” in Proc. ACM-SIGMOD, pp. 1–12, ASSOC COMPUTING MACHINERY, New York, NY, USA (2000).
24. O. Cordon et al., Genetic fuzzy Systems Evolutionary Tuning and Learning of Fuzzy Knowledge Bases, Advances in Fuzzy Systems-Applications and Theory, Vol. 19, World Scientific Publishing, NJ (2001).
25. C. F. Juang, J. Y. Lin, and C. T. Lin,“Genetic reinforcement learning through symbiotic evolution for fuzzy controller design,” IEEE Trans. Syst. Man Cybern. Part B: Cybernetics, 30(2), 290–302 (2000). 26. E. Cox, Fuzzy Modeling and Genetic Algorithms for Data Mining and
Exploration, Morgan Kaufmann Publisher (2005).
27. G. Lin and X. Yao,“Analysing crossover operators by search step size,” in IEEE International Conference on Evolutionary Computation, pp. 107–110, IEEE, New York, NY, USA (1997).
28. I. Dempsey,“Constant generation for the financial domain using gram-matical evolution,” in Genetic and Evolutionary Computation Confer-ence workshop program, ACM Press, New York, NY, USA, pp. 350– 353 (2005).
29. A. B. Abche et al.,“Image registration based on neural network and Fourier transform,” in Proceedings of the 28th IEEE EMBS annual international conference, pp. 803–4806, IEEE, New York, NY, USA (2006).
Chi-Yao Hsu received his BS in Department of Electrical Engineering from National Taiwan Ocean University, Taiwan, in 2001 and his MS in Department of Electrical Engi-neering from National Central University, Taiwan, in 2003. He is currently pursuing his PhD in the Department of Electrical Engi-neering, National Chiao-Tung University, Taiwan. His research interests lie in the areas of neural networks, fuzzy systems, evolutionary algorithms, pattern recognition, and computer vision.
Yi-Chang Cheng received his BS in engi-neering science from the Cheng Kung University, Taiwan, R.O.C., in 2005. He is currently pursuing his PhD at the Department of electrical and control engineering from the National Chiao Tung University, Taiwan, R.O.C. His research interests include neural networks, fuzzy systems, evolutional algo-rithms, and genetic algorithms.
Sheng-Fuu Lin received his BS and MS degrees in mathematics from National Nor-mal University in 1976 and 1979, respec-tively, his MS in computer science from the University of Maryland in 1985, and his PhD in electrical engineering from the Univer-sity of Illinois, Champaign, in 1988. Since 1988, he has been on the faculty of the Department of Electrical and Control Engi-neering at National Chiao Tung University, Hsinchu, Taiwan, where he is currently a pro-fessor. His research interests include fuzzy systems, genetic algo-rithms, neural networks, automatic target recognition, scheduling, image processing, and image recognition.
