coding systems. Therefore, an efficient prediction scheme is neces-sary for encoding. In this paper, a new fast prediction algorithm, content-aware prediction algorithm (CAPA) with inter-view mode decision, is proposed. By utilizing disparity estimation (DE) to find corresponding blocks between different views, the coding information, such as rate-distortion cost, coding modes, and mo-tion vectors, can be effectively shared and reused from the coded view channel. Therefore, the computation for motion estimation (ME) in most view channels can be greatly reduced. Experimental results show that compared with the full search block matching algorithm (FSBMA) applied to both ME and DE, the proposed algorithm saves 98.4–99.1% computational complexity of ME in most view channels with negligible quality loss of only 0.03–0.06 dB in PSNR.
Index Terms—3-D video, disparity estimation, H264/AVC, mo-tion estimamo-tion, multiview video coding.
I. INTRODUCTION
M
ULTIVIEW video can provide users with a sense of complete scene perception by transmitting several views to the receivers simultaneously. It can give users a vivid information about the scene structure. Moreover, it can also provide the capability of 3-D perception by respectively showing two of these frames to the eyes. With the technology of 3D-TV [1], [2] and free viewpoint TV (FTV) [3]–[5] getting more and more mature, multiview video coding (MVC) draws more and more attention. Besides, some multiple camera arrays have also been proposed for 3D video applications [6], [7] as shown in Fig. 1. In recent years, JVT/MPEG 3D auido/videoManuscript received November 14, 2007; revised June 20, 2008. Current ver-sion published December 10, 2008. This work was supported in part by the Na-tional Science Council, Taiwan, under Grant NSC96-2622-E-002-012-CC3 and by the scholarship of Hsing Tian Kong Culture and Education Development Foundation. The associate editor coordinating the review of this manuscript and approving it for publication was Prof. Kiyoharu Aizawa..
L.-F. Ding, P.-K. Tsung, W.-Y. Chen, and L.-G. Chen are with the DSP/IC Design Lab, Graduate Institute of Electronics Engineering and Depart-ment of Electrical Engineering, National Taiwan University, Taipei 10617, Taiwan (e-mail: [email protected]; [email protected]; [email protected]; [email protected]).
S.-Y. Chien is with the Media IC and System Laboratory, Graduate Insti-tute of Electronics Engineering, Department of Electrical Engineering, National Taiwan University, Taipei 10617, Taiwan (e-mail: [email protected]).
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/TMM.2008.2007314

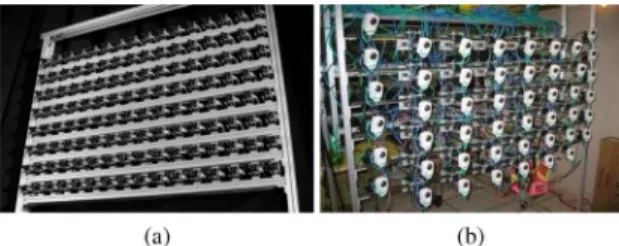

Fig. 1. Multiple camera arrays that have been built. (a) 128-camera array [6]. (b) Self-configurable camera array [7].
(3DAV) group has worked toward the standardization for MVC [8], which also advances the multiview video applications. From the discussion in JVT/MPEG 3DAV meetings, the devel-oped coding scheme for multiview video settings mainly uses H.264/AVC with exploiting temporal and inter-view depen-dencies [9]. That is, many coding tools of MVC in the related research area are based on the hybrid coding scheme and highly related to H.264/AVC [10].
Although MVC is an emerging technology, huge amount of video data and ultra high computational complexity make it difficult to be realized. An H.264/AVC encoder requires com-puting power of about 1.3 tera-operations/second (TOPS) on a general-purpose processor to encode single-view HDTV720p videos (1280 720, 30 frames/second) in real time [11]. Dif-ferent from mono-view video coding, disparity estimation (DE) is also utilized to reduce inter-view redundancy in MVC. Many DE algorithms have been proposed [12]–[15] to enhance the quality of the depth map for view synthesis or other intelli-gent video processing. Taking coding efficiency into considera-tion, block-based DE, like motion estimation (ME), is more ap-propriate for MVC because it has better compatibility with the existing video coding standards. Consequently, the prediction part, which consists of ME and DE, becomes the most compu-tationally intensive part in an MVC system. Taking a three-view coding structure shown in Fig. 2 as an example, an instruc-tion profiling of this coding structure is analyzed, as shown in Table I. It shows that the prediction part occupies 95% compu-tational complexity in an MVC system. The proportion is even higher in some MVC systems with more complex coding struc-tures. Therefore, ultra high computational complexity is a crit-ical design challenge for MVC, especially in the prediction part. In an MVC system, ME removes the temporal redundancy while DE removes the inter-view redundancy. Because of the setup structure of multiple cameras, there is close relation between motion vectors and disparity vectors in neighboring
Fig. 2. Illustration of an example of a three-view coding structure. The white blocks represent frames, and the arrows represent prediction directions.
frames. The correlation is shown in Fig. 3. It can be described as [16], [17]
(1) By utilizing the correlation between motion and disparity fields, some new coding methods for MVC have been pro-posed [18]–[20]. Guo et al. have propro-posed an inter-view motion model to model the temporal motions at different views [18]. “Inter-view direct mode” has been introduced to enhance the coding efficiency. Although the target of 4%–6% bit-rate saving is achieved, the complexity is increased due to additional global DE. On the other hand, according to the correlation between views, another kind of redundancy called “computational redundancy” exists in addition to temporal and inter-view redundancies. Based on this concept, a fast prediction algorithm has been proposed to save the computa-tion of ME for stereo video coding in our previous work [19]. However, the coding structures in MVC are more complex than that in stereo video coding. Besides, the previous work cannot deal with variable-block-size ME and complex mode decision. Moreover, Lai et al. have proposed predictive fast motion and disparity search. They track along the first estimated field (dis-parity/motion field) to get candidate vectors for the other field (motion/disparity field) [20]. Great computational complexity is saved with quality loss of 0.1–0.2 dB in PSNR. However, the ME with variable block size is not taken into consideration in their predictive search as well. In summary, all of the previous
TABLE I
INSTRUCTIONANALYSIS OF ANMVC ENCODERWITH THE
CODINGSTRUCTURESHOWN INFIG. 2
Fig. 3. Rrelation between disparity vectors and motion vectors.
work only reuses motion or disparity vectors from other views or time slots. There are still some inter-view coding informa-tion, such as rate-distortion cost and coding modes. They can be further adopted for complex mode decision and complexity reduction.
In this paper, a new fast prediction algorithm, content-aware prediction algorithm (CAPA) with inter-view mode decision, is proposed for MVC. Based on the fact that the video contents are highly related between view channels, the proposed algo-rithm greatly reduces computational complexity while main-tains video quality. The remainder of the paper is organized as follows. Section II describes the analysis of macroblock pre-diction modes in MVC. Next, the proposed CAPA is presented in Section III. Section IV shows the simulation results. Finally, Section V concludes this paper.
II. ANALYSIS OFMACROBLOCKPREDICTIONMODES INMVC First, the coding structure of MVC is introduced. Many coding structures have been evaluated [21]. However, there
(2)
Fig. 4. Illustration of an MVC structure. The arrows represent the prediction directions, and the gray regions are the search windows forB .
is no unique coding structure which is appropriate for every video sequence. The selection of coding structures highly relies on the video contents and the corresponding camera setup. Fig. 4 shows the illustration of one coding structure, where the prediction directions of ME and DE are represented by arrows. For convenience of interpretation, the view channel is regarded as the left channel, and the view channel is regarded as the right channel. There are two types of compen-sated blocks. They are the motion-compencompen-sated blocks and the disparity-compensated blocks, which are illustrated as and in Fig. 4, respectively. According to Lagrangian mode decision, the best type of compensated blocks is selected. For each macroblock in the current frame, the costs of ME and DE are computed by (2)–(3), as shown at the bottom of the pre-vious page, where and are the minimum costs of motion-compensated and disparity-compensated blocks, respectively. is the current block in the right channel. is a block of the reference frame in the right channel. is a block of the reference frame in the left channel.
and are the search windows for the current block . After ME and DE, the best matched blocks in the two search windows can be derived. Then the final prediction mode can be decided by selecting the one with lower cost.
There are several prediction modes defined in H.264/AVC standard. In our analysis of mode distribution, the prediction modes are classified into four categories, that is, INTER_ME, INTER_DE, INTRA, and SKIP modes. As shown in Fig. 5, the current macroblock can be predicted by ME from the reference frame in the same view channel, where INTER_ME mode can remove temporal redundancy. On the other hand, INTER_DE mode can remove inter-view redundancy by DE from the ref-erence frame in the neighboring view channel. If the inter pre-diction cannot predict well, INTRA mode can predict the cur-rent macroblock by utilizing boundary pixels in the neighboring macroblocks. Moreover, SKIP mode utilizes the motion vector predictor to predict the current macroblock without performing inter prediction. It not only reduces the computational com-plexity but also saves the coding bits for motion vectors. The mode decision between INTER_ME and INTER_DE is closely
Fig. 5. Current macroblock can be predicted by various prediction modes. These prediction modes are classified into four categories: INTER_ME, INTER_DE, INTRA, and SKIP modes.
related to video contents [19]. Therefore, the mode classifica-tion can reflect the features of video contents.
According to the classification, Fig. 6 shows the mode distribution with various quantization parameters (QPs). It shows that the distribution of INTER_ME and SKIP mode has larger variation with various QPs. SKIP mode is the dominant mode at lower bit-rates (high QPs), while INTER_ME and INTRA modes are dominant at higher bit-rates (low QPs). The distribution is similar to that in mono-view video coding. The main difference between mono- and multiview video coding is INTER_DE mode, which is used in 5–10% macroblocks in a frame. The percentage of INTER_DE-mode macroblocks relies on the video contents. As shown in Fig. 6(c), the moving ob-jects are usually predicted by INTER_DE because INTER_ME cannot predict well in the areas.
It is observed that certain types of macroblocks which are originally encoded by INTRA mode in mono-view video coding are encoded by INTER_DE mode in MVC. Fig. 7 shows the statistics of the ratio that INTRA mode is replaced

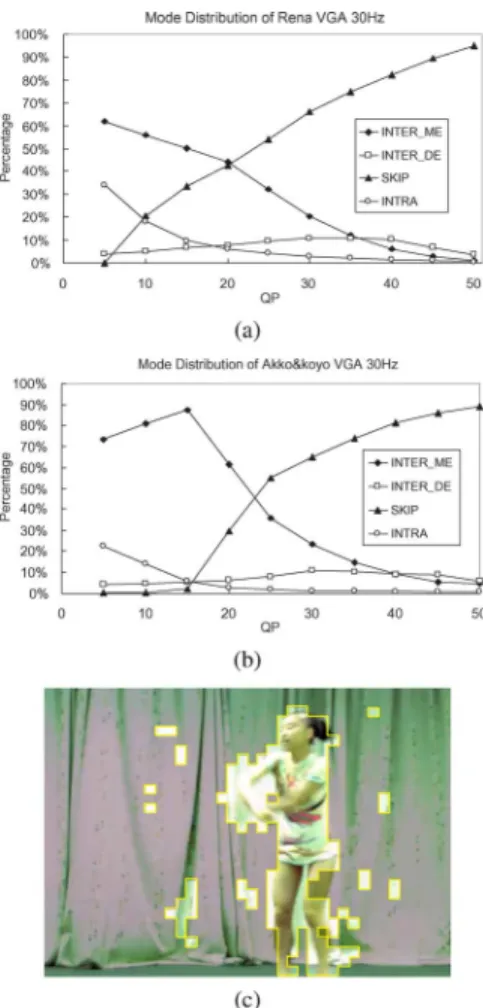

Fig. 6. Mode distribution analysis of two test sequences. Four main prediction modes are analyzed for sequences (a) “Rena” and (b) “Akko & Kayo.” (c) Il-lustration of the compensated block types. The highlighted blocks with yellow boundaries are predicted by INTER_DE mode.
by INTER_DE mode after applying DE. In the cases of median and low bit-rates, over 50% macroblocks which are originally INTRA-coded in mono-view video are instead predicted by INTER_DE mode in MVC. The video contents of these mac-roblocks usually contain objects with fast motion or occlusions, as shown in Fig. 7(b) and (d). In summary, in an MVC system, the most general types of video contents are predicted by INTER_ME and SKIP modes, while INTRA mode can predict the macroblocks which contain more homogeneous or textural video contents. In addition, some complex video contents with fast moving objects or occlusions can be coded with INTER_DE mode.
It is also observed that the mode distribution of two views are very similar. In mono-view video coding, there are many coding tools adopted to extract data redundancies and remove them. When the video contents are extended from single view to multiple views, another data redundancy appears. On the condi-tions that cameras are setup with close parallelized structure, the video contents of different views are usually similar. This inter-view similarities exist not only in the video contents but also in the prediction modes. An example is shown in Fig. 8. Two views are encoded separately by an H.264/AVC encoder. The mac-roblock partition is marked on the reconstructed frames. Black
and white blocks represent inter- and intra-predicted blocks re-spectively. It shows that the inter-view correlation is high. In other words, if the correlation is successfully explored, the com-putational complexity of the prediction part in MVC can be greatly reduced.
The analysis of macroblock prediction modes for MVC is summarized as follows.
• SKIP mode provides good coding performance and re-quires little computational complexity in both mono- and multiview video coding.
• INTRA mode tends to be replaced by INTER_DE mode in MVC when the current macroblock contains objects with fast motion or occlusions.
• In most cases, the video contents are similar between view channels. It results in the similar mode distribution between view channels. Therefore, there exists compu-tational redundancy, and the inter-view information can be obtained with DE to predict the coding information. An efficient prediction algorithm with content-aware functionalities can effectively save the unnecessary com-putation.
III. PROPOSEDCONTENT-AWAREPREDICTIONALGORITHM
(CAPA) WITHINTER-VIEWMODEDECISION
According to the analysis in the previous section, the con-tent-aware prediction algorithm (CAPA) with inter-view mode decision is proposed to save unnecessary computational load by exploiting the correlation between view channels. By utilizing various features of video contents in the coded view channels, macroblock coding modes and their corresponding motion vec-tors can be predicted with the aid of DE and the coding informa-tion of neighboring views. Therefore, ME computainforma-tional com-plexity can be greatly reduced. In this section, the system ar-chitecture of the multiview hybrid coding system is introduced first, followed by the details of the proposed algorithm.
A. System Architecture
The block diagram of the multiview video encoder with the proposed CAPA is shown in Fig. 9. The encoder adopts the coding tools defined in H.264/AVC standard. Input views are classified into two types of view channels, the primary channel and the secondary channel. A view channel is regarded as a pri-mary channel if no reconstructed frames in other view chan-nels are used for reference when performing mode decision. Therefore, there are no DE operations in primary channels. The coding flow of a primary channel is identical to the flow of mono-view video coding. The block engine includes quantiza-tion, transform, and deblocking filter, etc. After the Lagrange mode decision, the coding information, including the rate-dis-tortion costs, the optimum macroblock coding mode, and the corresponding motion vectors of the primary channel are stored for the proposed CAPA. The main difference between the pri-mary and secondary channels is the CAPA part, which con-tains DE, twin-MB selection, inter-view mode decision, and content-aware ME. Each of them is introduced in the following subsections. In CAPA, DE is performed prior to ME. The pur-pose of performing DE first is to extract the correlation between
Fig. 7. Statistics of ratio that INTRA mode is replaced by INTER_DE mode after applying DE. Disparity compensated macroblocks which are originally coded with INTRA mode in mono-view video coding are highlighted in subjective views (areas with yellow boundaries). Dark macroblocks are coded with INTRA mode in both cases of mono- and multiview video coding. (a) Mode analysis of “Rena.” (b) Coding mode illustration of (a) withQP = 10. (c) Mode analysis of “Akko&Kayo.” (d) Coding mode illustration of (c) withQP = 5.
Fig. 8. Illustration of macroblock partition after variable-block-size ME. Two views are independently encoded without DE. (a) Left view. (b) Right view.
views, and the coding information of the corresponding neigh-boring coded view can be retrieved. With the corresponding coding information, the inter-view mode decision part decides the most probable coding mode for the current macroblock. The most probable coding mode is one of the modes described in Section II, that is, INTER_ME, INTER_DE, SKIP, or INTRA mode. If INTER_ME is chosen as the most probable coding mode by inter-view mode decision, it means ME is further re-quired for better coding efficiency of the current macroblock, and thus proposed content-aware ME is performed. Content-aware ME is a predictor-centered ME algorithm, and it also uti-lizes the inter-view coding information. Note that, the numbers of primary and secondary channels are decided according to the coding structure. The numbers of secondary channels are nor-mally much more because DE can effectively enhance coding efficiency [9]. After all views are encoded, the compressed bit-stream of each channel is assembled and transmitted.
Fig. 9. Block diagram of the multiview video encoder with the proposed CAPA.
B. Disparity Estimation and Selection of Twin-Macroblock
DE is performed between the reference frame in the primary channel and the current macroblocks in the secondary channel. The minimum rate-distortion cost, , is decided by (3). The macroblocks in the primary channel are overlapped by the corresponding best matched block indicated by a disparity vector. And among the macroblocks the one with the largest overlapped area is called the “twin-macroblock,” as shown
Fig. 10. Twin-macroblock is the macroblock in the primary channel which is overlapped by the corresponding best matched disparity compensated block with the largest overlapped area. In this case, MB2 is the twin-macroblock.
in Fig. 10. To predict the most probable coding mode for the current macroblock in a secondary channel, it is required to retrieve the related coding information from the twin-mac-roblock in the coded primary channel. As illustrated in Fig. 10, when performing DE, the corresponding best matched block indicated by the disparity vector is derived by
(4) where represents the current macroblock in a secondary channel , and represents the search candidates located in the search window in the primary channel . Therefore, MB2 is regarded as the corresponding twin-macroblock of the current macroblock in Fig. 10. Note that the rate part of the block-matching cost is not considered here for deriving the twin-macroblock in the primary channel. However, the best disparity compensated block for coding can still be searched by Lagrangian mode decision at the same time without additional computation. The coding information of the twin-macroblock is then stored for the following inter-view mode decision and content-aware ME.
C. Inter-View Mode Decision
After the selection of a twin-macroblock, the coding informa-tion of the twin-macroblock, which includes the rate-distorinforma-tion cost, the optimum macroblock coding mode, and the corre-sponding motion vectors, is retrieved. The purpose of inter-view mode decision is to choose the most probable coding mode among INTER_ME, INTER_DE, SKIP, and INTRA modes. SKIP mode is a useful and simple coding tool in H.264/AVC, where the motion vector predictor is adopted for the current macroblock to generate a compensated block. Therefore, the ME computation of a macroblock can be entirely saved if SKIP mode can be pre-decided. SKIP mode is also effective in the multiview video encoder. On the other hand, INTRA mode is chosen by a lot of macroblocks in a frame in the condition of high bit-rate, as shown in Fig. 6. Therefore, if INTRA mode can be pre-decided, many computation operations for ME can be saved by utilizing the correlation between views. In short, the unnecessary computation for ME can be saved if SKIP, INTRA, or INTER_DE mode is chosen. Therefore, inter-view
Fig. 11. Decision and data flows of inter-view mode decision.
mode decision can be regarded as an early termination scheme for the following ME.
Fig. 11 shows the decision and data flow of the proposed inter-view mode decision. Solid lines and grey blocks represent the decision flow, and dotted lines represent the data flow. First, intra prediction is performed, and the optimum rate-distortion cost among several modes in intra prediction, , is derived. It is followed by the cost computation of SKIP mode,
and is then derived. and are
compared with , which is derived from DE. If
or is the smallest, the mode of the twin-macroblock is checked. If the twin-macroblock is also coded by the same mode, it implies that it has high possibility to be the best coding mode for the current macroblock. Then the rate-distortion cost of the twin-macroblock, , is compared with
or . Finally, the current macroblock is predicted by
SKIP/INTRA mode if / is still smaller
than . Otherwise, the current macroblock is assigned to INTER_ME mode and the following content-aware ME is performed.
On the other hand, if is the smallest among three coding modes, the data flow is different from the other cases. According to the analysis introduced in Section II, mac-roblocks contain objects with fast motion tends to be encoded by INTER_DE mode. In addition, INTRA mode tends to be replaced by INTER_DE mode in MVC when the current mac-roblock contains objects with fast motion or occlusions. Based on these two concepts, the coding modes of the twin-mac-roblock and the neighboring coded mactwin-mac-roblocks are utilized and checked. A parameter, , is defined as follows,
if the twin-macroblock is INTRA-coded,
Fig. 12. Macroblock partition rule defined in H.264/AVC. It follows the hier-archical and symmetric manner.
shows whether the twin-macroblock is INTRA-coded or not. Then INTER_DE mode assignment is described by the following equation:
if
otherwise. (6)
In the above equation, a parameter set, , is defined to adjust the threshold of the early termination of ME, as shown in Table II. stands for the count of neighboring macroblocks which are encoded by INTER_DE mode. The neighboring macroblocks are the left, top, and top-right macroblocks relative to the current macroblock. Therefore,
. The value of relies on
and . is bigger in the case that the twin-macroblock is coded by INTRA mode. Similarly, the more neighboring mac-roblocks coded by INTER_DE mode are, the bigger is. In our simulation, the values of are empirically chosen between 0.1 and 2.0, that is
Therefore, the coding mode can be decided after inter-view mode decision. If the current macroblock is assigned to INTRA, SKIP, or INTER_DE mode, the following ME operation can be skipped. Otherwise, content-aware ME is performed.
D. Content-Aware Motion Estimation
To further reduce the computational complexity of ME in the secondary channels, content-aware ME is proposed. As shown
Fig. 13. Illustration of inter-view motion vector prediction. (a) Coding infor-mation of the reference frame to be used is stored in the memory. The 162 16 area of the best matched block derived from DE is split into sixteen 42 4 sub-blocks. (b) Each subblock is assigned a motion vector. (c) An initial guess of the motion vector, CAPA motion vector predictor, is set for each macroblock type according to partition labeling.
in Fig. 12, there are seven macroblock partition types according to their block sizes such as 16 16, 8 8, and 4 4, etc. in H.264/AVC [22]. Content-aware ME is proposed to predict the macroblock partition and the corresponding motion vectors of the current macroblock. The proposed algorithm consists of two parts, inter-view motion vector prediction and motion vector re-finement with small search range. The illustration of inter-view motion vector prediction is shown in Fig. 13. After the frame in the primary channel is encoded, the coding information is stored in the memory. The location of the best matched block has al-ready been derived from DE shown as the grey area in Fig. 13(a). The grey area is split into sixteen 4 4 subblocks. Each sub-block covers a 4 4 area in the reference frame, and then it is assigned with the motion vector of the 4 4 area in the coded reference frame. Note that if the 4 4 area contains more than one different motion vectors, the assigned motion vector is the motion vector of the coded subblock with the largest overlapped area by the best matched block. To prevent prediction error prop-agation, there are not any early termination and fast prediction schemes applied in the primary channel, which means all kinds of cost must be calculated in the primary channel. Besides, no matter what kind of mode is selected for coding, the best inter prediction mode and its corresponding motion vectors are stored in the primary channel. Therefore, if the covered macroblock in the reference frame is predicted by INTRA or SKIP mode, the

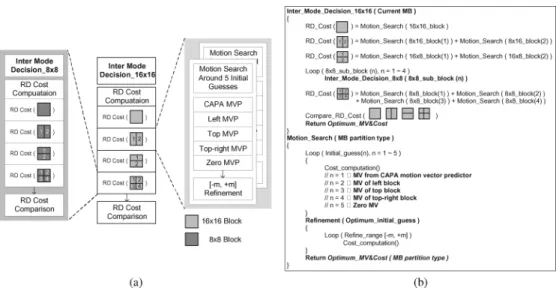

Fig. 14. (a) Data flow and (b) pseudocodes of searching the optimum motion vectors. Note that the motion search is performed for each macroblock type.
macroblock partition and its corresponding motion vectors are still available for the proposed algorithm.
After each 4 4 subblock is assigned a motion vector, the process of “partition labelling” begins. The subblocks with the same motion vectors are assigned to the same label, as the labels “a, b, c, d, e, f” shown in Fig. 13(b). Next, an initial guess of the motion vector, which is called “CAPA motion vector predictor,” is set for each marcoblock type according to partition labelling. An example is shown in Fig. 13(c). To provide a good initial guess of a motion vector, the most representative value should be chosen. For example, when setting the CAPA motion vector predictor for a 16 16 block, the value of the label which ap-pears the most times is chosen as an initial guess, which is “c” in Fig. 13(c).
In addition to the initial guess provided from inter-view coding information, the motion vectors of the left, top, top-right neighboring macroblocks, and zero motion vector, are also adopted as the initial guesses to enhance the coding efficiency. That is, for each macroblock type, there are five initial guesses of motion vectors. The optimum initial guess is chosen by Lagrange mode decision, and then the refinement with a small search range is performed around the optimum initial guess. Fig. 14 shows the data flow and the corresponding pseudocodes of searching the optimum motion vectors. Because the proposed algorithm is a predictor-centered ME, the required search can-didates are much less than that for full search block matching algorithm (FSBMA). Therefore, computational complexity can be greatly reduced.
IV. SIMULATIONRESULTS
The proposed algorithm is implemented by modifying the MVC-configuration in JSVM4.5 [23]. Sequences “Akko&Kayo,” “Ballroom,” “Exit,” and “Rena,” with size 640 480 are tested. They are standard sequences released by JVT/MPEG 3DAV Group [9]. Two- and three-view channels of these sequences are chosen for simulation. The four coding structures adopted in our experiments are shown in Fig. 15. The grey blocks represent the frames in the primary channel,
Fig. 15. Four coding structures for experiments. The grey blocks represent the frames in the primary channel, and the white blocks represent the frames in the secondary channels. (a) Two views with IPPP structure. (b) Two views with IBPBP structure. (c) Three views with IPPP structure. (d) Three views with IBPBP structure.
and the white blocks represent the frames in the secondary channels. The test condition is shown in Table III. The search ranges of DE and ME are both in the horizontal direction, while the search range of DE is in the ver-tical direction. The search range of DE is not a square because the cameras to capture these sequences are parallel-structured [9]. Thus the candidate blocks can be assumed in a belt-shape region [24]. Note that in the simulation of ME complexity, the index “search candidate per macroblock” is adopted to make the data independent of various hardware platforms.
A. Quality and Complexity Analysis of Inter-View Mode Decision
Table IV shows the statistics of complexity reduction and PSNR degradation of the proposed inter-view mode decision. Only the computational complexity of ME in the secondary channel is considered. The computational complexity and coding performance of FSBMA are regarded as references for comparison. It shows that 20.4%–73.4% computation for ME is saved with only 0.015–0.035 dB quality loss in PSNR. It indicates that 20.4%–73.4% macroblocks are assigned to INTRA, SKIP, or INTER_DE mode, so the following ME is then skipped. Therefore, it can be claimed that the proposed
inter-view mode decision effectively executes the mode assign-ment for each macroblock.
B. Quality and Complexity Analysis of Content-Aware Motion Estimation
The proposed content-aware ME is a predictor-centered ME algorithm. The optimum initial guess is chosen among five ini-tial guesses, and then the refinement with a small search range is performed around the initial guess. Table V shows the dis-tribution of the initial guess which is chosen for further refine-ment. Over 80% macroblocks choose CAPA motion vector pre-dictor for further refinement. It indicates that the proposed al-gorithm can provide an accurate initial guess. Table VI shows the analysis of quality and complexity with various refinement ranges. The larger the refinement range is, the less PSNR degra-dation is. It shows that refinement keeps PSNR drop within 0.05 dB in average. The motion vector distribution with refinement range is shown in Fig. 16. Most motion vec-tors are located within range. Therefore, and are appropriate choices of refinement ranges. In addi-tion, no matter which refinement range is chosen, the required complexity is always much less than that of FSBMA.
C. Rate-Distortion Performance of Content-Aware Prediction Algorithm
The proposed CAPA consists of inter-view mode decision and content-aware ME. It is compared with multicast coding and simulcast coding. Multicast coding means FSBMA is ap-plied to both ME and DE in the coding structures. On the other hand, in simulcast coding, each view channel is encoded in-dependently without DE. Rate-distortion performance of only secondary channels are compared because the ME parts in the primary channels in all cases are implemented with FSBMA. Moreover, the refinement range is . The rate-distor-tion performance is shown in Fig. 17. It shows that there is al-most no quality difference between FSBMA and CAPA, and CAPA provides coding gain of 0.09–1.44 dB over simulcast coding. The comparison of quality and complexity among three coding schemes is shown in Table VII. Compared with multicast coding, CAPA reduces 98.4%–99.1% ME computation in sec-donary channels with PSNR drop of only 0.03–0.06 dB. In the
Fig. 16. Motion vector distribution of various test sequences. (a) “Akko & Kayo.” (b) “Ballroom.” (c) “Exit.” (d) “Rena.”
TABLE V
DISTRIBUTION OF THEINITIALGUESS WHICH IS
CHOSEN FORFURTHERREFINEMENT
previous work [19], [20], 80% computational complexity is re-duced with quality loss of 0.1 dB in [19], and about 95% compu-tational complexity can be reduced with quality loss of 0.1–0.2 dB in [20]. Compared with them, the proposed CAPA effec-tively removes more computational redundancy while maintains the coding performance.
In addition, taking the computation of ME in the primary channel and DE into consideration, 43.6%–56.2% complexity can be saved. Note that because the computational complexity of DE is 25% of that of ME in our simulation, the total compu-tational complexity of the proposed algorithm is also much less than that of simulcast coding, and only 51.9%–64.1% compu-tational complexity is required. The degree of reduction of the total computational complexity depends on the view numbers. Therefore, it means that the redundant ME computation can be effectively removed by the proposed algorithm. With the pro-posed CAPA, computational complexity can be greatly saved,
TABLE VI
QUALITY ANDCOMPLEXITYANALYSIS FORVARIOUSREFINEMENTRANGES
Fig. 17. Comparison of rate-distortion performance among proposed CAPA, FSBMA, and simulcast coding. (a) “Akko&Kayo.” (b) “Ballroom.” (c) “Exit.” (d) “Rena.”
TABLE VII
COMPARISON OFQUALITY ANDCOMPLEXITYREDUCTIONRATIOBETWEEN THEPROPOSED ALGORITHM, MULTICASTCODINGWITHFSBMA,ANDSIMULCASTCODINGWITHFSBMA
and near-FSBMA quality is maintained. That is, the inter-view correlation can be effectively exploited by the proposed algo-rithm, and then the computational redundancy is removed.
V. CONCLUSION
This paper presents an MVC encoder structure with an effi-cient fast prediction algorithm for the prediction part in MVC. Content-aware prediction algorithm (CAPA) with inter-view mode decision is proposed to overcome the design challenge of ultra high computational complexity in MVC. Based on the concept of high inter-view correlation between views and the feature of mode distribution different from that in mono-view video coding, unnecessary ME computation can be early terminated by inter-view mode decision. Moreover, accurate initial guesses are provided by content-aware ME. Only small refinement ranges, such as and , are sufficient for maintaining comparable quality to FSBMA. The proposed algorithm effectively reduces 98.4%–99.1%
computational complexity for ME in most view channels with negligible quality loss of 0.03–0.06 dB in PSNR. Compared with simulcast coding, the proposed algorithm provides coding gain of 0.09–1.44 dB with only 51.4%–64.1% computational complexity. It indicates that the computational redundancy is effectively removed.
There are still some extensions of the proposed algorithm. After adopting the proposed CAPA in MVC, DE will become the most computation-consuming part. Note that the proposed algorithm is orthogonal to other fast ME search algorithms such as three-step search [25], four-step search [26], and diamond search [27], etc. Therefore, appropriate fast predic-tion algorithms for DE is also worth developing. In addipredic-tion, the proposed algorithm can also be further adopted in more complex coding structures, such as hierarchical bidirectional prediction, and eight- and sixteen-view structures. The required number of primary channels in a given coding structure is also an important research issue. Less primary channels reduce
REFERENCES
[1] F. Isgrò, E. Trucco, P. Kauff, and O. Schreer, “Three-dimensional image processing in the future of immersive media,” IEEE Trans. Circuits Syst. Video Technol., vol. 14, no. 3, pp. 388–303, Mar. 2003. [2] A. Smolic and P. Kauff, “Interactive 3-D video representation and
coding technologies,” Proc. IEEE, vol. 93, no. 1, pp. 98–110, Jan. 2005.
[3] M. Tanimoto, “Free viewpoint television – FTV,” in Proc. 2004 Picture Coding Symp., Dec. 2004.
[4] T. Fujii and M. Tanimoto, “Free-viewpoint TV system based on ray-space representation,” in Proc. SPIE, Mar. 2002, vol. 4864, pp. 175–189.
[5] A. Smolic, K. Mueller, P. Merkle, T. Rein, M. Kautmer, P. Eisert, and T. Wiegand, “Free viewpoint video extraction, representation, coding, and rendering,” in Proc. 2003 IEEE Int. Conf. Image Processing, Oct. 2004, vol. 5, pp. 3287–3290.
[6] B. S. Wilburn, M. Smulski, H.-H. K. Lee, and M. A. Horowitz, “Light field video camera,” in Proc. Media Processors, SPIE Electronic Imaging, 2002, vol. 4674, pp. 29–36.
[7] C. Zhang and T. Chen, “A self-reconfigurable camera array,” in Proc. Eurographics Symp. Rendering, 2004.
[8] Requirements on Multi-View Video Coding, ISO/IEC JTC1/SC29/ WG11 N6501, 2004.
[9] Description of Core Experiments in MVC, ISO/IEC JTC1/SC29/WG11 N6501 W8019, Apr. 2006.
[10] G. Li and Y. He, “A novel multi-view video coding scheme based on H.264,” in Proc. 2003 Joint Conf. 4th Int. Conf. Information, Commu-nications and Signal Processing, Dec. 2003, vol. 4, pp. 218–222. [11] Y.-W. Huang, T.-C. Chen, C.-H. Tsai, C.-Y. Chen, T.-W. Chen, C.-S.
Chen, C.-F. Shen, S.-Y. Ma, T.-C. Wang, B.-Y. Hsieh, H.-C. Fang, and L.-G. Chen, “A 1.3TOPS H.264/AVC single-chip encoder for HDTV applications,” in Proc. IEEE Int. Solid-State Circuits Conf. Dig. Tech. Papers, 2005.
[12] Y. Ohta and T. Kanade, “Stereo by intra- and inter-scanline search using dynamic programming,” IEEE Trans. Pattern Anal. Mach. In-tell., vol. 7, no. 2, pp. 139–154, Mar. 1985.
[13] N. Grammalidis and M. G. Strintzis, “Disparity and occlusion esti-mation in multiocular systems and their coding for the communica-tion of multiview image sequences,” IEEE Trans. Circuits Syst. Video Technol., vol. 8, no. 6, pp. 328–344, Jun. 1998.
[14] J.-R. Ohm and K. Müller, “Incomplete 3-D multiview representation of video objects,” IEEE Trans. Circuits Syst. Video Technol., vol. 9, no. 3, pp. 389–400, Mar. 1999.
[15] R.-S. Wang and Y. Wang, “Multiview video sequence analysis, com-pression, and virtual viewpoint synthesis,” IEEE Trans. Circuits Syst. Video Technol., vol. 10, no. 4, pp. 397–410, Apr. 2000.
[16] G. Heising, “Efficient and robust motion estimation in grid-based hybrid video coding schemes,” in Proc. Int. Conf. Image Processing, 2002, pp. 687–700.
[17] Y. Luo, Z. Zhang, and P. An, “Stereo video coding based on frame estimation and interpolation,” IEEE Trans. Broadcast., vol. 49, no. 1, pp. 14–21, Jan. 2003.
[18] X. Guo, Y. Lu, and W. Gao, “Inter-view direct mode for multiview video coding,” IEEE Trans. Circuits Syst. Video Technol., vol. 16, no. 12, pp. 1527–1532, Dec. 2006.
[19] L.-F. Ding, S.-Y. Chien, and L.-G. Chen, “Joint prediction algorithm and architecture for stereo video hybrid coding systems,” IEEE Trans. Circuits Syst. Video Technol., vol. 16, no. 11, pp. 1324–1337, Nov. 2006.
[20] P.-L. Lai and A. Ortega, “Predictive fast motion/disparity search for multiview video coding,” in Proc. SPIE Visual Communications and Image Processing, 2006.
