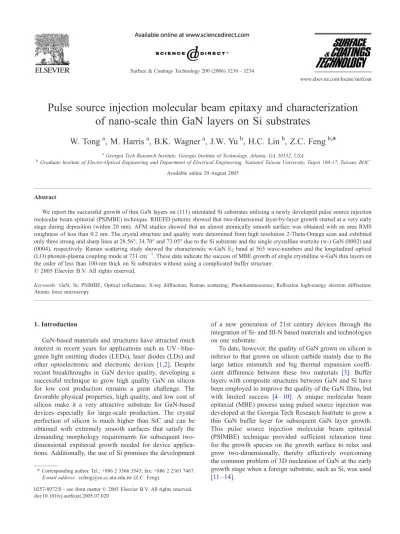

Pulse source injection molecular beam epitaxy and characterization of nano-scale thin GaN layers on Si substrates

(1)

Pulse source injection molecular beam epitaxy and characterization

of nano-scale thin GaN layers on Si substrates

W. Tong

a

, M. Harris

a

, B.K. Wagner

a

, J.W. Yu

b

, H.C. Lin

b

, Z.C. Feng

b,

*

a

Georgia Tech Research Institute, Georgia Institute of Technology, Atlanta, GA 30332, USA

b

Graduate Institute of Electro-Optical Engineering and Department of Electrical Engineering, National Taiwan University, Taipei 106-17, Taiwan, ROC Available online 29 August 2005

Abstract

We report the successful growth of thin GaN layers on (111) orientated Si substrates utilizing a newly developed pulse source injection molecular beam epitaxial (PSIMBE) technique. RHEED patterns showed that two-dimensional layer-by-layer growth started at a very early stage during deposition (within 20 nm). AFM studies showed that an almost atomically smooth surface was obtained with an area RMS roughness of less than 0.2 nm. The crystal structure and quality were determined from high resolution 2-Theta-Omega scan and exhibited only three strong and sharp lines at 28.56-, 34.70- and 73.05- due to the Si substrate and the single crystalline wurtzite (w-) GaN (0002) and (0004), respectively. Raman scattering study showed the characteristic w-GaN E2band at 565 wave-numbers and the longitudinal optical

(LO) phonon-plasma coupling mode at 731 cm 1. These data indicate the success of MBE growth of single crystalline w-GaN thin layers on the order of less than 100-nm thick on Si substrates without using a complicated buffer structure.

Keywords: GaN; Si; PSIMBE; Optical reflectance; X-ray diffraction; Raman scattering; Photoluminescence; Reflection high-energy electron diffraction; Atomic force microscopy

1. Introduction

GaN-based materials and structures have attracted much interest in recent years for applications such as UV – blue-green light emitting diodes (LEDs), laser diodes (LDs) and other optoelectronic and electronic devices [1,2]. Despite recent breakthroughs in GaN device quality, developing a successful technique to grow high quality GaN on silicon for low cost production remains a great challenge. The favorable physical properties, high quality, and low cost of silicon make it a very attractive substrate for GaN-based devices especially for large-scale production. The crystal perfection of silicon is much higher than SiC and can be obtained with extremely smooth surfaces that satisfy the demanding morphology requirements for subsequent two-dimensional expitaxial growth needed for device applica-tions. Additionally, the use of Si promises the development

of a new generation of 21st century devices through the integration of Si- and III-N based materials and technologies on one substrate.

To date, however, the quality of GaN grown on silicon is inferior to that grown on silicon carbide mainly due to the large lattice mismatch and big thermal expansion coeffi-cient difference between these two materials [3]. Buffer layers with composite structures between GaN and Si have been employed to improve the quality of the GaN films, but with limited success [4 – 10]. A unique molecular beam epitaxial (MBE) process using pulsed source injection was developed at the Georgia Tech Research Institute to grow a thin GaN buffer layer for subsequent GaN layer growth. This pulse source injection molecular beam epitaxial (PSIMBE) technique provided sufficient relaxation time for the growth species on the growth surface to relax and grow two-dimensionally, thereby effectively overcoming the common problem of 3D nucleation of GaN at the early growth stage when a foreign substrate, such as Si, was used

[11 – 14].

* Corresponding author. Tel.: +886 2 3366 3543; fax: +886 2 2363 7467. E-mail address: [email protected] (Z.C. Feng).

(2)

In this study, we report the successful growth of thin GaN layers on (111) orientated Si substrates utilizing the PSIMBE process. These thin GaN layers can be used as an extremely smooth buffer layer for subsequent GaN-based device structure growth. The thin GaN layers were characterized by a variety of techniques such as reflection high-energy electron diffraction (RHEED), high resolution X-ray diffraction (HRXRD), optical reflectance (OR), atomic force microscopy (AFM), room temperature photo-luminescence (PL) and Raman scattering (RS).

2. Experiment

A MBE system, equipped with an EPI UNI-Bulb RF Source and an EPI SUMO thermal effusion cell, was used for this research. The system was pumped by a Leybold magnetic bearing turbo pump and a cryopump. The nitrogen gas flow was controlled by a MKS 1479A gas flow controller and Ga was thermally evaporated from the SUMO cell. An EPI hot tip effusion cell was used to evaporate Al to grow an AlN buffer layer on silicon prior to GaN growth. The UNI-Bulb plasma source was operated at 350 W with a nitrogen flow rate of 0.6 sccm for this study. The background pressure of the chamber during the deposition was 6.0 10 6Torr.

During the growth, silicon (111) substrates were first etched with buffered HF (6:1) solution for 2 min prior to loading into the system. The substrates were baked in the

chamber at 80 -C for 24 h before growth. The Al layer was first deposited on the silicon with a flux of 4 10 8 Torr for 1 min and then the nitrogen plasma was introduced to form an AlN buffer layer for GaN growth. Growth temperatures for AlN were between 650 -C and 800 -C and the typical AlN buffer layer thickness was less than 10 nm. Ga and N plasmas were alternatively injected onto the surface for GaN growth. The duration of injection of each source was varied from 1 min to 3 min. With this method, two-dimensional growth of GaN was achieved at a very early stage of growth as indicated by in-situ RHEED study. The growth temperatures were varied from 550 -C to 700 -C.

A Filmetrics F20 thin film measurement system was used to determine film thickness. The typical GaN layer thickness for this study was less than 300 nm. An AFM made by Park Scientific Instrument (Autoprobe CP), operated in the contact mode, was used to study the as-grown GaN layer surface morphologies. RS measurements were performed using a triple monochromator T64000

Fig. 1. RHEED pattern of AlN (a) and GaN/Si(111) (b) grown by PSIMBE.

Fig. 2. High resolution XRD characterization of GaN/Si (111) grown with pulsed source injection MBE.

300 400 500 600 700 800 0.0 0.1 0.2 0.3 0.4 0.0 0.1 0.2 0.3 0.4 0.0 0.1 0.2 0.0 0.1 0.2 0.3 0.4 Reflectance NS38 NS45 NS37 wavelength (nm) NS36 M B E GaN on Si

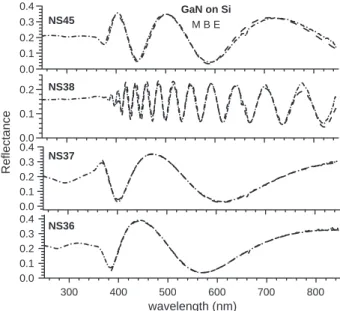

Fig. 3. The optical reflectance spectra for four MBE GaN/Si, measured in 250 – 850 nm with simulation done in 400 – 850 nm.

(3)

high resolution micro-Raman system excited at 514.5 nm from an Ar-ion laser. The spectral resolution was better than 1 cm 1. UV – PL was performed using a Renishaw UV micro-PL-Raman system, excited by 325 nm from a HeCd laser. All measurements were performed at room temperature. The X-ray diffraction spectra were measured by a Philips MRT high resolution system equipped with 5 crystals. The 2-thelta angle scan resolution is better than 0.0005-, i.e. 2-arcseconds.

3. Results and discussion

Preliminary studies showed that an AlN buffer layer is still needed for single crystal GaN/Si growth. It was found that the smoothest initial growth of GaN can be obtained with the AlN buffer layer less than 10 nm, as determined by in-situ RHEED and AFM studies. The RHEED pattern of the AlN layer with thickness of 5 nm is shown in Fig. 1(a). The surface roughness increased quickly when the AlN buffer thickness was greater than 10 nm. A typical RHEED pattern of GaN grown with pulsed-source injection MBE is shown in Fig. 1(b). This stripe pattern typically appeared after 2 or 3 periods of source injections indicating that the 2-D growth starts at a very early stage of growth.

In Fig. 2, it is a typical high resolution XRD pattern

for a PSIMBE grown GaN/Si(111) film. Strong peaks at 34.6- and 73- are due to wurtzite GaN (0002) and (0004) diffractions, respectively. This indicates the GaN layer in the growth direction with the preferred orientation along the c-axis of wurtzite crystalline structure [20]. The strong high order GaN (0004) diffraction peak indicates that a high quality, single crystal GaN film was obtained on Si.

Fig. 3 shows the optical reflectance (OR) spectra in

250 – 850 nm for four GaN samples grown on Si substrate by MBE. The simulation on the OR spectra in 400 – 850

Fig. 4. AFM surface scan and roughness analysis of GaN/Si (111) grown with PSIMBE. 2.2 2.4 2.6 2.8 3.0 3.2 3.4 3.356 eV MBE (a) NS36 (b) NS37 (c) NS42 PL Intensity (a.u.) Energy (eV) (d) NS45 GaN on Si RT, 325 nm

Fig. 5. RT PL spectra for four GaN/Si.

Fig. 6. Raman spectra of three MBE GaN/Si,NS42 (579 nm), NS38 (1522 nm) and NS36 (182 nm).

Fig. 7. E2 band peak intensity of GaN/Si(111) thin films vs. growth

(4)

nm gives the film thickness. The experimental GaN layer thickness was varying from ~ 180 nm up to ~ 1500 nm.

The GaN film surface morphology was studied by atomic force microscopy [3,16 – 19]. Fig. 4 shows an AFM image for a piece of GaN film on Si, indicating that GaN layer grown using the PSIMBE process has a very smooth surface with an area RMS of about 0.13 nm only. Room temperature (RT) PL spectra, as shown inFig. 5, of these GaN thin layers shows a 3.356 eV as GaN edge band. However, the peak intensity was low since these films are very thin. It is red-shifted in comparison with the PL value from MOCVD-grown GaN/Si, and the peak intensity was low since these films are very thin[15].Fig. 6 is a typical RS spectrum of GaN/Si film grown by PSIMBE. A strong band centered at 520 cm 1 is from the Si substrate. Two Raman bands, phonon modes of high E2at 567 cm 1and A1(LO) at 736 cm 1due to the wurtzite () GaN crystal, can be clearly seen. The w-GaN characteristic E2 and A1(LO) modes are shown clearly for the thickest film NS38 (1500 nm) and the 2nd thicker film NS42 (579 nm). These two modes appeared as shoulders from other three films thinner than 315 nm. Two Raman bands, phonon modes of high E2at 567cm

1 and A1(LO) at 736 cm 1, due to the wurtzite GaN crystal, can be clearly seen in Fig. 6 [21]. A plot of E2 band peak intensity vs. growth temperatures indicates that the proper growth temperature is in the range of 650 to 700 -C, as shown in Fig. 7. Room temperature PL spectrum of these GaN thin layers also shows a 3.4 eV GaN edge band. However, the peak intensity was low since these films are very thin (Table 1).

4. Conclusion

A pulse source injection MBE technique was success-fully developed to grow extremely smooth thin GaN films. This pulsed-source growth process is different from the atomic layer epitaxy (ALE) process which provides one atomic layer of material growth for each complete source injection period. In the PSIMBE process,

multi-layers of GaN is grown for each source injection period. Calculations based on the growth rate, indicated that the pulsed source injection MBE process grew eight GaN lattice constants of material for a 3 min source injection period. The PSIMBE process has a faster growth rate than the ALE process. It is believed that this pulsed source injection process provides a sufficiently long relaxation time to allow high mobility Ga atoms to move to the nuclear sites at island boundaries and thereby form layer by layer 2-dimensional growth. Therefore, it can be treated as a migration enhanced growth process. However, detailed growth studies need to be continued to com-pletely understand the growth mechanisms for further process optimization.

Acknowledgements

The work at National Taiwan University was sup-ported by funds from National Science Council of Republic of China, NSC 2218-E-002-011 and 93-2215-E-002-035.
