The coverage problem in a wireless sensor network

C

2005 Springer Science + Business Media, Inc. Manufactured in The Netherlands.

The Coverage Problem in a Wireless Sensor Network

Department of Computer Science and Information Engineering, National Chiao-Tung University, 1001 Ta Hsueh Road, Hsin-Chu, 30050, Taiwan

Abstract. One of the fundamental issues in sensor networks is the coverage problem, which reflects how well a sensor network is monitored or tracked by sensors. In this paper, we formulate this problem as a decision problem, whose goal is to determine whether every point in the service area of the sensor network is covered by at least k sensors, where k is a given parameter. The sensing ranges of sensors can be unit disks or non-unit disks. We present polynomial-time algorithms, in terms of the number of sensors, that can be easily translated to distributed protocols. The result is a generalization of some earlier results where only k= 1 is assumed. Applications of the result include determining insufficiently covered areas in a sensor network, enhancing fault-tolerant capability in hostile regions, and conserving energies of redundant sensors in a randomly deployed network. Our solutions can be easily translated to distributed protocols to solve the coverage problem.

Keywords: ad hoc network, computer geometry, coverage problem, ubiquitous computing, wireless network, sensor network

1. Introduction

The rapid progress of wireless communication and embedded micro-sensing MEMS technologies has made wireless sensor

networks possible. Such environments may have many

inex-pensive wireless nodes, each capable of collecting, storing, and processing environmental information, and communicat-ing with neighborcommunicat-ing nodes. In the past, sensors are connected by wire lines. Today, this environment is combined with the novel ad hoc networking technology to facilitate inter-sensor communication [13,17]. The flexibility of installing and con-figuring a sensor network is thus greatly improved. Recently, a lot of research activities have been dedicated to sensor net-works, including design issues related to the physical and me-dia access layers [15,22,24] and routing and transport pro-tocols [3,5,7]. Localization and positioning applications of wireless sensor networks are discussed in [2,4,11,14,19].

Since sensors may be spread in an arbitrary manner, one of the fundamental issues in a wireless sensor network is the

coverage problem. In general, this reflects how well an area is

monitored or tracked by sensors. In the literature, this prob-lem has been formulated in various ways. For example, the

Art Gallery Problem is to determine the number of observers

necessary to cover an art gallery (i.e., the service area of the sensor network) such that every point in the art gallery is mon-itored by at least one observer. This problem can be solved optimally in a 2D plane, but is shown to be NP-hard when extended to a 3D space [12]. Reference [8] proposes polyno-mial time algorithms to find the maximal breach path and the

maximal support path that are least and best monitored in the

sensor network. How to find the minimal and maximal

expo-sure path that takes the duration that an object is monitored

by sensors is addressed in [9,20]. Localized exposure-based A preliminary version of this paper has appeared in the Workshop on Wireless Sensor Networks and Applications, 2003, San Diego, CA, USA.

∗_{Corresponding author.}

coverage and location discovery algorithms are proposed in [10].

On the other hand, some works are targeted at particular applications, but the central idea is still related to the coverage issue. For example, sensors’ on-duty time should be properly scheduled to conserve energy. Since sensors may be arbitrar-ily deployed, if some nodes share the common sensing region and task, then we can turn off some of them to conserve energy and thus extend the lifetime of the network. This is feasible if turning off some nodes still provide the same “coverage” (i.e., the provided coverage is not affected). Slijepcevic and Potkonjak [16] proposes a heuristic to select mutually exclu-sive sets of sensor nodes such that each set of sensors can provide a complete coverage of the monitored area. Also tar-geted at turning off some redundant nodes, Ye et al. [23] pro-poses a probe-based density control algorithm to put some nodes in a sensor-dense area to a doze mode to ensure a long-lived, robust sensing coverage. A coverage-preserving node scheduling scheme is presented in [18] to determine when a node can be turned off and when it should be rescheduled to become active again.

In this work, we consider a more general sensor cover-age problem: given a set of sensors deployed in a target area, we want to determine if the area is sufficiently k-covered, in the sense that every point in the target area is covered by at least k sensors, where k is a given parameter. As a result, the aforementioned works [18,23] can be regarded as a special case of this problem with k= 1. Applications requiring k > 1 may occur in situations where a stronger environmental mon-itoring capability is desired, such as military applications. It also happens when multiple sensors are required to detect an event. For example, the triangulation-based positioning pro-tocols [13,14,19] require at least three sensors (i.e., k≥ 3) at any moment to monitor a moving object. Enforcing k≥ 2 is also desirable for fault-tolerant purpose. The work [21] also considers the same coverage problem combined with the

520 HUANG ANDTSENG communication connectivity issue. However, it incurs higher

computational complexity to determine a network’s cover-age level as compared to the solution proposed in this pa-per. The arrangement issue [1,6], which is widely studied in combinatorial and computational geometry, also consid-ers how a finite collection of geometric objects decomposes a space into connected elements. However, to construct ar-rangements, only centralized algorithms are proposed in the literature, whilst what we need for a wireless sensor network is a distributed solution. The solutions proposed in this paper can be easily translated to distributed protocols where each sensor only needs to collect local information to make its decision.

In this paper, we propose a novel solution to determine whether a sensor network is k-covered. The sensing range of each sensor can be a unit disk or a non-unit disk. Rather than determining the coverage of each location, our approach tries to look at how the perimeter of each sensor’s sensing range is covered, thus leading to an efficient polynomial-time algorithm. Note that this step can be executed by each sensor based on location information of its neighbors. This can lead to an efficient distributed solution. As long as the perimeters of sensors are sufficiently covered, the whole area is sufficiently covered. The k-coverage problem can be fur-ther extended to solve several application-domain problems. In Section 5, we discuss how to use our results for discover-ing insufficiently covered areas, conservdiscover-ing energy, and sup-porting hot spots. At the end, we also show how to extend our results to situations where sensors’ sensing regions are irregular.

This paper is organized as follows. Section 2 formally defines the coverage problems. Our solutions are presented in Section 3. Section 4 presents our simulation results and demonstrates a tool that we implemented to solve the k-coverage problem. Section 5 further discusses several pos-sible extensions and applications of the proposed solutions. Section 6 draws our conclusions.

1 2 3 2 1 2 1 3 2 3 2 1 2 2 3 1 2 1 2 3 2 1 3 2 1 3 2 2 3 2 ₁ 1 2 1 2 1 2 1 2 1 2 3 2 3 3 2 2 3 2 3 3 2 2 1 2 3 5 4 3 2 2 ₃ 2 3 2 1 2 3 3 3 3 3 3 4 4 4 3 4 3 4 2 5 3 4 4 3 3 4 4 3 4 2 5 4 3 3 5 4 4 3 2 2 5 2 2 2 1 3 3 5 6 4 3 2 3 3 4 1 2 3 2 1 ₃ 3 2 1 2 2 3 2 2 1 1 2 _{2 1} 2 1 2 1 2 1 2 1 2 3 2 3 2 3 1 2 2 3 2 3 2 3 2 2 1 2 3 4 3 3 2 3 2 2 3 2 1 2 3 3 3 3 2 3 2 1 32 3 4 3 4 3 3 1 4 4 2 3 2 3 4 2 3 4 3 4 2 4 5 54 4 3 5 4 5 5 4 6 2 2 3 2 2 3 (a) (b)

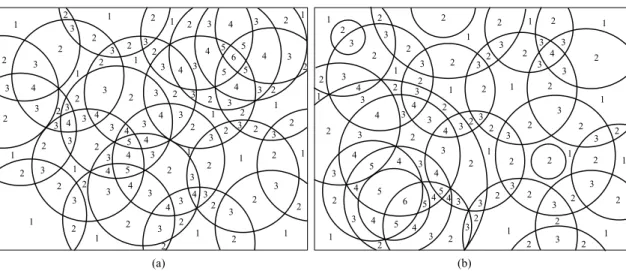

Figure 1. Examples of the coverage problem: (a) the sensing ranges are unit disks, and (b) the sensing ranges are non-unit disks. The number in each sub-region is its coverage.

2. Problem statement

We are given a set of sensors, S= {s1, s2, . . . , sn}, in a

two-dimensional area A. Each sensor si, i = 1, . . . , n, is located at

coordinate (xi, yi) inside A and has a sensing range of ri, i.e.,

it can monitor any point that is within a distance of rifrom si. Definition 1. A location in A is said to be covered by si if

it is within si’s sensing range. A location in A is said to be j -covered if it is within at least j sensors’ sensing ranges. Definition 2. A sub-region in A is a set of points who are

covered by the same set of sensors.

We consider two versions of the coverage problem as fol-lows.

Definition 3. Given a natural number k, the k-Non-unit-disk

Coverage (k-NC) Problemis a decision problem whose goal

is to determine whether all points in A are k-covered or not.

Definition 4. Given a natural number k, the k-Unit-disk

Coverage (k-UC) Problemis a decision problem whose goal

is to determine whether all points in A are k-covered or not, subject to the constraint that r1= r2 = · · · = rn.

3. The proposed solutions

At the first glance, the coverage problem seems to be very dif-ficult. One naive solution is to find out all sub-regions divided by the sensing boundaries of all n sensors (i.e., n circles), and then check if each sub-region is k-covered or not, as shown in figure 1. Managing all sub-regions could be a difficult and computationally expensive job in geometry. There may exit as many as O(n2_{) sub-regions divided by the circles. Also, it} may be difficult to calculate these sub-regions.

Figure 2. Determining: (a) the segment of si’s perimeter covered by sj, and (b) the perimeter-coverage of si’s perimeter.

3.1. The k-UC problem

In the section, we propose a solution to the k-UC problem, which has a cost of O(nd log d), where d is the maximum number of sensors whose sensing ranges may intersect a sen-sor’s sensing range. Instead of determining the coverage of each sub-region, our approach tries to look at how the perime-ter of each sensor’s sensing range is covered. Specifically, our algorithm tries to determine whether the perimeter of a sensor under consideration is sufficiently covered. By collecting this information from all sensors, a correct answer can be obtained.

Definition 5. Consider any two sensors siand sj. A point on

the perimeter of si is perimeter-covered by sj if this point is

within the sensing range of sj.

Definition 6. Consider any sensor si. We say that si is

k-perimeter-covered if all points on the perimeter of si are

perimeter-covered by at least k sensors other than si itself.

Similarly, a segment of si’s perimeter is k-perimeter-covered

if all points on the segment are perimeter-covered by at least

k sensors other than si itself.

Below, we propose an O(d log d) algorithm to determine whether a sensor is k-perimeter-covered or not. Consider two sensors si and sj located in positions (xi, yi) and (xj, yj),

respectively. Denote by d(si, sj)=

|xi− xj|2+ |yi− yj|2

the distance between si and sj. If d(si, sj)> 2r, then sjdoes

not contribute any coverage to si’s perimeter. Otherwise, the

range of perimeter of si covered by sj can be calculated as

follows (refer to the illustration in figure 2(a)). Without loss of generality, let sjbe resident on the west of si(i.e., yi = yj

and xi > xj). The angleα = arccos(d(s_2ri,sj)). So the arch of si

falling in the angle [π − α, π + α] is perimeter-covered by sj.

The algorithm to determine the perimeter coverage of si

works as follows.

1. For each sensor sjsuch that d(si, sj)≤ 2r, determine the

angle of sis arch, denoted by [αj,L, αj,R], that is

522 HUANG ANDTSENG

s_i

si

(a) (b)

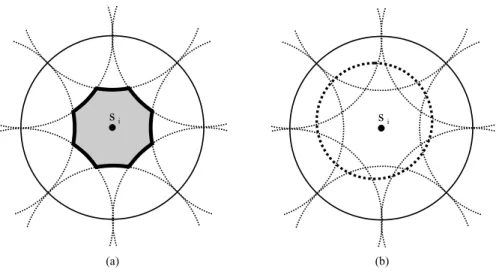

Figure 3. Some examples to utilize the result in Theorem 1.

2. For each neighboring sensor sjof sisuch that d(si, sj)<

2r , place the points αj_,L andαj_,R on the line segment

[0, 2π], and then sort all these points in an ascending order into a list L. Also, properly mark each point as a left or right boundary of a coverage range, as shown in figure 2(b).

3. (Sketched) Traverse the line segment [0, 2π] by visiting each element in the sorted list L from left to right and determine the perimeter-coverage of si.

The above algorithm can determine the coverage of each sensor’s perimeter efficiently. Below, we relate the perimeter-coverage property of sensors to the perimeter-coverage property of the network area.

Lemma 1. Suppose that no two sensors are located in the

same location. Consider any segment of a sensor sithat divides

two sub-regions in the network area A. If this segment is

k-perimeter-covered, the sub-region that is outside si’s sensing

range is k-covered and the sub-region that is inside si’s sensing

range is (k+ 1)-covered.

Proof. The proof is directly from Definition 6. Since the

segment is k-perimeter-covered, the sub-region outside si’s

sensing range is also k-covered due to the continuity of the sub-region. The sub-region inside si’s sensing range is

(k+ 1)-covered because it is also covered by si.

An example is demonstrated in figure 2(b). The gray areas in figure 2(b) illustrate how the above lemma works .

Theorem 1. Suppose that no two sensors are located in the

same location. The whole network area A is k-covered iff each sensor in the network is k-perimeter-covered.

Proof. For the “if” part, observe that each sub-region inside A

is bounded by at least one segment of a sensor si’s perimeter.

Since siis k-perimeter-covered, by Lemma 1, this sub-region

is either k-covered or (k+ 1)-covered, which proves the “if” part.

For the “only if” part, it is clear by definition that for any segment of a sensor si’s perimeter that divides two

sub-regions, both these sub-regions are at least k-covered. Fur-ther, observe that the sub-region that is inside si’s sensing

range must be covered by one more sensor, si, and is thus at

least (k+ 1)-covered. So excluding si itself, this segment is

perimeter-covered by at least k sensors other than si itself,

which proves the “only if” part.

Note that Theorem 1 is true when all sensors are claimed to be k-perimeter-covered. When a specific sensor si is

k-perimeter-covered, it only guarantees that each point right outside si’s perimeter is k-covered, and each point right inside si’s perimeter is (k+ 1)-covered. However, it does not guar-antee that all points inside si’s perimeter is (k+ 1)-covered.

An example is shown in figure 3. In figure 3(a), sensor si is

2-perimeter-covered since each segment of its perimeter is covered by two sensors. This only implies the coverage lev-els of the points nearby the perimeter of si. The gray area,

which is outside the coverage of si’s neighboring sensors,

is only 1-covered. In fact, the segments that bound the gray area are only 1-perimeter-covered. If we add another sensor to cover these segments (shown in thick dotted line) as shown in figure 3(b), then si’s sensing region will be 2-covered.

Below, we comment on several special cases which we leave unaddressed on purpose for simplicity in the above dis-cussion. When two sensors si and sj fall in exactly the same

location, Lemma 1 will not work because for any segment of

si and sj that divides two sub-regions in the network area, a

point right inside si’s and sj’s sensing ranges and a point right

outside their sensing ranges will differ in their coverage levels by two, making Lemma 1 incorrect (refer to the illustration in figure 4(a)). Other than this case, all neighboring sub-regions in the network will differ in their coverage levels by exactly one. Since in most applications we are interested in areas that are insufficiently covered, one simple remedy to this prob-lem is to just ignore one of the sensors if both sensors fall in

(a) (b)

Figure 4. Some special cases: (a) two sensors falling in the same location (the number in each sub-region is its level of coverage), and (b) the sensing range of a sensor exceeding the network area A.

exactly the same location. Another solution is to first run our algorithm by ignoring one sensor, and then increase the cov-erage levels of the sub-regions falling in the ignored sensor’s range by one afterward. The other boundary case is that some sensors’ sensing ranges may exceed the network area A. In this case, we can simply assign the segments falling outside

A as∞-perimeter-covered, as shown in figure 4(b). 3.2. The k-NC problem

For the non-unit-disk coverage problem, sensors’ sensing ranges could be different. However, most of the results de-rived above remain the same. Below, we summarize how the

k-NC problem is solved.

First, we need to define that how the perimeter of a sen-sor’s sensing range is covered by other sensors. Consider two sensors siand sjlocated in positions (xi, yi) and (xj, yj) with

sensing ranges ri and rj, respectively. Again, without loss of

generality, let sj be resident on the west of si. We address

how si is perimeter-covered by sj. There are two cases to be

considered.

Case 1. Sensor sj is outside the sensing range of si, i.e.,

d(si, sj)> ri.

α

α _αα

(a) (b)

Figure 5. The coverage relation of two sensors with different sensing ranges: (a) sjnot in the range of si, and (b) sjin the range of si.

(i) If rj < d(si, sj)−ri, then siis not perimeter-covered by sj.

(ii) If d(si, sj)− ri ≤ rj≤ d(si, sj)+ ri, then the arch of si

falling in the angle [π − α, π + α] is perimeter-covered by sj, whereα can be derived from the formula:

r2j = ri2+ d(si, sj)2− 2ri· d(si, sj)· cos(α). (1)

(iii) If rj > d(si, sj)+ ri, then the whole range [0, 2π] of si

is perimeter-covered by sj.

Case 2. Sensor sj is inside the sensing range of si, i.e.,

d(si, sj)≤ ri.

(i) If rj< ri− d(si, sj), then si is not perimeter-covered by sj.

(ii) If ri − d(si, sj)≤ rj ≤ ri+ d(si, sj), then the arch of si

falling in the angle [π − α, π + α] is perimeter-covered by sj, whereα is as defined in equation (1).

(iii) If rj > d(si, sj)+ ri, then the whole range [0, 2π] of siis

perimeter-covered by sj.

The above cases are illustrated in figure 5. Based on such classification, the same algorithm to determine the perimeter coverage of a sensor can be used. Lemma 1 and Theorem 1

524 HUANG ANDTSENG

(a) (b)

Figure 6. Number of sensors v.s. coverage level for sensor fields of sizes: (a) 500× 500, and (b) 1000 × 1000.

still hold true (observe that in the corresponding proofs, we do not use any property about the absolute sensing ranges of sensors).

3.3. Complexity analysis

Consider the algorithm in Section 3.1. Let d be the maximum number of sensors that are neighboring to a sensor (d≤ n). The complexities of steps 1 and 2 are O(d) and O(d log d), respectively. The last step 3, though sketched, can be easily implemented as follows. Whenever an elementαj_,L is

tra-versed, the level of perimeter-coverage should be increased by one. Whenever an elementαj,Ris traversed, the level of

perimeter-coverage should be decreased by one. Since the sorted list L will divide the line segment [0, 2π] into as many as 2d+ 1 segments, the complexity of step 3 is O(d). So the complexity to determine a sensor’s perimeter coverage is

O(d log d). The overall complexity for the k-UC problem is

thus O(nd log d). The k-NC problem can also be solved with complexity O(nd log d), except that the neighbors of a sensor need to be redefined. The work [21] also proposes a solution to determine the coverage level of a sensor network. It looks at how intersection points between sensors’ sensing ranges are covered. Since there are as many as O(n2_{) intersection points} in the network and the calculation of the coverage level of each intersection point takes time O(n), the overall complexity is

O(n3).

4. Simulation results and a sensor coverage toolkit

We have developed a simulator and implemented a toolkit based on the proposed algorithms. Square sensor fields are simulated with randomly placed nodes. There are two set-tings of sensing ranges: unit-disc sensing range and non-unit-disc sensing range. All results presented below are from the average of at least 1000 runs.

First, we investigate the level of coverage (i.e., k) that can be achieved by using different numbers of sensors. Sensor fields of sizes 500× 500 and 1000 × 1000 are simulated with

100–1000 nodes. The unit-disc sensing range is 100 units and the non-unit-disc sensing range falling uniformly between 50–150 units. Both the average and the maximum levels of coverage are evaluated. The results are in figure 6. As can be seen, the average value of k grows about linearly as the number of sensors increases.

Next, we investigate the level of coverage that can be achieved by setting different sensing ranges of sensors. Sensor fields of sizes 500× 500 and 1000 × 1000 are simulated with 500 nodes. For the unit-disc case, the sensing range is fixed from 50 to 150 units. For the non-unit-disc case, we first pick an average sensing range avg, and the sensors’ sensing ranges are uniformly distributed between avg − 50 and avg + 50. The results are in figure 7. The average value of k grows as the average sensing range of sensors increases.

We have also implemented a toolkit based on the proposed algorithms to determine the coverage level of a given sensing field. Figure 8 shows the user interface of the toolkit. In the drawing area, one can easily deploy sensors by pointing out their locations and dragging their sensing ranges. By clicking on the “Deploy” button, the deployment of sensors will be fed into our program. There are three major functions of this toolkit, as described below.

1. Compute the Level of Coverage: By clicking on the “Compute Coverage” button and then the “Display Cov-erage” button, the system will calculate and return the current coverage level of the whole area, as illustrated in figure 9(a).

2. Color the Drawing Area: By clicking on the “Paint the drawing area” button, the drawing area will be col-ored based on each region’s coverage level. The color-ing speed can also be modified, which will reflect on the coloring quality. An example is shown in figure 9(b).

3. Display Insufficiently Covered Segments: One can first se-lect the desired value of k followed by clicking on the “Commit” button to feed k into the system. Clicking on the “Get Low Coverage Segments” button will gener-ate an output file which contains all segments that are

(a) (b)

Figure 7. Sensing range v.s. coverage level for sensor fields of sizes: (a) 500× 500, and (b) 1000 × 1000.

Figure 8. Functional descriptions of the toolkit.

526 HUANG ANDTSENG

Figure 10. Insufficiently 4-perimeter-covered segments for the example in figure 9.

insufficiently k-perimeter-covered, as shown in the fig-ure 10. Each line in the file is a segment of one sensor’s perimeter that is insufficiently covered. Fields in a line include: sensor ID, location, sensing range, starting and ending angles of the corresponding segment, and the levels of coverage inside and outside this segment.

This toolkit is publicly downloadable from http://hscc. csie.nctu.edu.tw/download/coverage.zip.

5. Applications and extensions of the coverage problem

The sensor coverage problem, although modeled as a deci-sion problem, can be extended further in several ways for many interesting applications. The proposed results can also be extended for more realistic situations. In the following, we suggest several applications of the coverage problem and possible extensions of our results.

5.1. Discovering insufficiently covered regions

For a sensor network, one basic question is whether the net-work area is fully covered. Our modeling of the k-UC and

k-NC problems can solve the sensor coverage problem in a

more general sense by determining if the network area is k-covered or not. A larger k can support a more fine-grained sensibility. For example, if k= 1, we can only detect in which sensor an event has happened. Using a larger k, the location of the event can be reduced to a certain intersection of at least k sensors. Thus, the location of the event can be more precisely defined. This would support more fine-grained location-based services.

To determine which areas are insufficiently covered, we assume that there is a central controller in the sensor network. The central controller can broadcast the desired value of k to all sensors. Each sensor can then communicate with its

neighboring sensors and then determine which segments of its perimeter are less than k-perimeter-covered. The results (i.e., insufficiently covered segments) are then sent back to the central controller. By putting all segments together, the central controller can precisely determine which areas are less than

k-covered. Note that since Theorem 1 provides a necessary

and sufficient condition to determine if an area in the network is k-covered, false detection would not happen.

Further actions can then be taken if certain areas are in-sufficiently covered. For example, the central controller can dispatch more sensors to these regions. An optimization prob-lem is: how can we patch these insufficiently covered areas with the least number of extra sensors. This is still an open question and deserves further investigation.

5.2. Power saving in sensor networks

Contrary to the insufficient coverage issue, a sensor network may be overly covered by too many sensors in certain areas. For example, as suggested in [18], if there are more sensors than necessary, we may turn off some redundant nodes to save energy. These sensors may be turned on later when other sen-sors run out of energy. Tian and Georganas [18] proposes a node-scheduling scheme to guarantee that the level of cov-erage of the network area after turning off some redundant sensors remains the same.

Based on our result, we can solve a more general problem as follows. First, those sensor nodes who can be turned off, called

candidates, need to be identified. A sensor si is a candidate

if all of its neighbors are still k-perimeter-covered after si

is removed. To do so, si can communicate with each of its

neighbors and ask them to reevaluate their perimeter coverage by skipping si. If the responses from all its neighbors are

positive, si is a candidate. After determining the candidates,

each sensor can compete to enter the doze mode by running a scheduling scheme, such as that in [18], to decide how long it

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 4 4 si sj si (a) (b) (c)

Figure 11. The coverage problem with irregular sensing regions: (a) coverage levels of irregular sub-regions, (b) polygon approximation of sensor si’s sensing

region, and (c) covered segments of si.

can go to sleep. However, [18] only considers a special case of our results with k= 1.

5.3. Hot spots

It is possible that some areas in the network are more important than other areas and need to be covered by more sensors. Those important regions are called hot spots. Our solutions can be directly applied to check whether a hot spot area is

k-covered or not. Given a hot spot, only those sensors whose

perimeters are within or have crossings with the hot spot need to be checked. So the central controller can issue a request by identifying the hot spot. Each sensor that is within the hot spot or has crossings with the hot spot needs to reevaluate the coverage of its perimeter segment that is within the hot spot. The results in Lemma 1 and Theorem 1 are directly applicable. So a hot spot is k-covered if and only if all perimeter segments within this hot spot are k-perimeter-covered. Note that a hot spot can be defined in other shapes too.

5.4. Extension to irregular sensing regions

The sensing region of a sensor is not necessarily a circle. In most cases, it is location-dependent and likely irregular.1 Fortunately, our results can be directly applied to irregular sensing regions without problem, assuming that each sen-sor’s sensing region can be precisely defined. Observe that the sensing regions of sensors still divide the network area into sub-regions. Through Lemma 1, we can translate perimeter-covered property of sensors to area-perimeter-covered property of the network. Then by Theorem 1, we can decide whether the net-work is k-covered. figure 11(a) shows an example.

Given two sensors’ sensing regions that are irregular, it re-mains a problem how to determine the intersections of their perimeters. One possibility is to conduct polygon approxima-tion. The idea is illustrated in figure 11(b), which can give the perimeter coverage in figure 11(c).

1_{The sensing region of a sensor may even be time-varying, in which}

case frequent reevaluation of the sensing region would be necessary. This issue is beyond the scope of this work.

6. Conclusions

In this paper, we have proposed solutions to two versions of the coverage problem, namely k-UC and k-NC, in a wire-less sensor network. We model the coverage problem as a decision problem, whose goal is to determine whether each location of the target sensing area is sufficiently covered or not. Rather than determining the level of coverage of each location, our solutions are based on checking the perime-ter of each sensor’s sensing range. Although the problem seems to be very difficult at the first glance, our scheme can give an exact answer in O(nd log d) time. With the pro-posed techniques, we also discuss several applications (such as discovering insufficiently covered regions and saving en-ergies) and extensions (such as scenarios with hot spots and irregular sensing ranges) of our results. A software tool that implements the proposed algorithms is available on the web (http://hscc.csie.nctu.edu.tw/download/coverage.zip) for free download.

Acknowledgments

The authors would like to thank Li-Chu Lo for implement-ing the simulation and toolkit mentioned in Section 4. Y.C. Tseng’s research is co-sponsored by the MOE Program for Promoting Academic Excellence of Universities, by NSC of Taiwan under grant numbers NSC92-2213-E009-076 and NSC92-2219-E009-013, by Computer and Communications Research Labs., ITRI, Taiwan, by Intel Inc., by the Institute for Information Industry and MOEA, R.O.C, under the Hand-held Device Embedded System Software Technology Devel-opment Project, by the Lee and MTI Center of NCTU, and by Chung-Shan Institute of Science and Technology under contract number BC93B12P.

References

[1] P.K. Agarwal and M. Sharir, Arrangements and their applications. in: Handbook of Computational Geometry, eds. J.-R. Sack and J. Urrutia, ( Elsevier, North-Holland, New York, 2000) pp. 49–119.

528 HUANG ANDTSENG [2] P. Bahl and V.N. Padmanabhan, RADAR: an in-building RF-based user

location and tracking system, in: IEEE INFOCOM (2000) pp. 775–784 [3] D. Braginsky and D. Estrin, Rumor routing algorithm for sensor net-works, in: ACM Int’l Workshop on Wireless Sensor Networks and Ap-plications (WSNA) (2002).

[4] N. Bulusu, J. Heidemann and D. Estrin, GPS-less low cost outdoor lo-calization for very small devices, IEEE Personal Commun. 7(5) (2000) 28–34.

[5] D. Ganesan, R. Govindan, S. Shenker and D. Estrin, Highly resilient, energy efficient multipath routing in wireless sensor networks, ACM Mobile Comput. and Commun. Review 5(4) (2001) 11–25.

[6] D. Halperin, Arrangements, in: Handbook of Discrete and Computa-tional Geometry, eds. J.E. Goodman and J. O’Rourke, chapter 21, (CRC Press LLC, Boca Raton, FL, 1997) pp. 389–412.

[7] W.R. Heinzelman, A. Chandrakasan and H. Balakrishnan, Energy-efficient communication protocols for wireless microsensor networks, in: Hawaii Int’l Conf. on Systems Science (HICSS) (2000).

[8] S. Meguerdichian, F. Koushanfar, M. Potkonjak and M.B. Srivastava, Coverage problems in wireless ad-hoc sensor networks. in: IEEE IN-FOCOM (2001) pp. 1380–1387.

[9] S. Meguerdichian, F. Koushanfar, G. Qu and M. Potkonjak, Exposure in wireless ad-hoc sensor networks, in: ACM Int’l Conf. on Mobile Computing and Networking (MobiCom) (2001) pp. 139–150 [10] S. Meguerdichian, S. Slijepcevic, V. Karayan and M. Potkonjak,

Lo-calized algorithms in wireless ad-hoc networks: location discovery and sensor exposure, in: ACM Int’l Symp. on Mobile Ad Hoc Networking and Computing (MobiHOC) (2001) pp. 106–116.

[11] D. Nicules and B. Nath, Ad-hoc positioning system (APS) using AoA, in: IEEE INFOCOM (2003).

[12] J. O’Rourke, Computational geometry column 15, Int’l Journal of Com-putational Geometry and Applications 2(2) (1992) 215–217. [13] G.J. Pottie and W.J. Kaiser, Wireless integrated network sensors,

Com-mun. ACM 43(5) (2000) 51–58.

[14] A. Savvides, C.-C. Han and M.B. Strivastava, Dynamic fine-grained localization in ad-hoc networks of sensors, in: ACM Int’l Conf. on Mobile Computing and Networking (MobiCom) (2001) pp. 166–179. [15] E. Shih, S.-H. Cho, N. Ickes, R. Min, A. Sinha, A. Wang and A.

Chandrakasan. Physical layer driven protocol and algorithm design for energy-efficient wireless sensor networks, in: ACM Int’l Conf. on Mo-bile Computing and Networking (MobiCom) (2001) pp. 272–287. [16] S. Slijepcevic and M. Potkonjak, Power efficient organization of

wire-less sensor networks, in: IEEE Int’l Conf. on Communications (ICC) (2001) pp. 472–476.

[17] K. Sohrabi, J. Gao, V. Ailawadhi and G.J. Pottie, Protocols for self-organization of a wireless sensor network, IEEE Personal Commun. 7(5) (2000) 16–27.

[18] D. Tian and N.D. Georganas, A coverage-preserving node scheduling scheme for large wireless sensor networks, in: ACM Int’l Workshop on Wireless Sensor Networks and Applications (WSNA) (2002). [19] Y.-C. Tseng, S.-P. Kuo, H.-W. Lee and C.-F. Huang, Location tracking

in a wireless sensor network by mobile agents and its data fusion strate-gies, in: Int’l Workshop on Information Processing in Sensor Networks (IPSN) (2003).

[20] G. Veltri, Q. Huang, G. Qu and M. Potkonjak, Minimal and maximal exposure path algorithms for wireless embedded sensor networks. in: ACM Int’l Conf. on Embedded Networked Sensor Systems (SenSys) (2003) pp. 40–50.

[21] X. Wang, G. Xing, Y. Zhang, C. Lu, R. Pless and C. Gill, Coverage and connectivity configuration in wireless sensor networks. in: ACM Int’l Conf. on Embedded Networked Sensor Systems (SenSys) 2003 pp. 28–39.

[22] A. Woo and D. E. Culler, A transmission control scheme for media access in sensor networks, in: ACM Int’l Conf. on Mobile Computing and Networking (MobiCom) (2001) pp. 221–235.

[23] F. Ye, G. Zhong, S. Lu and L. Zhang, PEAS: a robust energy conserving protocol for long-lived sensor networks, in: Int’l Conf. on Distributed Computing Systems (ICDCS) (2003).

[24] W. Ye, J. Heidemann and D. Estrin, An energy-efficient MAC protocol for wireless sensor networks, in: IEEE INFOCOM (2002) pp. 1567– 1576.

Chi-Fu Huang received his B.S. and M.S. degrees both in Computer Science and Information Engi-neering from the Feng-Chia University and the Na-tional Central University in 1999 and 2001, re-spectively. He obtained his Ph.D. in the Depart-ment of Computer Science and Information En-gineering from the National Chiao-Tung Univer-sity in September of 2004. He is currently a Re-search Assistant Professor at the Department of Computer Science and Information Engineering, National Chiao-Tung University, Taiwan. His research interests include wire-less communication and mobile computing, especially in ad hoc and sensor networks.

E-mail: cfhuang@csie.nctu.edu.tw

Yu-Chee Tseng received his B.S. and M.S. degrees in Computer Science from the National Taiwan Uni-versity and the National Tsing-Hua UniUni-versity in 1985 and 1987, respectively. He worked for the D-LINK Inc. as an engineer in 1990. He obtained his Ph.D. in Computer and Information Science from the Ohio State University in January of 1994. He was an Associate Professor at the Chung-Hua University (1994–1996) and at the National Central University (1996–1999), and a Full Professor at the National Central University (1999–2000). Since 2000, he has been a Full Professor at the Department of Computer Science and Information Engineering, Na-tional Chiao-Tung University, Taiwan. Dr. Tseng served as a Program Chair in the Wireless Networks and Mobile Computing Workshop, 2000 and 2001, as a Vice Program Chair in the Int’l Conf. on Distributed Computing Systems (ICDCS), 2004, as a Vice Program Chair in the IEEE Int’l Conf. on Mobile Ad-hoc and Sensor Systems (MASS), 2004, as an Associate Editor for The Computer Journal, as a Guest Editor for ACM Wireless Networks special is-sue on “Advances in Mobile and Wireless Systems”, as a Guest Editor for IEEE Transactions on Computers special on “Wireless Internet”, as a Guest Editor for Journal of Internet Technology special issue on “Wireless Internet: Applications and Systems”, as a Guest Editor for Wireless Communications and Mobile Computing special issue on “Research in Ad Hoc Networking, Smart Sensing, and Pervasive Computing”, as an Editor for Journal of Infor-mation Science and Engineering, as a Guest Editor for Telecommunication Systems special issue on “Wireless Sensor Networks”, and as a Guest Editor for Journal of Information Science and Engineering special issue on “Mobile Computing”. He is a two-time recipient of the Outstanding Research Award, National Science Council, ROC, in 2001–2002 and 2003–2005, and a re-cipient of the Best Paper Award in Int’l Conf. on Parallel Processing, 2003. Several of his papers have been chosen as Selected/Distinguished Papers in international conferences. He has guided students to participate in several national programming contests and received several awards. His research in-terests include mobile computing, wireless communication, network security, and parallel and distributed computing. Dr. Tseng is a member of ACM and a Senior Member of IEEE.
