Study of Band-Edge Modes in GaN-Based Photonic
Crystal Surface-Emitting Lasers by the
Multiple-Scattering Method
Peng-Hsiang Weng, Tzeng-Tsong Wu, and Tien-Chang Lu, Member, IEEE
Abstract—In this paper, we have investigated the mode patterns in real space and reciprocal space, and threshold gain at different band edges in GaN-based photonic crystal surface-emitting lasers (PCSELs) by using the multiple-scattering method. The charac-teristics at each band edge (Γ1, K2, and M3) of PCSELs are sim-ulated and discussed. In addition, GaN-based PCSELs operated at different band edges have been fabricated and measured. The experimental results of threshold show good agreement with the simulation results.
Index Terms—Distributed feedback (DFB), GaN, multiple scat-tering, photonic crystal, surface-emitting lasers (SELs).
I. INTRODUCTION
I
N RECENT years, the 2-D photonic crystal employing the 2-D distributed feedback (DFB) mechanism has been widely utilized in optoelectronic devices, such as photonic crys-tal surface-emitting lasers (PCSELs) and LEDs) [1]–[4]. With the careful selection of normalized frequency at the photonic band edges by adjusting emission wavelength and photonic crystal lattice constant, specific Bragg diffraction will occur not only to realize the stimulated resonant condition in the in-plane direction but also to achieve the laser output coupling in the surface emission direction. Such a mechanism is ad-vantageous because PCSELs could lase over a broad area de-fined by the photonic crystal patterns, which in turn implies potential to achieve high-output power emission, and operate in single-mode emission with a low divergence angle. Based on these characteristics, PCSELs could be excellent candidates for many applications including definition laser printers, high-density optical data storage systems and microlaser/picolaser projectors. So far, many investigations on PCSELs have been explored and the emission wavelength of these devices covers from short wavelength to terahertz regions [5]–[9]. However, the 3-D features inherited in the PCSELs pose great challenges to build a mature analysis and calculation tool to design theManuscript received June 20, 2011; revised August 20, 2011; accepted September 5, 2011. The work was supported by the Ministry of Education ATU program, and in part by the National Science Council of Taiwan under Contract NSC 98-3114-M-009-001.
The authors are with the Department of Photonics and Institute of Electro-Optical Engineering, National Chiao Tung University, Hsinchu 30050, Taiwan (e-mail: [email protected]; [email protected]; [email protected]).
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/JSTQE.2011.2169237
laser structure. There have been several researchers focusing on the theoretical analysis of the DFB mechanism on PCSELs by using different calculation methods. The plane-wave expansion method (PWEM) to calculate the lasing threshold by analyz-ing the group-velocity anomaly in the 2-D photonic crystal was presented in [10]. The authors used the coupled wave theory to explain the threshold gains and deviations from the Bragg frequency for square and triangular lattices of PCSELs in [11] and [12]. The finite-difference time-domain (FDTD) method was applied to comprehend the quality factor for near band-edge modes in the finite-size 2-D photonic crystals in [13]. The multiple-scattering method (MSM) to evaluate laser character-istics in photonic crystal circular rods with optical gains was reported in [14] and [15]. The authors also manipulated the cou-pled wave theory to shed light on the coupling coefficients of different band edges in PCSELs with a triangular lattice [16]. Although the aforementioned different theoretical methods take advantageous positions in some respects, while analyzing cer-tain laser characteristics, each of them suffers limitations in cal-culation of the PCSEL structures. The coupled wave theory can provide a quick estimation of threshold conditions in PCSELs but the boundary condition needs to be carefully dealt with and the analysis of arbitrary defect or lattice patterns requires further development. As for the FDTD method, it consumes numerous computer memories and calculation time to simulate the finite PC structure. In spite of the 3-D calculation capability provided by the FDTD, it is a complex way to calculate the threshold gain from the FDTD. On the other hand, the 2-D PWEM ap-plies only to the infinite photonic crystal patterns instead of the real device such that the boundary conditions of the PCSELs are not taken into account. Finally, the MSM shows good capabil-ity, such as faster calculation time, considering gain coefficients within photonic crystal materials with arbitrary defect or lattice patterns.
Therefore, the purpose of this paper is to investigate the char-acteristics of different band-edge modes including Γ1, K2, and M3 (defined and shown in Fig. 3) in GaN-based PCSELs with a triangular lattice pattern. The mode patterns in real space, re-ciprocal space, and threshold gain of different band-edge modes in GaN-based PCSELs were calculated by using the MSM. The paper is outlined as follows. The model of the MSM is briefly in-troduced and derived in Section II. Then, the fabrication process of three kinds of GaN-based PCSELs operated at different bad edges and the experimental setups are presented in Section III. In Section IV, different characteristics, such as mode patterns in real space, threshold gains, and mode patterns in reciprocal

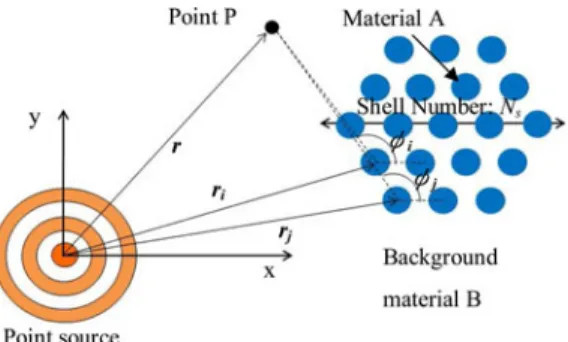

Fig. 1. Representation of the field at point P contributed by scattered fields from various circular photonic structures and a point source used in the MSM.
space at Γ1, K2, and M3 band edges, are investigated and dis-cussed. The threshold power density of GaN-based PCSELs at Γ1, K2, and M3 band edges are presented. The simulation results of the threshold gain for each band-edge modes are matched well to the experimental results. Finally, a summary of these results and prospects is given in Section V.
II. MULTIPLE-SCATTERINGMETHOD
In our calculation model, the 2-D photonic crystal basis con-sisting of cylinder arrays is placed in a uniform gain medium. As shown in Fig. 1, the background material B is an isotropic gain medium, which is characterized by a complex dielectric constant, and circular rods are made up of material A. The di-electric constant of material B can be written as follows:
εB(ω) = εb(ω)− i
2c√εb
ω k
b. (1)
The constant εb represents the dielectric constant varied with
the frequency of light, and the kb represents the amplitude gain coefficient of material B (background wave number of back-ground material B, i.e., kB = kb − ikb). A point source at the
origin point emits a monochromatic wave to cylinders with the finite number, locating at ri(i = 1, 2,. . ., N). The field scattered
from each cylinder shall response to the total incident field composed of the direct field from the source and the multiple scattered fields from other cylinders. The scattered field from the jth cylinder can be written as
Φs( r ,rj) = ∞ n =−∞ iπAjnHn(1)(kB| r −rj|)e in φ r −r j (2)
where Hn(1)is the nth-order Hankel function of the first kind, k
is the wave number, ψ is the azimuthal angle, and Ajn is the nth
expansion Bessel coefficient of the jth cylinder. Similarly, the total incident field around the ith cylinder (i = 1, 2, . . ., N; i=j) can be expressed as in the Bessel function form:
Φiin(r ) = ∞ n =−∞ BniJn(kB| r −ri|)e in φ r −r i. (3) The coefficients Ai
n and Bin can be solved by expressing the
scattered field Φs(
r ,rj), for each i=j, in terms of the modes
with respect to the ith cylinder by the addition theorem of the Bessel function [17]. The final field reaching a receiver located
atr is the sum of direct wave from the source and the scattered fields from all the cylinders. Therefore, the external field of cylinders could be expressed as
Φiext(r ) = ∞ n =−∞ BnjJn(kB| r −ri|) +iπAjnHn(1)(kB| r −ri|) ein φr −r i. (4) The aforementioned equation expresses a sum of external field from the incident field and the scattered field outside the ith cylinder. In addition, we assume that the wave inside the ith cylinder can be defined as
Φiint(r ) = ∞ n =−∞ DnjJn(kA| r −ri|)e in φ r −r i. (5) Here, Di
n is the assumption coefficient of the internal field.
Then, the usual boundary conditions are considered. The field and the derivative field should be continuous across the interface between the cylinder and the surrounding material. We derive the correlation between Ain and Bni that leads to
Bni = iπΓinAin (6) Γin=H (1) n (kBai)Jn(kAai)−g(kB/kA)H(1) n (kBai)Jn(kAai) g(kB/kA)Jn(kBai)Jn(kAai)− Jn(kBai)Jn(kAai) (7) where ai is the radius of ith cylinder, and g is the dielectric
constant ratio between materials A and B. Then, the total system matrix of the photonic crystal can be obtained as follows:
ΓinAin − N j = 1,j=i ∞ l=−∞ Gi,jl,nAjl = Tni. (8) Here, we define Tni(r ) = H−n(1)(kB| ri|)e −inφ r i (9) and Gi,jl,n= Hl−n(1)(kB| ri− rj|)e −inφ r i −r j, i= j. (10) Here, Ainand Tnirepresent the expansion coefficients of
scatter-ing field and expansion coefficient of the incident field. Equation (8) can be simplified to an eigen-value problem: MA = T. The laser oscillation condition would be thus achieved under the condition that the value of vector A / T is divergent. Therefore, det(M) = 0 is the complex determinant equation used to search for a pair of variables of the threshold amplitude gain kam and the normalized frequency from k = ω/c. Once the coefficient Ai
n is determined, the total field outside of the cylinder at any
spatial point is given by Φext( r ) = iπH0(1)+ N i= 1 ∞ n =−∞ iπAinHni(kB| r −ri|)e in φ r −r i. (11)
We, then, solve the relation between Di
nand Ainby the boundary
condition and obtain Di
n = iπZniAin, where Zni is expressed as
Zni = −2i/(πkBa
i)
Jn(kAai)Jn(kBai)− (kA/(gkB))Jn(kBai)Jn(kAai)
. (12) Therefore, the internal field of the ith cylinder can be derived from (5) by the aforementioned correlation.
After pairs of the resonant-mode frequency and threshold amplitude gain are determined, the corresponding laser oscil-lation modes are investigated in terms of the magnetic-field distribution in the reciprocal space (or called k-space). Since the resonant mode will be diffracted to the photonic band edge, the field pattern in the reciprocal space is useful to clarify the resonant modes at different band edges. The field pattern in the reciprocal space can be calculated as
Φ(g ) =
|r|<∞
Φ(r )e−ig·rdr (13) whereg is the 2-D reciprocal lattice vector. By observing the intensity distribution in the reciprocal space, the directions of the dominant waves can be determined and manifest the char-acteristics in the PCSELs.
III. DEVICESTRUCTURE ANDMEASUREMENTSYSTEM
In the experiment, the GaN-based PCSEL structure was grown on a c-plane 2-in sapphire by a metal-organic chemi-cal vapor deposition (MOCVD) system. The epitaxial structure composed of a 2-μm-thick GaN buffer layer, a 35-pair GaN/AlN distributed Bragg reflector (DBR), a 560-nm-thick n-GaN layer, ten pairs of InGaN/GaN multiple quantum wells (MQW), a 24-nm-thick AlGaN electron blocking layer, and a 175-24-nm-thick p-GaN layer. The detailed growth parameters were reported in [6]. Then, the electron-beam lithography (EBL) was utilized to define the photonic crystal pattern with the triangular lattice on the sample surface. The photonic crystal pattern with the lattice constant a was defined ranging from 180 to 300 nm to match different normalized frequency conditions and the circu-lar hole diameter r was chosen such that r/a ranged from 0.18 to 0.3. Here, the lattice constants are designed to make sure that the gain region would cover the lasing wavelength for particular band-edge points.
Then, the photonic crystal pattern was etched about 400 nm down to n-GaN by using the inductively coupled plasma system. The photonic crystal pattern was filled in a round area with a diameter of about 50 μm. The schematic cross section of the GaN-based PCSEL device structure is shown in Fig. 2(a). Fig. 2(b) shows the fundamental guided mode calculating by the transfer matrix method.
In the measurement system, a 355-nm YVO4 pulse laser was
used as the excitation source in the micro-photoluminescence (μ-PL) system [6]. The pulse width is 0.5 ns and the repetition rate is 1 kHz. The pumping laser beam, with a spot size of 50 μm in diameter, was normally incident onto the sample surface and covered the whole PC pattern area. A 15× objective lens with a numerical aperture of 0.32 was placed normally to the sample

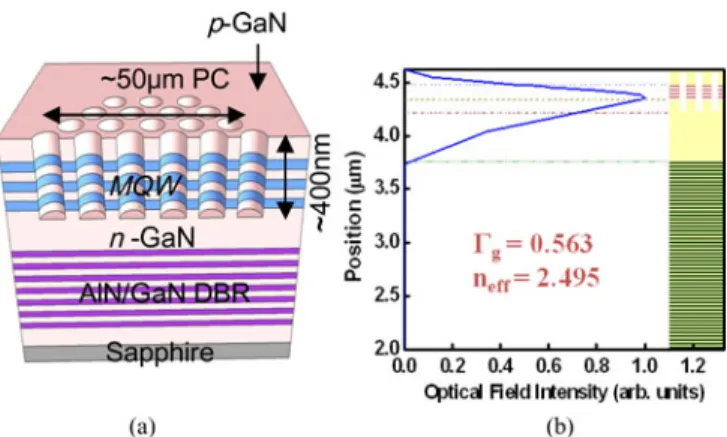

Fig. 2. (a) Schematics of the GaN-based PCSEL structures. (b) Fundamental guided mode calculated by the transfer matrix method.
Fig. 3. Band structure for the photonic crystal with a triangular lattice in TE polarization. The dashed circles indicate the Γ1, K2, and M3 band edges, respectively. The inset shows the Γ, K, and M directions in the real space. (Right) Detailed band structures near each band edge.
to collect the light emission from the top of the photonic crystal pattern. The light was, then, collected through a fiber with a 600 μm core and coupled into a spectrometer with a charge coupled device.
IV. NUMERICALRESULT
While the light wave is diffracted from the photonic crystal structure with a triangular lattice, it should satisfy the phase match and energy conservation as follows [2]:
Kd = Ki+ q1K1+ q2K2, q1,2= 0, 1, 2, . . .
ωd = ωi (14)
where Kd is a wave vector of the diffracted light wave; Ki is
an xy-plane wave vector of the incident light wave; K1,2 are
the Bragg wave vectors provided by the triangular lattice in the photonic crystal pattern; q1 and q2 are the orders of diffraction;
ωd is the frequency of the diffracted light wave, and ωi is the
frequency of the incident light. In addition, the dispersion curves or the photonic band structures for a triangular lattice with the transverse-electric (TE) polarization can be calculated by the PWEM as shown in Fig. 3. The Bragg condition and (14) are well satisfied, especially, at band edges in the photonic band structures due to the specific lattice constant, e.g., the Γ1, K2, and M3 band edges indicated by the black dashed circles in
Fig. 4. (a) Normalized frequency versus the shell number of photonic crystals. (b) Threshold amplitude gain as a function of the shell number of cylinder layers with four resonant modes.
Fig. 3. These band edges, showing low group velocity and high density of states in photonic modes, are suitable for lasing to occur. Fig. 3 (right) shows the detailed band structure for each band edge. There are six bands at the Γ1 band edge, three bands at K2 band edge, and four bands at the M3 band edge, resulting from different symmetric diffractions. As a result, the different band edges would exhibit different photonic characteristics. In addition, the special surface emission condition would occur at the band edges in 2-D PCSELs when the resonant modes are above the light line. For example, lasing modes at Γ1, K2, and M3 band edges in Fig. 3 should exhibit the surface out-coupling capability.
In this section, we discuss the results of numerical calculation based on the MSM. The resonant-mode frequencies, threshold gains, and field distributions in the reciprocal space at different band edges have been calculated.
A. Influence of the Shell Number in Photonic Crystals
To simplify the complex 3-D problems, the structural pa-rameters used for this study are based on the effective index method [2]. The confinement factor of 0.563 for the photonic crystal layer and the effective index of 2.495 for the guided mode were calculated by the transfer matrix method [18], [19]. For the Γ1 band edge, εa of material A (cylinder) was 1.87 and εb
of the background material B (GaN) was 2.65, the filling factor of the cylinder was 0.25, and the lattice constant was 180 nm. There were seven partial waves in the expansion coefficient of the Bessel function (n = −3 to +3). The determinant equa-tion, i.e., det(M) = 0, calculated the normalized frequency and threshold amplitude gain. A size parameter Nsshown in Fig. 2,
represents the shell number of cylinder layers in the Γ–M di-rection. Fig. 4(a) shows the normalized frequency with respect to the shell number. Four resonant modes can be determined. It shows that when the shell number increases, the normalized frequency will approach to the steady value. The relation be-tween the threshold gain and the shell number Ns is shown in
Fig. 4(b). The threshold gains of four resonant modes would ex-ponentially decay, while increasing the shell number of photonic crystals, and the marginal influence of the shell number tends to converge after Ns is larger than 21 in our simulation model. It
indicates that the influence of PC shell would be saturated and threshold gains would approach to a constant since the lasing

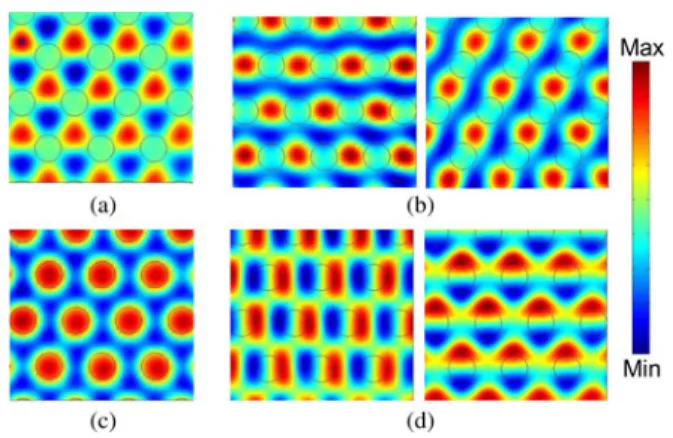

Fig. 5. Magnetic-field distributions of four resonant modes at the Γ1 band edge for (a) mode A, (b) mode B, (c) mode C, and (d) mode D. Blue and red areas represent the positive and negative magnetic fields perpendicular to the plane, respectively. Black circles indicate the photonic crystal cylinders.
mechanism of PCSELs is provided by the DFB in a photonic crystal lattice and the boundary reflections around the photonic crystal structure. If there are only few shells of cylinders, the boundary reflections will seriously influence the laser threshold. As the shell number of photonic crystal increases, the feedback mechanism will be dominated by the photonic crystal diffrac-tion, and thus, the lasing threshold converges. Simultaneously, the normalized lasing modes would approach the band-edge po-sitions. These values are the steady-state solutions that match well to the results obtained in the PWEM and can be used in the following calculation. As a result, the shell number was set to be 21 in the following calculations.
Most of the previous GaN-based PCSELs were designed to operate at the Γ1 band edge to form the surface emission condi-tion [5]–[7] due to its strong coupling characteristics. As shown in Fig. 3, the band diagram around Γ1 band edge indicates four associated resonant modes, termed as modes A, B, C, and D, respectively, from low to high normalized frequency. Modes B and D are doubly degenerate coupling waves. It can be dis-tinguished into two pairs of doubly degenerate bands and two pairs of nondegenerate bands. These resonant modes can also be identified from the magnetic-field distributions, which are calculated by (10) and (11) by adding the internal and external magnetic-field distributions as shown in Fig. 5. Each resonant mode shows distinct magnetic-field distributions. The magnetic field distribution of mode A is divided into three positive and negative areas around each lattice point, referred as the hexapole mode. As for mode B, there are two positive and negative areas around each lattice point, which is identified as the quadruple mode. Modes C and D are characterized by monopole and dipole modes, respectively. The normalized frequencies of modes A–D were calculated to be 0.4376, 0.4601, 0.4659, and 0.4972, respectively.
B. Real-Space Resonant-Mode Patterns for K2 and M3 Band Edges
Except for the Γ1 band edge, there are other higher order band edges, such as K2 and M3, from the band diagram in Fig. 3. The resonant characteristics including mode patterns and threshold
Fig. 6 (a) and (b) Magnetic-field distributions for the resonant modes E and F at the K2 band edge. (c)–(f) Magnetic-field distributions for the resonant modes G, H, I, and J at the M3 band edge. Blue and red areas represent the positive and negative magnetic fields perpendicular to the plane, respectively. Black circles indicate the photonic crystal cylinders.
gains of K2 and M3 band edges can also be investigated and discussed by using the MSM. Fig. 6 shows all of the mode patterns at K2 and M3 band edges. For the K2 band edge, εa=
2 and εb = 2.63 were used for materials A and B, respectively.
The filling factor of the cylinder was 0.26 and the lattice constant was 220 nm. As shown in Fig. 3, the K2 band edge can exhibit two resonant modes. The normalized frequency of each resonant mode was calculated to be 0.523 27, and 0.552 86, respectively. In Fig. 6(a), the field distribution of the lower frequency mode E has three negative areas around each lattice point. Fig. 6(b) shows the higher frequency degenerate modes with two opposite dipoles around every lattice point. It should note that the field distribution would be changed due to the finite photonic crystal boundary. Similarly, for the M3 band edge, εa = 2.0 and εb
= 2.63 were used for materials A and for B, respectively. The filling factor of the cylinder was 0.266 and the lattice constant was 247 nm. Compared with the Γ1 band edge, there also exist four modes termed as modes G, H, I, and J at the M3 band edge. Each mode pattern shows significant symmetric magnetic-field distributions in Fig. 6(c)–(f). Modes G–I shows three similar kinds of magnetic-field distributions in Fig. 6(d)–(f). In Fig. 6(f), mode J has a pair of positive and negative areas around each lattice point. The normalized frequencies corresponding to G, H, I, and J modes were calculated to be 0.593 48, 0.609 68, 0.615 71, and 0.624 08, respectively.
C. Reciprocal-Space Mode Patterns
In order to investigate more features of different modes, it is useful to transfer the magnetic-field distributions in the real space into the reciprocal space or k (wave number) space by using (6). Fig. 7 shows the magnetic fields in the reciprocal space and the white hexagonal lines represent the Brillouin-zone boundaries for a triangular lattice. For the Γ1 band edge, the field distribution of modes A and C locates at six zeniths of a hexagon in the second Brillouin zone, representing that these six diffraction directions strongly couple together to enhance the in-plane laser oscillation. On the other hand, the reciprocal-space
Fig. 7. Calculated magnetic-field distributions of Γ1, K2, and M3 band edges in the reciprocal space. The white arrows indicate the diffraction direction for each band-edge points.
field distributions of modes B and D show two major diffraction directions, representing their specific laser oscillation directions. Since these diffraction patterns are in the Γ points of six sec-ond Brillouin zone, these modes can be diffracted back to the Γ point of the first Brillouin zone by the first-order diffraction. As a result, the output emission shall be normal to the surface. The same analysis can be applied to other band edges. The K2 band-edge mode emits the diffracted lights tilting an angle of 30◦off to the normal of the surface, which can be extracted from the reciprocal field patterns as shown in Fig. 7 (middle). Similarly, the M3 band edge mode emits several inclined diffracted lights. By observing the reciprocal field patterns shown in Fig. 7 (bot-tom), the tilted angles of these inclined diffracted lights can be calculated as 19.47◦, 35.26◦, and 61.87◦off to the normal of the PC surface, respectively. These values are in good agreement with our previous experiment results [19].
D. Threshold Gains for Different Band Edges
Finally, the GaN-based PCSELs operated at different band edges were measured under the optical pumping system at room temperature. The gain peak of MQWs was at 410–420 nm with a linewidth of about 30 nm. The lasing wavelengths for Γ1, K2, and M3 band-edge points are 416, 402, and 392 nm, respec-tively. a/λ of the lasing threshold for Γ1, K2, and M3 band-edge points are 0.46, 0.54, 0.63, respectively. As shown in Fig. 8, clear threshold conditions are observed with the threshold power den-sity of 3.7 mJ/cm2for the Γ1 band edge, 6.3 mJ/cm2 for the K2
band edge, and 8.1 mJ/cm2of the M3 band edge, showing a
ten-dency of the increased threshold from low- to high-order bands. According to the simulation results, the threshold amplitude gains were 6.2×10−3, 5.9×10−3, 7.7×10−3, and 7.3×10−3 for
Fig. 8. Measured output intensity versus input excitation energy density from the GaN-based PCSELs for Γ1, K2, and M3 band edges.
Fig. 9. Calculated threshold gains and normalized frequency for Γ1, K2, and M3 band edges of GaN-based PCSELs.
modes A, B, C, and D of the Γ1 band edge, respectively. The dif-ferent simulation result of the threshold amplitude gain comes from the variation distribution of field in a photonic crystal. It depends on the magnetic distribution field in the gain material. As shown in Fig. 6, modes A (hexagonal pole) and B (quadrant pole) have the more distributed field in the gain material than modes C (mono pole) and D (dipole mode); thus, modes A and B have the lower threshold gain than modes C and D.
For the K2 band edge, the threshold amplitude gains were calculated to be 1.6×10−2and 2.4×10−2. The lower normalized frequency mode has a relatively lower threshold gain. As for the M3 band edge, we obtained the threshold amplitude gains of 3.5×10−2, 3.0×10−2, 2.7×10−2, and 2.9×10−2. The K2 band edge has the same result as the Γ1 band edge that the threshold gain of the hexagonal mode E is lower than the dipole mode F due to the less overlap of the magnetic field with the gain material. The same result can be obtained that the dipole mode G has the highest threshold amplitude gain at the M3 band edge. Fig. 9 shows the calculated threshold gains versus the normalized frequency for three band edges. The black dashed eclipses group three band-edge modes. Typically, modes at the Γ1 band edge have the lowest threshold gain and modes at the M3 band edge have higher threshold gains than others. This can be schematically understood from the following. The white arrows in Fig. 7 indicate the length and directions of k vectors oscillating in the reciprocal space. The longer k vector means lower coupling coefficient due to the deviation from the Bragg vectors provided by the photonic crystal lattice [3], [16], [20];
thus, the Γ1 has the lower threshold gain than K2 and M3 due to stronger coupling enhancement. Although the measured results could not be resolved into exact resonant modes for each band edge, the calculated results still show great agreement with the experimental results, indicating that the MSM could correctly predict the threshold gain in each band-edge mode and provide a fast design tool for the GaN-based PCSELs.
V. CONCLUSION
In this paper, we have employed the MSM to investigate the characteristics of different band-edge modes in GaN-based PC-SELs with the triangular photonic crystal lattice. The different mode patterns in the real space can be calculated and classified for different band edges. In addition, the different mode patterns in the reciprocal space have been calculated and discussed. The diffraction spots in the reciprocal space could be used to iden-tify the oscillation directions and output emission angles of each band-edge mode. Finally, the GaN-based PCSELs operated at Γ1, K2, and M3 band edges were measured and simulated by the MSM. The threshold condition at each band edges shows a clear tendency of the increased threshold from low- to high-order bands. The simulation results show good agreement with the experimental results. We believe that the presented results will be beneficial to the calculation of PCSEL devices and use-ful for the development of the novel PCSEL devices in the near future.
