O R I G I N A L P A P E R
Using differential SAR interferometry to map land
subsidence: a case study in the Pingtung Plain
of SW Taiwan
Chia-Sheng Hsieh•Tian-Yuan Shih•Jyr-Ching Hu•Hsin Tung• Mong-Han Huang•Jacques Angelier
Received: 10 July 2009 / Accepted: 27 January 2011 / Published online: 18 February 2011 Ó Springer Science+Business Media B.V. 2011
Abstract Synthetic aperture radar (SAR) interferometry (InSAR) is a geodetic tool widely applied in the studies of earth-surface deformation. This technique has the benefits of high spatial resolution and centimetre-scale accuracy. Differential SAR interferometry (DInSAR) is used to measure ground deformation with repeat-pass SAR images. This study applied DInSAR and persistent scatterers InSAR (PSInSAR) for detecting land subsidence in the Pingtung Plain, southern Taiwan, between 1995 and 2000. In recent years, serious land subsidence occurred along coastal regions of Taiwan as a consequence of over-pumping of underground water. Results of this study revealed that the critical subsidence region is located on the coast near the estuary of Linpien River. It is also found that subsidence was significantly higher during the dry season than the wet season. The maximum annual subsidence rate of the dry season is up to -11.51 cm/year in critical subsidence region and the vertical land movement rate is much slower during the wet season. The average subsidence rates in wet and dry seasons are -0.31 and -3.37 cm/year, respectively. As a result, the subsidence rate in dry seasons is about 3 cm larger than in wet seasons.
Keywords SAR inteferometry DInSAR PSInSAR Land subsidence Pingtung Plain
C.-S. Hsieh
Department of Civil Engineering, National Kaohsiung University of Applied Sciences, Kaohsiung, Taiwan
T.-Y. Shih (&)
Department of Civil Engineering, National Chiao-Tung University, Hsinchu, Taiwan e-mail: tyshih@mail.nctu.edu.tw
J.-C. Hu H. Tung
Department of Geosciences, National Taiwan University, Taipei, Taiwan M.-H. Huang
Berkeley Seismological Laboratory, University of California, Berkeley, CA, USA J. Angelier
Observatoire Oce´anologique de Villefranche, Ge´osciences Azur, Villefranche-sur-Mer, France DOI 10.1007/s11069-011-9734-7
1 Introduction
The interferometric synthetic aperture radar (InSAR) technique allows generation of high-precision digital terrain data over a broad area, resulting in the production of digital elevation model (DEM). The differential SAR interferometry (DInSAR) technique can be used to determine earth-surface displacement and detect deformation arising from land subsidence, earthquakes, volcanoes, or others (Massonnet and Feigl1998; Bu¨rgmann et al.
2000; Zebker 2000). In addition to mandatory corrections of various effects related to orbital and climatic characteristics, the resulting DInSAR interferograms may be affected by poor image coherence caused by abrupt terrain and dense vegetation, a dire concern in Taiwan. However, several successful studies have already validated this method and mapped the Earth’s surface deformation in Taiwan, including the studies regarding the uplift of the Tainan tableland (Fruneau et al.2001; Huang et al.2006) and the co-seismic deformation of the footwall block of the Chelungpu Fault during the 1999 Chi–Chi earthquake (Pathier et al.2003; Chang et al. 2004b; Hsieh and Shih2006).
Geodetic measurements using the global positioning system (GPS) and differential levelling offer high-precision control points for measuring earth-surface deformation. However, they are in the form of either points or lines. And there is practical limitation on the density of geodetic points. To this respect, for analysing the active deformation of a given area, it is appropriate to integrate geodetic measurements with DInSAR, which provides areal measurements.
The Pingtung Plain of south-western Taiwan is a fast subsidence domain with high sedimentation rate (Hsieh et al. 2006). These characteristics arise from the particular tectonic setting of the area (Hu et al.2006,2007). Although human activities such as over-pumping of ground water significantly increase the present subsidence rate (Hou et al.
2005), the main origin of Quaternary subsidence is the extension related to lateral escape near the southern tip of the Taiwan collision belt (Angelier et al.2009). Both horizontal and vertical land movement rates are high in this area. In this study, DInSAR and PSInSAR are applied together with GPS and levelling for further exploring land subsidence. The result of this study reveals that it is uplifting in the northern Pingtung Plain and subsiding in the southern Pingtung Plain. It is also found that the subsidence rate is significantly higher in dry seasons than in wet seasons.
2 Tectonic background
As shown in Fig.1, Taiwan is located at the boundary between the south-east portion of the Eurasian Plate and the Philippine Sea Plate, where the convergent rate between the volcanic arc and continental margin is about 8.2 cm/year (Yu et al.1997; Lin et al.2010). Because of arc–continent collision (Suppe 1984), the island of Taiwan is the result of active orogenic mountain building with major crustal shortening (Ho1986). The Pingtung Plain is located in south-western Taiwan (Fig.1) and covers a nearly rectangular area of 1,210 km2. It corresponds to a major graben bounded by two large faults (Fig.2): the Chaochou fault to the east (as the western boundary of the metamorphic formations of the Central Range) and the Kaoping fault to the west (in the Late Cenozoic formations of the Foothills). Whereas the Chaouchou fault is well exposed at the foot of high mountains, the Kaoping fault is often buried beneath the Holocene alluvium of the Kaoping River. All outcrops in the Pingtung Plain, as well as shallow wells (Hsieh et al. 2006), show unconsolidated sediments of the late Pleistocene and the Holocene (Fig.2). Most of these
sediments consist of coastal and estuarine sand and mud, with abundant shallow-marine and lagoon shells and foraminifera (Shyu et al.2005). East of the Chaochou fault, the high mountains are mainly composed of Eocene–Miocene argillite, slate and meta-sandstone. The most significant geomorphological feature of the Pingtung Plain, easily observed from the satellite images of Taiwan, is the straight, N–S trending Chaochou fault escarpment that separates the alluvial plain from the high mountains (Fig.2). Geological, seismo-logical and geodetic observations suggest that this Chaochou Fault is a reverse fault with a left-lateral component (Hu et al.1997,2001,2007). To the north and west, the Pingtung Plain is bounded by low hills of deformed Quaternary sediments. The Kaoping River flows along this western edge, which corresponds to the trace of the Kaoping Fault. Geodetic observations (Hu et al.2006) indicate a right-lateral component of present-day slip along Fig. 1 Geotectonic framework and major structural units of Taiwan between the Eurasian and Philippine Sea plate. The large red arrow shows the direction and velocity of convergence between the volcanic arc and the continental margin (Yu et al.1997). Blue arrows indicate the directions of tectonic escape. The green area denotes the location of basement high, and its surrounding brown dash line indicates the 3-km-deep top of the pre-Tertiary basement (Lin et al.2003). Red domains are the Luzon volcanic arcs. Yellow triangles present the locations of local permanent GPS stations used in this study. The rectangle denotes the study area
the Kaoping Fault, in excellent agreement with the interpretation in terms of extrusion and lateral escape affecting the Pingtung Plain area.
The Pingtung GPS network (Hou et al. 2005) was established in 1995. There are 49 stations, with one continuous observing station (S23R) and 48 campaign-mode stations. It was thus shown that the present-day rate of horizontal displacement relative to the Paisha station (S01R) of the Penghu archipelago (Yu et al. 1997) falls in the range of 42.2–55.5 mm/year depending on the configuration of stations selected (Hu et al.2006; Shen et al.2003), towards azimuth from 247.1° to 272.5° (Hu et al.2007). The choice of the S01R station as a reference is quite appropriate, because this station belongs to the stable area of the Taiwan Strait, that is, the continental foreland of the Taiwan belt. These relatively high rates of displacement are not surprising, because the Pingtung Plain area is bounded to the west by an actively deforming front zone of the western foothills, on the eastern side of the foreland basin system (Chiang et al. 2004). Both the geological information about Quaternary tectonics and the geodetic data about present-day move-ments indicate that the Pingtung Plain is subject to active horizontal and vertical land movement.
Serious vertical land movement, reaching -25 mm/year, has recently been observed along the coastal region near the estuary of the Linpien River (south-eastern Pingtung Plain), mainly as a consequence of over-pumping of underground water. As Fig.3shows, for the whole Pingtung Plain, the vertical land movement rates measured at the surface between 1996 and 1999 fall in the range ?13 to -25 mm/year (positive for uplift, negative for subsidence). The highest subsidence rates affected 20 stations of the southern Pingtung Plain (Hu et al.2006). For the 11 stations of the southern Pingtung Plain closest to the sea, east of the Kaoping River and west of the Chaouchou Fault, the vertical land movement rates of the period 1995–2005 range from -7 to -28 mm/year, with an average value of Fig. 2 Neotectonic map of south-western Taiwan of the study area (modified after Hu et al.2006). Thick lines indicate the active faults. CCF Chaochou Fault, CSF Chishan Fault, LKF Liukuei Fault, KPF Kaoping Fault. The dashed line indicates the inferred fault
-17 mm/year. In more detail, some seasonal changes in surface subsidence rate in the Pingtung Plain have been observed by Chang et al. (2004a) using the InSAR technique, which was interpreted as caused by the fluctuations of water table level. How far these present-day rates, which are affected by human activity, can be extrapolated in the past is a crucial issue. According to a geological study of drill cores conducted by the Taiwan Geological Survey in the Pingtung Plain, the southern area has a long-term subsidence rate of about ?6 mm/year on average (Lai et al.2002). The comparison between this long-term Holocene rate and the average present-day rate in the same area suggests that the tectonic origin may account for roughly one-third of the total subsidence in the coastal area.
3 Differential interferometry (DInSAR) analysis 3.1 The method

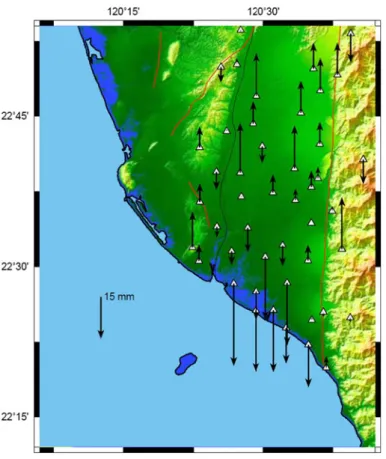

InSAR is a technique for extracting information about changes in the surface of the Earth using the phase contents of the radar signal. The use of the interferometric technique for the retrieval of terrain deformations requires the SAR images to be taken from exactly the same position in space at two different times. Reliable interference between SAR images in Fig. 3 Vertical velocities of GPS stations in the Pingtung Plain relative to Paisha, Penghu (S01R), from 1996 to 1999. Thick lines are active faults. Shaded topography is based on 40 m 9 40 m DEM
the same area is possible only after meeting all relevant conditions. A major limitation is that image pairs yield interference only when the base length is less than the critical value. The sensitivity of InSAR depends upon the observed geometric relationship, while the base length affects the magnitude of noise. When the baseline is too short, the sensitivity to detect changes in terrain may be lost. Otherwise, the de-correlation of the baseline yields phase errors (Zebker and Villasenor1992).
DInSAR uses two InSAR interference patterns from different times, one named as topographic pair indicating the elevation of the Earth’s surface and the other named as deformation pair containing both terrain effects and surface deformation. The two inter-ference patterns are then differentiated to remove the terrain effect, and the ultimate result represents the phase difference caused by deformation of the earth surface. This technology provides relatively good accuracy at the centimetre scale (Gabriel et al.1989).
Because different types of topographic pairs exist, DInSAR offers three processing methods: two-pass, three-pass and four-pass (Massonnet et al.1994; Zebker et al.1994; Massonnet and Feigl,1998; Colesanti et al.2003; Chang et al.2004a,b,2010; Ding et al.,
2004; Huang et al.2006,2009). The processing of SAR interferometric data is a complex procedure. Based on the quality of the data sets, the performance of each processing step is crucial. To summarise, the interferometric processing consists of the following steps: (1) image registration, (2) calculation of modulate phase difference, (3) phase unwrapping and geocoding (Gens and Genderen1996; Klees and Massonnet1998; Rosen et al.2000).
It is worth noting that the displacement measured by DInSAR is in the line-of-sight direction, not vertical direction. In our case, the line of sight of the satellite is trending nearly E–W, with a westward deviation of about 19°–26°. This means that the interfero-metric pattern is mainly influenced by the vertical component of ground displacement. As a consequence, our analysis is suitable for detecting vertical motion and would not be appropriate for detecting the strike-slip components that exist along the faults of the Pingtung Basin (which trend N–S, nearly parallel to orbits). Every colour change in the fringe interference pattern indicates a distance change of 28 mm along the line of sight, that is, one half of the ERS-1 satellite wavelength (Massonnet et al.1994).
In this study, we proceeded the interferograms by using the CNES DIAPASON (dif-ferential interferometric automated process applied to survey of nature) software with a two-pass approach. Interferograms phase unwrapping was done by using the SNAPHU software (Chen and Zebker 2000). The topography was estimated and extracted from SRTM (shuttle radar topography mission) DEM (Stevens and Wadge2004; Peyret et al.
2008).
3.2 Data acquisition
The ERS 1/2 radar system, operating at a wavelength of 5.6 cm, provides images of Earth’s surface from an altitude of about 790 km and produces radar backscatter maps of 100-km-wide swaths at a resolution of about 25 m across track and 6 m along track. We collected ERS 1/2 radar signal samples acquired over the Pingtung area during the period 1995–2000. To efficiently explore surface deformation in the Pingtung Plain, we selected suitable image pairs with the DESCW (Display Earth remote sensing Swath Coverage for Windows) program from European Space Agency (ERS). In total, thirteen ERS 1/2 satellite images are used. Ten image pairs were identified as suitable for interference. The corresponding base length and time interval are listed in Table1. The baseline met the requirements for interference, with a time interval from 36 to 385 days and a time slot of 1995–2000.
3.3 Results
Pingtung Plain is located in southern Taiwan, a subtropical zone where rainfall varies substantially between seasons. The rainfall between 1995 and 2000 showed distinct wet and dry seasons in the Pingtung area (Fig.4). The wet season is characterised by monthly rainfall exceeding 200 mm from May to October, whereas the dry season experiences very little rainfall from November to April. This aspect deserves consideration because rainfall might affect surface subsidence. We consequently divided the interference patterns into wet and dry seasons (Table3), based on time-dependent deformation. The interferograms are shown with the mask for extremely low coherence values, and we separately present the interferograms for the dry season (Fig.5) and the wet season (Fig.6). Note, however, that the time periods differ; whereas for the dry season they remain in a range of 2.3–5.8 months (3.8 months on average), for the wet season two contrasting ranges exist, 4.6–5.7 months and 8.0–10.4 months. This means that the longest two periods include part of the dry season (on the contrary, there is no part of the wet season contained in a couple of the dry season category). Note also that in each of the dry season and wet season categories, the first image is the same in two image pairs. These contrasts in time differ-ence should be kept in mind while comparing the results.
Significant differences exist between the dry season and wet season interferograms. Figure5 (dry season category) clearly reveals subsidence in the coastal area of south-eastern Pingtung Plain (near the estuary of the Linpien River), whereas this aspect is Table 1 Image pair schedule
Image pair Orbit Horizontal
baseline (m)
Vertical baseline (m)
Time interval (day) No. Mission Image pair
1 E1 19950705 20761 -66 -56 141 E2 19951123 3092 2 E1 19960131 23767 60 5 106 E2 19960516 5597 3 E1 19960410 24769 1 -103 36 E2 19960516 5597 4 E2 19970501 10607 14 59 315 E2 19980312 15116 5 E2 19980312 15116 -37 -99 385 E2 19990401 20627 6 E2 19981112 18623 -38 -19 70 E2 19990121 19625 7 E2 19981112 18623 48 84 175 E2 19990506 21128 8 E2 19990121 19625 84 98 105 E2 19990506 21128 9 E2 19990506 21128 -34 -34 175 E2 19991028 23633 10 E2 19990506 21128 -814 -1,024 245 E2 20000106 24635
present but poorly illustrated for other interferograms (Fig.6). This difference is consistent with the lower level of water tables during the dry season, which enhances subsidence. Our interferograms provide little information concerning the behaviour of the Chaochou fault, which is out of the mapped region. In contrast, regardless of the season, all interferograms reveal the presence of an N–S boundary along the western edge of the Pingtung basin, coincident with the expected position of the Kaoping fault (Figs.5and6). Not surpris-ingly, the fringe pattern across this boundary is consistent with larger subsidence on the eastern side (the Pingtung basin). The surprising finding is the presence of another N–S boundary inside the Pingtung basin, especially visible on some interferograms of the dry season (Fig.5). In a more general way, the interferograms of Fig.5(dry season) show more impressive differential interference patterns, when compared with those of Fig.6
(wet season). This contrast is partly attributable to the shorter time intervals and the smaller variations in water contents near the surface. The interference pattern of the wet season has a poorer interference effect because of a longer time interval spanning the entire wet season. Despite these limitations, some fringes indicate that a major subsidence centre of the Pingtung Basin is located near the lower Linpien River, with a decreasing subsidence towards east and west as well as to the north, which is consistent with the information provided by the dry season interferograms.
3.4 Comparison of GPS data and levelling results
As mentioned earlier, the radar technique is sensitive to the line-of-sight component of motion. Thus, the results obtained from DInSAR are slant range displacement (SRD) values, rather than actual height changes. With accurate GPS horizontal displacement data and the geometric relationship, it is possible to obtain vertical height changes.
As illustrated in Fig.7, the GPS horizontal displacement vector V = (a, b, 0), and the angle between the satellite orbit and north (N) = h. It is necessary to project GPS vertical displacement vectors (a0, b0, c0) into satellite directions according to the formula:
a0 b0 c0 2 4 3
5 ¼ sin /cos / cos /sin / 00
0 0 1 2 4 3 5 ab c 2 4 3
5 ¼ a sin / þ b cos /a cos /þ b sin / c 2
4
3
5: ð1Þ
Fig. 4 Rainfall between 1995 and 2000 in the Pingtung area of Taiwan. The wet season occurs in May– October, while the dry season occurs in November–April. Data were obtained from the Central Weather Bureau of Taiwan
Fig. 5 Differential interference results for image pairs in the dry season. The fringe of the differential interference pattern represents the deformation along the satellite direction. A colour shift from red to blue indicates a change of ?2.8 cm. A colour shift from blue to red indicates a change of -2.8 cm. The legends in the lower left represent date, vertical/horizontal base length and fringe scale

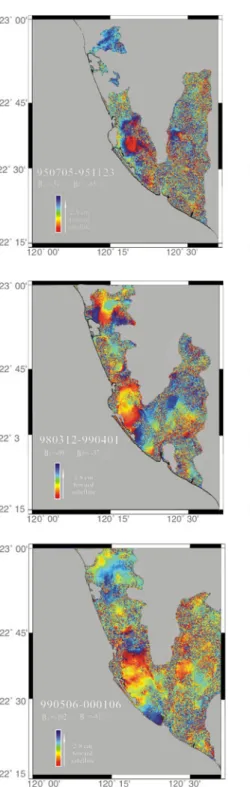

Fig. 6 Differential interference results for image pairs in the wet season or during a longer time interval. Despite the obscure fringe, it is clear that the residence centre of the Pingtung Plain is at the mouth of the Linpien and declines towards the two sides and to the north
Next, GPS horizontal displacement vectors are projected in the satellite direction, and SRD (Slant Range Displacement) is subtracted for the projection of real deformation along the radar line-of-sight direction:
Dr¼ ða cos / þ b sin /Þ sin h þ c cos h; ð2Þ h¼ Dr sec h ða cos / þ b sin /Þ tan h; ð3Þ where Dr = SRD, the differential interference pattern. The vertical displacement, h, is obtained from Eq.3.

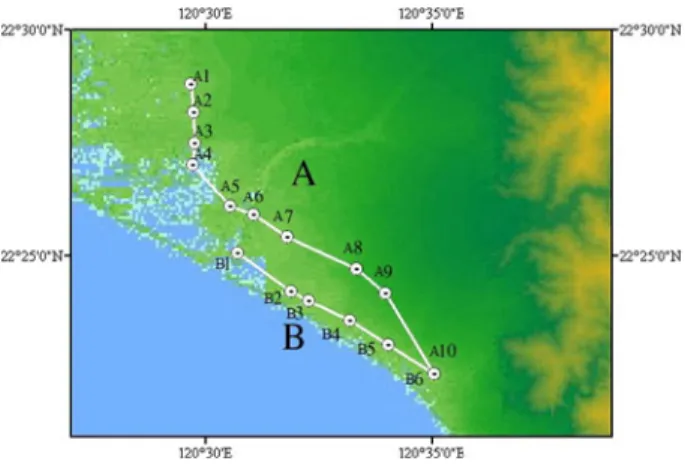

To validate the vertical elevation changes revealed by differential interferometry and evaluate their accuracy, we selected the levelling data measured by the Energy and Resources Laboratories (ERL) of the Industrial Technology Research Institute (ITRI) in April 1997 and March 1998 (ITRI 1998). The fixed station (BM25) is located in the Henchun Peninsular and is considered as a geologically stable region without land sub-sidence. Two levelling lines were used. Line A was located in the north and includes 10 benchmark stations (A1–A10 in Fig.8); line B was located in the south, close to the coast, with 6 stations (B1–B6 in Fig.8). The levelling time span was April 1997–March 1998; therefore, the GPS height data in the same period were used as a baseline. The comparison of height changes along the levelling lines A and B is shown in Fig.9a, b, respectively.
In line A, the result obtained from DInSAR is substantially different from the levelling when near the west tip of the chart, with a maximum misfit of 4.69 cm/year at station A1 and minimum misfit of 0.33 cm/year at station A5. The root mean square (rms) value of the differences of DInSAR and levelling along these profiles is 2.40 cm/year. The result obtained from DInSAR is different from the GPS with a maximum misfit of 1.97 cm/year at station A1 and minimum misfit of 0.30 cm/year at station A10. The rms value of the differences of DInSAR and GPS is 1.25 cm/year (Fig.9a). The average vertical Fig. 7 Schematic drawing of the geometric relationships among GPS, SRD and real deformation. The SRD (slant range displacement) is subtracted for the projection of real deformation along the radar line-of-sight direction
deformation change rate for the ten levelling stations is -1.53 cm/year for levelling, -1.16 cm/year for GPS and -0.58 cm/year for DInSAR. The average differences in annual deformation rate between DInSAR and levelling and between DInSAR and GPS Fig. 8 Distribution map of levelling points. Line A comprises 10 stations; line B comprises 6 stations
-5 -4 -3 -2 -1 0 1 2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10
The station of line A
(cm/yr)
Leveling data GPS data DInSAR data
-4 -3 -2 -1 0 1 2 3 B1 B2 B3 B4 B5 B6
The station of line B
(cm/yr)
leveling data GPS data DInSAR data
b
a
Fig. 9 aThe bar chart of height changes based on levelling data, GPS and DInSAR results of measuring line A. bThe bar chart of height changes based on levelling data, GPS and DInSAR results of measuring line B
were 0.95 cm/year and 0.57 cm/year, respectively. All results concur to indicate that the point A5, located near the Linpien River, shows a specific behaviour without subsidence. In line B, the result obtained from DInSAR is substantially different from the levelling with a maximum misfit of 2.93 cm/year at station B1 and minimum misfit of 0.30 cm/year at station B2. The rms value of the differences of DInSAR and levelling is 1.83 cm/year. The result obtained from DInSAR is different from the GPS with a maximum misfit of 1.45 cm/year at station A1 and minimum misfit of 0.30 cm/year at station B2. The rms value of the differences of DInSAR and GPS is 0.84 cm/year (Fig.9b). The average vertical deformation change rate for the six levelling stations is ?0.18 cm/year for lev-elling, -1.22 cm/year for GPS and -0.46 cm/year for DInSAR. The average differences in annual deformation rate between DInSAR and levelling and between DInSAR and GPS were 0.64 cm/year and 0.76 cm/year, respectively.
The differences in elevation changes detected in profiles A and B cannot be considered negligible, but it is worth noting that only the levelling was done at the benchmarks, while the elevation changes obtained for GPS and DInSAR result from extrapolation of data at nearby localities (GPS) or mapping (DInSAR). This certainly results in additional discrepancies.
4 Persistent scatterer analysis 4.1 The method and data acquisition
The DInSAR technique can provide excellent observations in flat area with high temporal correlation (e.g. man-made buildings, bed rocks). However, in the regions with dense vegetation (e.g. rice field) or high relief (e.g. mountains), the conventional DInSAR is unable to obtain reliable signals in these regions due to the lower correlation between acquisitions. The persistent scatterers (PS) InSAR is an advanced technique in comparison with conventional InSAR technique, which is able to overcome the problems of decor-relation when generating a time series of phase changes without atmospheric and DEM residual effects by computing only on sparsely distributed PSs who are pixels coherent over long time series. This technique has been developed in the late 1990s by A. Ferretti, F. Rocca and C. Prati of the Technical University of Milan (POLIMI). The first algorithm to find out the PS pixels was brought up by Ferretti et al. (2000,2001), and trademarked it as the ‘‘Permanent Scatterer techniqueTM’’. After that, similar processing algorithms have since been developed by Crosetto et al. (2003) and Kampes (2005). Besides, the SBAS (small baseline subset) technique developed by Berardino et al. (2002) and StaMPS (Stanford method for persistent scatterers) developed by Hooper et al. (2004) are also based on the same idea of PSInSAR technique with different name. In addition, several studies have been successfully applied by using this technique to demonstrate deformation in Taiwan (Chang et al.2010; Tung and Hu2011).
In this study, we use 31 ERS-1 and ERS-2 C-band (radar wavelength is *5.6 cm) data from European Space Agency (ESA) from January 1996 to August 1999. These descending scenes in track 232 are used to generating 30 interferograms (Table2). The interferometric processing is carried out with the Diapason software developed by Centre National d’Etudes Spatiales (CNES). The SRTM DEM from NASA is used to remove the phase due to topography. In particular, the Delft Institute for Earth-Oriented Space Research (DEOS) precise orbital data were injected in interferometric processing to further remove the orbital uncertainties.
4.2 Results
To illustrate the vertical land movement in the Pingtung Plain, Fig.10shows the contour of deformation from the interpolation of GPS data (Hu et al. 2006) and the average deformation map calculated from our PSInSAR analysis (data from 1996 to 1999). The colour scale represents the annual displacement rate along the line of sight. Comparing Fig.10a and b, there is a good consistency regarding the shape of the land subsidence area in the southern Pingtung Plain and also that of the uplift area of the northern Pingtung Plain.
Table 2 Images used for PSInSAR analysis
No Orbit Date Sensor B?(m)
1 23767 1996/01/31 ERS-1 0 2 4094 1996/02/01 ERS-2 108 3 24268 1996/03/06 ERS-1 228 4 4595 1996/03/07 ERS-2 160 5 5097 1996/04/11 ERS-2 7 6 6099 1996/06/20 ERS-2 -545 7 7100 1996/08/29 ERS-2 -866 8 7602 1996/10/03 ERS-2 -566 9 8604 1996/12/12 ERS-2 -578 10 9104 1997/01/16 ERS-2 -227 11 9606 1997/02/20 ERS-2 -411 12 10106 1997/03/27 ERS-2 -157 13 10607 1997/05/01 ERS-2 -613 14 11609 1997/07/10 ERS-2 -442 15 12111 1997/08/14 ERS-2 -186 16 12611 1997/09/18 ERS-2 -700 17 13613 1997/11/27 ERS-2 -70 18 14114 1998/01/01 ERS-2 8 19 14616 1998/02/05 ERS-2 -519 20 15117 1998/03/12 ERS-2 -554 21 16118 1998/05/21 ERS-2 -255 22 17121 1998/07/30 ERS-2 -124 23 17622 1998/09/03 ERS-2 20 24 18623 1998/11/12 ERS-2 64 25 19125 1998/12/17 ERS-2 -724 26 19625 1999/01/21 ERS-2 64 27 20627 1999/04/01 ERS-2 -653 28 21128 1999/05/06 ERS-2 156 29 21630 1999/06/10 ERS-2 -254 30 22130 1999/07/15 ERS-2 -101 31 22631 1999/08/19 ERS-2 932
Fig. 10 aAnnual uplift and subsidence rate from interpolation of GPS data. Contours of vertical velocities of GPS stations in the Pingtung Plain relative to Paisha, Penghu (S01R), from 1996 to 1999. Contour interval is 2 mm/year. Dotted contours indicate uplift and solid contours are subsidence. Solid star indicates permanent GPS station. Solid circles are survey mode stations. Thick lines are active faults (data from Hu et al.2006). b The average deformation map by PSs of the study area from 1996 to 1999. The negative SRD rate represents land subsidence and positive ones represent uplift. Contour interval is 2 mm/year
Uplift prevails in the northern Pingtung Plain, with velocities up to ?6 mm/year. In contrast, the fringes show rapid subsidence in the southern Pingtung Plain near the coast, with rates -20 mm/year. Moreover, both maps highlight the land movement along the Kaoping fault zone that bounds the Pingtung Plain to the west. On the contrary, there is no clear expression of the N–S lineament inside the Pingtung Plain, which was identified in some of our interferograms (Fig.6).
5 Analysis of subsidence in the Pingtung Plain
To characterise better the vertical land movement in the southern Pingtung area, which was mainly interested in, four cross-sections were drawn. The location of profiles is shown in Fig.11. The vertical land movement along these cross-sections is illustrated in Fig.12a for the dry season and b for the wet season, respectively. In a more general way, the profiles extracted from interferograms in dry seasons show more substantial subsidence (Fig.12a), in comparison with those in wet seasons (Fig.12b). The difference is mainly due to the poorer spatial correlation of the interferograms in wet seasons.
Because the pair 980312–990401 spans both dry and wet seasons, in contrast to pair 960410–960516 that spans just 35 days, to describe the subsidence changes with time, only four pairs of images corresponding to successive time spans are selected, and the related values is presented with different symbols in the profiles.
Not surprisingly, the profiles that trend nearly perpendicular to the axis of the Pingtung Plain clearly illustrate the maximum subsidence zone, whereas the other two profiles rather illustrate the decreasing average subsidence from south to north. The profiles were picked up for the comparison of different land subsidence rates in different area. The profile C–C0 (Fig.12a) highlights a relatively consistent subsidence tendency from 1996 to 1999, in the centre and eastern part of the Pingtung Plain. The maximum annual subsidence rate between 1998 and 1999 was about 6 cm/year. The data of the 1998–1999 periods suggest
the presence of a discontinuity that coincides with the expected position of the Kaoping Fault. Comparing the profile C–C0in Fig.12a, b, the subsidence in the wet season shows large scattering without distinctive trends.
C-C' -10-8 -6 -4 -20 2 4 6 8 10
a
0 5 10 15 20 25 (km) (cm/yr) 960131-960516 981112-990506 990121-990506 990121-990506 E-E' -10-8 -6 -4 -20 2 4 6 8 10 0 5 10 15 20 25 (km) (cm/yr) 960131-960516 981112-990121 981112-990506 990121-990506 F-F' -10-8 -6 -4 -20 2 4 6 8 10 0 5 10 15 20 25 (km) (cm/yr) 960131-960516 981112-990121 981112-990506 990121-990506 -12 -10-8 -6 -4 -20 2 4 6 8 10 0 5 10 15 20 25 (cm/yr) (km) D-D' 960131-960516 981112-990121 981112-990506 990121-990506Fig. 12 a The deformation of cross-sections C–C0, D–D0, E–E0 and F–F0 during the dry season. The horizontal axis indicates the length of the cross-section (km); the longitudinal axis indicates the annual land deformation rates (cm/year). b The deformation of cross-sections C–C0, D–D0, E–E0and F–F0during the wet
season. The horizontal axis indicates the length of the cross-section (km); the longitudinal axis indicates the annual land deformation rates (cm/year)
The cross-section D–D0 shows subsidence of about -4 cm/year between 1996 and 1998, increased up to about -12 cm/year after 1998–1999 (Fig.12a). The figure for the wet season shows little difference relative to the dry season, but clearly reveals a similar increase in subsidence on a yearly basis (Fig.12b). The striking difference between pro-files C–C0and D–D0 in Fig.12b suggests that along the costal region, the surface defor-mation is not heavily affected by rainfall, which is not the case at a larger distance from the coast. This contrast probably results from the presence of abundant underground water near
C-C' -10-8 -6 -4 -20 2 4 6 8 10 0 5 10 15 20 25 0 5 10 15 20 25 0 5 10 15 20 25 0 5 10 15 20 25 (km) (cm/yr) (cm/yr) 950705_951123 970501_980312 990506_000106 990506_991028 950705_951123 970501_980312 990506_000106 990506_991028 D-D' -10-8 -6 -4 -20 2 4 6 8 10 (km) E-E' -10-8 -6 -4 -20 2 4 6 8 10 (km) (cm/yr) 950705_951123 970501_980312 990506_000106 990506_991028 F-F' -10-8 -6 -4 -20 2 4 6 8 10 (km) (cm/yr) 950705_951123 970501_980312 990506_000106 990506_991028
b
Fig. 12 continuedthe coast. Sections E–E0 and F–F0 show that subsidence gradually varies from south to north, with increasing scattering, which is consistent with the latter observation (Table3) about the difference between dry and wet seasons.
The four cross-sections highlight the consistency between the results from DInSAR and GPS approaches (Fig.9). It is found from Table3that the maximum regional subsidence rates in the four profiles in wet seasons are -0.83, -0.53, -0.88 and ?1.00 cm/year, respectively. On the other hand, the subsidence rates in dry seasons are -3.42, -5.41, -2.40 and -2.23 cm/year, respectively. The average subsidence rates for wet and dry seasons are -0.31 and -3.37 cm/year, respectively. As a result, the subsidence rate in dry seasons is about -3 cm/year larger than in wet seasons.
For cross-sections C–C0, D–D0 and E–E0, the subsidence during the wet season was much less than during the dry season, indicating that abundant rainfall replenishes underground water reservoirs. This seasonal variation of subsidence was also observed in a previous study (Chang et al.2004a). Hu et al. (2006) pointed out that the long-term and short-term subsidence pattern is consistent with the thickness distribution of fine-grained sediments in the southern Pingtung Plain, which further explains the change in water table level (Kuo et al.2001) between wet and dry seasons that influences the subsidence rate. In addition, the long-term subsidence and short-term subsidence show a similar pattern but with different magnitude, which illustrates the contributions of regional tectonics and hydrological effects to subsidence in the coastal area of the Pingtung Plain.
6 Discussion and conclusion
We used differential interferometry and PSInSAR to analyse SAR images of the Pingtung basin in southern Taiwan between 1995 and 2000 in order to reconstruct the spatial distribution of subsidence and its evolution with time, with additional constraints from geodetic GPS and levelling data. A comparison between these three types of data along two levelling lines revealed that despite some discrepancies, the DInSAR technology can reliably be used to deduce and map the elevation changes, with a mean difference usually less than 1 cm/year and consistent change tendencies.
Because of its potential to cover large areas rather than scattered survey points or lines, the DInSAR approach offers a better determination of the spatial extension of displace-ments than the levelling and GPS data. Levelling and GPS analyses accurately record Table 3 The maximum regional subsidence rate of image pairs in the dry and wet seasons
Wet season Maximum regional subsidence rate (cm/year)
Dry season Maximum regional subsidence rate (cm/year)
Image pair C–C0 D–D0 E–E0 F–F0 Image pair C–C0 D–D0 E–E0 F–F0
950705–951123 -0.42 ?5.05 -1.03 -0.48 960131–960516 -1.12 -1.96 -0.17 -0.64 970501–980312 ?0.40 -1.31 -0.04 ?3.13 981112–990121 -2.00 -1.37 -2.25 -4.33 990506–991028 -0.96 -3.51 -2.01 ?0.48 981112–990506 -5.08 -6.78 -3.25 -3.24 990506–000106 -2.34 -2.34 -0.42 ?0.86 990121–990506 -5.47 -11.51 -3.91 -0.69 Four pairs average -0.83 -0.53 -0.88 ?1.00 Four pairs average -3.42 -5.41 -2.40 -2.23 Four profiles
average
-0.31 Four profiles
average
variations in topographic surface, but because of the discontinuous spatial character of observations, it commonly occurs that stations do not coincide with the most critical points of maximum uplift or subsidence or fail to account for discontinuities when compared with more gradual changes. The changes with time that we were able to identify in the southern Pingtung Plain include the contrast between dry and wet seasons for the shortest term, as well as an abrupt increase in subsidence between 1996 and 1999 followed by a decrease in 1998–1999. Not only did our DInSAR analysis allowed reconstruction of the temporal evolution of vertical land movement, it also provided a detailed account of the shape of uplift and subsidence areas, as a function of mapping of interferometric fringes.
The DInSAR analysis certainly provides an efficient tool to monitor the short-term variations, which are partly related to the status of the water tables influenced by both the seasonal effect and the human over-pumping. To this respect, despite large uncertainties, we could evaluate the ratio between the pumping effect near the Earth’s surface and the deep-seated subsidence, for the coastal area of the south-eastern Pingtung Plain where subsidence is largest (as indicated by average subsidence rates of about ?17 mm/year for the 1995–2005 period, when compared with an average subsidence rate of -6 mm/year for the Holocene). The most important uncertainty in such evaluations certainly depends on the assumption of a constant rate of deep-seated subsidence, which is subject to debate. However, in the case of the Pingtung Plain, the geodetic (GPS) data about horizontal displacements did not reveal large variations during the observation period (1995–2005). It is consequently reasonable to consider that the deep-seated source of deformation did not undergo large variations during this period, which suggests that most of the changes in vertical motion result from underground water status, regardless of its natural or human origin. Like the horizontal displacements, the remaining vertical land movement depends on the tectonic factor and reflects the deformation of the upper lithosphere, which is characterised by significant extension related to extrusion towards the south-west (Angelier et al.2009; Hu et al.2006,2007). This extrusion results from lateral escape in the transition zone between collision and subduction near the southern tip of the Taiwan mountain belt. Acknowledgments The GPS and levelling data were provided by the Central Geological Survey and the Water Resources Agency of the Ministry of Economic Affairs.
