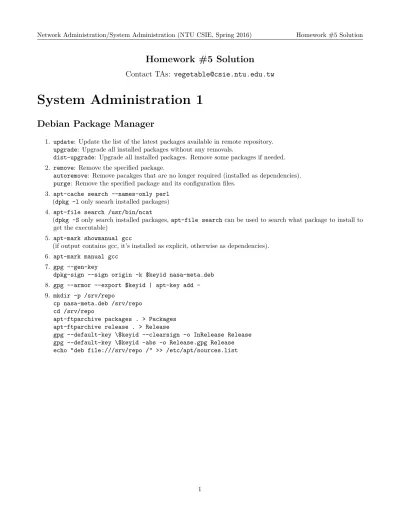

Homework #5 Solution
Contact TAs: [email protected]
System Administration 1
Debian Package Manager
1. update: Update the list of the latest packages available in remote repository.
upgrade: Upgrade all installed packages without any removals.
dist-upgrade: Upgrade all installed packages. Remove some packages if needed.
2. remove: Remove the specified package.
autoremove: Remove pacakges that are no longer required (installed as dependencies).
purge: Remove the specified package and its configuration files.
3. apt-cache search --names-only perl (dpkg -l only saearh installed packages) 4. apt-file search /usr/bin/ncat
(dpkg -S only search installed packages, apt-file search can be used to search what package to install to get the executable)
5. apt-mark showmanual gcc
(if output contains gcc, it’s installed as explicit, otherwise as dependencies).
6. apt-mark manual gcc 7. gpg --gen-key
dpkg-sign --sign origin -k $keyid nasa-meta.deb 8. gpg --armor --export $keyid | apt-key add - 9. mkdir -p /srv/repo
cp nasa-meta.deb /srv/repo cd /srv/repo
apt-ftparchive packages . > Packages apt-ftparchive release . > Release
gpg --default-key \$keyid --clearsign -o InRelease Release gpg --default-key \$keyid -abs -o Release.gpg Release echo "deb file:///srv/repo /" >> /etc/apt/sources.list
System Administration 2
System Log
The standard system logging facility
Note
There is no “standard” or “most correct” answer in this problem. Your answer may be completely different from examples shown here because it is highly dependent on the system you use.
Processes and packages
Process: Get the list of listening sockets or all sockets, and filter the output with grep.
Table 1: Get the list of all sockets
OS Process How to find
Systemd-based GNU/Linux systemd, systemd-journald ss -ap, netstat -ap Other GNU/Linux syslogd, syslog-ng, rsyslogd ss -ap, netstat -ap
FreeBSD syslogd sockstat
NetBSD syslogd sockstat
DragonFlyBSD syslogd sockstat
OpenBSD syslogd Run netstat -a to get the
address of socket PCB and use fstat to get the process associated with the address.
Package: Get the path to the executable file of the process, and search for the path in the package manager database.
Table 2: Get the path to the executable
OS How to find
GNU/Linux readlink /proc/<pid>/exe
FreeBSD procstat -e <pid>
NetBSD readlink /proc/<pid>/exe
DragonFlyBSD readlink /proc/<pid>/file
OpenBSD Run fstat -p <pid> to get the mountpoint and the inode number of the file and use find -x <mountpoint> -inum
<inum> to find the path.
Table 3: Search for the path in the package manager database
Package Manager How to find
RPM rpm -qf <path>
Debian (dpkg) dpkg -S <path>
Pacman (alpm) pacman -Qo <path>
Portage (emerge) qfile <path>
Table 4: Possible search results
OS Package
Systemd-based GNU/Linux systemd
Other GNU/Linux sysklogd, syslog-ng, rsyslog
FreeBSD none, included in the base system
NetBSD none, included in the base system
DragonFlyBSD none, included in the base system
OpenBSD none, included in the base system
Log Files
We use command “logger SAHW5” as the example here.
Table 5: Possible locations and file types
OS Location Type Command
Systemd-based GNU/Linux /var/log/journal binary journalctl
Other GNU/Linux (Debian) /var/log/syslog text none
Other GNU/Linux (Gentoo) /var/log/messages text none
FreeBSD /var/log/messages text none
NetBSD /var/log/messages text none
DragonFlyBSD /var/log/messages text none
OpenBSD /var/log/messages text none
Table 6: Possible lines and entries
OS Line or entry
Systemd-based GNU/Linux <date> <time> <hostname> <username>[<pid>]: <msg>
Other GNU/Linux <date> <time> <hostname> <username>: <msg>
FreeBSD <date> <time> <hostname> <username>: <msg>
NetBSD <date> <time> <hostname> <username>: <msg>
DragonFlyBSD <date> <time> <hostname> <username>: <msg>
OpenBSD <date> <time> <hostname> <username>: <msg>
Forged Messages
On systemd-based systems, messages sent by users are usually stored in the same file as long as logger commands are executed by the same user in the same session. The file that new messages are written to is usually /var/log/
journal/<machine-id>/user-<uid>.journal. Systemd journal stores messages with trusted metadata. Fields prefixed with an underscore can only be set by systemd journal service and cannot be set or modified by users, so it can be used to determine whether an entry is really produced by a system service. These additional data fields can be shown by running journalctl -o verbose, journalctl -o json, or other formats that can display structured data. A list of available fields can be found in systemd.journal-fields(7). Difference in _UID, _GID, _EXE, _SYSTEM_CGROUP, _SYSTEMD_UNIT fields can be easily found.
On other systems, messages may be written to the same file or different files, depending on the configuration used.
Most implementations don’t store trusted metadata by default, and not all implementations provide access to trusted information. rsyslog can be configured to ignore PIDs provided by clients and use trusted values obtained
from UNIX domain sockets with SysSock.UsePIDFromSystem parameter. syslog-ng allow access to trusted UNIX credentials with ${.unix.uid}, ${.unix.gid}, ${.unix.exe} and other macros. sysklogd cannot retrieve trusted information from sockets, but third-party patches are available to support it.
Systemd journal service
Version
Run any systemd-provided commands with --version option. Example:
$ systemctl --version systemd 229
+PAM +AUDIT +SELINUX +IMA -APPARMOR +SMACK +SYSVINIT +UTMP +LIBCRYPTSETUP +GCRYPT +GNUTLS +ACL +XZ +LZ4 +SECCOMP +BLKID +ELFUTILS +KMOD +IDN
Persistence
Yes if files are stored in /var/log/journal. No if files are stored in /run/log/journal. It can be made persistent by creating the directory /var/log/journal and restarting systemd-journald.service.
Dmesg of previous boot
journalctl -b -1 _TRANSPORT=kernel
Messages generated by the SSH server journalctl _SYSTEMD_UNIT=sshd.service
Messages produced by both dbus user and your own user account journalctl _UID=$(id -ru dbus) + _UID=$(id -ru)
Messages generated by /usr/bin/sudo journalctl _EXE=/usr/bin/sudo
Network Log
Use Linux netfilter to log packets
Enable logging in nftables or iptables
Set up nftables to send packets to NFLOG, an interface which allows packets to be logged by userspace applications.
Use nft command to add the rule.
# nft add table inet filter
# nft add chain inet filter output { type filter hook output priority 0 ';' }
# nft add rule inet filter output oif '!=' lo log group 10425
Or load rules written in a file with nft -f.
# cat /etc/nftables.conf table inet filter {
chain output {
type filter hook output priority 0;
oif != lo log group 10425 }
}
# nft -f /etc/nftables.conf
Alternatively, you can use iptables if you prefer it or your distribution doesn’t support nftables.
Use iptables command to add the rule.
# iptables -t filter -A OUTPUT '!' -o lo -j NFLOG --nflog-group 10425
# ip6tables -t filter -A OUTPUT '!' -o lo -j NFLOG --nflog-group 10425
Run a program to receive packets from kernel
We use ulogd as an example here. If you don’t like it, you can write your own program with a library called libnetfilter_log.
Create a configuration file and start ulogd.
# cat ulogd.conf [global]
logfile="syslog"
plugin="/path/to/ulogd_inppkt_NFLOG.so"
plugin="/path/to/ulogd_raw2packet_BASE.so"
plugin="/path/to/ulogd_filter_IFINDEX.so"
plugin="/path/to/ulogd_filter_IP2STR.so"
plugin="/path/to/ulogd_filter_PRINTPKT.so"
plugin="/path/to/ulogd_output_LOGEMU.so"
stack=sal:NFLOG,sab:BASE,saif:IFINDEX,saip:IP2STR,sap:PRINTPKT,sao:LOGEMU [sal]
group=10425 [sao]
file="/var/log/ulogd/workstation_packets.log"
sync=1
# ulogd -c ulogd.conf
