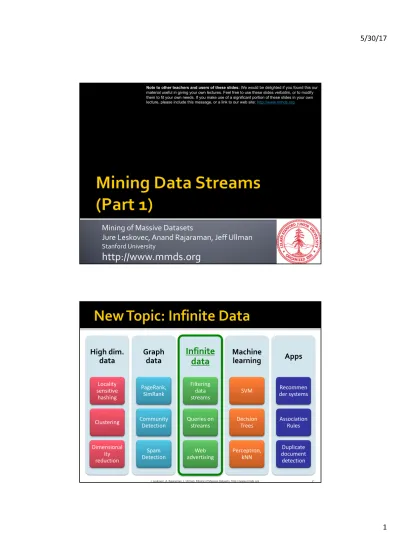

Infinite data http://www.mmds.org

(1)

Mining of Massive Datasets

Jure Leskovec, Anand Rajaraman, Jeff Ullman

Stanford University

http://www.mmds.org

High dim.

data

Locality sensitive

hashing

Clustering

Dimensional reduction ity

Graph data

PageRank, SimRank

Community Detection

Spam Detection

Infinite data

Filtering data streams

Queries on streams

advertising Web

Machine learning

SVM

Decision Trees

Perceptron, kNN

Apps

Recommen der systems

Association Rules

Duplicate

document

detection

(2)

¡ In many data mining situations, we do not know the entire data set in advance

¡ Stream Management is important when the input rate is controlled externally:

§ Google queries

§ Twitter or Facebook status updates

¡ We can think of the data as infinite and non-stationary (the distribution changes over time)

J. Leskovec, A. Rajaraman, J. Ullman: Mining of Massive Datasets, http://www.mmds.org 3

4

¡ Input elements enter at a rapid rate, at one or more input ports (i.e., streams)

§ We call elements of the stream tuples

¡ The system cannot store the entire stream accessibly

¡ Q: How do you make critical calculations about the stream using a limited amount of (secondary) memory?

J. Leskovec, A. Rajaraman, J. Ullman: Mining of Massive Datasets, http://www.mmds.org

(3)

¡ Stochastic Gradient Descent (SGD) is an example of a stream algorithm

¡ In Machine Learning we call this: Online Learning

§ Allows for modeling problems where we have a continuous stream of data

§ We want an algorithm to learn from it and slowly adapt to the changes in data

¡ Idea: Do slow updates to the model

§ SGD (SVM, Perceptron) makes small updates

§ So: First train the classifier on training data.

§ Then: For every example from the stream, we slightly update the model (using small learning rate)

Processor

Limited Working

Storage . . . 1, 5, 2, 7, 0, 9, 3

. . . a, r, v, t, y, h, b . . . 0, 0, 1, 0, 1, 1, 0

time Streams Entering.

Each is stream is composed of elements/tuples

Ad-Hoc Queries

Output

Archival Storage Standing

Queries

(4)

¡ Types of queries one wants on answer on a data stream: (we’ll do these today)

§ Sampling data from a stream

§ Construct a random sample

§ Queries over sliding windows

§ Number of items of type x in the last k elements of the stream

¡ Types of queries one wants on answer on a data stream: (we’ll do these next time)

§ Filtering a data stream

§ Select elements with property x from the stream

§ Counting distinct elements

§ Number of distinct elements in the last k elements of the stream

§ Estimating moments

§ Estimate avg./std. dev. of last k elements

§ Finding frequent elements

(5)

¡ Mining query streams

§ Google wants to know what queries are more frequent today than yesterday

¡ Mining click streams

§ Yahoo wants to know which of its pages are

getting an unusual number of hits in the past hour

¡ Mining social network news feeds

§ E.g., look for trending topics on Twitter, Facebook

¡ Sensor Networks

§ Many sensors feeding into a central controller

¡ Telephone call records

§ Data feeds into customer bills as well as settlements between telephone companies

¡ IP packets monitored at a switch

§ Gather information for optimal routing

§ Detect denial-of-service attacks

(6)

As the stream grows the sample also gets bigger

¡ Since we can not store the entire stream, one obvious approach is to store a sample

¡ Two different problems:

§ (1) Sample a fixed proportion of elements in the stream (say 1 in 10)

§ (2) Maintain a random sample of fixed size over a potentially infinite stream

§ At any “time” k we would like a random sample of s elements

§ What is the property of the sample we want to maintain?

For all time steps k, each of k elements seen so far has equal prob. of being sampled

(7)

¡ Problem 1: Sampling fixed proportion

¡ Scenario: Search engine query stream

§ Stream of tuples: (user, query, time)

§ Answer questions such as: How often did a user run the same query in a single days

§ Have space to store 1/10 ^th of query stream

¡ Naïve solution:

§ Generate a random integer in [0..9] for each query

§ Store the query if the integer is 0, otherwise discard

¡ Simple question: What fraction of queries by an average search engine user are duplicates?

§ Suppose each user issues x queries once and d queries twice (total of x+2d queries)

§ Correct answer: d/(x+d)

§ Proposed solution: We keep 10% of the queries

§ Sample will contain x/10 of the singleton queries and 2d/10 of the duplicate queries at least once

§ But only d/100 pairs of duplicates

§ d/100 = 1/10 · 1/10 · d

§ Of d “duplicates” 18d/100 appear exactly once

§ 18d/100 = ((1/10 · 9/10)+(9/10 · 1/10)) · d

§ So the sample-based answer is

!

"##

$

"# % _"## ^! % "&!

"##

= _{𝟏𝟎𝒙%𝟏𝟗𝒅} ^𝒅

(8)

Solution:

¡ Pick 1/10 ^th of users and take all their searches in the sample

¡ Use a hash function that hashes the user name or user id uniformly into 10 buckets

¡ Stream of tuples with keys:

§ Key is some subset of each tuple’s components

§ e.g., tuple is (user, search, time); key is user

§ Choice of key depends on application

¡ To get a sample of a/b fraction of the stream:

§ Hash each tuple’s key uniformly into b buckets

§ Pick the tuple if its hash value is at most a

Hash table with b buckets, pick the tuple if its hash value is at most a.

How to generate a 30% sample?

Hash into b=10 buckets, take the tuple if it hashes to one of the first 3 buckets

(9)

As the stream grows, the sample is of fixed size

¡ Problem 2: Fixed-size sample

¡ Suppose we need to maintain a random sample S of size exactly s tuples

§ E.g., main memory size constraint

¡ Why? Don’t know length of stream in advance

¡ Suppose at time n we have seen n items

§ Each item is in the sample S with equal prob. s/n

How to think about the problem: say s = 2 Stream: a x c y z k c d e g…

At n= 5, each of the first 5 tuples is included in the sample S with equal prob.

At n= 7, each of the first 7 tuples is included in the sample S with equal prob.

Impractical solution would be to store all the n tuples seen

so far and out of them pick s at random

(10)

¡ Algorithm (a.k.a. Reservoir Sampling)

§ Store all the first s elements of the stream to S

§ Suppose we have seen n-1 elements, and now the n ^th element arrives (n > s)

§ With probability s/n, keep the n ^th element, else discard it

§ If we picked the n ^th element, then it replaces one of the s elements in the sample S, picked uniformly at random

¡ Claim: This algorithm maintains a sample S with the desired property:

§ After n elements, the sample contains each

element seen so far with probability s/n

¡ We prove this by induction:

§ Assume that after n elements, the sample contains each element seen so far with probability s/n

§ We need to show that after seeing element n+1 the sample maintains the property

§ Sample contains each element seen so far with probability s/(n+1)

¡ Base case:

§ After we see n=s elements the sample S has the desired property

§ Each out of n=s elements is in the sample with probability s/s = 1

(11)

¡ Inductive hypothesis: After n elements, the sample S contains each element seen so far with prob. s/n

¡ Now element n+1 arrives

¡ Inductive step: For elements already in S, probability that the algorithm keeps it in S is:

¡ So, at time n, tuples in S were there with prob. s/n

¡ Time n ® n+1, tuple stayed in S with prob. n/(n+1)

¡ So prob. tuple is in S at time n+1 = _𝒏 ^𝒔 ⋅ _𝒏%𝟏 ^𝒏 = _𝒏%𝟏 ^𝒔

1 1

1 1 1

= +

÷ ø ç ö

è

÷ æ - ø ç ö

è æ + +

÷ ø ç ö

è æ

- +

n n s

s n

s

Element n+1 discarded Element n+1 not discarded

Element in the

sample not picked

(12)

¡ A useful model of stream processing is that queries are about a window of length N – the N most recent elements received

¡ Interesting case: N is so large that the data cannot be stored in memory, or even on disk

§ Or, there are so many streams that windows for all cannot be stored

¡ Amazon example:

§ For every product X we keep 0/1 stream of whether that product was sold in the n-th transaction

§ We want answer queries, how many times have we sold X in the last k sales

¡ Sliding window on a single stream:

q w e r t y u i o p a s d f g h j k l z x c v b n m

q w e r t y u i o p a s d f g h j k l z x c v b n m Past Future

N = 6

(13)

25

¡ Problem:

§ Given a stream of 0s and 1s

§ Be prepared to answer queries of the form How many 1s are in the last k bits? where k ≤ N

¡ Obvious solution:

Store the most recent N bits

§ When new bit comes in, discard the N+1 ^st bit

0 1 0 0 1 1 0 1 1 1 0 1 0 1 0 1 1 0 1 1 0 1 1 0 Past Future

Suppose N=6

¡ You can not get an exact answer without storing the entire window

¡ Real Problem:

What if we cannot afford to store N bits?

§ E.g., we’re processing 1 billion streams and N = 1 billion

¡ But we are happy with an approximate answer

0 1 0 0 1 1 0 1 1 1 0 1 0 1 0 1 1 0 1 1 0 1 1 0

Past Future

(14)

¡ Q: How many 1s are in the last N bits?

¡ A simple solution that does not really solve our problem: Uniformity assumption

¡ Maintain 2 counters:

§ S: number of 1s from the beginning of the stream

§ Z: number of 0s from the beginning of the stream

¡ How many 1s are in the last N bits? 𝑵 1 _𝑺%𝒁 ^𝑺

¡ But, what if stream is non-uniform?

§ What if distribution changes over time?

0 1 0 0 1 1 1 0 0 0 1 0 1 0 0 1 0 0 0 1 0 1 1 0 1 1 0 1 1 1 0 0 1 0 1 0 1 1 0 0 1 1 0 1 0 N Past Future

¡ DGIM solution that does not assume uniformity

¡ We store 𝑶(log ^𝟐 𝑵) bits per stream

¡ Solution gives approximate answer, never off by more than 50%

§ Error factor can be reduced to any fraction > 0, with more complicated algorithm and

proportionally more stored bits

[Datar, Gionis, Indyk, Motwani]

(15)

¡ Solution that doesn’t (quite) work:

§ Summarize exponentially increasing regions of the stream, looking backward

§ Drop small regions if they begin at the same point as a larger region

0 1 0 0 1 1 1 0 0 0 1 0 1 0 0 1 0 0 0 1 0 1 1 0 1 1 0 1 1 1 0 0 1 0 1 0 1 1 0 0 1 1 0 1 0 N

?

0 1 1 2 2 3 4 10 6

We can reconstruct the count of the last N bits, except we are not sure how many of the last 6 1s are included in the N Window of

width 16 has 6 1s

¡ Stores only O(log ² N ) bits

§ 𝑶(log 𝑵) counts of log _𝟐 𝑵 bits each

¡ Easy update as more bits enter

¡ Error in count no greater than the number

of 1s in the “unknown” area

(16)

31

¡ As long as the 1s are fairly evenly distributed, the error due to the unknown region is small – no more than 50%

¡ But it could be that all the 1s are in the unknown area at the end

¡ In that case, the error is unbounded!

0 1 0 0 1 1 1 0 0 0 1 0 1 0 0 1 0 0 0 1 0 1 1 0 1 1 0 1 1 1 0 0 1 0 1 0 1 1 0 0 1 1 0 1 0 0 1 1 2 2 3 4 10 6

N

?

¡ Idea: Instead of summarizing fixed-length blocks, summarize blocks with specific number of 1s:

§ Let the block sizes (number of 1s) increase exponentially

¡ When there are few 1s in the window, block sizes stay small, so errors are small

32 J. Leskovec, A. Rajaraman, J. Ullman: Mining of Massive Datasets, http://www.mmds.org

1001010110001011010101010101011010101010101110101010111010100010110010 N

[Datar, Gionis, Indyk, Motwani]

(17)

33

¡ Each bit in the stream has a timestamp, starting 1, 2, …

¡ Record timestamps modulo N (the window size), so we can represent any relevant

timestamp in 𝑶(𝒍𝒐𝒈 _𝟐 𝑵) bits

¡ A bucket in the DGIM method is a record consisting of:

§ (A) The timestamp of its end [O(log N) bits]

§ (B) The number of 1s between its beginning and end [O(log log N) bits]

¡ Constraint on buckets:

Number of 1s must be a power of 2

§ That explains the O(log log N) in (B) above

1001010110001011010101010101011010101010101110101010111010100010110010

N

(18)

¡ Either one or two buckets with the same power-of-2 number of 1s

¡ Buckets do not overlap in timestamps

¡ Buckets are sorted by size

§ Earlier buckets are not smaller than later buckets

¡ Buckets disappear when their

end-time is > N time units in the past

N

1 of size 2 2 of

size 4 2 of

size 8 At least 1 of

size 16. Partially beyond window.

2 of size 1

1001010110001011010101010101011010101010101110101010111010100010110010

Three properties of buckets that are maintained:

- Either one or two buckets with the same power-of-2 number of 1s - Buckets do not overlap in timestamps

- Buckets are sorted by size

(19)

¡ When a new bit comes in, drop the last (oldest) bucket if its end-time is prior to N time units before the current time

¡ 2 cases: Current bit is 0 or 1

¡ If the current bit is 0:

no other changes are needed

37 J. Leskovec, A. Rajaraman, J. Ullman: Mining of Massive Datasets, http://www.mmds.org

¡ If the current bit is 1:

§ (1) Create a new bucket of size 1, for just this bit

§ End timestamp = current time

§ (2) If there are now three buckets of size 1, combine the oldest two into a bucket of size 2

§ (3) If there are now three buckets of size 2, combine the oldest two into a bucket of size 4

§ (4) And so on …

(20)

39

1001010110001011010101010101011010101010101110101010111010100010110010

0010101100010110101010101010110101010101011101010101110101000101100101

0101100010110101010101010110101010101011101010101110101000101100101101

0101100010110101010101010110101010101011101010101110101000101100101101 0101100010110101010101010110101010101011101010101110101000101100101101

Current state of the stream:

Bit of value 1 arrives

Two orange buckets get merged into a yellow bucket

Next bit 1 arrives, new orange bucket is created, then 0 comes, then 1:

Buckets get merged…

State of the buckets after merging

40

¡ To estimate the number of 1s in the most recent N bits:

1. Sum the sizes of all buckets but the last

(note “size” means the number of 1s in the bucket)

2. Add half the size of the last bucket

¡ Remember: We do not know how many 1s of the last bucket are still within the wanted window

(21)

N

1 of size 2 2 of

size 4 2 of

size 8 At least 1 of

size 16. Partially beyond window.

2 of size 1

1001010110001011010101010101011010101010101110101010111010100010110010

¡ Why is error 50%? Let’s prove it!

¡ Suppose the last bucket has size 2 ^r

¡ Then by assuming 2 ^r-1 (i.e., half) of its 1s are still within the window, we make an error of at most 2 ^r-1

¡ Since there is at least one bucket of each of the sizes less than 2 ^r , the true sum is at least 1 + 2 + 4 + .. + 2 ^r-1 = 2 ^r -1

¡ Thus, error at most 50%

111111110000000011101010101011010101010101110101010111010100010110010 N

At least 16 1s

(22)

¡ Instead of maintaining 1 or 2 of each size bucket, we allow either r-1 or r buckets (r > 2)

§ Except for the largest size buckets; we can have any number between 1 and r of those

¡ Error is at most O(1/r)

¡ By picking r appropriately, we can tradeoff between number of bits we store and the error

44

¡ Can we use the same trick to answer queries How many 1’s in the last k? where k < N?

§ A: Find earliest bucket B that at overlaps with k.

Number of 1s is the sum of sizes of more recent buckets + ½ size of B

¡ Can we handle the case where the stream is not bits, but integers, and we want the sum of the last k elements?

1001010110001011010101010101011010101010101110101010111010100010110010

k

(23)

¡ Stream of positive integers

¡ We want the sum of the last k elements

§ Amazon: Avg. price of last k sales

¡ Solution:

§ (1) If you know all have at most m bits

§ Treat m bits of each integer as a separate stream

§ Use DGIM to count 1s in each integer

§ The sum is = ∑ ^CDE _AFG 𝑐 _A 2 ^A

§ (2) Use buckets to keep partial sums

§ Sum of elements in size b bucket is at most 2 ^b

c

_i

…estimated count for i-th bit

2 5 7 1 3 8 4 6 7 9 1 3 7 6 5 3 5 7 1 3 3 1 2 2 6 2 5 7 1 3 8 4 6 7 9 1 3 7 6 5 3 5 7 1 3 3 1 2 2 6 3 2 5 7 1 3 8 4 6 7 9 1 3 7 6 5 3 5 7 1 3 3 1 2 2 6 3 2 2 5 7 1 3 8 4 6 7 9 1 3 7 6 5 3 5 7 1 3 3 1 2 2 6 3 2 5

Idea: Sum in each bucket is at most 2

^b

(unless bucket has only 1 integer) Bucket sizes:

1 2 8 16 4

¡ Sampling a fixed proportion of a stream

§ Sample size grows as the stream grows

¡ Sampling a fixed-size sample

§ Reservoir sampling

¡ Counting the number of 1s in the last N elements

§ Exponentially increasing windows

§ Extensions:

§ Number of 1s in any last k (k < N) elements

§ Sums of integers in the last N elements
