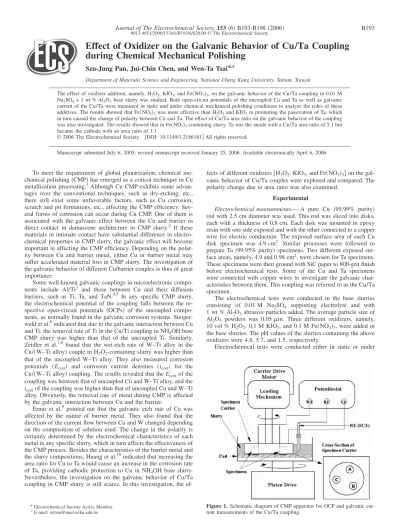

Effect of Oxidizer on the Galvanic Behavior of Cu/Ta Coupling during Chemical Mechanical Polishing

Szu-Jung Pan, Jui-Chin Chen, and Wen-Ta Tsai*^,z

Department of Materials Science and Engineering, National Cheng Kung University, Tainan, Taiwan

The effect of oxidizer addition, namely, H₂O₂, KIO₃, and Fe共NO3兲3, on the galvanic behavior of the Cu/Ta coupling in 0.01 M Na₂SO₄+ 1 wt % Al₂O₃base slurry was studied. Both open-circuit potentials of the uncoupled Cu and Ta as well as galvanic current of the Cu/Ta were measured in static and under chemical mechanical polishing conditions to analyze the roles of these additives. The results showed that Fe共NO3兲3was more effective than H₂O₂and KIO₃in promoting the passivation of Ta, which in turn caused the change of polarity between Cu and Ta. The effect of Cu/Ta area ratio on the galvanic behavior of the coupling was also investigated. The results showed that in Fe共NO3兲3-containing slurry, Ta was the anode with a Cu/Ta area ratio of 5:1 but became the cathode with an area ratio of 1:1.

Manuscript submitted July 6, 2005; revised manuscript received January 25, 2006. Available electronically April 6, 2006.

To meet the requirement of global planarization, chemical mechanical polishing共CMP兲 has emerged as a critical technique in Cu metallization processing.¹Although Cu CMP exhibits some advan- tages over the conventional techniques, such as dry-etching, etc., there still exist some unfavorable factors, such as Cu corrosion, scratch and pit formations, etc., affecting the CMP efficiency. Sev- eral forms of corrosion can occur during Cu CMP. One of them is associated with the galvanic effect between the Cu and barrier in direct contact in damascene architecture in CMP slurry.² If these materials in intimate contact have substantial difference in electrochemical properties in CMP slurry, the galvanic effect will become important in affecting the CMP efficiency. Depending on the polarity between Cu and barrier metal, either Cu or barrier metal may suffer accelerated material loss in CMP slurry. The investigation of the galvanic behavior of different Cu/barrier couples is thus of great importance.

Some well-known galvanic couplings in microelectronic components include Al/Ti³ and those between Cu and their diffusion barriers, such as Ti, Ta, and TaN.^4,5 In any specific CMP slurry, the electrochemical potential of the coupling falls between the respective open-circuit potentials 共OCPs兲 of the uncoupled components, as normally found in the galvanic corrosion systems. Steiger- wald et al.⁶indicated that due to the galvanic interaction between Cu and Ti, the removal rate of Ti in the Cu/Ti coupling in NH₄OH base CMP slurry was higher than that of the uncoupled Ti. Similarly, Zeidler et al.^7,8 found that the wet-etch rate of W–Ti alloy in the Cu/共W–Ti alloy兲 couple in H2O₂-containing slurry was higher than that of the uncoupled W–Ti alloy. They also measured corrosion potentials 共Ecorr兲 and corrosion current densities 共icorr兲 for the Cu/共W–Ti alloy兲 coupling. The results revealed that the Ecorrof the coupling was between that of uncoupled Cu and W–Ti alloy, and the i_corrof the coupling was higher than that of uncoupled Cu and W–Ti alloy. Obviously, the removal rate of metal during CMP is affected by the galvanic interaction between Cu and the barrier.

Ernur et al.⁹pointed out that the galvanic etch rate of Cu was affected by the nature of barrier metal. They also found that the direction of the current flow between Cu and W changed depending on the composition of solution used. The change in the polarity is certainly determined by the electrochemical characteristics of each metal in any specific slurry, which in turn affects the effectiveness of the CMP process. Besides the characteristics of the barrier metal and the slurry compositions, Huang et al.¹⁰indicated that increasing the area ratio for Cu to Ta would cause an increase in the corrosion rate of Ta, providing cathodic protection to Cu in NH₄OH base slurry.

Nevertheless, the investigation on the galvanic behavior of Cu/Ta coupling in CMP slurry is still scarce. In this investigation, the ef-

fects of different oxidizers关H2O₂, KIO₃, and Fe共NO3兲3兴 on the galvanic behavior of Cu/Ta couples were explored and compared. The polarity change due to area ratio was also examined.

Experimental

Electrochemical measurements.— A pure Cu 共99.99% purity兲 rod with 2.5 cm diameter was used. This rod was sliced into disks, each with a thickness of 0.8 cm. Each disk was mounted in epoxy resin with one side exposed and with the other connected to a copper wire for electric conduction. The exposed surface area of each Cu disk specimen was 4.9 cm². Similar processes were followed to prepare Ta共99.95% purity兲 specimens. Two different exposed surface areas, namely, 4.9 and 0.98 cm², were chosen for Ta specimens.

These specimens were then ground with SiC paper to 800-grit finish before electrochemical tests. Some of the Cu and Ta specimens were connected with copper wires to investigate the galvanic characteristics between them. This coupling was referred to as the Cu/Ta specimen.

The electrochemical tests were conducted in the base slurries consisting of 0.01 M Na₂SO₄ supporting electrolyte and with 1 wt % Al₂O₃abrasive particles added. The average particle size of Al₂O₃ powders was 0.05␮m. Three different oxidizers, namely, 10 vol % H₂O₂, 0.1 M KIO₃, and 0.1 M Fe共NO3兲3, were added in the base slurries. The pH values of the slurries containing the above oxidizers were 4.8, 5.7, and 1.5, respectively.

Electrochemical tests were conducted either in static or under

*Electrochemical Society Active Member.

zE-mail: wttsai@mail.ncku.edu.tw

Figure 1. Schematic diagram of CMP apparatus for OCP and galvanic cur- rent measurements of the Cu/Ta coupling.

Journal of The Electrochemical Society, 153共6兲 B193-B198 共2006兲

0013-4651/2006/153共6兲/B193/6/$20.00 © The Electrochemical Society B193

(2)

CMP conditions. For the latter test, a polisher consisting of an upper carrier and a lower platen with the respective diameters of 7.6 and 20.3 cm was used. The schematic diagram showing the components of this polisher is illustrated in Fig. 1. As shown in this figure, a loading device was attached to the upper carrier. A tank holding the slurry during polishing was bound on the lower platen and a Rodel IC-1400 pad for polishing was also attached to it. During polishing, the lower platen rotated at a speed of 100 rpm, and a downward stress of 3 psi was applied to the specimens which were held in the upper carrier. The inset in Fig. 1 shows the geometry of the specimen arrangement in the carrier. Cu and/or Ta specimens were loaded in positions A and B, respectively. An auxiliary specimen made of epoxy resin was put in position C for weight balance purposes.

When galvanic behavior was to be investigated, the Cu and Ta specimens were connected to each other by an external Cu wire.

An EG&G M362 potentiostat was used for the OCP measurement. The OCPs were recorded under static conditions and during CMP. A saturated calomel electrode and the carrier 共made of 304 SS兲 were used as the reference electrode and the counter electrode, respectively. The galvanic current共Ig兲 flowing from Cu to Ta in each slurry during and after CMP was measured using a zero resistance ammeter. The sign of I_gwas taken as positive if Cu was the anode and vice versa.

Results and Discussion

Effect of oxidizer on the OCPs of uncoupled Cu and Ta .— The respective half-cell reactions and potentials for H₂O₂/H₂O, IO₃⁻/I₂, NO₃⁻/N₂, and Fe³⁺/Fe²⁺are given below¹¹

H₂O₂+ 2H⁺+ 2e⁻= 2H₂O

E = 1.776 − 0.0591 pH + 0.0295 log关H2O₂兴关1兴 2IO₃⁻+ 12H⁺+ 10e⁻= I₂+ 6H₂O

E = 1.175 − 0.0709 pH + 0.0591 log关IO3−兴²/P_I

2 关2兴

2NO₃⁻+ 12H⁺+ 10e⁻= N₂+ 6H₂O E = 1.246 − 0.0709 pH + 0.00591 log关NO3−兴²/P_N

2 关3兴

Fe³⁺+ e⁻= Fe²⁺

E = 0.771 + 0.0591 log关Fe³⁺/Fe²⁺兴关4兴 The effects of these oxidizers on the OCPs of uncoupled Cu and Ta in 0.01 M Na₂SO₄+ 1 wt % Al₂O₃base slurry under load-free and static condition are demonstrated in Fig. 2. In the slurry containing 10 vol % H₂O₂, as shown in Fig. 2a, the OCP of Cu was 360 mV and remained constant throughout the whole measurement. In this slurry, the initial OCP of Ta was −100 mV but gradually climbed to +65 mV. As clearly seen in Fig. 2a, the potential of Ta was about 300 mV lower than that of Cu, indicating Ta was more active than Cu in this slurry. With the addition of 0.1 M KIO₃ into the base slurry, the steady-state potential of Ta was −250 mV while that of Cu was +30 mV. Again, Ta was more active than Cu with a potential difference about 280 mV between them. By comparing Fig. 2a Figure 2. Effects of共a兲 10 vol % H2O₂, 共b兲 0.1 M KIO3, and共c兲 0.1 M Fe共NO3兲3

on the OCPs for uncoupled Cu and Ta in 0.01 M Na₂SO₄+ 1 wt % Al₂O₃ base slurry under load-free and static condition.

(3)

with 2b, it was found that the OCPs for both Cu and Ta measured in the KIO₃-containing slurry were lower than those measured in the slurry containing H₂O₂. This was attributed to the high oxidizing power of H₂O₂as compared with KIO₃present in the slurry.

In the slurry containing 0.1 M Fe共NO3兲3, a dramatic change in polarity was found. As shown in Fig. 2c, a constant OCP of Cu 共about +45 mV兲 was observed. However, the potential of Ta became higher than that of Cu. It was initially at +175 mV and further climbed to a steady-state value of +345 mV. The high OCP of Ta indicated that it was passivated in this slurry and became nobler than Cu. It is known that the redox potential of either Fe³⁺/Fe²⁺ or NO₃⁻/N₂ is lower than that of H₂O₂/H₂O.¹¹ However, the acidic nature共pH 1.5兲 and high concentration of oxidizing species such as Fe³⁺and NO₃⁻in the 0.1 M Fe共NO3兲3-containing slurry seemed to have activated the initial dissolution of Ta, which in turn promoted the fast passivation of Ta surface. As a result, the OCP of Ta became higher than that of Cu. Figure 3 shows schematic diagrams illustrat- ing the change of surface Ta⁵⁺ion concentration with time in the slurries containing different oxidizers. Though both H₂O₂and KIO₃ could promote the dissolution of Ta, the rate was not fast enough to cause passivation. In the presence of 0.1 M Fe共NO3兲3in the slurry, however, the enhanced dissolution could raise the surface Ta⁵⁺ion concentration above the critical concentration for passivation. The transition from active to passive state thus occurred, as commonly found in many passive alloy/environment systems.

By comparing Fig. 2b and c, it was found that the OCPs of Cu in the slurries containing KIO₃and Fe共NO3兲3, respectively, were close to each other. This was because the redox potential for IO₃⁻/I₂was close to that of NO₃⁻/N₂ but much lower than that of H₂O₂/H₂O.

The initial and steady-state OCPs of Cu and Ta measured in the above slurries are summarized in Table I.

Potentiodynamic polarization curves of Ta determined in 0.01 M Na₂SO₄+ 1 wt % Al₂O₃ base slurry and those with different oxidizer additions, under static condition, are demonstrated in Fig. 4.

The corrosion potential of Ta was significantly increased when

Fe共NO3兲3 was added into the base slurry. Clearly, Fe共NO3兲3 was even more effective in passivating Ta in the base slurry considered.

Under CMP, the effect of oxidizer on the OCP of uncoupled Cu and Ta is shown in Fig. 5 and in Table I as well. As shown in Fig. 5a and b, the values of OCP for Cu measured in H₂O₂- and KIO₃-containing slurries were still higher than those of Ta. Com- pared with those measured in static condition, the potentials were slightly lowered due to polishing. The contact pressure and hydrodynamic condition induced by CMP did impose some effect in changing the surface characteristics of both Cu and Ta. Figure 5c shows the potentials measured in the Fe共NO3兲3-containing slurry.

The potential of Cu remained almost constant at about +85 mV, which was slightly higher than that in static condition. For uncoupled Ta, the initial potential in Fe共NO3兲3-containing slurry was

−50 mV, more negative than Cu. However, as shown in Fig. 5c, the potential of Ta increased and eventually became higher than that of Cu as CMP continued. The change of polarity was attributed to the combined effects of accelerating dissolution and mass transfer of Ta ions away from the surface, as illustrated in Fig. 6. With the presence of either H₂O₂or KIO₃, the dissolution rate was not so fast and the flowing slurry could carry Ta⁵⁺ions away from the surface, as demonstrated in Fig. 6a. Thus, the surface Ta⁵⁺ion concentration could not build up substantially to favor passivation. However, as Fe共NO3兲3was added, the hydrodynamic condition was not in a condition fast enough to remove Ta⁵⁺ions away from the surface. As a result, as depicted in Fig. 6b, the precipitation of Ta₂O₅ occurred and passivation was attained. The transition of OCP of Ta and the Figure 3. Schematic diagram showing the effect of different oxidizer on

passivation of Ta in CMP slurry.

Table I. OCPs of Cu and Ta in 0.01 M Na2SO4+ 1 wt % Al2O3base slurries with addition of different oxidizers, measured in static or under CMP condition.

Potential measured at static

condition共mVSCE兲 Potential measured under CMP

共mVSCE兲

Cu Ta Cu Ta

Oxidizer added Initial

Steady

state Initial

Steady

state Initial

Steady

state Initial

Steady state

10 vol % H₂O₂ +360 +360 −100 +65 +300 +340 −250 −130

0.1 M KIO₃ −10 +30 −280 −250 −50 −50 −445 −340

0.1 M Fe共NO3兲3 +45 +45 +175 +345 +85 +85 −50 +140

Figure 4. Potentiodynamic polarization curves of Ta in 0.01 M Na₂SO₄ + 1 wt % Al₂O₃base slurries with various oxidizers, under static condition.

B195 Journal of The Electrochemical Society, 153共6兲 B193-B198 共2006兲 B195

(4)

reversion of its polarity with respect to Cu were thus explained. All these results indicated that Fe共NO3兲3 at a concentration of 0.1 M was a stronger oxidizer for Ta. As noted in Table I, the difference between the OCPs of uncoupled Cu and Ta was reduced 共about 55 mV兲 under CMP as compared with that in static condition 共about 300 mV兲.

Effect of oxidizer on the galvanic current of coupled Cu/Ta.—

The notable potential difference between the uncoupled Cu and Ta suggests that a significant galvanic current can occur when they are coupled to each other. The theoretical considerations of galvanic corrosion have been discussed by some researchers.^12-15The galvanic current through the anode is equal to the difference between the anodic and cathodic currents for the anode at galvanic potential 共Eg兲

I_g= I_a^A共Eg兲 − Ic A共Eg兲

where I_a^Aand I_c^Aare the anodic and cathodic current for the anode.

Under cathodic diffusion control condition, the galvanic current is equal to the cathodic current at E_g,^14,15namely

Ig= I_a^A共Eg兲 − Ic A共Eg兲 = Ic

C共Eg兲

where I_c^Cis the cathodic current at cathode. In this investigation, the galvanic currents for the Cu/Ta couples measured in the base slurry with different oxidizer additions are depicted in Fig. 7. Curves 1 and 2 in Fig. 7 demonstrated the galvanic currents for Cu/Ta couple

共both with an exposed surface area of 4.9 cm²兲 measured under CMP in the slurries containing 10 vol % H₂O₂ and 0.1 M KIO₃, respectively. The negative currents measured indicated that Ta was the anode with respect to Cu cathode in these two different slurries.

More specifically, accelerated dissolution of Ta occurred when Ta was coupled to Cu. The results obtained were consistent with the OCP measurements for the uncoupled Cu and Ta as described above.

Curves 1 and 2 also demonstrated the variation of galvanic currents with time of the Cu/Ta couples when CMP was terminated at 600 s and thereafter. The negative sign of galvanic current measured still indicated that Ta was the anode in both slurries. The magnitude of galvanic current decreased under static condition, suggesting that the polarity difference diminished perhaps due to the increase of surface Ta⁵⁺ion concentration. However, the increase in Ta⁵⁺ion concentration was not high enough to ensure the passivation of Ta.

In Fig. 7, curve 3 represents the galvanic current measured in Fe共NO3兲3-containing slurry. A negative current was determined initially under CMP, indicating Ta was the anode. However, the negative galvanic current rapidly decreased to zero and became positive for a very short time. The switch of polarity was clearly due to the passivation of Ta in such slurry, in agreement with the potential measurement shown in Fig. 5c. This result again indicated that the addition of Fe共NO3兲3 could favor and was more effective for the passivation of Ta, even in acidic slurry. When CMP stopped, the galvanic current was further increased due to the increase in the potential difference between Cu and Ta in static condition. The Figure 5. Effects of共a兲 10 vol % H2O₂, 共b兲 0.1 M KIO3, and共c兲 0.1 M Fe共NO3兲3

on the OCPs for uncoupled Cu and Ta in 0.01 M Na₂SO₄+ 1 wt % Al₂O₃ base slurry under CMP condition.

(5)

change of polarity has also been found for the Cu/W coupling in the slurries with different oxidizers. Ernur et al.⁹indicated that W was the anode in H₂O₂-containing slurry, yet Cu was the anode in HNO₃ slurry. These results pointed out that the magnitude and polarity of galvanic current strongly depend on material characteristics and slurry composition.

Effect of Cu/Ta area ratio on galvanic current.— It is known that the dissolution rate of the anode, as well as the galvanic current density 共the galvanic current divided by the anode area兲, in a galvanic couple depends on the cathode-to-anode area ratio

共A^C/A^A兲.^14,15 The galvanic current densities between Cu/Ta with area ratios of 1:1共4.9 cm²/4.9 cm²兲 and 5:1 共4.9 cm²/0.98 cm²兲, in the Fe共NO3兲3-containing slurry, were compared as shown in Fig. 8.

In the initial stage of CMP, Ta was the anode in the Cu/Ta couple with an area ratio of 1:1共curve 1兲 or 5:1 共curve 2兲. By reducing the area of Ta from 4.9 to 0.98 cm², the galvanic current density was increased from about −4.1⫻ 10⁻⁶to −7.7⫻ 10⁻⁵A/cm². The increasing anodic dissolution rate of Ta with increasing Cu/Ta area ratio had also been found in NH₄OH base slurry.¹⁰In this investigation, it was found that the galvanic current density共with a Cu/Ta area ratio of 5:1兲 decreased as the time of CMP was increased and Figure 6. Schematic diagrams showing the combined effects of anodic dissolution and mass transfer of Ta⁵⁺ions on the surface with共a兲 H2O₂or KIO₃addition and 共b兲 Fe共NO3兲3addition.

Figure 7. Effects of共1兲 10 vol % H2O₂,共2兲 0.1 M KIO3, and 共3兲 0.1 M Fe共NO3兲3 on the galvanic currents of the Cu/Ta coupling in 0.01 M Na₂SO₄+ 1 wt % Al₂O₃base slurry during CMP and in static condition.

Figure 8. Effect of Cu/Ta area ratio on the galvanic current density of the Cu/Ta coupling in 0.1 M Fe共NO3兲3+ 0.01 M Na₂SO₄+ 1 wt % Al₂O₃ slurry during CMP and in static condition.

B197 Journal of The Electrochemical Society, 153共6兲 B193-B198 共2006兲 B197

(6)

reached a steady current of about −5.1⫻ 10⁻⁵A/cm². However, Ta remained as the anode during the whole period of measurement, dissimilar to that with an area ratio of 1:1. This result indicated that Ta was not passivated during CMP if the Cu/Ta area ratio was reduced to 5:1. The absence of Ta passivation of the Cu/Ta couple was probably due to the insufficient Ta⁵⁺concentration on the surface. Though the dissolution of the anode was dependent on the reduction reaction on cathode, the increase in Cu/Ta area ratio seemed not sufficient to raise the Ta⁵⁺concentration above the critical value for passivation. However, as soon as CMP was terminated, Ta became the cathode and the reverse of polarity was observed, as demonstrated by curve 2 in Fig. 8.

Figure 9 and 10 show the effect of Cu/Ta area ratio on the galvanic currents measured under CMP in the slurries with 10 vol % H₂O₂and 0.1 M KIO₃additions, respectively. In both cases, Ta was the anode regardless of the Cu/Ta area ratio. It was noted that the galvanic current density with a Cu/Ta area ratio of 5:1 was higher than that of 1:1. The results indicated that accelerated dissolution on anode occurred if the area of cathode was increased.

Conclusions

The electrochemical behavior the Cu/Ta galvanic couple in 0.01 M Na₂SO₄+ 1 wt % Al₂O₃base slurry with the presence of different oxidizers, in static or under CMP, was investigated. In static condition and under CMP, the OCP of Cu was higher than that of Ta in 0.01 M Na₂SO₄+ 1 wt % Al₂O₃base slurry with the addition of either 10 vol% H₂O₂or 0.1 M KIO₃. However, the addition of 0.1 M Fe共NO3兲3into the 0.01 M Na₂SO₄+ 1 wt % Al₂O₃base slurry made the OCP of Ta nobler than Cu in static condition. Under CMP, the potential of Ta was initially lower than that of Cu but became higher at a latter stage. The presence of Fe共NO3兲3promoted the passivation of Ta. The results of galvanic current measurements showed that the direction of current flow was consistent with the results obtained in OCP measurement. The magnitude and polarity of the galvanic current also depended on the Cu/Ta area ratio. In the

Fe共NO3兲3-containing slurry, Ta was the anode with a Cu/Ta area ratio of 5:1, while a switch of polarity from anode to cathode was observed if the area ratio was 1:1. The dependences of galvanic behavior on the type of oxidizer, polishing condition, and area ratio were clearly demonstrated.

Acknowledgments

The authors would like to thank the National Science Council of the Republic of China for financially supporting this research under contract no. NSC 91-2216-E-006-036.

National Cheng Kung University assisted in meeting the publication costs of this article.
