* All rights reserved, Tei-Wei Kuo, National Taiwan University, 2001.

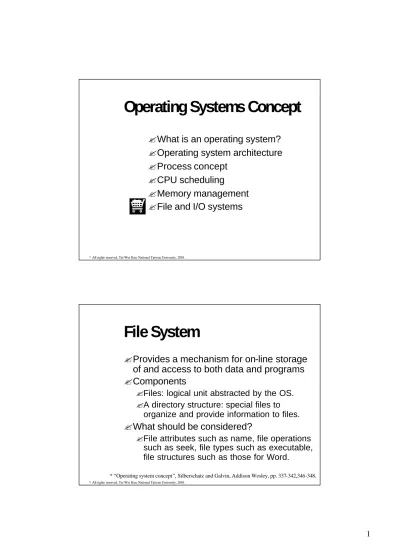

Operating Systems Concept
?What is an operating system?
?Operating system architecture
?Process concept
?CPU scheduling
?Memory management
?File and I/O systems
* All rights reserved, Tei-Wei Kuo, National Taiwan University, 2001.
File System
?Provides a mechanism for on-line storage of and access to both data and programs
?Components
?Files: logical unit abstracted by the OS.
?A directory structure: special files to organize and provide information to files.
?What should be considered?
?File attributes such as name, file operations such as seek, file types such as executable, file structures such as those for Word.
* “Operating system concept”, Silberschatz and Galvin, Addison Wesley, pp. 337-342,346-348.
* All rights reserved, Tei-Wei Kuo, National Taiwan University, 2001.
File Systems
?File Methods
?Sequential Access
?Basic Operations
?READ, WRITE + file pointers
?Direct Access
?Basic Operations
?READ N or Write N, where N is the relative block number.
File: a sequence of bytes … ..
a sequence of (logical) blocks
File System – A UNIX Approach
?Process Control Block Struct PCB {
char p_pid;
int pc; /* program counter */
…
int files[NFILE];
} PCB[NPROC];
Read(4, … )
Tables of Opened Files (per process)
System Open File Table
In-core i-node list
i-node i-node
i-node
sync
data block data block
kernel space user space
open create an entry
(file current position, etc)
file-open-count++ Load the corresponding i-node if it is absent.
* The i-node structure of a file includes info regarding the disk location of the file.
* All rights reserved, Tei-Wei Kuo, National Taiwan University, 2001.
BSD UNIX i-node
* “Operating system concept”, Silberschatz and Galvin, Addison Wesley, pp. 380.
mode owner timestamp size block ref-count
triple indirect double indirect
single indirect
direct blocks
data data data
…
…
data data data
…
…
…
…
data data
… data…
• 4KB block size
• 12 direct pointers
• 48KB
• 1 single indirect
• 4-byte block ptr
• 1K * 4KB = 4MB
• >> 4GB for the largest file!
* All rights reserved, Tei-Wei Kuo, National Taiwan University, 2001.
Memory-Mapped File
?Allow a part of the virtual address space to be logically associated with a section of a file.
1 2
Virtual Memory for Process A
1 2
Virtual Memory for Process B
Physical Memory
1 2 3
* All rights reserved, Tei-Wei Kuo, National Taiwan University, 2001.
File System – Directory Structure
?Partition (/Volume):
?a low level structure in which files and
directories reside.
?Directory:
?Records info for “all”
files on a partition.
directory files directory
files
… disks
partition
partition
* “Operating system concept”, Silberschatz and Galvin, Addison Wesley, pp. 349,354-358.
File System – Tree-Based Directory
? Path name
?Specify a file by listing “node”names from the root to the corresponding node in the structure
?/users/userA/info-sys/test vmunix
/
dev
console lp0 …
bin
csh …
lib
libc.a …
usr
include …
etc
passwd …
* All rights reserved, Tei-Wei Kuo, National Taiwan University, 2001.
Sharing of Files
?Hard Link
?Each directory entry creates a hard link of a filename to the i- node that describes the file’s contents.
?Symbolic Link (Soft Link)
?It is implemented as a file that contains a pathname.
?Example: Shortcut on Windows
foo
bar
/usr/joe
/usr/sue File i-node:
Reference = 2
foo
bar
/usr/sue
File i-node:
Reference = 1
/usr/joe
File i-node:
Reference = 1 data file:
/usr/joe/foo
* All rights reserved, Tei-Wei Kuo, National Taiwan University, 2001.
File Systems - Mounting
?(name of the device, mount point)
tmp
Use an appropriate device driver to read the device directory and verify the format => mount!
•Mount point: the location within the file structure at which to attach the file system.
UNIX: manual mounting
* All rights reserved, Tei-Wei Kuo, National Taiwan University, 2001.
Protection
?How to prevent improper access?
?Access control!
?Read, Write, Execute, Append, Delete, List, etc
?Approaches:
?Complete isolation
?No protection at all
?Controlled access by limiting the “types” of file access based on some factors:
* “Operating system concept”, Silberschatz and Galvin, Addison Wesley, pp. 360-362.
Protection
?Access user list for each file/directory
?{ < user-ID, allowed access types> … }
?Tedious in maintenance and variable directory sizes -> condense such info (UNIX)
?Read/write/execute over owner/grp/others
?Issues
?Control in group memberships
?Membership per user?
?A password for each file/directory
?A large number of passwords
?Different passwords for different levels of protection?
* All rights reserved, Tei-Wei Kuo, National Taiwan University, 2001.
Operating Systems Concept
?What is an operating system?
?Operating system architecture
?Process concept
?CPU scheduling
?Memory management
?File and I/O systems
* All rights reserved, Tei-Wei Kuo, National Taiwan University, 2001.
I/O Subsystems
?Why?
?Provide the simplest interface to the rest of the system
?Optimize I/O for the maximum concurrency
?Variations:
?Block vs Character I/O
?Sequential/Random Access
?Synchronous/Asynchronous Transfer
?Dedicated/Share
?Read-Only/Read-Write
* “Operating system concept”, Silberschatz and Galvin, Addison Wesley, pp. 398, 408-410, 414-415.
* All rights reserved, Tei-Wei Kuo, National Taiwan University, 2001.
I/O Subsystems
?Conflicting trends
?Increasing standardization of software/ hardware interfaces
?Increasing broad variety of I/O devices
?Device drivers which provide a uniform device-access interface to the I/O subsystem.
?How the I/O system improves the efficiency of the computer?
?Schedule I/O operations, e.g., those on disks.
?Use techniques such as buffering, caching, or spooling.
Principles in Doing I/O
?Reduce the number of context switches.
?Reduce the number of data copyings.
?Reduce the frequency of interrupts
?Large transfer, smart controller, etc.
?Increase concurrency
?DMA controller
?Move processing primitives into hardware.
?Balance CPU, memory subsystems, bus, and I/O memory.
* “Operating system concept”, Silberschatz and Galvin, Addison Wesley, pp. 424-425.
