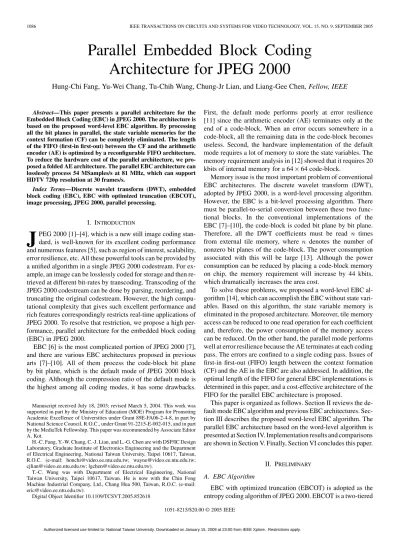

encoder (AE) is optimized by a reconfigurable FIFO architecture. To reduce the hardware cost of the parallel architecture, we pro-posed a folded AE architecture. The parallel EBC architecture can losslessly process 54 MSamples/s at 81 MHz, which can support HDTV 720p resolution at 30 frames/s.
Index Terms—Discrete wavelet transform (DWT), embedded block coding (EBC), EBC with optimized truncation (EBCOT), image processing, JPEG 2000, parallel processing.
I. INTRODUCTION
J
PEG 2000 [1]–[4], which is a new still image coding stan-dard, is well-known for its excellent coding performance and numerous features [5], such as region of interest, scalability, error resilience, etc. All these powerful tools can be provided by a unified algorithm in a single JPEG 2000 codestream. For ex-ample, an image can be losslessly coded for storage and then re-trieved at different bit-rates by transcoding. Transcoding of the JPEG 2000 codestream can be done by parsing, reordering, and truncating the original codestream. However, the high compu-tational complexity that gives such excellent performance and rich features correspondingly restricts real-time applications of JPEG 2000. To resolve that restriction, we propose a high per-formance, parallel architecture for the embedded block coding (EBC) in JPEG 2000.EBC [6] is the most complicated portion of JPEG 2000 [7], and there are various EBC architectures proposed in previous arts [7]–[10]. All of them process the code-block bit plane by bit plane, which is the default mode of JPEG 2000 block coding. Although the compression ratio of the default mode is the highest among all coding modes, it has some drawbacks.
Manuscript received July 18, 2003; revised March 5, 2004. This work was supported in part by the Ministry of Education (MOE) Program for Promoting Academic Excellence of Universities under Grant 89E-FA06-2-4-8, in part by National Science Council, R.O.C., under Grant 91-2215-E-002-015, and in part by the MediaTek Fellowship. This paper was recommended by Associate Editor A. Kot.
H.-C. Fang, Y.-W. Chang, C.-J. Lian, and L.-G. Chen are with DSP/IC Design Laboratory, Graduate Institute of Electronics Engineering and the Department of Electrical Engineering, National Taiwan University, Taipei 10617, Taiwan, R.O.C. (e-mail: [email protected]; [email protected]; [email protected]; [email protected]).
T.-C. Wang was with Department of Electrical Engineering, National Taiwan University, Taipei 10617, Taiwan. He is now with the Chin Fong Machine Industrial Company, Ltd., Chang Hua 500, Taiwan, R.O.C. (e-mail: [email protected]).
Digital Object Identifier 10.1109/TCSVT.2005.852618
mode requires a lot of memory to store the state variables. The memory requirement analysis in [12] showed that it requires 20 kbits of internal memory for a 64 64 code-block.
Memory issue is the most important problem of conventional EBC architectures. The discrete wavelet transform (DWT), adopted by JPEG 2000, is a word-level processing algorithm. However, the EBC is a bit-level processing algorithm. There must be parallel-to-serial conversion between these two func-tional blocks. In the convenfunc-tional implementations of the EBC [7]–[10], the code-block is coded bit plane by bit plane. Therefore, all the DWT coefficients must be read times from external tile memory, where denotes the number of nonzero bit planes of the code-block. The power consumption associated with this will be large [13]. Although the power consumption can be reduced by placing a code-block memory on chip, the memory requirement will increase by 44 kbits, which dramatically increases the area cost.
To solve these problems, we proposed a word-level EBC al-gorithm [14], which can accomplish the EBC without state vari-ables. Based on this algorithm, the state variable memory is eliminated in the proposed architecture. Moreover, tile memory access can be reduced to one read operation for each coefficient and, therefore, the power consumption of the memory access can be reduced. On the other hand, the parallel mode performs well at error resilience because the AE terminates at each coding pass. The errors are confined to a single coding pass. Issues of first-in first-out (FIFO) length between the context formation (CF) and the AE in the EBC are also addressed. In addition, the optimal length of the FIFO for general EBC implementations is determined in this paper, and a cost-effective architecture of the FIFO for the parallel EBC architecture is proposed.
This paper is organized as follows. Section II reviews the de-fault mode EBC algorithm and previous EBC architectures. Sec-tion III describes the proposed word-level EBC algorithm. The parallel EBC architecture based on the word-level algorithm is presented at Section IV. Implementation results and comparisons are shown in Section V. Finally, Section VI concludes this paper.
II. PRELIMINARY
A. EBC Algorithm
EBC with optimized truncation (EBCOT) is adopted as the entropy coding algorithm of JPEG 2000. EBCOT is a two-tiered
Fig. 1. Diagram of the EBCOT algorithm. It is a two-tiered algorithm, in which tier-1 is also called the EBC.
Fig. 2. Diagram of code-block and stripes. A 642 64 code-block is divided into sixteen 4 2 64 stripes. The numbers represent the scan order.
algorithm, as shown in Fig. 1. The tier-1 part is the EBC, which is composed of the CF and the AE. The bit stream formed by the EBC is called the embedded bit stream and is passed to the tier-2 for rate control. Given a target length, tier-2 truncates the embedded bit streams to minimize the overall distortion. The EBC algorithm is elaborated as follows.
1) CF: The basic coding unit of the EBC is a code-block with typical size of 64 64 or 32 32. An code-block is further divided into stripes, with size of . The scan order is first column by column within a stripe and then row by row for stripes, as shown in Fig. 2.
The order of bit plane coding is from the most significant bit (MSB) bit plane of the code-block to the least significant bit (LSB) bit plane. Each bit plane requires three coding passes: the significant propagation pass (Pass 1), the magnitude refine-ment pass (Pass 2), and the cleanup pass (Pass 3). The MSB bit plane, which is an exception, requires only the Pass 3. A con-text window, as shown in Fig. 3, is involved while modeling the context of a sample coefficient. The sample coefficient to be coded lies in the center of the context window and is denoted as . The eight-connected neighbors of are further divided into horizontal (H), vertical (V), and diagonal (D) groups ac-cording to their relative position to . For the CF, a binary state variable called significant state is defined for a coefficient to in-dicate whether or not a nonzero magnitude bit has been coded in previous bit planes or passes. Then, the coding pass of is determined by the significant states of itself and its neighbors. If has been significant, it belongs to the Pass 2. If has not been significant but at least one of its neighbors has been signifi-cant, it belongs to the Pass 1; otherwise, it belongs to the Pass 3. One binary-valued symbol is encoded by the AE. Nineteen contexts are used to adapt the probability models of the AE. The contexts are mapped by the significant states of the neigh-bors. Note that the newest values of the state variables must be
Fig. 3. Context window for CF. The sample coefficient to be coded is referred asC. The eight neighbors of C are grouped as H; V; and D.
used and the causality must be satisfied in the scan order de-scribed above. Detailed information on the context mapping can be found in [15].
2) Arithmetic Encoder: The AE is an adaptive, multiplica-tion free, binary MQ coder. It is derived from the Q coder [16] and enhanced by a conditional exchange procedure derived from the MELCODE [17] and the state-transition table known as JPEG-FA [18]. The probability tables are predetermined and provided by the standard. Detailed operations of the AE can be found in [12].
B. Previous EBC Architectures
Lian et al. [7] proposed an EBC architecture, which real-ized the baseline function, i.e., bit plane by bit plane coding. Three scans are needed to code one bit plane, except for the MSB bit plane, which needs only one scan. Thus, it takes
clock cycles for the block coder to code a code-block with size of and nonzero bit planes. Three speed-up techniques were proposed to reduce the processing

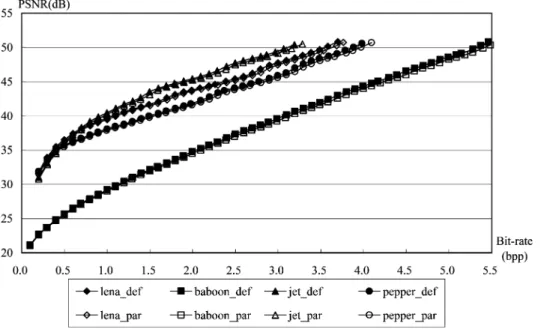

Fig. 4. Comparisons of rate-distortion curves of various images of parallel mode and default mode. All the images are of size 5122 512 coded by 5/3 filter with two levels of decompositions, 1282 128 tile and 64 2 64 code block.
time. With these techniques, the number of processing cycles are reduced to 38% on average with the cost of 256 bits memory. The memory requirement of that architecture [7] was reported as 13 kbits. However, it assumes that the sign and magnitude are stored on the external memory. In order to make fair com-parisons, this memory should be added and, therefore, a total of 21 kbits memory are needed in the architecture.
Hsiao et al. [8] reduced the memory requirement of the state variables in the EBC by exploring the dependency among these state variables. The method reducing the memory requirement by 20% at the cost of a few logic gates. An architecture for the AE was also proposed in [8], using three pipeline stages in normal operation and four pipeline stages when the byteout is triggered. However, when the AE is in the byteout stage, it cannot process the ConteXt Decision (CXD) pair from the block coder. At this cycle, the block coder must be stalled.
Chiang et al. [9] proposed a pass-parallel EBC architecture. All the three passes in a bit plane are coded within one scan so that the processing cycles are reduced. The memory require-ments of state variables are reduced by 4 kbits in the parallel mode. In this architecture, three bit streams should be gener-ated concurrently since the three passes are processed in par-allel. Note that only one sample coefficient is scanned in a cycle and it belongs to one of the three coding passes. Therefore, the authors proposed a pass switching AE, which is composed of one processing element (PE) and three suits of coding status registers.
All the above architectures require at least 16 kbits of memory for the state variables, and the processing time of these archi-tectures depends on the number of nonzero bit planes. For a code-block with nonzero bit planes, at least cycles are re-quired to process a coefficient. Therefore, the throughput of these architectures are only of the operating frequency.
Andra et al. [10] proposed a code-block parallel architec-ture to increase the throughput by encoding three code-blocks in parallel by three independent EBC modules. Therefore, the
throughput is increased by three times at almost three times the hardware cost.
All the above architectures are derived from the default mode EBC algorithm, which is a sequential algorithm. Therefore, these architectures have inherent limitations on performance. To overcome this obstacle, we propose a word-level EBC algorithm, which enables all the bit planes to be processed in parallel. This algorithm opens a new direction for the hardware architecture of the EBC to advance.
III. PARALLELEBC ALGORITHM
In this section, we propose a word-level EBC algorithm based on the parallel mode defined in the standard. By use of the algorithm, the CF can be accomplished without state variable memory. Moreover, all the bit planes can be processed in par-allel, which dramatically increases the throughput. In parallel mode, the arithmetic encoder is always terminated at end of each coding pass and the samples that come from the next stripe are considered insignificant. As a result of the two restrictions, the performance of parallel mode is slightly worse than that of the default mode. Fig. 4 shows the performance comparison of var-ious images. The average peak signal-to-noise ratio (PSNR) loss is about 0.25 dB in medium to high bit-rate and 0.1 dB in low bit-rate. The word-level EBC algorithm is elaborated in subse-quent sections.
A. Coding Pass Classification
In this section, the parallel coding pass classification al-gorithm is presented, in which the coding passes of samples from each bit plane are determined independently. Thus, parallel process of all the bit planes becomes possible. Let denotes the value of the central coefficient in the context window and denotes the value of , as shown in Fig. 3. In addition, , , , , , , and denote the values of the corresponding coefficients. Note that
when is located on the last row of the stripe, , , and are set to zero because the causal mode is turned on. In the following, is used to represent any neighbor of , i.e.,
.
Let denote the coding pass of the th bit plane of . In the following discussions, a superscript indicates the bit plane number, where zero means the LSB, and a suffix indicates the location in context window. The coding pass, , is determined by the contributions of its neighbors at bit plane and the rel-ative position of the its MSB bit plane and . The contribution of to the th bit plane is represented by . For whose scan order is after , its contribution is determined on the related po-sition of and its MSB location
(1) where
. (2)
On the other hand, the contribution of that is scanned before is
otherwise .
(3) Note that is available because is scanned before .
According to the scan order defined in the standard, , , and are always scanned before , while , and are always scanned after . For , the relative scan order depends on the position of . When is the first coefficient in a column of the stripe, is scanned before because is scanned in previous stripe. In other cases, is scanned after .
The coding pass of the th bit plane of the central coefficient is
otherwise
(4)
where the result of has a range of 0–8. B. CF
The context mapping in the parallel mode is exactly the same as that in the default mode, but the approach to get the con-tributions of H, V, and D groups for context mapping is quite different. These contributions are abbreviated as . For the CF, we define two new variables and as
(5) and
. (6)
The indicates whether the th bit plane is lower than the MSB bit plane of . The indicates whether the th bit plane is the MSB bit plane of . In the following sections, we elaborate the algorithms to obtain the contributions in magnitude coding and sign coding separately.
TABLE I
TRUTHTABLE OFH (V )FORSIGNCODINGWHEREX MEANS“DO
NOTCARE”
1) Magnitude Coding: Let denotes the contribution of the th bit plane of with respect to . The group contribution data for the context modeling can be obtained by
(7)
(8)
(9) For scanned after , the contribution is given by
otherwise .
(10) Otherwise, the contribution of is give by
otherwise .
(11) 2) Sign Coding: Let denotes the sign of , where “1” stands for a negative coefficient. For the sign coding, two vari-ables are defined as
(12) and
(13)
where and are defined in (5) and (6), respectively. Note that the value of or is either zero or one because there is at most one nonzero , which is one. The indicates whether the MSB of locates at higher bit plane than that of . The indicates whether the MSBs of and locate in the same bit plane. The contribution of after for sign coding is
otherwise.
(14) Otherwise, the contribution of is
otherwise.
Fig. 5. Block diagram of the proposed architecture. Only the MPC module involves word-level computations, and all other modules process independently over bit planes.
The truth table of the group contribution data for sign coding, or , is shown in Table I.
C. Arithmetic Encoder
In the parallel mode, the probability tables are reset on each coding pass, and the embedded bit stream of each pass is ter-minated by flushing to separate from next pass. Termination on each pass can prevent error from propagating across passes. Ex-cept for resets and terminations, the operations of the arithmetic encoder are exactly the same in the default mode and the par-allel mode.
IV. PARALLELEBC ARCHITECTURE
In this section, a parallel EBC architecture is proposed based on the word-level algorithm. The proposed parallel EBC archi-tecture is shown in Fig. 5. There are five major functional blocks in this architecture, all of which process independently over bit planes, except the MSB pass classification (MPC) module. The DWT coefficients are fed into Gobang register bank (GRB) module, in which the coefficients are shifted and rotated to make the dataflow fit with the scan order defined in the standard. The MPC module generates the coding pass of the MSB of each coefficient for the PC (Pass Classification) module. Then, the coding pass and data of all bit planes are determined in the PC module. The CF module maps the pass and data into CXD pairs and puts them into the reconfigurable FIFO (RFIFO) module. The RFIFO module contains ten FIFOs, in which two FIFOs contain 15 registers (L0–L2) and eight FIFOs contain four registers (S0–S7). Each AE in the folded AE (FAE) module handles two FIFO inputs, i.e., two bit planes, and gen-erates embedded bit streams.
The number of AE is folded by two due to the properties of DWT coefficients in the EBC algorithm. The magnitudes of DWT coefficients are not equally distributed and large co-efficients are much less than small ones. Thus, the number of contexts in a bit plane decreases dramatically from the LSB bit plane to the MSB bit plane. By these observations, we use one AE to deal with two bit planes. Bit plane and share one AE to form the bit streams, where represents the number

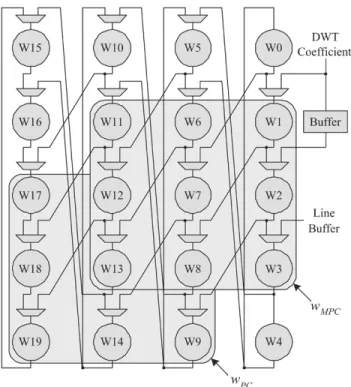

Fig. 6. GRB. The circles represent registers that contain 11 bits DWT coefficient and 1 bitp .
of magnitude bit planes supported by the proposed architecture. This folded approach reduces the hardware cost of the PEs of the FAE module in the parallel architecture by 50%.
A. Gobang Register Bank
The DWT coefficients are first stored and shifted in the GRB module, as shown in Fig. 6. To fit the scan order defined in the standard, the GRB module shifts and rotates the DWT coeffi-cients for other modules. The coefficoeffi-cients are first rotated within each column of the GRB module to match the scan order of one column in the stripe. When a column in the stripe is coded, i.e., every four clock cycles, the coefficients in a column of the GRB module are shifted to the next column of the GRB module in par-allel for the coding of next column in the stripe. Intuitively, there

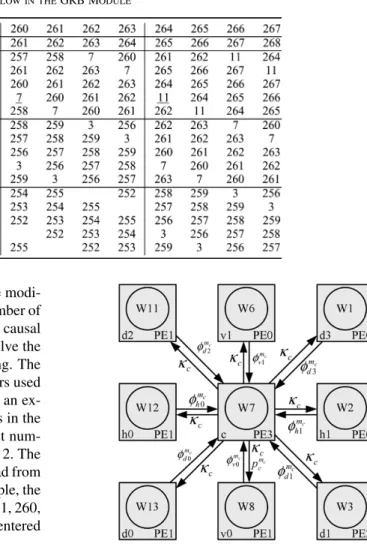

TABLE II
DATAFLOW IN THEGRB MODULE
should be 6 3 registers in the GRB module. But, some modi-fications are required for the parallel processing. The number of rows is reduced from 6 to 5 due to the use of vertically causal mode. The number of columns is increased by one to solve the problem of significant propagation in parallel processing. The two 3 3 windows, and , indicate the registers used in the MPC module and the PC module. Table II shows an ex-ample of the dataflow in the GRB module. The numbers in the first row are the cycle counts of the code-block. The rest num-bers stand for the coefficient positions as defined in Fig. 2. The number with underline indicates that the coefficient is read from the line buffer. Taking the 264th clock cycles as an example, the positions of the coefficients in are 265, 264, 11, 261, 260, 7, 257, 256, and 3, which represent a context window centered at 260th coefficient.
B. MPC
The MPC module has two main functions. First, it calculates the according to (1)–(4). Second, it computes the and defined in (5) and (6). Note that these are the only operations that involve word-level computations in the word-level EBC al-gorithm. Thus, all the modules behind the MPC module can process independently over bit planes. By independently pro-cessing over bit planes, we can turn off all the PEs of empty bit planes to reduce the power consumption. This reduces power consumption dramatically since about half of the bit planes are empty in most natural images.
Fig. 7 shows the interconnections of the PEs in the MPC module and the connections of the PEs with registers of GRB module. The circles represent the registers in GRB module, which store the DWT coefficients. Note that the figure is up-side-down from Fig. 3. The output of this module, , is the coding pass of the MSB of , and it is merged into the data flow with the coefficients in the GRB module. The circuit of the PEs in the MPC module is shown in Fig. 8. The variable is a binary flag indicating whether or not the central coefficient is the first one of a column in the stripe. If there is at least one bit plane that the two inputs of theUORare both “1,” theUOR
outputs “1”; otherwise, it outputs “0.” is the combination of the eight signals. The PE3 is the realization of a special case of (4), in which . The moduleORoutputs “0” if all
Fig. 7. Interconnections between the PEs in the MPC module. The PE3 classifies the coding pass of the MSB ofC, p , into one of the three coding passes, and mergesp into the dataflow of the GRB module.
the inputs are zero; otherwise it outputs “1.” Since the coding pass of the MSB is either Pass 1 or Pass 3, it requires one bit to represent .
C. Pass Classification (PC)
The PC module determines the coding pass and the values for the CF module. Since all the bit planes are processed independently in this module, the following descriptions will be on a bit plane based scheme. For simplicity, the superscript , which denotes the bit plane number, is omitted.
Fig. 9 shows the interconnections among the PEs as well as their connections with the registers in the GRB module. The de-tailed circuit of each PE is shown in Fig. 10. The PE4, PE5, and PE6 calculate the corresponding . The PE7 computes the and the HVD data for the CF module in the next stage. In addi-tion, is a binary flag indicating whether the central coefficient is the first one of a column in a stripe. Note that it is not the same as the one in MPC module because the context windows locate on different positions.
The circuit for sign coding is different from that for magni-tude coding, and Fig. 11 shows the circuit for computing the of sign coding. The circuit for computing the is exactly the
Fig. 8. Circuit of the PEs in the MPC module. The and are passed to next stage. The of the PE0–PE2 is used by the PE3 to generate the main output, P , of the MPC module.
Fig. 9. Interconnections between the PEs in the PC module and the connections with registers in GRB module. This module outputs P and HV D from the PE7 for the CF module.
same as the one for since the algorithms are the same. The sign table is simply the mapping of the truth table in Table I. and are represented by two bits where 01 stands for positive and 11 stands for negative.
D. CF
The CF module can be divided into two submodules. The first one is for magnitude bit planes and the second one is for sign coding. In the following, we describe the two parts separately.
The circuit for magnitude coding of the CF module is shown in Fig. 12. Since the operations for each bit plane are the same, only one bit plane of the processing element is shown. The ZC stands for zero coding and it translates the data into con-texts by zero coding primitives. The MR stands for magnitude refinement and it translates the data into contexts by mag-nitude refinement primitives. The is used as the indication of whether or not the th bit plane is the first refinement bit plane of a coefficient. The run-length context is a special con-text of Pass 3, which is formed in the run-length concon-text (RLC). If the four contiguous coefficients in the column are all coded in Pass 3 and the data of these coefficients are zeros, then the unique run-length context is formed and the CF module is said to be in the run-length mode. Therefore, the run-length
Fig. 10. Circuit of the PEs in the PC module. The superscript,k, indicating bit plane number is omitted for simplicity.
Fig. 11. Circuit for computing the H of sign coding. It can be used to computeV by replacing the corresponding inputs.
mode can only be detected at the last coefficient of a column in a stripe. Rather than buffering the data by three cycles, we map the data into corresponding contexts as if there is no run-length mode. Therefore, the contexts are buffered by
Fig. 12. Circuit for magnitude coding of the CF module. The number of outputs varies from zero to four, indicated byXD cnt, in accordance with the results of context mapping.
Fig. 13. Circuit for sign coding of CF module. The delay registers are used to synchronize with the magnitude coding.
three cycles. This reduces the hardware cost of the buffer by a factor of 2/3. If the CF module enters the run-length mode, the RLC is used in place of the contexts initially formed. The is the binary flag indicating whether the CF module is in the run-length mode or not. The represents the subband in which the code-block resides. The is the CXD pair formed in sign coding. The number of outputs are variable in the CF module. It outputs one or two CXD pairs in the normal mode and the number varies from zero to four in the run-length mode. The indicates the number of CXD pairs generated at the cycle.
Fig. 13 shows the circuit for sign coding of the CF module. In order to synchronize the context of sign coding with the context of magnitude coding, three delay registers are used. The sign predicting (SP) is a lookup table, which generates the predicted sign value by and . The decision of sign coding is ob-tained by performing XOR logic on the predicted sign and the real sign . The sign coding (SC) module generates the con-text of the sign coding according the table defined in the stan-dard.
E. RFIFO
The CF module of the EBC is a variable output rate module. The number of contexts generated by scanning a sample coeffi-cient varies from zero to four. On the other hand, the processing rate of an AE module is at most one input per clock. When it needs consecutive byteout, the input must be halted. The AE module will be stalled when there is no context generated. On the other hand, if the number of context generated is more than one, all the modules, except AE, will be stalled, and the overall processing time will be increased.
Fig. 14. Block diagram of the folded AE, where A, C, CT, and B are register banks for the six coding passes.
Using a FIFO between the CF and the AE modules will alle-viate this problem. However, the use of a FIFO introduces ad-ditional latency and occupies more silicon area. The latency is the clock cycles required for data to go through the FIFO. Both issues are proportional to the length of the FIFO. According to the analysis in Section V-A, we proposed a RFIFO architec-ture. Taking advantages of the features of the EBC algorithm, the reconfigurable architecture can efficiently reduce the bubble cycles with minimal FIFO length.
The RFIFO module uses ten FIFOs, in which two of them contain fifteen registers and the others contain four registers. The two long FIFOs are used for the third and the fourth nonzero bit plane of a code-block. The number of nonzero bit planes of the code-block can be obtained from the DWT. Before pro-cessing the code-block, the RFIFO module is reconfigured to let the third and fourth bit plane occupy long FIFOs.
F. FAE
In the proposed FAE architecture, an AE processes six coding passes from two bit planes in order to reduce the area cost and increase the hardware utilization. It is natural to process three coding passes in the same bit plane by the same AE because any bit of the bit plane belongs to one of the three coding passes. Thus, only one coding pass has to be handled by the AE at each cycle. To further reduce the hardware cost, the th and
th bit planes are folded to share the same AE. There are two reasons to adopt the folded scheme. First, the number of bit planes is seven or less in most natural images. If one MQ coder is used for each bit plane, the MQ coder of the highest three bit planes will be idle in most cases, which is not efficient. Second, the number of contexts of a bit plane decreases from the MSB bit plane to the LSB bit plane. Since all the bit planes are processed simultaneously, the processing time of the parallel architecture is the time required of the one with the most contexts. It is the best way to have the working loads equally distribute among the AE. Therefore, the proposed FAE architecture can achieve this goal naturally by folding the th bit plane and th bit plane.
Fig. 14 shows the block diagram of an AE in the FAE ar-chitecture. The MQ coder implements the arithmetic encoding operation as defined in the JPEG 2000 standard. The A, C, CT, and B are state registers of a bit stream, which are also defined in the standard. The and indicate which coding pass/bit plane that the input CXD and output bit stream belong to. The output enable (OE) indicates that the output bit stream is valid.
Fig. 15. Influence of the FIFO length on number of stalled cycles. Gain means the number of stalled cycles decreased by the increase of the FIFO length.
G. Code-Block Parallel Processing
The proposed architecture can extend to processing multiple code-blocks in parallel by concatenating coefficients of different code-blocks into one word. The extra hardware cost to support this functionality is the storage of the and a few control logic gates. For one more code-blocks, 20 bits registers (1 bit for each registers in the GRB module) and 64 bits memory (1 bit for each coefficient of the last row in previous stripe) are required. The hardware cost of the sign coding and the MPC module is 489 logic gates.
V. EXPERIMENTALRESULTS
A. FIFO Length
In this section, the optimal configuration of the FIFO is deter-mined. There are two cases that stalls will happen. The first case occurs when the number of contexts generated in a bit plane is larger than the number of sample coefficients. The second case occurs when the FIFO is full due to the burst generation of con-texts. The stalled cycles in the first case are inevitable and irrel-evant to the FIFO length. On the other hand, the stalled cycles in the second case can be reduced by increasing the FIFO length.
Fig. 15 shows how the FIFO length influences the number of stalls. The curves named “stall baboon” and “stall lena” are the average stall cycles for a code-block of baboon and lena im-ages. Both images are 512 512 and transformed by the 5/3 filter with two levels of decompositions. The tile and code-block width are 128 and 64, respectively. The number of stalls de-creases monotonically with the increase of the FIFO length. The curves named “gain baboon” and “gain lena” are the number of stalls reduced by increasing the FIFO length. As shown in Fig. 15, the number of stalls will not decrease when the FIFO length exceeds the burst length of contexts, which is about 24. Compromising between speed and cost, fifteen is a good choice for the FIFO length.
The discussion above can be applied for conventional EBC architectures, in which only one FIFO is required. For the par-allel EBC architecture that has multiple FIFOs, the hardware
cost of the FIFOs can be further reduced by exploring the char-acteristics of the EBC algorithm. As mentioned in Section IV-D, the source of the variation of context number comes from the run-length coding in Pass 3. If the run-length mode successes, it generates few contexts; otherwise, it generates many contexts. For the first and second bit planes, most sample coefficients are zero and the run-length coding always successes. Thus, the run-length coding mostly generate few contexts and, therefore, the length of FIFO can be short. On the other hand, run-length coding is seldom in the lower bit planes, so we can use short FIFO in this case. Therefore, long FIFO is needed only in the middle bit planes. By using only two long FIFOs for the third and fourth bit plane, 80% performance is achieved comparing to using all long FIFOs, while the hardware cost is reduced to
41.3% .
B. FAE Architecture
In the parallel EBC architecture, the maximum bit plane number is 11, which contains one sign bit plane. Thus, the maximum number of coding passes is 28 . Thus, there will be 28 independent embedded bit streams to be coded. Using the same approach in [9], only an AE is required for one bit plane since the three coding passes of the same bit plane are mutually exclusive, i.e., one and only one coding pass will appear at one cycle. The number of AEs can be further reduced by exploiting the nature of the DWT and EBC algorithms. In most natural images, the number of nonzero bit planes of DWT coefficients are smaller than eight and the average number is smaller than six. On the other hand, the CF generates fewer contexts in the first few bit planes from the MSB bit plane. Therefore, some bit planes can share the same AE to increase the hardware utilization while maintaining a high processing rate. Fig. 16 shows the impact of sharing the AE on the processing rate. The vertical axis is the average cycles needed for a coefficient. The sharing mechanism of the AEs is assumed the folded architecture. By this figure, it is significant that about 1.35 cycles are needed to scan a coefficient even using one AE for each bit plane. This is because the EBC may
Fig. 16. Average cycles required under different AE numbers. The “cycles” means average cycles spent for a coefficient.
TABLE III
HARDWAREREQUIREMENT OF THEPROPOSEDARCHITECTURE
generate contexts more than the number of sample coefficients. However, the AE can only process one context in one cycle. The cost-effective number of the AEs is chosen to be five, and the hardware cost is reduced to 18% comparing to the direct implementation. The gate counts saved are 82 317 and the processing time is increased by 18% comparing to the direct implementation.
C. Implementation
The parallel architecture is described by the Verilog HDL and has been logic synthesized. The gate counts and memory re-quirements are shown in Table III. The size of the code-block is 64 64 and the maximum coefficient bitwidth is 11 bits. The memory of the PC module is used to store the coefficient of the last row in the previous stripe, and the size is 64 12 bits. The extra bit is used to store the . The memories of both RFIFO and FAE are synthesized by registers. The overall hard-ware requirements of the parallel architecture are 91 758 gates (in two-input NAND gate equivalents) and one 64 12 single port SRAM. The maximum operating frequency is 100 MHz.
Table IV summaries the run time statistics. In this experi-ment, three test images are used: lena, jet, and pepper. All the images are full color (4:4:4) with reversible color transform (RCT) defined in the standard. The images are all 512 512 with 128 128 tile size and 64 64 code-block size. The 5/3 DWT filter is used with two levels of decompositions. The pro-cessing rate is defined as total cycles divided by total coeffi-cients, i.e., for lena in this case. By
TABLE IV
PROCESSINGCYCLES ANDRATE OF THEPARALLELARCHITECTURE
TABLE V
COMPARISON OF THEPARALLELARCHITECTURE ANDOTHERWORKS
this table, the average processing rate of the proposed architec-ture is about 1.47, which can support HDTV 720p 4:2:2 at 30 frames/sec at 81 MHz operating frequency.
D. Comparisons
The comparisons of the parallel architecture with other works are summarized in Table V. Here, speed means the average number of cycles required to encode a code-block of size , and the number of magnitude bit planes of the code-block is . By this table, the parallel architecture is about times faster than Lian’s [7] or Hsiao’s [8], and is about times faster than Taubman’s [2]. The processing time of the parallel architecture is almost independent of the total number of bit planes of a code-block due to word-level processing of coefficients.
The second and third columns compare the hardware require-ments of all the architectures. In this comparison, the memory indicates the on-chip SRAM requirement. The memory require-ments of the RFIFO module and the FAE module in Table III are included in the gate counts since they are implemented by regis-ters. Although, the logic gate counts of the parallel architecture are larger than that of others, the on-chip memory requirements are much smaller. Therefore, the resulting area are similar for all
tion of memory access of others can be reduced by placing a code-block memory into the chip for parallel to serial conver-sion. However, the memory requirement will be increased by 44 Kb , which almost doubles the area.
VI. CONCLUSIONS
This paper presents a high performance, memory-efficient parallel architecture for the EBC in JPEG 2000. The architecture is based on the proposed word-level EBC algorithm, in which all the state variable memories can be eliminated. By analyzing the relationship of the distribution of contexts versus bit planes, we proposed a RFIFO architecture, which can reduce the area of the FIFO to 41.3%. An FAE architecture is proposed to reduce the area of the parallel architecture. The parallel architecture pro-cesses 54 Msamples/sec at 81 MHz regardless of the coefficient bitwidth. It can losslessly encode HDTV 720p (1280 720, 4:2:2) resolution pictures at 30 frames/s in real time. The pro-cessing rate of the parallel architecture is about six times faster than that of other architectures. The bandwidth is only 16.7% of others. In a word, the parallel architecture achieves six times speed-up and 83.3% bandwidth saving with similar hardware cost comparing to other architectures.
