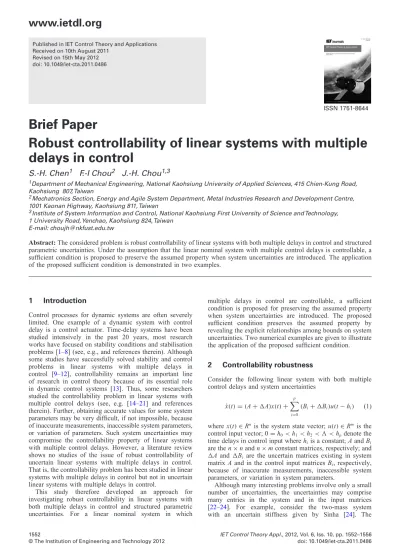

Published in IET Control Theory and Applications Received on 10th August 2011

Revised on 15th May 2012 doi: 10.1049/iet-cta.2011.0486

ISSN 1751-8644

Brief Paper

Robust controllability of linear systems with multiple

delays in control

S.-H. Chen

1

F.-I Chou

2

J.-H. Chou

1,3

1

_{Department of Mechanical Engineering, National Kaohsiung University of Applied Sciences, 415 Chien-Kung Road,}

Kaohsiung 807, Taiwan

2

_{Mechatronics Section, Energy and Agile System Department, Metal Industries Research and Development Centre,}

1001 Kaonan Highway, Kaohsiung 811, Taiwan

3

_{Institute of System Information and Control, National Kaohsiung First University of Science and Technology,}

1 University Road, Yenchao, Kaohsiung 824, Taiwan

E-mail: [email protected]

Abstract: The considered problem is robust controllability of linear systems with both multiple delays in control and structured

parametric uncertainties. Under the assumption that the linear nominal system with multiple control delays is controllable, a

sufficient condition is proposed to preserve the assumed property when system uncertainties are introduced. The application

of the proposed sufficient condition is demonstrated in two examples.

1

Introduction

Control processes for dynamic systems are often severely

limited. One example of a dynamic system with control

delay is a control actuator. Time-delay systems have been

studied intensively in the past 20 years, most research

works have focused on stability conditions and stabilisation

problems [

1

–

8

] (see, e.g., and references therein). Although

some studies have successfully solved stability and control

problems in linear systems with multiple delays in

control [

9

–

12

], controllability remains an important line

of research in control theory because of its essential role

in dynamic control systems [

13

]. Thus, some researchers

studied the controllability problem in linear systems with

multiple control delays (see, e.g. [

14

–

21

] and references

therein). Further, obtaining accurate values for some system

parameters may be very difficult, if not impossible, because

of inaccurate measurements, inaccessible system parameters,

or variation of parameters. Such system uncertainties may

compromise the controllability property of linear systems

with multiple control delays. However, a literature review

shows no studies of the issue of robust controllability of

uncertain linear systems with multiple delays in control.

That is, the controllability problem has been studied in linear

systems with multiple delays in control but not in uncertain

linear systems with multiple delays in control.

This

study

therefore

developed

an

approach

for

investigating robust controllability in linear systems with

both multiple delays in control and structured parametric

uncertainties. For a linear nominal system in which

multiple delays in control are controllable, a sufficient

condition is proposed for preserving the assumed property

when system uncertainties are introduced. The proposed

sufficient condition preserves the assumed property by

revealing the explicit relationships among bounds on system

uncertainties. Two numerical examples are given to illustrate

the application of the proposed sufficient condition.

2

Controllability robustness

Consider the following linear system with both multiple

control delays and system uncertainties

˙x(t) = (A + A)x(t) +

p



i=0

(B

+ B

)u(t

− h

)

(1)

where x(t)

∈ R

_{is the system state vector; u(t)}

_{∈ R}

_{is the}

control input vector; 0

= h

<

h

<

h

<  <

h

denote the

time delays in control input where h

is a constant; A and B

are the n

× n and n × m constant matrices, respectively; and

A and B

are the uncertain matrices existing in system

matrix A and in the control input matrices B

, respectively,

because of inaccurate measurements, inaccessible system

parameters, or variation in system parameters.

Although many interesting problems involve only a small

number of uncertainties, the uncertainties may comprise

many entries in the system and in the input matrices

[

22

–

24

]. For example, consider the two-mass system

with an uncertain stiffness given by Sinha [

24

]. The

1552 IET Control Theory Appl., 2012, Vol. 6, Iss. 10, pp. 1552–1556

www.ietdl.org

3 Wang, W., Zhang, H., Xie, L.: ‘Kalman filtering for continuous-time systems with time-varying delay’, IET Control Theory Appl., 2010, 4, pp. 590–600

4 Donkers, M.C.F., Heemels, W.P.M.H.: ‘Stability analysis of networked control systems using a switched linear systems approach’, IEEE

Trans. Autom. Control, 2011, 56, pp. 2101–2115

5 Tong, S., Li, Y., Feng, G., Li, T.: ‘Observer-based adaptive fuzzy backstepping dynamic surface control for a class of non-linear systems’, IET Control Theory Appl., 2011, 5, pp. 1426–1438 6 Zhang, H., Shi, Y.: ‘Robust static output feedback control and remote

PID design for networked motor systems’, IEEE Trans. Ind. Electron., 2011, 58, pp. 5396–5405

7 Zhang, J., Xia, Y., Shi, P., Mahmoud, M.S.: ‘New results on stability and stabilization of systems with interval time-varying delay’, IET

Control Theory Appl., 2011, 5, pp. 429–436

8 Yan, X.G., Spurgeon, S.K., Edwards, C.: ‘Global decentralized static output feedback sliding mode control for interconnected time-delay systems’, IET Control Theory Appl., 2012, 6, pp. 192–202

9 Klein, E.J., Ramirez, W.F.: ‘State controllability and optimal regulator control of time-delayed systems’, Int. J. Control, 2001, 74, pp. 281– 289

10 Gu, K., Niculescu, S.I.: ‘Survey on recent results in the stability and control of time-delay systems’, ASME J. Dyn. Syst. Meas. Control, 2003, 125, pp. 158–165

11 Basin, M., Rodriguez-Gonzalez, J.: ‘Optimal control for linear systems with multiple time delays in control input’, IEEE Trans. Autom.

Control, 2006, 51, pp. 91–97

12 Wu, H.: ‘Adaptive robust control of uncertain dynamical systems with multiple time-varying delays’, IET Control Theory Appl., 2010, 4, pp. 1775–1784

13 Rosenbrock, H.H.: ‘State-space and multivariable theory’ (John Wiley and Sons, New York, 1970)

14 Chyung, D.H.: ‘Controllability of linear systems with multiple delays in control’, IEEE Trans. Autom. Control, 1970, 15, pp. 694–695 15 Desoer, C.A., Vidyasagar, M.: ‘Feedback systems: input-output

properties’ (Academic Press, New York, 1975)

16 Jiang, W., Song, W., Fei, S., Song, S.: ‘On the controllability and the stabilizability of control delay systems’. Proc. Third World Congress on Intelligent Control and Automation, Hefei, China, 2000, pp. 2846– 2849

17 Klamka, J.: ‘Stochastic controllability and minimum energy control of systems with multiple delays in control’, Appl. Math. Comput., 2008,

206, pp. 704–715

18 Klamka, J.: ‘Stochastic controllability of systems with multiple delays in control’, Int. J. Appl. Math. Comput. Sci., 2009a, 19, pp. 39–47 19 Klamka, J.: ‘Controllability of higher-order linear systems with

multiple delays in control’. Proc. Int. Conf. on Control and Automation, Christchurch, New Zealand, 2009b, pp. 1158–1162 20 Li, J.N., Zhang, Q.L., Li, Y.: ‘Controllability and observability of

networked control systems with time-varying delays’, J. Syst. Eng.

Electron., 2009, 20, pp. 800–806

21 Khartovskii, V.E.: ‘A generalization of the problem of complete controllability for differential systems with commensurable delays’,

J. Comput. Syst. Sci Int., 2009, 48, pp. 847–855

22 Zhou, K., Khargonekar, P.P.: ‘Stability robustness for linear state-space models with structured uncertainty’, IEEE Trans. Autom.

Control, 1987, 32, pp. 621–623

23 Chen, J., Ren, Z.: ‘A Comparison of small gain versus Lyapunov type robust stability bounds’, Int. J. Robust Nonlinear Control, 2001, 11, pp. 1407–1414

24 Sinha, A.: ‘Linear systems: optimal and robust control’ (CRC Press, London, 2007)

25 Olbrot, A.W.: ‘On controllability of linear systems with time delays in control’, IEEE Trans. Autom. Control, 1972, 17, pp. 664–666
