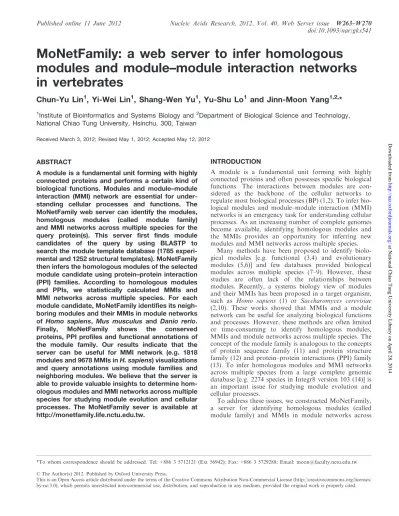

MoNetFamily: a web server to infer homologous modules and module-module interaction networks in vertebrates

(1)

MoNetFamily: a web server to infer homologous

modules and module–module interaction networks

in vertebrates

Chun-Yu Lin

1

, Yi-Wei Lin

1

, Shang-Wen Yu

1

, Yu-Shu Lo

1

and Jinn-Moon Yang

1,2,

*

1

Institute of Bioinformatics and Systems Biology and 2Department of Biological Science and Technology, National Chiao Tung University, Hsinchu, 300, Taiwan

Received March 3, 2012; Revised May 1, 2012; Accepted May 12, 2012

ABSTRACT

A module is a fundamental unit forming with highly connected proteins and performs a certain kind of biological functions. Modules and module–module interaction (MMI) network are essential for under-standing cellular processes and functions. The MoNetFamily web server can identify the modules, homologous modules (called module family) and MMI networks across multiple species for the query protein(s). This server first finds module candidates of the query by using BLASTP to search the module template database (1785 experi-mental and 1252 structural templates). MoNetFamily then infers the homologous modules of the selected module candidate using protein–protein interaction (PPI) families. According to homologous modules and PPIs, we statistically calculated MMIs and MMI networks across multiple species. For each module candidate, MoNetFamily identifies its neigh-boring modules and their MMIs in module networks of Homo sapiens, Mus musculus and Danio rerio. Finally, MoNetFamily shows the conserved proteins, PPI profiles and functional annotations of the module family. Our results indicate that the server can be useful for MMI network (e.g. 1818 modules and 9678 MMIs in H. sapiens) visualizations and query annotations using module families and neighboring modules. We believe that the server is able to provide valuable insights to determine hom-ologous modules and MMI networks across multiple species for studying module evolution and cellular processes. The MoNetFamily sever is available at http://monetfamily.life.nctu.edu.tw.

INTRODUCTION

A module is a fundamental unit forming with highly connected proteins and often possesses speciﬁc biological functions. The interactions between modules are con-sidered as the backbone of the cellular networks to regulate most biological processes (BP) (1,2). To infer bio-logical modules and module–module interaction (MMI) networks is an emergency task for understanding cellular processes. As an increasing number of complete genomes become available, identifying homologous modules and the MMIs provides an opportunity for inferring new modules and MMI networks across multiple species.

Many methods have been proposed to identify biolo-gical modules [e.g. functional (3,4) and evolutionary modules (5,6)] and few databases provided biological modules across multiple species (7–9). However, these studies are often lack of the relationships between modules. Recently, a systems biology view of modules and their MMIs has been proposed in a target organism, such as Homo sapiens (1) or Saccharomyces cerevisiae (2,10). These works showed that MMIs and a module network can be useful for analyzing biological functions and processes. However, these methods are often limited or time-consuming to identify homologous modules, MMIs and module networks across multiple species. The concept of the module family is analogous to the concepts of protein sequence family (11) and protein structure family (12) and protein–protein interactions (PPI) family (13). To infer homologous modules and MMI networks across multiple species from a large complete genomic database [e.g. 2274 species in Integr8 version 103 (14)] is an important issue for studying module evolution and cellular processes.

To address these issues, we constructed MoNetFamily, a server for identifying homologous modules (called module family) and MMIs in module networks across

*To whom correspondence should be addressed. Tel: +886 3 5712121 (Ext 56942); Fax: +886 3 5729288; Email: moon@faculty.nctu.edu.tw ß The Author(s) 2012. Published by Oxford University Press.

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/ by-nc/3.0), which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

at National Chiao Tung University Library on April 28, 2014

http://nar.oxfordjournals.org/

(2)

multiple species. According to our knowledge, MoNetFamily is the ﬁrst public server that infers MMI networks in H. sapiens, Mus musculus and Danio rerio of the query proteins using homologous modules. For a set of query protein(s), this server provides homologous modules, graphic visualization of MMI networks and neighboring modules, PPI proﬁles and conserved Gene Ontology (GO) annotations (15).

METHOD AND IMPLEMENTATION

Figure 1 shows the details of the MoNetFamily server to search the template-based homologous modules and the MMI networks of a set of query protein sequence(s), gene name(s), or UniProtKB accession number(s) by the following steps (Figure 1A and Supplementary Figure S1): ﬁrst, the server uses BLASTP to search module candidates from the module template database with the protein similarity (E-values 1010) (16) (Figure 1B). This database consists of 1975 non-redundant modules with 4659 proteins. A total of 1785 protein complexes (three or more proteins) were selected from comprehensive resource of mammalian protein complexes database (CORUM; released on 02 September 2009) (9) and 1252 structure complexes were selected from Protein Data Bank (PDB; released on 25 December 2009) (17). For each module candidate, this server provides the neighboring modules and MMIs (Supplementary Figure S1C) in MMI networks of H. sapiens, M. musculus and D. rerio (Figures 1C and 2) through homologous modules. Next, the homologous modules of the template candidate are derived from the PPI families (13,18,19) (Figure 1B and D). According to homologous modules and PPIs, we statistically calculated MMIs (Figure 2D) and MMI networks across multiple species using the hypergeometric distribution. The MoNetFamily server consists of 1818, 1801 and 1586 modules in H. sapiens, M. musculus and D. rerio, respectively. In the MMI networks, 1440 (H. sapiens), 1396 (M. musculus) and 1257 (D. rerio) modules are interconnected. For a module family and its neighboring modules, we measured the consensus ratios and adjusted P-values of BP, cellular components (CC) and molecular functions (MF) based on GO annotations (Figure 1C). Finally, this server provides not only hom-ologous modules but also graphic visualization of the neighboring modules and MMIs in the MMI networks across multiple vertebrates.

Homologous module

Here, we use the module template T with three proteins (A, B and C) and three PPIs (A–B, A–C and B–C) as an example to deﬁne the homologous modules of T as follows: (i) A0_{, B}0 _{and C}0 _{are the homologous proteins of}

A, B and C, respectively, with the signiﬁcant sequence similarity (BLASTP E-values 1010) (16); (ii) A0_–B0_,

A0_–C0 _{and B}0_–C0 _{are the homologous PPIs of A–B, A–C}

and B–C, respectively, with signiﬁcant joint sequence similarity (joint E-value 1040) (13); (iii) high topology similarity between modules A0_–B0_–C0 _{and A–B–C. The}

protein (or PPI) aligned ratio is deﬁned as x/X, where x

and X are the numbers of proteins (or PPIs) in the homologous module (e.g. A0_–B–C0₎ _and _template

(e.g. A–B–C), respectively. Here, the protein aligned ratio 0.5 and PPI aligned ratio 0.3 are considered as topology similarity between two modules according to the statistical analysis of 75 706 modules derived from 370 module templates in KEGG MODULE database with 1442 species (8) (Supplementary Figure S2). For each template in the MoNetFamily server (1975 non-redundant modules), we added its PPIs according to our previous sequence-based homologous PPIs (PPISearch with joint E-value 1070) (13) and structure-based homologous PPIs (PCFamily with Z-value 4) (19) derived from the following PPI data-bases: (i) 461 077 experimental PPIs in the annotated PPI databases [IntAct (20), MIPS (21), DIP (22), MINT (23) and BioGRID (24)]; (ii) 9657 PPIs from PDB crystal structures (17). Please note that our analysis is limited to physical PPIs, speciﬁcally protein complexes.

MMI network

The MMI can be quantiﬁed by the PPIs between two modules (2,10). To determine the MMI between two modules, we added inter-module PPIs through our previous homologous PPIs derived from the six public PPI databases (13,19). Here, we decided the MMI based on the P-value of the hypergeometric distribution (10) deﬁned as p ¼X n i¼x M i N M n i N n

where x is observed annotated inter-module PPIs [e.g. x is 4 (red lines) between modules JAK2–PAFR–TYK2 and the hexameric human IL-6/IL-6a receptor/gp130 in Figure 2D]; i and n (e.g. n is 9 in Figure 2D) are the numbers of annotated inter-module PPIs and all combin-ational protein pairs between two modules, respectively; M and N are total numbers of annotated inter-module PPIs and all combinational protein pairs between any two modules in a MMI network, receptively. Here, the MMI between two modules should satisfy two criteria: (i) P-value 104(the method to determine the threshold of P-value for MMIs was given in Supplementary Figures S10 and S11); (ii) at least two proteins of a module participate in inter-module PPIs. Finally, we identiﬁed 9678, 8942 and 8722 MMIs for the MMI networks of H. sapiens, M. musculus and D. rerio, respectively.

Annotations of query and modules

We annotated the query and modules by utilizing the consensus GO terms of homologous and neighboring modules. To annotate a module with Y proteins, we deﬁne a consensus ratio (CRM) of GO term i as CRM= Yi/Y, where Yi is the number of proteins with

GO term i in a module. Next, the enrichment for each module in each GO term was determined by the P-value

(3)

A B

C

D

Figure 1. Overview of the MoNetFamily server for MMI network and homologous module search using proteins Jak2, Ptafr and Tyk2 of

M. musculusas the query. (A) Main procedure. (B) Input the query protein(s) and identify the candidates of the query using BLASTP to scan

the module template database. (C) The neighboring modules and MMIs of the selected template (CORUM ID: 5178) in MMI networks of H. sapiens, M. musculus and D. rerio. The conserved GO annotations of the module family and neighboring modules of the query are indicated. (D) The proﬁles of proteins and PPIs in the selected homologous modules.

(4)

of the hypergeometric distribution and then this P-value was adjusted based on Bonferroni correction (25,26). Here, a GO term is considered as a representative GO term of a module if CRM > 0.6 and adjusted P-value of GO term 0.05 (25,26) based on statistically analysis.

Furthermore, MoNetFamily used the consensus ratio of module family (CRF) and agreement ratio (AR), proposed by our previous works (13,19), to annotate the biological functions of the query proteins and a module family. The CRF is deﬁned as CRF = Fa/F, where F is the total A

B

C D

Figure 2. The MMI networks of H. sapiens, M. musculus and D. rerio. (A) Five major cellular processes in MMI networks in H. sapiens. (B) The node degree distribution of MMI network in H. sapiens follows a power law. The MMI network is a scale-free network. (C) The neighboring module network between the JAK2–PAFR–TYK2 module (CORUM ID: 5178) and its 25 neighboring modules. These modules can be roughly divided into three groups, including cell surface receptor linked signaling pathway (orange), cellular protein metabolic pathway (purple) and interleukine receptor signaling pathway (blue). Neighboring modules are highly consensus on two GO terms that are signal transducer activity and cytosol. (D) The inter-module PPIs (red lines) and the topology between modules JAK2–PAFR–TYK2 and the hexameric human IL-6/IL-6a receptor/gp130 (PDB code: 1p9m).

(5)

number of homologous modules in a module family; Fais

the number of homologous modules with representative GO term a in a module family. The AR is given as

AR ¼ P i2Q AiðCRF>cÞ P i2Q TiðCRF>cÞ

where Q is a set of query templates; Ti (CRF > c) is the

total number of the representative GO terms of template iwhen CRF > c; Ai(CRF > c) is the number of the

agree-ment representative GO terms of template i when CRF > c.

INPUT, OUTPUT and OPTIONS

The MoNetFamily is an easy-to-use web server (Supplementary Figure S1). Users input a set of protein sequence(s) in FASTA format, gene name(s), or UniProtKB accession number(s) (Figure 1B and Supplementary Figure S1A). Typically, the MoNetFamily server yields module candidates within 20 s when querying three sequences and the number of amino acids is less than 300 (Figures 1B). For a query, MoNetFamily shows details of hit module, MMIs (Figure 2D and Supplementary Figure S1C) and MMI networks using Cytoscape (27) across multiple species. For each module family, the server presents the homolo-gous modules, the numbers of organisms and division groups, PPI proﬁles (Figure 1D and Supplementary Figure S1D) and conserved GO annotations (Figure 1C and Supplementary Figure S1B). In addition, users can download summarized results of query, module templates of query and module family and the neighboring modules across multiple species of the template.

MMI network analysis

We evaluated the properties and biological meanings of the MMI networks across multiple species (Figure 2A, B and Supplementary Figures S3–S6). Our derived MMI networks of H. sapiens, M. musculus and D. rerio were evaluated based on the characteristic of scale-free networks that the P(k), the probability of a node with k links, decreases as the node degree increases on a log–log plot (Figure 2B, Supplementary Figures S3A and S3B). The degree exponent g are 1.183, 1.143 and 1.218 in the MMI networks of H. sapiens, M. musculus and D. rerio, respectively. This result is consistent with the architecture (i.e. weak scale-free network properties) of some cellular networks (28,29) and the MMI networks in S. cerevisiae (2,30) (Supplementary Figure S3C). A scale-free network typically has degree exponents 2 g 3, but can also exist with g < 2 (28,29). In addition, the median of degree (k) are 10, 10 and 11 for the networks of H. sapiens, M. musculusand D. rerio, respectively. The hubs, highly connected nodes, often play the key role in the network, such as the modules JAK2–PAFR–TYK2 (k = 25) in our derived MMI network.

Our derived MMI network can reﬂect the communica-tion of ﬁve major cellular processes (Figure 2A), including

nucleic acid metabolic process (e.g. transcription); protein metabolic process (e.g. translation); intracellular signal transduction process; integrin-mediated signal transduc-tion process; and transport process. This MMI network presents the kernel processes (e.g. central dogma) performing the fundamental cellular metabolisms, that are transcription of nucleic acid metabolic process and translation of protein metabolic process. Signal transduc-tion and transport processes, locating in cell membrane and cytoplasm, are the peripheral portion of the MMI network and communicate with two kernel processes (Figure 2A and Supplementary Figure S4).

Here, our derived MMI network was used to analyze the cell proliferation behavior via stimulations of the extracellular matrix (ECM) proteins and growth factors (Supplementary Figures S5 and S6). Cell proliferation is regulated by integrin-mediated adhesion to the ECM (e.g. ITGA5–ITGB1–FN1–TGM2 module in integrin-mediated signal transduction process) and the binding of growth factors to their receptors (e.g. JAK2–PAFR– TYK2 module in intracellular signal transduction process) (31). These two modules interact with Frs2– Grb2–Shp2 module (in intracellular signal transduction process) which transduces the signal to the ALL-1 supercomplex (in nucleic acid metabolic process) interact-ing with RNA polymerase II and TRAP–SMCC mediator modules. After transcription and translation, the newly synthesized proteins would be transported from endoplas-mic reticulum to their destinations through the kinase maturation module 1 (in protein metabolic process) and the SNARE module (in transport process). In summary, MoNetFamily is a useful tool in the network biology to explore cellular processes. In the following two subsec-tions, we utilized JAK2–PAFR–TYK2 module and TRAP–SMCC mediator module to describe MMIs and homologous modules.

Example analysis

JAK2–PAFR–TYK2 module

Module family of JAK2–PAFR–TYK2 module. Figure 1 shows the search results using Janus kinase 2 (Jak2, UniProt accession number: Q62120), platelet-activating factor receptor (Pafr or Ptafr, Q62035), and tyrosine kinase 2 (Tyk2, Q3U447) of M. musculus as the query (Figure 1B). For this query, the MoNetFamily server found the template candidate (JAK2–PAFR–TYK2 module, CORUM ID: 5178) (Figure 1B) and the homolo-gous modules in 10 organisms, including H. sapiens, M. musculus, D. rerio and D4. Drosophila melanogaster (Figure 1D). JAK2–PAFR–TYK2 module, a mediator with diverse physiological and pathological actions, plays an important role for innate immune response in human skin (32,33). JAK2 and TYK2 are non-receptor tyrosine kinases of JAK family involving in mammalian development and immune disease (32,34). MoNetFamily annotated the JAK2–PAFR–TYK2 module family with GO terms (i.e. non-membrane spanning protein tyrosine kinase activity and cytoskeleton) and its neighbor modules with three GO terms, including epidermal growth factor

(6)

receptor (EGFR) signaling pathway, signal transducer activity and cytosol (Figure 1C)

MMIs and neighboring modules. In the MMI network of H. sapiens, JAK2–PAFR–TYK2 module (red node) has 25 neighboring modules (green node). These 26 modules form a subnetwork and consist of 131 MMIs. (Figures 2A and 2C and Supplementary Table S1). According to GO term and MIPS FunCat (35) analysis, these modules can be roughly divided into three groups, cell surface receptor linked signaling pathway (orange), cellular protein meta-bolic pathway (purple) and interleukine receptor signaling pathway (blue). JAK2–PAFR–TYK2 module is a hub highly communicating with both intra-cellular and extra-cellular signal transduction processes (Figure 2C). Among these 25 neighboring modules, modules IL4– IL4R–IL2RG (CORUM ID: 1515) and RIN1–STAM2– EGFR (CORUM ID: 3678) are lack of homologous modules in D. rerio.

The module template, IL-6/IL-6Ra/gp130 (PDB code: 1p9m) from H. sapiens, participates in immunoregulatory mechanisms (36). According to our previous work, PCFamily (19), the binding model of IL-6/IL-6Ra/gp130 of H. sapiens is signiﬁcantly different from the ones of M. musculus and D. rerio based on two observations: (i) For the interface between proteins gp130 and IL-6, the contact-residue (colored) identities of IL-6 between H. sapiens with M. musculus (7.7%) and D. rerio (0%) are very low (Supplementary Figure 7). (ii) The Z-values of interface similarities for the pair proteins gp130 and IL-6 are 0.923 (M. musculus) and 1.638 (D. rerio) using the structure template (PDB code: 1p9m) and the template-based scoring function (19).

Potential drug targets for psoriasis

Psoriasis is an autoimmune disease and one of the most common human skin diseases (37). Proteins JAK2 and TYK2 have been proposed as the potential targets for designing psoriasis drugs, such as ruxolitinib (38) and tasocitinib (39). Interestingly, the neighboring modules of JAK2–PAFR–TYK2 module derived by MoNetFamily can provide the clues for searching psoria-sis target. Among 25 neighboring modules, 12 modules are highly conserved and annotated with cell surface receptor linked signaling pathway. Moreover, the module family annotations of SH3P2/OSTF1–CBL–SRC module, SLP-76–Cbl–Grb2–Shc module, Fc receptor gamma-R1 stimulated and CAS–SRC–FAK module belong to EGFR signaling pathway (Supplementary Table S1).

The inter-module PPIs between modules JAK2–PAFR– TYK2 and IL-6/IL6Ra/gp130 are JAK2–gp130, JAK2– IL-6Ra, TYK2–gp130 and TYK2–IL-6Ra (Figure 2D). Based on hypergeometric distribution, IL-6 was induced by JAK–STAT signal transduction pathway through the MMI (P-value = 1.06e 5) between these two modules. According to increment of IL-6 levels after infection with HIV (40), the PPI JAK2–IL-6 should be considered as a potential target for controlling HIV-associated psoriasis. Additionally, JAK2–PAFR–TYK2 module sim-ultaneously regulates EGFR and interleukine receptor

signaling pathways. These observations imply the MMIs and networks of JAK2–PAFR–TYK2 and its neighboring modules provide a valuable insight for exploring the mechanisms of JAK-induced inﬂammatory diseases (e.g. psoriasis and rheumatoid arthritis).

TRAP–SMCC mediator module

TRAP–SMCC mediator module is the central regulator of the transcription apparatus (41,42). Mediator of RNA polymerase II transcription subunit 19 (Med19), the member of TRAP–SMCC mediator module, promotes tumorigenesis of lung (43) and breast (44) cancers. Using Med19 (Q8C1S0) of M. musculus as the query protein (Supplementary Figure S1), MoNetFamily found TRAP–SMCC mediator module and its module family with seven homologous modules. This family was annotated with three GO terms, including transcription (CRF = 0.83), RNA polymerase II transcription mediator activity (CRF = 1.00) and mediator complex (CRF = 1.00) (Supplementary Figure S1B). Interestingly, the GO annotations of its 15 neighboring modules (green node) in mammals (Supplementary Figure S1B) are highly consistent to the ones of TRAP–SMCC mediator module family. These results suggest that our server can utilize the GO annotations of the module family and its neighboring modules to predict the cellular functions of the query protein(s).

In the MMI networks of H. sapiens and M. musculus, TRAP–SMCC mediator module (red node) has 15 neigh-boring modules (green node) and these 16 modules form the subnetwork with 57 MMIs (Supplementary Figure S1B). According to GO terms and MIPS FunCat analysis, these modules dynamically regulate transcription and can be roughly divided into three groups, including transcription activation, transcription repression and DNA conformation modiﬁcation (e.g. chromatin structure modiﬁcation) (Supplementary Figure S8). Our MMIs shows that two proteins MED19 and mediator of RNA polymerase II transcription subunit 29 (IXL or MED29, B4DUA7) of TRAP–SMCC mediator module in mammals highly interact with its neighboring modules. These results imply that MED19 and MED29 play the key role in tumorigenesis and are consistent with the overexpression of these two proteins in breast, lung and pancreatic cancers (43,44).

Homologous module evaluation

To evaluate the accuracy of the MoNetFamily server for identifying homologous modules and the annotations of query protein(s), we selected a non-redundant template set, termed NRT with 1975 modules. The NRT set and the random module set are considered as the gold standard positive and negative sets, respectively. The random set consists of 98 750 (1975 50) modules by randomly generating 50 modules with the same number of proteins for each template in the NRT set. The consen-sus ratios (CRM) of GO terms (i.e. BP, CC and MF) in the module of NRT set are signiﬁcantly higher than the ones of the random module set (Supplementary Figure S9). The CRM values (BP, CC and MF) of 70%

(7)

(>1300) templates exceed 0.6 for NRT set; conversely, CRM values of the random set are 3.9% (BP), 8.1% (MF) and 18.3% (CC). For these GO terms with CRM >0.6, the adjusted P-values of 88.2% (7776/8819) terms are < 0.05 for the NRT set.

Figure 3 shows the relationships between AR and CRF values of BP, CC and MF for homologous modules of the NRT set. If the CRF values of consensus GO terms (i.e. BP, CC and MF) of a module family are greater than 0.6, the AR values are consistently high for BP (0.68, green), CC (0.79, blue) and MF (0.79, red). For example, the representative GO terms (CRF > 0.6) of TRAP–SMCC mediator module family (seven homolo-gous modules) are transcription (CRF = 0.83 and adjusted P-value = 4.59e 08), RNA polymerase II transcrip-tion mediator activity (CRF = 1.00 and adjusted P-value = 1.41e 11), and mediator complex (CRF = 1.00 and adjusted P-value = 1.42e 05). These three representative GO terms can be used to annotate the module template, TRAP–SMCC mediator module. These results indicate that MoNetFamily achieves high agreements on consensus GO terms between the queries (i.e. module templates) and their respective homologous modules. Furthermore, the module templates and their homologous modules derived by our method often possess speciﬁc biological functions.

CONCLUSIONS

This work demonstrates the utility and feasibility of using the MoNetFamily server to identify MMIs and MMI networks in vertebrates through homologous modules. MoNetFamily is the ﬁrst server to provide the neighboring modules and MMIs in module networks across multiple species; the proﬁles of proteins and PPIs in module families; GO annotations of neighboring modules and module families. Our results indicate that the server can be useful for MMI network visualizations across multiple vertebrates and annotating a set of query proteins by using module families and neighboring modules. We believe that MoNetFamily is a fast homologous modules and MMIs search server and is able to provide valuable insights for studying the module evolution and cellular processes.

SUPPLEMENTARY DATA

Supplementary Data are available at NAR Online: Supplementary Table 1, Supplementary Figures 1–11.

FUNDING

Funding for open access charge: National Science Council, partial supports of Ministry of Education and National Health Research Institutes [NHRI-EX100-10009PI]; ‘Center for Bioinformatics Research of Aiming for the Top University Program’ of the National Chiao Tung University and Ministry of Education, Taiwan. J.-M. Yang also thanks Core Facility for Protein Structural Analysis supported by National Core Facility Program for Biotechnology.

Conﬂict of interest statement. None declared.
