Optimal Radio Resource Partition for Joint
Contention- and Connection-Oriented
Multichannel Access in OFDMA Systems
Li-Chun Wang, Senior Member, IEEE, and Anderson Chen, Student Member, IEEE
Abstract—The IEEE 802.16e World Interoperability for Microwave Access (WiMax) system plays an important role in the future wireless metropolitan area network (WMAN). Orthogonal frequency division multiple access (OFDMA), adopted in the IEEE 802.16e WiMax system, has many advantages in the physical layer and also poses many challenges for radio resource allocation. One of interesting radio resource allocation issue in the OFDMA system is to partition the overall radio resource (bandwidth and time duration) into two portions: one for random access and the other for connection-oriented access. In the IEEE 802.16e WiMax system, a truncated binary back-off algorithm is adopted to resolve the contention in random access, while the time-division OFDMA is used for the connection-oriented access. The main contribution of this paper is to design an analytical approach to determine the optimal amount of reserved radio resource in both time and frequency domains for random access, with the objective of maximizing the overall efficiency of radio resource while satisfying the delay requirements for supporting real-time services. Furthermore, an analytical model for calculating the access latency and the efficiency of the reserved radio resources is developed.Index Terms—OFDMA, WiMax, radio resource partition, channel access.
Ç
1
I
NTRODUCTIONT
HEIEEE 802.16e World Interoperability for MicrowaveAccess (WiMax) system supports both fixed and mobile point-to-multipoint (PMP) networks, and it will become an important wireless metropolitan area network [1], [2]. This system adopts the orthogonal frequency division multiple access (OFDMA) technique, which has many advantages in the physical layer such as overcoming the mutipath fading. 1.1 Problem Statement
Further enhancing the overall performance of the OFDMA system, radio resource allocation is an important aspect that should be considered. In the OFDMA system, radio resources can be allocated in either time domain or frequency domain. Both the connection-oriented and contention-based medium access control (MAC) protocols are adopted for allocating radio resource in the IEEE 802.16e WiMax system. The purpose for the connection-oriented MAC protocol is to allow users to transmit data in a reserved chunk of time slots and subchannels. However, before transmitting data, mobile stations (MSs) must send requests for the access permission from the base station (BS). The access permissions are granted based on a certain contention procedure in a reserved chunk of time slots and subchannels. Intuitively, increasing the reserved resources for contention can shorten the access latency since there are fewer collisions, but it also
decreases the overall spectrum efficiency. Therefore, deter-mining how long and how many subchannels an OFDMA system should reserve for the contention-based random access scheme is an important issue.
This paper presents an analytical approach to determine the optimal number of reserved subchannels and time slots for the random access scheme in the OFDMA-based IEEE 802.16e system. We formulate an optimization problem to maximize the efficiency of the reserved radio resources while meeting the delay requirement for supporting real-time applications. It is noteworthy that we consider a multi-channel random access scheme based on the truncated binary backoff algorithm. Because multiple channels are reserved for contention, the multichannel random access scheme can allow multiple users to access the subchannels concurrently, unlike the carrier-sense multiple access (CSMA) MAC protocol. Moreover, to reduce collisions during the conten-tion period, the truncated binary backoff algorithm is implemented in the IEEE 802.16e WiMax system to adjust the user’s transmission time according to the number of collisions in his previous attempt. Based on the proposed approach, performance enhancement can be achieved with-out changing the specifications of the IEEE 802.16e WiMax. To our knowledge, there have been few reports on the performance analysis of this kind of multichannel random access scheme with the truncated binary backoff and its impact on the design of the optimal number of the reserved subchannels and time slots in the OFDMA systems.
1.2 Related Work
Several previous studies have reported reducing access latency in the IEEE 80216e WiMax system. Choi et al. [3] suggested a method to simplify the conventional network entry/reentry process. In [4], a new contention resolution
. The authors are with the Department of Communication Engineering, National Chiao-Tung University, 1001 Ta Hsueh Road, Room 900, Engineering Building IV, Hsinchu 300, Taiwan, R.O.C.
E-mail: lichun@cc.nctu.edu.tw.
Manuscript received 14 Mar. 2007; revised 12 Dec. 2007; accepted 2 Apr. 2008; published online 20 June 2008.
For information on obtaining reprints of this article, please send e-mail to: tmc@computer.org, and reference IEEECS Log Number TMC-2007-03-0080. Digital Object Identifier no. 10.1109/TMC.2008.96.
algorithm was proposed for the multichannel random access in OFDMA systems, in which data are transmitted at abundant subchannels so that collisions and access delay are decreased. In [5] and [6], a new set of orthogonal signals were designed to reduce the number of attempts for ranging, i.e., adjusting the uplink transmission power and timing. In [7], the authors suggested a subcarrier permuta-tion algorithm to improve the link reliability and to decrease the number of retransmissions. It seems that most of the aforementioned approach may require modifying the specifications of the current IEEE 802.16e WiMax system.
Some analysis techniques have been reported to in-vestigate the MAC performance of the IEEE 802.16e WiMax system. The throughput of the connection-oriented MAC protocol of the IEEE 802.16e WiMax system was investi-gated by considering the overhead of the control channels [8], [9]. In addition, the frame access delay in the contention and polling process of the IEEE 802.16e networks have been studied in [10] and [11]. Nevertheless, in [10] and [11], it was assumed that the slotted ALOHA is used to resolve the contentions in the channel access. As for the perfor-mance analysis of exponential backoff, the authors in [12] and [13] provide a simple but accurate model to detail the behaviors and performances of the single channel random access scheme. To our knowledge, the access latency analysis of a joint contention- and connection-oriented multichannel access scheme combined with the binary backoff algorithm used in the IEEE 802.16e WiMax system is an open issue.
1.3 Organization of the Paper
The rest of paper is organized as follows: In Section 2, we first introduce the connection setup procedure in IEEE 802.16e and present the role of random access in connection setup. Next, we describe the IEEE 802.16 MAC protocol and its contention resolution mechanism in Section 3. The parameter design problem and the performance analysis are given in Section 4. Finally, we give the numerical results and our concluding remarks in Sections 5 and 6, respectively.
2
B
ACKGROUND2.1 Frame Structure and Link Establishment Procedures in the OFDMA-TDD Mode 2.2 IEEE 802.16e Reentry Process
As an MS moves across BSs, the network reentry process is initiated to establish and reserve a channel. During the reentry process, the access latency to the new target BS should be reduced to meet the requirements for supporting real-time services. Fig. 1a is an illustrative example, where an MS moves from the serving BS, BS1, to the target BS, BS2, while Fig. 1b shows the key step specified in the reentry process of the IEEE 802.16e WiMax system.
We first briefly introduce the handoff process in the IEEE 802.16e WiMax system. The serving BS periodically broad-casts the information on its neighboring BSs to all the MSs within the cell. Meanwhile, the MS measures the strengths of the pilot signals from the neighboring BSs. If the signal

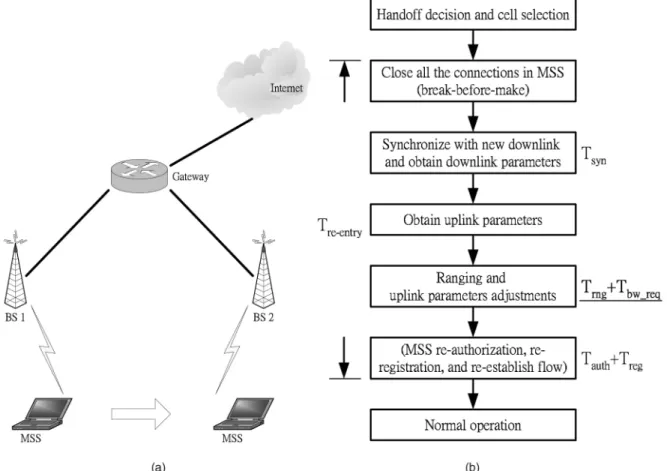

Fig. 1. The IEEE 802.16e reentry process. (a) Example of a network model for hand-over process. (b) Summery of the network reentry process in IEEE 802.16e.
strength from the serving BS is too weak, the MS will send a handoff request message to inform the surrounding BSs. The serving BS negotiates with its neighboring BSs and selects a target BS. Next, the serving BS replies the handoff response message to the MS.
After receiving the handoff response message from the serving BS, the MS releases all the current connections and starts the network reentry process to the target BS. The key steps in the network reentry process are downlink/uplink synchronization, ranging, reauthorization, reregistration, and bandwidth request, as shown in Fig. 1b. During the reentry process, the MS first synchronizes with the target BS to obtain the downlink and uplink transmission parameters. Next, the MS performs the ranging process to acquire the accurate timing offset and to adjust power such that its transmissions can be aligned with the received frames from other MSs. Then, the target BS executes the reauthorization and reregistration processes to identify whether the handoff MS can establish connections. Finally, the MS sends the bandwidth request message to obtain the information of the allocated subchannels.
The total latency Dre-entryof the network reentry process
can be expressed by
Dre-entry¼ Dsynþ Drngþ Dauthþ Dregþ Dbw req; ð1Þ
where Dsyn, Drng, Dauth, Dreg, and Dbw reqrepresent the delays
in the steps of downlink/uplink synchronization, ranging, reauthorization, reregistration, and bandwidth request, respectively. Among these steps, the required time for the synchronization Dsyn is only in the scale of the OFDMA
symbols, which duration is much shorter than a frame period. The authorization and registration process can be carried out in the backbone network of BSs before breaking
the connection. Thus, the time of the above three steps (Dsyn,
Dauth, and Dreg) can be negligible for the calculation of the
handoff latency. However, the initial ranging and band-width request are not only executed in real time but also need to resolve the collisions due to the random access. Unfortunately, a frame only reserves the limited number of slots for the random access; and thus, the station may require wait for multiple frames to successfully send the request. Therefore, the access latency of the initial ranging and bandwidth request is the dominating factor for the perfor-mance of the network reentry process.
Fig. 2 illustrates the frame structure in the IEEE 802.16e OFDMA-TDD mode. As shown in the figure, a frame consists of two portions: the downlink and uplink subframes. A downlink subframe starts with preamble symbols followed by downlink map (DL-MAP) and uplink map (UL-MAP), which are used to inform the users of their allocated subchannels and time slots for downlink and uplink transmissions, respectively. Next, downlink data are trans-mitted at allocated subchannels and time slots. After an additional transmit/receive transition gap (TTG), the ran-ging and bandwidth request as well as users’ data are transmitted in the uplink direction according to the UL-MAP. After a receive/transmit transition gap (RTG), the same procedures are repeated for another pair of downlink and uplink subframes.
The IEEE 802.16e WiMax system adopts a connection-oriented MAC protocol. In this kind of MAC protocol, MSs must make a reservation with the BS before transmitting data. Consider the uplink transmission first. In Fig. 2, with packets are ready to send in the uplink subframe k, MSs first transmit bandwidth requests to the BS at the reserved ranging/bandwidth request subchannels. Receiving these
requests, the BS allocates the subchannels in the UL-MAP of the next downlink subframe k þ 1. In the downlink case, the BS negotiates the QoS requirements by using the dialog of dynamic service addition/change (DSA/DSC) messages on the MS’s basic connection identifier (CID). After receiving the grant from the MS, the users’ data are transmitted at the reserved subchannels and time slots according to the DL-MAP.
To summarize, the BS coordinates the frame transmis-sions of all MSs in both the uplink and downlink based on the bandwidth request procedures and DSA/DSC dialog. However, a certain amount of resources must be reserved for the bandwidth request procedure and ranging in the network reentry process, in which the MSs contend with each other. Thus, we must determine how large a chunk of subchannels and time slots should be reserved for MSs to send the messages of bandwidth request. In Section 3, we will formulate an optimization problem to design these parameters.
3
P
ROBLEMF
ORMULATION3.1 Multichannel Random Access Protocol with Collision Avoidance
To transmit the initial ranging and bandwidth request messages, the IEEE 802.16e WiMax system adopts the multichannel random access with the truncated binary exponential backoff algorithm [1], [2], which is similar to the backoff procedures in the IEEE 802.11 wireless local area network (WLAN). This backoff algorithm is used to resolve the contentions between the MSs in the process of random channel access. For a given initial backoff window size, an MS first selects a random number of time slots smaller than the backoff window size. It is implied that an MS defers its transmission until the end of the selected time period. After waiting for this period, the MS randomly selects subchannels and sends the bandwidth request and the ranging request (RNG_REQ) frames. Once the BS successfully receives the request, it allocates the subchannels and time slots for the new connection in the next DL-MAP or UL-MAP, as shown in Fig. 3a. However, as shown in Fig. 3b, collisions may occur when the bandwidth/ranging request frames are trans-mitted. If the BS fails to respond to the bandwidth/ranging request frames after a time-out duration, Trngor Tbw req, the MS
doubles its backoff window size and repeats the aforemen-tioned procedures until reaching the maximum number of transmission attempts. Here, Trngor Tbw reqare defined as the
waiting periods for the ranging response (RNG_RSP) frame and the bandwidth grant frame, respectively.
For clarity, we explain the difference of the multiple-channel random access MAC protocol with collision avoidance used in the IEEE 802.16e WiMax system and the CSMA/CA MAC protocol used in the IEEE 802.11 WLAN. Unlike the CSMA/CA MAC protocol, the BS in the IEEE 802.16e WiMax system is capable of receiving the requests from multiple MSs at the same time since the MSs can transmit at different subchannels. In this case, a frame collision occurs when more than one station accesses at the same chunk of subchannels and time slots.
3.2 Resources Partition Optimization
Now, we formulate an optimization problem with the objective of maximizing the efficiency of the reserved chunk of subchannels and time slots for random access subject to the delay constraint of supporting real-time services. Intuitively, reserving more radio resources for random access can yield shorter access latency due to fewer collisions. However, it also leads to more idle radio resources. With the optimal numbers of reserved subchannels and time slots for random access, we can optimize radio resource partitioning for the time-division OFDMA system.
The above optimization problem can be solved by a mixed-integer nonlinear programming (MINLP) technique. Define the efficiency as the ratio of the reserved chunk of subchannels and time slots on which bandwidth request and ranging requests frames are successfully transmitted over the total reserved radio resources. Denote r and m as the numbers of the reserved subchannels and time slots for random access, respectively. It will be shown later that the considered efficiency is a nonlinear function of r and m, as well as the number of mobile users (denoted by k). With the above definitions, an MINLP optimization problem is
Fig. 3. Illustrations of the multichannel random access for the initial ranging and bandwidth request in IEEE 802.16e. (a) The transmission succeeds at the first attempt. (b) Retransmission occurs when the previous attempt has a collision.
formulated to maximize the efficiency ðr; m; kÞ by deter-mining the optimal values of r and m for a given k, i.e.,
MAX
r;m ðr; m; kÞ; ð2Þ
subject to the following constraints: 1: r Nf;
2: m Nt;
3: Dðr; m; kÞ Dmax:
Later, in Section 5, we will find that the maximization of the efficiency is equivalent to the optimization of the reserved resources left for the data transmission.
Clearly, both integers r and m are constrained by the total number of subchannels in the frequency domain ðNfÞ
and the total number of time slots in the time domain ðNtÞ.
Furthermore, to support the delay-sensitive services, the access delay D of sending the bandwidth request and ranging request frames is required to be shorter than the predefined maximal delay ðDmaxÞ. Note that the access
delay D is a continuous value and is a nonlinear function of r, m, and k. Since both ðÞ and DðÞ are nonlinear functions of r, m, and k, and conditions 1, 2, and 3 are the constants for both the discrete and continuous values, (2) becomes an MINLP optimization issue. The next important step to solve the above optimization problem is to derive ðr; m; kÞ and Dðr; m; kÞ, which will be discussed in Section 4.
4
A
NALYSISNow, we develop the analytical models for the average access latency and the spectrum efficiency for random access. It is assumed that each MS always has frames to send, and collisions occur when more than one station access the same subchannel and time slot.
4.1 Efficiency of Reserved Radio Resources
Denote Ns as the number of successfully transmitted
bandwidth and ranging requests during one uplink subframe, and Ns0as that during one time slot. It is assumed
that each request asks for a chunk of one time slot at one subchannel. Then, based on the previous definition, the average spectrum efficiency of the reserved radio resources for random access can be expressed as
ðr; m; kÞ ¼E½Ns mr ; ð3Þ ¼mE N 0 s mr ; ð4Þ
where m and r are the numbers of reserved time slots and subchannels for random access. According to the random access procedure in the standard, it is worth to note that the contention at each time slot and subchannel is independent to the others.
Given W as the average backoff time slots that an MS defers before each transmission attempt, the transmit
probability that a station transmits a request in a reserved slot can be expressed as
¼ 1
W: ð5Þ
Note that based on the random access procedure in the standard, the backoff count is decreased by one for each reserved slot in a frame, while it is frozen in the other slots of a frame and continues to count down in the next frame. Therefore, the transmit probability is equal to the inverse of the average backoff counts because both of these factors only consider the reserved slots instead of the whole of a frame.
Then, let Wmin and f be the initial backoff window size
and the maximum number of transmission attempts, respectively. Because the users with colliding frames double their backoff window sizes in the next transmission in order to avoid collisions, the average number of backoff slots for the ith retransmission Wi can be written as
Wi¼
2iWminþ 1
2 ; ð6Þ
for i ¼ 0; . . . ; f. Given To as the time-out duration,1 a
station has to defer an extra duration of mdTo=Tfe slots
before the retransmission according to the random access procedure. With the random backoff time slots Wi for the
ith retransmission, the average backoff slots W then becomes WðmÞ ¼ ð1 pcÞW0þ pc 1 pcÞðW1þ m T0 Tf þ þ pf cð1 pcÞ Wfþ m T0 Tf þ pfþ1c Wfþ m T0 Tf ¼ 1 2þm T0 Tf ð1pcÞ 1þpcþ þpfc þpfþ1c m T0 Tf ð1 pcÞ þ Wmin 2 ð1pcÞ 1þ2pcþ þð2pcÞf þpcð2pcÞf h i ¼1 2þ m T0 Tf pþWmin 2 1 pc pcð2pcÞf 1 2pc ; ð7Þ
where pcis the collision probability, which is defined as the
probability that more than one station transmit frames at the same subchannel and time slot given that a station transmits. Assume that each station randomly selects one of r reserved subchannels to access with the probability 1=r. Because 1=r and are independent, the collision probability pc can be written by pc¼ 1 1 r k1 : ð8Þ Note that in (7), pi
cð1 pcÞ represents the success probability
for the ith retransmission. Thus, the transmission prob-ability can be obtained by jointly solving (5)(8).
1. The time-out duration To for the initial ranging request is different
from that of the bandwidth request. As specified in the standard, To¼ 10
In addition, because each station has the probability r to
access one chunk of r reserved subchannels and m time slots, the average number of successful transmissions for the initial ranging or bandwidth request within one slot becomes E N s0¼ r k 1 r 1 r k1 : ð9Þ
By substituting (9) into (3), the efficiency of the reserved radio resources is given by
ðr; m; kÞ ¼ kðmÞ r 1 ðmÞ r k1 : ð10Þ 4.2 Average Access Latency
As defined previously in Section 3.2, the average access latency D is equal to the overall duration that an MS waits until successfully transmitting a bandwidth/ranging re-quest frame. Given the average number of overall slots E½WD before a successful request transmission and the
frame duration Tf, the average access latency D can be
written as
D¼ E½WD m
Tf: ð11Þ
Here, we only count the latency in terms of frame duration because the slot time is much shorter than a frame duration. Suppose that each bandwidth/ranging request frame transmission only occupies one reserved slot in a frame. Then, considering the collision probability pc, the average
backoff slots at the ith retransmission Wi and the time-out
duration To, the average overall backoff slots E½WD given
the request is successfully transmitted is equal to E½WD ¼
E½the total number of the required slots for a successful transmissionjthe request is successfully transmitted
¼ W0
|{z}
successful at the 1st attempt
þ W1þ m To Tf pc |fflfflfflfflfflfflfflfflfflfflfflfflfflfflffl{zfflfflfflfflfflfflfflfflfflfflfflfflfflfflffl}
successful at the 2nd attempt
þ þ Wf1þ m To Tf pf1c |fflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflffl{zfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflffl}
successful at the f-th attempt
þ Wfþ m To Tf pf c 1 pc |fflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflffl{zfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflfflffl}
successful after the f-th attempt
¼ð12pcÞð1þWminÞþWminpc 1ð2pcÞ f 2ð1 2pcÞð1 pcÞ þ m To Tf pc 1 pc : ð12Þ
By substituting (8) and (12) into (11), the average access latency D can be obtained. Note that the collision probability pc, as shown in (8), is affected by the
number of reserved subchannels r. Thus, the average overall slots E½WD and the access latency D are also the
functions of r.
5
N
UMERICALR
ESULTSIn this section, we investigate the effectiveness of the proposed radio resource partition technique to determine the optimal number of reserved subchannels and time slots for random access in the time division OFDMA system. Referring to the IEEE 802.16e WiMax system, we consider the following parameters, including an uplink subframe with 70 subchannels and 48 time slots, frame duration Tf¼ 5 msec, the bandwidth request and initial ranging
time-out duration 10 and 200 msec, respectively. Other related system parameters are listed in Table 1.
5.1 Performances of Default Radio Resource Partition
First, we evaluate the performance of an OFDMA system with the parameters listed in Table 1, in which one and six subchannels, as well as three time slots, are reserved for the random access. According to (10), the efficiency of the reserved radio resources for the random access versus various numbers of stations is plotted in Figs. 4a and 4b. From the figures, the highest efficiency of the reserved random access radio resources occurs for the number of users k ¼ 85 and 160 when r ¼ 1 and To¼ 10 and 200 msecs,
respectively. This phenomenon can be explained by two factors. On one hand, when the number of stations is smaller, the reserved radio resources are more likely to become idle and thus the efficiency decreases. On the other hand, as the number of station increases, the contentions among users result in more collisions and reduce the efficiency. Thus, there exist an optimal number of stations to achieve the maximum efficiency for various time-out values. Similar results can also be observed in the multi-channel case.
Furthermore, Figs. 4a and 4b also show the difference between the single and multiple channel random access. Interestingly, one can observe that the multichannel random access has slowly increasing efficiency, as the number of stations grows compared to the single channel case. This phenomenon results from the abundant reserved resources for resolving the contentions so that the system is capable of accepting more contentions among stations.
TABLE 1 System Parameters
Nevertheless, its payoff is the low efficiency of the reserved resources for the case of a few stations due to the wasted subchannels.
Next, based on (11), Fig. 5 shows the average latency of the multichannel random access MAC protocol in the OFDMA system for various numbers of stations and time-out values. Consider the delay constraint Dmax¼ 25 msec for
support-ing real-time services. Subject to the above delay require-ment, the system can support only up to 25 stations sending the bandwidth request based on the default partition scheme, i.e., three subchannels and six time slots are designated for random access out of the total 70 subchannels and 48 time slots. As for the initial ranging transmission, the system with the default partition scheme cannot satisfy the delay constraint due to the long time-out duration before any retransmission. Clearly, the more radio resources reserved for the random access the shorter the access latency because of the less retransmission. However, from the figure, only one partition scheme can satisfy the delay requirement for
real-time services. Therefore, it is necessary to investigate some alternative resource partition schemes through the presented analytical models for the efficiency and access delay of the multichannel random access MAC protocol in the OFDMA system, which will be discussed next.
5.2 Performances of Alternative Radio Resource Partitions
In Fig. 6, we investigate the effects of various numbers of subchannels r and time slots m on the efficiency of the reserved radio resources based on the multichannel random access MAC protocol in the considered OFDMA system with 100 stations. We have the following two observations: . As shown in the figure, the efficiency of the reserved radio resources is monotonously decreasing as the number of the reserved time slots or subchannels in a frame grows. This is because too many reserved radio resources may cause them staying idle. For example, when the number of reserved slots is
Fig. 4. Efficiency of the reserved radio resources based on the multichannel random access MAC protocol with three time slots per frame and one/six subchannels to send bandwidth/ranging requests in an OFDMA system by simulation and analysis. (a) To¼ 10 msec.
(b) To¼ 200 msec.
Fig. 5. Average latency of the reserved radio resources based on the multichannel random access MAC protocol with three time slots per frame and one/six subchannels to send bandwidth/ranging requests in an OFDMA system by simulation and analysis.
Fig. 6. Effects of various subchannels and time slots on the efficiency of the reserved radio resources based on the multichannel random access MAC protocol in an OFDMA system with 100 stations.
m¼ 3, the efficiency for the number of reserved subchannels r ¼ 1 50 decreases from 0.37 to 0.15. Similarly, as r ¼ 6, ¼ 0:35 0:3 for m ¼ 1 48. The phenomenon of monotonously decreasing effi-ciency with the increasing number of reserved subchannels represents that the maximization of efficiency performance is also to optimize the reserved resources left for the data transmissions for the given access latency requirement. Thus, although we aim to maximize the efficiency by adjusting the numbers of reserved subchannels and time slots, this problem is also an optimization problem for the reserved resource left for the data transmission.
. Furthermore, as shown in the figure, the efficiency of the reserved radio resources seems to be more sensitive to the changes of the number of reserved subchannels in the frequency domain than that of the number of reserved time slots in the time domain. We will try to explain this situation by investigating the effect of the reserved radio re-sources in the frequency and time domains on the collision probability of the multichannel random access MAC protocol next.
By means of (8), Fig. 7 shows the effects of various reserved subchannels and time slots on the collision probability of the multichannel random access MAC protocol in the considered OFDMA system with 100 stations. Clearly, reserving more radio resources for random access can yield a lower collision probability. However, it is interesting to investigate in which domain of the OFDMA system, frequency domain or time domain, is more effective in improving the efficiency and latency performances for the system adopting the multichannel random access MAC protocol. As shown in the figure, increasing the number of the reserved subchannels r can reduce the collision prob-ability more effectively than changing the number of reserved time slots m. For m ¼ 6, changing r ¼ 6 to 48 can lower the collision probability pc from 0.64 to 0.17. By
contrast, the collision probability pc decreases from 0.49 to
only 0.4 when m changes from 2 to 48 for r ¼ 6. By comparing (8) and (10), one can easily see that a lower collision probability leads to a higher efficiency for the reserved random access radio resources. Hence, in Fig. 7, one can explain why in Fig. 6 changing the amount of reserved radio resource for random access in the frequency domain of the OFDMA system can more significantly affect the efficiency than in the time domain of the OFDMA system.
Fig. 8 illustrates the effects of various reserved sub-channels and time slots on the average latency of the multichannel random access MAC protocol in the OFDMA system with 100 stations. In contrast to the phenomenon observed in Fig. 6, the number of the reserved time slots dominates the latency performance compared to that of the reserved subchannels. For example, the access latency for r¼ 6 decreases from 95 msec to 10 msec as m changes from 2 to 48. On the contrary, when r increases from 2 to 50, the latency for m ¼ 6 is reduced only from 95 msec to 20 msec. Intuitively, the more reserved time slots help stations to resolve the contentions earlier and to send the request in the prior frame. Although, from (11), increasing the number of reserved subchannels can lower the collision probability, it is not as effective as increasing the time slots from the aspect of reducing the access latency because the station waits more frames to count down the backoff slots in the case of few reserved slots. Notably, it is important to combine Figs. 6 and 8 to determine a set of ðr; mÞ with the maximum efficiency and satisfactory delay performance. For the case k ¼ 100 and To¼ 10 msec, ðr; mÞ ¼ ð2; 29Þ can
achieve the highest efficiency under the constraint of Dmax¼ 25 msec.
5.3 Performance of Optimum Radio Resources Partitions
Now we apply the systematic MINLP optimization approach introduced in Section 3.2 to determine the optimal values of ðr; mÞ, which represent the subchannels and the
time slots reserved for random access in the frequency
Fig. 7. Effects of various reserved subchannels and time slots on the collision probability of the multichannel random access MAC protocol in
the considered OFDMA system with 100 stations. Fig. 8. Effects of various reserved subchannels and time slots on theaverage latency of the multichannel random access MAC protocol in the considered OFDMA system with 100 stations.
domain and the time domain of the OFDMA system, respectively. In the previous section, an exhaustive search method is used to find the optimal ðr; mÞ for the number
of users k ¼ 100. According to (2), Tables 2 and 3 list the optimal ðr; mÞ for T
o¼ 10 msec and 200 msec with an
objective of maximizing the efficiency of the reserved subchannels and time slots for random access in the considered OFDMA system subject to the constraint of Dmax¼ 25 msec, respectively. For k ¼ 100 and To¼ 10 msec,
the optimal ðr; mÞ ¼ ð2; 29Þ obtained by the suggested MINLP optimization approach is the same as that obtained by the exhaustive search method. Once the optimum ðr; mÞ for various numbers of MSs is generated offline
and stored into a table, the BS can dynamically adjust the reserved radio resources for random access to enhance the performance of the OFDMA system.
Furthermore, from the optimal values shown in Tables 2 and 3, we can infer that the system rather reserves the more time slots than the subchannels to meet the delay requirement for real-time applications. Although both subchannels and time slots are used to resolve the contentions among users, the more reserved time slots let the station wait fewer frames to send the request. Thus, the access latency can be easily satisfied the delay require-ment. Despite the excess, reserved subchannels cannot be used to lower the waiting time due to the backoff before the transmission, the number of subchannels is still the dominating factor to reduce the collisions among users and to decide the system capacity.
Fig. 9 compares the efficiency of the reserved radio resources for random access and the access latency of the considered MAC protocol according to the above optimal radio resource partition scheme in Table 2 to that according to the default partition scheme ðr; mÞ ¼ ð6; 3Þ in the case of To¼ 10 msec. Fig. 10 also illustrates the same comparison
according to Table 3 for To¼ 200 msec. As shown in Figs. 9b
and 10b, the proposed optimum resource partition scheme
can satisfy the delay requirement with k up to 200 for both the bandwidth request and the initial ranging transmis-sions. Furthermore, for To¼ 10 msec, Fig. 9a shows that
the efficiency of the reserved radio resource based on the optimal partition scheme is significantly higher than the default partition scheme especially for the case of few contending stations.
6
C
ONCLUSIONSIn this paper, based on a multichannel random access MAC protocol with a collision avoidance binary backoff algorithm, we formulated an MINLP optimization problem to determine the most appropriate numbers of subchannels and time slots that should be reserved in the frequency and the time domain of the OFDMA system for sending the bandwidth/ranging requests. The objective of the optimi-zation issue is to maximize the efficiency of the reserved resource under the delay constraint of supporting the real-time services. Our numerical results also show that this maximization problem is equivalent to the optimization of the reserved resources left for the data transmission of the established link.
TABLE 2
Optimum Parameters Values for Bandwidth Request Transmissions (To¼ 10 msec)
TABLE 3
Optimum Parameters Values for Ranging Request Transmissions (To¼ 200 msec)
Fig. 9. Performance comparisons of the optimal radio resource partition scheme according to Table 2 and the default partition schemeðr; mÞ ¼ ð6; 3Þ in terms of (a) efficiency and (b) access latency, where To¼ 10 msec.
We derived the analytical expressions for the efficiency of the reserved resources and the latency of the contention-based multichannel random access MAC protocol. Based on the developed analytical models, we evaluated the impact of the number of reserved subchannels and time slots on the efficiency and latency performances of the OFDMA systems using the contention-based MAC for link establishment. From the efficiency standpoint, we find that the number of reserved subchannels is a more dominant factor than the number of reserved time slots. From the latency viewpoint, however, the number of the reserved time slots becomes a dominating factor instead.
By using both exhaustive and the proposed MINLP optimization approaches, we have discussed how to find the optimal partition scheme, in which rsubchannels and
m time slots are reserved for random access during link
setup process. It is shown that with the optimal ðr; mÞ, the
efficiency of the reserved radio resources can be maximized regardless of the number of contending users while still satisfying the delay requirement of real-time services.
A
CKNOWLEDGMENTSThis research was jointly supported by the MoE ATU plan, Industrial Technology Research Institute of (ITRI),
Universal Scientific Industrial (USI), and the National Science Council, Taiwan, under the Contracts NSC-96-2221-E-009-061 and 96-2628-E-009-004-MY3.
R
EFERENCES[1] IEEE Std. 802.16-2004, IEEE Standard for Local and Metropolitan Area Networks-Part 16: Air Interface for Fixed Broadband Wireless Access Systems, Oct. 2004.
[2] IEEE Std. 802.16e, IEEE Standard for Local and Metropolitan Area Networks-Part 16: Air Interface for Fixed and Mobile Broadband Wireless Access Systems Amendment for Physical and Medium Access Control Layers for Combined Fixed and Mobile Operation in Licensed Bands, Dec. 2005.
[3] S. Choi, G.H. Hwang, T. Kwon, A.R. Lim, and D.H. Cho, “Fast Handover Scheme for Real-Time Downlink Services in IEEE 802.16e BWA System,” Proc. IEEE Vehicular Technology Conf. (VTC ’05), vol. 3, pp. 2028-2032, May 2005.
[4] Y.J. Choi, S. Park, and S. Bahk, “Multichannel Random Access in OFDMA Wireless Networks,” IEEE J. Selected Areas in Comm., vol. 24, pp. 603-613, Mar. 2006.
[5] X. Fu and H. Minn, “Initial Uplink Synchronization and Power Control (Ranging Process) for OFDMA Systems,” Proc. IEEE Global Telecommunications Conf. (GLOBECOM ’04), vol. 6, pp. 3999-4003, Dec. 2004.
[6] H. Minn and X. Fu, “A New Ranging Method for OFDMA Systems,” Proc. IEEE Global Telecomm. Conf. (GLOBE-COM ’05), vol. 3, pp. 1435-1440, Dec. 2005.
[7] J. Lee, C. Kim, and J. Kim, “On Subcarrier Allocation for Soft Hand-Over in OFDMA-Based Cellular Systems,” Proc. IEEE Vehicular Technology Conf. (VTC ’05), vol. 5, pp. 3087-3091, May 2005.
[8] S. Redana, M. Lott, and A. Capone, “Performance Evaluation of Point-to-Multi-Point (PMP) and Mesh Air-Interface in IEEE Standard 802.16a,” Proc. IEEE Vehicular Technology Conf. (VTC ’04), vol. 5, pp. 3186-3190, Sept. 2004.
[9] A.E. Xhafa, S. Kangude, and X. Lu, “MAC Performance of IEEE 802.16e,” Proc. IEEE Vehicular Technology Conf. (VTC ’05), vol. 1, pp. 685-689, Sept. 2005.
[10] S.M. Oh and J.H. Kim, “The Analysis of the Optimal Contention Period for Broadband Wireless Access Network,” Proc. IEEE Int’l Conf. Pervasive Computing and Comm. Workshops (PerCom ’05), pp. 215-219, Mar. 2005.
[11] R. Iyengar, P. Iyer, and B. Sikdar, “Delay Analysis of 802.16 Based Last Mile Wireless Networks,” Proc. IEEE Global Telecomm. Conf. (GLOBECOM ’05), vol. 5, pp. 3123-3127, Dec. 2005. [12] G. Bianchi, “Performance Analysis of IEEE 802.11 Distributed
Coordination Function,” IEEE J. Selected Areas in Comm., vol. 18, no. 3, pp. 535-547, Mar. 2000.
[13] B.-J. Kwak, N.-O. Song, and L.E. Miller, “Performance Analysis of Exponential Backoff,” IEEE/ACM Trans. Networking, vol. 13, no. 2, pp. 343-355, Apr. 2005.
[14] Y. Amir, C. Danilov, S. Goose, D. Hedqvist, and A. Terzis, “An Overlay Architecture for High Quality VoIP Streams,” IEEE Trans. Multimedia, vol. 8, pp. 1250-1262, Dec. 2006.
Fig. 10. Performance comparisons of the optimal radio resource partition scheme according to Table 3 and the default partition schemeðr; mÞ ¼ ð6; 3Þ in terms of (a) efficiency and (b) access latency, where To¼ 200 msec.
