對混淆後之殭屍網路及惡意軟體自動化分析與分類

國

立

交

通

大

學

網路工程研究所

碩

士

論

文

對混淆後之殭屍網路及惡意軟體自動化分析與

分類

Automatic Analysis and Classification of Obfuscated Bots

and Malware Binaries

研 究 生：江易達

指導教授：林盈達 教授

i

對混淆後之殭屍網路及惡意軟體自動化分析與分類

Automatic Analysis and Classification of Obfuscated Bots and

Malware Binaries

研 究 生：江易達 Student：Yi-Ta Chiang

指導教授：林盈達 Advisor：Ying-Dar Lin

國 立 交 通 大 學

網 路 工 程 研 究 所

碩 士 論 文

Submitted to Institutes of Network Engineering College of Computer Science

National Chiao Tung University in partial Fulfillment of the Requirements

for the Degree of Master in Computer Science June 2010 Hsinchu, Taiwan

中華民國九十九年六月

ii

對混淆後之殭屍網路及惡意軟體自動化分析與分類

學生：江易達 指導教授：林盈達

國立交通大學網路工程研究所碩士班

摘

要

iii

Automatic Analysis and Classification of Obfuscated Bots and

Malware Binaries

Student: Yi-Ta Chiang Advisor: Dr. Ying-Dar Lin

Institutes of Network Engineering

National Chiao Tung University

Abstract

Botnet is a serious threat on the Internet. In order to find a way to defect botnet, we need

an efficient method to analysis its behavior. However, bots can easily transform its binary

code by obfuscation, and waste the time to analysis many different bots obfuscated from the

same origin. Some classifying algorithms are proposed to solve this problem, but many of

them cannot classify obfuscated bots well. We propose a method to classify them. First we

collect the system call sequence of malware, then we calculating LCS and Gap shift

distribution to decide the similarity of two samples. We also use Segment identification for

improving the correctness. Experiment shows our algorithm can achieve 94% correctness rate

on distinguish different samples, and 90% correctness rate on identifying class of bot variants.

iv

Contents

Chapter 1 Introduction ... 1

Chapter 2 Background ... 3

2.1 Taxonomy of Botnet ... 4

2.2 Overview of Bot Analysis... 5

2.3 Research Goal ... 7

Chapter 3 Classification of Bot Binaries ... 7

3.1 Feature for Classification: Bot System Call Sequence During Injection Phase ... 8

3.2 LCS Similarity of System Call Sequences ... 9

3.3 Improve the Accuracy of Similarity Calculation ... 11

Chapter 4 System Implementation ... 15

4.1 System Architecture ... 16

4.2 Recorder Implementation ... 16

Chapter 5 Experimental Studies ... 19

5.1 Experiment Environment ... 20

5.2 Static Analysis Experiment ... 21

5.3 LCS Similarity of Bot Variants Created by Obfuscation ... 23

5.4 LCS Similarity across Different Bot Samples ... 24

5.5 Choosing the threshold values for S and R ... 26

5.6 Classification Result Comparison ... 28

5.7 Efficiency Experiment ... 28

Chapter 6 Conclusions and Future Works ... 29

v

List of Figures

Fig. 1 Botnet Lifecycle ... 4

Fig. 2 Segment of System Calls in Bot ... 9

Fig. 3 The shift value chart of agobot original & agobot Themida ... 12

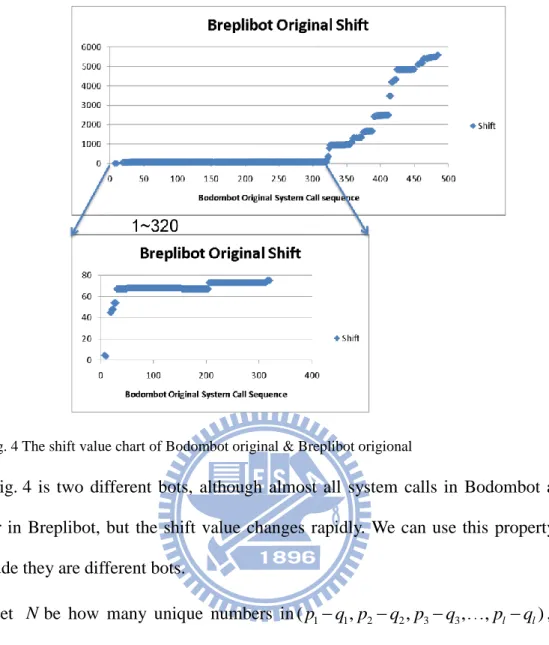

Fig. 4 The shift value chart of Bodombot original & Breplibot origional ... 13

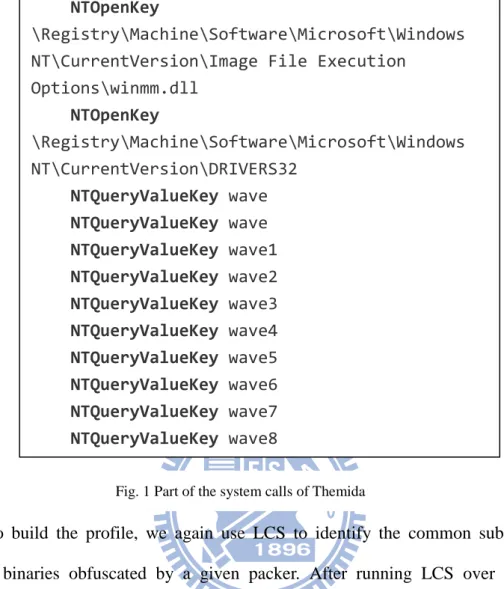

Fig. 5 Part of the system calls of Themida ... 15

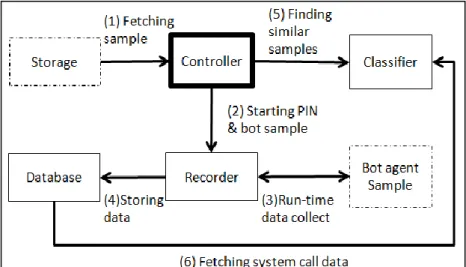

Fig. 6 Architecture Diagram ... 16

Fig. 7 How PIN records system calls ... 17

Fig. 8 Experiment environment ... 20

Fig. 9 PEiD analysis result ... 21

Fig. 10 LCS correctness threshold ... 27

Fig. 11 Gap Shift correctness threshold ... 28

vi

List of Tables

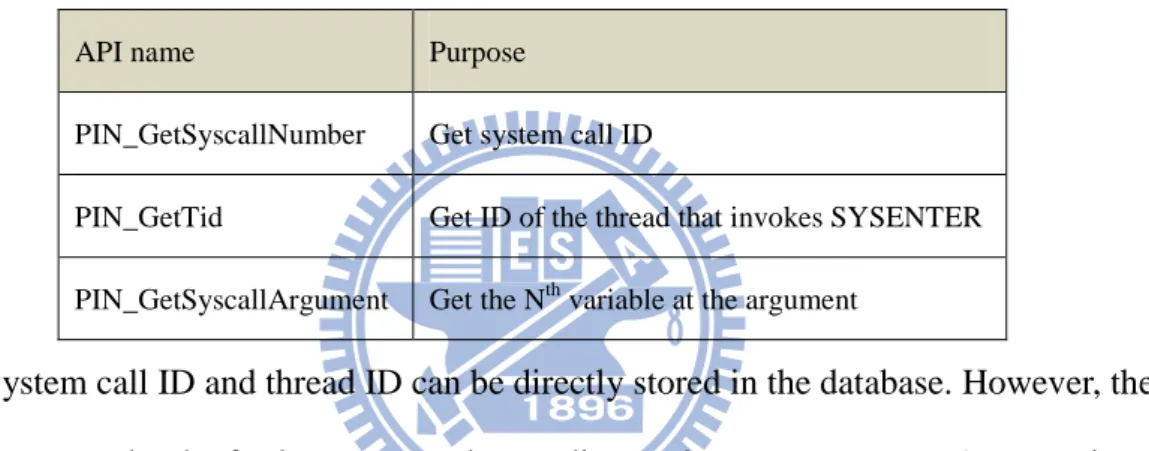

Table 1 The PIN APIs used in the recorder module ... 18

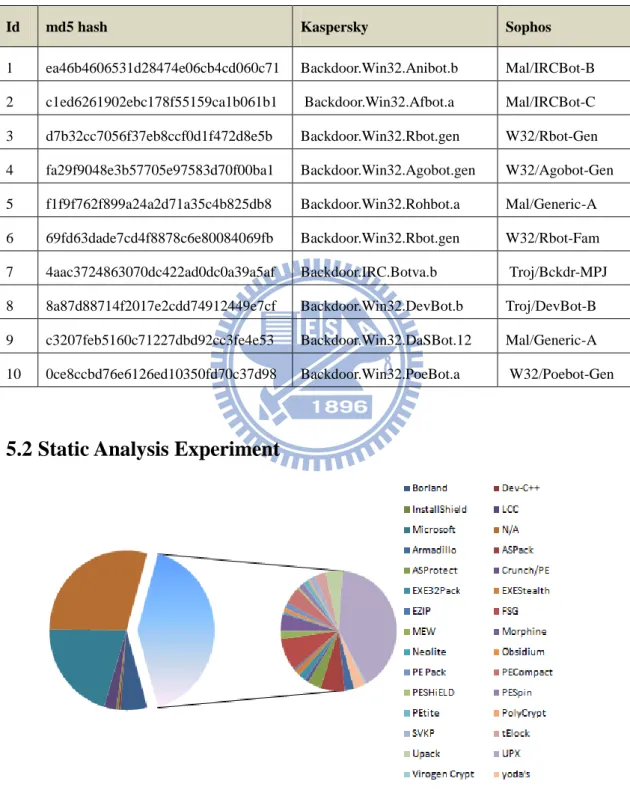

Table 2 List of Bots used in the experiment ... 21

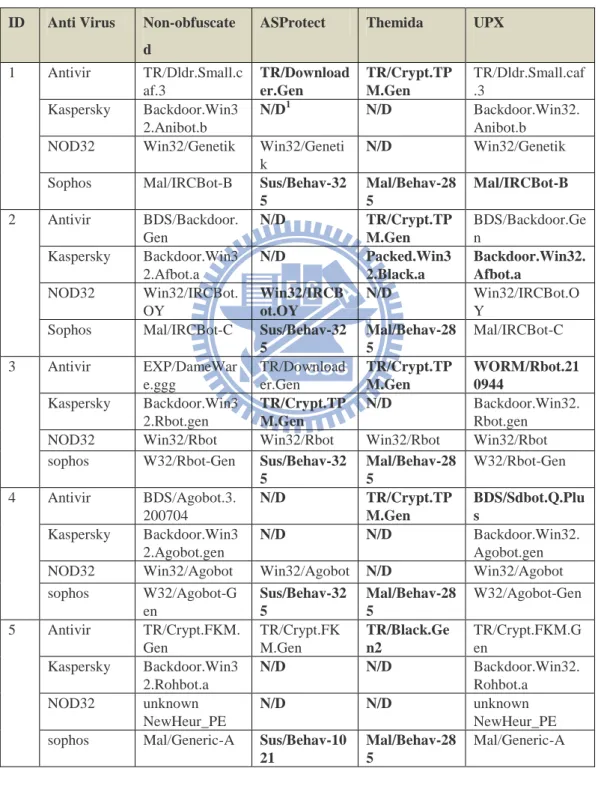

Table 3 Static analysis result (AV engines v.s. obfuscation tools) ... 22

Table 4 Similarities between test targets derived from the same bot sample ... 23

Table 5 Numeric result on the same obfuscation samples ... 25

1

Chapter 1 Introduction

The Internet faces many security threats ranging from low-level attacks such as

IP packet spoofing to high-level malicious activities such as Botnet. Botnet is an

autonomous network that consists of compromised computers running software

agents, commonly referred as robots or bots, under the control of an attacker. A

bot-network is typically formed to conduct nefarious activities such as DDoS attack,

e-mail spamming, stealing of information, and etc. These attacks cause concerns on

the use of Internet and may lead to financial losses, so the detection and removal of

Botnet is an urgent issue that we need to solve.

Botnet Detection

For the detection of botnet, one approach is to look at the aggregated traffic on a

subnet and identify traffic patterns that characterize a botnet[1-4]. This is based on the

assumption that bot agents of a same type usually bear similar traffic patterns in

communicating with the command and control (C&C) thereof. The attack traffic (e.g.

sending e-mail spam) from these bot agents shall also be similar if they follow the

same design. As a result, one can identify the existence of a botnet by observing

repeated patterns of suspicious traffic, which is indeed an important approach in

botnet detection. However, network traffic analysis faces challenges from

countermeasures such as traffic randomization, protocol obfuscation, the use of step

stones, etc. Besides, it is not always possible to gain access to the traffic for the whole

network due to privacy concern. In addition, the amount of the collected traffic can

2

Analysis of Bot Agent Binaries

The other approach for detecting botnet is to identify the bot agent binaries. One

popular method is static binary analysis[5-8], which is widely employed in most

anti-virus scanners. Here, static analysis can be as simple as comparing the hash

values of the binaries or as complex as scanning for suspicious instruction sequences

in a binary. For bot agents with well-known signatures, static analysis can be an

efficient and effective way for their detection. However, obfuscation tools can easily

fool static analysis. For example, ASProtect[9], Themida[10] and UPX[11] can

replace the instructions of a binary to prevent any static analysis.

For identifying bot agent binaries, one can also rely on dynamic analysis of

binary[12-17], namely executing a binary and monitoring for suspicious activities

such as calling privileged APIs or modifying system registry. Dynamic analysis can

capture the runtime behavior of a bot agent even in the case when it is obfuscated.

This is because obfuscation tool cannot rip or disrupt the runtime behavior without

affecting the original functions of the obfuscated binary (the bot agent). However,

dynamic analysis cannot guarantee that every possible execution path in a binary will

be fully explored, and behaviors buried in those untaken paths will be ignored by the

analysis.

It is common to see variants of bot agents. In fact, the source code of many

popular bot agents can be found and downloaded from the Internet. This fuels the

creation of even more bot variants by people who are not skillful enough to write a

bot agent from scratch. To deal with bot variants, a common practice is the use of

classification techniques to group together bot binaries that bear similar characteristics

/ features. This not only helps identify a new variant quickly, by knowing which

3

in responding to bot variants.

Classification of Bot Binaries

To address the problem of obfuscated bot agents and bot variants, we propose a

new similarity-matching algorithm based on longest common subsequence (LCS).

This method contains two steps: (1) system call sequence extraction by dynamic

analysis; (2) system call sequence similarity metric using longest common

subsequence. Because most bots still rely on system calls to interact with the

underlying operating system in order to maintain binary portability and achieve

pervasive infection, we believe the observed system call sequence will serve as a good

feature for the follow-on classification process that is based on longest common

subsequence similarity matching. Even though obfuscation tools can easily transform

a program into different appearances for avoiding static analysis, they cannot hide the

system calls triggered by the program. Therefore system call trace with dynamic

analysis is a good method to classify unknown malwares. Experiment shows our

proposed algorithm can get higher correctness rate on obfuscated bot binaries.

The rest of this work is organized as follows. Chapter 2 mentions the evolution

of Botnet and the analysis methods. Chapter 3 details the proposed similarity

algorithm along with techniques to improve the classification accuracy. In chapter 4,

we present an implementation based on our proposed algorithms. Chapter 5 describes

the experiment environment, result, and discussion. Finally, chapter 6 concludes this

work with some future research directions.

Chapter 2 Background

4

brief overview of the life cycle of botnet, including the injection of bot agents into

victim computers, establishing connection to C&C server, and the attack stage. We

also discuss related works on analysis and classification of bot binaries.

2.1 Taxonomy of Botnet

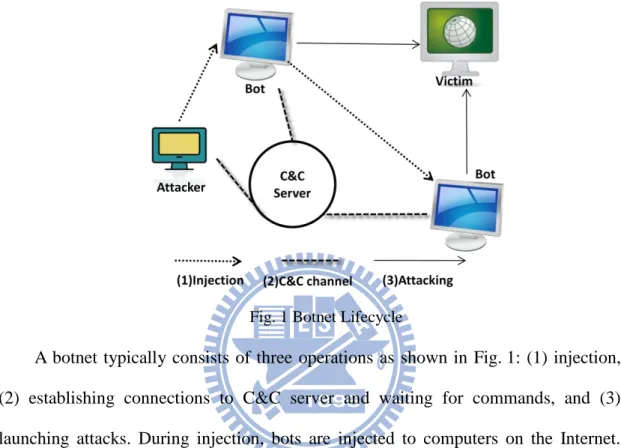

Fig. 1 Botnet Lifecycle

A botnet typically consists of three operations as shown in Fig. 1: (1) injection,

(2) establishing connections to C&C server and waiting for commands, and (3)

launching attacks. During injection, bots are injected to computers on the Internet.

The injection of a bot into a target computer can be achieved via exploiting a remote

vulnerability of the computer, disguising the bot as a harmless e-mail attachment,

including the bot in some software package that is likely to be downloaded to the

target computer via P2P file sharing, and etc. After a bot is injected into a computer, it

can soon start seeking for other vulnerable computers and infect those computers as

well. In this case, the growth rate of a botnet is exponential.

After a bot injects itself into a computer, it will attempt to establish a channel

with the C&C server, which is often an IRC server. The attacker (bot herder) can then

issues commands to or receives messages from the bots via the C&C. Fig. 1 shows

5

bot herder, proxies (or step stones) can be used in-between the bot herder and the

C&C server. Sometimes, a botnet will have more than one C&C servers. This

prevents the botnet from failing in case the single C&C crashes or powers off.

Once a botnet is formed, depending on the types of bots in use, different types of

attacks such as e-mail spam, DDoS attack, click fraud, etc can be carried out by the

bots on the botnet collaboratively. Unlike a traditional network attack, in which attack

traffic originates from only a few hosts, botnet-induced attacks can involve attack

traffic from thousands of sources, and that makes tracking and blocking the attack

traffic much more difficult. Furthermore, the attack traffic from a botnet can be huge

when the participating bots all launch attacks around the same time. For instance, the

botnet formed by MyDoom[18] employs 160,000 computers to generate DDoS traffic

targeting the web site of SCO.

2.2 Overview of Bot Analysis

As botnet is formed by bots, one way to look at the botnet is by analyzing its

constituent bot. By understanding the internals of a bot, we can have a clear picture of

not only how the botnet is formed but also the attack vectors associated with the

botnet.

For the analysis of bots, there are two different approaches: static analysis and

dynamic analysis. Static analysis analyzes a bot binary without executing it. It

typically involves dissembling the binary code, and then depicts its function call

graph statically. E. Carrera, and G. Erdelyi[5] use graph isomorphism techniques to

compare the call graphs from collected malwares, then use the comparing result to

determines the similarity of collected malwares. Z. Liang, T. Wei, Y. Chen et al.[6]

merge function calls into modules, these modules perform specific types of jobs, such

6

Reeves[7] look at specific patterns of assembly code and use the patterns to measure

the similarity between malwares. The above works cannot handle obfuscated samples

correctly, so S. Cesare, and Y. Xiang[8] design an unpacker that dump the original

program from memory, after obfuscation tools restore it in memory for executing.

Then they analyze this program for avoiding obfuscation.

Static analysis is typically very efficient. They may explore all execution paths in

a malware. However, this means that binary obfuscation[19] can easily fool the static

analysis by incurring additional execution paths, and shuffling and twisting the

execution paths in an obfuscated malware. They can also restructure the data variables

and tables in a binary to confuse the static analysis further. The experiments in 5.2

shows that some bots use obfuscation to hide themselves, and static analysis cannot

identify them well.

Dynamic analysis is the most effective solution in obfuscated malware analysis.

U. Bayer, C. Kruegel, and E. Kirda[12] proposed a system named "TTAnalyze",

which executes a malware sample inside a virtual machine and observes behaviors

like file modification, registry modification and network access from the sample. A

key challenge in dynamic analysis is that only those control paths that are actually

executed will be analyzed. A. Moser, C. Kruegel, and E. Kirda[14] use speculative

branch prediction to overcome this challenge. M. Bailey, J. Oberheide, J. Andersen et

al.[13] measure the similarity between bot samples based on the result from dynamic

analysis, but they only look at high-level information like file name, connected host,

and registry, which is easy to be randomized in bot samples. C. Willems, T. Holz, and

F. Freiling,[15] also use a virtual machine to conduct dynamic analysis on bot samples.

They also provide a public web interface to their analysis environment, where people

7

al.[16] try to use a block diagram to present the system calls of a program, this

diagram can help us to distinguish malware more easily. J. Li, M. Xu, N. Zheng et

al.[17] collect system call sequence by hardware virtualization, then try to identify

function blocks based on the patterns occur mostly. Their comparison is based on the

blocks, but ours is based on the system calls and the arguments.

2.3 Research Goal

We propose a framework that unifies the analysis and the classification of

obfuscated malware. We rely on dynamic analysis techniques to extract system call

details of an obfuscated bot binary. We consider not only the system call IDs, as seen

in previous work, but also the call arguments used in each system call to improve the

resolution of our analysis. For the classification, we devise a similarity metric based

on the longest common subsequences from the extracted system call information.

Finally, we notice that obfuscation often relocates code segments in a binary. In

evaluating the similarity metric, we adopt some heuristics to compensate for these

relocations, which would otherwise decrease the classification accuracy dramatically.

Chapter 3 Classification of Bot Binaries

We found that many bot binaries are obfuscated at Sec. 5.2, the classification

needs to rely on a similarity metric that is not sensitive to binary obfuscation. The

similarity metric we employ is based on observing the run-time behaviors of bot

binaries. Specifically, it relies on comparing the sequence of invoked system calls by

the bot binaries during runtime.

As system calls are crucial to the operation for bot agents, obfuscation cannot

alter the invocations of the system calls that are critical to a bot agent's operation. On

8

multiple runs of the same bot agent bear very little variation. As a result, comparing

the invoked system call sequences can be used a reliable similarity metric for the

classification of bot binaries.

This chapter details the observations of system call and the similarity algorithm.

We also proposed some heuristics for improving classification accuracy.

3.1 Feature for Classification: Bot System Call Sequence During

Injection Phase

We capture the IDs of system calls invoked by a bot agent during its injection

phase. The sequence of the system call IDs are sorted by the capture time. The

sequence is treated as a feature for the bot agent and is used in determining the

similarity between two bots.

System calls invoked by a bot during the injection phase typically follows

stereotyped pattern and is quite distinguishable. For instance, in the injection stage

shown in Fig. 1, a bot usually hides its binary under %WINDIR%\system32 or other

system folders, where users do not check routinely, and therefore a bot can have a

better chance to avoid detection. Besides, a bot often modifies the auto-start entry

point (ASEP) in Windows registry so that it can start automatically when the

computer boots. Most of the steps in the injection stage are carried out by invoking

the corresponding system calls (e.g. copying files and modifying registry entries).

These steps are typical for most bot agents. On the other hand, it is very difficult for

obfuscation to alter the system calls invoked by a bot as this would affect the

9

Fig. 2 Segment of System Calls in Bot

Typically, a bot’s system call sequence during the injection phase can be split

into the four parts as shown in Fig. 2. In part A, Windows OS loader loads necessary

DLLs, allocates the memory space and etc. In Part B, unpacking loader prepares an

environment to execute the original program, like unpacking the compressed binary

into the text segment. In part C, system calls are made by the underlying program. In

part D, there are some system calls that are used to release allocated resource and exit

the program. Different obfuscation tools (packers) can introduce different system calls

in part B, but in order to maintain the functionality of the original program, part C

always includes system calls made by the original program.

It is very rare for a bot to employ multi-threading during the injection phase. In

fact, none of the bots used in our experiment is seen to employ multi-threading during

the injection phase. If multi-threading is observed, we choose the thread that has the

most number of system calls and use the system calls in that thread as the feature for

the bot.

3.2 LCS Similarity of System Call Sequences

For the classification of bot samples, the high level goal is to group known

variants of a bot into a cluster (class), and when a unknown bot sample arrives, we

can accurately identify the class it belongs to or, if no such class is found, confirm the

sample as a whole new bot.

There are two ways to create a variant of a bot. The first is to use binary

obfuscation to create a differently looking bot binary. As obfuscation only adds

system calls but not alters existing system calls in the bot binary, the system call

sequence can be used reliably as a feature for the classification of bot variants created

10

The other way to create a bot variant is to take the source code of an existing

(ancestor) bot and modify the code to create the variant. Typically, the modification

does not dramatically change the code structure of the source. Most of the time, only

slight changes such as adding a new injection method, adding couple of new control

commands, and adjusting of C&C communication parameters. As a result, the system

call sequences between the variant and the ancestor shall be similar. Therefore, we can

also rely on system call sequence to identify class of bot variants created by source

code modification.

The method in calculating the similarity between two system call sequences is

based on their longest common subsequence. For two system call sequences X:

and Y: , where and Yj are the IDs of system

calls, the longest common subsequence LCS(X,Y) is a subsequence of both X and Y,

and the length of LCS(X,Y) is maximized.

The following formula is used to evaluate the similarity S(X,Y) between two call

sequences X and Y: | ( , ) | ( , ) min(| |,| |) LCS X Y S X Y X Y  (1)

The similarity S(X,Y) is the ratio of the maximal length of the common system

call sequence to the length of the shorter sequence between X and Y. Since

, the value of S(X,Y) is between 0 and 1, where 1 means

either X is a variant of Y, or Y is a variant of X. A threshold T will be used to decide _S

two samples are similar or not.Although a very short sequence is possibly a

subsequence of a long sequence, we can ignore short sequence as the number of

system call invoked by a bot is usually over 500. 1, 2, 3, , m

X X X X Y Y Y₁, ₂, ₃, ,Y_n X_i

11

3.3 Improve the Accuracy of Similarity Calculation

As shown in Fig. 2, obfuscation can introduce extra system calls and shift the

system calls from the original program. If we simply take the system call sequence

from an obfuscated bot, it is likely LCS similarity will incorrectly include those

system calls introduced by the packer. Ideally, one should consider only system calls

from segment C in Fig. 2 when calculating the LCS similarity, as the objective is to

determine the similarity between the bots, which are packed within segment C.

However, obfuscation has made accurate identification of segment C a non-trivial task.

In the following, we present two heuristics that can be used to estimate the location of

segment C roughly. We can then extract system calls from the estimated C segment

and feed it to the LCS similarity calculation.

Gap Shift Compensation

When the LCS Similarity of two samples is high, there are another possibility

that their system call sequence is interleaved. Because System call is a low-level view,

if we insert many unrelated system calls between two system calls in the LCS

sequence, the function will be very different, but the similarity is still high. We use the

following method to solve this problem.

After obtaining the LCS( ,S S S_{1 2}, ₃, S , we can find the original position of _l) S _i

in X and Y. Let the position in X and Y are( ,p p p_{1 2}, ₃, ,p and _l) ( ,q q q_{1 2}, ₃, , )q , _l

respectively. The gap shift sequence is the difference of the position

1 1 2 2 3 3

(p q p, q p, q, ,p_l q_l), if the values of this sequence are changed rapidly, it means the subsequence in X or Y is interleaved, whereas if the values are almost

12

Fig. 3 The shift value chart of agobot original & agobot Themida

Fig. 3 shows the change of subsequence position for agobot original (unpacked)

sequence(X) and agobot obfuscated by Themida sequence(Y). The x-axis is the index

of agobot original sequence. If the system call X is also present at _i Yj, we mark a

point at ( ,i ji) on the chart. This figure shows almost all system calls in agobot original exist in Themida obfuscated agobot, and the shift center on 20 and 870. This

13

Fig. 4 The shift value chart of Bodombot original & Breplibot origional

Fig. 4 is two different bots, although almost all system calls in Bodombot also

appear in Breplibot, but the shift value changes rapidly. We can use this property to

conclude they are different bots.

Let N be how many unique numbers in(p₁q p₁, ₂q p₂, ₃q₃, ,p_l q_l), L

is the length of subsequence, then we define the formula:

N R

L

 (2)

If R is higher than a threshold T , then the value in shift sequence is changed _R

quickly, this two sample are likely different bots. With the formula (1) and (2) and the

threshold, the follow criteria is used to decide two samples are similar or not:

S S R S R S T Different S T and R T Different S T and R T Same           (3)

14

Segment Identification

In Fig. 2, we can see that only the central portion (segment C in Fig. 2.) of the

system call sequence is of relevance for similarity computation. Fig. 3 shows this

behavior clearly. At first, the shift is about 20, this is because the OS will load

different resource for different program, so their segment A has a little difference.

Then the shift jumps to 870, so after obfuscated by Themida, Themida add about 850

system calls before the segment of main program.

The system calls involved in other segments (A,B, and D) are common to

almost all executable files. Hence we can cut those irrelevant segments and use only

segment C in the similarity calculation. However, a small obstacle is that the system

calls in segment B actually depend on the types of the obfuscation tools in use. So we

have to build profiles for each different obfuscation tool in order to identify and

remove segment B effectively from an obfuscated binary executable. For an

obfuscated binary, its segment B typically consists of file and registry related system

calls such as NTCreateFile, NTDeleteFile, NTOpenFile, NTCreateKey, NTOpenKey

and NTQueryValueKey). The arguments to these system calls follow certain patterns

depending on the obfuscation tool in use. For example, Themida always contains the

15

To build the profile, we again use LCS to identify the common subsequence

across binaries obfuscated by a given packer. After running LCS over a certain

number of obfuscated binaries, the common subsequence that is left will include only

segment A,B, and D. Since segment A and D are due to the standard OS loader and

un-initialization code, we can manually trim them away and build the profile that

contains only the isolated segment B for the given packer. The profile can later be

used to remove segment B from an obfuscated binary.

Chapter 4 System Implementation

We implemented a system to capture the system call sequence of a running bot

program and perform classification based on the captured call sequence against a

database of known bot agents. In this section, we give an overview of the system

NTOpenKey

\Registry\Machine\Software\Microsoft\Windows NT\CurrentVersion\Image File Execution

Options\winmm.dll NTOpenKey \Registry\Machine\Software\Microsoft\Windows NT\CurrentVersion\DRIVERS32 NTQueryValueKey wave NTQueryValueKey wave NTQueryValueKey wave1 NTQueryValueKey wave2 NTQueryValueKey wave3 NTQueryValueKey wave4 NTQueryValueKey wave5 NTQueryValueKey wave6 NTQueryValueKey wave7 NTQueryValueKey wave8

16

architecture and the execution flows.

4.1 System Architecture

The system consists of 4 components: (1) Controller, which coordinates the

execution and analysis environment; (2) Recorder, which extracts the system call

sequence from dynamically instruments a running bot program via PIN tools[20] and

captures the system calls from a running bot binary; (3) Classifier, which classifies a

bot sample by identifying similar bot samples from the database; and (4) Database for

storing the system call sequences of bot samples known to the system.

Fig. 6 Architecture Diagram

Fig. 6 shows the execution flow among the function blocks. First, the controller

fetchs a bot sample from the storage. It then invokes the recorder, which executes the

bot sample with PIN. The recorder records all the system calls invoked by the bot

sample during its execution. The name of the bot sample and the invoked system calls

are stored in the database for subsequent classification. Finally, the classifier identifies

known bots from the database that are similar to the one just analyzed.

4.2 Recorder Implementation

Dynamic analysis of a binary executable can be achieved in three popular ways.

17

function (the recorder). This method only handles the coarse system calls and does not

provide fine-grained details such as the processor instructions executed. API hooking

can be detected by inspecting the Export Address Table(EAT) and Import Address

Table(IAT)[21]. Bots with anti-analysis mechanism may quit its execution early on

when hooks from malware analysis tools are detected.

The other method is running the bot sample inside an emulator such as

QEMU[22] and monitoring its behaviors via the emulator. Because the whole system

is emulated, the monitoring can be done in fine-granularity at the instruction-level.

However, some existing works[14] using this method needs to modify the source of

an emulator. This limits them can only use open-sourced emulator like QEMU.

The approach we use is binary code instrumentation. It dynamically instruments

the monitoring code into a running binary whenever a certain condition is reached.

(e.g. a system call is about to be invoked.). This approach does not involve

API-hooking and runs much faster than the emulator-based approach as most of the

time the binary is executed directly on the processor hardware. After the injection

stage, some bots will create another child process for waiting commands, and stop

itself. We do not continue monitor the child process because the system calls in the

injection stage is enough to classify.

Fig. 7 How PIN records system calls

18

system call ID in the register EAX and the address of argument in register EDX. The

program then uses SYSENTER instruction to invoke the syscall handler in the OS

kernel.

The just-in-time compiler of PIN can monitor SYSENTER instruction. We

register a function to PIN by PIN_AddSyscallEntryFunction() API at callback_before ,

so that the Recorder module can know the program will invoke a system call.

In the callback function, we use the following PIN APIs to get the information of

the thread ID, system call ID, and system call arguments:

Table 1 The PIN APIs used in the recorder module

API name Purpose

PIN_GetSyscallNumber Get system call ID

PIN_GetTid Get ID of the thread that invokes SYSENTER PIN_GetSyscallArgument Get the Nth variable at the argument

System call ID and thread ID can be directly stored in the database. However, the

arguments need to be further processed according to the argument types (e.g. a pointer,

an integer, a long integer, and etc.) Take NTQueryValueKey for example, its prototype

declaration looks like:

NTSTATUS ZwQueryValueKey( __in HANDLE KeyHandle,

__in PUNICODE_STRING ValueName,

__in KEY_VALUE_INFORMATION_CLASS KeyValueInformationClass, __out_opt PVOID KeyValueInformation,

__in ULONG Length,

__out PULONG ResultLength );

In this system call, some of the variables are pointers (e.g. KeyValueInformation

ValueName, and ResultLength), and some are integer values (e.g. Length). We only

19

extracts the string pointed ValueName and ignore all the other arguments. The

processed arguments will be stored along with the system call ID into the database.

Chapter 5 Experimental Studies

We design three experiments to verify our proposed algorithm and system design.

First we evaluate the correctness rate of grouping same bots by applying our

algorithm to same bot with different obfuscation tools. Then we measure the

correctness rate of distinguish different bots by applying our algorithm to different

bots with the same obfuscation tool. Finally we shows the execution time with and

without our recorder module.

To evaluate the correctness and efficiency of the proposed algorithm and overall

system design, we implement a testbed and conduct the following two experiments: (1)

10 random bot agents are chosen and obfuscated with ASProtect, Themida and UPX.

We then feed the obfuscated bot agents to our classification system and measure the

classification accuracy by counting the number of correctly classified bot agents, (2)

estimating the execution overhead of PIN by comparing the running time of a bot

20

5.1 Experiment Environment

Fig. 8 Experiment environment

In the experiment environment shown in Fig. 8, a database is used for storing bot

agent binary executables and their system call sequences, which are later collected by

the recorder module in Sec. 4.2. The controller module loads a bot agent from the

database and runs the bot in a virtual machine running Windows XP. The recorder

module then collects the system call sequence from the bot agent while it is running.

The virtual machine (VM) makes it easy to fall back to a clean system state before

processing the next bot agent. For the virtual machine, we use VirtualBox, which is

free and comes with a command line interface (CLI) for controlling virtual machine.

The CLI facilitates the experiment process as the instantiation of a clean VM can be

automated via scripts. Inside the virtual machine, we use the version of Windows XP

prior to service pack 1 to ensure the maximal compatibility with the bot being

analyzed (e.g. DEP in Windows XP might prevent some of the bots from being

successfully executed.). All the machines are connected to the Internet through a NAT

firewall to prevent malicious traffic from the Internet to interfere with the experiment

testbed while allowing bot agents to make connections to the C&C server.

21

samples. These 10 bot agents are packed with different obfuscation tools - ASProtect,

Themida and UPX. This results in 40 test targets in total (10 original plus 10 from

each obfuscation tool).

Table 2 List of Bots used in the experiment

Id md5 hash Kaspersky Sophos

1 ea46b4606531d28474e06cb4cd060c71 Backdoor.Win32.Anibot.b Mal/IRCBot-B 2 c1ed6261902ebc178f55159ca1b061b1 Backdoor.Win32.Afbot.a Mal/IRCBot-C 3 d7b32cc7056f37eb8ccf0d1f472d8e5b Backdoor.Win32.Rbot.gen W32/Rbot-Gen 4 fa29f9048e3b57705e97583d70f00ba1 Backdoor.Win32.Agobot.gen W32/Agobot-Gen 5 f1f9f762f899a24a2d71a35c4b825db8 Backdoor.Win32.Rohbot.a Mal/Generic-A 6 69fd63dade7cd4f8878c6e80084069fb Backdoor.Win32.Rbot.gen W32/Rbot-Fam 7 4aac3724863070dc422ad0dc0a39a5af Backdoor.IRC.Botva.b Troj/Bckdr-MPJ 8 8a87d88714f2017e2cdd74912449e7cf Backdoor.Win32.DevBot.b Troj/DevBot-B 9 c3207feb5160c71227dbd92cc3fe4e53 Backdoor.Win32.DaSBot.12 Mal/Generic-A 10 0ce8ccbd76e6126ed10350fd70c37d98 Backdoor.Win32.PoeBot.a W32/Poebot-Gen

5.2 Static Analysis Experiment

Fig. 9 PEiD analysis result

22

tool for detecting the existence of obfuscation tool. From the PEiD scan, it finds that

41.2% of the samples are obfuscated. This highlights the rampancy of obfuscated bot

samples and justifies the need for better analysis and classification techniques in

dealing with bots.

Table 3 Static analysis result (AV engines v.s. obfuscation tools) ID Anti Virus Non-obfuscate

d

ASProtect Themida UPX

1 Antivir TR/Dldr.Small.c af.3 TR/Download er.Gen TR/Crypt.TP M.Gen TR/Dldr.Small.caf .3 Kaspersky Backdoor.Win3 2.Anibot.b N/D1 N/D Backdoor.Win32. Anibot.b NOD32 Win32/Genetik Win32/Geneti

k

N/D Win32/Genetik Sophos Mal/IRCBot-B Sus/Behav-32

5 Mal/Behav-28 5 Mal/IRCBot-B 2 Antivir BDS/Backdoor. Gen N/D TR/Crypt.TP M.Gen BDS/Backdoor.Ge n Kaspersky Backdoor.Win3 2.Afbot.a N/D Packed.Win3 2.Black.a Backdoor.Win32. Afbot.a NOD32 Win32/IRCBot. OY Win32/IRCB ot.OY N/D Win32/IRCBot.O Y

Sophos Mal/IRCBot-C Sus/Behav-32 5 Mal/Behav-28 5 Mal/IRCBot-C 3 Antivir EXP/DameWar e.ggg TR/Download er.Gen TR/Crypt.TP M.Gen WORM/Rbot.21 0944 Kaspersky Backdoor.Win3 2.Rbot.gen TR/Crypt.TP M.Gen N/D Backdoor.Win32. Rbot.gen NOD32 Win32/Rbot Win32/Rbot Win32/Rbot Win32/Rbot sophos W32/Rbot-Gen Sus/Behav-32

5 Mal/Behav-28 5 W32/Rbot-Gen 4 Antivir BDS/Agobot.3. 200704 N/D TR/Crypt.TP M.Gen BDS/Sdbot.Q.Plu s Kaspersky Backdoor.Win3 2.Agobot.gen N/D N/D Backdoor.Win32. Agobot.gen NOD32 Win32/Agobot Win32/Agobot N/D Win32/Agobot sophos W32/Agobot-G en Sus/Behav-32 5 Mal/Behav-28 5 W32/Agobot-Gen 5 Antivir TR/Crypt.FKM. Gen TR/Crypt.FK M.Gen TR/Black.Ge n2 TR/Crypt.FKM.G en Kaspersky Backdoor.Win3 2.Rohbot.a N/D N/D Backdoor.Win32. Rohbot.a NOD32 unknown NewHeur_PE N/D N/D unknown NewHeur_PE sophos Mal/Generic-A Sus/Behav-10

21

Mal/Behav-28 5

Mal/Generic-A

23

To show how obfuscation can easily fool state-of-the-art static analysis, we use

Jotti's malware scan to scan the sample #1 to #5 at Table 2. Jotti integrates multiple

scan engines. All of these files are scanned at May 5, 2010. Both the original

unpacked bot binaries and the obfuscated versions are scanned by this scanner. From

Table 3, all four anti-virus scanners correctly identify the five bots in the original

forms. However, with obfuscation, both false positives and false negatives are

observed, which are shown in bold text in Table 3. All four anti-virus tools can

effectively decrypt UPX-packed bots because UPX simply compresses an executable

without involving any obfuscation. ASProtect change the program structures

substantially and fool the analysis from these anti-virus scanners quite effectively. For

sample #6 to #10, they also show the same tendency that AV tools are affected by

obfuscation.

5.3 LCS Similarity of Bot Variants Created by Obfuscation

This experiment shows the LCS similarities between bot variants created by

obfuscating a bot sample with different packers. The test targets include the 10 bot

samples without any obfuscation listed in Table 2 (denoted as group A). We obfuscate

each of those 10 bot samples with ASProtect to create ASProtect-obfuscated test

targets (denoted as group B). Similarly, we have Themida-obfuscated test targets

(group C) and UPX-obfuscated test targets (group D).

Ideally, the similarities between two test targets from the same bot sample should

be 1, which means that the two targets belong to the same class. Detailed results are

shown as Table 4. In each cell, the value on the first line corresponds to the LCS

similarity S(X,Y) (Eq.1). Values on the second line correspond to the Gap Shift values

(Eq.2):

Table 4 Similarities between test targets derived from the same bot sample

24

Sample #1 Sample #2 Sample #3

B C D B C D B C D A 0.95 0.01 0.97 0.01 0.99 0.01 A 1 0.03 0.98 0.04 1 0.01 A 0.99 0.01 0.95 0.01 1 0.01 B - 0.54 0.01 0.95 0.01 B - 0.78 0.05 1 0.01 B - 0.99 0.02 0.99 0.01 C - 0.97 0.01 C - 1 0.01 C - 0.95 0.01

Sample #4 Sample #5 Sample #6

B C D B C D B C D A 0.81 0.01 0.99 0.03 0.99 0.01 A 0.96 0.01 0.98 0.01 0.99 0.01 A 0.93 0.01 0.99 0.01 0.99 0.01 B - 0.57 0.01 0.81 0.01 B - 0.91 0.02 0.99 0.01 B - 0.77 0.05 0.93 0.01 C - 0.99 0.03 C - 0.98 0.01 C - 0.94 0.01

Sample #7 Sample #8 Sample #9

B C D B C D B C D A 0.98 0.01 0.94 0.01 0.98 0.01 A 0.98 0.01 0.98 0.01 0.99 0.01 A 0.98 0.01 0.91 0.01 0.99 0.01 B - 0.21 0.03 0.98 0.03 B - 0.55 0.01 0.99 0.01 B - 0.59 0.07 0.98 0.01 C - 0.94 0.03 C - 0.98 0.01 C - 0.91 0.01 Sample #10 B C D A 0.78 0.04 1 0.01 1 0.01 B - 0.35 0.04 0.78 0.04 C - 1 0.01

Table 4 shows that on the same bots, the similarity values are consistently high

and R values are consistently low. Segment Identification can improve the accuracy of

LCS similarity greatly. For instance, if we turn off segment identification, the LCS

similarity between B and C in Sample #5 will drop from 0.91 to 0.79.

5.4 LCS Similarity across Different Bot Samples

This experiment evaluates the LCS similarities across 10 different bot samples. It

shows the range of S and N values is different than Sec.5.3. This is conducted on four

batches of experiments. First, we calculate the pair-wise LCS similarities from the 10

25

similarities on ASProtect-obfuscated bot samples with the result shown in Table 5B.

The results with Themida-obfuscated bot samples and UPX-obfuscated bot samples

are presented in Table 5C and Table 5D respectively.

Table 5 Numeric result on the same obfuscation samples A. Non-obfuscated bots 2 3 4 5 6 7 8 9 10 1 0.61 0.33 0.58 0.18 0.74 0.17 0.68 0.61 0.40 0.16 0.31 0.30 0.65 0.18 0.36 0.27 0.46 0.5 2 - 0.75 0.08 0.91 0.32 0.77 0.63 0.69 0.27 0.24 0.31 0.40 0.17 0.56 0.25 0.93 0.17 3 - - 0.91 0.16 0.74 0.71 0.62 0.17 0.25 0.16 0.43 0.02 0.45 0.26 0.89 0.06 4 - - - 0.65 0.63 0.94 0.14 0.83 0.10 0.95 0.13 0.72 0.23 0.60 0.20 5 - - - - 0.69 0.62 0.64 0.54 0.65 0.60 0.72 0.54 0.56 0.34 6 - - - 0.41 0.13 0.65 0.20 0.83 0.02 0.86 0.21 7 - - - 0.23 0.22 0.27 0.27 0.77 0.12 8 - - - 0.50 0.27 0.81 0.26 9 - - - 0.20 0.28

B. ASProtect obfuscated bots

2 3 4 5 6 7 8 9 10 1 0.47 0.29 0.70 0.11 0.77 0.05 0.94 0.06 0.58 0.08 0.50 0.13 0.76 0.11 0.56 0.13 0.80 0.09 2 - 0.62 0.09 0.51 0.25 0.34 0.38 0.48 0.27 0.23 0.27 0.39 0.18 0.43 0.24 0.32 0.25 3 - - 0.92 0.03 0.92 0.1 0.68 0.14 0.42 0.08 0.94 0.01 0.58 0.16 0.79 0.10 4 - - - 0.90 0.10 0.77 0.04 0.92 0.04 0.89 0.08 0.76 0.04 0.22 0.34 5 - - - - 0.94 0.07 0.90 0.07 0.94 0.11 0.95 0.08 0.28 0.17 6 - - - 0.50 0.08 0.70 0.14 0.90 0.02 0.17 0.33 7 - - - 0.36 0.12 0.40 0.04 0.14 0.32 8 - - - 0.61 0.16 0.47 0.23 9 - - - 0.20 0.28

C. Themida obfuscated bots

2 3 4 5 6 7 8 9 10 1 0.41 0.16 0.67 0.16 0.76 0.17 0.98 0.01 0.53 0.11 0.43 0.17 0.72 0.17 0.49 0.23 0.88 0.22 2 - 0.75 0.68 0.77 0.68 0.24 0.40 0.56 0.27

26 0.08 0.22 0.63 0.27 0.31 0.17 0.25 0.25 3 - - 0.90 0.07 0.74 0.71 0.62 0.17 0.25 0.16 0.93 0.02 0.45 0.26 0.26 0.15 4 - - - 0.72 0.13 0.91 0.1 0.87 0.03 0.88 0.07 0.76 0.24 0.76 0.16 5 - - - - 0.41 0.13 0.65 0.20 0.75 0.60 0.83 0.02 0.20 0.38 6 - - - 0.41 0.13 0.65 0.20 0.83 0.02 0.20 0.38 7 - - - 0.23 0.22 0.27 0.27 0.10 0.52 8 - - - 0.50 0.27 0.47 0.23 9 - - - 0.20 0.33

D. UPX obfuscated bots

2 3 4 5 6 7 8 9 10 1 0.61 0.33 0.58 0.18 0.46 0.5 0.68 0.61 0.40 0.16 0.31 0.30 0.65 0.18 0.36 0.27 0.28 0.18 2 - 0.75 0.08 0.93 0.17 0.77 0.63 0.69 0.27 0.24 0.31 0.40 0.17 0.56 0.25 0.27 0.25 3 - - 0.89 0.06 0.74 0.71 0.62 0.17 0.25 0.16 0.43 0.02 0.45 0.26 0.27 0.15 4 - - - 0.57 0.31 0.86 0.2 0.78 0.10 0.51 0.25 0.86 0.21 0.35 0.42 5 - - - - 0.69 0.62 0.64 0.54 0.65 0.60 0.72 0.54 0.57 0.61 6 - - - 0.41 0.13 0.65 0.20 0.83 0.02 0.20 0.38 7 - - - 0.23 0.22 0.27 0.27 0.10 0.52 8 - - - 0.50 0.27 0.47 0.23 9 - - - 0.20 0.33

This result shows the LCS similarities between different samples are indeed

lower than the LCS similarities between variants of the same sample (give reference

to the previous section). Some of the pairs have high LCS similarity values. However,

their Gap Shift values ( ) are also high (see Sample 2 v.s. 4 in Table 5A). Therefore

the formula (3) is a good criteria for deciding whether two sample are similar.

5.5 Choosing the threshold values for S and R

In order to determining the threshold values TS and TR, we plot the curve of

classification correctness vs. TS and also the curve of classification correctness vs. TR.

For the classification correctness, we consider both the correctness on identifying

27

class of bot variants (#_of_pairs_above_TS_in_Table 4 / #_of_pairs_in_Table 4), and

the correctness on distinguishing different samples (#_of_pairs_below_TS_in Table 5/

#_of_pairs_in_Table 5).

Fig. 10 LCS correctness threshold

We consider 60% as an appropriate threshold value for LCS similarity

because for identifying class of bot variants created by obfuscating a source bot

sample with different packer tools, this achieves 90% correctness (i.e. for about 6 out

of the 60 pairs of the bot variants used in Table 4, the pair-wise LCS similarity is

incorrectly reported to be below 60%).

For distinguishing different bot samples, the classification correctness

(distinguishing them as unrelated bots) rises linearly when increasing the threshold

value for S. With the threshold value of 60%, the classification correctness on

distinguishing different bot samples is only about 40%.

28

Fig. 11 Gap Shift correctness threshold

To improve the correctness on distinguishing different bot samples, we need to

consider the gap shift value as well (Eq. 2). As shown in Fig. 11, if we choose 6%

as the threshold value TR for , we can correctly distinguish different samples with

94% probability while maintaining the correctness on identifying class of bot variants

at 90%.

5.6 Classification Result Comparison

Based on the threshold experiments in previous section, the samples in Table 2

can be classified into groups by our algorithms. Table 6 is the comparison of the

number of samples that classify correctly based on our algorithms and Anti-Virus

Engines. It shows our algorithms can classify more correctly.

Table 6 The rate of classified correctly in total samples

Our algorithms Antivir Kaspersky NOD32 Sophos

90% 68% 70% 80% 48%

5.7 Efficiency Experiment

As mentioned before, PIN Tool uses JIT compiler to instrument the target

program with check code dynamically. In this experiment, we want to observe the

R

29

overhead introduced by the instrumentation and the recorder module.

Fig. 12 Execution time with and without PIN

Fig. 12 shows the execution times for running bot samples directly (without PIN)

and with our recorder module (together with PIN). We use two samples (Agobot and

Rbot) for this experiment. We also examine the execution time for running the

obfuscated versions of the bots. We employ three obfuscation tools (B: ASProtet, C:

Themida, D:UPX, and A is without obfuscation). Overall, the overhead from using

our system is around 55%.

Chapter 6 Conclusions and Future Works

Our work aims at the classification of bot binaries, many of which are obfuscated

and immune to static analysis. We use a dynamic analysis tool called PIN to record

the system call sequence of a running bot. Because system call sequence defines the

interactions between a program (the bot binary) and the operating system, obfuscation

can hardly alter the sequence without breaking the interactions. We rely on this

30

basis of our classification framework.

For the classification, we define a similarity metric between two bots based on

the longest common subsequence of their system call sequences. Although

obfuscation can hardly change the original system call sequence in a bot binary, it

does introduce additional system calls into the obfuscated binary. Most of them are

due to the obfuscation packer's stub code. The additional system calls can result in

noises in the classification process. To reduce the noise, we inspect the system call

arguments to identify those system calls introduced by the packer and have them

filtered. Overall, our system can achieves classification correctness of more than 90%.

While some obfuscated programs have additional threads for detecting the

existence of debugger, no bot has been seen to use multi-thread at injection stage. If

multi-threading at the injection stage is observed, our system will take the system call

sequence in the main thread (the thread with the most system calls) for the analysis

and classification. In future work, the similarity metric can be extended to consider all

the system call sequences in a multi-threaded bot program.

The current system is based on an off-line process. It records the system call

sequence and then compares the sequence with sequences of known samples in the

database. In future work, we will attempt with an on-line analysis process, where the

31

Reference

[1] Y. Xie, V. Sekar, D. Maltz et al., “Worm Origin Identification Using Random Moonwalks,” in IEEE Symposium on Security and Privacy, 2005.

[2] M. Collins, and M. Reiter, “Hit-list worm detection and bot identification in large networks using protocol graphs,” Lecture Notes in Computer Science, vol. 4637, pp. 276-295, 2007.

[3] G. Gu, J. Zhang, and W. Lee, “BotSniffer: Detecting botnet command and control channels in network traffic,” in The 15th Annual Network & Distributed System Security Symposium, 2008.

[4] T. Yen, and M. Reiter, “Traffic aggregation for malware detection,” Lecture

Notes in Computer Science, vol. 5137, pp. 207-227, 2008.

[5] E. Carrera, and G. Erdelyi, “Digital genome mapping - advanced binary malware analysis,” in Virus Bulletin Conference, 2004.

[6] Z. Liang, T. Wei, Y. Chen et al., “Component Similarity Based Methods for Automatic Analysis of Malicious Executables,” in Virus Bulletin Conference, 2007.

[7] Q. Zhang, and D. Reeves, “Metaaware: Identifying metamorphic malware,” in Twenty-Third Annual Computer Security Applications Conference, 2007. [8] S. Cesare, and Y. Xiang, “A Fast Flowgraph Based Classification System for

Packed and Polymorphic Malware on the Endhost,” in 24th IEEE International Conference on Advanced Information Networking and Applications, 2010. [9] "ASPACK SOFTWARE - Best Choice Compression and Protection Tools for

Software Developers," [online], available from World Wide Web; http://www.aspack.com/asprotect.aspx.

[10] "Oreans Technology : Software Security Defined.," [online], available from World Wide Web; http://www.oreans.com/themida.php.

[11] "UPX: the Ultimate Packer for eXecutables - Homepage," [online], available from World Wide Web; http://upx.sourceforge.net/.

[12] U. Bayer, C. Kruegel, and E. Kirda, “TTAnalyze: A tool for analyzing malware,” in the 15th Annual Conference of the European Institute for Computer Antivirus Research, 2006.

[13] M. Bailey, J. Oberheide, J. Andersen et al., “Automated classification and analysis of internet malware,” Lecture Notes in Computer Science, vol. 4637, pp. 178-197, 2007.

[14] A. Moser, C. Kruegel, and E. Kirda, “Exploring multiple execution paths for malware analysis,” in IEEE Symposium on Security and Privacy, 2007.

32

[15] C. Willems, T. Holz, and F. Freiling, “Toward automated dynamic malware analysis using cwsandbox,” IEEE Security & Privacy, pp. 32-39, 2007.

[16] P. Trinius, J. Gobel, T. Holz et al., “Visual Analysis of Malware Behavior Using Treemaps and Thread Graphs,” in 6th International Workshop on Visualization for Cyber Security, 2009.

[17] J. Li, M. Xu, N. Zheng et al., “Malware Obfuscation Detection via Maximal Patterns,” in Third International Symposium on Intelligent Information Technology Application, 2009.

[18] "The secrets to MyDoom's success," [online], available from World Wide Web; http://antivirus.about.com/cs/allabout/a/mydoomddos.htm.

[19] C. Collberg, C. Thomborson, and D. Low, “A taxonomy of obfuscating transformations,” Technical Report 148, Department of Computer Science,

University of Auckland, 1997.

[20] "Pin - A Dynamic Binary Instrumentation Tool," [online], available from World Wide Web; http://www.pintool.org/.

[21] T. Keong. "ApiHookCheck Version 1.01," [online], available from World Wide Web; http://www.security.org.sg/code/apihookcheck.html.

[22] "QEMU," [online], available from World Wide Web; http://wiki.qemu.org/Main_Page.
