An Evolutionary Approach for Gene

Expression Patterns

Huai-Kuang Tsai, Jinn-Moon Yang, Yuan-Fang Tsai, and Cheng-Yan Kao

Abstract—This study presents an evolutionary algorithm, called a heterogeneous selection genetic algorithm (HeSGA), for analyzing the patterns of gene expression on microarray data. Microarray technologies have provided the means to monitor the expression levels of a large number of genes simultaneously. Gene clustering and gene ordering are important in analyzing a large body of microarray expression data. The proposed method simultaneously solves gene clustering and gene-ordering problems by integrating global and local search mechanisms. Clustering and ordering information is used to identify functionally related genes and to infer genetic networks from immense microarray expression data. HeSGA was tested on eight test microarray datasets, ranging in size from 147 to 6221 genes. The experi-mental clustering and visual results indicate that HeSGA not only ordered genes smoothly but also grouped genes with similar gene expressions. Visualized results and a new scoring function that references predefined functional categories were employed to confirm the biological interpretations of results yielded using HeSGA and other methods. These results indicate that HeSGA has potential in analyzing gene expression patterns.

Index Terms—Clustering, genetic algorithm (GA), gene clus-tering, gene expression, gene ordering, heterogeneous pairing selection (HpS), microarray.

NOMENCLATURE

GA Genetic algorithm.

TSP Traveling salesman problem.

HeSGA Heterogeneous pairing selection genetic algorithm.

EAX Edge assembly crossover.

NJ Neighbor-joining mutation.

HpS Heterogeneous pairing selection.

MIPS Munich information center for protein

sequence. Gene order.

Distance between two genes and . Sum of distances between pairs of adjacent genes in a linear ordering .

Manuscript received September 25, 2003; revised December 12, 2003. H.-K. Tsai is with the Department of Computer Science and Information Engineering, National Taiwan University, Taipei 106, Taiwan. R.O.C. (e-mail: [email protected]).

J.-M. Yang is with the Department of Biological Science and Technology, Institute of Bioinformatics, National Chiao Tung University, Hsinchu 30050, Taiwan, R.O.C. (e-mail: [email protected]).

Y.-F. Tsai is with the Department of Social Studies Education, National Taipei Teachers College, Taipei 106, Taiwan, R.O.C. (e-mail: [email protected]).

C.-Y. Kao is with the Department of Computer Science and Information En-gineering, National Taiwan University, Taipei 106, Taiwan. R.O.C., and also with the Bioinformatics Center, National Taiwan University, Taipei 106, Taiwan, R.O.C. (e-mail: [email protected]).

Digital Object Identifier 10.1109/TITB.2004.826713

Scoring function to estimate the biological significance by referencing MIPS functional categories.

I. INTRODUCTION

T

HE DEVELOPMENT of microarray technologies has enabled the monitoring of the expression levels of many genes simultaneously. Advances in microarray technologies have resulted in a significant increase in the amount of biolog-ical data available. Given thousands of genes and hundreds of experiments, a very large number of gene expression profiles must be analyzed.

Cluster analysis and displays of gene expression patterns are considered to be useful tools in analyzing a large amount of microarray data [1], [2]. Clustering methods group genes with similar patterns of expression [3]. The clustering results are then ordered linearly for display. Such clustering and ordering of gene expression information is the basis of identifying functionally related genes [4], [5] and inferring genetic networks [6], [7]. Clustering methods can be broadly divided into hierarchical and nonhierarchical clustering approaches. Hierarchical clus-tering approaches, which are extensively used [1], [8]–[12], group gene expressions into trees of clusters. They start with singleton sets and merge all genes until all nodes belong to only one set. The agglomerative nature of such hierarchical clustering methods may cause genes to be grouped according to local decisions [4], [13]. Nonhierarchical clustering ap-proaches, such as means [14], self-organizing map (SOM) [4], Bayesian clustering [15], CAST [16], and CLICK [17], separate genes into groups according to the degree of similarity (as quantified by Euclidian distances, Pearson correlation) among genes. The relationships among the genes in a particular cluster generated by nonhierarchical clustering methods are lost.

A gene-ordering method determines an order in which to dis-play smoothly the clustered genes. Finding an optimal order of genes is an nondeterministic polynomial time complete (NP-complete) problem [18], so some heuristic methods have been developed to generate gene orders [1], [9]. Bar-Joseph et al. [19] further applied dynamic programming to flip internal nodes and Herrero et al. [20] used neural networks to reorder the leaves in a hierarchical solution. These ordering methods sometimes stick at local minima.

Currently, most tools of analyzing microarray data separately executed gene clustering and gene ordering [1], [9], [13]. These tools often applied local search or greedy methods to analyze

(2)

70 IEEE TRANSACTIONS ON INFORMATION TECHNOLOGY IN BIOMEDICINE, VOL. 8, NO. 2, JUNE 2004

gene expression data. In this study, we proposed a GA, called HeSGA, integrating local and global search mechanisms, to si-multaneously solve gene clustering and gene ordering in ana-lyzing microarray data.

The GA, introduced by Holland [21], was first used to design and implement robust adaptive systems. DeJong [22] consid-ered GAs in relation to function optimization and Goldberg [23] considered them in relation to gas pipeline operations. GAs are inspired by Darwin’s theory of evolution. GAs solve problems in an evolutionary fashion. A GA begins with a set of solutions represented as chromosomes called a population. Genetic oper-ators, such as crossover and mutation operoper-ators, are applied to solutions in one population to generate new solutions. Solutions are selected to form new generations according to their fitness. GAs have been successfully applied to optimization prob-lems and some biological probprob-lems [24], [25]. However, general problem-independent GAs are normally not efficient in solving some specific problems. Numerous approaches, such as developing problem-specified operators [26], incorporating local searches [27], and maintaining the diversity of the popu-lation [28], have been proposed to improve GAs used to solve particular problems.

In this study, two key mechanisms are incorporated into HeSGA: 1) incorporating two problem-specific genetic op-erators, including local and global search mechanisms and 2) maintaining the diversity of population. The results of the authors’ earlier work have demonstrated that these mechanisms are effective in solving continuous optimization problems in some fields [29]–[31]. The main difference in methodology be-tween the present work and our previous studies is the addition of two problem-specific operators for efficiently optimizing the clustering and ordering of genes.

The proposed method was tested on eight test microarray datasets, ranging in size from 147 to 6221 genes. The experi-ments revealed that the results were comparable with those ob-tained by other methods. A new scoring function, referencing predefined functional categories, was also investigated to eval-uate the performance of the analytical tools. The score of the gene order obtained by the proposed HeSGA is strongly related to the real biological classes and is consistent with the biolog-ical meanings. The experimental clustering and visual results indicate that HeSGA can order genes smoothly and group genes with similar expressions.

II. PROBLEMDEFINITION

The spotted DNA microarray, developed at Pat Brown’s Lab-oratory in Stanford University [33], was developed especially for assaying gene expression. DNA microarrays are broadly applied in many biological applications, such as detecting mutation [34], [35], molecular evolution studies, molecular diagnosis [36], [37], functional genomics [38], [39], genetic mapping [40], and others. Gene clustering and gene ordering are important in analyzing very large bodies of microarray expression data. In clustering and ordering genes in an anal-ysis of gene expression data, a linear ordering of genes is

sought, such that genes with similar expression profiles are close to each other. An optimal gene order, a minimum sum of distances between pairs of adjacent genes in a linear ordering

can be formulated as [18]

(1)

where is the number of genes and is the

distance between two genes and . In this study, the centered Pearson correlation is used to specify the distance . For convenience of description, let

and be the expression

levels of the two genes in terms of log-transformed data obtained over a series of experiments. The distance between

and is

(2) where represents the centered Pearson correlation and is defined as

(3)

where and are the mean and standard derivation of the gene , respectively. Now

(4)

The value of is between 1 and 1 and the value of in (1) ranges from zero to two. Intuitively, if two genes are similar, then the distance between them is short.

The formula (1) for optimal gene ordering is the same as that used to determine the shortest Hamiltonian path through a set of cities on the condition that each city is visited only once. This problem is equivalent to an ( )-city TSP with an additional city whose distance from all the other cities is zero. TSP is well known to be NP-complete [41]. This paper presents a robust GA to solve this problem.

Ordered genes are flexible and can be easily transformed into various clusters and hierarchical trees according to the conditions or requirements [42]. Users and biological experts can use the information provided by the ordering to identify clusters and interpret those microarray data. Fig. 1 presents an example of the construction of a hierarchical tree by the pro-posed procedure [42]. Given the order of genes , the score associated with swapping two adjacent genes is defined as

. The two neighboring genes with the minimum score of all pairs of genes are connected. Assume that and are connected; these two genes are replaced by , and the

gene order is updated as .

The distance between and , , is given by

. Repeat the substutions until all genes are connected in a single tree.

(3)

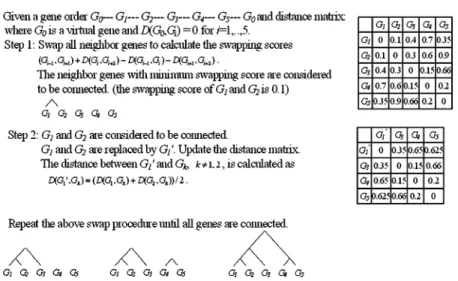

Fig. 1. Steps and an example of constructing a hierarchical tree from a given gene order. This approach [42] is able to transform an order gene into different clusters.

III. HETEROGENEOUSSELECTIONGENETICALGORITHM

The HeSGA consists of a new NJ, an EAX [26], a new HpS, and a family competition. The EAX and NJ are used to preserve adjacent genes with similar expressions globally and locally, respectively. The family competition and the HpS maintain the diversity of the population. Notably, a good edge is one that connects adjacent genes with similar expression profiles.

The NJ mutation, a local search mechanism, can align two genes with similar expression levels. The EAX, a global search mechanism, based on graphical theories, has been considered to be an effective crossover operator for TSPs [43]–[46]. The EAX and the NJ mutation generate offspring by preserving good edges from parents and adding new edges heuristically. The HpS selects two parents according to similarities among edges in a population for applying crossover operators to reduce the pre-maturity effects. Finally, the family competition, derived from ( )-ES [47] and the Lin–Kernigan heuristic, is the local search procedure for the optimal solution.

Fig. 2 depicts the main steps of the HeSGA. The initial pop-ulation includes chromosomes. Each chromosome repre-sents a gene order , where and is the size of the population. Consider genes; the chromosome is rep-resented as

(5) After the fitness is evaluated from (1), each individual in the population sequentially becomes the “family father ( )” such that by HpS can select another individual and produce some offspring by the EAX and family competition. The individual with the lowest fitness value among and its offspring becomes the intermediate solution. The NJ then refines the intermediate solution to generate a child ( ). Each individual in the popula-tion sequentially undergoes the above steps to generate its child. These solutions ( ) become the population of the next generation.

The algorithm terminates when one of following criteria is satisfied: 1) the maximum preset search time is exhausted; 2) all individuals of a population are the same; or 3) all of the children generated over five generations are poorer than their parents.

Fig. 2. Overview of the proposed GA (HeSGA).

Notably, both crossover and mutation rates are one. HpS, EAX, and NJ are briefly described below.

A. HpS

The HpS selects each “family father ( )” and another in-dividual from the current population according to the edge similarity to which the crossover operators, such as EAX, are applied. The HpS reduces the probability of becoming trapped at a local optimum by avoiding incest. The formulation and implementation of the HpS is as follows. Let

be the current population, be the set of the edges of the

solution , and be the number of edges of .

The number of identical edges of two individuals (

(4)

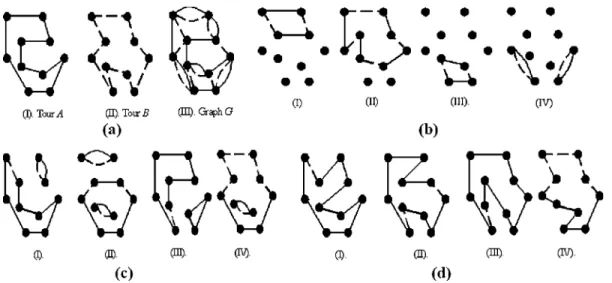

Fig. 3. Steps and an example of the EAX crossover operator. (a) Given toursA, B, the graph G is obtained by overlapping tours A and B. (b) The instances of the division of undirected edges intoAB cycles on G. (I), (II), and (III) are effective AB cycles, while the AB cycle in (IV) is ineffective. (c) Four examples of EAX individually apply someAB cycles on A. (I), (II), and (III) are the results of applying the AB cycles shown in (b-I), (b-II), and (b-III), respectively. (c-IV) is the result of applying both (b-I)AB cycle and (b-II) AB cycle on A. (d) Four valid individuals are derived from (c) by applying a greedy method.

For each individual , let be the average number of iden-tical edges shared by and the other individual in the

popula-tion, where , and is the size

of the population. The EAX operator is applied to an individual , and another individual with , selected by the HpS. HpS randomly chooses individuals until the criterion

is met.

In the practical implementation, another method was used to calculate because the temporal complexity of obtaining all by calculating is . At the beginning of each generation , the number of times edge appears in the cur-rent population, is calculated according to

. The sum of the values of over all in the population, is

Therefore, becomes

Hence, all values can be calculated in , by looking up the precalculated table. The EAX crossover also uses , so little extra effort is required to calculate .

B. EAX

The EAX has two important characteristics: it preserves par-ents’ edges in a novel way and adds new edges using a greedy method, analogous to the method of constructing a minimal spanning tree. The EAX is briefly described here. Two individ-uals, and , are selected as parents. The EAX first merges and into a single graph, [Fig. 3(a)]. The EAX traverses to generate various cycles by alternately selecting edges

from parents and . Fig. 3(b) depicts some examples of cycles. According to the heuristic and random selection rules, some cycles are selected to generate a quasi-solution that includes some disjointed subtours [Fig. 3(c)].

The EAX then follows a greedy method to merge these sub-tours into a valid solution [Fig. 3(d)]. This solution is returned if the fitness of this solution exceeds that of its parents. Other-wise, the procedure is repeated until a solution that is fitter than both and is obtained or children are generated where is the family competition length. EAX is used to preserve adjacent genes with similar global expressions.

C. NJ Mutation

Fig. 4(a) presents the steps of the NJ mutation. The NJ muta-tion generates children from a start solution given a family competition length . The NJ mutation involves the following steps to generate a child. First, a city is randomly selected from . With equal probability, another city is either ran-domly selected from the geometrically nearest three neighbors to the city or the neighboring cities of in another individual, which is randomly selected from the population. If the edge be-tween cities and is absent from , then cities and are re-connected and four types, presented in Fig. 4(b), are generated. Of these four candidates and , the one with the best objective value is selected as the parent for the following loop of the NJ mutation.

The invert operator was used to connect the cities and for Types I and II in Fig. 4(b). For Types III and IV, a greedy method is used to merge two disjoint subtours into a valid solu-tion. The greedy method is as follows. Let represent a city; let , , represent an edge of length . Moreover,

let and be the edges of the subtours and

, respectively. A pair of new edges and

is determined to connect these two subtours, and , into a valid tour by maximizing

(5)

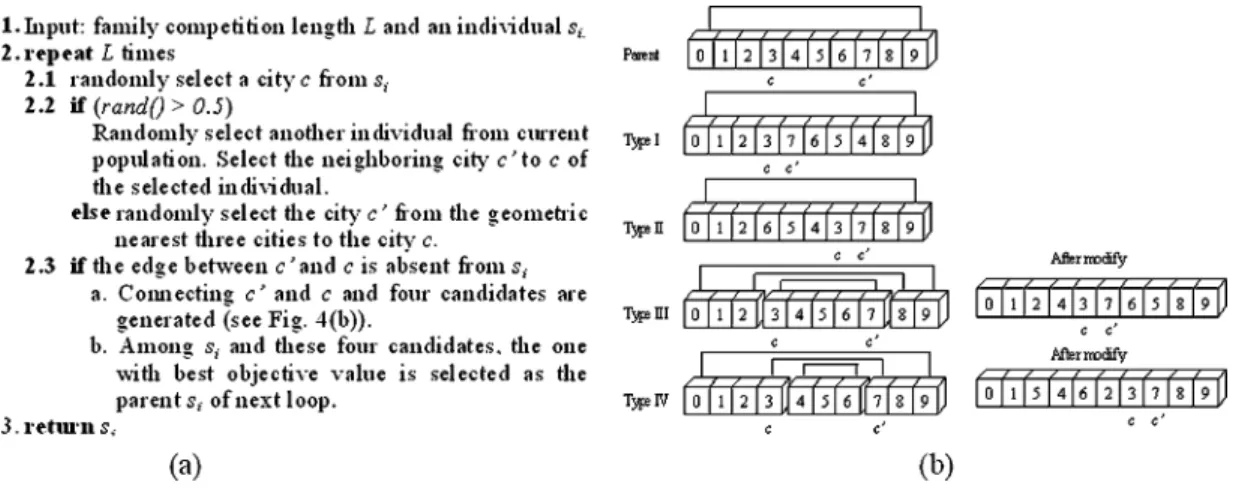

Fig. 4. Pseudocode and examples of the NJ mutation operator. (a) The NJ mutation algorithm. (b) Citiesc and c are reconnected and four candidates are generated. The invert operator is applied to connect the citiesc and c . For type III and type IV, a greedy method is used to merge two subtours into a valid solution.

TABLE I

RESULTS OFHeSGA TESTED ON15 TSP PROBLEMSTAKENFROMTSPLIB [51] BASED ON THEAVERAGECPU TIME(TIME),THENUMBER OFTRIALSFINDING THEOPTIMALSOLUTION(OPTTIMES),ANDMEANQUALITY OF THESOLUTION

(ERROR). THEERROR(%)ISDEFINED AS(AVERAGE-OPTIMUM)/OPTIMUM

WHEREAVERAGE IS THEAVERAGEVALUE OF30 INDEPENDENTTRIALS AND

OPTIMUM IS THELENGTH OF THEOPTIMALTOUR FOREACHTESTPROBLEM

The new edges and replace the original

edges and to generate the new solution. In

fact, only the 20 cities nearest each city are considered. IV. RESULTS ANDDISCUSSION

In this section, HeSGA is first applied to several TSP benchmarks to evaluate its robustness (Table I). The HeSGA is compared with some other methods [48]–[50], which were efficient for solving TSPs according to our surveys (Table II). Microarray data analysis is a competitive field, and no deci-sive measure of the performance of methods is available. In this study, HeSGA was applied to eight practical microarray datasets (Table III), taken from earlier studies, to elucidate the performance of HeSGA and compare HeSGA with several well-known clustering (ordering) methods [1], [4], [19]. Two scoring functions, the gene-ordering formula (1), and the biological categories formula (7), were applied to evaluate the performance and derive the biological meaning of the results. The clustering and ordering of genes by the compared methods

were also visualized (Fig. 5). Finally, the two scoring functions and visualized results of microarray analysis were discussed.

A. Performance of HeSGA on TSP

HeSGA was implemented in C++ and executed on a Pen-tium III 500 MHz personal computer with a single processor. HeSGA was tested on 17 TSP benchmarks, with from 101 to 13 509 cities. Each problem was tested over 30 trials. The value of was set as 20. The size of the population ( ) was set to the number of cities in problems that involved fewer than 1000 cities, and half of the number of cities in larger problems.

Table I lists the results obtained using HeSGA to these problems, including execution time (time), the number of trials required by HeSGA to determine the optimal solution (opt

times), and the mean quality of the solution (error) over 30

trials. As presented in Table I, HeSGA can find an optimal solution to each problem in at least 27 out of 30 independent trials. The mean error for each problem is only 0.004% from the optimal solution. The result of testing HeSGA on these TSPs is promising.

HeSGA was compared with some Lin–Kernighan (LK)-based heuristic methods, including Concorde LK [48], chained LK (CLK) [48], Johnson LK [49], iterative LK (ILK) [49], and Tabu search with LK [50], yielding results presented in Table II, to show the robustness of HeSGA on large TSPs. These five methods performed well on these test problems, according to the results of the “8th DIMACS Implementation Challenge: The Traveling Salesman Problem” (http://www.research.att.com/~dsj/chtsp/). The size of the problem usa13509 is set to 4000, due to memory limitations.

Table II reveals that the HeSGA outperforms other LK-based approaches in testing problems. The HeSGA can determine the optimum and the mean solution quality is no more than 0.000 48 above the optimum for each testing problem, although the HeSGA is somewhat slower than these other methods. For a large problem, usa13509, ILK is around 50 times faster than HeSGA with a population size of 4000. Fortunately however, when the population size is 100, the running time for HeSGA is approximately that of ILK and the average tour length is 20 014 159 (0.001 566), which is slightly better than that of ILK.

(6)

TABLE II

COMPARISONHeSGA WITHSOMEOTHERLK-BASEDMETHODS ONEIGHTLARGETSP PROBLEMSBASED ON THEAVERAGETOURLENGTH AND THEERROR, DEFINED ASAVERAGE-OPTIMUM)/OPTIMUM. THESELK-BASEDRESULTS AREDIRECTLYSUMMARIZEDFROMPREVIOUSSTUDIES,

INCLUDINGCONCORDELK [48], CLK [48], JOHNSONLK [49], ILK [49],ANDTABUSEARCHWITHLK [50]. THELENGTH OF THEOPTIMALTOUR OFEACHPROBLEM IS INBRACKETS IN THEFIRSTCOLUMN

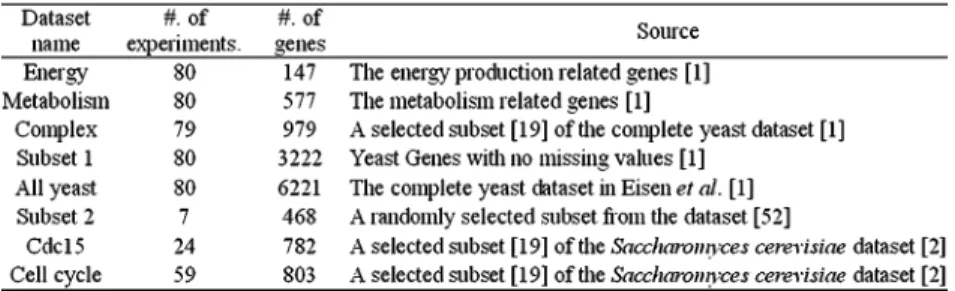

TABLE III

SUMMARY OFEIGHTTESTMICROARRAYDATASETSCONSISTS OF THEDATASETNAME,THENUMBER OFEXPERIMENTS,THENUMBER OF GENES,AND THEDATASOURCE

B. Microarray Datasets

Table III presents the eight tested biological datasets, selected from three independent microarray experiments on

Saccha-romyces cerevisiae, [1], [2], [52]. Each dataset is selected either

randomly or according to biological functionality, such as energy production and associated metabolism. The numbers of genes in the datasets range from 147 to 6221, and the numbers of experiments range from 7 to 80. Functional catalogues, defined in the MIPS yeast complexes database, are used herein (http://www.mips.biochem.mpg.de/proj/yeast/catalogues).

MIPS categorizations, in a tree-like structure, were made by classifying around 6450 ORFs (open reading frames) into cate-gories and subcatecate-gories. On first level of the tree, 3936 ORFs fall into at least one of the 17 defined categories, while 2514 ORFs classified as “unknown” or “not yet clear-cut.”

C. Comparing Fitness of Orderings

Table IV summarizes the results obtained by the proposed method and five other approaches, based on the score used to op-timize gene ordering (1). Single-link [53], complete-link [54], and average-link [55] are three extensively used hierarchical clustering approaches. The SOM [4] maps grids into dimen-sional space and moves data points according to their distance. Software provided by Eisen et al. [1] was used to obtain the results of the above four methods. Joseph et al. [19] improved

the average-link hierarchical clustering: by flipping the internal nodes to maximize the sum of the similarities between adjacent leaves. In this work, Joseph’s method is implemented as in his original paper.

Table IV indicates that the HeSGA seems more robust than the comparative methods on eight testing problems, as measured by the lowness of the values of that they found. The proposed algorithm consistently yielded the lowest fitness score using the test dataset. The quality of the solution obtained by of Joseph’s method was the second best. The following subsections elucidate the relationship between and the real biological meaning using a perfect scoring function and visualization.

D. Biological Interpretation

A new scoring function is investigated by referencing MIPS predefined functional categories to determine that is biologically relevant. The biological hypothesis tested by microarray data analysis is that genes with a common func-tional role exhibit similar expression patterns across different experiments. This hypothesis is an approximation to a common biological reality, and is useful for determining the approximate distribution of groups. Based on this hypothesis, a new scoring function is defined, based on the functional categories defined in the MIPS yeast complexes database.

(7)

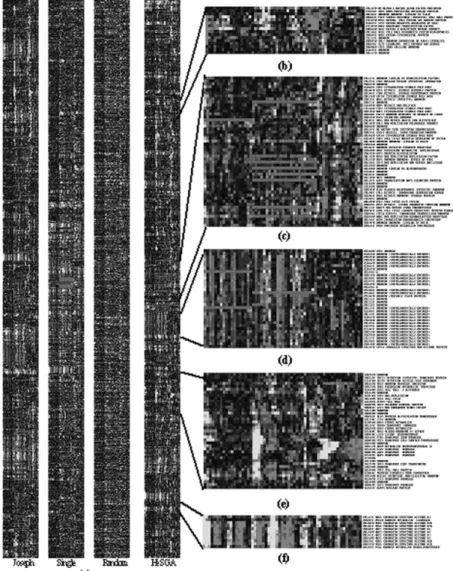

Fig. 5. Comparing HeSGA with three methods (Joseph’s method, single-linkage method, and random permutation) on visualized gene expressions associated with gene orders obtained on the cell cycle data [2]. The expression profiles are represented as lines of gray boxes, each of which corresponds to a single experiment. (a) These visualized results of HeSGA, Joseph’s method, and the single-linkage method are consistently more organized than those generated by random permutation. (b)–(f) Some grouped genes obtained by HeSGA have similar expression patterns and are coexpressed in each group: (b) mating related; (c) mitosis and cytoskeletal related; (d) subtelomerically encoded proteins; (e) transport permeases; and (f) chromatin structure histones.

TABLE IV

COMPARISONSWITHSINGLE-LINKAGE, AVERAGE-LINKAGE, COMPLETE-LINKAGE, SELF-ORGANIZINGMAP,ANDJOSEPH[19]ONEIGHT BIOLOGICALDATASETSBASED ON THEGENEORDERINGFUNCTION,t() (1)

Each gene (or ORFs) that has undergone MIPS cate-gorization belongs to at lest one category, so, a vector was used to represent the category status of each gene , where is the number of categories. The value of is one if gene is in the th category; otherwise is zero.

Based on the information about categorization, the score of a

gene order is

(8)

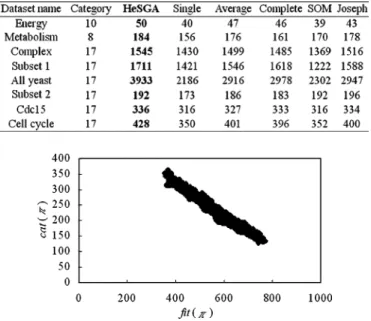

Fig. 6. Example of calculatingcat() (7): V (g) is the category vector of the geneg and G(g ; g ) is the distance between genes g and g .

where is the number of genes, and are the adjacent

genes, and is

(8)

The score of a gene order is high if the genes in the same group are aligned. If the score is the highest possible, then genes are correctly classified. Fig. 6 presents an example in which is calculated. The scoring function (7) is perfect for interpreting biological meaning because it is based on predefined biological categories of the tested microarray data.

The scoring function (7) yields the scores of the solu-tions (Table IV) obtained by the proposed method and the five other methods. HeSGA was also the best method and Joseph’s method was the second best. Tables IV and V reveal that the fit-ness of is small when is large.

The following procedure was used to generate ten solutions to discuss further the relationship between and . A gene order was randomly generated for each solution, and a new order was then generated by switching of the genes in the old order at random. The fitness values and were calculated for this new gene order. The new gene order replaces of the old gene order if for the new order exceeds that for the old. These steps are repeated 10 000 times for each gene order. Fig. 7 reveals that is highly correlate with . These results demonstrate that the scoring function is a useful scoring function and that HeSGA is a robust method for optimizing the scoring function.

The scoring function is good for optimizing the order of genes. Unfortunately, using as the fitness function is impractical since the information about categories is unknown in the real world. Table V and Fig. 7 indicate that can be used to approximate .

E. Visualization of Results

Users can appreciate the results of the microarray experi-ments if the expression data are presented as colored boxes. Fig. 5(a) presents the visualized gene expressions associated with gene orders, obtained by applying HeSGA, Joseph’s method, single linkage method, and random permutation, to the cell cycle data [2]. The expression profiles are represented as lines of gray boxes, each of which corresponds to a single experiment. All of the results in Fig. 5 were displayed using TreeView [1].

TABLE V

COMPARISONSWITHSINGLE-LINKAGE, AVERAGE-LINKAGE, COMPLETE-LINKAGE, SELF-ORGANIZINGMAP,ANDJOSEPH[19]

ONEIGHTBIOLOGICALDATASETSBASED ON THEPREDEFINED FUNCTIONALCATEGORIES,cat() (7)

Fig. 7. Relationship between two scoring functions:t() [(1), our objective function] andcat() [(7), the scoring function which references the MIPS functional categories]. represents a gene order. t() and cat() are highly correlated based on 100 000 gene orders generated with a simple procedure (see text).

These visualized results of HeSGA, Joseph’s method, and the single-linkage method are more organized than those gen-erated by random permutation [Fig. 5(a)]. HeSGA and Joseph’s method yield similar results, which were the best of all those obtained by the compared methods. For the other seven testing datasets, HeSGA also generated favorable gene orders. The vi-sualized results were consistent with the previous discussion of

and in Sections IV-C and IV-D.

Neighboring genes in a particular group have the same function. As shown in Fig. 5(a)–(f), most genes in a single group have similar expression patterns and participate in shared cellular processes. For example, most mating-related genes are grouped as depicted in Fig. 5(b); mitosis processes and cytoskeleton-related genes are grouped as shown in Fig. 5(c), and transport permeases genes are grouped as in Fig. 5(e).

The 803 genes in the cell cycle dataset include 27 subtelom-erically encoded genes and nine histone genes with chromatin structures, whose expressions are depicted in Fig. 8(a) and (b), respectively. As shown, histone genes (subtelomerically encoded genes) exhibit very similar patterns of expression in the experiments and should, thus, be aligned. HeSGA grouped these nine histones genes in a single group [Fig. 5(f)] of 11 genes. HeSGA clustered 24 subtelomerically encoded genes in one cluster [Fig. 5(d)] of 33 genes. Joseph’s method divided 27 subtelomerically encoded genes into three groups, which contained 14, 12, and 1 gene. The single-linkage method generated two groups of 14 and 7 genes, leaving 6 singletons. The visualization of the results demonstrates that HeSGA not only ordered genes smoothly but also grouped genes with similar expressions.

(9)

Fig. 8. HeSGA results for typical expression patterns of two clustered genes. These two expression profiles are (a) 27 subtelomerically encoded genes and (b) nine chromatin structure histone genes in the cell cycle dataset. Thex axis represents the experiments and the y axis represents the logarithm scale of the expression level. The expression patterns of the genes in the same group seem very similar. HeSGA clustered 24 subtelomerically encoded genes in one cluster [Fig. 5(d)] that contains 33 genes and grouped all histones genes in one group [Fig. 5(f)] that composes 11 genes. The results demonstrate that HeSGA not only ordered genes smoothly but also grouped genes with similar expressions.

V. CONCLUSION

We have developed an evolutionary-based method (HeSGA) to solve simultaneously gene clustering and gene-ordering problems in the analysis of microaray data. To cluster and order the gene expression patterns is essential to analyze a large amount of microarray data. By integrating a number of genetic operators (EAX operator and NJ operator), each having a unique search mechanism, HeSGA seamlessly blends the local and global searches so that they work cooperatively. Ex-periments on eight test microarray datasets ranging in size from 147 to 6221 genes verify that the robustness and adaptability of HeSGA in exploring the conformational space in which genes are clustered and ordered. HeSGA is able to determine mean-ingful cluster boundaries and the relationship between different clusters. The clustering and visual results show that HeSGA ordered the genes in a smooth way and grouped the genes with similar gene expressions together. These results demonstrate that HeSGA is a useful tool for analyzing microarray data.
