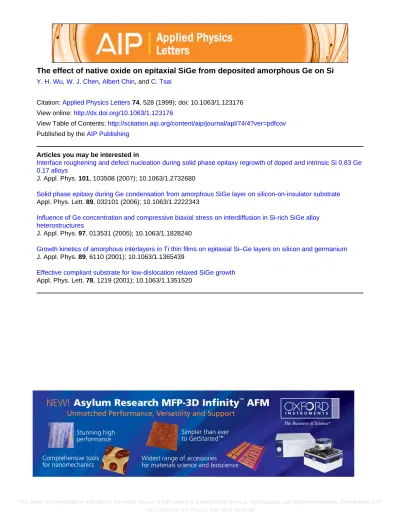

The effect of native oxide on epitaxial SiGe from deposited amorphous Ge on Si

(1)

The effect of native oxide on epitaxial SiGe from deposited amorphous Ge on Si

Y. H. Wu, W. J. Chen, Albert Chin, and C. Tsai

Citation: Applied Physics Letters 74, 528 (1999); doi: 10.1063/1.123176 View online: http://dx.doi.org/10.1063/1.123176

View Table of Contents: http://scitation.aip.org/content/aip/journal/apl/74/4?ver=pdfcov

Published by the AIP Publishing

Articles you may be interested in

Interface roughening and defect nucleation during solid phase epitaxy regrowth of doped and intrinsic Si 0.83 Ge 0.17 alloys

J. Appl. Phys. 101, 103508 (2007); 10.1063/1.2732680

Solid phase epitaxy during Ge condensation from amorphous SiGe layer on silicon-on-insulator substrate

Appl. Phys. Lett. 89, 032101 (2006); 10.1063/1.2222343

Influence of Ge concentration and compressive biaxial stress on interdiffusion in Si-rich SiGe alloy heterostructures

J. Appl. Phys. 97, 013531 (2005); 10.1063/1.1828240

Growth kinetics of amorphous interlayers in Ti thin films on epitaxial Si–Ge layers on silicon and germanium

J. Appl. Phys. 89, 6110 (2001); 10.1063/1.1365439

Effective compliant substrate for low-dislocation relaxed SiGe growth

Appl. Phys. Lett. 78, 1219 (2001); 10.1063/1.1351520

This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP: 140.113.38.11 On: Thu, 01 May 2014 08:46:46

(2)

The effect of native oxide on epitaxial SiGe from deposited

amorphous Ge on Si

Y. H. Wu

Department of Electronics Eng., National Chiao Tung University, Hsinchu, Taiwan W. J. Chen

Department of Mechanical Materials Eng., National Huwei Institute of Technology, Huwei, Taiwan Albert China)and C. Tsai

Department of Electronics Eng., National Chiao Tung University, Hsinchu, Taiwan

~Received 10 July 1998; accepted for publication 2 December 1998!

We have investigated the effect of native oxide on the epitaxial SiGe from deposited amorphous Ge on Si. Instead of epitaxial growth by molecular beam epitaxy or ultrahigh-vacuum chemical vapor deposition, the SiGe layer is formed by this simple process followed by an annealing step. As observed by transmission electron microscopy, the suppression of native oxide plays an important role to achieve epitaxial SiGe. The SiGe quality degrades with increasing native oxide thickness and becomes polycrystalline with a;20 Å interfacial native oxide. On the other hand, single crystalline SiGe can be routinely formed from a HF-vapor treated Si surface. © 1999 American Institute of

Physics. @S0003-6951~99!04504-0#

SiGe alloys have been found to be a very attractive ma-terial to fabricate high-speed devices and optoelectronic devices.1–3 Besides applications in heterojunction bipolar transistors~HBTs!, modulation doped field effect transistors ~MODFETs!, and thin film transistors ~TFTs!, SiGe material can also be used to improve the complementary metal-oxide-semiconductor~CMOS! device performance,4to suppress the floating-body effect in Si-on-insulator ~SOI! metal-oxide-semiconductor FET~MOSFETs!,5or as an etch stop layer in bond and etch-back SOI ~BESOI! process. In general, the SiGe/Si heterojunction can be grown by molecular beam ep-itaxy~MBE!3or ultrahigh vacuum chemical vapor deposition ~UHVCVD!.6_{These techniques provide high-quality}

hetero-structures, but require extremely rigorous control of many process parameters. However, epitaxial SiGe can be also formed by Ge ion implantation followed by an annealing step,7 or wet oxidation of deposited amorphous SixGe1_2x

layer.8In this work, we present a different approach to form single crystalline SiGe from deposited amorphous Ge on Si followed by an annealing step. This method is very simple and compatible to the existing very large scale integrated ~VLSI! technology. We have found that the key factor to form the desired epitaxial SiGe, instead of the polycrystalline one, is the suppression of native oxide. We have used HF-vapor passivation to suppress the native oxide formation be-fore depositing the Ge layer. Similar process technique has been applied to low-temperature Si epitaxy9and thermal ox-ide growth with an atomically smooth interface.10,11As ob-served by both x-ray diffraction and transmission electron microscopy ~TEM!, increasing native oxide thickness de-grades the SiGe crystalline quality and single crystalline SiGe can be routinely formed with a HF-vapor treated sur-face.

Four-inch, p-type~100! Si wafers were used in this work with a resistivity of 10V cm. Before loading into a standard electron beam evaporator to deposit Ge, with a background pressure of 231026Torr, the Si substrates were treated with different process steps to study the effect of native oxide. Si wafers, which were RCA cleaned, dipped in a buffered HF solution, rinsed in deionized water, spun dry in nitrogen, and followed by immediately loading into the evaporator, are identified as control samples. The measured native oxide thickness is 5;7 Å. Another set of wafers is the same as control samples but with additional HF-vapor treatment just before loading into the evaporator. The HF-vapor is gener-ated from the equilibrium vapor pressure of HF and water mixture (HF:H2O51:1) in a plastic beaker. To study the

thickness dependence of native oxide on SiGe quality, we have chemically grown a thick Shiraki oxide. This set of wafers is identical to control samples but with the submer-gence in a boiling HCl:H2O2:H2O53:1:1 solution for 5 min

to grow a ;20 Å Shiraki oxide before Ge deposition. The above method was successfully used to form CoSi2on Si and

was referred as oxide mediate epitaxy~OME!.12Ge thin film was then evaporated to a thickness of 250 Å with a deposi-tion rate of 1 Å/s at room temperature. Then the samples were annealed at 900 °C by rapid thermal annealing ~RTA! for 60 s to form a SiGe layer. We have used x-ray diffrac-tion, electron diffracdiffrac-tion, and TEM to examine the SiGe layer quality.

Figure 1 presents the x-ray diffraction spectra of SiGe layers with different surface treatments before Ge deposition. The SiGe layer with HF-vapor pretreatment shows strong and sharp diffracted peak that indicates a single crystalline behavior with a calculated Ge composition of 70% in SiGe alloys. The SiGe layer without HF-vapor pretreatment shows a weaker and broader diffracted peak that indicates the crys-tal structure is highly defective. This may be due to the pres-a!_{Electronic mail: [email protected]}

APPLIED PHYSICS LETTERS VOLUME 74, NUMBER 4 25 JANUARY 1999

528

(3)

ence of 5;7 Å native oxide. The effect of native oxide on SiGe structure quality can be further understood from the thick chemically grown Shiraki oxide. The signal of SiGe layer with this Shiraki oxide shows a very weak signal that indicates either a polycrystalline structure or no SiGe forma-tion. The Ge and Si interdiffusion may be blocked by this thick oxide. Therefore we have further increased the interdif-fusion by increasing the annealing temperature to 1000 °C, but still very weak x-ray diffraction signal is measured. These results suggest that a random polycrystalline or amor-phous structure may be responsible to the extremely weak x-ray diffraction signal.

We have further investigated the crystalline structure by using electron diffraction pattern. Figures 2~a! and 2~b! are the electron diffraction pattern of SiGe layers formed with the presence of Shiraki oxide and HF-vapor pretreatment, respectively. The ring pattern in Fig. 2~a! verifies that the extremely weak x-ray diffraction in Fig. 1 appears to be polycrystalline SiGe. Therefore, the existence of Shiraki ox-ide will strongly degrade the SiGe crystalline quality. In strong contrast, single crystalline electron diffraction pattern is obtained from the highly oriented diffraction pattern in Fig. 2~b! with HF-vapor treatment. This single crystalline behavior is consistent with the sharp and strong x-ray dif-fraction in Fig. 1.

We have also examined the SiGe layer by cross-sectional TEM. Figures 3~a! and 3~b! present the cross-sectional images of SiGe with or without the HF-vapor pre-treatment, respectively. The TEM images show that almost all the deposited Ge materials are transformed into SiGe. The SiGe layer formed without HF-vapor treatment is highly de-fective, and twins, facet, and dislocations are observed in the SiGe layer. On the contrary, these defects are much reduced in the HF-vapor pretreated sample. This result is consistent with the single crystalline behavior observed in electron dif-fraction and x-ray difdif-fraction spectra. Therefore, the HF-vapor treatment is of paramount importance to form high quality epitaxial SiGe layer. It is believed that the surface with additional HF-vapor treatment has better H or F termi-nation and is more resistant to native oxide growth than that dipped in HF solution. As native oxide grows thicker, the surface roughness increases, which is confirmed by atomic

force microscopy~AFM! measurement. The HF-vapor treat-ment can improve surface root mean square~rms! roughness from standard 3.0 Å to only 1.5 Å. Owing to a cleaner sur-face, Ge atoms can directly contact the underlying Si lattice and form epitaxial SiGe.

We have measured the secondary ion mass spectroscopy ~SIMS! profiles to further understand the formation of SiGe. Figures 4~a! and 4~b! present the SIMS profiles of samples with Shiraki oxide and HF-vapor treatment, respectively. The sample with Shiraki oxide shows a typical Ge diffusion profile. Therefore diffusion alone cannot form single crystal-line SiGe. In sharp contrast, a uniform SiGe layer is formed on HF-vapor treated sample that may explain the very sharp SiGe peak in x-ray diffraction spectra. Beyond this region, Si and Ge interdiffusion is observed, while this interdiffusion may be enhanced by defect density, strain, and the high Ge

FIG. 1. X-ray diffraction spectra of SiGe layers with different surface treat-ments before Ge deposition.

FIG. 2. Electron diffraction pattern of SiGe layers formed ~a! with the presence of Shiraki oxide and taken along the ^001& zone axis ~b! with HF-vapor pretreatment and taken along^011& zone axis.

529

Appl. Phys. Lett., Vol. 74, No. 4, 25 January 1999 Wuet al.

(4)

concentration.13 Because interdiffusion may be difficult to explain this thick and uniform SiGe layer, possible mecha-nism may be due to the solid phase epitaxy~SPE! that is very fast and is also responsible to CoSi2 formation. The strong

dependence of SiGe quality on interface oxide also suggests that the SPE process may be responsible to epitaxial SiGe from direct contact of Ge and Si. In fact, both SPE and diffusion are the required mechanisms to form CoSi2.12,14

In conclusion, we have shown that single crystalline SiGe can be achieved by simple deposited amorphous Ge on Si. Our results reveal that the interfacial condition plays an important role to form epitaxial SiGe, and the SiGe quality is degraded with increasing native oxide thickness. Single crys-talline SiGe can be routinely formed with HF-vapor treat-ment to passivate Si surface from oxidation. By using HF-vapor treatment, we can form SiGe with much simple and inexpensive ways, which is also compatible to the existing VLSI technology.

The authors would like to thank Professor K. C. Hsieh at Dept. of Electrical Engineering, University of Illinois for his great help. The work has been supported by NSC ~88-2215-E-009-032!.
