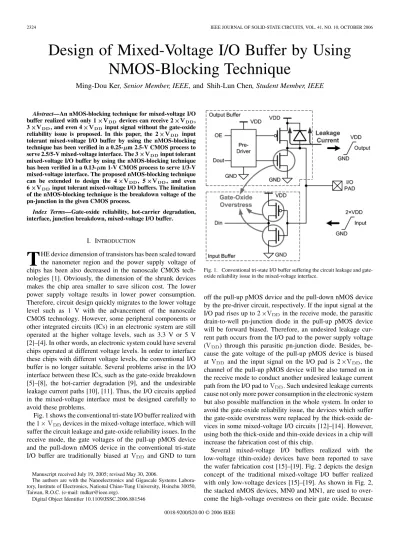

Design of Mixed-Voltage I/O Buffer by Using
NMOS-Blocking Technique
Ming-Dou Ker, Senior Member, IEEE, and Shih-Lun Chen, Student Member, IEEE
Abstract—An nMOS-blocking technique for mixed-voltage I/O
buffer realized with only 1 VDD devices can receive 2 VDD, 3 VDD, and even 4 VDD input signal without the gate-oxide reliability issue is proposed. In this paper, the 2 VDD input tolerant mixed-voltage I/O buffer by using the nMOS-blocking technique has been verified in a 0.25- m 2.5-V CMOS process to serve 2.5/5-V mixed-voltage interface. The 3 VDDinput tolerant mixed-voltage I/O buffer by using the nMOS-blocking technique has been verified in a 0.13- m 1-V CMOS process to serve 1/3-V mixed-voltage interface. The proposed nMOS-blocking technique can be extended to design the 4 VDD, 5 VDD, and even 6 VDDinput tolerant mixed-voltage I/O buffers. The limitation of the nMOS-blocking technique is the breakdown voltage of the pn-junction in the given CMOS process.
Index Terms—Gate-oxide reliability, hot-carrier degradation,
interface, junction breakdown, mixed-voltage I/O buffer.
I. INTRODUCTION
T
HE device dimension of transistors has been scaled toward the nanometer region and the power supply voltage of chips has been also decreased in the nanoscale CMOS tech-nologies [1]. Obviously, the dimension of the shrunk devices makes the chip area smaller to save silicon cost. The lower power supply voltage results in lower power consumption. Therefore, circuit design quickly migrates to the lower voltage level such as 1 V with the advancement of the nanoscale CMOS technology. However, some peripheral components or other integrated circuits (ICs) in an electronic system are still operated at the higher voltage levels, such as 3.3 V or 5 V [2]–[4]. In other words, an electronic system could have several chips operated at different voltage levels. In order to interface these chips with different voltage levels, the conventional I/O buffer is no longer suitable. Several problems arise in the I/O interface between these ICs, such as the gate-oxide breakdown [5]–[8], the hot-carrier degradation [9], and the undesirable leakage current paths [10], [11]. Thus, the I/O circuits applied in the mixed-voltage interface must be designed carefully to avoid these problems.Fig. 1 shows the conventional tri-state I/O buffer realized with the 1 devices in the mixed-voltage interface, which will suffer the circuit leakage and gate-oxide reliability issues. In the receive mode, the gate voltages of the pull-up pMOS device and the pull-down nMOS device in the conventional tri-state I/O buffer are traditionally biased at and GND to turn
Manuscript received July 19, 2005; revised May 30, 2006.
The authors are with the Nanoelectronics and Gigascale Systems Labora-tory, Institute of Electronics, National Chiao-Tung University, Hsinchu 30050, Taiwan, R.O.C. (e-mail: [email protected]).
Digital Object Identifier 10.1109/JSSC.2006.881546

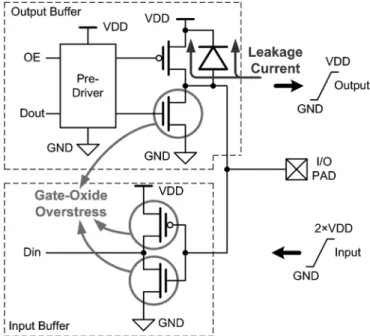

Fig. 1. Conventional tri-state I/O buffer suffering the circuit leakage and gate-oxide reliability issue in the mixed-voltage interface.
off the pull-up pMOS device and the pull-down nMOS device by the pre-driver circuit, respectively. If the input signal at the I/O pad rises up to 2 in the receive mode, the parasitic drain-to-well pn-junction diode in the pull-up pMOS device will be forward biased. Therefore, an undesired leakage cur-rent path occurs from the I/O pad to the power supply voltage ( ) through this parasitic pn-junction diode. Besides, be-cause the gate voltage of the pull-up pMOS device is biased at and the input signal on the I/O pad is 2 , the channel of the pull-up pMOS device will be also turned on in the receive mode to conduct another undesired leakage current path from the I/O pad to . Such undesired leakage currents cause not only more power consumption in the electronic system but also possible malfunction in the whole system. In order to avoid the gate-oxide reliability issue, the devices which suffer the gate-oxide overstress were replaced by the thick-oxide de-vices in some mixed-voltage I/O circuits [12]–[14]. However, using both the thick-oxide and thin-oxide devices in a chip will increase the fabrication cost of this chip.
Several mixed-voltage I/O buffers realized with the low-voltage (thin-oxide) devices have been reported to save the wafer fabrication cost [15]–[19]. Fig. 2 depicts the design concept of the traditional mixed-voltage I/O buffer realized with only low-voltage devices [15]–[19]. As shown in Fig. 2, the stacked nMOS devices, MN0 and MN1, are used to over-come the high-voltage overstress on their gate oxide. Because
Fig. 2. Mixed-voltage I/O buffer realized with only thin-oxide devices in the mixed-voltage interface.
the gate terminal of the transistor MN0 is connected to , the maximum drain voltage of the transistor MN1 is about , where is the threshold voltage of nMOS. Hence, the gate-drain voltages and the gate-source voltages of the stacked devices, MN0 and MN1, are limited below even if the input signal on the I/O pad is 2 in the receive mode. The dynamic n-well bias circuit and the gate-tracking circuit in Fig. 2 are designed to prevent the leakage current path through the parasitic drain-to-well pn-junction diode in the pull-up pMOS device and the leakage current path due to the incorrect conduction of the pull-up pMOS device, respectively. In the transmit mode, the dynamic n-well bias circuit has to keep the floating n-well at . So, the threshold voltage of the pull-up pMOS device is not increased due to the body effect. In the transmit mode, the dynamic gate-tracking circuit should pass the output signal from the upper port of the pre-driver to the gate terminal of the pull-up pMOS device. In the receive mode with a 2 input signal, the dynamic n-well bias circuit will charge the floating n-well to 2 to prevent the leakage current from the I/O pad to through the parasitic pn-junction diode. When the input signal at the I/O pad is GND, the dynamic n-well bias circuit will keep the floating n-well at . In the receive mode, the gate voltage of the pull-up pMOS device is controlled at or 2 according to the input signal on the I/O pad in order to prevent the leakage current path from the I/O pad to the power supply ( ) through the pull-up pMOS. As shown in Fig. 2, the extra transistors, MN2 and MP1, are added in the input buffer. Transistor MN2 is used to limit the voltage level of the input signal reaching to the gate oxide of the inverter INV. Because the gate terminal of transistor MN2 is connected to , the input node of the inverter INV will rise up to when the input signal at the I/O pad is 2 in the tri-state input mode. Then, the transistor MP1 is used to pull up the input node of inverter INV to when the output node of the inverter INV is pulled down to GND. Therefore, the gate-oxide reliability problem occurring in the input buffer can be solved.
Realized with the low-voltage devices, the prior mixed-voltage I/O buffers [15]–[19] only can receive 2
with Cu interconnects to serve the 1/3-V mixed-voltage inter-face, respectively.
II. NMOS-BLOCKINGTECHNIQUE
In an nMOS transistor, if its drain voltage is higher than its gate voltage , the source voltage of this nMOS device will be pulled up to , where is the threshold voltage of the nMOS transistor. For example, when the is controlled
at and is at 2 , is only pulled up to .
Therefore, the feature of nMOS device can be applied to design the mixed-voltage I/O buffer without the gate-oxide reliability issue and the undesired leakage currents described in Fig. 1.
The design concept of the proposed nMOS-blocking tech-nique for mixed-voltage I/O buffer is shown in Fig. 3. The pro-tection devices in Fig. 3 are used to block from the high-voltage input signal on the I/O pad to stress the input buffer and the output buffer of the mixed-voltage I/O circuit. As the I/O buffer is in the transmit mode, the protection devices in Fig. 3 have to pass the signal from node 1 to the I/O pad. As the I/O buffer is in the receive mode, the protection devices not only limit the high-voltage level of the input signal but also pass the signal informa-tion from the I/O pad to node 1. The gate voltages of the protec-tion devices must be well controlled in both the transmit mode and the receive mode. As shown in Fig. 3, the mixed-voltage I/O buffer can receive input signal without the gate-oxide reliability issue by using protection devices, where
is an integer.
III. 2 INPUTTOLERANTMIXED-VOLTAGEI/O BUFFER
A. Circuit Implementation
Fig. 4 shows the proposed 2 input tolerant mixed-voltage I/O buffer by using the nMOS-blocking technique. In Fig. 4, is as high as 2 , which can be generated by an on-chip charge pump circuit with 1 devices [21] or other high-voltage generators. As shown in Fig. 4, transistor MN1 is used to protect the conventional I/O buffer from the input high-voltage overstress. The pre-driver can generate sig-nals PU and PD to control the output transistors, MP0 and MN0. The dynamic gate-bias circuit in Fig. 4 is used to control the gate voltage of the transistor MN1. Table I lists the operation of the dynamic gate-bias circuit in the proposed 2 input tolerant mixed-voltage I/O buffer. When this I/O buffer is in the receive mode, the gate terminal (node 2) of transistor MN1 is biased at by the dynamic gate-bias circuit, whereas transistors MP0 and MN0 are both turned off by the pre-driver. At this moment, if an input signal of logic low (GND) is received from the I/O
Fig. 3. Proposed design concept of nMOS-blocking technique for mixed-voltage I/O buffer.
TABLE I
OPERATION OF THE DYNAMIC GATE-BIAS CIRCUIT IN THE PROPOSED 22V INPUTTOLERANTMIXED-VOLTAGEI/O BUFFER
Fig. 4. 22V input tolerant mixed-voltage I/O buffer by using the proposed nMOS-blocking technique.
pad, node 1 is discharged to GND through transistor MN1, and this input signal can be successfully transferred to the node Din of the input buffer. When a logic high (2 ) signal is re-ceived from the I/O pad, the gate terminal of transistor MN1 is still biased at , so the voltage on node 1 is pulled up to . Because the voltage on node 1 is at , the signal Din is pulled down to GND. A feedback device MP1
is added to restore the voltage level on node 1 to , which avoids the undesired static dc current through the inverter INV in the input buffer. Besides, when the voltage on the I/O pad stays at 2 for a long time, the voltage on node 1 may go up to the voltage determined by the ratio of leakage. The feedback device MP1 is used to solve this issue. In this design, transistors MN1 and MP1 with the inverter INV can convert the 2 input signal to signal successfully. Therefore, transistor MN1 can protect the I/O buffer without suffering high-voltage overstress on the gate oxide.
Fig. 5 depicts the dynamic gate-bias circuit in the proposed 2 input tolerant I/O buffer, where transistors MP2 and MP3 are designed with the cross-coupled structure. If the gate voltage of transistor MP2 (or MP3) is pulled down, this tran-sistor is turned on and pulls up the gate voltage of the other transistor to to turn it off. For example, if the voltage on node 5 in Fig. 5 is lower than and the voltage on node 6 is , transistor MN2 is turned on to keep the node 5 at . In Fig. 5, capacitors C1 and C2 are used to couple the signals from nodes 3 and 4 to nodes 5 and 6, respectively. The voltages across these capacitors, C1 and C2, are always , because the voltage levels on the top and bottom plates of ca-pacitors C1 and C2 are either and GND or 2 and . With these capacitors, when the voltage level on node 3 is changed from to GND, the voltage on node 5 is pulled down to and then the voltage level on node 6 is pulled up to
Fig. 5. Dynamic gate-bias circuit in the proposed 22V input tolerant mixed-voltage I/O buffer.
2 by transistor MP3. On the contrary, when the voltage level on node 4 is converted from to GND, that on node 6 is pulled to , and that on node 5 is pulled up to 2 by transistor MP2.
Initially, the voltages on nodes 3, 4, 5, and 6 in Fig. 5 could be unknown. If the voltages on nodes 5 and 6 are 2 and , and the voltages on nodes 3 and 4 are GND and , the voltages across capacitors C1 and C2 are 2 and , re-spectively, instead of both . In order to overcome this ini-tial problem, the diode strings, DS1 and DS2, are added. The turn-on voltages of the diode strings are designed to a little higher than by using multiple diodes in stacked configura-tion. In order to prevent the leakage current path to the grounded p-type substrate, the diode-connected MOSFET or polysilicon diode [22] is suggested. With these diode strings, if the voltage on node 3 is at GND and that on node 4 is at , the voltage on node 5 is clamped at the turn-on voltage, which is a little higher than , of the diode string DS1. Therefore, transistor MP3 is turned on to pull up the voltage on node 6 to 2 . Thus, the voltages across capacitors C1 and C2 are both .
In the proposed 2 input tolerant mixed-voltage I/O buffer, the bulk of the protection device, MN1, can be coupled to GND without the gate-oxide overstress, even if the gate voltage of transistor MN1 may be as high as 2 . The reason is that this protection device, MN1, is always turned on and the voltage across the gate oxide of transistor MN1 is from the gate to the conducting channel, but not from the gate to its bulk. Thus, the gate oxides of all nMOS devices in the dynamic gate-bias circuit are also safe because these nMOS devices are turned on when their gates are pulled up to 2 .
B. Experimental Results
The proposed 2 input tolerant mixed-voltage I/O buffer has been verified in a 0.25- m 2.5-V CMOS process to serve 2.5/5-V mixed-voltage interface. Fig. 6 shows the simulated waveforms of the proposed 2 input tolerant mixed-voltage I/O buffer in the receive mode to receive the input signal of 0-to-5 V. As shown in Fig. 6, the gate voltage
Fig. 6. Simulated waveforms of the proposed 22V input tolerant mixed-voltage I/O buffer in the receive mode with 5-V input signals.
Fig. 7. Simulated waveforms of the proposed 22V input tolerant mixed-voltage I/O buffer in the transmit mode.
(node 2) of the transistor MN1 is always kept at 2.5 V in the receive mode, and the voltage swing on node 1 is from 0 V to 2.5 V. Fig. 7 shows the simulated waveforms of the proposed 2 input tolerant mixed-voltage I/O buffer in the transmit mode. When the voltage on node 1 is raised up to 2.5 V, the gate voltage of the transistor MN1 is also raised to 5 V at the same time to turn on the transistor MN1. Then, the voltage on the I/O pad is pulled up to 2.5 V. When the voltage on node 1 is dropped to 0 V, the gate voltage of the transistor MN1 is kept at 2.5 V to prevent from the high-voltage overstress on the gate oxide of the protection device MN1. The voltage on the I/O pad is therefore dropped to 0 V. With the dynamic gate-bias circuit, the proposed mixed-voltage I/O buffer can successfully transfer signals in full swing to the I/O pad through the protection device MN1.
Fig. 8. Chip photograph of the proposed 22V input tolerant mixed-voltage I/O buffer in a 0.25-m 2.5-V CMOS process.
Fig. 9. Measured waveforms on the node Din and I/O pad of the proposed 22V input tolerant mixed-voltage I/O buffer in the receive mode with 5-V input signals.
Fig. 8 shows the chip photograph of the proposed 2 input tolerant I/O buffer fabricated in a 0.25- m 2.5-V CMOS process. Figs. 9 and 10 show the measured voltage waveforms on the node Dout and the I/O pad of the proposed 2 input tolerant I/O buffer in the receive mode and in the transmit mode, respectively. As shown in Figs. 9 and 10, the proposed 2 mixed-voltage I/O buffer by using the nMOS-blocking tech-nique can be correctly operated in the 2.5/5-V mixed-voltage interface.
IV. 3 INPUTTOLERANTMIXED-VOLTAGEI/O BUFFER
A. Circuit Implementation
Fig. 11 depicts the proposed 3 input tolerant mixed-voltage I/O buffer by using the nMOS-blocking tech-nique [20]. is the applied power supply voltage, whereas (2 ) can be generated by an on-chip charge pump circuit with 1 devices from [21]. The output voltage of the on-chip charge pump circuit is shared by all mixed-voltage I/O circuits in the same chip. The protection devices, MN1 and MN2, controlled by the dynamic gate-bias circuit are used to avoid the high-voltage overstress on the gate oxide. The detailed operation of the dynamic gate-bias circuit
Fig. 10. Measured waveforms on the node Dout and I/O pad of the proposed 22V input tolerant mixed-voltage I/O buffer in the transmit mode with 2.5-V output signals.
Fig. 11. 32V input tolerant mixed-voltage I/O buffer by using the pro-posed nMOS-blocking technique.
is listed in Table II. When this I/O buffer transmits a logic low (GND), the gate voltages of transistors MN1 and MN2 are controlled at , so the logic low can be transmitted from node 1 to the I/O pad. When this I/O buffer transmits a logic high ( ), the gate voltages of transistors MN1 and MN2 are controlled at , so the logic high can be transmitted from node 1 to the I/O pad. When this I/O buffer receives a logic low (GND), the gate voltages of transistors MN1 and MN2 are biased at . Thus, the logic low signal can be transmitted to node 1 from the I/O pad. When this I/O buffer receives a logic high (3 ), the gate voltages of transistors MN1 and MN2 are biased at and , respectively. In the 3 receive mode, the voltage on node 2 (node 1) is pulled up to
( ), where is the threshold voltage of transistors. Then, the signal Din is pulled down to GND to turn on transistor MP1. Finally, the voltage on node 1 is fully restored to , so the inverter INV has no dc leakage current. In this 3 input tolerant mixed-voltage I/O buffer, the
Fig. 12. Dynamic gate-bias circuit in the proposed 32V input tolerant mixed-voltage I/O buffer.
gate-drain, gate-source, and drain-source voltages of every tran-sistor do not exceed . Thus, the proposed mixed-voltage I/O buffer with 1 devices in Fig. 11 can tolerate 3 input signals without the gate-oxide reliability issue.
According to Table II, the dynamic gate-bias circuit in the proposed 3 input tolerant mixed-voltage I/O buffer can be designed. Fig. 12 shows the dynamic gate-bias circuit in the proposed 3 input tolerant mixed-voltage I/O buffer. In both transmit and receive modes, the signal PU has an inverting logic level of node 3. The voltage swing of signal PU is from GND to , but that of node 3 is from to . Thus, a GND/ -to- / level converter followed by an in-verter can be used to generate the signal level of node 3 to con-trol the gate of the transistor MN1. In the transmit mode, node 3 has the same signal level of node 4. Thus, nodes 3 and 4 are con-nected by the transistor MP4, whose gate is concon-nected to node 2 to avoid the gate-oxide overstress. The voltage on node 5 must be biased at and alternately in the transmit mode due to the gate-oxide reliability issue of the transistor MN3. When the I/O buffer transmits a logic low, the gate voltages of transistors MN1 and MN2 are kept at , and transistor MP3 is turned on to keep the voltage level on node 5 at . When the I/O buffer transmits a logic high (GND), the gate voltages of transistors MN1 and MN2 are kept at , and transistor MN6 is turned on to keep the voltage level on node 5 at . The gate-drain and gate-source voltages of transistor MN3 are
always lower than in the transmit mode, so there is no gate-oxide overstress issue on transistor MN3.
The gate voltage (node 3) of transistor MN1 is always kept at in the receive mode. The gate voltage (node 4) of transistor MN2 is controlled at or by the input signal on the I/O pad. When the I/O buffer receives a logic high (3 ), the voltage on node 5 is pulled up to the voltage level of 3 through the diode-connected transistor MN8. At this moment, transistors MN3 and MN4 are turned on to pull the voltages on nodes 4 and 2 both up to . When the I/O buffer receives a logic low (GND), transistor MP4 is turned on to pull the voltage on node 4 down to because the voltage on node 3 is . At this moment, transistor MP3 is turned on to pull the voltage on node 5 down to to pre-vent the gate-oxide overstress on transistor MN3. In addition, transistors MP2, MN5, and MN7 can protect transistors MN4, MP3, and MN6 against the gate-oxide overstress.
B. Experimental Results
The proposed 3 input tolerant mixed-voltage I/O buffer has been verified in a 0.13- m 1-V CMOS process with Cu interconnects to serve 1/3-V mixed-voltage interface. Fig. 13 shows the simulated voltage waveforms of the proposed 3 input tolerant mixed-voltage I/O buffer in the receive mode to receive 3-V input signals. The simulated waveforms
Fig. 13. Simulated waveforms of the proposed 32V input tolerant mixed-voltage I/O buffer in the receive mode to receive 133-MHz 32V (3-V) input signals. The waveforms are shown to observe the voltages at the nodes of I/O pad, Din, node 1, node 2, node 3, and node 4 in Fig. 12.
Fig. 14. Simulated waveforms of the proposed 32V input tolerant mixed-voltage I/O buffer in the transmit mode to drive 133-MHz 32V (3-V) output signals. The waveforms are shown to observe the voltages at the nodes of I/O pad, Din, node 1, node 2, node 3, and node 4 in Fig. 12.
in Fig. 13 are all consistent to our design expectation. Al-though the transient peak voltage on node 4 could be larger than 2 V due to the parasitic gate-drain capacitance ( ) of transistor MN2, the gate-drain and gate-source voltages of transistor MN2 are still kept lower than 1 V. Fig. 14 shows the simulated voltage waveforms of the proposed 3 input tolerant mixed-voltage I/O buffer in the transmit mode to drive 1-V output signals. The simulated waveforms in Fig. 14 are also consistent to our design expectation. The gate-drain and gate-source voltages of all devices in the proposed 3 mixed-voltage I/O buffer do not exceed 1 V, which has been confirmed in SPICE simulation.

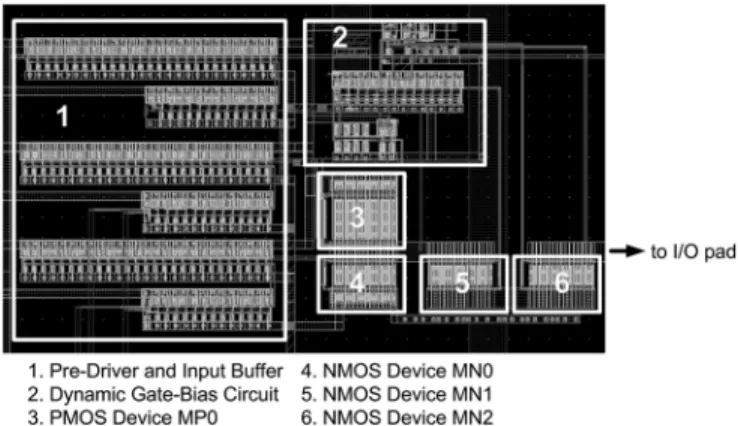

Fig. 15 shows the layout of the proposed 3 input tolerant I/O buffer fabricated in a 0.13- m 1-V CMOS process with Cu interconnects. The active area of the proposed 3 input tolerant I/O buffer is around 70 150 . Figs. 16 and 17 show the measured voltage waveforms of the proposed 3 input tolerant I/O buffer in the receive mode and in the
Fig. 15. Layout of the proposed 32V input tolerant mixed-voltage I/O buffer in a 0.13-m 1-V CMOS process with Cu interconnects.
Fig. 16. Measured voltage waveforms of the proposed 32V input-tolerant mixed-voltage I/O buffer in the receive mode to successfully receive 32V (3-V) input signals.
Fig. 17. Measured voltage waveforms of the proposed 32V input-tolerant mixed-voltage I/O buffer in the transmit mode to drive 12V (1-V) output signals.
transmit mode, respectively. As shown in Fig. 16, the proposed 3 input tolerant I/O buffer can successfully receive 3-V input signals in the receive mode. As shown in Fig. 17, the
Fig. 18. 42V input tolerant mixed-voltage I/O buffer by using the proposed nMOS-blocking technique.
proposed 3 input tolerant I/O buffer can successfully drive 1-V output signals in the transmit mode.
V. DISCUSSION
A. Limitation of the nMOS-Blocking Technique
Ideally, the proposed nMOS-blocking technique can be used to design the input tolerant mixed-voltage I/O buffer when protection devices are applied, as shown in Fig. 3. Fig. 18 shows the design example of the 4 input tol-erant mixed-voltage I/O buffer by using the proposed nMOS-blocking technique. Three protection devices, MN1, MN2, and MN3, are applied in Fig. 18, so this mixed-voltage I/O buffer can receive 4 input signals. Thus, the dynamic gate-bias
circuit requires the (2 ) and (3 )
voltage levels to control the gates of the protection devices, MN1, MN2, and MN3. In Fig. 18, the charge pump circuits re-alized with 1 devices can also generate the and
voltage levels.
Actually, the nMOS-blocking technique will be limited by the pn-junction breakdown voltage in the CMOS process. If the input voltage is larger than the pn-junction breakdown voltage, the parasitic pn-junction diode of the protection device which is closed to the I/O pad will break down. For example, the pn-junc-tion breakdown voltage is around 8–9 V in the 0.13- m 1-V CMOS process. Thus, the 8 input tolerant mixed-voltage I/O buffer could be designed in the 0.13- m 1-V CMOS process by using the proposed nMOS-blocking technique.
B. Gate-Oxide Breakdown
Gate-oxide breakdown is a time-dependent issue [23], [24]. The time period during the voltage overstress on the gate oxide is accumulated to induce the oxide breakdown. Hence, the DC stress is more harmful to the gate oxide than the short AC stress (transient stress). Most of the I/O circuits in mixed-voltage ap-plications only focus on the DC stress because the DC stress will damage the gate oxide shortly [15]–[19]. In order to solve the AC stress, the precise resistors and (or) capacitors with spe-cial bias circuit are required to detect the transient voltages and then to bias the transistors [25], [26]. However, these resistors
and capacitors occupy large silicon area. Besides, these circuits [26] may consume DC current because of using the resistors and capacitors as the bias circuit.
In the mixed-voltage I/O buffers by using the proposed nMOS-blocking technique, the gate-drain and gate-source volt-ages of devices do not exceed in both receive and transmit modes. Thus, the proposed mixed-voltage I/O buffers do not have the DC gate-oxide reliability issue. Due to the parasitic resistance, inductance, and capacitances, the gate-source and gate-drain voltage may exceed when the input or output signals have transitions. For example, as shown in Fig. 6, the voltage difference between node 2 and I/O pad is a little higher than 2.5 V, when the I/O pad has a low-to-high (0-to-5 V) transition. However, the AC gate-oxide stress is less serious than the DC stress.
C. Hot-Carrier Degradation
The hot-carrier degradation occurs when the drain-source voltage of transistor operated in saturation mode is larger than the normal operating voltage ( ). The hot-carrier degradation is also a time-dependent issue [9]. In both receive and transmit modes, the drain-source voltages of transistor in the proposed mixed-voltage I/O buffers do not exceed . In the proposed mixed-voltage I/O buffers, the hot-carrier degradation may occurs only during the transition when the proposed mixed-voltage I/O buffers receive high-voltage input signals and then transmit the GND output signals. To reduce this hot-carrier impact, the devices which suffer the hot-carrier issue in the proposed mixed-voltage circuits should be drawn with longer channel width. In [25], the special bias technique can also be used to prevent the hot-carrier degradation.
D. Speed Degradation of the nMOS-Blocking Technique
The proposed nMOS-blocking technique uses the nMOS pro-tection devices to block from high-voltage input signals on the I/O pad. Thus, the mixed-voltage I/O buffer designed with this nMOS-blocking technique can be simply seen as a traditional tri-state I/O buffer cascaded with a resistor (R), as shown in Fig. 19. This resistor represents the equivalent resistance of the
Fig. 19. Equivalent circuit of the mixed-voltage I/O buffer designed with the proposed nMOS-blocking technique.
protection devices. If the equivalent resistance of the protec-tion devices is large, the speed performance will be degraded. Thus, the dimensions of the protection devices must be designed large enough to minimize the equivalent resistance. However, the large dimension device has large drain (source) capacitance, so that the parasitic capacitance on node 1 in Fig. 19 is also somewhat increased to degrade the speed performance. Thus, the dimensions of the protection devices should be optimized according to the given CMOS process.
E. Advantages of the nMOS-Blocking Technique
Generally, the traditional mixed-voltage I/O buffers can only receive 2 input signal without the gate-oxide reliability issue [15]–[19]. However, the proposed nMOS-blocking tech-nique can be extended to design not only the 2 but also 3 and even 4 input tolerant mixed-voltage I/O buffers. Besides, the dynamic n-well bias technique is usually applied in the traditional mixed-voltage I/O buffers [15]–[19], where the voltage on the n-well is not fixed. The latch-up guard rings must be well surrounded when the voltage on the n-well is changed. Because the voltage of the n-well in the proposed mixed-voltage I/O buffers by using the nMOS-blocking tech-nique is fixed, there is no transient latchup problem in the pro-posed mixed-voltage I/O circuits.
VI. CONCLUSION
The nMOS-blocking technique has been proposed to de-sign the mixed-voltage I/O buffer in low-voltage CMOS processes. By using the proposed nMOS-blocking technique, the mixed-voltage I/O buffer realized only with 1
devices can receive 2 , 3 , and even 4
input signals without the gate-oxide reliability issue. The 2 and 3 input tolerant mixed-voltage I/O buffer by using the nMOS-blocking technique have been successfully verified in a 0.25- m 2.5-V CMOS process to serve 2.5/5-V mixed-voltage interface and in a 0.13- m 1-V CMOS process
with Cu interconnects to serve 1/3-V mixed-voltage interface, respectively. The proposed nMOS-blocking technique can be extended to design the 4 , 5 , and even 6 input tolerant mixed-voltage I/O buffers. The limitation on the proposed nMOS-blocking technique is the pn-junction breakdown voltage of the given CMOS process.
