A
RTICLE
Development of a Whole-Cell Screening System for
Evaluation of the Human CYP1A2-Mediated
Metabolism
Chih-Chieh Chu,1Kao-Lu Pan,1Hsien-Tsung Yao,2John Tsu-An Hsu3,4 1Department of Chemical Engineering, National Tsing-Hua University, Hsin-Chu,
Taiwan, Republic of China
2Department of Nutrition, China Medical University, Taichung, Taiwan, Republic of China 3National Health Research Institutes, Institute of Biotechnology and Pharmaceutical
Research, No. 35, Keyan Road, Zhunan Town, Miaoli County 350, Taiwan, Republic of China; telephone:þ886-37-246-166 ext. 35717; fax: þ886-37-586-456; e-mail: [email protected]
4Department of Biological Science and Technology, National Chiao Tung University,
Hsin-Chu, Taiwan, Republic of China
Received 22 March 2011; revision received 23 May 2011; accepted 20 June 2011
Published online 13 July 2011 in Wiley Online Library (wileyonlinelibrary.com). DOI 10.1002/bit.23256
ABSTRACT: Cytochrome P450 1A2 (CYP1A2) is an impor-tant member of cytochrome P450 involved in drug metab-olism. In this study, a cell line, Huh7-1A2-I-E, with high expression level of CYP1A2 is established based on Huh7 cells. To achieve this, we constructed a recombinant lenti-viral vector, pLenti-1A2-I-E, containing a single promoter encoding CYP1A2 followed by an internal ribosome entry site (IRES) to permit the translation of enhanced green fluorescence protein (EGFP). Such a design has greatly facilitated the selection of stable cell lines because the translations of CYP1A2 and EGFP proteins would be based on a single bi-cistronic mRNA. The Huh7-1A2-I-E cells were evaluated as a cell-based model for identification of CYP1A2 inhibitors and for studies of cytotoxicity resulted from CYP-mediated drug metabolism. Treatment of Huh7-1A2-I-E cells and the Huh7-E control cells with aflatoxin B1 showed that cells with CYP1A2 expression are much more sensitive to aflatoxin B1 and the cellular toxicity of aflatoxin B1 in Huh7-1A2-I-E cells could be prevented by furafylline, a CYP1A2 inhibitor. A collection of approximately 200 drugs were screened using this system and results indicate that for most drugs the metabolism by CYP1A2 is unlikely to have made a major contribution to the in vitro cytotoxicity except for thimerosal and evoxine. Several previously unidentified
CYP1A2 inhibitors such as evoxine and berberine were also identified in this study.
Biotechnol. Bioeng. 2011;108: 2932–2940. ß 2011 Wiley Periodicals, Inc.
KEYWORDS: cytochrome P450; drug metabolism; cytotoxicity
Introduction
Drug metabolism in human typically involves the chemical modifications of drugs and this process occurs mostly in liver where exist the majority of drug-metabolizing enzymes such as Cytochrome P450 (CYPs). CYPs catalyze most of the phase I drug metabolizing reactions such as oxidation and reduction (Lin and Lu, 1998; Tang et al., 2005).
CYPs were initially described by Klingenberg (1958) for their absorbance of light with wavelengths of approximately 450 nm upon formation of an adduct with carbon monoxide (CO) (Omura and Sato, 1962; Roos and Jakubowski, 2008). The substrates of CYPs include sterols, fatty acids, eicosanoids, vitamins, and xenobiotics such as drugs (Guengerich, 2008; Seliskar and Rozman, 2007). The drug metabolism process is essential for detoxification. However, the resulted CYP-mediated products may also be toxic or carcinogenic (Bai and Cederbaum, 2004; Ramaiah et al., 2001; Yan et al., 2008).
CYP1A2 is an important CYP subfamily that is important in metabolizing xenobiotics or medicine (Laika et al., 2010; Murray, 2006; Zhang et al., 2010). CYP1A2 is also well known for its role in the hepatoxicity of aflatoxin B1 (Gallagher et al., 1996). For research purpose, human
Abbreviations: CYPs, cytochrome P450; CYP1A2, cytochrome P450 1A2; IRES, internal ribosome entry site; EGFP, enhanced green fluorescence protein; CO, carbon monoxide; CEC, 3-cyano-7-ethoxycoumarin; CHC, 3-cyano-7-hydroxycoumarin; EDTA, ethylenediaminetetraacetic acid; PBS, phosphate buffered saline; HEPES, 4-(2-hydroxyethyl)-1-piperazineethane-sulfonic acid; DMSO, dimethylsulfoxide; ddH2O, double-distilled water; MTS, 3-(4,5-di-methylthiazol-2-yl)-5-(3-carboxy-methoxy-phenyl)-2-(4-sulfophenyl)-2H-tetrazolium; PCR, polymerase chain reaction; PFU, plaque-forming unit;S/N, signal-to-noise ratio; S/B, signal-to-background ratio. Correspondence to: J.T.-A. Hsu
CYP1A2 can be derived from a variety of sources such as liver subcellular fractions, recombinant CYP1A2 enzymes, human hepatocytes, CYP1A2-expressed mammalian cell lines, among others. It is important to develop robust cell culture systems for the study of drug metabolism (Donato et al., 2008). In this study, we have developed a stable cell line, that is, Huh7-1A2-I-E, with constitutive expression of human CYP1A2 in Huh7 cells. We showed that high throughput screening for CYP1A2 inhibitors or for CYP1A2-associated cytotoxic agents could be facilely conducted using this system. The results and implications after screening of approximately 200 drugs is presented and discussed.
Materials and Methods
Chemicals and Reagents
3-(4,5-Dimethylthiazol-2-yl)-5-(3-carboxy-methoxyphenyl)-2-(4-sulfophenyl)-2H-tetrazolium (MTS) was purchased
from Promega (Madison, WI). Screened drugs were obtained from MicroSource Discovery Systems, Inc. (Gaylordsville, CT). All other chemicals were commercially available products of analytical grade and purchased from Sigma–Aldrich (St. Louis, MO). Baculovirus supersome (recombinant CYP1A2 enzyme) was purchased from BD Biosciences (San Jose, CA).
Construction of Plasmids
Starting from the pLenti6/V5-D-TOPO plasmid (Invitrogen, Carlsbad, CA), two lentirvial vectors, pLenti-1A2-I-E and pLenti-E, were constructed (Fig. 1A and B). The names and sequences of the used primers were shown on Table I. Briefly, the CYP1A2 gene was amplified using polymerase chain reaction (PCR) from a human liver cDNA library kindly supplied by Dr. Shiu-Feng Huang (NHRI, Taiwan), and the PCR product was inserted into the SacII site of

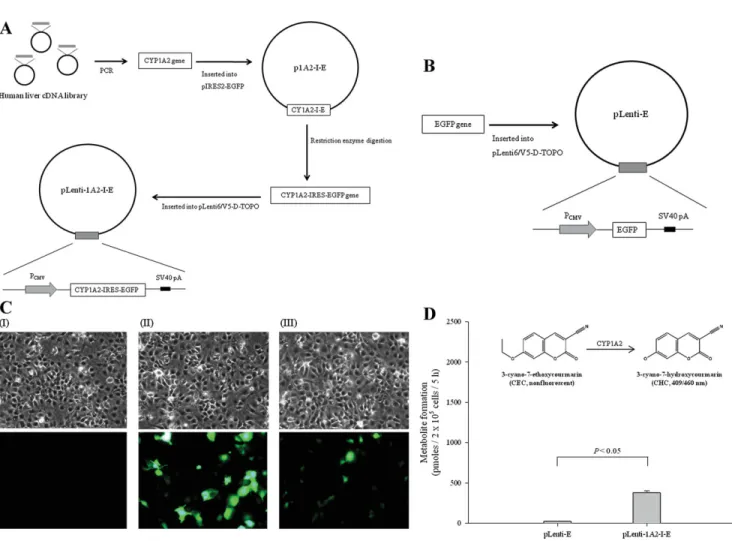

Figure 1. Construction of 1A2-I-E encoding functional human CYP1A2. A: The experimental procedure for the construction of the CYP1A2-expression vector, pLenti-1A2-I-E, is depicted. pLenti-1A2-I-E is a bi-cistronic vector where the expression of 1A2-I-E is under the control of the CMV promoter. (I: IRES: Internal Ribosome Entry Site; E: EGFP). B: The control vector, pLenti-E. C: Fluorescence microscopy of Huh7 cells (I); Huh7 cells transfected with pLenti-E (II) or pLenti-1A2-I-E (III), 48 h after transfection. D: Metabolic activity assays of Huh7 cells transfected with plasmids (pLenti-E and pLenti-1A2-I-E). 3-Cyano-7-ethoxycourmarin (CEC) was used as a CYP1A2 substrate and the fluorescent metabolite formation was measured by excitation (nm)/emission (nm): 409/460. The values were the averages of duplicate determinations. The statistical probability (P) is lower than 0.05.
pIRES2-EGFP plasmid (Clontech, Mountain View, CA) to generate a intermediate plasmid, p1A2-I-E. Subsequently, the fragment of CYP1A2-IRES-EGFP gene was directly subcloned into the SpeI–XhoI sites of pLenti6/V5-D-TOPO plasmid (Invitrogen). Finally, the CYP1A2 expression vector, pLenti-1A2-I-E, encoding the CYP1A2-IRES-EGFP fragment (CYP1A2 cDNA followed by IRES (I) element and EGFP (E) cDNA) was generated. Furthermore, EGFP gene was directly amplified using PCR, and inserted into the pLenti6/V5-D-TOPO plasmid to form the control plasmid, pLenti-E.
Cell Culture and Transfection
Huh7 cells were described previously (Pan et al., 2009). HEK293FT cells were from Invitrogen. Cells were trans-fected with various plasmids constructs using Lipofectamine 2000 reagent (Invitrogen). The process of transfection was performed according to the manufacturer’s protocol.
Production of Recombinant Lentiviral Particles
The recombinant lentiviral plasmid and lentiviral package plasmids (pLP1, pLP2, and pLP/VSVG vectors) were co-transfected into the producer cell line, HEK293FT cells. Three days post-transfection, the viral particles were harvested from the culture medium. The production of recombinant lentiviral particles and the viral titer counts were performed according the manufacturer’s protocol (Invitrogen). The viral particles (1A2-I-E and vLenti-E) were stored in small aliquots at808C.
Stable Cell Line Selection
Huh7 cells were transduced with recombinant lentiviral particles (vLenti-1A2-I-E or vLenti-E) at an MOI of 0.5 for 24 h. At the end of transduction, the supernatants were removed and cells were maintained in basal medium plus 10mg/mL blasticidin (Invitrogen) for the selection of blasticidin-resistant clones. After two passages, the survived cells were plated onto 96-well plates at a density of 30 cells per plate for the isolation of clonal lineages. Upon selection by blasticidin, 10 clonal cells harboring CYP1A2 bear
desirable growth characteristics out of approximately 200 clonal cells that survived in 96-well plates. Subsequently, the clonal cells were examined for their CYP1A2 activity using 3-Cyano-7-ethoxycoumarin (CEC) as the substrate. As a result, clonal cells were isolated and two cell lines, Huh7-1A2-I-E and Huh7-E, were established. Subsequently, the stable cell lines were selected.
Fluorescence Microscopy and Metabolic Activity Assays
The EGFP could be observed using a fluorescence microscope. The CYP1A2 enzyme activity assays were performed by the direct incubation of intact cells with CYP1A2 substrates (CEC), as previously described (Donato et al., 2004). Briefly, Huh7-1A2-I-E cells were seeded at a density of 2 105cells per well in 24-well plates or 5 103 cells per well in 96-well plates, and incubated at 378C overnight. Subsequently, the culture medium was replaced with the CEC substrate incubation medium (30mM CEC, 1 mM Na2HPO4, 137 mM NaCl, 5 mM KCl, 0.5 mM MgCl2,
2 mM CaCl2, 10 mM glucose, and 10 mM
4-(2-hydro-xyethyl)-1-piperazineethane-sulfonic acid (HEPES), pH 7.4 in double-distilled water (ddH2O)). After 5 h of incubation
at 378C, the assays were terminated by aspirating the incubation medium, and the fluorescent metabolite was quantified using a SpectraMax M2 microplate reader with excitation and emission wavelength maxima of 409 and 460 nm, respectively (Molecular Devices, Sunnyvale, CA). The fluorescent metabolite, CHC (3-cyano-7-hydroxy-coumarin), was utilized to be a quantitative standard, and the measured fluorescent signals were proportional to the concentration of CHC. Results were expressed as pmoles of formed metabolite per 2 105cells per 5 h.
Western Blotting
The procedure for Western blotting analysis is essential the same as described (Pan et al., 2009). Anti-CYP1A2 antibody was from Abcam (Cambridge, MA). Anti-b-actin antibody and the secondary antibody were from Santa Cruz Biotechnology, Inc. (Santa Cruz, CA) or Jackson ImmunoResearch Laboratories, Inc. (West Grove, PA).
Cell Viability Assays
The procedure for MTS assay is essential the same as described (Pan et al., 2009). MTS assay is based on the conversion of a tetrazolium salt into a colored aqueous-soluble formazan catalyzed by dehydrogenase enzymes in viable mitochondria. The amount of formazan is directly proportional to the number of living cells in the culture (Buttke et al., 1993; Malich et al., 1997). In this study, cells were seeded at a density of 5 103cells per well in 96-well plates overnight. Then, compounds were added to the

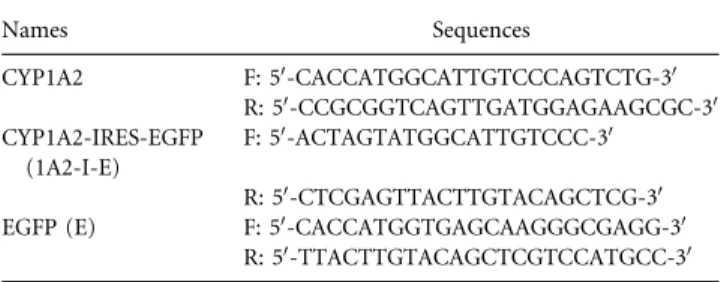

Table I. The names and sequences of the primers.
Names Sequences CYP1A2 F: 50-CACCATGGCATTGTCCCAGTCTG-30 R: 50-CCGCGGTCAGTTGATGGAGAAGCGC-30 CYP1A2-IRES-EGFP (1A2-I-E) F: 50-ACTAGTATGGCATTGTCCC-30 R: 50-CTCGAGTTACTTGTACAGCTCG-30
EGFP (E) F: 50-CACCATGGTGAGCAAGGGCGAGG-30
R: 50-TTACTTGTACAGCTCGTCCATGCC-30 F, forward primer; R, reverse primer.
complete culture medium to the test concentrations. After 72 h of treatment, MTS assay was performed and cell viability was measured using the follow equation: Cell viability (%)¼ [MTS value (compound treatment cells)/ MTS value (1% DMSO treatment cells)] 100%.
Flowcytometry
Huh7, Huh7-E, and Huh7-1A2-I-E cells were harvested by 1 trypsin-ethylenediaminetetraacetic acid (EDTA) and suspended with 1 phosphate buffered saline (PBS) at 6 105cells/mL. Samples were subjected to flow cytometry FACS Calibus (BD Biosciences) to detect green fluorescence (FL1-H) and 10,000 cells of each sample were collected. Data were analyzed by CellQuest Pro software (BD Biosciences) to obtain the mean fluorescence intensity of each sample. Experiments were performed in triplicate.
Calculation ofS/N, S/B, and Z( Factor
The signal-to-noise ratio (S/N), signal-to-background ratio (S/B), and Z0 factor values were calculated using the methods of Zhang et al. (1999). The statistical parameters were utilized to evaluate the performance of this developed assay for high-throughput screening. Before compound treatment, Huh7-1A2-I-E cells were seeded at a density of 5 103cells per well in 96-well plates overnight. Cells were treated with 2.5mM aflatoxin B1, as a background set, or 1% dimethylsulfoxide (DMSO), as a signal set, for 72 h, and cell viability was assessed by MTS assay.
Inhibition Assays of CYP1A2 Enzyme Activities
The assay was modified according to a previous report (Donato et al., 2004). CYP1A2 enzyme activity was assayed by incubating baculovirus supersome containing the recom-binant CYP1A2 enzyme in 100mL of 100 mM phosphate buffer, pH 7.4, with the NADPH-regenerating system (5 mM MgCl2, 1 mM NADPH, 10 mM glucose 6-phosphate,
and 0.3 U/mL glucose-6-phosphate dehydrogenase). After the compounds were added into the enzyme mixture at 378C for 1 h, CEC was then added to 30 mM. After 30 min of incubation at 378C, the fluorescence due to the conversion of CEC to CHC, a fluorescent metabolite, was quantified using a SpectraMax M2 microplate reader.
Results
The Functional Expression of the Bi-Cistronic Constructs Was Evaluated by Transient Transfection in Huh7 Cells
To provide a robust cell model for evaluating the xenobiotic metabolism mediated by human CYP1A2, a lentiviral
bi-cistronic vector, pLenti-1A2-I-E, was constructed (Fig. 1A). As a control, the pLenti-E plasmid was used (Fig. 1B). Huh7 cells were individually transfected with these two plasmids. As shown in Figure 1C, at 48 h post-transfection, the EGF expression in the pLenti-E transfected cells was evident under fluorescence microscopy. Some of the pLenti-1A2-I-E transfected cells also showed EGFP expression though it seemed that the expression level of EGFP was lower than that in the control. Presumably, this may be due to that the mRNA stability of the 1A2-IRES-EGFP is not as optimized as that of the 1A2-IRES-EGFP.
The whole-cell CYP1A2 activity was measured. Results showed that the CYP1A2 activity in cells transfected with the bi-cistronic vector was approximately 17-fold higher than that in the pLenti-E transfected cells (Fig. 1D) indicating that the CYP1A2 gene encoded in the pLenti-1A2-I-E bi-cistronic vector is functional in Huh7 cells.
Establishment and Characterizations of Huh7-1A2-I-E and Huh7-E Cell Lines
Subsequently, recombinant lentiviral particles, vLenti-1A2-I-E and vLenti-E, were generated from the pLenti-1A2-vLenti-1A2-I-E and the pLenti-E, respectively. The harvested lentiviral titers ranged between 2 105 and 5 105PFU/mL (plaque-forming unit, PFU). Huh7 cells were then transduced with the lentiviral particles, and the cells harboring the genes of interest were selected with 10mg/mL of blasticidin. Clonal cells were isolated and two cell lines, Huh7-1A2-I-E and Huh7-E, were established.
The GFP is a good marker for assessing transfection efficiency in the early stage. GFP was then used at later stage to ascertain that the expression cassette has remained intact in the clonal cells selected under the blasticidin selection pressure. Under fluorescence microscopy, GFP could be barely observed in Huh7-1A2-I-E cells (not shown). Stronger GFP in Huh7-E was observed (not shown). Results from flow cytometry analysis are consistent with the fluorescence microscopy observations (Fig. 2A). Thus, GFP under the IRES regulation was a successful strategy to provide a gene expression marker with limited protein expression capacity from cells.
Cells were analyzed for expression of CYP1A2 by Western blot using anti-CYP1A2 antibody. As a positive control, the recombinant human CYP1A2 produced from the baculo-virus expression system appeared as a prominent band at a MW close to 55 kDa; similar to the expected size of CYP1A2 (Fig. 2B, lane 4). It is evident that CYP1A2 is overexpressed in Huh7-1A2-I-E cells (lane 3). The lower panel showed the levels ofb-actin as a loading control. It is noteworthy that the mRNA of CYP1A2 could also be detected in Huh7-1A2-I-E but not in Huh7-E cells by reverse transcription-PCR (RT-PCR; not shown).
Huh7-1A2-I-E and Huh7-E cells were then examined for their whole-cell CYP1A2 activity by the addition of CEC into the medium of cultured cells. Results showed that the
CYP1A2 activity in Huh7-1A2-I-E cells is much higher than that in Huh7-E cells (Fig. 2C). When cells were incubated with 30mM of CEC for 5 h, approximately 2,000 pmol of the metabolite (CHC) was formed out of every 2 105 Huh7-1A2-I-E cells. However, the CHC formation was<100 pmol when Huh7-E cells were treated with CEC under the same conditions. Furthermore, close to 80% of the CYP1A2 activity can be inhibited by furafylline at 10mM (Fig. 2D). Further, unlike in Huh7-1A2-I-E cells (Fig. 2D), the
metabolite formation in Huh7-E cells was not affected by the CYP1A2 inhibitor furafylline up to 10mM (Fig. 2E). Therefore, it is highly likely that the residual CYP1A2 activity measured in Huh7-E cells in Figure 2C is not due to the endogenous CYP1A2 in Huh7-E cells. These results indicate that CYP1A2 activity is present in the Huh7-1A2-I-E stable cell line. The cells have been propagated for more than 50 passages without loss of the enzymatic activity (not shown).

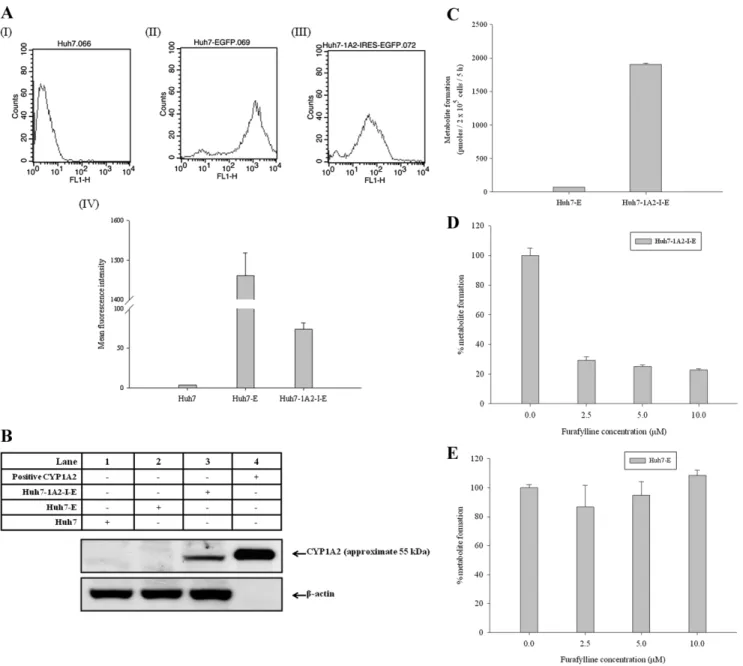

Figure 2. The characteristic comparison of stable Huh7 cell lines individually carried with human CYP1A2 and EGFP genes. A: The green fluorescence (FL1-H) of Huh7 (I), Huh7-E (II), and Huh7-1A2-IRES-E cells (III) detected by FACS Calibus. Averages of mean fluorescence intensity (n ¼ 3) were shown on IV. B: Western blotting. Samples were stained with CY1A2 antibody orb-actin antibody. From left to right: lane 1, Huh7 cell lysate; lane 2, Huh7-E cell lysate; lane3, Huh7-1A2-I-E cell lysate (lane 1, lane 2, and lane 3 were corresponding to 50mg of protein/lane); lane 4, CYP1A2 positive standard (recombinant CYP1A2 from BD Biosciences, 1 mg of protein/lane). C: Metabolic activity assays of intact stable Huh7 cell lines by using fluorimetric probe, CEC. The values were the means of triplicate determinations. Inhibition effects of furafylline (known CYP1A2 inhibitor) on CYP1A2 enzyme activities in Huh7-1A2-I-E cell line (D) and the control Huh7-E cells (E). Cells were treated with indicated concentrations of furafylline for 72 h, and CYP1A2 activities were detected using CEC as the fluorimetric probe. The values were the means of triplicate determinations.
Evaluation of the CYP1A2-Mediated Toxicity in Huh7-1A2-I-E Cells
To investigate if the Huh7-1A2-I-E cells are suitable host cells for studying CYP1A2-mediated toxicity of drugs, Huh7-1A2-I-E and Huh7-E cell lines were treated with aflatoxin B1 that is known to produce toxic metabolites upon biotransformation by CYP1A2 (Mace et al., 1997; Manson et al., 1997). Cells were exposed to aflatoxin B1 at different concentrations for 72 h. For Huh7-E cells, approximately 80% of cell viability remained even at 10mM of aflatoxin B1 (Fig. 3). In contrast, Huh7-1A2-I-E cells were much more sensitive to aflatoxin B1. The CC50(drug
concentration at which 50% of cells are viable compared to the control) of aflatoxin B1 in Huh7-1A2-I-E cells was approximately 0.3mM. The sensitivity of Huh7-1A2-I-E cells to aflatoxin B1 disappeared when 5mM of furafylline was applied to block the enzymatic activity of CYP1A2. Thus, it is highly likely that more toxic metabolites of aflatoxin B1 were formed in Huh7-1A2-I-E cells but not in the control Huh7-E cells. Therefore, the established cell lines may be important for identification of compounds or drugs that will generate toxic metabolites upon CYP1A2 transfor-mation. In reverse, this system may also be valuable for studying CYP1A2-mediated detoxification of xenobiotics.
Robustness Analysis and Screening of Existing Drugs or Bioactive Compounds for Their Cytotoxic Effects in Huh7-1A2-I-E and Huh7-E Cell Lines
To assess whether Huh7-1A2-I-E cells can be adopted into a high throughput assay for cytotoxicity studies, assay parameters such as signal to noise ratio (S/N), signal to
background ratio (S/B), and the Z0factor were measured in the presence and absence of aflatoxin B1 as a reference drug. Huh7-1A2-I-E cells were treated with 10mM of aflatoxin B1 for 72 h. The S/N ratio and S/B ratio were 12.8 and 5.7, respectively, and a Z0value of 0.72 was obtained (Fig. 4A). Thus, this system is suitable for high throughput screenings. To validate the utility of this cell-based CYP1A2 metabolism system, we screened a small collection of compounds consisting of 200 drugs with known or potential anti-cancer and cytotoxic activity. The tested compounds are described in Supplementary Table 1. Huh7-1A2-I-E and Huh7-E cells were treated with the drugs at 10mM of each compound in a 96-well format. After 72 h, cell viability was assessed with MTS assay and the results from the whole-cell cytotoxic screening are shown in Figure 4B.
The whole area of this viability plot can be generally divided into the following zones. Drugs, located at the straight line with equal distance to the x- and y-axis, showing equivalent cytotoxicity toward Huh7-1A2-I-E and Huh7-E cells constitute the majority of the tested drugs. Drugs that are more toxic to Huh7-E cells than to Huh7-1A2-I-E cells would be located at the upper left zone to indicate that these Huh7-E toxicants may be detoxified by CYP1A2 in Huh7-1A2-I-E cells. Whereas drugs that are more toxic for Huh7-1A2-I-E cells than for Huh7-E cells would fall in the lower right zone on the plot. Aflatoxin B1 indicated by the open triangle fell in this zone.
Discovery and Characterizations of Previously Unknown Drugs Whose Bioactivity May Be Effected by CYP1A2
From the screened results, evoxine and thimerosal were further analyzed for their toxic effects in more details because they had a noticeable difference in cytotoxicity for Huh7-E and Huh7-1A2-I-E cells. As indicated by thesign on Figure 4B, thimerosal at 10mM killed almost all the Huh7-1A2-I-E cells while40% of Huh7-E cells remained viable. Also note that evoxine at 10mM, indicated by the sign on Figure 4B, caused approximately 50% and 10% reduction in cell viability of Huh7-1A2-I-E and Huh7-E cells, respectively. These results indicate that more toxic metabolites may be formed in Huh7-1A2-I-E cells treated with thimerosal or evoxine.
Thimerosal and evoxine were examined by further dose-dependent cytotoxicity analyses. Thimerosal is a vaccine preservative and evoxine is a natural product existing in Skimmia Reevesiana (Epifano et al., 2007). The results showed that the CC50s of thimerosal were close 3 and 1.5mM
in Huh7-E and Huh7-1A2-I-E cells, respectively. Evoxine at 10mM caused >30% reduction in cell viability of 1A2-I-E cells but had no effect for the cell viability of Huh7-E cells (Fig. 4C and D). Results from this screening effort also illustrated that indeed this whole-cell screening system may be useful for systematically discovery of drugs with CYP1A2-mediated toxicity.
Figure 3. Cytotoxic effects of a CYP1A2-metabolized compound (Aflatoxin B1) in stable Huh7 cell lines. The cells were exposed to the indicated concentrations of aflatoxin B1 for 72 h, and cell viability was assessed by MTS assay. The values were the means of triplicate determinations. The symbols: Huh7-1A2-I-E cell line (-*-); Huh7-E cell line (-*-); Huh7-1A2-I-E cell line treated with 5 mM furafylline before aflatoxin B1 treatment for 1 h (-!-).
We also evaluated if the whole-cell CYP1A2 activity assay based on Huh7-1A2-I-E cells can be applicable for identification of potential enzyme inhibitors. Huh7-1A2-I-E cells were seeded in 96-well plates and then treated with test drugs at 10mM. One hour after, the drug-containing medium was replaced with the CYP1A2 enzyme incubation medium containing CEC and incubated for another 5 h. The results are shown in Figure 5. In this whole-cell assay, 8 compounds showed >50% inhibition of CYP1A2 at concentrations not affecting cell viability. Among them, methoxsalen, miconazole, and thiabendazole are well known CYP1A2 inhibitors (Zhou et al., 2010). Surprisingly, it has never been previously reported that evoxine, berberine, benzo[a]pyrene, and 3-methylcholanthrene are potent CYP1A2 inhibitors. Results from the whole-cell assay were confirmed by enzyme-based assay using recombinant CYP1A2 produced by the baculovirus expression system.
More detailed characterizations from the enzyme-based assay are shown in Supplementary Table 2. In summary, a whole-cell system was established in this study for identification of potential CYP1A2 inhibitors and for studying CYP1A2-mediated toxicity or detoxification in cells.
Discussion
In this study, we have succeeded in generating a novel cell line, Huh7-1A2-I-E, wherein high levels of CYP1A2 expression was achieved in Huh7 cells using the lentiviral gene transfer vector. Some hepatocyte-specific character-istics are maintained in Huh7 cells that were derived from a hepatocellular carcinoma (Nakabayashi et al., 1984). Like normal hepatocytes, Huh7 cells are able to secret some Figure 4. Evaluation of drugs for their CYP1A2-related cytotoxicity. A: Estimates of statistical parameters of the screening system. Huh7-1A2-I-E cells (5 103
cells per well in 96-well plates) were treated with 2.5mM aflatoxin B1 (closed circles), as a background set, and 1% DMSO (open circles), as a signal set, for 72 h, and cell viability was assessed by MTS assay. TheS/N, S/B, and Z0factor values were 12.8, 5.7, and 0.72, respectively. B: Cytotoxic effects of screened compounds in Huh7-E and Huh7-1A2-I-E cells. Cells were
exposed to 10mM compounds individually for 72 h, and cell viability was assessed by MTS assay. The values were the means of triplicate determinations. Highlighted compounds: Aflatoxin B1 (5); Thimerosal (); Evoxine (). C and D: Dose-dependent effects of cell viability of thimerosal and evoxine, respectively. Cultured cells were exposed to compounds at different concentrations for 72 h, and cell viability was assessed by MTS assay. The values were the means of triplicate determinations. The symbols: Huh7-1A2-I-E cells (-*-); Huh7-E cells (-*-).
plasma proteins such as albumin, prealbumin, G6Pase, and FDPase, etc. (Nakabayashi et al., 1982, 1984; Seki et al., 1999). Further, the replication of hepatitis C virus RNAs is possible in this cell line indicating that Huh7 cells bear important hepatocellular properties (Blight et al., 2002). However, we found that several drug-metabolism CYP enzymes could not be detected in Huh7 cells. Therefore, we used the lentiviral protein expression technology to establish the whole-cell CYP1A2 system since the lentivirus-encoded genes can be efficiently integrated into the host genome (Buchschacher and Wong-Staal, 2000; Naldini, 1998).
Cell-based systems are important for studies of drug metabolism and many such in vitro models have been established and reviewed (Donato et al., 2008; Vermeir et al., 2005). To our knowledge, this study is the first report to describe the establishment of a cell-based assay with the heterologously expressed human CYP1A2 for high through-put screening of enzyme inhibitors or substrates that may be detoxificated or may produce more toxic metabolites upon conversion by CYP1A2. To validate that the system is indeed suitable for high throughput screening, we have tested that the cell-based enzymatic activity of CYP1A2 has been consistent up to more than 50 passages of the Huh7-1A2-I-E cells. Further, the high S/B ratios and low S/N ratios and a Z0 factor of more than 0.5 indicated that the signal-to-noise scatter in the assay could be highly reproducible with little variation (Zhang et al., 1999). Thus, Huh7-1A2-I-E cells indeed represent a convenient cell-based recombinant system that may satisfy various needs for studying drug metabolism related to CYP1A2.
The reliability of the whole cell-based system was ascertained by the CYP1A2-mediated toxicity of aflatoxin B1 in Huh7-1A2-I-E cells. Aflatoxin was much more toxic to
Huh7-1A2-I-E cells than to the control Huh7-E cells. Further, the toxicity of aflatoxin in Huh7-1A2-I-E cells disappeared when furafylline, a CYP1A2 inhibitor, was included. This result highly suggested that the conversion of aflatoxin B1 to a more toxic metabolite by CYP1A2 in Huh7-1A2-I-E cells (Gallagher et al., 1996; McDonagh et al., 1999). The results showed that the whole cell-based system has a potential for studying CYP1A2-metabolized com-pounds or drugs. Furthermore, a collection of200 drugs were tested for their CYP1A2-mediated toxicity using Huh7-1A2-I-E cells in 96-well plates. Results from this screening revealed that more toxic metabolites may be produced through the conversion of evoxine and thimerosal by CYP1A2. This observation indicates that, for most drugs examined in this study, the metabolism by CYP1A2 is unlikely to have made a major contribution to the in vitro cytotoxicity except for thimerosal and evoxine. Further investigations are needed to characterize the underlying mechanism.
In the screening for CYP1A2 inhibitors using this cell system, several known CYP1A2 inhibitors showed strong inhibition in the assay (Fig. 5). Interestingly, evoxine, berberine, benzo[a]pyrene, and 3-methylcholanthrene were also identified as probable CYP1A2 inhibitors in the cell-based system. Subsequent enzyme-cell-based characterizations confirmed the observations. Evoxine, extracted from the stem bark of Teclea gerrardii, is an alkaloid with antiplasmodial activity (Waffo et al., 2007). Berberine is also an alkaloid with a multi-spectrum therapeutic activities (Kulkarni and Dhir, 2010; Vuddanda et al., 2010). Berberine was recently shown to be able to attenuates experimental autoimmune encephalomyelitis (EAE; Ma et al., 2010; Qin et al., 2010). Although there was few reported human adverse events regarding evoxine or berberine, results from this study warrant further studies to examine if the administration of evoxine or berberine through the intake of herb medicines may trigger potential drug–drug interactions involving CYP1A2.
In summary, this study describes a cell-based system stably expressing high level of CYP1A2. Theoretically, this system can be expanded to include other CYP or other genes, and the drug-metabolizing functions of hepatocytes may be restored in a cell line that can be facilely maintained.
References
Bai J, Cederbaum AI. 2004. Adenovirus mediated overexpression of CYP2E1 increases sensitivity of HepG2cells to acetaminophen induced cytotoxicity. Mol Cell Biochem 262(1–2):165–176.
Blight KJ, McKeating JA, Rice CM. 2002. Highly permissive cell lines for subgenomic and genomic hepatitis C virus RNA replication. J Virol 76(24):13001–13014.
Buchschacher GL, Jr., Wong-Staal F. 2000. Development of lentiviral vectors for gene therapy for human diseases. Blood 95(8):2499–2504. Buttke TM, McCubrey JA, Owen TC. 1993. Use of an aqueous soluble tetrazolium/formazan assay to measure viability and proliferation of lymphokine-dependent cell lines. J Immunol Methods 157(1–2):233– 240.

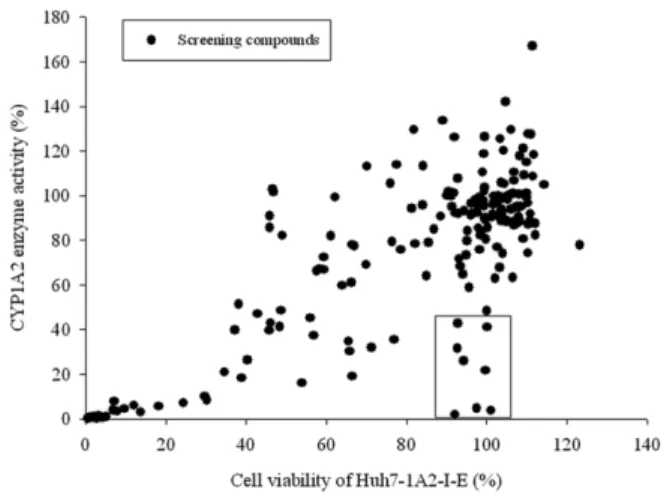

Figure 5. Screening of CYP1A2 inhibitors in the whole-cell assay. Huh7-1A2-I-E cells were seeded in 96-well plates and then treated with the drugs. The treatment concentration is 10mM. One hour after, the drug-containing medium was replaced with the CYP1A2 enzyme incubation medium containing CEC as the substrate and incubated for another 5 h. CYP1A2 enzyme activity was assessed by the metabolic activity assay.
Donato MT, Jimenez N, Castell JV, Gomez-Lechon MJ. 2004. Fluorescence-based assays for screening nine cytochrome P450 (P450) activities in intact cells expressing individual human P450 enzymes. Drug Metab Dispos 32(7):699–706.
Donato MT, Lahoz A, Castell JV, Gomez-Lechon MJ. 2008. Cell lines: A tool for in vitro drug metabolism studies. Curr Drug Metab 9(1):1–11. Epifano F, Genovese S, Menghini L, Curini M. 2007. Chemistry and
pharmacology of oxyprenylated secondary plant metabolites. Phyto-chemistry 68(7):939–953.
Gallagher EP, Kunze KL, Stapleton PL, Eaton DL. 1996. The kinetics of aflatoxin B1 oxidation by human cDNA-expressed and human liver microsomal cytochromes P450 1A2 and 3A4. Toxicol Appl Pharmacol 141(2):595–606.
Guengerich FP. 2008. Cytochrome p450 and chemical toxicology. Chem Res Toxicol 21(1):70–83.
Klingenberg M. 1958. Pigments of rat liver microsomes. Arch Biochem Biophys 75(2):376–386.
Kulkarni SK, Dhir A. 2010. Berberine: A plant alkaloid with therapeutic potential for central nervous system disorders. Phytother Res 24(3): 317–324.
Laika B, Leucht S, Heres S, Schneider H, Steimer W. 2010. Pharmacoge-netics and olanzapine treatment: CYP1A21F and serotonergic poly-morphisms influence therapeutic outcome. Pharmacogenomics J 10(1):20–29.
Lin JH, Lu AY. 1998. Inhibition and induction of cytochrome P450 and the clinical implications. Clin Pharmacokinet 35(5):361–390.
Ma X, Jiang Y, Wu A, Chen X, Pi R, Liu M, Liu Y. 2010. Berberine attenuates experimental autoimmune encephalomyelitis in C57 BL/6 mice. PLoS ONE 5(10):e13489.
Mace K, Aguilar F, Wang JS, Vautravers P, Gomez-Lechon M, Gonzalez FJ, Groopman J, Harris CC, Pfeifer AM. 1997. Aflatoxin B1-induced DNA adduct formation and p53 mutations in CYP450-expressing human liver cell lines. Carcinogenesis 18(7):1291–1297.
Malich G, Markovic B, Winder C. 1997. The sensitivity and specificity of the MTS tetrazolium assay for detecting the in vitro cytotoxicity of 20 chemicals using human cell lines. Toxicology 124(3):179–192. Manson MM, Ball HW, Barrett MC, Clark HL, Judah DJ, Williamson G,
Neal GE. 1997. Mechanism of action of dietary chemoprotective agents in rat liver: Induction of phase I and II drug metabolizing enzymes and aflatoxin B1 metabolism. Carcinogenesis 18(9):1729–1738.
McDonagh PD, Judah DJ, Hayes JD, Lian LY, Neal GE, Wolf CR, Roberts GC. 1999. Determinants of specificity for aflatoxin B1-8,9-epoxide in alpha-class glutathione S-transferases. Biochem J 339(Pt 1):95–101. Murray M. 2006. Altered CYP expression and function in response to
dietary factors: Potential roles in disease pathogenesis. Curr Drug Metab 7(1):67–81.
Nakabayashi H, Taketa K, Miyano K, Yamane T, Sato J. 1982. Growth of human hepatoma cells lines with differentiated functions in chemically defined medium. Cancer Res 42(9):3858–3863.
Nakabayashi H, Taketa K, Yamane T, Miyazaki M, Miyano K, Sato J. 1984. Phenotypical stability of a human hepatoma cell line, HuH-7, in long-term culture with chemically defined medium. Gann 75(2):151–158.
Naldini L. 1998. Lentiviruses as gene transfer agents for delivery to non-dividing cells. Curr Opin Biotechnol 9(5):457–463.
Omura T, Sato R. 1962. A new cytochrome in liver microsomes. J Biol Chem 237:1375–1376.
Pan KL, Lee JC, Sung HW, Chang TY, Hsu JT. 2009. Development of NS3/ 4A protease-based reporter assay suitable for efficiently assessing hepatitis C virus infection. Antimicrob Agents Chemother 53(11): 4825–4834.
Qin X, Guo BT, Wan B, Fang L, Lu L, Wu L, Zang YQ, Zhang JZ. 2010. Regulation of Th1 and Th17 cell differentiation and amelioration of experimental autoimmune encephalomyelitis by natural product com-pound berberine. J Immunol 185(3):1855–1863.
Ramaiah SK, Apte U, Mehendale HM. 2001. Cytochrome P4502E1 induc-tion increases thioacetamide liver injury in diet-restricted rats. Drug Metab Dispos 29(8):1088–1095.
Roos PH, Jakubowski N. 2008. Cytochrome p450. Anal Bioanal Chem 392(6):1015–1017.
Seki S, Kitada T, Kawada N, Sakaguchi H, Kadoya H, Nakatani K, Satake K, Kuroki T. 1999. Establishment and characteristics of human hepato-cellular carcinoma cells with metastasis to lymph nodes. Hepatogas-troenterology 46(29):2812–2817.
Seliskar M, Rozman D. 2007. Mammalian cytochromes P450-importance of tissue specificity. Biochim Biophys Acta 1770(3):458–466.
Tang C, Lin JH, Lu AY. 2005. Metabolism-based drug-drug interactions: What determines individual variability in cytochrome P450 induction? Drug Metab Dispos 33(5):603–613.
Vermeir M, Annaert P, Mamidi RN, Roymans D, Meuldermans W, Mannens G. 2005. Cell-based models to study hepatic drug metabolism and enzyme induction in humans. Expert Opin Drug Metab Toxicol 1(1):75–90.
Vuddanda PR, Chakraborty S, Singh S. 2010. Berberine: A potential phytochemical with multispectrum therapeutic activities. Expert Opin Investig Drugs 19(10):1297–1307.
Waffo AF, Coombes PH, Crouch NR, Mulholland DA, El Amin SM, Smith PJ. 2007. Acridone and furoquinoline alkaloids from Teclea gerrardii (Rutaceae: Toddalioideae) of southern Africa. Phytochemistry 68(5):663–667.
Yan QG, Shi JG, Zhang F, Zhao QT, Pang XW, Chen R, Hu PZ, Li QL, Wang Z, Huang GS. 2008. Overexpression of CYP2E1 enhances sensitivity of hepG2cells to fas-mediated cytotoxicity. Cancer Biol Ther 7(8):1280– 1287.
Zhang JH, Chung TD, Oldenburg KR. 1999. A simple statistical parameter for use in evaluation and validation of high throughput screening assays. J Biomol Screen 4(2):67–73.
Zhang JG, Ho T, Callendrello AL, Crespi CL, Stresser DM. 2010. A multi-endpoint evaluation of cytochrome P450 1A2, 2B6 and 3A4 induction response in human hepatocyte cultures after treatment with beta-naphthoflavone, phenobarbital and rifampicin. Drug Metab Lett 4(4):185–194.
Zhou SF, Zhou ZW, Huang M. 2010. Polymorphisms of human cyto-chrome P450 2C9 and the functional relevance. Toxicology 278(2): 165–188.
