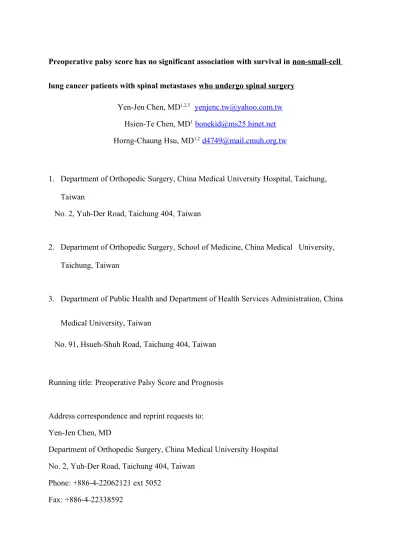

lung cancer patients with spinal metastases who undergo spinal surgery Yen-Jen Chen, MD1,2,3 [email protected]
Hsien-Te Chen, MD1 [email protected] Horng-Chaung Hsu, MD1,2 [email protected]
1. Department of Orthopedic Surgery, China Medical University Hospital, Taichung, Taiwan
No. 2, Yuh-Der Road, Taichung 404, Taiwan
2. Department of Orthopedic Surgery, School of Medicine, China Medical University, Taichung, Taiwan.
3. Department of Public Health and Department of Health Services Administration, China Medical University, Taiwan
No. 91, Hsueh-Shuh Road, Taichung 404, Taiwan
Running title: Preoperative Palsy Score and Prognosis
Address correspondence and reprint requests to: Yen-Jen Chen, MD
Department of Orthopedic Surgery, China Medical University Hospital No. 2, Yuh-Der Road, Taichung 404, Taiwan
Phone: +886-4-22062121 ext 5052 Fax: +886-4-22338592
E-mail: [email protected]
Abstract
Background: Survival is a key factor physicians consider when selecting a treatment modality for the treatment of spinal metastases. Various assessment systems can predict 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
length of survival, and facilitate selection of the most appropriate treatment. Spinal palsy is a prognostic parameter in the Tokuhashi scoring system, but not in the Tomita scoring system. A limitation of these scoring systems is that studies of them have included different tumor types. The aim of this study was to evaluate the usefulness of preoperative neurological status as a prognostic factor in non-small-cell lung cancer patients with spinal metastases who underwent surgical treatment.
Methods: From November 2000 to March 2010, 50 patients with symptomatic metastatic spinal cord compression secondary to non-small-cell lung cancer underwent palliative surgery. Data collected included patient age and sex, tumor histology, date of surgery, death or last follow-up, preoperative and postoperative ambulatory status according to the Frankel grading system, body mass index (BMI), number of vertebra involved, number of other bone metastasis, visceral metastasis, and preoperative Karnofsky performance status. Log-rank test and multivariate Cox proportional hazard regressions were used to evaluate possible
prognostic factors.
Results: The mean patient age was 61.6 years (range, 20 to 87 years), and 34 were male and 16 were female. The median postoperative survival time was 7.5 months. The median survival was 2.5 months (95% confidence interval (CI): 1.22 to 16.3 months) in the Frankel A+B group, and 8.0 months (95% CI: 5.52 to 9.89 months) in the Frankel C+D group (p = 0.87). Multivariate Cox proportional hazard regressions showed that preoperative
22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
performance status was significantly associated with survival. Preoperative palsy score had no statistically significant association with survival.
Conclusions: Preoperative palsy score had no statistically significant association with survival in non-small-cell lung cancer patients with spinal metastases who underwent spinal surgery in this study.
Keywords: lung cancer, neurological status, prognostic score, spinal metastasis, survival rate. 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
BACKGROUND
As advances in chemotherapy prolong the life expectancy of patients with solid tumors, the frequency of spinal metastases is likely to increase. Survival is a key factor physicians
consider when selecting a treatment for spinal metastases. Various assessment systems can predict the length of survival, and facilitate the selection of the most appropriate treatment. The assessment systems, however, differ with respect to the parameters assessed and the significance assigned to each parameter in the total score. Spinal palsy is one of the prognostic parameters in the Tokuhashi scoring system [1, 2], but is not included in the Tomita scoring system [3]. A limitation of these scoring systems is that studies examining them have included different tumor types.
The aim of this study was to evaluate the usefulness of preoperative neurological status as a prognostic factor in non-small-cell lung cancer patients with spinal metastases who underwent surgical treatment.
MATERIAL AND METHODS Patients
From November 2000 to March 2010, 50 patients with symptomatic metastatic spinal cord compression secondary to non-small-cell lung cancer underwent palliative surgery. A retrospective review of the hospital records and radiographs of these patients was conducted. The indication for surgery was neurologic deficit due to spinal cord compression. A single surgeon performed all the surgeries. The Research Ethics Committee approved this
64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83
retrospective analysis (No. DMR101-IRB2-310).
All patients presented with weakness in the lower extremities, and 10 patients (20%) remained ambulatory. The Frankel grading system [4] and a supplementary ambulatory status score were used during the preoperative and postoperative periods to evaluate neurologic status. Preoperative evaluations included plain radiographs, and magnetic resonance imaging (MRI) or computed tomography (CT).
Surgical interventions
A total of 55 surgical procedures were performed on the 50 patients, and 46 patients underwent a single operation. Three patients underwent primary surgery for metastatic spinal cord compression, followed by a second operation for noncontiguous metastases. One patient underwent 3 additional procedures because of repeated local recurrences over a 3-year period.
Three patients underwent combined anterior and posterior procedures (anterior corpectomy, reconstruction with polymethylmethacrylate, and posterior instrumentation). Two patients with cervical spine metastases underwent anterior surgery. The remaining 45 (90%) patients underwent a posterolateral transpedicle approach (PTA). All patients underwent spinal instrumentation following adequate decompression. Local radiotherapy, systemic chemotherapy, and/or targeted therapy were performed after wound healing, usually 3 to 4 weeks after surgery.
Factors for analysis 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103
Data collected included patient age and sex, tumor histology, date of surgery, death or last follow-up, preoperative and postoperative ambulatory status according to the Frankel grading system, body mass index (BMI), number of vertebra involved, number of other bone metastasis, visceral metastasis, and preoperative Karnofsky performance status. Overall survival was calculated from the date of surgery to the date of death.
Factors included in the analyses were sex, age (≤ 54, 55-74, and ≥ 75 years), tumor type (adenocarcinoma or nonadenocarcinoma), preoperative and postoperative palsy score
(Frankel A+B vs. Frankel C+D vs. Frankel E), BMI (underweight vs. eutrophic vs.
overweight/obese), number of vertebra involved (< 3 vs. ≥ 3), other bone metastasis (without vs. with), visceral metastasis (without vs. with), and preoperative Karnofsky performance status (10%-40% vs. 50%-70% vs. 80%-100%).
Statistical analysis
Survival curves were plotted using the Kaplan-Meier method, and the significance of the differences between groups was determined using a log-rank test that considered the effects of age. The median survival time and 95% confidence interval (CI) were then estimated based on the Brookmeyer and Crowley method [5]. A p value < 0.05 was considered
statistically significant. Chi-squared test statistics and p values were calculated based on the log-rank test of specific pairs. For variables with 2 subgroups, a p < 0.05 was considered statistically significant. For variables with 3 subgroups, a p < 0.0167 was considered 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122
statistically significant (the Bonferroni correction method was used to suppress a spurious significant difference).
Univariate and multivariate Cox proportional hazard regressions were used to detect possible prognostic factors. To investigate the most significant factors, factors significantly impacted with survival in univariate analysis were included in multivariate analysis. Pre-op palsy score was considered to be the important factor, so it was included in multivariate analysis even no significance in univariate analysis. A p < 0.05 was considered statistically significant. All analyses were performed using SAS 9.1 statistical software (SAS Institute, Inc, Cary, NC, USA).
RESULTS
The mean patient age was 61.6 years (range, 20 to 87 years), and there were 34 males and 16 females. The tumor sites included the thoracic spine (n = 28), lumbar spine (n = 12), thoracolumbar spine (n = 6), cervical spine (n = 3), and sacrum (n = 1). Adenocarcinoma (32 patients) was the most common histological type, followed by squamous cell carcinoma (9 patients). The mean intraoperative blood loss volume was 975 mL (range, 350-6500 mL), and the mean surgical time was 4.8 hours.
Neurologic improvement by ≥1 Frankel grade was noted in 37 of the 50 cases (74%). Twelve patients showed no improvement, and 1 patient showed deterioration from Frankel 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141
grade B to grade A. Overall, 68% of patients (34/50) were ambulatory after surgery. Twenty-two of 40 (55%) nonambulatory (Frankel B/C) patients became ambulatory (Frankel D/E).
One patient developed symptomatic tumor recurrence at the level of previous
decompression, and 3 patients developed new symptomatic spinal cord compressions because of noncontiguous metastases. These patients underwent repeat decompressive surgeries.
Of 12 observed complications (Table 1), 11 were surgery related. There was no intraoperative mortality; however, 3 patients died during the postoperative period. One patient died from respiratory failure 14 days after surgery, 1 died from hepatic and respiratory failure 23 days after surgery, and 1 died from nonsurgery-related sigmoid colon perforation and sepsis 37 days after surgery. The median postoperative survival time was 7.5 months (95% CI: 4.2 to 10.9 months). The Kaplan-Meier curve (Figure 1) showed that 58% (29/50) of the patients survived > 6 months. The Frankel A+B group (palsy score 0 in Tokuhashi system) contained 8 patients, and the Frankel C+D group (palsy score 1 in Tokuhashi system) contained 42 patients. The median survival was 2.5 months (95% CI: 1.22 to 16.3 months) in the Frankel A+B group and 8.0 months (95% CI: 5.52 to 9.89 months) in the Frankel C+D group (Figure 2; p = 0.87).
Log-rank test (Table 2) and pairwise comparisons of survival between subgroups (Table 3) showed that age < 75 years, adenocarcinoma histology, higher preoperative performance status score, and higher postoperative palsy score were all significantly associated with 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160
longer survival. Sex, BMI, number of vertebra involved, other bone metastasis, visceral metastasis and preoperative palsy score had no statistically significant association with survival.
Multivariate Cox proportional hazard regressions further showed that only higher preoperative performance status score had a statistically significant association with longer survival (Table 4).
DISCUSSION
Tokuhashi et al. [2] stated that the average survival period was longer (10.4 ± 13.6 months) in patients without neurologic deficits than in patients with complete palsy (3.7 ± 3.9 months). Therefore, they included “spinal cord palsy” as a prognostic parameter in their study. Several authors have reported that patients with paralysis at presentation or
posttreatment have a considerably shorter life expectancy than ambulatory patients [6-10]. Prasad and Schiff [11] reported that other than the nature of the primary tumor, the presence of paraparesis prior to surgery had the most detrimental effect on survival.
In 2001, Tomita et al. [3] developed a scoring system that does not use neurologic status as a prognostic factor for survival in patients with spinal metastases. The authors described that a long survival period can be possible with appropriate treatment, even in cases with paraplegia, and suggested that spinal cord decompression can improve paralytic conditions. Patients with paralysis tend to have shorter survival because of cancer progression, and not 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180
due to the paralysis itself [3]. Spiegel et al. [12] reported that neurologic deficits did not significantly influence survival of melanoma patients. North et al. [13] observed that the preoperative ambulatory status predicted the duration of postoperative ambulation, but was only marginally associated with survival. Yamashita et al. [14] used the revised Tokuhashi scoring system to predict survival in patients with spinal metastases, and found that Frankel grade was not significantly associated with survival. Kumar et al. [15] studied 87 patients with spinal metastases from nasopharyngeal cancer, and found the modified Tokuhashi score was the best to predict prognosis; however, neurological status had no significant association with survival. Quraishi et al. [16] studied the effect of surgical timing on neurological
outcome and survival in spinal metastases patients, and found that earlier surgical treatment resulted in significantly better neurological outcomes. However, the timing of surgery did not influence survival.
Leithner et al. [17] compared 7 preoperative prognostic scoring systems for spinal
metastases, including the Bauer [18], Bauer modified [19], Tokuhashi [2], Tokuhashi revised [1], Tomita [3], van der Linden [20], and Sioutos [21] scoring systems. In their analyses, primary tumor and visceral metastases were the only parameters significantly associated with survival. Their results did not show pretreatment neurological status as a prognostic factor; therefore, the authors did not consider paralysis as a predictive of survival [17, 22]. Wibmer et al. [23] evaluated the same preoperative scoring systems and found that primary tumor, 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199
status of visceral metastases, and systemic therapy were significantly associated with survival. Leithner et al. [17] and Wibmer et al. [23] further concluded that the Bauer and Bauer modified scoring systems are the most reliable systems for prediction of survival. The Bauer modified scoring system includes 4 positive prognostic factors: absence of visceral metastases, solitary skeletal metastasis, non-primary lung cancer, and primary tumor of the breast or kidney, lymphoma, or myeloma. It does not include preoperative neurological palsy as a parameter.
The parameters of the revised Tokuhashi scoring system include the patient’s general condition, number of extraspinal bone metastases, number of metastases in the vertebral bodies, presence of metastases in the major internal organs, the primary site of the cancer, and the presence of palsy. The first 5 parameters are all associated with disease severity, but palsy score is not. In our study, the survivals of the Frankel A+B and Frankel C+D groups were not statistically different. One patient with preoperative Frankel B status improved to Frankel D postoperatively and survived for 16 months. One patient with preoperative Frankel B status improved to Frankel C postoperatively and survived for 36 months. Patients with preoperative Frankel B neurological status can still survive for a long duration.
These results may be because paralytic condition is not associated with disease severity, and paralytic condition can be improved with adequate spinal cord decompression. In a patient with multiple spine metastases, palsy might be absent. However, palsy might be noted 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218
in a patient with only 1 vertebral metastasis. A patient with multiple spinal metastases generally has higher disease severity than a patient with a single vertebral metastasis. Also, the number of vertebrae involved, and the pattern of spinal cord compression might be the same in patients with different palsy score (Figure 3,4). Deterioration of neurological status might occur in 1 week, and the survival time should not differ too much in such situation. After adequate surgical decompression and stabilization, palsy should be reversed in all patients except those with a neurological status of Frankel A, or those with a poor overall medical status [24]. Thus, palsy should not be a major prognostic factor in lung cancer patients with spinal metastasis who underwent spinal surgery. P atients with paralysis tend to have shorter survival because of cancer progression, not due to the paralysis itself [3]. The duration of survival largely depends on the disease severity and the ability of other modalities (such as chemotherapy, targeted therapy, or radiotherapy) to control the tumor [25-28].
This study has some limitations that should be considered. First, as a retrospective study from a single center several potential biases may exist, including referral bias and patient characteristics. Second, the sample size was small. Third, we did not include all parameters in the analyses. However, this is the first study that focused only on non-small-cell lung cancer patients with spinal metastases who underwent spinal surgery. The result of this study should be valuable in the decision of treatment of non-small-cell lung cancer patients with spinal metastases. 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237
Conclusions
Preoperative palsy score had no statistically significant association with survival in non-small-cell lung cancer patients with spinal metastases who underwent spinal surgery.
Abbreviations BMI, body mass index; CI, confidence interval; CT, Computed tomography; MRI, magnetic resonance imaging; PTA, posterolateral transpedicular approach;
Competing interests The authors declare that they have no competing interests.
Authors’ contributions YJC collected the data, performed the statistical analysis and wrote the manuscript. HTC participated in the design of the study and the statistical analysis. HCH participated in its design and coordination, and helped to draft the manuscript. All authors read and approved the final manuscript.
References:
1. Tokuhashi Y, Matsuzaki H, Oda H, Oshima M, Ryu J. A revised scoring system for preoperative evaluation of metastatic spine tumor prognosis. Spine (Phila Pa 1976). 2005;30:2186-91.
2. Tokuhashi Y, Matsuzaki H, Toriyama S, Kawano H, Ohsaka S. Scoring system for the
preoperative evaluation of metastatic spine tumor prognosis. Spine (Phila Pa 1976). 1990;15:1110-3. 3. Tomita K, Kawahara N, Kobayashi T, Yoshida A, Murakami H, Akamaru T. Surgical strategy 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258
for spinal metastases. Spine (Phila Pa 1976). 2001;26:298-306.
4. Frankel HL, Hancock DO, Hyslop G, Melzak J, Michaelis LS, Ungar GH, et al. The value of postural reduction in the initial management of closed injuries of the spine with paraplegia and tetraplegia. I. Paraplegia. 1969;7:179-92.
5. Klein JP and Moeschberger M. Survival Analysis: techniques for censored and truncated data. New York: Springer-Verlag; 2003.
6. Hessler C, Vettorazzi E, Madert J, Bokemeyer C, Panse J. Actual and predicted survival time of patients with spinal metastases of lung cancer: evaluation of the robustness of the Tokuhashi score. Spine (Phila Pa 1976). 2011;36:983-9.
7. Leviov M, Dale J, Stein M, Ben-Shahar M, Ben-Arush M, Milstein D, et al. The management of metastatic spinal cord compression: a radiotherapeutic success ceiling. Int J Radiat Oncol Biol Phys. 1993;27:231-4.
8. Maranzano E, Latini P. Effectiveness of radiation therapy without surgery in metastatic spinal cord compression: final results from a prospective trial. Int J Radiat Oncol Biol Phys. 1995;32:959-67.
9. Sundaresan N, Galicich JH, Lane JM, Bains MS, McCormack P. Treatment of neoplastic epidural cord compression by vertebral body resection and stabilization. J Neurosurg. 1985;63:676-84.
10. Zelefsky MJ, Scher HI, Krol G, Portenoy RK, Leibel SA, Fuks ZY. Spinal epidural tumor in patients with prostate cancer. Clinical and radiographic predictors of response to radiation therapy. 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278
Cancer. 1992;70:2319-25.
11. Prasad D, Schiff D. Malignant spinal-cord compression. Lancet Oncol. 2005;6:15-24.
12. Spiegel DA, Sampson JH, Richardson WJ, Friedman AH, Rossitch E, Hardaker WT, Jr., et al. Metastatic melanoma to the spine. Demographics, risk factors, and prognosis in 114 patients. Spine (Phila Pa 1976). 1995;20:2141-6.
13. North RB, LaRocca VR, Schwartz J, North CA, Zahurak M, Davis RF, et al. Surgical management of spinal metastases: analysis of prognostic factors during a 10-year experience. J Neurosurg Spine. 2005;2:564-73.
14. Yamashita T, Siemionow KB, Mroz TE, Podichetty V, Lieberman IH. A Prospective Analysis of Prognostic Factors in Patients With Spinal Metastases: Use of the Revised Tokuhashi Score. Spine (Phila Pa 1976). 2011;36:910-7.
15. Kumar N, Tan JJ, Zaw AS, Lim JL, Wai KL, Malhotra R, et al. Evaluation of scoring systems and prognostic factors in patients with spinal metastases from nasopharyngeal carcinoma. Spine J. 2014;14:2946-53.
16. Quraishi NA, Rajagopal TS, Manoharan SR, Elsayed S, Edwards KL, Boszczyk BM. Effect of timing of surgery on neurological outcome and survival in metastatic spinal cord compression. Eur Spine J. 2013;22:1383-8.
17. Leithner A, Radl R, Gruber G, Hochegger M, Leithner K, Welkerling H, et al. Predictive value of seven preoperative prognostic scoring systems for spinal metastases. Eur Spine J. 2008;17:1488-95. 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298
18. Bauer HC, Wedin R. Survival after surgery for spinal and extremity metastases. Prognostication in 241 patients. Acta Orthop Scand. 1995;66:143-6.
19. Bauer H, Tomita K, Kawahara N, Abdel-Wanis ME, Murakami H. Surgical strategy for spinal metastases. Spine (Phila Pa 1976). 2002;27:1124-6.
20. van der Linden YM, Dijkstra SP, Vonk EJ, Marijnen CA, Leer JW. Prediction of survival in patients with metastases in the spinal column: results based on a randomized trial of radiotherapy. Cancer. 2005;103:320-8.
21. Sioutos PJ, Arbit E, Meshulam CF, Galicich JH. Spinal metastases from solid tumors. Analysis of factors affecting survival. Cancer. 1995;76:1453-9.
22. Dardic M, Wibmer C, Berghold A, Stadlmueller L, Froehlich EV, Leithner A. Evaluation of prognostic scoring systems for spinal metastases in 196 patients treated during 2005-2010. Eur Spine J. 2014 Aug 1. Epub 2014/08/02.
23. Wibmer C, Leithner A, Hofmann G, Clar H, Kapitan M, Berghold A, et al. Survival analysis of 254 patients after manifestation of spinal metastases: evaluation of seven preoperative scoring systems. Spine (Phila Pa 1976). 2011;36:1977-86.
24. Chen YJ, Chang GC, Chen HT, Yang TY, Kuo BI, Hsu HC, et al. Surgical results of metastatic spinal cord compression secondary to non-small cell lung cancer. Spine (Phila Pa 1976).
2007;32:E413-8.
25. Bridwell KH, Jenny AB, Saul T, Rich KM, Grubb RL. Posterior segmental spinal
instrumentation (PSSI) with posterolateral decompression and debulking for metastatic thoracic and 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318
lumbar spine disease. Limitations of the technique. Spine (Phila Pa 1976). 1988;13:1383-94. 26. Cufer T, Knez L. Update on systemic therapy of advanced non-small-cell lung cancer. Expert Rev Anticancer Ther. 2014;14:1189-203.
27. Cufer T, Ovcaricek T, O'Brien ME. Systemic therapy of advanced non-small cell lung cancer: major-developments of the last 5-years. Eur J Cancer. 2013;49:1216-25.
28. Harshman LC, Drake CG, Wargo JA, Sharma P, Bhardwaj N. Cancer Immunotherapy Highlights from the 2014 ASCO Meeting. Cancer Immunol Res. 2014;2:714-9.
Figure Legends
Figure 1. Kaplan-Meier survival curve of the 50 lung cancer patients with spinal metastases who
underwent spinal surgery.
Figure 2. Kaplan-Meier survival curve of the 50 patients with pre-operative Tokuhashi palsy score 0
versus score 1 (P= 0.87).
Figure 3. A 69 Y/O male lung cancer patient with T3, T6 metastases underwent spinal surgery; his preoperative palsy score was 0 (Frankel B). Axial (A) and sagittal (B) T1-319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339
weighted MR images with contrast enhancement demonstrate severe cord compression at T3. His postoperative palsy score was 1 (Frankel C), and he survived 289 days after spinal surgery.
Figure 4. A 51 Y/O male lung cancer patient with T2, T5 metastases underwent spinal surgery; his preoperative palsy score was 1 (Frankel D). Axial (A) and sagittal (B) T1-weighted MR images with contrast enhancement demonstrate cord compression at T2. His postoperative palsy score was 1 (Frankel D), and he survived 274 days after spinal surgery. 340 341 342 343 344 345 346 347
