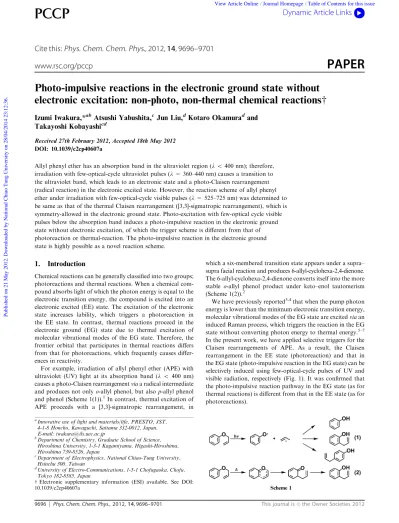

Photo-impulsive reactions in the electronic ground state without
electronic excitation: non-photo, non-thermal chemical reactionsw
Izumi Iwakura,*
abAtsushi Yabushita,
cJun Liu,
dKotaro Okamura
dand
Takayoshi Kobayashi
cdReceived 27th February 2012, Accepted 18th May 2012 DOI: 10.1039/c2cp40607a
Allyl phenyl ether has an absorption band in the ultraviolet region (lo 400 nm); therefore, irradiation with few-optical-cycle ultraviolet pulses (l = 360–440 nm) causes a transition to the ultraviolet band, which leads to an electronic state and a photo-Claisen rearrangement (radical reaction) in the electronic excited state. However, the reaction scheme of allyl phenyl ether under irradiation with few-optical-cycle visible pulses (l = 525–725 nm) was determined to be same as that of the thermal Claisen rearrangement ([3,3]-sigmatropic rearrangement), which is symmetry-allowed in the electronic ground state. Photo-excitation with few-optical cycle visible pulses below the absorption band induces a photo-impulsive reaction in the electronic ground state without electronic excitation, of which the trigger scheme is different from that of photoreaction or thermal-reaction. The photo-impulsive reaction in the electronic ground state is highly possible as a novel reaction scheme.
1.
Introduction
Chemical reactions can be generally classified into two groups; photoreactions and thermal reactions. When a chemical com-pound absorbs light of which the photon energy is equal to the electronic transition energy, the compound is excited into an electronic excited (EE) state. The excitation of the electronic state increases lability, which triggers a photoreaction in the EE state. In contrast, thermal reactions proceed in the electronic ground (EG) state due to thermal excitation of molecular vibrational modes of the EG state. Therefore, the frontier orbital that participates in thermal reactions differs from that for photoreactions, which frequently causes differ-ences in reactivity.
For example, irradiation of allyl phenyl ether (APE) with ultraviolet (UV) light at its absorption band (l o 400 nm) causes a photo-Claisen rearrangement via a radical intermediate and produces not only o-allyl phenol, but also p-allyl phenol and phenol (Scheme 1(1)).1In contrast, thermal excitation of APE proceeds with a [3,3]-sigmatropic rearrangement, in
which a six-membered transition state appears under a supra– supra facial reaction and produces 6-allyl-cyclohexa-2,4-dienone. The 6-allyl-cyclohexa-2,4-dienone converts itself into the more stable o-allyl phenol product under keto–enol tautomerism (Scheme 1(2)).2
We have previously reported3,4that when the pump photon energy is lower than the minimum electronic transition energy, molecular vibrational modes of the EG state are excited via an induced Raman process, which triggers the reaction in the EG state without converting photon energy to thermal energy.5–7 In the present work, we have applied selective triggers for the Claisen rearrangements of APE. As a result, the Claisen rearrangement in the EE state (photoreaction) and that in the EG state (photo-impulsive reaction in the EG state) can be selectively induced using few-optical-cycle pulses of UV and visible radiation, respectively (Fig. 1). It was confirmed that the photo-impulsive reaction pathway in the EG state (as for thermal reactions) is different from that in the EE state (as for photoreactions).
Scheme 1
aInnovative use of light and materials/life, PRESTO, JST,
4-1-8 Honcho, Kawaguchi, Saitama 332-0012, Japan. E-mail: [email protected]
b
Department of Chemistry, Graduate School of Science, Hiroshima University, 1-3-1 Kagamiyama, Higashi-Hiroshima, Hiroshima 739-8526, Japan
c
Department of Electrophysics, National Chiao-Tung University, Hsinchu 300, Taiwan
d
University of Electro-Communications, 1-5-1 Chofugaoka, Chofu, Tokyo 182-8585, Japan
w Electronic supplementary information (ESI) available. See DOI: 10.1039/c2cp40607a
www.rsc.org/pccp
PAPER
2.
Experimental
2.1. Few-optical-cycle ultraviolet pulses
A hollow-fiber compression system was used to obtain few-optical-cycle broadband UV pulses.8A Ti : sapphire regenera-tive amplifier (Coherent, Legend Elite-USP; 2.5 mJ, 35 fs, 1 kHz at 800 nm) was wavenumber-doubled in a beta barium borate (BBO) crystal to generate second-harmonic laser pulses at 400 nm, which were focused into a hollow fiber. The pulses were spectrally broadened in the fiber to 360–440 nm and the time duration was compressed to as short as 8 fs using a pulse compressor. The focal areas of the pump pulse and the probe pulse were 100 and 75 mm2, respectively.
2.2. Few-optical-cycle visible pulses
A Ti : sapphire regenerative amplifier (Spectra Physics, Spitfire; 150 mJ, 100 fs, 5 kHz at 805 nm) was used to pump a non-collinear optical parametric amplifier (NOPA) to obtain few-optical-cycle broadband visible pulses.9The signal pulse was amplified by the double-pass NOPA in the broadband spectral region from 525 to 725 nm and the pulse compressor compressed the pulse duration to 5 fs. The focal areas of the pump pulse and the probe pulse were 100 and 75 mm2, respectively. 2.3. Sample cell
A liquid cell with an optical path length of 1 mm was used to contain the sample during measurement at 295 1 K. Neat liquid of APE (CAS: 1746-13-0, Tokyo Chemical Industry) was stored in the cell for use as a sample. Under irradiation by the UV pulses, light absorption by the sample causes thermal accumulation and bubbling if the pulses irradiate a fixed point. Therefore, during UV pulse irradiation, the sample cell was continuously translated in the plane perpendicular to the probe beam. The shape of the translation trajectory was near-circular and octagon-like, and the speed was ca. 5 mm s 1, which corresponds to a sample displacement of ca. 10 mm during the pulse period of 1 ms. This procedure reduced the probability of sample photodamage to a minimum.
2.4. Pump–probe measurement
The probe pulse was dispersed using a polychromator (300 grooves per mm, 500 nm blazed for visible pulses and 300 nm blazed for UV pulses). The dispersed probe wavelength com-ponents were guided to 128 avalanche photodiodes via a 128-channel bundled fiber. The signal-to-noise ratio was improved by coupling the signals of the avalanche photo-diodes to a 128-channel lock-in amplifier.
2.5. Quantum chemical calculation
The Gaussian 03 program10 was used for the calculations without assuming symmetry. Geometric optimization was performed using the B3LYP/6-311+G(d,p) method and basis set (5d functions were used for the d orbital). Wavenumber calculations were performed for all of the obtained structures at the same level. All the frequencies were confirmed as real for the ground states and one imaginary wavenumber for the transition state (TS). Vectors of the imaginary frequencies directed the reaction mode and intrinsic reaction coordinate calculations were further performed to confirm that the obtained TSs were on the saddle points of the energy surface between the reactant and product.
3.
Results
3.1. Vibrational dynamics in the reaction under few-optical-cycle ultraviolet pulse irradiation (see Fig. 1a)
APE has absorption bands in the UV region (lo 400 nm); therefore, irradiation with few-optical-cycle UV pulses (l = 360–440 nm) caused photo-excitation at the absorption band, which excited the electronic state of APE and photo-Claisen rearrangement (radical reaction) proceeded in the EE state (Fig. 2). A pump–probe measurement of APE was performed to investigate the photo-Claisen rearrangement using the few-optical-cycle UV pulses (see Section 2.1). Fig. 3a shows a two-dimensional view of the observed time-resolved transmission change (DT/T), which indicates the appearance of an induced absorption at 1.8 ps after photo-excitation.
A fast Fourier transform (FFT) of DT/T between 200 and 1200 fs was calculated using the Hanning window function, as shown in Fig. 3b. The calculated FFT power spectrum has peaks at 814, 993, 1278, and 1644 cm 1. Spectrogram analysis11 was performed using a Blackmann window function with a 400 fs full width at half maximum (FWHM) to elucidate the dynamics of the vibrational modes (see Fig. 3c).
Vibrational modes at 1007, 1080, 1186, 1320, 1487, and 1670 cm 1were evident immediately after the photo-excitation. The highest peak at 1007 cm 1is separated into two compo-nents; one exhibited a red shift and the other did not shift until 2.5 ps after photo-excitation. At a delay time of 1.7 ps, the peak at 1670 cm 1disappeared and a new peak appeared at 1533 cm 1. The peak at 1080 cm 1underwent a gradual blue-shift with generation of a new peak at 1425 cm 1.
Fig. 1 The three reaction mechanisms under investigation: (a) traditional photoreaction in the electronic excited state; (b) thermal reaction in the electronic ground state; (c) the present photo-impulsive reaction in the electronic ground state.
Fig. 2 An absorption spectrum of allyl phenyl ether (black curve), and laser spectra of the few-optical-cycle UV (blue curve) and visible (red curve) pulses.
3.2. Vibrational dynamics in the reaction under few-optical-cycle visible pulse irradiation (see Fig. 1c)
The pump–probe measurement was also performed using few-optical-cycle visible pulses (see Section 2.2). The photon energy of the visible pulses (l = 525–725 nm) is lower than the minimum electronic transition energy of APE (lo 400 nm) (Fig. 2).
A two-dimensional view of the measured DT/T is shown in Fig. 4a. The standard deviation of the induced absorbance difference DA, oscillating around the estimated zero absor-bance change, was less than 5 10 5, which is negligible when compared with the oscillation amplitude (dDA) of 3 10 4. The deviation from zero is due to a very small accumulated steady-state population of EGs.
The FFT of DT/T between 200 and 1200 fs was calculated using a Hanning window function, as shown in Fig. 4b. The calculated FFT power spectrum has peaks at 814, 993, 1286, and 1644 cm 1. Spectrogram analysis was performed using a Blackmann window function with 400 fs-FWHM to elucidate the dynamics of the vibrational modes (see Fig. 4c).
Vibrational modes at 820, 1000, 1230, 1300, 1420, 1470, 1595, and 1650 cm 1 were evident immediately after photo-excitation. The peak at 1000 cm 1 disappeared at a delay time of 700 fs without any shift in wavenumber. The mode of
1650 cm 1underwent a gradual red shift with generation of a new peak at 1580 cm 1at a delay time of 750 fs. A new peak appeared at 1750 cm 1 after a delay time of 1 ps and disappeared at a delay time of 2 ps.
3.3. Theoretical vibrational dynamics of the photo- and thermal reactions
A density functional formalism was used to calculate molecular vibrational changes in the photo-Claisen rearrangement and the thermal Claisen rearrangement. Fig. 5 shows a measured Raman spectrum of APE and the calculated wavenumbers of the molecular vibrational modes. The measured results show that symmetric stretching of the phenyl group, C–O–C sym-metric stretching of the ether group, C–H deformation of the phenyl group, C–O–C stretching of the ether group and C–H2 twisting of the methylene group, C–H deformation of the allyl group, C–H2wagging of the methylene group, C–H2scissoring of the allyl group, CQC stretching of the phenyl group, and CQC stretching of the allyl group appear at 997, 1032, 1173, 1244, 1291, 1419, 1458, 1595, and 1648 cm 1, respectively. The values in Fig. 5 (the measured Raman wavenumbers and the corresponding calculated wavenumbers) were used to estimate scaling factors (see Table 1).
In the photo-Claisen rearrangement (see Table 2), an allyl radical appears with a C–C stretching mode at 1510 cm 1
, Fig. 3 Experimental results observed using UV pulses. (a) A
two-dimensional display of the change in absorbance of allyl phenyl ether as a function of probe delay time and wavelength. (b) A FFT power spectrum of the oscillating components of the time-resolved absorbance change. (c) The observed time dependence of the vibra-tional spectra.

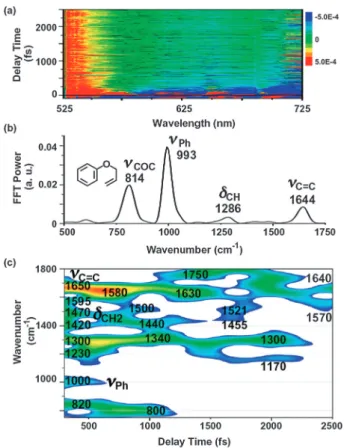

Fig. 4 Experimental results observed using visible pulses4. (a) A
two-dimensional display of the change in absorbance of allyl phenyl ether as a function of the probe delay time and wavelength. (b) A FFT power spectrum of the oscillating components of the time-resolved absorbance change. (c) The observed time dependence of the vibra-tional spectra.
and a phenoxy radical appears with ring stretching of the phenyl group (805 and 1008 cm 1) and C–Ostretching (1480 cm 1).
In the thermal Claisen rearrangement (see Table 3), a six-membered structure appears with C–O–C asymmetric stretching of the ether group (815 cm 1), C–H deformation of the allyl group (1319 cm 1), and CQC stretching in the allyl and phenyl groups (1542 cm 1). The subsequent intermediate, 6-allyl-cyclohexa-2,4-dienone, has a C–H2 twisting of the methylene group, C–H deformation of the allyl group, C–H2 scissoring deformation of the allyl group, CQC stretching of the allyl group, and CQO stretching at 1196, 1300, 1448, 1637, and 1720 cm 1, respectively. The final product, o-allyl phenol, appears with CQC stretching of the phenyl group (1584 cm 1) and CQC stretching of the allyl group (1635 cm 1).
4.
Discussion
4.1. Photochemically-allowed Claisen rearrangement of allyl phenyl ether by few-optical-cycle ultraviolet pulse irradiation APE has an absorption band at wavelengths shorter than 400 nm. Therefore, irradiation with few-optical-cycle UV pulses having a broadband spectrum of 360–440 nm excites the electronic state of APE to the EE state. Molecular vibrations
are coherently excited via vibronic interaction, which enables observation of the EE state dynamics via molecular vibrations. Fig. 3c shows a calculated spectrogram that reflects the vibrational dynamics. The observed vibrational dynamics of the photoreaction during reaction under few-optical-cycle UV pulses were in agreement with the theoretical vibrational dynamics of the photoreaction, which confirms that the vibra-tional dynamics follow those for the photoreaction, as explained in the following.
The CQC stretching of the allyl group was observed at 1670 cm 1 immediately after the photo-excitation and then disappeared at a delay time of 1.7 ps when the allyl radical was produced, and a new peak of C–C stretching of the allyl
radical appeared at 1533 cm 1. The peak of symmetric stretching in the phenyl group observed at 1000 cm 1 just after photo-excitation was separated into two modes as the phenoxy radical was generated; one of the two modes was red-shifted to 805 cm 1and the other experienced no change in wavenumber. The peak observed at 1080 cm 1 just after photo-excitation was gradually blue-shifted with generation of the C–Ogroup and a new peak at 1425 cm 1
appeared at a delay time of ca. 2 ps.
The vibrational mode dynamics indicate that active radical species are generated at 1.8–2.0 ps after photo-excitation. Phenoxy radicals have an absorption band at 360–420 nm12 and the transitional absorption appeared at a delay time of 1.8 ps (see Fig. 3a). Thus, irradiation with few-optical-cycle pulses induces photoreaction by excitation of the electronic state into the EE state if the laser spectrum overlaps with the absorption band of the sample that corresponds to its electronic transition.
4.2. Thermally-allowed Claisen rearrangement of allyl phenyl ether by few-optical-cycle visible pulse irradiation
The reaction induced by irradiation with few-optical-cycle visible pulses (525–725 nm) (Fig. 4c) was completely different from that for the few-optical-cycle UV pulse irradiation (Fig. 3c). The observed vibrational dynamics were in agree-ment with the theoretical vibrational dynamics of the thermal Claisen reaction (Table 3), which indicates that the reaction is the thermally-allowed Claisen rearrangement in the EG state, as explained in the following.
The symmetric stretching of the phenyl group observed at 1000 cm 1immediately after the photo-excitation disappeared at a delay time of ca. 700 fs. The C–H2 deformation of the methylene group observed at 1230 and 1420 cm 1 also dis-appeared at the same delay time of 700 fs. The CQC stretching Fig. 5 (a) Measured Raman spectrum of allyl phenyl ether. (b)
Mole-cular vibrational modes calculated using B3LYP/6-311+G(d,p).
Table 1 Wavenumber scaling factors of the vibrational modes Molecular vibrational mode cm 1
dPh dCH dPh dPh nCOC dCH nCOC dCH2 dCH dCH2 dCH2 nCQC nCQC nCQC Ph Ph Ph Ph Ether Ph Ether Methylene Allyl Methylene Allyl Ph Ph Allyl Exp. 617 786 822 997 1032 1173 1244 1244 1291 1419 1458 1595 1595 1648 Calc. 628 827 837 1009 1052 1196 1261 1269 1316 1392 1461 1623 1641 1710 S.F.a 0.98 0.95 0.98 0.99 0.98 0.98 0.99 0.98 0.98 1.02 1.00 0.98 0.97 0.96 aScaling Factor (S.F.) = Experimental wavenumber (Exp.)/Calculated wavenumber (Calc.).
of the allyl group observed at 1650 cm 1was red-shifted to 1580 cm 1near a delay time of 750 fs.
The C–O bond was firstly weakened before generation of the six-membered structure. When the six-membered inter-mediate was generated, the CQC bond of the allyl group became an aromatic-like CQC bond observed at 1580 cm 1 (the CQC stretching mode of benzene is 1585 cm 1). At a delay time of 1 ps, 6-allyl-cyclohexa-2,4-dienone was generated, as evidenced by a new peak due to carbonyl stretching at 1750 cm 1. The peak at 1750 cm 1disappeared at 2 ps, because the unstable 6-allyl-cyclohexa-2,4-dienone converted to the stable enol form. Thus, when the photon energy of the excitation light is lower than the minimum electronic transition energy, irradiation with few-optical-cycle pulses induces a photo-impulsive reaction in the EG state without converting photon energy to thermal energy, which is different from a traditional photoreaction.
4.3. Non-photo, non-thermal chemical reaction
In the case of the thermal Claisen rearrangement of APE, the activation energy was calculated to be about 33.9 kcal mol 1 using B3LYP/6-311+G(d,p) (Fig. S1 in the ESIw). This value agrees with earlier reports.13Meanwhile, the few-optical-cycle visible pulses (l = 525–725 nm) have the spectrum bandwidth of 5200 cm 1. The bandwidth corresponds toB14.5 kcal mol 1, which is much lower than the activation energy of the thermal Claisen rearrangement. The reason why the Claisen rearrange-ment proceeds by the few-optical-cycle visible pulse is explained in the following.
The photo-impulsive reaction in the EG state excites some vibrational modes, which include modes related with the reaction. Therefore, the photo-impulsive reaction can proceed effectively with excitation energy lower than that of the thermal reaction exciting all of the vibrational modes. The photo-impulsive reaction in the EG state proceeds the reaction keeping coherence of the molecular vibrations, and it is no wonder that the activation barrier of the photo-impulsive
reaction is different from that of the incoherent thermal reaction.
Meanwhile, the frontier orbitals of the photo-impulsive reaction in the EG state is thought to be same as those of the thermal reaction. Both of the two reactions have a same reaction pathway because the reaction mechanism is domi-nated by orbital symmetry.
The photo-impulsive reaction is thought to require the following two key factors to trigger the reaction.
(1) The width of the excitation pulse is much shorter than the molecular vibrational periods and should be as short as a few oscillation periods of the optical electric field (few-optical-cycle pulse).
(2) The photon energy of the excitation pulse should be lower than the minimum electronic transition energy.
Future challenges will focus on obtaining a definitive under-standing of the driving mechanism for the reaction.
5.
Conclusions
Traditional thermal reactions excite all vibrational modes of molecules in the reaction system. The photo-impulsive reaction induced with excitation of vibrational modes in the EG state with the few-optical-cycle pulse is coherently triggered. Induced Raman processes excite only a fraction of molecular vibrational modes to high level vibrational excited states. This results in only a fraction of molecules becoming ‘‘hot molecules’’ with highly excited vibrational states that trigger the reactions in the EG state. Hot molecules generally lose energy during collision with surrounding solvent molecules. In the present reaction, the chemical reaction of hot molecules proceeds within approximately 2 ps, which is much faster than collisions with surrounding molecules. The reaction presented in Fig. 4c follows the same reaction pathway as that of the symmetry-allowed thermal Claisen rearrangement in the EG state. There-fore, although the possibility of thermal reaction may not be completely ruled out, the photo-impulsively reaction in the EG Table 2 Calculated vibrational wavenumbers of chemical species involved in the photo-Claisen rearrangement of allyl phenyl ether
Compound
Calculated molecular vibration wavenumberacm 1
nPh nCCC nCOC dCH dCH2 dCH dCH2 dCH2 nCCC nCQC nCQC nCQO Ph Allyl Ether Ph Methylene Allyl Methylene Allyl Allyl Ph Allyl
Reactant 1009 1052 1196 1269 1316 1392 1461 1641 1710
Allyl radical 1036 793 1269 1510
Phenoxy radical 805 1008 1480 1166 1585
aNot scaled by any scaling factor.
Table 3 Calculated vibrational wavenumbers of chemical species involved in the thermal Claisen rearrangement of allyl phenyl ether
Compound
Calculated molecular vibration wavenumberacm 1
dPh nPh nCOC dCH2 dCH dCH2 dCH2 nCQC nCQC nCQO Ph Ph Ether Methylene Allyl Methylene Allyl Ph Allyl
Reactant 822 997 1032 1244 1291 1419 1458 1595 1648
TS 815 1319 1434 1507 1542
Keto-intermediate 1196 1300 1448 1555 1637 1720
Phenol product 1584 1635
a
Scaled using scaling factors shown in Table 1.
state with the few-optical-cycle pulse, which is neither a photoreaction nor a thermal reaction, is highly possible as a novel reaction scheme.
