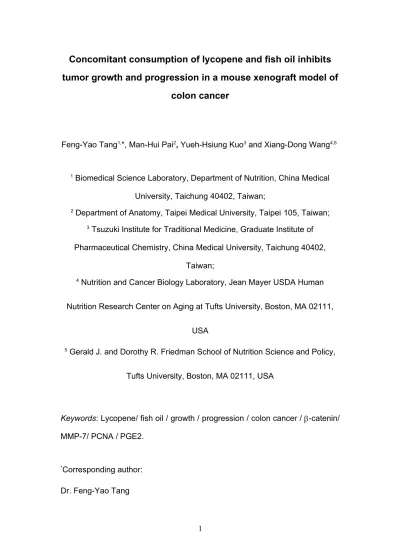

Concomitant consumption of lycopene and fish oil inhibits
tumor growth and progression in a mouse xenograft model of
colon cancer
Feng-Yao Tang1,*, Man-Hui Pai2, Yueh-Hsiung Kuo3 and Xiang-Dong Wang4,5
1 Biomedical Science Laboratory, Department of Nutrition, China Medical University, Taichung 40402, Taiwan;
2 Department of Anatomy, Taipei Medical University, Taipei 105, Taiwan; 3 Tsuzuki Institute for Traditional Medicine, Graduate Institute of Pharmaceutical Chemistry, China Medical University, Taichung 40402,
Taiwan;
4 Nutrition and Cancer Biology Laboratory, Jean Mayer USDA Human Nutrition Research Center on Aging at Tufts University, Boston, MA 02111,
USA
5 Gerald J. and Dorothy R. Friedman School of Nutrition Science and Policy, Tufts University, Boston, MA 02111, USA
Keywords: Lycopene/ fish oil / growth / progression / colon cancer / -catenin/ MMP-7/ PCNA / PGE2.
*Corresponding author: Dr. Feng-Yao Tang
Biomedical Science Laboratory Department of Nutrition
China Medical University 91 Hsueh-Shih Road, Taichung, 40402
Taiwan, Republic of China Telephone: (886-4) 22060643 Facsimile: (886-4) 22062891
E-mail: vincenttang@mail.cmu.edu.tw
Running Title: Chemopreventive effects of lycopene and fish oil on human colon cancer
Financial support: This material is based upon work supported, in part, by the National Science Council grant, under agreement No. NSC-97-2320-B-039-043-MY3, NSC-100-2320-B-039-003, and Taiwan Department of Health Clinical Trial and Research Center of Excellence, under Agreement No. DOH 100-TD-B-111-004, DOH 101-TD-B-111-004, 100-TD-C-111-005, DOH-101-TD-C-111-005. Any opinions, findings, conclusions, or recommendations expressed in this publication are those of the author(s) and do not necessarily reflect the view of the National Science Council and Department of Health. Abstract
Our previous report showed that concomitant supplementation of lycopene and eicosapentaenoic acid (EPA) synergistically inhibited the proliferation of human colon cancer HT-29 cells in vitro. To validate our findings, the present study investigated whether consumption of lycopene and fish oil would help prevent tumor growth and progression in a mouse xenograft model of colon cancer. The results demonstrated that lycopene and fish oil synergistically inhibited the growth of colon cancer in tumor-bearing mice. The
bioluminescent imaging, histopathological, immunofluorescent and immunohistochemical staining results indicated that lycopene and fish oil effectively suppressed tumor growth and progression of colon cancer in vivo. The results demonstrated that the chemopreventive effects of lycopene and fish oil were associated with augmented expression of the cell cycle inhibitors such as p21CIP1/WAF1 and p27Kip1, and suppression of PCNA, -catenin, cyclin D1 and c-Myc proteins. Furthermore, lycopene and fish oil inhibited tumor progression through suppression of MMP-7, MMP-9, COX-2 and PGE2. These results show that lycopene and fish oil act synergistically as chemopreventive agents against tumor growth and progression in a mouse xenograft model of colon cancer.
Colorectal cancer (CRC) is one of the prevalent types of cancer in many countries. In the United States alone, more than 50,000 deaths are attributed to this cancer every year [1]. CRC is characterized by the loss of genomic stability and acquisition of multiple tumor-associated mutations [2;3] . These molecular mutations cause histopathologic changes and transform normal colonic epithelial cells into colorectal carcinoma. Mutational activation of oncogenic pathways or inactivation of tumor suppressor genes leads to tumor growth and progression, including angiogenesis, invasion, metastasis and inflammation [4]. Malignant cancer cells detach from the primary tumor and migrate across structural barriers, including basement membranes and surrounding stromal ECM. Tumor invasion and metastasis require an increase in the expression of matrix metalloproteinases (MMPs) and the degradation of extracellular matrix (ECM) [5]. MMPs are zinc-dependent endopeptidases and capable of degrading ECM components. Enzymes such as 7 and MMP-9 degrade ECM and create a microenvironment supporting maintenance of tumor development [6]. MMP-7 protein is able to trigger the cleavage of E-cadherin from cell membrane [7]. E-E-cadherin complexes are major constituents of the epithelial junctions in the normal colorectal epithelium. The loss of E-cadherin is considered to be key step in the
epithelial-to-mesenchymal transition (EMT). EMT is a process whereby epithelial cells switch to a mesenchymal phenotype, enabling tumor invasion and metastasis. Several studies have reported MMP-7 is highly expressed in human colon cancer cells [8]. Recent studies have suggested a strong correlation between the MMP-7 level and colorectal carcinogenesis [9;10]. Clinical studies indicate that elevated expression of MMP-7 is significantly correlated with poor prognosis and low survival rate in CRC patients [6;11].
Aberrant activation of phosphatidylinositol -3-kinase (PI3K)/Akt signaling pathway is reportedly involved in tumor growth and progression. Upon the activation of PI3K signalling pathway, the cytoplasmic -catenin protein is translocated into the nucleus and capable of inducing the expression of MMP-7, c-Myc and cyclin D1 in human colon cancer cells [12-14]. The upregulation of MMP-7 and c-Myc is highly correlated with tumor progression of colon cancer [15]. During the proliferation of colorectal cancer cells, cell cycle-related proteins, such as cyclin D1 and proliferating cell nuclear antigen (PCNA), function as major regulators of cell-cycle progression and DNA replication, respectively. Recent studies have indicated that p21CIP1/WAF1 and p27Kip1 proteins serve as cell-cycle inhibitors and suppress the activity of cyclin D1 and PCNA proteins.
Epidemiologic studies have shown that people consuming traditional Mediterranean diets with good amounts of vegetables especially tomato, fish, fruits, olive oil, grains and beans, have lower rates of chronic diseases such as cancer. Lycopene, a major component in tomato, has potential as a chemopreventive agent against several types of cancer cell lines [16-18]. Epidemiologic studies reported statistically significant inverse associations between tomato consumption and risk of several types of cancer such as lung and prostate cancer [19-23]. Previous studies suggest that diets enriched in n-3 polyunsaturated fatty acids (PUFA) suppresses the tumor growth [24-27]. These PUFA such as eicosapentaenoic acid (EPA) with five double bonds or docosahexenoic acid (DHA) with six double bonds has been shown to inhibit the inflammatory response and proliferation of cancer cells [24].
Consumption of lycopene at high doses reduces malignant lesion in a rodent model [28]. Our previous report demonstrates that lycopene could inhibit the expression of MMP-7, cell invasion and proliferation of human colon cancer HT-29 cells in vitro [29;30]. Furthermore, low doses of lycopene and EPA synergistically inhibit the proliferation of human colon cancer HT-29 cells
in vitro [31]. In the current study, we extended our investigation to an in vivo
chemopreventive effects of lycopene and fish oil on the growth and progression of colon cancer cells in a mouse xenograft tumor model were investigated.
2 Materials and Methods 2.1 Reagents and Antibodies
Lycopene dry powder (Lycovit 10%) was kindly provided by Dr. Xiang – Dong Wang (Tufts University, USA). Fish oil (obtained from Jung –Nan Chemicals, Inc., Taiwan) contains approximately 32% of total n-3 PUFA [including 18% Eicosapentaenoic acid (EPA), 12% (DHA) and 2% of ALA] and 5% total n-6 PUFA. Corn oil was purchased commercially. Corn oil contains 54% of n-6 PUFA and 1% of n-3 PUFA. The ratio of n-6/n-3 PUFA for fish oil and corn oil used are estimated as 0.15 and 54, respectively. The -catenin, anti-p21CIP1/WAF1, cyclin D1, E-cadherin, MMP-7, PCNA and anti-lamin A/C antibodies were purchased from Cell Signaling Technology, Inc. (Danvers, MA, USA). Anti-c-Myc, anti-COX-2 and anti-p27kip1 antibodies were purchased form Santa Cruz Biotechnology, Inc. (Santa Cruz, CA, USA). Anti--actin antibody and RPMI 1640 medium were purchased from Sigma (St Louis, MO, USA). The MMP-9 and PGE2 ELISA kits were purchased from
line with luciferase reporter gene was purchased from Caliper Life Sciences, Inc. (Hopkinton, MA, USA). Lycopene was dissolved in either corn oil or fish oil at dosages of 3 and 6 mg/kg of body weight (BW).
2.2 Cell Culture
Human colon cancer HT-29 cells were cultured in a 37oC humidified incubator with 5% CO2 and grown to confluency using fetal bovine serum (FBS) supplemented RPMI 1640 media. Cells used in different experiments have the similar passage number. RPMI 1640 medium was supplemented with 10% heat-inactivated FBS, 2 mM L-glutamine and 3.7 g/L sodium bicarbonate in the absence of antibiotics.
2.3 Xenograft Implantation of Tumor Cells
To establish the mouse xenograft model, subconfluent cultures of colon cancer HT-29 cells were given fresh medium 24h before being harvested by a brief treatment with 0.25% trypsin and 0.02% ethylenediaminetetraacetic acid (EDTA). Trypsinization was stopped with medium containing 10% FBS, and the cells were washed twice and resuspended in serum-free RPMI 1640 medium. Only single-cell suspensions with a viability of > 90% were used for the injections.
2.4 Animals, Diet and Lycopene/ Fish oil Supplementation
Adult (3-4 week old) BALB/C AnN-Foxn1 nude mice (19-22 g) were obtained from the National Laboratory Animal Center (Taipei, Taiwan). Mice were maintained under specific pathogen-free conditions in facilities approved by the National Laboratory Animal Center in accordance with current regulations and standards (animal protocol no. 97-27-N). During the entire experimental period, mice were fed a standard Lab 5010 diet purchased from LabDiet Inc. (St. Louis, MO, USA). The standard diet contains crude fat (13.5 % total diet energy), protein (27.5% total diet energy) and carbohydrate (59% total diet energy), and had no detectable amounts of lycopene and fish oil as indicated by the supplier. Mice which had been anesthetized with an inhalation of isofluorane were placed in a supine position. The mice were subcutaneously (s.c.) injected with human colon cancer HT-29 cells (1 x 106/0.1 ml medium) into the right flank of each BALB/C AnN-Foxn1 nude mouse. A well-localized bleb was considered to be a sign of a technically satisfactory injection.
After the inoculation, mice were divided into six subgroups. Lycopene and fish oil were given to experimental animals by gavage once a day at a total volume 0.15 mL. Low dose (Low_Lyc) or high dose (High_Lyc) lycopene
group received a daily oral consumption dose of lycopene dissolved in corn oil (4% w/w) at 3 or 6 mg/kg of BW once per day, respectively. Fish oil group (FO) received fish oil (4% w/w of diet) once per day. Other groups (FO_Low_Lyc or FO_High_Lyc) received FO (4% w/w) and lycopene at an oral dose of 3 or 6 mg/kg of BW once per day, respectively. The tumor control group received corn oil (4% w/w) once per day only. Body weights were determined once weekly. At the end of experimental period, animals were euthanized with CO2 inhalation; tumor tissues were then excised, weighed, and frozen immediately. These tumor tissues were sectioned, and stained with Mayer’s hematoxilin– eosin (H&E) for light microscopy. The remaining tissues of liver, lung, spleen, pancreas and intestine were also excised, weighed, and frozen for further experiments. Blood samples were collected from the heart in a 1-ml vacutainer tube in the presence or absence of heparin and centrifuged for 10 min at 1000g to obtain plasma or serum, respectively. 2.5 Bioluminescent Imaging of Colon Cancer
Documentation of bioluminescent imaging was also performed weekly during the 5 week experimental period by using a noninvasive in vivo imaging system 200 (IVIS 200) (Caliper Life Science, Hopkinton, MA, USA). Briefly, luciferin (15 mg/mL), the substrate of luciferase, was injected into the
tumor-bearing nude mice peritoneally. Results of bioluminescent imaging were collected and analyzed by accessory software. The intensity of bioluminescence was expressed as p/sec/cm2. Bioluminescence intensities compared to the tumor control group (tumor-bearing mice without lycopene or FO supplementation at week 2) represented proliferation indices.
2.6 Histopathological, Immunohistochemical and Immunofluorescent Staining of Tumor Tissues
Frozen tumor tissues were cut in 5 m sections and immediately fixed with 4% paraformaldehyde. Sections were stained with Mayer’s H&E for light microscopy. Negative controls did not exhibit any staining. In a blinded manner three hot-spots were examined per tumor section (high power fields X 400) of six different tumors in each group. For immunohistochemical staining, frozen tissue sections were treated with 0.3% hydrogen peroxide to block the endogenous peroxide activity. Non-specific protein bindings were blocked with 10% normal goat serum (NGS) for 1hr followed by incubation with either anti--catenin or anti-COX-2 primary antibodies (1:300). Tissue sections were
washed with 0.1 M phosphate buffer saline (PBS) and incubated with biotinyated immunoglobin G (1:300 secondary antibody) at room temperature
for 1 hr. Tissue sections were stained with Avidin-Biotin complex (ABC), diaminobenzidine (DAB) and hydrogen peroxide. Cell nuclei were stained with hematoxilin. Imaging was performed at 400 X magnifications. Images of tumor sections were acquired on an Olympus BX-51 microscope using an Olympus DP-71 digital camera and imaging system (Olympus, Tokyo, Japan).
2.7 Protein Extraction and Western Blotting Analysis
Briefly, animal tissues were prepared using a Tissue Nuclear Extract Reagent Kit containing protease and phosphatase inhibitors according to the manufacturer’s instructions (Pierce Biotechnology, Lackford, IL, USA). After centrifugation for 10 minutes at 12,000g to remove cell debris, the supernatants were further separated and retained as cytoplasmic and nuclear fraction extracts, respectively. Cross contamination between the nuclear and cytoplasmic fractions was not found (data not shown).
The nuclear fraction of tissue proteins (100 g) were fractioned on 10% SDS-PAGE, transferred to nitrocellulose membrane, and blotted with anti- cyclinD1 monoclonal antibody, according to the manufacturer’s instructions. The blots were stripped and reprobed with a lamin A/C antibody as the loading control. The levels of PCNA, p21CIP1/WAF1, p27Kip1, -catenin and c-Myc in the nuclear fractions of the tumor tissues were measured using a similar procedure
described above. The cytoplasmic fraction of tissue proteins (100 g) were fractioned on 10% SDS-PAGE, transferred to nitrocellulose membrane, and blotted with anti-MMP-7 or anti-E-cadherin monoclonal antibody, according to the manufacturer’s instructions. The blots were stripped and reprobed with a -actin antibody as the loading control.
2.8 Quantitative Real-Time PCR (qPCR)
Tissue RNA samples were prepared, extracted from each group and reversely converted into cDNA for further analysis. Briefly, cDNA samples were used in PCR reaction mix containing gene-specific primers: COX-2 forward,
CGCTCAGCCATACAGCAA-3’ and reverse,
5’-GAATCCTGTCCGGGTACAATC-3’; and GAPDH (was used as an internal control gene) forward: 5’-ACGGATTTGGTCGTATTGGG-3’,
, reverse: 5’-TGATTTTGGAGGGATCTCGC-3’. The cDNA was amplified in the following conditions: denaturation: 950C for 2 min; amplification: 40 cycles (940C for 30 sec); annealing (1 min for 30 sec) and extension (1 min for 30 sec). Quantitative PCR experiments were performed using the real-time PCR detection system (ABI 7900, Applied Biosystems Inc., Carlsbad, CA, USA). The relative COX-2 mRNA expression levels in different treatment groups
were presented as folds of the corresponding negative control group.
2.9 Detection of Plasma MMP-9 and Serum PGE2 by Enzyme-Linked Immunosorbent Assay (ELISA)
The MMP-9 plasma level was measured by ELISA according to the manufacturer’s instructions (R&D Systems Inc.). Briefly, a 100 L diluted plasma sample (1:8 dilution) from each group was added to each well and analyzed.
The PGE2 serum level was measured by ELISA using a similar procedure described above. Briefly, a 150 L diluted serum sample (1:15 dilution) from each group was added to each well and analyzed. Upon completion of the ELISA process, the plate was read at 450/570 nm wavelength using a microplate reader (Tecan Inc., Mannedorf, Switzerland).
2.10 Gelatin zymogram
Measurement of MMP-9 enzymatic activity from each plasma group was performed as follow. Gels were co-polymerized with 0.1% gelatin. For each group, equal amount of plasma sample was added to each well and analyzed. Electrophoresis was carried out using the minigel slab apparatus Mini Protean 2 (Bio-Rad, Hercules, CA, USA) at a constant voltage of 150 V, until the dye
reached the bottom of the gel. Following electrophoresis, gels were washed in buffer solution (2.5% Triton X-100 in 50mM Tris–HCl (pH 7.5)) for 1 h in an orbital shaker. The zymograms were incubated for 24 h at 37oC in incubation buffer (0.15 M NaCl, 10mM CaCl2, 0.02% NaN3 in 50mM Tris–HCl (pH 7.5)). Gels were then stained with Coomassie blue and destained with 7% methanol and 5% acetic acid. Areas of enzymatic activity appeared as clear bands over the dark background.
2.11 Statistical analysis
Quantitative analysis was used to determine whether there were differences in the tumor growth among the experimental groups and tumor control groups (n=6 for each group) in CRC cell bearing mice. Statistical analyses of the differences in tumor growth among the experimental and control conditions were performed using SYSTAT software (SYSTAT Software Inc., Chicago, IL, USA). Confirmation of difference in tumor growth as statistically significant required a rejection of the null hypothesis of no difference between the mean proliferation indices obtained from different sets of experimental and control groups at the P=0.05 level using one-way ANOVA. The Bonferroni post hoc test was used to determine differences between the groups.
3 Results
3.1 Lycopene and fish oil synergistically inhibited tumor growth of colon cancer in a mouse xenograft model
Our previous studies demonstrated that lycopene and EPA synergistically inhibited the proliferation of human colon cancer HT-29 cells in vitro. We therefore extended our investigation to an in vivo xenograft tumor model to validate the significance of the in vitro findings. The inhibitory effects of lycopene and fish oil on the growth of colon cancer cells in a mouse xenograft tumor model were investigated. A mouse xenograft tumor model was established by subcutaneously inoculating human colon cancer HT-29 cells into the right flank of each nude mouse. Bioluminescent imaging results demonstrated that consumption of lycopene effectively suppressed tumor growth of CRC in tumor-bearing mice (Fig. 1A). The results showed that lycopene consumption significantly suppressed the growth of colon cancer in tumor-bearing mice (p<0.05). As shown in Fig.1A, lycopene consumption at 3 mg/ kg of BW (Low_Lyc) and 6mg/ kg BW (High_Lyc) significantly inhibited the tumor growth (p<0.05). Consumption of fish oil (4% w/w diet) also effectively inhibited the tumor growth in vivo (p<0.05). Furthermore, concomitant consumption of lycopene and fish oil significantly suppressed
CRC tumor growth in vivo (p<0.05) (Fig. 1A). We further quantified and analysed the proliferation index of CRC in mouse xenograft model to demonstrate these important findings (p<0.05) (Fig. 1B). Compared with the tumor control group, the weight of tumor tissues per mouse significantly decreased in the Low_Lyc, High_Lyc, FO, FO_Low_Lyc and FO_High_Lyc groups, respectively, accounting for a 33%, 58%, 50%, 70% and 85 % inhibition at the end of the study (5th week) (p<0.05) (Fig. 1C). Our previous report suggested that consumption of lycopene and EPA synergistically inhibited the proliferation of human colon cancer HT-29 cells in vitro [31]. In the present study, we demonstrated that consumption of lycopene and fish oil significantly inhibited CRC tumor growth in this mouse xenograft model (p<0.05).
3.2 Lycopene and fish oil significantly modulated the expression of p21CIP1/WAF1, p27 Kip1 and PCNA proteins in the mouse xenograft tumor model
Previous studies indicated that the cyclin D1 and PCNA proteins play crucial roles in the regulation of cell proliferation. Moreover, the p21CIP1/WAF1 and p27Kip1 inhibited the activities of cyclin D1 and PCNA. Therefore, we
investigated whether lycopene and fish oil would modulate the expression of these proteins in vivo. As shown in Fig 2A, consumption of lycopene and fish oil synergistically inhibited the nuclear levels of cyclin D1 and PCNA through the induction of p21CIP1/WAF1 and p27Kip1 proteins in tumor-baring mice. The quantitative results demonstrated that FO_Low_Lyc and FO_High_Lyc suppressed the expression of PCNA by up to 84% and 89%, respectively (Fig. 2B). The Mayor H&E staining results also showed that lycopene and fish oil significantly inhibited tumor growth and progression in tumor– bearing mice (Fig. 2C). The results suggested that the chemopreventive effects of lycopene and fish oil on tumor growth and progression of CRC were associated with the suppression of cyclin D1 and PCNA. The molecular mechanisms of actions were in part through the augmented expression of p21CIP1/WAF1 and p27Kip1 proteins in these tumor bearing mice. Therefore, lycopene and fish oil could potentially function as synergistic agents for chemoprevention of colon cancer, as demonstrated here in this mouse xenograft tumor model.
3.3 Lycopene and fish oil suppressed the expression of -catenin and c-Myc proteins in tumor-bearing mice
important role in the regulation of cyclinD1, c-Myc and MMP-7 expression. Moreover, the expression of c-Myc and MMP-7 is strongly correlated with tumor progression of CRC. Therefore, we investigated whether lycopene and fish oil would synergistically suppress the expression of the -catenin and c-Myc proteins in vivo. As shown in Fig. 3A, lycopene and fish oil significantly inhibited the expression of -catenin. Furthermore, lycopene and fish oil synergistically suppressed the expression of c-Myc protein in vivo. To examine the chemopreventive effects of lycopene and fish oil, we further identified the distribution of -catenin proteins by using immunohistochemical staining analysis in these tumor-bearing mice. As shown in Fig. 3B, -catenin proteins (brown areas indicated with red arrows) were accumulated in the nuclei of tumor control group. However, consumption of lycopene and fish oil significantly blocked nuclear translocalization and reduced nuclear levels of -catenin proteins in tumor tissues.
These results suggest that the inhibitory effects of lycopene and fish oil on tumor growth and progression were associated with the suppression of -catenin, cyclinD1 and c-Myc proteins in this mouse xenograft model of CRC.
MMP-7 and MMP-9 in tumor-bearing mice
Previous studies suggested that expression of MMP-9 and MMP-7 was associated with tumor invasion and progression of CRC. In the current studies, we investigated whether consumption of lycopene and fish oil could modulate the expression of MMP-9 and MMP-7 proteins in the mouse xenograft model. By the end of study, the basal MMP-9 plasma levels in tumor-free mice were approximately 6.1 ng/mL (Fig. 4A). Mice inoculated with colon cancer HT-29 cells had high plasma levels of MMP-9 (mean ± SEM : 23 ± 8.1 ng/mL). However, consumption of lycopene and fish oil significantly decreased the MMP-9 plasma level in these tumor-bearing mice. The MMP-9 plasma levels decreased from 23 ng/mL in the tumor control group to 16.4 ng/mL, 9.1 ng/mL and 8.9 ng/mL in the Low_Lyc, High_Lyc and FO–fed groups, respectively. Furthermore, the Low_Lyc_FO and High_Lyc_FO had MMP-9 plasma levels at 6.7 ng/mL and 6.2 ng/mL, respectively. Quantitative results of MMP-9 activities were identified by using zymogram analysis (Fig. 4B). Studies indicated that an expression of MMP-7 molecule was inversely correlated with the expression of E-cadherin protein. Therefore, we further investigated whether consumption of lycopene and fish oil would inhibit the expression of MMP-7 proteins in these tumor-bearing mice. As shown in Fig.
4C, MMP-7 was highly expressed in the tumor tissues. Consumption of lycopene and fish oil significantly suppressed the expression of MMP-7 protein in these tumor-bearing mice. The quantitative results demonstrated that lycopene and fish oil significantly inhibited the expression of MMP-7 by up to 90 % and 91 % in Low_Lyc_FO and High_Lyc_FO, respectively. Moreover, lycopene and fish oil synergistically induced the expression of E-cadherin protein in tumor-bearing mice (Fig. 4C). These results suggested that the inhibitory effects of lycopene and fish oil on tumor growth and progression in colon cancer were associated with suppression of MMP-7 and MMP-9 proteins. Therefore, lycopene and fish oil could potentially act as synergistic agents to prevent tumor growth and progression of CRC, as demonstrated here in this mouse xenograft tumor model.
3.5 Lycopene and fish oil significantly suppressed tumor inflammation in tumor-bearing mice
A recent study indicated that MMP-9 expression is associated with upregulation of COX-2 proteins in several types of cancer. Several clinical studies indicated that COX-2 expression is associated with the tumor inflammation and progression in CRC. Therefore, these evidences suggest
that COX-2 expression and its major metabolite, PGE2, could play crucial roles in tumor progression of CRC. In the present study, we further examined the inhibitory effects of lycopene and fish oil on the expression of COX-2 and PGE2 in these tumor-bearing mice. As shown in the Fig. 5A, the results indicated that the tumor control group had augmented the gene expression of
COX-2. The immunohistochemical staining results also demonstrated that a
prevalent expression of COX-2 in the tumor control group (Fig. 4B). However, consumption of lycopene and fish oil significantly suppressed COX2 expression in these tumor-bearing mice (Fig. 4A & 4B). The results further demonstrated that mice inoculated with colon cancer HT-29 cells had increased serum PGE2 levels (Fig. 5C). Consumption of lycopene and fish oil significantly reduced PGE2 serum levels in vivo. These results suggested that consumption of lycopene and fish oil significantly suppressed the expression of COX-2 and its major metabolite, PGE2, in tumor-bearing mice. Taken together; it is probable that lycopene and fish oil could inhibit tumor inflammation and progression of CRC in part through suppression of COX-2 and PGE2 in these tumor-bearing mice.
Many studies suggested that lycopene and fish oil might exert anti-cancer effects and inhibit the expression of oncoproteins associated with cancer prognosis. Our previous studies demonstrated that lycopene and fish oil inhibited the proliferation of human colon cancer HT-29 cells in vitro. The present study demonstrated that consumption of lycopene and fish oil inhibited tumor growth in significant or even synergistic ways. The current study demonstrated that concomitant consumption of lycopene and fish oil significantly inhibited the growth of colon cancer in a mouse xenograft model (Fig. 1). At low dosage (3 mg/kg BW), lycopene and fish oil (FO_Low_Lyc) effectively suppressed the growth of colon cancer up to 70 %. At a high dosage (6 mg/kg BW), lycopene and fish oil (FO_High_Lyc) effectively suppressed the proliferation of colon cancer cells up to 85 % in vivo. In our previous study, we already demonstrated that lycopene inhibited the proliferation of human colon cancer HT-29 cells through suppression of -catenin signaling pathways and cell cycle progression in a dose dependent manner (0, 2, 5 and 10 M) [30]. Our results further demonstrated that lycopene and EPA synergistically inhibited cell proliferation in human colon cancer HT-29 cells [31]. We further demonstrated that lycopene and fish oil
molecular actions of lycopene and fish oil on the suppression of tumor growth were associated with the upregulation of p21CIP1/WAF1 and p27Kip1 cell cycle inhibitor proteins. The results suggested that lycopene and fish oil effectively inhibited the cell cycle progression and cell proliferation in tumor-bearing mice. In the present study, we demonstrated that consumption of lycopene and fish oil significantly suppressed the level of malignant biomarker -catenin protein in vivo. Our novel evidences also demonstrated that lycopene and fish oil effectively inhibited the expression of cyclin D1 and c-Myc proteins in colon cancer cells in tumor-bearing mice. Previous studies indicated that MMP-7 was mostly overexpressed in human colon cancer patients. Here, we further demonstrated that consumption of lycopene and fish oil synergistically inhibited MMP-7 expression and the tumor progression of colon cancer cells in tumor bearing mice. Moreover, consumption lycopene and fish oil stabilize the adherent junction E-cadherin molecules through the suppression of MMP-7 proteins (Fig. 4). The -catenin has come onto to the scene and reached central status as an important regulator of cyclin D1, c-Myc and MMP-7 proteins during tumor development. Increasing evidence implicates -catenin is an important biomarker of malignant colon cancer. It is plausible that lycopene and fish oil synergistically inhibit tumor growth through the
modulation of -catenin signaling pathways. These results from the present study were consistent with our previous findings and suggested chemopreventive roles of lycopene and fish oil against human colon cancer. Previous reports suggested that overexpression of biomarkers such as MMP-9, COX-2 and PGE2 maybe play crucial roles in the tumor progression and inflammation of colon cancer. Suppression of COX-2, MMP-9 and PGE2 would hinder the tumor progression of tumor. Recent study indicated that fish oil inhibited the expression of COX-2 and prostaglandin E2 (PGE2) in human colon cancer HT-29 cells [32] . We further examined whether consumption lycopene and fish oil could help prevent tumor inflammation and progression in tumor-bearing mice. The results demonstrated that lycopene and fish oil significantly inhibit the expression of MMP-9, COX-2 and PGE2 in vivo.
In conclusion, lycopene and fish oil significantly inhibit the tumor growth, progression and inflammation in tumor-bearing mice. Here, we proposed a model of synergistic effects of lycopene and fish oil on the growth of human colon cancer HT-29 cells in vivo (Fig. 6). Lycopene and fish oil may potentially act as chemopreventive agents to suppress tumor growth in a mouse xenograft model of CRC.
Acknowledgements
This material is based upon work supported, in part, by the National Science Council grant, under agreement No. 97-2320-B-039-043-MY3, NSC-100-2320-B-039-003, and Taiwan Department of Health Clinical Trial and Research Center of Excellence, under Agreement No. DOH 100-TD-B-111-004, DOH 101-TD-B-111-100-TD-B-111-004, DOH-100-TD-C-111-005, DOH-101-TD-C-111-005. Any opinions, findings, conclusions, or recommendations expressed in this publication are those of the author(s) and do not necessarily reflect the view of the National Science Council and Department of Health.
Figure Legends
Figure 1. Lycopene and fish oil synergistically inhibited tumor growth of
colon cancer in a mouse xenograft model
(A) Xenograft nude mice (n=6 for each group) were divided into six groups (tumor, tumor with low lycopene, tumor with high lycopene) and given fish oil (0, 4% w/w) for 5 weeks. The extent of tumor growth was evaluated by using bioluminescent imaging system. Photos of primary tumors from different
groups were shown.
(B) Data of bioluminescent intensity represented the proliferation index in primary tumor tissues. Different letters represent statistically significant difference, p<0.05.
(C) Data represent the change of tumor weight among tumor control group and experimental groups. Different letters represent statistically significant difference, p<0.05. (p<0.05 at week 5).
Figure 2. Lycopene and fish oil significantly modulated the expression
of p21CIP1/WAF1, p27 Kip1 and PCNA proteins in the mouse xenograft tumor
model
(A) Cell lysates from animal tissues were prepared using Tissue Nuclear Extract Reagent Kit containing protease inhibitor and phosphatase inhibitors according to the manufacture’s instruction. After centrifugation for 10 minutes at 12,000 xg to remove cell debris, the supernatants were retained as a whole –tissue extract. Cross contamination between nuclear and cytoplasma
fractions were not found (data not shown). Cell lysates were blotted with either anti-cyclin D1, anti-PCNA, anti- p21CIP1/WAF1, or anti- p27 kip1 monoclonal antibody as described in Materials and Methods. The levels of detection in cell lysate represent the amount of cyclin D1, PCNA, p21CIP1/WAF1 or p27 kip1in human colon cancer cells. The blots were stripped and reprobed with anti-lamin A/C antibody as loading control. The results presented are representative of six different experiments. The immunoreactive bands are noted with arrow.
(B) The integrated densities of cyclin D1, PCNA, p21CIP1/WAF1 and p27kip1 proteins adjusted with internal control protein (lamin A/C) were shown in the panel. Different letters represent statistically significant difference, p<0.05. (C)Tumor tissues were formalin-fixed, embedded in paraffin, sectioned, and subjected to H&E staining. Imaging was documented at 400X magnification. Blue spots represented the nuclei stained with hematoxylin. Red spots represented cytoplasma stained with eosin.
Figure 3. Lycopene and fish oil suppressed the expression of -catenin
and c-Myc proteins in tumor-bearing mice
(A) Nuclear fractions of cell lysates were blotted with either anti--catenin or anti-c-Myc monoclonal antibodies as described in Materials and Methods. The levels of detection in cell lysate represent the amount of -catenin or c-Myc in human colon cancer cells. The blots were stripped and reprobed with anti-lamin A/C antibody as loading control. The results presented are representative of six different experiments. The immunoreactive bands are noted with arrow. The integrated density of -catenin or c-Myc protein adjusted with internal control protein (lamin A/C) was shown in the bottom
panel. Different letters represent statistically significant difference, p<0.05.
(B) Tumor tissues were frozen, sectioned and subjected to anti--catenin antibody by immunohistochemical staining described in Material and Methods. Imaging was documented at 200X magnification. Brown area represented distribution of -catenin proteins (indicated with red arrows) in HT-29 cells stained with monoclonal antibody. Blue spots represented the location of cell nuclei stained with hematoxylin. The results presented are representative of six different experiments.
Figure 4.
Lycopene and fish oil significantly suppressed the expression of MMP-7 and MMP-9 in tumor-bearing mice
(A) The plasma levels of MMP-9 were determined by using ELISA Kit (R&D systems). Briefly, equal amount of diluted plasma sample (100 L) from each group was added to each well and reacted with MMP-9 antibody according to the manufacturer’s instructions. Upon completion of the ELISA process, fluorescence intensities were read using a wavelength of 450/570 nm. These results presented are representative of six different experiments and presented as plasma MMP-9 levels. Different letters represent statistically significant difference, p<0.05.
(B) Equal amount of plasma samples from each group were loaded into gelatin-containing gel. After incubation and staining of gelatin gel, the photographs of zymogram bands are noted with arrows. Areas of enzymatic activity appeared as clear bands over the dark background. These results presented are representative of six different experiments. Different letters represent statistically significant difference, p<0.05.
(C) Cytoplasma fractions of cell lysates were blotted with either anti-MMP7 or anti-E-cadherin monoclonal antibody as described in Materials and Methods. The levels of detection in cell lysate represent the amount of MMP7 or E-cadherin in human colon cancer cells. The blots were stripped and reprobed with anti-actin antibody as loading control. The results presented are representative of six different experiments. The immunoreactive bands are noted with arrow. The integrated densities of MMP7 and E-cadherin proteins adjusted with internal control protein (actin) were shown in the bottom panel. Different letters represent statistically significant difference, p<0.05.
Figure 5.
Lycopene and fish oil significantly suppressed tumor inflammation in tumor-bearing mice
(A) The relative COX-2 mRNA expressions in tumor tissues were analyzed by using quantitative RT-PCR. Relative COX-2 mRNA levels in different experimental groups were compared to the corresponding negative control group (presented as folds of control). Different letters represent statistically significant difference, p<0.05.
(B) Tumor tissues were frozen, sectioned and subjected to anti-COX-2 antibody by immunohistochemical staining described in Material and Methods. Imaging was documented at 400X magnification. Brown area represented distribution of COX-2 protein in HT-29 cells stained with monoclonal antibody.
Blue spots represented the location of cell nuclei stained with hematoxylin. The results presented are representative of six different experiments.
(C) The serum levels of PGE2 were determined by using ELISA Kit (R&D systems). Briefly, equal amount of diluted serum sample (150 L) from each group was added to each well and reacted with PGE2 conjugate molecule according to the manufacturer’s instructions. Upon completion of the ELISA process, fluorescence intensities were read using a wavelength of 450/570 nm. These results presented are representative of six different experiments and presented as serum PGE2 levels. Different letters represent statistically significant difference, p<0.05.
5 References
[1] Siegel,R., Naishadham,D., & Jemal,A. Cancer statistics, 2012 CA
Cancer J. Clin. 2012, 62, 10-29.
[2] Walther,A., Johnstone,E., Swanton,C., Midgley,R., Tomlinson,I., & Kerr,D. Genetic prognostic and predictive markers in colorectal cancer.
Nat. Rev. Cancer. 2009, 9, 489-499.
[3] Samuels,Y., Wang,Z., Bardelli,A., Silliman,N., Ptak,J., Szabo,S., Yan,H., Gazdar,A., Powell,S.M., Riggins,G.J., Willson,J.K.,
Markowitz,S., Kinzler,K.W., Vogelstein,B., & Velculescu,V.E. High frequency of mutations of the PIK3CA gene in human cancers.
Science 2004, 304, 554.
[4] Wang,Y.K., Zhu,Y.L., Qiu,F.M., Zhang,T., Chen,Z.G., Zheng,S., & Huang,J. Activation of Akt and MAPK pathways enhances the
tumorigenicity of CD133+ primary colon cancer cells. Carcinogenesis 2010, 31, 1376-1380.
[5] Hanahan,D. & Weinberg,R.A. The hallmarks of cancer. Cell 2000, 100, 57-70.
[6] Kirimlioglu,H., Kirimlioglu,V., Yilmaz,S., Sagir,V., Coban,S., Turkmen,E., & Hilmioglu,F. Role of matrix metalloproteinase-7 in colorectal adenomas. Dig. Dis. Sci. 2006, 51, 2068-2072.
[7] Lynch,C.C., Vargo-Gogola,T., Matrisian,L.M., & Fingleton,B. Cleavage of E-Cadherin by Matrix Metalloproteinase-7 Promotes Cellular
Proliferation in Nontransformed Cell Lines via Activation of RhoA. J.
Oncol. 2010, 2010, 530745.
[8] Oshima,T., Akaike,M., Yoshihara,K., Shiozawa,M., Yamamoto,N., Sato,T., Yamada,R., Fujii,S., Rino,Y., Kunisaki,C., Tanaka,K.,
Masuda,M., & Imada,T. Clinicopathological significance of the gene expression of matrix metalloproteinase-7, insulin-like growth factor-1, insulin-like growth factor-2 and insulin-like growth factor-1 receptor in patients with colorectal cancer: insulin-like growth factor-1 receptor gene expression is a useful predictor of liver metastasis from colorectal cancer. Oncol. Rep. 2008, 20, 359-364.
[9] Koskensalo,S., Louhimo,J., Nordling,S., Hagstrom,J., & Haglund,C. MMP-7 as a prognostic marker in colorectal cancer Tumour. Biol. 2011, 32, 259-264.
[10] Oshima,T., Akaike,M., Yoshihara,K., Shiozawa,M., Yamamoto,N., Sato,T., Yamada,R., Fujii,S., Rino,Y., Kunisaki,C., Tanaka,K., Masuda,M., & Imada,T. Clinicopathological significance of the gene expression of matrix metalloproteinase-7, insulin-like growth factor-1, insulin-like growth factor-2 and insulin-like growth factor-1 receptor in patients with colorectal cancer: insulin-like growth factor-1 receptor gene expression is a useful predictor of liver metastasis from colorectal cancer. Oncol. Rep. 2008, 20, 359-364.
[11] Fang,Y.J., Lu,Z.H., Wang,G.Q., Pan,Z.Z., Zhou,Z.W., Yun,J.P.,
Zhang,M.F., & Wan,D.S. Elevated expressions of MMP7, TROP2, and survivin are associated with survival, disease recurrence, and liver metastasis of colon cancer. Int. J. Colorectal Dis. 2009, 24, 875-884. [12] Crawford,H.C., Fingleton,B.M., Rudolph-Owen,L.A., Goss,K.J.,
Rubinfeld,B., Polakis,P., & Matrisian,L.M. The metalloproteinase matrilysin is a target of beta-catenin transactivation in intestinal tumors.
Oncogene 1999, 18, 2883-2891.
[13] Brabletz,T., Jung,A., Dag,S., Hlubek,F., & Kirchner,T. beta-catenin regulates the expression of the matrix metalloproteinase-7 in human colorectal cancer. Am. J. Pathol. 1999, 155, 1033-1038.
[14] Benbow,U. & Brinckerhoff,C.E. The AP-1 site and MMP gene
regulation: what is all the fuss about? Matrix Biol. 1997, 15, 519-526. [15] Peifer,M. Beta-catenin as oncogene: the smoking gun. Science 1997,
smoke-induced changes in p53, p53 phosphorylation, cell proliferation, and apoptosis in the gastric mucosa of ferrets. J. Nutr. 2006, 136, 106-111.
[17] Liu,C., Lian,F., Smith,D.E., Russell,R.M., & Wang,X.D. Lycopene supplementation inhibits lung squamous metaplasia and induces apoptosis via up-regulating insulin-like growth factor-binding protein 3 in cigarette smoke-exposed ferrets. Cancer Res. 2003, 63, 3138-3144. [18] Tang,L., Jin,T., Zeng,X., & Wang,J.S. Lycopene inhibits the growth of
human androgen-independent prostate cancer cells in vitro and in BALB/c nude mice. J. Nutr. 2005, 135, 287-290.
[19] Franceschi,S., Bidoli,E., La Vecchia,C., Talamini,R., D'Avanzo,B., & Negri,E. Tomatoes and risk of digestive-tract cancers. Int. J. Cancer 1994, 59, 181-184.
[20] Erhardt,J.G., Meisner,C., Bode,J.C., & Bode,C. Lycopene, beta-carotene, and colorectal adenomas. Am. J. Clin. Nutr. 2003, 78, 1219-1224.
[21] Murtaugh,M.A., Ma,K.N., Benson,J., Curtin,K., Caan,B., & Slattery,M.L. Antioxidants, carotenoids, and risk of rectal cancer. Am. J. Epidemiol. 2004, 159, 32-41.
[22] Sengupta,A., Ghosh,S., & Das,S. Tomato and garlic can modulate azoxymethane-induced colon carcinogenesis in rats. Eur. J. Cancer
Prev. 2003, 12, 195-200.
[23] Guttenplan,J.B., Chen,M., Kosinska,W., Thompson,S., Zhao,Z., & Cohen,L.A. Effects of a lycopene-rich diet on spontaneous and benzo[a]pyrene-induced mutagenesis in prostate, colon and lungs of the lacZ mouse. Cancer Lett. 2001, 164, 1-6.
[24] Begin,M.E., Ells,G., Das,U.N., & Horrobin,D.F. Differential killing of human carcinoma cells supplemented with n-3 and n-6
polyunsaturated fatty acids. J. Natl. Cancer Inst. 1986, 77, 1053-1062. [25] Cave,W.T., Jr. Dietary omega-3 polyunsaturated fats and breast
[26] Cave,W.T., Jr. Dietary n-3 (omega-3) polyunsaturated fatty acid effects on animal tumorigenesis. FASEB J. 1991, 5, 2160-2166.
[27] Reddy,B.S., Burill,C., & Rigotty,J. Effect of diets high in omega-3 and omega-6 fatty acids on initiation and postinitiation stages of colon carcinogenesis. Cancer Res. 1991, 51, 487-491.
[28] Huang,C.S., Liao,J.W., & Hu,M.L. Lycopene inhibits experimental metastasis of human hepatoma SK-Hep-1 cells in athymic nude mice
J. Nutr. 2008, 138, 538-543.
[29] Lin,M.C., Wang,F.Y., Kuo,Y.H., & Tang,F.Y. Cancer Chemopreventive Effects of Lycopene: Suppression of MMP-7 Expression and Cell Invasion in Human Colon Cancer Cells J. Agric. Food Chem. 2011, 59, 11304-11318.
[30] Tang,F.Y., Shih,C.J., Cheng,L.H., Ho,H.J., & Chen,H.J. Lycopene inhibits growth of human colon cancer cells via suppression of the Akt signaling pathway Mol. Nutr. Food Res. 2008, 52, 646-654.
[31] Tang,F.Y., Cho,H.J., Pai,M.H., & Chen,Y.H. Concomitant
supplementation of lycopene and eicosapentaenoic acid inhibits the proliferation of human colon cancer cells. J. Nutr. Biochem. 2009, 20, 426-434.
[32] Calviello,G., Di Nicuolo,F., Gragnoli,S., Piccioni,E., Serini,S.,
Maggiano,N., Tringali,G., Navarra,P., Ranelletti,F.O., & Palozza,P. n-3 PUFAs reduce VEGF expression in human colon cancer cells
modulating the COX-2/PGE2 induced ERK-1 and -2 and HIF-1alpha induction pathway. Carcinogenesis 2004, 25, 2303-2310.
