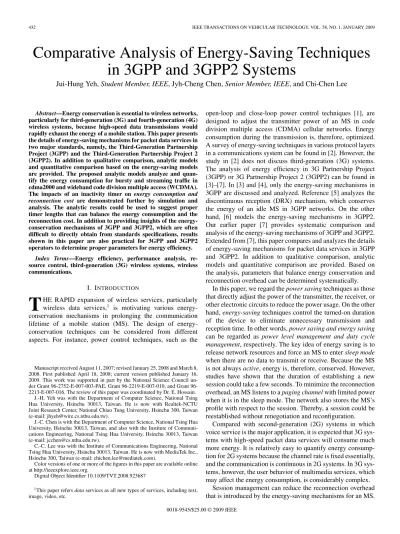

Comparative Analysis of Energy-Saving Techniques
in 3GPP and 3GPP2 Systems
Jui-Hung Yeh, Student Member, IEEE, Jyh-Cheng Chen, Senior Member, IEEE, and Chi-Chen Lee
Abstract—Energy conservation is essential to wireless networks, particularly for third-generation (3G) and fourth-generation (4G) wireless systems, because high-speed data transmissions would rapidly exhaust the energy of a mobile station. This paper presents the details of energy-saving mechanisms for packet data services in two major standards, namely, the Third-Generation Partnership Project (3GPP) and the Third-Generation Partnership Project 2 (3GPP2). In addition to qualitative comparison, analytic models and quantitative comparison based on the energy-saving models are provided. The proposed analytic models analyze and quan-tify the energy consumption for bursty and streaming traffic in cdma2000 and wideband code division multiple access (WCDMA). The impacts of an inactivity timer on energy consumption and reconnection cost are demonstrated further by simulation and analysis. The analytic results could be used to suggest proper timer lengths that can balance the energy consumption and the reconnection cost. In addition to providing insights of the energy-conservation mechanisms of 3GPP and 3GPP2, which are often difficult to directly obtain from standards specifications, results shown in this paper are also practical for 3GPP and 3GPP2 operators to determine proper parameters for energy efficiency.
Index Terms—Energy efficiency, performance analysis, re-source control, third-generation (3G) wireless systems, wireless communications.
I. INTRODUCTION
T
HE RAPID expansion of wireless services, particularly wireless data services,1 is motivating variousenergy-conservation mechanisms in prolonging the communication lifetime of a mobile station (MS). The design of energy-conservation techniques can be considered from different aspects. For instance, power control techniques, such as the
Manuscript received August 11, 2007; revised January 25, 2008 and March 8, 2008. First published April 18, 2008; current version published January 16, 2009. This work was supported in part by the National Science Council un-der Grant 2752-E-007-003-PAE, Grant 2219-E-007-010, and Grant 96-2213-E-007-016. The review of this paper was coordinated by Dr. E. Hossain.
J.-H. Yeh was with the Department of Computer Science, National Tsing Hua University, Hsinchu 30013, Taiwan. He is now with Realtek-NCTU Joint Research Center, National Chiao Tung University, Hsinchu 300, Taiwan (e-mail: [email protected]).
J.-C. Chen is with the Department of Computer Science, National Tsing Hua University, Hsinchu 30013, Taiwan, and also with the Institute of Communi-cations Engineering, National Tsing Hua University, Hsinchu 30013, Taiwan (e-mail: [email protected]).
C.-C. Lee was with the Institute of Communications Engineering, National Tsing Hua University, Hsinchu 30013, Taiwan. He is now with MediaTek Inc., Hsinchu 300, Taiwan (e-mail: [email protected]).
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/TVT.2008.923687
1This paper refers data services as all new types of services, including text, image, video, etc.
open-loop and close-loop power control techniques [1], are designed to adjust the transmitter power of an MS in code division multiple access (CDMA) cellular networks. Energy consumption during the transmission is, therefore, optimized. A survey of energy-saving techniques in various protocol layers in a communications system can be found in [2]. However, the study in [2] does not discuss third-generation (3G) systems. The analysis of energy efficiency in 3G Partnership Project (3GPP) or 3G Partnership Project 2 (3GPP2) can be found in [3]–[7]. In [3] and [4], only the energy-saving mechanisms in 3GPP are discussed and analyzed. Reference [5] analyzes the discontinuous reception (DRX) mechanism, which conserves the energy of an idle MS in 3GPP networks. On the other hand, [6] models the energy-saving mechanisms in 3GPP2. Our earlier paper [7] provides systematic comparison and analysis of the energy-saving mechanisms of 3GPP and 3GPP2. Extended from [7], this paper compares and analyzes the details of energy-saving mechanisms for packet data services in 3GPP and 3GPP2. In addition to qualitative comparison, analytic models and quantitative comparison are provided. Based on the analysis, parameters that balance energy conservation and reconnection overhead can be determined systematically.
In this paper, we regard the power saving techniques as those that directly adjust the power of the transmitter, the receiver, or other electronic circuits to reduce the power usage. On the other hand, energy-saving techniques control the turned-on duration of the device to eliminate unnecessary transmission and reception time. In other words, power saving and energy saving can be regarded as power level management and duty cycle
management, respectively. The key idea of energy saving is to
release network resources and force an MS to enter sleep mode when there are no data to transmit or receive. Because the MS is not always active, energy is, therefore, conserved. However, studies have shown that the duration of establishing a new session could take a few seconds. To minimize the reconnection overhead, an MS listens to a paging channel with limited power when it is in the sleep mode. The network also stores the MS’s profile with respect to the session. Thereby, a session could be reestablished without renegotiation and reconfiguration.
Compared with second-generation (2G) systems in which voice service is the major application, it is expected that 3G sys-tems with high-speed packet data services will consume much more energy. It is relatively easy to quantify energy consump-tion for 2G systems because the channel rate is fixed essentially, and the communication is continuous in 2G systems. In 3G sys-tems, however, the user behavior of multimedia services, which may affect the energy consumption, is considerably complex.
Session management can reduce the reconnection overhead that is introduced by the energy-saving mechanisms for an MS.
TABLE I
ACRONYMS OF3GPP TERMINOLOGIES
Session management, which controls all activities on an active session, is critical to an MS to support always on. That is, an MS could transmit data as soon as possible whether it is dormant or not. To achieve this, the MS and the network need to keep several resources such as radio channels (for paging) and memory spaces. Also, profiles such as the MS’s IP address, protocol configurations, and negotiated QoS parameters should be maintained. However, the primary energy consumption of an always on MS comes from the fact that the receiver and the transmitter turn on every now and then. Consequently, energy conservation should consider resource management and session management.
Various divergences exist between 3GPP and 3GPP2. This causes global roaming among different systems a challenge. The basic idea of energy conservation, however, is similar. The energy that is consumed depends on an MS’s activity. The less active an MS is, less energy will consumed. This paper presents comparative analysis of energy consumption in wideband CDMA (WCDMA)/3GPP and cdma20002/3GPP2. The energy consumption of Web browsing and streaming video, two major high-speed packet data services, is quantified. According to the analytic models and the extensive simulations, we show that, for energy conservation, WCDMA provides a finer grain technique than cdma2000. Based on our results, we also demonstrate that a good configuration of timer length could optimize both energy efficiency and reconnection overhead.
The rest of this paper is organized as follows. Sections II and III describe the energy-conservation techniques in 3GPP and 3GPP2, respectively. Section IV provides qualitative compar-ison of energy-saving techniques that are developed in 3GPP and 3GPP2. The analytic and simulation models are depicted in Section V. Section VI illustrates the numerical results. Section VII concludes this paper.
2The primary focus of cdma2000 in this paper is cdma2000 1× EV-DV.
II. ENERGYCONSERVATION IN3GPP
The primary specifications for resource management and session management of 3GPP in this paper can be found in [8]– [10]. Table I provides a list of 3GPP acronyms referred in this paper. In 3GPP, user equipment (UE)3 may be ordered by the
network to release radio resources, while the network detects that the activity of the UE becomes low. The detection of a low activity can be accomplished by an inactivity timer or through the measurement reported from the UE. The techniques involve the transition in the radio resource control (RRC) state ma-chine, the packet mobility management (PMM) state mama-chine, and the session management state machine. Fig. 1 illustrates the protocol stacks between the UE and a serving GPRS support node (SGSN; GPRS: General Packet Radio Service) in the
Iu mode [8], [11]. The relationship between RRC, PMM,4
and SM is also illustrated in Fig. 1. Both the UE and the network, which includes the radio access network (RAN) and the core network (CN), need to maintain pairs of identical and synchronized state machines.
The following sections discuss SM, PMM, and RRC in details. Various channels of WCDMA, i.e., the radio technology that is adopted in 3GPP, will be mentioned throughout the rest of this paper. Therefore, the channel structure of WCDMA is first presented in Section II-A.
A. Channel Structure of WCDMA
There are logical, transport, and physical channels in WCDMA. Logical channels are further classified into two types—control channels for carrying control messages and
traffic channels for carrying user data. Transport channels offer
3The UE in 3GPP is equivalent to the MS in 3GPP2.
Fig. 1. 3GPP MS–SGSN in the Iu mode (control plane).
services from a physical layer to higher layers. There are two types of transport channels—common channels and dedicated channels. The word dedicated implies that this channel is only assigned to a single user. In contrast, common indicates that this channel is shared among several users. Physical channels are defined by a specific carrier frequency, a channelization code, etc. [12].
Additionally, three transport channels are introduced here: 1) a forward access channel (FACH), which is used for the UMTS Terrestrial Radio Access Network (UTRAN; UMTS: Universal Mobile Telecommunications System) to transmit messages to the UE; 2) a paging channel (PCH), which is monitored by the UE while it is in the sleep mode; and 3) a
dedicated channel (DCH), which is assigned for a single user
to transmit user traffic or signaling traffic. The channel mapping between logical channels and transport channels can be found in [13]. The mapping between transport channels and physical channels can be found in [14].
B. SM State Machine
SM supervises the packet data protocol (PDP), for instance, IP address, PDP context activation and deactivation. PDP con-texts are mainly utilized for routing packet data from the UE. The UE and the network can transfer data to each other only after the PDP context has been activated. The SM state machine contains two major states—active (or PDP-ACTIVE) and
inac-tive (or PDP-INACTIVE). Although there are three other states,
they are transient states between active and inactive states. That is, only in the active state the PDP context is maintained by the UE and the SGSN. Then, a packet data session is alive when SM is in the active state [15].
C. PMM State Machine
PMM supports the mobility management functionality such as attach, detach, and routing area (RA) update of packet data services. The PMM state machine (also named as a packet switched (PS) state machine in [10]) consists of three states—DETACHED, IDLE, and PMM-CONNECTED states—as shown in Fig. 2.
• PMM-DETACHED state. In this state, no communication exists between the UE and the SGSN. The UE cannot
Fig. 2. PMM state machine.
be reached by any SGSN because the UE’s location is unknown. To communicate with the network, the UE should perform the PS Attach procedure.
• PMM-IDLE state. In this state, the SGSN is aware of the UE’s location with the precision of the RA [10]. The UTRAN, however, does not know the UE’s location because the RA is only maintained inside the CN. When the network wants to reach the UE, paging is needed in locating the position of the UE. The UE should perform RA update if it moves into a new RA. The UE and the SGSN maintain mobility management contexts in the PMM-IDLE and PMM-CONNECTED states.
• PMM-CONNECTED state. In this state, the UE is trace-able by a serving radio network controller (RNC) at the
cell level and an SGSN at the RA level. Only in this state
does a PS signaling connection exists between the UE and the SGSN. The PS signaling connection that is specified in Fig. 1 comprises an RRC connection between the UE and the UTRAN. There is also a signaling connection control part (SCCP) connection between the UTRAN and the CN. The PS signaling is relinquished after the UE enters the RRC idle mode. Packet data can be transferred only in the PMM-CONNECTED state.
D. RRC State Machine
RRC performs radio-related functions, such as radio link es-tablishment and maintenance between the UE and the UTRAN. RRC also performs control functions and signaling procedures between the upper and lower layers. This design leads RRC to be a coordinator in the UTRAN. Fig. 3 depicts the radio inter-face protocol architecture reference model [9]. The radios L1, L2, and L3 should not be considered the same as the lowest three layers of the Open System Interconnection (OSI) model. The L1 in Fig. 3 corresponds to OSI layer 1. The L2 and L3 in Fig. 3 correspond to OSI layer 2.
Fig. 4 depicts the main RRC modes, states, and state tran-sitions [9]. In the RRC idle mode, no radio connection exists between the UE and the UTRAN for user traffic. The UE, however, can still be paged by the CN. In the connected mode, the UE and the UTRAN have at most one RRC connection regardless of how many signaling connections exist between
Fig. 3. Reference model of the radio interface protocol architecture.
Fig. 4. RRC state machine.
the UE and the CN. The RRC connection is a conceptual connection; it actually consists of some contexts of the UE (similar to the PDP contexts of the UE that are maintained in the CN) that are maintained in the UTRAN. Signaling messages will be transmitted over signaling radio bearers.
The RRC state machine operates as two synchronized peer entities—one is in the UE side, and another is in the UTRAN side. The connected mode is further divided into two modes—cell connected and UTRAN registration area (URA)
connected. In the cell-connected mode, the location of the UE is
maintained by the UTRAN in the accuracy level of a cell. In the URA-connected mode, the UE is only known by the UTRAN in the URA level, a superset of multiple cells. We should notice that the UE should be paged when it is in the CELL_PCH state of the cell-connected mode and the URA_PCH state of the URA-connected mode before establishing a connection.
The detail of the RRC-connected mode is presented in Fig. 5, in which there are four states [9].
• CELL_PCH and URA_PCH. In these two states, the UE is known in the cell level in the CELL_PCH state and
Fig. 5. RRC state transition in the connected mode.
is known in the URA level in the URA_PCH state. Be-cause uplink (UE to UTRAN) activity in the states is not allowed, the UE could save its energy in these states. However, the UE should monitor the logical channel of the paging control channel such that the CN may page it when necessary. Moreover, the UE could use the optional
DRX to efficiently conserve energy. The CELL_PCH and
URA_PCH states are the only two states in the RRC-connected mode that are capable of entering the sleep mode and supporting the DRX mode. When the DRX mode is enabled, the UE needs only to monitor a short period in a paging cycle of the paging indicator channel (PICH) in the physical channel. A PDP context is still pre-served in these two states [8]. If the UE needs to transmit messages to the network, it goes to the CELL_FACH state. Because the PDP context is still retained, a session could be reconnected rapidly.
• CELL_FACH. In this state, the UE is known in the cell level. The UE is assigned a default common or shared transport channel, which consumes less energy than the dedicated channel does. In this state, the UE should
con-tinuously monitor the FACH in the downlink. In the uplink,
the UE may access the assigned common or shared chan-nel [e.g., a random access chanchan-nel (RACH) or a common packet channel (CPCH)] anytime according to the access protocol. The common and shared transport channels that are allocated in this state are suitable for bursty traffic such as Web browsing. The common transport channels like the CPCH that consumes less power and utilizes the spectrum more efficiently are suitable for a small or medium data amount [16]. The details of the channel types and the packet data could be found in [17].
• CELL_DCH. In this state, the UE is also known in the cell level. Dedicated physical channels, however, are allocated to the UE in the uplink and the downlink. The dedicated channels are suitable for real-time services with large
traffic volume such as voice, streaming video, file transfer protocol (FTP) traffic, and Web traffic with large objects. In addition to the DCH, the shared transport channels, such as the downlink shared channel (DSCH), which can only be used in the CELL_DCH state, are suitable for a medium or large data amount.
Fig. 5 presents the events that trigger the RRC state transi-tions. An inactivity timer (or a counter of cell update number) triggering the state transition from the CELL_PCH state to the URA_PCH state is explicitly pointed out in [9]. Because the UE has no uplink ability in the CELL_PCH state, it must transit to CELL_FACH first to register to the network before switching to the URA_PCH state (see Fig. 5). In general, once the UE enters the CELL_PCH state or the URA_PCH state and needs to transmit or receive data, it must change to the CELL_FACH state first.
When the UE is in the CELL_DCH state and the CELL_FACH state, it could transit to any other states of the connected mode through the signaling from the UTRAN triggered by events such as the expiration of inactivity timers or by network decisions according to measurement reports from the UE. The two events, i.e., an inactivity timer expired in parentheses (see Fig. 5), are implicit mechanisms in the UTRAN. In other words, they are possible ways, but not the only ways, and should be implementation issues in the UTRAN. For instance, the state transition from the CELL_DCH state to the CELL_FACH state may be triggered by procedures such as the traffic volume measurement report [9]. This measurement report monitors the traffic volume in the UE side and sets a threshold and a timer (similar to an inactivity timer). If the traffic is observed less than the predefined threshold for a period of time that is longer than the timer value, the UE should report to the UTRAN. After receiving this report from the UE, the UTRAN may order the UE to change its RRC state and change the type of its transport channel, e.g., changing from the DCH to the FACH in the downlink and from the DCH to the RACH in the uplink by signaling. All of the inactivity timers are network parameters and should be configured carefully.
Each RRC state characterizes how many radio resources the UE has. For example, the resources that are possessed by the UE in the CELL_DCH state are more than the other three states. Consequently, it consumes the most energy. As mentioned above, the UE, the 3G SGSN, and the 3G Gateway GPRS Support Node will keep the PDP context even when the UE is in the sleep mode. By preserving the PDP context, the UE and the CN do not need to renegotiate for the parameters such as the IP address, the connection type, and the QoS profiles when the UE wakes up from the sleep mode and enters the CELL_FACH state. Ultimately, the reconnection cost and the latency of the CELL_FACH state are smaller than those of the CELL_PCH state and the URA_PCH state in the RRC-connected mode. In addition, the reconnection cost and the latency from the RRC idle mode to the RRC-connected mode are larger than those of any state in the RRC-connected mode. This is because the UE in the RRC idle mode must establish an RRC connection (e.g., establish the UE context [18]) before transmitting or receiving data.

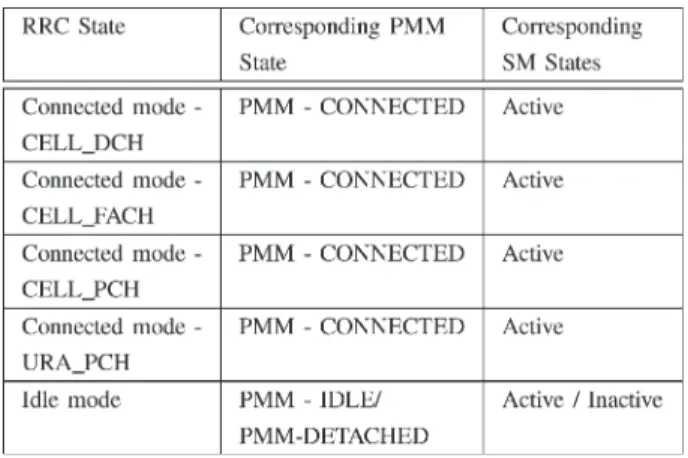

TABLE II
RRCANDCORRESPONDINGPMMANDSM STATES
E. State Machines and Energy Conservation
To save energy, each state machine acts in a different role. The connected mode in the RRC state machine char-acterizes the communication capability of the UE and deter-mines the level of activity that is associated with the UE. For example, only when the UE is in the CELL_DCH state and the CELL_FACH state will it assume the capability of uplink/reverse link transmission. That is, the activity of the UE/MS is higher than the rest of the states. Therefore, the level of activity implies the level of energy consumption.
The PMM state machine indicates the status of data transfer during a data session. For instance, the possibility of data trans-fer in the PMM-CONNECTED state is higher than that in the PMM-IDLE state. The SM state machine indicates whether the packet data session is still alive. Table II lists the corresponding states among the SM, PMM, and RRC state machines. Note that the transient states are not considered in Table II. For instance, before changing to the PMM-CONNECTED state, the PMM state machine should pass through the PMM-DETACHED first. This paper does not regard the PMM-DETACHED state as the corresponding state of the RRC-connected mode in such a transient stage. In general, SM is in the active state, whereas PMM is in the PMM-CONNECTED state, and RRC is in the connected mode. SM can be either in the active or inactive state, whereas the UE is in the PMM-IDLE state because the probability of data transfer is quite small. If SM is in the inactive state, the CN will determine that the UE is detached and deactivate the PDP context of the UE. This, however, may increase the reconnection latency and overheads.
The energy consumption could be roughly classified into three levels according to the RRC state machine. When the UE is in the CELL_DCH state, the energy is consumed most. The CELL_FACH state is the medium level. The rest of them, including the CELL_PCH state, the URA_PCH state, and the idle mode, consume less energy. The UE in the CELL_FACH state could utilize the common channels. Thus, it may conserve more energy than that in the CELL_DCH state, which uses DCHs. When the UE is in the CELL_PCH state, the URA_PCH state, or the idle mode, it could even conserve more energy by releasing the uplink channel and utilizing the DRX mode. Furthermore, the energy-conservation level in the URA_PCH state is lower than that in the CELL_PCH state if the mobility
is high. As mentioned above, SM is essential for compensating the penalty caused by energy-saving techniques of the RRC. The primary purpose of SM and PMM is to speed up the session reconnection. For example, PMM tracks the RA of the UE even when it is idle. It enables the CN to locate the UE quickly and accurately if the CN needs to transfer the data to the UE. SM, however, maintains the session profiles such as the PDP context of each of the UE to minimize the reconnection latency and overheads when the UE wakes up from the sleep mode. Before any data are transferred, the UE must set up radio and physical connections. The PMM and SM state machines along with the preservation of PS signaling efficiently reduce the time that is required to set up the radio and physical connections.
III. ENERGYCONSERVATION IN3GPP2
The design of a packet-switched network in 3GPP is quite different with the one in 3GPP2. The packet-switched part in the CN of 3GPP generally evolves from the GPRS system, whereas 3GPP2 leverages the mobile IP [19] to design its packet-switched CN. Thus, finding a one-to-one mapping in the packet-switched parts of 3GPP and 3GPP2 is a challenge. To make comparison, the mapping in this paper solely bases on the perspective of energy conservation with the structure presented in Section II. The mapping might not be perfectly applied to other aspects. The primary specifications of 3GPP2 that are referred in this paper are in [20]–[22]. Analogous to 3GPP, there are three primary state machines—the packet data session (PDS) state machine, the packet data service call control (PDSCC) state machine, and the MS layer 3 processing (MSL3P) state machine, which correspond to the SM state machine, the PMM state machine, and the RRC state machine, respectively, in Section II. The acronyms of 3GPP2 are summa-rized in Table III.
A. Channel Structure of cdma2000
Unlike WCDMA, there are two types of channels in cdma2000—logical channels and physical channels. A logical channel is a logical path that carries user traffic and signaling messages between peer entities such as base stations (BSs) and MSs. The forward link is a unidirectional radio link carrying traffic from BS to MS, whereas the direction of the reverse link is from MS to BS. In cdma2000, physical channels are defined in terms of radio frequency and code sequence. A physical channel is a physical path that transmits user data in signals. The higher layer (layer 3) may only use logical channels to transfer data to and from the lower layer (layer 2). The lower layer then decides to use which physical channel to transmit user data. A logical channel is represented by a three- or four-lowercase acronym with ch at the end. A physical channel is represented by the uppercase abbreviation. The definitions of
common and dedicated are the same as those in 3GPP. For
instance, logical channels of f-dtch and r-csch stand for forward
dedicated traffic channel and reverse common signaling chan-nel, respectively. The physical channel of F-PCH stands for a forward paging channel. R-CCCH represents a reverse common control channel.
TABLE III
ACRONYMS OF3GPP2 TERMINOLOGIES
Fig. 6. Simplified 3GPP2 packet data service protocol stack.
B. PDS State Machine
This section first reviews the packet data service in 3GPP2 before examining the PDS state machine. Fig. 6 shows the sim-plified protocol stack of the packet data service. In the figure, a packet data serving node (PDSN) establishes, maintains, and terminates the data session, which essentially is a point-to-point protocol (PPP) session, to the MS. The RN consists of BSs, BS controllers (BSCs), and packet control functions (PCFs). As indicated in Fig. 7, a PCF relays packets to and from the PDSN. It also establishes, maintains, and terminates the layer 2 con-nections to the PDSN. The PCF and the PDSN are the primary components for the packet data service. To transmit or receive packet data, the MS must establish two types of connections— the radio connection from the MS to the BS and the BSC and the interoperability specification (IOS) connections [23], including connections from the BSC to the PCF and from the

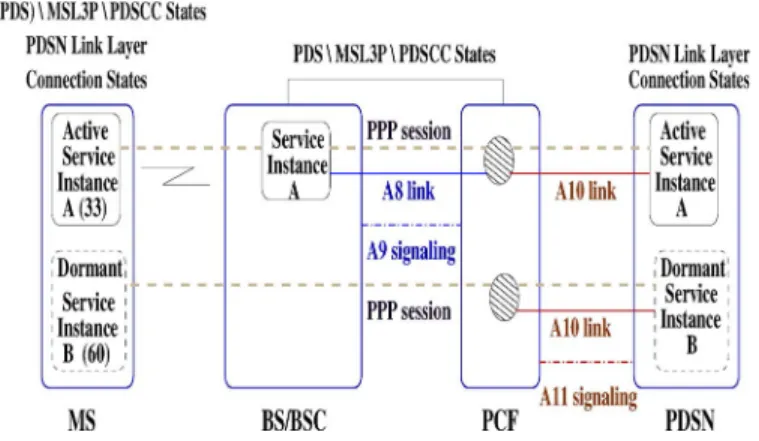

Fig. 7. IOS connection and service.
PCF to the PDSN. The PDS state machine defined in [22] primarily supervises IOS and PPP connections. Thus, it should be implemented in the BS/PCF. The IOS connections for packet data services between the BSC and the PCF are called A8 and
A9 links, whereas the connections between the PCF and the
PDSN are named as A10 and A11 links. The A8 and A10 links carry user data, whereas the A9 and A11 links carry signaling traffic. Each active service instance of the MS is assigned with an A8 connection and an A10 connection. On the other hand, each dormant service instance only maintains an A10 connection. That is, there is no actual connection between the PCF and the BSC. The A9 and A11 links are shared among service instances for signaling purposes to set up A8 and A10 connections.
The link layer connection of the PDSN depicted in Fig. 6 is open, while a packet data service option, which is also known as Service Option 33, is first connected. Service Option 33 is used for requesting packet data service through a PDSN. The link layer connection of the PDSN can be either in a closed
state or an opened state. In the closed state, the PDSN does not
have the state information of link layer connection for an MS. In contrast, the PDSN maintains the state information of a link layer connection for an MS, while it stays in the opened state. The packet data session is associated with a PPP session and will be terminated when all service instances are finished. To manage a packet data session, there are three PDS states.
• Active/connected. In this state, a physical traffic channel is utilized for data transmission between the MS and the BS. The PPP session is active in this state, while A8 and A10 links are established in the network. For each A8 connection, the BS keeps an independent packet data inactivity timer in this state.
• Dormant. In this state, no physical traffic channel is estab-lished by the MS, but the PPP link (the PDSN link layer connection) between the MS and the PDSN is maintained. The A8 link is released in this state, while the A10 link is preserved.
• Null/inactive. In this state, no physical traffic channel exists between the MS and the BS, and no PPP link exists between the PDSN and the MS.
Fig. 8 sketches the state machine of PDS. PDS states char-acterize the status of a packet session and maintain the corre-sponding information. From this perspective, PDS is analogous
Fig. 8. PDS state transition.
to SM in 3GPP. However, PDS is involved in the procedure of a packet session handoff. The dormant state indicates that the activity of the MS is low, and the probability of data transfer is small. Thus, the PDS state is somewhat similar to PMM in 3GPP from this perspective. From the energy-conservation perspective, this paper regards the PDS state machine as a coun-terpart of the SM state machine in 3GPP because it primarily characterizes the status of PDS.
C. PDSCC State Machine
The PDSCC state machine is utilized to support call control procedures of high-speed packet data service, i.e., Service Option 33, in the cdma2000 spread spectrum system.
• Null state. When the packet data service has not been activated, the PDSCC state machine is in the null state. • Initialization state. In this state, the MS attempts to
con-nect a packet data service option.
• Connected state. In this state, a packet data service option is connected. That is, user packet data are exchanged between the MS and the PDSN. The inactivity timer of the packet data service instance is activated by the MS in this state, and its value should not be less than 20 s [20]. Whenever a nonidle radio link protocol data frame is sent or received, the timer should be reset. The PDSCC function should enter the dormant state once the inactivity timer of the packet data service instance expires.
• Dormant state. In this state, the packet data service op-tion is disconnected. That is, the radio resource that is used for traffic is relinquished. However, the PDSN link layer connection is still in the opened state to reduce the latency of switching from the dormant state back to the connected state. Upon entering the dormant state, the MS should store the current values of system identifica-tion (SID), network identificaidentifica-tion (NID), and packet zone identification (PZID). The combination of SID/NID/PZID triplet uniquely identifies the current location of the MS. Each PCF corresponds to a packet zone. If the packet zone reconnection (similar to the RA Update in 3GPP) is supported by the MS, the MS reconnects and updates the packet data service when it detects the change of the packet zone. Therefore, the MS could reduce the
Fig. 9. PDSCC state machine in the MS.
reconnection delay because the network may predict the location of the MS more accurately.
In this state, the MS can also choose to use short data burst (SDB) [20] to send data whenever it has a small amount of data to send. Similar to the CPCH in 3GPP, the SDB is supported by the common channel packet data (CCPD) mode [22], which enables the data transfer over common channels without changing the state of the MS from the dormant state to the connected state.
• Reconnect state. In this state, the MS attempts to connect to a previously connected packet data service option. The MS retrieves the prestored service configuration without renegotiation if the network does not change the service configuration. The MS can either directly switch from the dormant state to the connected state or go through the reconnect state. The MS directly enters the connected state if the PDSN has data to transmit to the MS. Otherwise, if the MS has data to send, it must enter the reconnect state first. The detailed state transition is illustrated in Fig. 9. Note that the PDSCC instance is created and then removed in the substates of MSL3P, which is explained in Section III-D. Compared with MSL3P, PDSCC serves in the lower layer because PDSCC performs the packet-related call control func-tions such as setting QoS parameters and service configura-tion in medium-access control and physical layers. Because the dormant state of the PDSCC state machine supports the packet zone reconnection, this paper considers the PDSCC state machine as a counterpart of the PMM state machine in 3GPP.
D. MSL3P State Machine
Fig. 10 [24] illustrates the cdma2000 layer structure and the corresponding OSI layers. The MSL3P state machine is part of the upper layer signaling, i.e., the signaling processing center that originates and terminates signaling data. Although Fig. 10 shows that the upper layer signaling may be mapped to OSI layers 3–7, it should be noticed that the upper layer signaling could be also in charge of cdma2000 signaling (e.g., direct signaling to the physical layer), which is not a conventional
Fig. 10. cdma2000 layer structure.
Fig. 11. State transition of MSL3P.
function of OSI layer 3 or other upper layers. The MSL3P characterizes the general status of the MS. For instance, by checking the MSL3P state, the CN or the RN may detect that the MS is in idle status or in traffic status. Consequently, different types of channels are used to communicate with the MS. Moreover, the MSL3P state machine is responsible for radio resource control, service configuration, and negotiation through various signaling protocols. Like RRC in 3GPP, only one synchronized pair of the MSL3P state machine will be maintained in the MS side and the network side. It represents the general status and communication capabilities of the MS. Hence, this paper regards MSL3P as the counterpart of RRC in 3GPP from the energy-conservation perspective.
Fig. 11 illustrates the state transition of MSL3P. In this paper, we focus on the characteristics of each state, particularly
the type of the radio channel that the MS can possess. The characteristics of the states are itemized as follows.
• MS initialization state. In this state, the MS first decides which system to use. If the selected system is a CDMA system, the MS needs to acquire system information and then synchronize to the CDMA system. If the MS selects an analog system to use, it begins the operation in the analog mode [21].
• MS idle state. In this state, the MS monitors messages that are received from the f-csch such as the paging channel. The MS can receive messages or an incoming call, and initiate a call or a message transmission.
• System access state. In this state, the MS sends messages to the BS by using the r-csch and receives messages from the BS through the f-csch. The MS enters this state mainly to acquire reverse channels to transmit messages to the BS. • MS control on the traffic channel state. In this state, the MS communicates with the BS by using the f/r-dsch and the
f/r-dtch. This state contains several substates to monitor
the status of the dedicated channel that is utilized by the MS.
Similar to that in 3GPP, the MS possesses different types of channels depending on the MSL3P state in 3GPP2. For example, if the MS is in the MS idle state, it cannot utilize the r-csch unless it enters the system access state. Hence, the MS consumes more energy in the system access state than in the MS idle state. Upon entering the MS idle state, the MS could not change its state unless it was triggered by an event, such as paging. Unlike the MS idle state, the MS enters the system access state for certain purposes such as replying paging, sending SDB, or initiating services.
E. State Machines and Energy Conservation
Like the techniques in 3GPP, to make energy saving applica-ble, only one state machine of MSL3P that governs the energy consumption is not sufficient. It also needs the PDSCC state machine to monitor the activity of the packet data service. For retaining the session properties when the MS enters the dormant state, the PDS state machine is crucial during the whole session. Table IV lists the corresponding states between the three state machines. Analogous to Table II, the transient states are not considered in Table IV. When the MS is in the MS initialization state of MSL3P, the instances of PDSCC and PDS are not initiated yet. Therefore, the corresponding states of PDSCC and PDS are non in the table. When the MS is not communicating, generally, the MSL3P state machine is in the MS idle state. If there is no traffic channel or dedicated channel between the MS and the BS, both PDSCC and PDS state machines are in the
dormant state. They are mapped to the MS idle state of the
MSL3P state machine. The initialization state of PDSCC and the null/inactive state of PDS are mapped to the system access state of MSL3P because the MS needs to get the reverse link to send messages to the BS. The dormant state of PDS may also correspond to the reconnect state of PDSCC and the system
access state of MSL3P. This is because that MS may use the
CCPD mode (corresponding to SDB in Fig. 11) to send packets while staying in the dormant state of PDS.
TABLE IV
MSL3PANDCORRESPONDINGPDSCCANDPDS STATES
The energy consumption could be categorized into three levels. The MS control on the traffic channel state consumes the most energy. The system access state consumes energy at a medium level. The MS idle state consumes the least energy. The classification is basically the same as that in 3GPP. Similar to the states of CELL_PCH and URA_PCH in 3GPP, which can utilize the DRX mode, the state of MS
idle in 3GPP2 can also employ a session-related technique
called the slotted mode [21]. Both the slotted mode and the DRX mode allow the MS to monitor only certain slots instead of continuously monitoring the paging channel. In contrast to 3GPP in which the network only retains the PS signal-ing connection in the sleep mode, the PDSN and the PCF in 3GPP2 preserve the PPP session and the A10 connection for users to realize the always on functionality. By preserving these resources, the impact of energy conservation on recon-nection cost could be minimized. The only cost is the latency of establishing the radio connection and the A8 connection.
IV. QUALITATIVECOMPARISON
This section presents qualitative comparison of energy-saving techniques that are developed in 3GPP and 3GPP2. The qualitative comparison is elaborated by using examples of the signaling and data flows of 3GPP and 3GPP2.
3GPP and 3GPP2 differ much from the packet data architec-ture of each other. However, concepts of energy conservation of both systems are similar in certain extent. The 3GPP2 upper layer signaling in Fig. 10 is more complicated than the 3GPP RRC in Fig. 3. RRC is specifically designed for RN-related signaling and control tasks. However, the upper layer signaling is in charge of all upper layers (OSI layers 3–7), as well as the physical layer signaling services. MSL3P could be viewed as the counterpart of RRC from the perspective of energy conser-vation. Both the states of MSL3P and RRC represent the type and the direction of the radio channel possessed by the MS/UE. They also stand for the status of energy saving, i.e., whether the MS/UE can enter the sleep mode or not. Although MSL3P in 3GPP2 could be regarded as the corresponding counterpart of RRC in 3GPP, it does not monitor the activity of the packet data service as RRC does. Instead, MSL3P delegates this job to the PDSCC state machine. This is because the state transition between the system access state and the MS control on the
traffic channel state in MSL3P is unidirectional. Consequently,
the activity of the packet data service must be supervised by the PDSCC state machine.

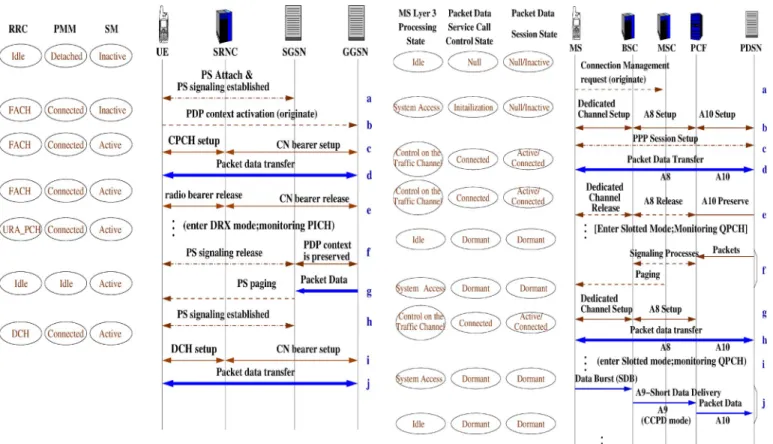

Fig. 12. Example flows and the corresponding states in 3GPP.
The PDSCC state machine in 3GPP2 manages the packet
zone reconnection, whereas the PMM state machine in 3GPP
handles the RA update. Both of them speed up the process of reconnection. However, the PDSCC state machine is more complicated than the PMM state machine because the PDSCC state machine governs the radio parameter configuration and QoS setting as well. The PDS state machine and the SM state machine monitor the status of packet sessions. Nevertheless, the PDS state machine has one more state than the SM state machine, i.e., the dormant state. One can also find the RRC functional model in 3GPP2’s RAN. However, it does not have the similar state model in 3GPP.
Figs. 12 and 13 illustrate the relationship between the state machines in 3GPP and 3GPP2 in packet data sessions. Flow a to flow j in Fig. 12 are analogous to flow a to flow j in Fig. 13. Initially, the MS/UE sets up the packet connection and then transfers the packets to the network. After flow d in both Figs. 12 and 13, there is no data transmission for a short period. The MS/UE, thus, enables the sleep mode (or the dormant mode) and releases some resources. Afterward, when the network has data that are destined to the MS/UE, the network tries to page the MS/UE by flow g in Fig. 12 and flow f in Fig. 13. When the MS/UE receives the paging message, it reestablishes the connection to the network and starts to receive packets.
Fig. 12 illustrates how SM, PMM, and RRC change their states during the exemplary packet data flows in the right side of the figure. This example is based on Web browsing, one of the most common packet data applications. The example utilizes the common channel and the dedicated channel to separately transfer packet data according to different QoS
re-Fig. 13. Example flows and the corresponding states in 3GPP2.
quirements. It should be mentioned that the inactive state of SM in flow b is a transient state that will change to the active state very soon. In the figure, flow e that may be caused by the expiration of the inactivity timer indicates the RRC state transition (resource-related) for releasing the CPCH and other uplink channels. After flow e, the UE operates in the DRX mode (session-related) and monitors the PICH [14], which allows the UE to conserve more energy than the traditional paging channel. If the idle period lasts for a long time, the network may consider that the data transfer is possibly quite small. The network should relinquish the PS signaling but still preserve the PDP context. The always on technique in 3GPP is realized by maintaining the PS signaling and the PDP context. For instance, if the PS signaling is still active, the UE can begin the data transfer in flow i. Otherwise, the UE must perform flow h first. Note that the SGSN is responsible for originating the paging request in the PS domain.
Fig. 13 shows how PDS, PDSCC, and MSL3P change their states in the exemplary packet data flows. Flow b employs the dedicated channel because the dedicated packet channel (dpch) belongs to the dedicated channel. Flow e may be caused by the expiration of the packet data inactivity timer maintained by the MS in the connected state of PDSCC. Similar to 3GPP, the transition of MSL3P from the MS control on the traffic channel
state to the MS idle state causes the release of the dedicated
channel (dpch). However, not all of the connections that are established in the CN are released. The always on technique in 3GPP2 preserves the A10 connection and the PPP session for the MS. Similar to the 3GPP DRX mode, the MS may operate in the slotted mode in 3GPP2. Also, the MS could monitor
TABLE V
SUMMARY OFCOMPARATIVECOMPARISON
the quick paging channel [21], which is similar to the PICH in 3GPP, to enhance the efficiency of energy saving. Flow f to flow h show an example of packet call termination when the PDSN sends packet data, which are actually destined to a dormant MS, to the PCF. Once the PCF receives the data, it will notify the BSC to request the paging service from the MSC. After that, the MSC (which will be the SGSN in 3GPP) issues the paging request. Flow j gives an example of the CCPD mode operation with SDB, in which the MS does not need to
wake up completely. It only changes its MSL3P state to the system access state and requests for a common channel for
transmission using SDB. The PDS and PDSCC state machines stay in the dormant state in this case. In flow j, the MS avoids the cost of establishing an A10 connection and the signaling overhead to establish an A8 connection by delivering SDBs through the A9 connection in the CCPD mode.
The above comparisons demonstrate the energy-saving procedures and associated processes of session management for always on during packet data communication in WCDMA and cdma2000 systems. We highlight the necessity of session management techniques, which compensate the reconnection overhead that is caused by the enhancement of resource and energy efficiency. Table V summarizes the comparative study.
V. QUANTITATIVECOMPARISON
Various factors affect the energy consumption in 3G systems. We observe that the state machines, the inactivity timers, and the traffic models are three major elements that determine the energy consumption for packet data services in WCDMA and cdma2000. Different states in the UE/MS determine the type of radio resources that the UE/MS may possess. The state may also imply the overhead such as registration and update delays. The inactivity timers of the state machines control the state transitions. Once the UE/MS is idle for a certain time, the associated timer would be expired. The UE/MS then transits from one state to another. Hence, the energy consumption of each state could be evaluated. Furthermore, user behavior and user traffic essentially dominate energy consumption. User
Fig. 14. Web browsing traffic model.
behavior affects the duration that the UE/MS will stay in a state. User traffic governs the channel resources that the UE/MS may be allocated.
In this section, we aim to quantify the performance of energy consumption in 3GPP/WCDMA and 3GPP2/cdma2000. Traffic models and the corresponding analytic model are constructed. Moreover, the impact of the inactivity timer on energy con-sumption and reconnection cost is studied.
A. Traffic Models
In this paper, traffic models are categorized into nonreal-time traffic and real-time traffic. We use Web browsing for nonreal-time traffic and streaming video for real-nonreal-time traffic. The reason is that they are two major high-speed packet data services. Compared with other traffic types, in addition, they usually consume more energy. Energy conservation is more important in Web browsing and streaming video.
1) Nonreal-Time Traffic Model—Web Browsing: The traffic
model of the Web browsing we use is suggested by 3GPP in [25] and 3GPP2 in [26]. As depicted in Fig. 14, a typical traffic model (forward and reverse links) of Web browsing consists of several browsing sessions. Packet arrivals in the reverse link comprise request and acknowledgment (ack). Each session in the forward link includes one or several packet calls that contain a sequence of packets. The duration between two packet calls is called the reading time. Furthermore, the period between two sessions is called the intersession time. We can see that the

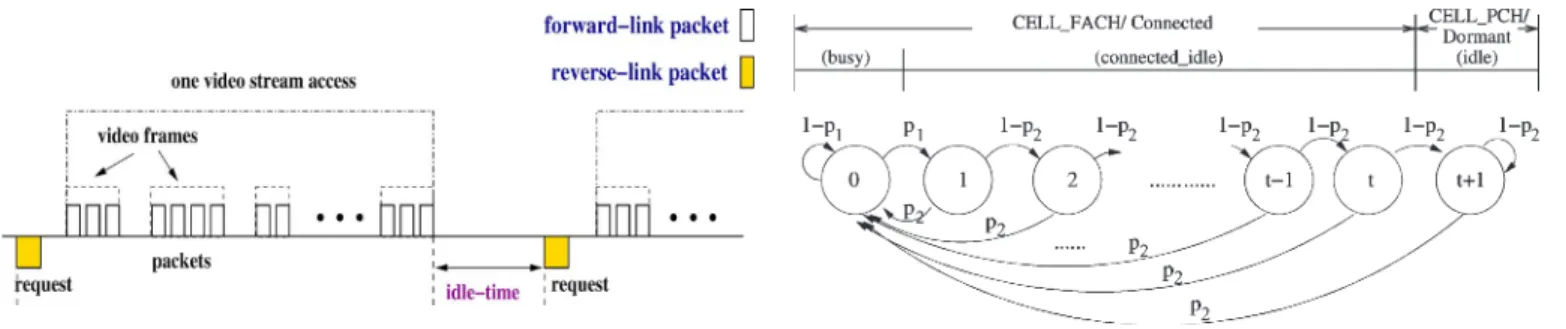

Fig. 15. Video streaming traffic model.
length of a Web browsing session is implicitly modeled by the number of packet calls. Moreover, the length of a packet call is implicitly determined by each packet size and the number of packets. The parameters we use are also based on the suggestion from standards [25]. They are itemized as follows:
• session arrival process. the time between two successive sessions is modeled as a geometrically distributed random variable (RV) (discrete analog of an exponential distribu-tion) with a mean value of 600 s. The number of session arrivals is also a geometric RV;
• number of packet calls per session. a geometric RV with a mean of five packet calls;
• reading time between two consecutive packet calls in a
session. a geometric RV with a mean of 412 s;
• number of packets in a packet call. a geometric RV with a mean of 25 packets;
• time interval between two consecutive packets inside a
packet call. a geometric RV with a mean of 0.0625 s;
• packet size. Pareto distribution with a cutoff is used. The value of the scale parameter is 81.5, and the value of the shape parameter is 1.1. Therefore, the average packet size is 480 bytes.
2) Real-Time Traffic Model—Streaming Video: To be more
realistic, we use the video traces from [27] as the video source. The traces are collections of several H.263 videos with a target rate of 64 kb/s. There are ten video clips. Each one is around 60 min long. To model the traffic from a video server, each time, we randomly choose one video trace. Video frames are sequentially sent to the UE/MS. The packet size is limited by 1500 bytes, which is the maximum transmission unit of the IP. Once the video is transmitted completely, we randomly choose one and continue the same process again.
The user behavior is modeled as anON–OFFmodel. A user accesses the video during theONperiod. The number of packets that are received is determined by the video server by which video is sending now. During the OFF period, which is also called the idle time, there is no video access. Therefore, there is no video traffic in the OFFperiod. Thus, there are two sta-tistic parameters—the duration ofONtime and the duration of
OFFtime. The mean values are listed as follows [25]:
• access time of a streaming video (ONtime). an exponential
RV with a mean of 30 s;
• idle time between two successive streaming video accesses
(OFFtime). an exponential RV with a mean of 120 s.
Fig. 15 illustrates the video traffic model for forward and reverse links.
Fig. 16. Discrete time Markov chain for one inactivity timer.
B. Analytic Model
This section analyzes the state transition behavior for real-time and nonreal-real-time traffic in WCDMA and cdma2000. The expected energy consumption and reconnection cost in com-munication sessions are evaluated. The term reconnection is defined as that the UE/MS requests the packet data service again in the same session, but the capability of its current state cannot support this request, that is, state transition is neces-sary. Reconnection may waste additional time and resource to renegotiate the channel resources. Although shortening the timer length may conserve the energy of the UE/MS, the probability of reconnection will also increase. It is a tradeoff between saving energy and reducing reconnection probability. Therefore, the parameters should be configured carefully.
For WCDMA, we assume that the resource of the CELL_FACH state is capable for the UE to access nonreal-time traffic. Furthermore, the UE should transit to the CELL_DCH state to access real-time traffic. For cdma2000, on the other hand, an MS transits to the connected state to access nonreal-time and real-nonreal-time traffic. Note that, to model the discrete nonreal-timer behavior, nonreal-time traffic and real-time traffic are modeled by a discrete-time Markov chain. We transform the real-time traffic modeling from a continuous model to a discrete-time model. In other words, the mean durations of the access time and the idle time are modeled by a geometric RV that is the discrete analogy of the exponential RV.
The discrete-time Markov chain in Fig. 16 models the state transition behavior, which merely involves one single inactivity timer. That is, it can be used to model the nonreal-time traffic in WCDMA and cdma2000 and the real-time traffic in cdma2000. State 0 represents that the channel is busy, and the UE/MS stays in the CELL_FACH state. States 1 to t represent that the chan-nel is temporarily idle, and the inactivity timer of CELL_FACH is counting. We define this as connected-idle states. State t + 1 represents that the inactivity timer has expired, and the UE/MS has transited to the CELL_PCH or dormant state.
Accessing the real-time traffic in WCDMA generally en-gages two inactivity timers because the UE stays in the CELL_DCH state when accessing the real-time traffic. The Markov chain is illustrated in Fig. 17. In the Markov chain, state 0 represents that the channel is busy, and the UE is in the CELL_DCH state. States 1 to t1stand for the fact that the
first inactivity timer of CELL_DCH is counting. After the first timer expires, the second inactivity timer of CELL_FACH starts counting from state t1+ 1 to state t1+ t2. State t1+ t2+ 1
Fig. 17. Discrete-time Markov chain for two inactivity timers.
represents that the second inactivity timer has also expired, and the UE has transmitted to the CELL_PCH state.
In Fig. 16, let p1 denote the probability that the packet
call is finished. Let p2denote the probability that the reading
time terminates. We derive the following transition probability matrix: P = ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ 1− p1 p1 0 · · · 0 0 p2 0 1− p2 · · · 0 0 p2 0 0 . .. 0 0 .. . ... ... . .. . .. ... p2 0 · · · . .. 1 − p2 0 p2 0 · · · · · · 0 1− p2 p2 0 · · · · · · 0 1− p2 ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ . (1)
Let π = [π0, π1, . . . , πt, πt+1] be the steady-state
probabil-ities of the Markov chain. By solving π = πP and πe = 1, where e is a column vector with all elements equal to 1, we get πi= ⎧ ⎪ ⎨ ⎪ ⎩ p2 p1+p2, (i = 0) (2a) p1p2(1−p2)i−1 p1+p2 , (1≤ i ≤ t) (2b) p1(1−p2)t p1+p2 , (i = t + 1). (2c)
Similarly, in Fig. 17, let p1 denote the probability that the video session terminates. Let p2denote the probability that the idle time terminates. Thus, we obtain the steady-state probabil-ity of the Markov chain, i.e.,
πi = ⎧ ⎪ ⎪ ⎪ ⎨ ⎪ ⎪ ⎪ ⎩ p2 p1+p2, (i = 0) (3a) p1p2(1−p2) i−1 p1+p2 , (1≤ i ≤ t1+ t2) (3b) p1(1−p2) t1+t2 p1+p2 , (i = t1+ t2+ 1). (3b)
Assume that the average power consumption in busy,
connected idle, and idle in Fig. 16 is given by Wb, Wci, and
Wi, respectively. Furthermore, the mean power consumption of
busy, connected-idle in CELL_DCH, connected-idle in CELL_FACH, and idle in Fig. 17 is given by Wdch, Wt1, Wt2,
and Wpch, respectively. Assuming that the session length is
Ts, we can calculate the expected energy consumption E[Egs]
in the downlink/forward link of the nonreal-time traffic in
WCDMA and the real-time/nonreal-time traffic in cdma2000 during the communication session as follows:
E[Egs] = Wb·π0+Wci· t i=1 πi+Wi· πt · Ts =p2Wb+p1 1−(1−p2)t Wci+(1−p2)tp1Wi · Ts/(p1+p2). (4)
The expected energy of the real-time traffic in WCDMA, i.e., E[Egs], is given by
E [Egs] = Wdch· π0 + Wt1· t1 i=1 πi+ Wt2 · t1 +t2 i=t1+1 πi+ Wpch· πt1+t2+1 · Ts = p2Wdch+ p1 1− (1 − p2) t1 Wt1 + p1(1− p2)t1 1− (1 − p2)t2 Wt2 + p1(1− p2)t1+t2 Wpch · Ts/ (p1+ p2) . (5)
Based on the steady-state probability, the expected num-ber of reconnections E[N ri] of the nonreal-time traffic in
WCDMA and the real-time/nonreal-time traffic in cdma2000 is derived as
E[N ri] =
p1p2(1− p2)t
p1+ p2 · Ts
. (6) Likewise, the expected number of reconnections from the CELL_FACH state, i.e., E[N rf], for the real-time traffic in WCDMA is given by EN rf= t 1+t2 i=t1+1 p1p22 (1− p2)i−1 p1+ p2 · Ts =p 1p2(1− p2) t1 1− (1 − p2) t2 (p1+ p2) · Ts. (7)
Also, the expected number of reconnections from the CELL_PCH state, i.e., E[N rp], for the real-time traffic in WCDMA is given by EN rp= p 1p2(1− p2) t1+t2 p1+ p2 · Ts. (8) As mentioned above, the proper choice of the inactivity timers should consider energy consumption and reconnection cost. Let Ci denote the cost of each reconnection from the
idle state in Fig. 16. Therefore, for the nonreal-time traffic in
WCDMA and the real-time/nonreal-time traffic in cdma2000, the proper timer length could be calculated by solving
E[N ri]· Ci= E[Egs]. (9)
The proper timer length t is then calculated as
t = ln(p2Wb+ p1Wci)− ln(p1p2Ci+ p1Wci− p1Wi)
ln(1− p2)
.
(10) For the real-time traffic in WCDMA, let the reconnection cost from the CELL_FACH state and the CELL_PCH state to the CELL_DCH state be Cfand Cp, respectively. The relation
of the two timer lengths can be derived from the following:
EN rf· Cf+ E N rp· Cp= E [Egs] . (11) It is further derived as t1= ln (p2Wd+p1Wt1) − lnp1 p2Cf+p2(1−p2) t2 (Cp−Cf) +(Wt1−Wt2)+(1− p 2) t2 (Wt2−Wp) / ln (1−p 2) . (12)
C. System Parameters Varied
To quantify the analysis above for energy consumption, we still need to know the power required for packet transmission and reception. The power in this paper is based on [24] and [28]. The total power required in the uplink/reverse link could be approximated by the following:
PUL= PTxhw+ Pp (13)
where PTxhw is the mean power for transmitting data in the
physical layer. PTxhwis derived as
PTxhw= rPradiated+ PTxfix. (14)
Also, Pp in (13) is the power required for protocol-related
activities for supporting the data transmission in the uplink. In addition, Pradiated in (14) is the actual radiated transmission
power, and r is a proportionality factor [24], [28]. Furthermore,
PTxfix is the power required by amplifier-unrelated parts, e.g.,
baseband.
Similarly, the total power required for downlink/forward link is approximated as follows:
PDL = PRxhw+ Pp (15)
where PRxhwis the power to process the received data in the
physical layer. Pp is the power required for protocol-related
activities for supporting the data reception in the downlink. The mean power consumption of each state is enumerated as follows:
• E[PUL]. mean power consumption in the uplink/reverse
link for packet transmission: 0.25 W;
• E[PDL]. mean power consumption in the downlink/
forward link for packet reception (when the UE of 3GPP is in the CELL_DCH state or the MS of 3GPP2 is in the MS control on the traffic channel state): the value is assumed to be 0.1 W for Web browsing and 0.15 W for video streaming;
• E[Pc-idle]. mean power consumption when the UE is in
the CELL_DCH or CELL_FACH state or the MS is in the MS control on the traffic channel state, but there is no packet transmission and reception (this is called “connected-idle”); the value is assumed to be 0.08 W for Web browsing (in this case, the UE is in the CELL_FACH state, or the MS is in the MS control on the traffic channel state) and 0.12 W for video streaming (in this case, the UE is in the CELL_DCH state, or the MS is in the MS control on the traffic channel state);
• E[Pidle]. mean power consumption in the sleep/dormant
mode and when the UE is in the CELL_PCH or URA_PCH state or the MS is in the MS idle state: the value is assumed to be 0.01 W for monitoring the paging message and updating the RA in 3GPP or the packet zone in 3GPP2.
VI. NUMERICALRESULTS
This section presents the numerical results of the analysis developed in Section V. The analysis is validated by exten-sive simulations using Network Simulator—version 2 (ns-2). We adopt the nonreal-time and real-time traffic models de-scribed in Section V-A as the traffic sources. The energy con-sumption is calculated following the parameters presented in Section V-C.
Fig. 18(a) and (b) illustrates the energy consumption of the real-time traffic in cdma2000 and WCDMA, respectively. The figure shows the cumulated energy consumption when time increases with different inactivity timers. The mean energy at a different state is defined in Section V-C. Also, based on Section V-A, the mean access time is 30 s, and the mean idle time is 120 s. To make Fig. 18(a) and (b) comparable, the total length of the two inactivity timers in Fig. 18(b) is identical to the length of the inactivity timer in Fig. 18(a). Moreover, the two inactivity timers in Fig. 18(b) are configured to be the same value. For instance, if the length of the inactivity timer in Fig. 18(a) is 40 s, the values of the two inactivity timers in Fig. 18(b) are both 20 s.
Fig. 18. (a) Energy consumption for the real-time traffic in cdma2000 with different lengths of timers: 10, 40, 70, 100, and 130. (b) Energy consumption for the real-time traffic in WCDMA with different lengths of timers: 10, 40, 70, 100, and 130.
As indicated in Fig. 18, the total energy consumption of the UE in WCDMA is less than that of an MS in cdma2000 with the same timer length. This is because there are two levels of energy consumption (CELL_DCH and CELL_FACH) before the UE in WCDMA enters the sleep mode, whereas there is only a single level of energy consumption before the MS in cdma2000 becomes dormant. Thus, the UE consumes less energy.
The energy consumption and the number of reconnections experienced in a session are further compared in Figs. 19 and 20. In the figures, the simulation time Tsis set to 5000 s. The
x-axis, which represents the total timer length, is set from 10
to 120 s. Note that, for the real-time traffic in WCDMA, we let the two timer lengths be half of the timer length of cdma2000. Therefore, the sum of the two timers in WCDMA is equal to the timer length of cdma2000. That is, the point of 20 means that both timers in WCDMA are configured as 10 s. The lines are the results that are derived from the analytic models in Figs. 16 and 17. Moreover, the simulation results are presented by the points. Based on Section V-A, for nonreal-time traffic, the average durations of a packet call and a reading time are 3 and 412 s, respectively. Thus, p1and p2are set as 1/3 and 1/412,
respectively. Similarly, for real-time traffic, the mean access time and the mean idle time are 30 and 120 s, respectively. Thus,
p1and p2are set as 1/30 and 1/120, respectively. Consequently,
Fig. 19. Comparison for energy consumption.
Fig. 20. Comparison for number of reconnections.
the accuracy of the proposed analytic models in Figs. 16 and 17 is validated.
Fig. 19 indicates that when the timer length increases, the energy consumption increases as well. Fig. 20, on the contrary, indicates that the number of reconnections expe-rienced in the session reduces when the timer length in-creases. It is observed that the design of two timers for accessing the real-time traffic in WCDMA conserves more energy. However, the UE experiences more reconnections during the session because it releases the dedicated chan-nel when the first timer expires. Moreover, more state tran-sitions also imply more complicated resource management. It is a tradeoff between energy conservation and recon-nection cost.
In Figs. 21–23, we present examples for optimizing the timer length. Because WCDMA mainly involves two inactivity timers when accessing real-time traffic, we first use nonreal-time traffic to evaluate the nonreal-timer length for the CELL_FACH. In Fig. 21, the reconnection cost Ci is set to 6. As shown in
the figure, the lines of energy consumption and reconnection cost intersect when the timer length is around 20. In fact, based on (10), the optimal timer length is 19.01. Therefore, we could claim that the optimal timer length is 19 s if the cost Ci
Fig. 21. Optimizing timer for nonreal-time traffic.
Fig. 22. Optimizing timer for the real-time traffic in WCDMA.
Fig. 23. Optimizing timer for the real-time traffic in cdma2000.
Next, we fix the timer of the CELL_FACH state to 20 and intend to find the optimal timer length for the CELL_DCH state. In Fig. 22, the two reconnection costs Cf and Cp are
set to 6 and 12, respectively, because we assume that recon-necting from CELL_PCH costs double of reconrecon-necting from CELL_FACH. Thus, as shown in Fig. 22, the optimal timer
length for the CELL_DCH state is still around 20 s. Based on (12), the optimal timer length is 23.36 s.
For cdma2000, Fig. 21 is still applicable for nonreal-time traffic. However, the behavior of accessing real-time traffic is different from that of accessing nonreal-time traffic. The timer length needs to be reconsidered. In Fig. 23, we assume that the reconnection cost Ciis 12, which corresponds with Cpfor the
CELL_PCH state. Therefore, the optimal timer length is around 34 s, as shown in the figure. Based on (10), the optimal value is 34.38 s.
Based on the analysis above, operators could choose suitable timer lengths that conserve energy and reduce reconnection cost. Operators may also adopt a more flexible dynamic timer length mechanism to dynamically adjust the reconnection cost.
VII. CONCLUSION ANDFUTUREWORK
This paper presents the energy-conservation techniques in 3GPP and 3GPP2. Qualitative comparison has been provided to demonstrate the energy-saving procedures and the associated SM for always on techniques in WCDMA and cdma2000 systems. In addition, we have developed analytic models to investigate the energy consumption and the reconnection cost in WCDMA and cdma2000. Based on the models, this paper also quantifies the performance. Extensive simulations have been performed to validate the analytic models. We have observed that the two-level state transition for accessing the real-time traffic in WCDMA may conserve more energy. It, however, experiences more reconnections than that in cdma2000. There-fore, it is crucial to carefully configure the parameters. Based on our analysis, operators can choose suitable parameters that balance energy conservation and reconnection cost. In addition to providing insights of the energy-conservation mechanisms of 3GPP and 3GPP2, which are often difficult to directly obtain from standards specifications, results that have been shown in this paper are also practical for 3GPP and 3GPP2 operators to determine proper parameters.
There are some possible extensions for this paper. Although 3G packet-switched services are expected to conserve more energy than that in 2G circuit-switched services, there are enhancements in energy efficiency for 3G technologies in both hardware and algorithms. Comparison of energy efficiency for 2G and 3G systems is a potential future research. Furthermore, the techniques that have been developed in this paper can be the basis for the comparison of the energy-conservation techniques discussed in 3GPP Long Term Evolution (LTE) [29] and 3GPP2 Air Interface Evolution (AIE) [30]. Choosing the parameters of the energy-saving technologies in 3GPP LTE and 3GPP2 AIE needs more investigation.
REFERENCES
[1] R. Kohno, R. Meidan, and L. B. Milstein, “Spread spectrum access meth-ods for wireless communications,” IEEE Commun. Mag., vol. 33, no. 1, pp. 58–67, Jan. 1995.
[2] C. E. Jones, K. M. Sivalingam, P. Agrawal, and J.-C. Chen, “A survey of energy efficient network protocols for wireless networks,” Wireless Netw., vol. 7, no. 4, pp. 343–358, Jul. 2001.
[3] S.-R. Yang and Y.-B. Lin, “Performance analysis of UMTS power saving mechanism,” in Proc. NCS, Taichung, Taiwan, Dec. 2003.
![Fig. 5 presents the events that trigger the RRC state transi- transi-tions. An inactivity timer (or a counter of cell update number) triggering the state transition from the CELL_PCH state to the URA_PCH state is explicitly pointed out in [9]](https://thumb-ap.123doks.com/thumbv2/9libinfo/7525524.119245/5.891.475.819.136.365/presents-trigger-inactivity-counter-triggering-transition-explicitly-pointed.webp)
![Fig. 10 [24] illustrates the cdma2000 layer structure and the corresponding OSI layers](https://thumb-ap.123doks.com/thumbv2/9libinfo/7525524.119245/8.891.59.435.102.384/fig-illustrates-cdma-layer-structure-corresponding-osi-layers.webp)
