Comparative evaluation of performance of percolated perpendicular media

using FePt–MgO/Pt/Cr trilayer and FePt–MgO/MgO bilayer

A.C. Sun

a

, Y.C. Tsai

b

, Jen-Hwa Hsu

a,

, P.C. Kuo

b

, H.L. Huang

a a

Department of Physics and Center for Nanostorage Research, National Taiwan University, Taipei 106, Taiwan

b_{Departments of Materials Science and Engineering, National Taiwan University, Taipei 106, Taiwan}

a r t i c l e

i n f o

Available online 8 August 2008 PACS: 75.50.Ss 75.50.Bb 75.50.Vv 74.25.Ha 75.60.d Keywords: FePt

Percolated perpendicular media Perpendicular magnetic recording Underlayer

a b s t r a c t

(Fe48Pt52)100x–(MgO)xﬁlms were used to examine the performance of a perpendicular percolated

medium. Two underlayers, Pt(0 0 1)/Cr(0 0 2) and MgO(0 0 2), were used for comparison. The (Fe48Pt52)100x–(MgO)xﬁlm with the MgO underlayer exhibits a strong preference to segregate at FePt

grain boundaries. The microstructure with small closely packed MgO particles (2–4 nm) dispersed uniformly in the L10FePt matrix was achieved in the Pt/Cr underlayered sample. Structural data reveal

that the precipitate is crystallographically coherent with the surrounding L10FePt phase and preserves

good lattice alignment. Magnetic results indicate signiﬁcant pinning behavior for those introduced non-magnetic columns with an enhanced coercivity of about 70%—much greater than that of the MgO underlayered samples. Percolated perpendicular medium can be realized in the FePt system and a Pt(0 0 1)/Cr(0 0 2) underlayer promotes the formation of pinning sites within the FePt grains.

1. Introduction

Perpendicular magnetic recording (PMR), presently used in hard disk drives (HDD), began to replace traditional longitudinal magnetic recording (LMR) in 2005[1]. It has several advantages, such as a sharper gap field, a more stable magnetic configuration, a smaller demagnetization field and others. Currently CoCrPt-based material such as CoCrPt–SiO2is used in the PMR medium

with a granular structure[2,3]. The so-called granular perpendi-cular medium (GPM) has been successfully demonstrated to reach a recording density of 345 Gb/in2 _{in 2006} _[4]_{. The decoupled}

magnetic grains of reduced size markedly enhance the recording resolution and the recording density.

However, when the recording density reaches 500 Gb/in2_{, the}

superparamagnetic effect will be encountered and must be overcome [3]. Transition jitter noise [5,6] becomes a serious problem because grain size reduction is limited. A percolated perpendicular medium (PPM) has been proposed to increase the resolution of the signal without sacriﬁcing thermal stability[7]. The PPM comprises crystallographically oriented, closely packed and interconnected magnetic grains with strong perpendicular anisotropy. The densely packed non-magnetic particles with nanometer sizes, which act as pinning sites, are uniformly

distributed in the magnetic matrix. In PPM, the transient region that is essentially determined from the distribution of densely dispersed pinning sites may be much smoother than that in GPM, so the jitter noise can be substantially lower. Meanwhile, ferromagnetic exchange coupling between adjacent magnetic grains improves thermal stability without resulting in high coercivity—another advantage in recording applications. Since the PPM idea has been proposed, attempts to realize PPM have been made in Co-based ﬁlms using different approaches, such as those of Laughlin et al.[8,9]and Rahman et al.[10,11]. However, efforts in FePt, an extremely promising candidate for ultra-high density recording, are still lacking.

In our earlier work, a highly magnetic anisotropic FePt ﬁlm with an L10 phase at low deposition temperature was prepared

without any post-annealing treatment [12]. Therefore, in this study, MgO was used as the pinning site material to evaluate the PPM behavior in the FePt(0 0 1)/Pt(0 0 1)/Cr(0 0 2) trilayer. MgO is selected for the following reasons: (1) it is nearly insoluble in FePt, and (2) it induces and maintains the (0 0 1) orientation of the Ll0

phase [13]. MgO(0 0 2) ﬁlms have frequently been used as

underlayers in growing the Ll0FePt phase[14]. Accordingly, PPM

performance associated with FePt(0 0 1)/MgO(0 0 2) was also studied and the results compared with those from FePt(0 0 1)/ Pt(0 0 1)/Cr(0 0 2). A clue for preparing the medium with superior PPM behavior and optimum microstructure at low process temperature can be obtained, enabling the recording density to be increased above 500 Gb/in2_{in the near future.}

Contents lists available atScienceDirect

journal homepage:www.elsevier.com/locate/jmmm

Journal of Magnetism and Magnetic Materials

Corresponding author. Tel.: +886 2 3366 5162; fax: +886 2 3366 5892. E-mail address:[email protected] (J.-H. Hsu).

(2)

2. Experiments

Since FePt magnetic layer on different underlayers, Pt(0 0 1) and MgO(0 0 2) exhibits extensive ordering at different substrate temperatures[12,15], the deposition temperatures of the Pt and MgO underlayered samples were set to 420 and 580 1C, respec-tively. Composite (FePt)100x–(MgO)xﬁlms (x ¼ 0–6.13 vol%) were

magnetron-sputtered with a background vacuum of under 6.7 107_{Pa. Before the FePt–MgO ﬁlm was deposited, Pt(0 0 1)/}

Cr(0 0 2) and MgO(0 0 2) underlayers were deposited at 350 1C and room temperature, respectively. The thicknesses of the FePt–MgO layer were fixed at 20 nm, and the Pt and MgO layers were set to 3 and 10 nm. Various rf sputtering powers of MgO were used to control the volume fraction of MgO in composite FePt–MgO film. The crystalline phases and microstructures of the films were identified by X-ray diffraction (XRD) using Cu-Karadiation and

high-resolution transmission electron microscopy (HRTEM), re-spectively. The chemical composition of the magnetic FePt layer was determined by energy dispersive spectroscopy (EDS), which revealed that the Pt content in the FePt ﬁlm was 52 at%. Since MgO is almost immiscible with the magnetic FePt phase, the MgO content of the magnetic FePt matrix was determined using the formula [RMgO/(RFePt+RMgO)] 100 vol%, where R denotes

the sputtering rate. Magnetic properties were examined using a vibrating sample magnetometer (VSM) and a superconduct-ing quantum interference device magnetometer (SQUID) at room temperature with maximum applied ﬁelds of 1100 and 4800 kA/m, respectively.

3. Results and discussions

Fig. 1presents the microstructural evolution of the two series of (Fe48Pt52)100x–(MgO)xﬁlms with x from 0 to 6.13 vol%. The

mean grain size was about 60 nm in the pure FePt ﬁlm with the Pt underlayer. At x ¼ 0.08, no signiﬁcant MgO precipitate was observed and the grain size remained unchanged. In the sample with x ¼ 0.15, the densely segregated particulate MgO of a uniform size of 2–4 nm was dispersed evenly in the FePt matrix

as shown in Fig. 1(c). The composition was identiﬁed using

nanobeam EDS.Fig. 2displays the high-resolution image of the spot inFig. 1(c) marked with dotted circle. It further revealed that the phase boundaries of the precipitates were crystallographically coherent with the FePt phase matrix, which suggests that the segregation process may not inﬂuence the lattice orientation of

FePt phase. These microstructure features perfectly fulfill the requirements of PPM. When x was increased to 1.67, the grain size declined and the precipitated MgO became irregular in shape and located preferentially at FePt grain boundaries. At x ¼ 6.13, MgO precipitates grew as normal grains with a wide size distribution, and joined FePt grains, as presented inFig. 1(e). The FePt–MgO films deposited on the MgO layer exhibited significantly different segregation behavior. The initial grain size (at x ¼ 0) resembled that with a Pt underlayer, even when deposited at a higher substrate temperature. Segregation of MgO began at x ¼ 0.15. The precipitated particles appeared preferentially at the grain bound-aries of FePt and exhibited little uniformity in both size and dispersion; this fact is associated with the higher deposition temperature. In the film with x ¼ 0.76 [Fig. 1(h)], small irregularly shaped MgO particles appeared at FePt grain boundary and partially separated the FePt grains, as in the Pt-underlayered film with x ¼ 1.67. As x was increased to 1.23, MgO completely surrounded the FePt grains, forming a well-defined granular structure as the size decreased. When x ¼ 2.61, the microstructure

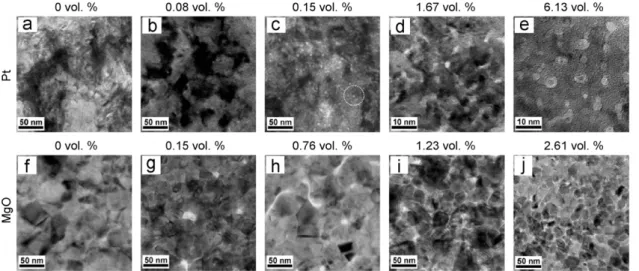

Fig. 1. Plane-view TEM images of (a)–(e) (Fe48Pt52)100x–(MgO)x/Pt/Cr trilayer ﬁlms and (f)–(j) (Fe48Pt52)100x–(MgO)x/MgO bilayer ﬁlms. The x is between 0 and 6.13 vol%.

Fig. 2. High-resolution transmission electron image of MgO nano-particle and its surroundings of L10FePt matrix.

(3)

remained granular but the average size of FePt was further

reduced and the size distribution became narrower, as

presented inFig. 1(j). The TEM images demonstrate that the Pt underlayer helps the formation of MgO pinning sites within FePt grains.

The XRD data for the Pt underlayered FePt–MgO ﬁlms with various MgO contents show that the initial incorporation of MgO does not alter the crystalline structure[16]until the amount of MgO exceeds 0.15 vol%. A transformation of lattice orientation was observed at xX0.15. The L10(0 0 2) peak transformed gradually to

the (2 0 0) peak as x was increased, revealing that the magnetic easy-axis tilted from perpendicular to the in-plane direction. In the MgO underlayered series, the crystal orientation shows

insensitive to the MgO dopant content [15]. However, the

alignment of crystal orientation in the MgO series is weaker than in the Pt series, as evidenced by the wider FWHM. The FePt (111) peak is found in addition to FePt(0 0 2) peak.

Figs. 3(a) and (b) present cross-sectional TEM images of the films on textured Pt(0 0 1)/Cr(0 0 2) bilayer films to illustrate the layer structure and the location of MgO defects. No physical separation existed between FePt grains (Fig. 1(a)), indicating that a continuous film structure exists in pure FePt films. Lateral grain size was roughly 50–60 nm. The cross section shows Cr grains in the Cr underlayer as columns grown perpendicular to the films plane due to expitaxial growth starting from the Cr underlayer and continuing through the Pt intermediate layer and extending into the FePt layer as described by An-Cheng Sun et al.[17,18]. The fct FePt grains retains highly textured crystallographically, with the c-axis perpendicular to the film plane. Additionally, a very flat surface (roughnesso1 nm) was acquired for pure FePt film. At x ¼ 0.15, the lateral grain size of magnetic layer was about the same as that in pure FePt film but with a significantly rougher surface. This rough surface is artificial and arises from sample damage during TEM specimen preparation. The above statement can be argued from this way that the same roughness appears at the FePt/Pt and Pt/Cr interfaces as observed in the right side of

Fig. 3(b). Another difference at x ¼ 0.15 is that some small light-grey columns marked by the white arrows inFig. 3(b), 20 nm high and 4 nm wide, intercalate between large columnar grains. Determined by nanobeam EDS, the small gray columns are predominantly MgO. For comparison,Figs. 3(c) and (d) present cross-sectional TEM images of (FePt)100x–(MgO)x/MgO(0 0 2)

bilayer films with x ¼ 0 and 1.23, respectively. The high-resolution cross-sectional TEM images demonstrate that the FePt(0 0 1) grains were also epitaxially grown on the MgO(0 0 2) underlayer (data not shown) in these two samples. The grains with a lateral size of 40–60 nm were well connected in the pure FePt layer (Fig. 3(c)). The surface roughness of the pure FePt film was approximately 5 nm, which is larger than that in the FePt/Pt/Cr trilayer film due to high deposition temperature. After adding MgO of 1.23 vol% to the FePt film, the FePt–MgO layer had some isolated FePt grains separated by clear MgO boundaries

(white arrows inFig. 3(d)) that have similar column-like shapes. The MgO boundary can impede grain growth of the FePt phase, thereby reducing lateral grain size of FePt to about 30 nm. Surface roughness was increased to about 15 nm in the (FePt)98.77–(MgO)1.23ﬁlm. Although the FePt ﬁlms with different

underlayers have similar columnar structures of incorporated MgO, MgO typically precipitates within the FePt grain in Pt underlayered film and segregates at the FePt grain boundary in MgO underlayered film as indicated by the plane-view TEM images. To further locate the MgO columns in FePt film, the contrast of the MgO column with neighboring FePt grains indicates that for precipitation of MgO within the FePt grain, the MgO column was embedded in the FePt matrix and surrounded by FePt grains (Fig. 2). Since the electron beam is a finite-size spot, the contrast of MgO column size with neighboring FePt grains is reduced due to mixed images of MgO and FePt and exhibits blurred FePt/MgO interfaces. Rather, the MgO columns segregated at the grain boundary were also surrounded by MgO, generating increased contrast sharpness [19]. The images of boundaries separated by FePt and MgO are very distinct. For the PPM requirement, columnar oxide pinning sites have advantages over oxide dots[9]. This advantage is because columnar oxide leads to stronger pinning effect on domain wall motion. The columnar MgO structure has been observed in both (FePt)99.85–(MgO)0.15/

Pt/Cr trilayer and (FePt)98.77–(MgO)1.23/MgO bilayer ﬁlms,

meet-ing the PPM requirements. However, precipitation within the FePt grain and segregation at the FePt boundary result in different inﬂuences on magnetic properties and magnetization reversal behaviors, which are discussed later.

Fig. 4(a) plot the dependence of the perpendicular coercivity (Hc?) on the MgO dopant content of the Pt and MgO underlayered

(Fe48Pt52)100x–(MgO)x samples, respectively. In the Pt series,

when 0.15 vol% MgO is added, Hc? increased rapidly from

167 kA/m to a maximum value of 287 kA/m. As x increased further, Hc?declined drastically to 127 kA/m (x ¼ 6.13). Hc?can be

increased substantially by 70% with the Pt underlayer. Films with an MgO underlayer saw only a 23% increase in Hc?,even though

Hc?peaks at a higher MgO content, as shown in Fig. 4(a). The

enhancement of Hc? has several causes. (1) The ordered FePt

phase has a very large anisotropy constant (Ku), and increasing

ordering parameter can increase the coercivity. (2) Reducing the magnetic grain size may increase the coercivity when the size is close to the single domain size [20]. (3) Isolating the magnetic grain can reduce the intergrain exchange coupling, increasing

coercivity [21]. (4) The MgO particles hinder wall motion,

providing the extra pinning sites that increase the energy barrier to the propagation of the domain wall. The above results in (Fe48Pt52)100x–(MgO)x/Pt/Cr trilayer ﬁlms yield a similar

micro-structure (grain size, grain size distribution, and grain to grain interconnection) for x ¼ 0 and 0.15. The value of Sorder remains

unchanged in the range 0.7–0.75 as x was increased from 0 to 0.15 [Fig. 4(b)], and the crystal alignment appeared to be similar.

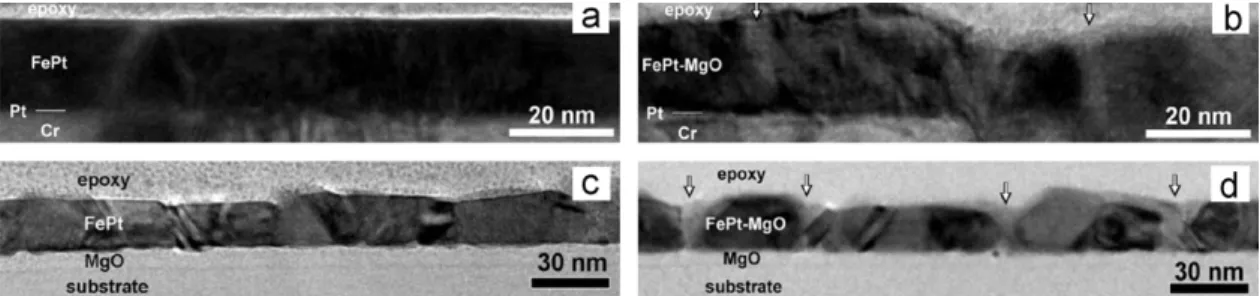

Fig. 3. Cross-sectional TEM images of (FePt)100x–(MgO)xﬁlms with Pt/Cr ((a) and (b)) and MgO ((c) and (d)) underlayers; x ¼ 0 for (a) and (c), and x ¼ 0.15 and 1.23 for (b)

(4)

Hence, the ordering effect, magnetic grain size, and grain size distribution were not the main causes of the enhanced coercivity. The only difference between x ¼ 0 and 0.15 is the appearance of MgO within FePt grain. The MgO particles of size 2–4 nm are comparable to the domain wall width of the L10FePt phase[22].

Accordingly, the particles serve as effective pinning sites. The microstress that is caused by the lattice mismatch at the FePt(0 0 1)/MgO(0 0 2) interface, which is roughly 9%[17], is also responsible for the pinning. Therefore, an Hc? enhancement of

about 70% is associated mainly with the precipitation of MgO particles in the FePt matrix. As x was increased from 0.15 to 6.13, the decline in ordering reduced Hc?.

Angular dependence of coercivity for FePt–MgO0.15/Pt/Cr and

FePt–MgO1.23/MgO ﬁlms were measured to further investigate the

difference in magnetic reversal mode. These two samples give the largest enhancement of Hc? in two series, but exhibit different

microstructure of typical percolated and granular type respec-tively as shown inFig. 1. The coercivities at 01 and 901 represent the applied ﬁeld vertical and parallel to the ﬁlm plane, respectively. For the reversal process from domain wall motion, the coercivity at

y

should be proportional to H/cos(

y

), where

y

is the angle between the applied ﬁeld and the easy axis of the uniaxial anisotropy and Hc(?) is the coercivity when the direction

of applied ﬁeld is parallel to the easy axis. The ideal

y

dependence of coercivity for the rotation mechanism derived from the Stoner-Wohlfarth model was also plotted for comparison. The results shown inFig. 5indicate that the rotation reversal is predominant in the granular sample; on the contrary, pinning behavior is more apparent in the percolated one. In the granular-type ﬁlm, the separation of magnetic phase with single domain size constrains the continuous motion of reversal domain walls. Independent nucleation of reversal domain in each isolated grain thus becomes favorable, which leads the angular dependence of coercivity toward the Stoner-Wohlfarth behavior. On the other hand,

although the domain wall motion was impeded by MgO dots in the percolated sample, the magnetic phase still remains inter-connected. Therefore, similar to the pure FePt sample, the magnetic reversal of FePt–MgO0.15/Pt/Cr ﬁlm is mainly dominated

by domain-wall-motion mechanism.

Fig. 6plots the initial magnetization curves of an FePt ﬁlm and an (FePt)99.85–(MgO)0.15ﬁlm to elucidate the relationship between

the MgO pinning sites and the magnetization behavior. The FePt ﬁlm exhibits strong domain wall motion. When MgO is incorporated into the FePt matrix, domain wall pinning dominates

the initial magnetization state [23], suggesting that MgO

strengthens the wall pinning effect. The pinning effect in the FePt film is weak. Therefore, a rapid increase in the magnetization occurs at low applied fields. When MgO is present in the FePt matrix, the pinning field increases and domain wall motion is retarded.

4. Conclusion

(Fe48Pt52)100x–(MgO)xﬁlms with x from 0 to 6.13 vol% on Pt

and MgO underlayers were fabricated. A microstructure with close-packed MgO particles of very small size (2–4 nm), dispersed uniformly in the L10 FePt matrix, was formed in the Pt

under-layered sample with x ¼ 0.15. Structural data demonstrate that the precipitate is crystallographically coherent with the surround-ing L10 FePt phase and retains a good lattice alignment. The

coercivity was enhanced substantially by signiﬁcant pinning behavior of the incorporated non-magnetic defects. The idea of PPM can be realized in a FePt system.

Fig. 5. Angular dependence of coercivity for the samples of FePt–MgO0.15/Pt/Cr

and FePt–MgO1.23/MgO.

Fig. 6. The initial magnetization curves of FePt/Pt/Cr and (FePt)99.85–(MgO)0.15/Pt/

Cr trilayer ﬁlms. Fig. 4. Dependence of the (a) perpendicular coercivity (Hc?) and (b) ordering

parameters on the MgO dopant content of the Pt and MgO underlayered (Fe48Pt52)100x–(MgO)xsamples, respectively.

(5)

Acknowledgment

This work was supported by the Ministry of Economic Affairs of Taiwan.

References

[1] M. Xiao, H. Do, W. Weresin, Q. Dai, Y. Ikeda, K. Takano, A. Moser, B. Lengsﬁeld, A. Berger, M. Schabes, V. Nayak, N. Supper, H. Rosen, B. Marchon, M. Minardi, B. Heinz, J. Appl. Phys. 99 (2006) 08E712.

[2] J.D. Dutson, M. Hashimoto, Y. Inaba, S.J. Greaves, H. Muraoka, K. O’Grady, IEEE Trans. Magn. 43 (2007) 814.

[3] S.N. Piramanayagam, J.Z. Shi, H.B. Zhao, C.K. Pocl, C.S. Mah, C.Y. Ong, J.M. Zhao, J. Zhang, Y.S. Kay, L. Lu, IEEE Trans. Magn. 43 (2007) 633.

[4] /http://www.hitachigst.com/hdd/research/recording_head/pr/index.htmlS. [5] A. Takeo, Y. Takahashi, Y. Tanaka, K. Miura, H. Muraoka, Y.H. Nakamura, J. Appl.

Phys. 87 (2000) 4987.

[6] K. Miura, H. Muraoka, H. Aoi, Y. Nakamura, J. Magn. Magn. Mater. 287 (2005) 133. [7] Jian-Gang Zhu, Yuhui Tang, J. Appl. Phys. 99 (2006) 08Q903.

[8] David Laughlin, Yingguo Peng, Yue-Ling Qin, Mark Lin, Jian-Gang Zhu, IEEE Trans. Magn. 43 (2007) 693.

[9] Yue-Ling Qin, David Laughlin, Yingguo Peng, Jian-Gang Zhu, IEEE Trans. Magn. 43 (2007) 2136.

[10] M. Toﬁzur Rahman, Nazmun Shams, Yun-Chung Wu, Chih-Huang Lai, Appl. Phys. Lett. 91 (2007) 132505.

[11] M. Toﬁzur Rahman, Chih-Huang Lai, D. Vokoun, Nazmun Shams, IEEE Trans. Magn. 43 (2007) 2133.

[12] An-Cheng Sun, Jen-Hwa Hsu, P.C. Kuo, H.L. Huang, Thin Solid Films 516 (2008) 1155.

[13] T. Suzuki, T. Kiya, N. Honda, K. Ouchi, IEEE Trans. Magn. 36 (2000) 2417. [14] Z.L. Zhao, J.S. Chen, J. Ding, J.B. Yi, B.H. Liu, J.P. Wang, Appl. Phys. Lett. 88

(2006) 052503.

[15] An-Cheng Sun, Y.C. Tsai, Jen-Hwa Hsu, P.C. Kuo, H.L. Huang, Puneet Sharma, Phys. Status Solidi (c) 4 (2007) 4487.

[16] An-Cheng Sun, Jen-Hwa Hau, P.C. Kuo, H.L. Huang, IEEE Trans. Magn. 43 (2007) 2130.

[17] An-Cheng Sun, P.C. Kuo, Jen-Hwa Hsu, H.L. Huang, Jui Sun, J. Appl. Phys. 98 (2005) 076109.

[18] An-Cheng Sun, P.C. Kuo, Jen-Hwa Hsu, H.L. Huang, J. Appl. Phys. 99 (2006) 08E709.

[19] David B. Williams, C. Barry Carter, Transmission Electron Microscopy, Plenum Press, New York, London, 1996, p. 444.

[20] T. Shima, K. Takanashi, Y.K. Takshashi, K. Hono, Appl. Phys. Lett. 85 (2005) 2571.

[21] J.S. Chen, B.C. Lin, J.F. Hu, B. Liu, G.M. Chow, G. Ju, Appl. Phys. Lett. 91 (2007) 132506.

[22] R. Ploessl, J.N. Chapman, J. Appl. Phys. 74 (1993) 7431.
