Copy-move forgery detection and localization by means of robust clustering with J-Linkage
Irene Amerini
a, Lamberto Ballan
a,n, Roberto Caldelli
a, Alberto Del Bimbo
a, Luca Del Tongo
a, Giuseppe Serra
a,baMedia Integration and Communication Center (MICC), Università degli Studi di Firenze, Viale Morgagni 65, 50134 Firenze, Italy
bDipartimento di Ingegneria“Enzo Ferrari”, Università degli Studi di Modena e Reggio Emilia, Via Vignolese 905/b, 41125 Modena, Italy
a r t i c l e i n f o
Article history:
Received 28 November 2012 Received in revised form 19 March 2013 Accepted 19 March 2013 Available online 1 April 2013 Keywords:
Digital image forensics Tampering detection Copy-move detection Copy-move localization
a b s t r a c t
Understanding if a digital image is authentic or not, is a key purpose of image forensics.
There are several different tampering attacks but, surely, one of the most common and immediate one is copy-move. A recent and effective approach for detecting copy-move forgeries is to use local visual features such as SIFT. In this kind of methods, SIFT matching is often followed by a clustering procedure to group keypoints that are spatially close.
Often, this procedure could be unsatisfactory, in particular in those cases in which the copied patch contains pixels that are spatially very distant among them, and when the pasted area is near to the original source. In such cases, a better estimation of the cloned area is necessary in order to obtain an accurate forgery localization. In this paper a novel approach is presented for copy-move forgery detection and localization based on the J- Linkage algorithm, which performs a robust clustering in the space of the geometric transformation. Experimental results, carried out on different datasets, show that the proposed method outperforms other similar state-of-the-art techniques both in terms of copy-move forgery detection reliability and of precision in the manipulated patch localization.
& 2013 Elsevier B.V. All rights reserved.
1. Introduction
Nowadays, digital crime is growing at a rate that far surpasses defensive measures. Sometimes a digital media content such as an image or a video, may be found to be incontrovertible evidence of a crime or of a malevolent action. By looking at a digital data as a digital clue, multimedia forensics technologies are introducing a novel methodology for supporting clue analysis and providing an aid for making a decision on a crime[1,2]. Multimedia forensics deals with developing technological instruments
which generally allow to determine, without any addi- tional information inside the image (e.g. a watermark), if that asset has been tampered with or which has been the adopted acquisition device. In particular, tampering detec- tion refers to the problem of assessing the authenticity of digital images[3], and this is the topic of this paper.
Information integrity is fundamental in a trial, but it is clear that the advent of digital pictures and relative ease of digital image processing makes today this authenticity uncertain. An example of this problem, that recently appeared in a Tunisian newspaper, is given inFig. 1; here the photo has been tampered with in order to make the crowd appear larger. It demonstrates that this kind of manipulation is used more and more often in news and advertising campaigns. Modifying an image to change the meaning of what is represented in it could be crucial when this digital data is used in a court of law, where it can be Contents lists available atSciVerse ScienceDirect
journal homepage:www.elsevier.com/locate/image
Signal Processing: Image Communication
0923-5965/$ - see front matter& 2013 Elsevier B.V. All rights reserved.
http://dx.doi.org/10.1016/j.image.2013.03.006
nCorresponding author. Tel.:+39 055 4237409.
E-mail addresses: [email protected] (I. Amerini), lamberto.
[email protected] (L. Ballan), [email protected] (R. Caldelli), alberto.
[email protected] (A. Del Bimbo), [email protected] (L. Del Tongo), [email protected] (G. Serra).
presented as basic evidence to influence the judgment.
Furthermore, in case of tampering, it would be interesting to understand what kind of manipulation has been applied: for example if an object or a person has been covered, if a part of the image has been cloned, if some- thing has been copied from another image, and so on.
In this paper we address this issue, in particular by detecting if a copy-move attack has taken place (i.e. when the attacker creates his feigned image by cloning an area of the image onto another zone) and by localizing the tampered area in the image. The proposed method relies on scale invariant features transform (SIFT)[4]and features matching, and improves our previous work[5,6]by introducing a new robust clustering phase based on the J-Linkage algorithm[7], and an accurate forgery localization procedure. The localiza- tion of the duplicated region has been set up on the basis of the clusters obtained in the previous phase. This is done using ZNCC (zero mean normalized cross-correlation) between the original image and the warped image obtained from the estimated geometric transformation occurred in the tampering attack. In order to obtain an accurate localization, it is necessary to have an effective clustering procedure (like the one presented in this paper) that is able to guarantee a good estimate of the geometric transformation.
The rest of this paper is organized as follows. InSection 2, we discuss the existing works concerning the detection of copy-move forgeries. Section 3presents the proposed copy-move forgery detection and localization method, whileSection 4contains experimental results. Conclusions are finally drawn inSection 5.
2. Related works
As discussed earlier, copy-move manipulations involve concealing or duplicating one region in an image by overlaying portions of the same image on it. In order to address the problem, researchers have developed various techniques which can be classified into two main cate- gories: block-based and visual feature-based methods.
2.1. Block-based methods
These methods seek a dependence between the image original area and the pasted one, by dividing the image into overlapping blocks and then applying a feature extraction
process in order to represent the image blocks through a low-dimensional representation. Different block-based representations have been previously proposed in the litera- ture such as principal component analysis (PCA)[8,9], dis- crete cosine transform (DCT) [10] and discrete wavelet transform (DWT)[11,12], for both tasks of copy-move detec- tion [10,11,13,9] and image splicing [14]. Recently, in the study of Bashar et al.[15], the authors proposed a duplication detection approach that can adopt two robust features based on DWT and kernel principal component analysis (kPCA). A different kind of features are used in[16], in fact the authors choose the averages of red, green and blue components with other four features, computed on overlapping blocks, obtained by calculating the energy distribution of luminance along four different directions. To improve the computational complexity of these methods, in[17]the authors proposed to use the radix sort for sorting the feature vectors of the divided sub-blocks, as an alternative to lexicographic sorting, which is commonly adopted. However, all these methods assume that the copied region has not undergone any post- processing such as scaling, rotation and JPEG compression.
To deal with this issue, a preliminary work by Mahdian et al. has been presented in [18] where the authors proposed a block-based representation calculated using blur invariants. They used PCA to reduce the number of features and a k-tree to identify the interested regions.
Authors in[19]proposed a different kind of feature that is based on the Fourier–Mellin transform that is invariant to small rotation and resizing of the copied regions. However, the technique fails when the rotation and the resizing are significant. This method was improved in[20] in which better rotation invariance was achieved by taking projec- tions along angular directions instead of radius direction.
However, also in this case the scale invariance seems to be valid only over a small range, and the number of false positives yielded is quite high.
Recently, methods more robust to reflection, rotation and scaling have been proposed in the literature. In [21] over- lapping blocks of pixels are mapped into log-polar coordi- nates, and then summed along the angle axis, to obtain a one- dimensional descriptor invariant to reflection and rotation.
Wang et al.[22]proposed the use of circle region instead of square block and adopt as feature the mean of the intensities of the circle region with different radii to overcome the effect of rotation. Ryu et al.[23]exploited the Zernike moments as features since their magnitude is algebraically invariant to rotation transformation. To this end, a more general approach is presented in[24], in which is reported a technique to better detect variations in rotation and scaling in the copied part by introducing a post-processing phase for the block selection, instead of the widely used shift vectors. The authors called this stage same affine transformation selection (SATS) and it is collocated after the feature extraction and block matching phases. In particular, they show that any set of rotation- invariant features like[21–23]can benefit from the inclusion of this processing step in the pipeline.
2.2. Visual feature-based methods
It has been demonstrated that block based methods often result in significant false positives. Moreover, invariance to Fig. 1. The figure reports the photo published on the front page of Le
Maghreb, a Tunisian newspaper, on January 2012. The photo was digitally altered duplicating the crowd to appear larger.
geometrical transformations and to other manipulations like flipping, brightness changes and blurring is hard to establish [24]. Feature-based techniques try to avoid these problems by choosing to match features in the image, instead of blocks, using local visual features like scale invariant feature trans- form (SIFT) or speed up robust features (SURF). In particular, these features have been widely used for image retrieval and object recognition due to their robustness to several geometrical transformations (e.g. rotation, scaling and affine transformation).
Some works have recently appeared on copy-move for- gery detection based on SIFT[25,6]or SURF features[26]. In the work of Pan and Lyu [25], SIFT features are chosen in order to localize the copied region through the use of a correlation map. However, quantitative results on a realistic dataset are not given and the method does not consider the case of multiple forgeries accurately. Multiple copy-move forgeries are instead managed in[6]by performing a robust SIFT feature matching procedure and then a clustering of the keypoints coordinates in order to separate the different cloned areas. Anyway, the method is used only for copy- move detection and not for accurate tampering localization.
Kakar and Sudha[27]proposed to use MPEG-7 features in order to detect and localize copy-move forgeries, by following a very similar framework to[6].
Although methods such as [6,27] have demonstrated good performance in copy-move detection, sometimes clus- tering and localization could be unsatisfactory. In particular in those cases in which the copied patch contains pixels that are spatially very distant among them, and when the pasted area is near to the source. In such cases, a better estimation of the cloned area is necessary in order to obtain an accurate forgery localization. In this paper we address this problem and we present a novel approach based on an adaptation of the J-Linkage algorithm.
3. The proposed method
We present a novel approach for detecting copy-move forgeries based on SIFT features and J-Linkage clustering. A schema of the whole system is shown in Fig. 2. The first step consists of SIFT feature extraction and keypoint matching, the second step is devoted to the clustering and forgery detection, while the third one localizes the copied region, if a tampering has been detected. We
summarize the whole procedure for tampering detection and localization in Algorithm 1.
3.1. Feature extraction and keypoint matching
The first step in our approach is based on SIFT features since they are robust to scaling, rotation and affine transfor- mations that are well-suited for the detection of copy-move forgeries as has been recently demonstrated in[25,6]. We detect keypoints that are stable local extrema in the scale space and, for each of them, a feature vector is computed from a local pixel area around the detected point. Given a test image I, letS≔fs1; …; sng be the list of n interest points taken from this image, where si¼ fxi; fig is a vector containing the keypoint coordinates xi¼ ðx; yÞ and fiis the feature descrip- tor of the local patch around the keypoint (i.e. an histogram of gradient orientations of 128 elements).
In the presence of a copy-move manipulation the extracted SIFT keypoints from the copied and the original regions have similar descriptor vectors. Therefore, match- ing among SIFT features is adopted to detect if an image has been tampered with and, subsequently, localize such forgery. The simplest approach to match keypoints is to fix a global threshold on the Euclidean distance between descriptors but, due to the high-dimensionality of the feature space, this approach obtains a low accuracy because some descriptors are much more discriminative than others. For this reason Lowe[4] considers, given a keypoint, not only the distance with the first most similar keypoint but also with the second one; in particular, he uses the ratio between the distance to the candidate match and the distance to the second similar feature point (i.e.
the so-called 2NN test). To declare a match, this ratio must be lower than a fixed thresholdτ (often equal to 0.6). This technique works well when a region is copied one time, but not if it is copied several times. To deal with this case, we use a generalization of Lowe's matching technique (g2NN test) recently proposed by Amerini et al.[6].
The g2NN starts from the observation that in a high- dimensional feature space such as that of SIFT features, keypoints that are different from the one considered share very high and very similar values (in terms of Euclidean distances) among them. Instead, similar features show low Euclidean distances respect to the others. The idea of the 2NN test is that the ratio between the distance of the
Test (tampered) image
Duplicated regions localization
Localization Result b)
a)
d) c)
SIFT feature extraction and matching
Clustering and forgery detection

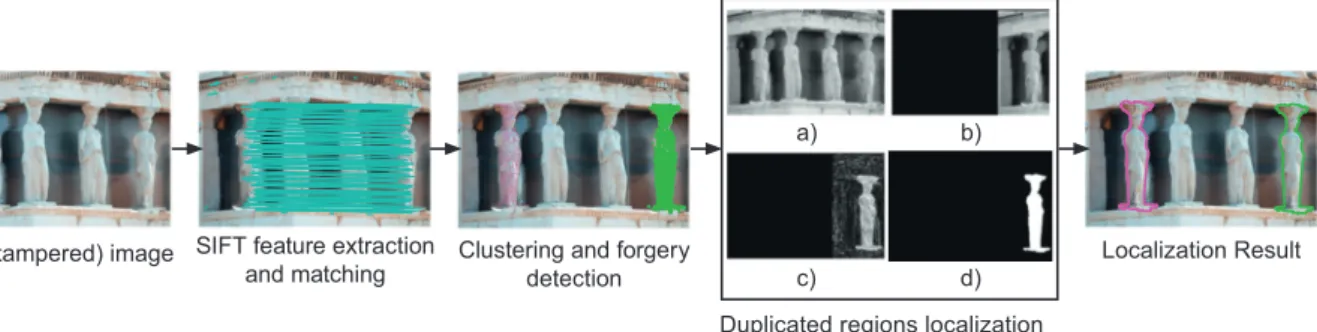

Fig. 2. An outline of the proposed framework. The framework is composed by three steps: the first step consists of SIFT feature extraction and keypoint matching, the second step performs clustering and forgery detection, the third step localizes the forgery. (a) Test (tampered) image. (b) SIFT feature extraction matching. (c) Clustering and forgery detection. (d) Localization result.
candidate match and the distance of the 2nd nearest neighbor is low in the case of a match (e.g. lower than 0.6) and very high in case of two“random features” (e.g. greater than 0.6). Our generalization consists in iterating the 2NN test between di=diþ1until this ratio is greater thanτ (in our experiments we set this value to 0.5). If k is the value in which the procedure stops, each keypoint in correspondence to a distance in fd1; …; dkg ðwhere 1≤konÞ is considered as a match for the inspected keypoint. Using this g2NN strategy on all the keypoints S, we obtain a set of q matched pairs P≔fp1; …; pqg, where pi¼ ðs; s′Þ. It allows, in the following steps, to identify the duplicated regions and therefore detect if the image has been tampered with.
3.2. The J-Linkage clustering and our copy-move detection strategy
A way to detect possible duplicated regions is to use a clustering algorithm on the coordinates of the keypoints
such as a hierarchical agglomerative clustering (HAC) procedure as in[6]. Following this approach, the clustering is performed by taking into account only the coordinates of the matched pairs and not the matching constraint between points. This method, like all the others clustering on spatial location, has two main drawbacks: (i) the inability to separate duplicated regions that are close to each other and (ii) the difficulty to identify a patch as single, when it contains keypoints with a non-uniform spatial distribution (see Fig. 3c). For these reasons, we proposed to design a clustering technique that does not work in the spatial domain of matched points but in the transformation domain. In particular, we introduce an adaptation of the J-Linkage algorithm[7] that is able to solve the aforementioned main drawbacks of a spatial clustering procedure (seeFig. 3d).
The clustering starts with a random sampling on matched pairs, in order to generate m affine transforma- tion hypotheses. For each pair, a preference set vector (PS) is defined indicating which transformations the pair pre- fers. Formally, given a matched pair p and m transforma- tions T ≔fT1; …; Tmg, the preference set vector PSðpÞ is defined as fPS1ðpÞ; …; PSmðpÞg, in which PSiðpÞ is defined as following:
PSiðpÞ ¼ 1 if p is an inlier of Ti; 0 otherwise:
(
ð1Þ
It means that the distance between the model Tiand the matched pair p is less than a fixed threshold. In this way each pair is represented in a conceptual space f0; 1gm. Since the matched pairs between the original and the duplicated regions share similar transformations, they will have similar conceptual representations.
The preference set vectors are then used in a hierarch- ical agglomerative clustering in order to find the transfor- mations between the original and the cloned areas. This clustering algorithm starts by assigning each preference set vector to a cluster; then, for each step of the algorithm, the two clusters with smallest distance in the conceptual space are merged. The preference set vector of a cluster is computed as the intersection of the preference sets of matched pairs, and the distance between two clusters is computed as the Jaccard distance (Jδ) between the respec- tive preference sets. Given two sets A and B, the Jaccard distance is defined as
JδðA; BÞ ¼jA∪Bj−jA∩Bj
jA∪Bj ; ð2Þ
this distance measures the overlapping degree of two sets.
Identical sets have distance equal to 0, while disjoint sets have distance 1. According to this distance, the cut-off value of the clustering is set to 1, which means that elements are merged until their preference sets overlap (or more intuitively until matched pairs share the same transformation). As a result of this procedure, each cluster will have at least one transformation shared by all its matched pairs. If more transformations fit with all the elements contained in the cluster, they should be very similar; therefore the final transformation is estimated by least squares fitting. In our algorithm, all the transforma- tions that fit with a number of elements less than a fixed
threshold N are discarded in order to remove possible outliers; this aspect has been further investigated in the experimental section in which different detection results are given changing this N value. Finally, if one transforma- tion (or more) is detected, our system declares that the image has been altered by a copy-move attack.
Two aspects need to be clarified: how to sample the matched pairs for the transformation estimation and how to compute a geometric transformation hypothesis.
3.2.1. Sampling strategy
The strategy used to select a minimal sample set of matched points in [7], i.e. the original J-Linkage imple- mentation, is based on the method of Kanazawa et al.[28].
It randomly selects an initial pair p ¼ ðs; s′Þ, from all the pairs P, and it chooses from the remaining correspon- dences by fixing a high probability in the proximity of the first point s. More precisely, let xibe the coordinate of the keypoint s, a new point xj is selected with the following probability:
PðxjjxiÞ ¼
0 if xj¼ xi
1
Z exp−∥xj−xi∥2
s2 if xj≠xi 8>
<
>: ð3Þ
where Z is a normalization constant and s is chosen heuristically (in[7]this parameter is set to 0.2). Following this procedure, the final set of points depends significantly on the parameters. This fact may result to a choice of the points that are too close or too far among them, leading to a rough estimation of the transformation. Moreover, this strategy is not able to deal with multiple cloned regions.
For these reasons, we have introduced a novel selection strategy (an example of this method is shown inFig. 4).
Firstly, as in the previous method, we randomly select a matched pair p ¼ ðs; s′Þ from the set P. Then, we define two setsO and D of w nearest neighbors to the keypoint coordinates of s and s′, respectively. In our experiments we fixed the parameter w to 12. The other k pairs that are necessary to find a minimal sample set for the transforma- tion estimation (k¼ 2 in the case of an affine homography),
are obtained randomly by selecting pairs from P≔fðs; s′Þ1; …; ðs; s′Þqg, such that s∈O and s′∈D.
As previously mentioned, the proposed strategy is able to handle multiple cloned regions. For example, if an original area is copied two times (e.g.D and D1inFig. 4) a SIFT point in O would match, respectively, with a SIFT point inD and in D1. On the other hand in such a case, the strategy proposed by Kanazawa et al. should choose points by only considering the spatial proximity to the first point s. In this way, it would happen that a pair r1is formed by a point z close to s inO, but its corresponding point z1is far from s′. This may lead to an inaccurate estimation of the homography between the regions O and D. Instead our method is able to choose a pair by considering the proximity both to s and s′, for example the pair r′. Following the same procedure, the method is able to accurately estimate also the homography between the regions O and D1.
3.2.2. Computing a geometric transformation hypothesis The coordinates of the matched pairs previously selected, fðx; x′Þ1; …; ðx; x′Þkþ1g, are used to estimate the geometric transformation hypothesis. In particular, we use affine transformations in order to model the geometric
O
D
D1 Image
s'
s
p
z
z' r

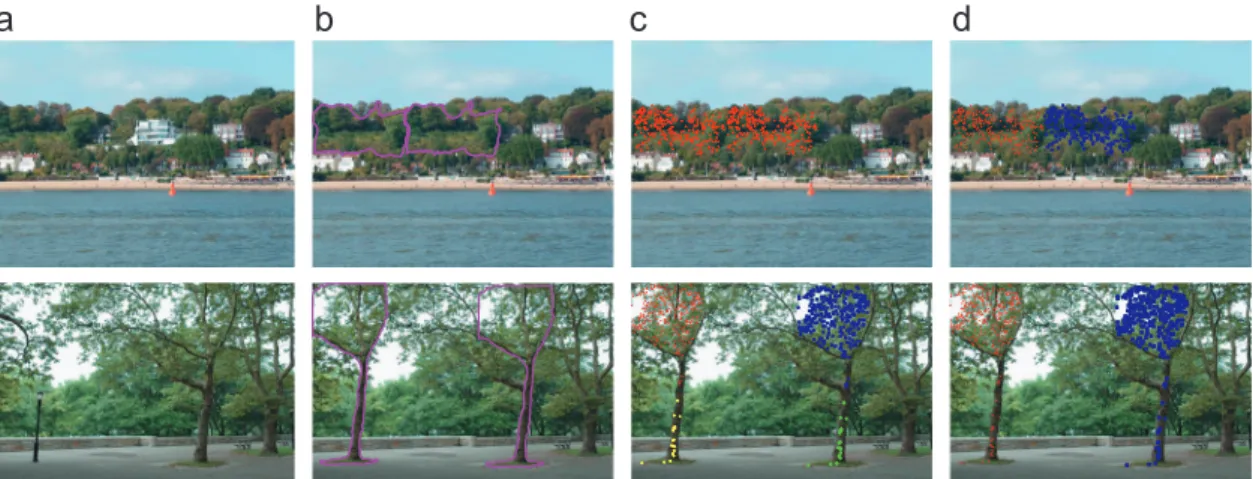

Fig. 4. Representation of our sampling strategy.
Fig. 3. (a) Original images. (b) Tampered images: purple lines depict the cloned regions. (c) Clustering results with HAC. (d) Clustering results obtained with the proposed method.
distortions between the original and the copied regions (such as scaling, rotation, and shearing).
Formally, this kind of transformation can be expressed in matrix form as
x′ y′ 1 0 B@
1 CA ¼
a11 a12 tx
a21 a22 ty
0 0 1
2 64
3 75
x y 1 0 B@
1 CA ¼ H
x y 1 0 B@
1 CA
where a11; a12; a21and a22encode the rotation and scaling directions deformation, while txand tyare the translation factors. An affine transformation has six degrees of free- dom, corresponding to the six matrix elements, then the transformation can be computed from three matched pairs that are not collinear. In particular, to compute this estimation, we use the normalized direct linear transfor- mation (DLT) algorithm for affine homography (see Hartley and Zisserman [29]). So, given a set of correspondences (x1; x2; …; xðkþ1Þ) and (x′1; x′2; …; x′ðkþ1Þ), the algorithm minimizes the following objective function:
kþ1∑
i ¼ 1∥x′i−Hxi∥2: ð4Þ
This linear method allows to quickly determine the m affine transformation hypotheses instead of a non-linear algorithm. In fact, in order to generate a good transforma- tion hypothesis, m should be high due to the random sampling of the pairs (in our experiments m ¼500).
3.3. Localizing duplicated regions
If an image is detected as a forgery, our system allows to obtain an accurate localization of the duplicated regions.
This is another improvement with respect to our previous method[6]. The basic idea of our localization approach is that, given the estimated transformation between two sets of matched pairs, we can extend this transformation to the underlying dense regions in which it was really done. In fact, all pixels of the original region ROare related to the pixels of a duplicated region RD, through the same trans- formation T (expressed in matrix form as HÞ
RD¼ HRO; RO¼ H−1RD: ð5Þ
Applying the estimated transformation on the entire image, we will obtain a warped image in which the region ROwill overlap the region RD(seeFig. 2). In the same way, applying the inverse transformation H−1, the region RD will overlap the region RO.
In order to localize the duplicated regions, we use a block-wise correlation measure based on zero mean nor- malized cross-correlation (ZNCC) between the gray-scale of the original image I (Fig. 2a) and the warped image W (Fig. 2b). It is computed as
ZNCCðxÞ ¼ ∑ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiv∈ΩðxÞðIðvÞ−IÞðWðvÞ−W Þ
∑v∈ΩðxÞðIðvÞ−IÞ2ðWðvÞ−W Þ2
q ; ð6Þ
whereΩðxÞ is a 7 pixels neighboring area centered at every pixel x of I; IðvÞ and WðvÞ denote the pixel intensities at the location v; I and W are the average pixel intensities of I and W, respectively, computed onΩðxÞ. Once the correla- tion map is obtained, we apply a Gaussian filter of size 7
pixels with standard deviation 0.5 in order to reduce the noise (Fig. 2c). Next a binary image is created by thresh- olding the correlation map (th ¼0.55). We discard all the small isolated regions that have an area less than 0.05%.
Finally, mathematical morphological operations are used to fill eventually holes in the binary image (Fig. 2d).
4. Experiments
We have evaluated the performance of the proposed method both from the point of view of forgery detection capability (authenticity detection) and also for what concerns the ability to recover copied areas (patch localization). Firstly, the proposed method is set up and improved by means of the design of a novel sample set selection strategy (Section 4.3).
Here we provide also evidence about the effectiveness of our approach, both in terms of detection and localization, on a novel realistic dataset called MICC-F600. Successively, we present a comparison with our previous work[6]to evaluate the improvement in terms of reliability in image forgery detection (Section 4.4). Finally, a comparison regarding the capacity to localize manipulated patches is carried out towards other state-of-the-art techniques (Section 4.5).
It has to be noticed that our method is also very competitive in terms of computational time. In contrast to other popular methods, our approach is able to effectively detect and localize copy-move forgery in a full-resolution image (e.g. 800 600 pixels) in around 8 s on an Intel Q6600 with 4-GB RAM. This is a key aspect since several techniques are not used in real applications because of their computa- tional complexity. For instance, block-based methods are very expensive since features need to be extracted from millions of blocks and they need to be sorted out. As an example, two of the most popular approaches of this kind of techniques [10,8] are able to process the same images in around 295 s and 71 s, respectively, according to our pre- vious experiments on processing time requirements[6].
4.1. Data collections
Experimental results are reported on three different datasets: MICC-F2000[6], SATS-130[24], MICC-F600. For each of these, an example image is shown inFig. 5.
The MICC-F2000 dataset, introduced in[6], is composed of images with disparate contents coming from the Columbia photography image repository [30] and from a personal collection. Such a dataset consists of 2000 photos of 2048 1536 pixels: 1300 are original while 700 are tampered.
The tampered images are obtained by applying 14 attacks such as translation, rotation, scaling, or a combination of them. The duplicated patches (corresponding to an average size of 1.12% of the whole image) are rectangular and they have not been accurately segmented and spatially well separated from the original areas (see for exampleFig. 5, on the top).
The second dataset is the SATS-130, adopted in[24]and made available by the authors. It is composed of 130 tampered images of different resolutions (from 420 300 to 3888 2592 pixels) and it does not contain not-tampered photos, so it cannot be used for image authenticity detection tests. Forged images are obtained starting from 10 original
images in which the copied regions are rotated by an angle which ranges from 01 (pure translation) to 1801, with steps of 151. An example for this dataset is reported inFig. 5(center).
The patch localization binary masks are available and we have used this dataset as a benchmark for the evaluation of the proposed method in patch localization with respect to other state-of-the-art methodologies.
Finally, we have introduced a novel dataset named MICC-F600, containing realistic and challenging tampering attacks (Fig. 5, bottom). It has been derived from the first two datasets, from other images provided by the authors of SATS-130 (Riess et al. [24]), and other images with multiple copied regions produced by ourselves. The images have different resolutions ranging from 800 533 to 3888 2592 pixels. MICC-F600 has been constructed with the aim to generalize, as much as possible, the kind of images under analysis. It consists of 600 images: 448 original, taken randomly within the 1300 original of MICC-F2000, and 152 forged, created starting from 38 non-tampered images (10 taken from SATS-130 and 28 new ones) in the following manner:
38 images in which a region is duplicated once through a translation; 38 images in which a region is duplicated twice or three times through a translation; 38 images in which the copied region is rotated by 301; 38 images in which the copied region is rotated by 301 and scaled by 120%.The MICC-F600 dataset is very challenging, it does not contain only forged images and, furthermore, the fake ones have not been created automatically and the tamper- ing regions have different sizes and shapes. The manipu- lated patches have been cut out and post-processed to fit well in a realistic fashion within the area in which they have been pasted. Duplicated regions are not always spatially well separated (e.g.Fig. 8d), their shapes can be quite challenging such as a fountain or a tree (e.g.Fig. 8b and f). Moreover, several images contain multiple copy- move cloning (e.g.Fig. 8a, e, h).
4.2. Evaluation criteria
To carry out performance evaluations, two set of metrics have been considered. In the case of authenticity detection, true positive rate (TPR) and false positive rate (FPR) have been computed; TPR is the fraction of tampered images correctly identified as such, while FPR is the Fig. 5. Example images of the adopted datasets: MICC-F2000 (top), SATS-130 (center), and MICC-F600 (bottom). The second column reports the ground- truth masks.
fraction of original images that are not correctly identified TPR ¼ images detected as forged being forged
forged images ;
FPR ¼ images detected as forged being original
original images :
It is worth to state that authenticity detection is here intended by referring to the whole image, not only to the tampered patches. Thus, an image is labeled as forged if at least an affine transformation is estimated between a couple of image regions.
On the other side, the performance on patch localization is computed as the percentage of erroneously matched pixels FP(i.e. false positives) and erroneously missed pixels FN (i.e. false negatives). Formally, let R1 be the copied region, Ri(i41) be the i-th duplicated region, and B the unchanged background; then FPand FNare defined as FP¼jmatches in Bj
jBj ð7Þ
and
FN¼jmissed matches inð⋃iRiÞj
jð⋃iRiÞj ð8Þ
where low values of FPand FN indicate high localization accuracy.
4.3. Results on MICC-F600 dataset
As previously introduced, our method detects an image as forged if there is at least one affine transformation that fits at least between a number N of points of an image area and other N points of another image zone. The choice of the value N is crucial because it obviously impacts on TPR and FPR. In this section, we set up the value of N by means of ROC curves through the analysis of the performance, in terms of TPR and FPR, on the MICC-F600 dataset.
In Fig. 6we report the authenticity detection results, obtained by varying the parameter N within the interval
½3; …; 16 (N¼3 is the minimal number of points required for the estimate of an affine transformation). The best possible detection method would yield a point in the upper left corner, corresponding to FPR ¼ 0% (no false positives) and TPR¼ 100% (no false negatives). It is to be noted that if we consider as valid, for instance, a set of points N ¼4, the system achieves a good TPR (89.47%), but it shows a high FPR (38.4%). However, this effect is drastically reduced when we consider transformations that have a greater consensus (i.e. N≥7), where we achieve good performance with a still high TPR, around 80%, and a low FPR, around 6%. By using a criterion of minimum Euclidean distance from the ideal point located in the upper left corner, we can select N ¼9 as the best value that will be used for the rest of the experiments. In fact, with this setting our algorithm gives a TPR equal to 81.6% and a FPR of 7.27%.
To support such a choice, we have also analyzed the localization performance in terms of FPand FNby varying the parameter N as before (seeFig. 7). It can be noticed that, differently from what happened to TPR and FPR, the
variability interval of FP and FN is quite small. In fact, FP
remains almost constant (from 0.4% to 0.24%) while FN
slightly increases (from 5.58% to 7.83%). The increment of FNis mainly caused by the fact that with a high N some forged images are not correctly detected, so in these cases FNis equal to 1. Based on this analysis, we can see that the previous choice to assume N ¼9 is plausible (i.e. it returns a FPof 0.31% and a FNof 6.59%).
4.3.1. A new strategy for the selection of the sample set To further augment the performance of the proposed method, we have designed, as already assessed inSection 3, an improved selection strategy to collect the minimal sample set necessary to estimate the geometric transforma- tion between the original and the copied area. Such a new strategy is compared with that one described in Kanazawa et al.[28], which is used by default in the original J-Linkage algorithm.Table 1presents the performance of our method in terms of both authenticity detection (TPR vs FPR) and patch localization (FPvs FN), obtained by applying the two different strategies. Results are reported for three values of the parameter N (8, 9 and 10). It is possible to point out that the new strategy basically improves the performance for all
0 5 10 15 20 25 30 35 40 45 50 55
75 80 85 90 95
16 15 14
13 12 11
10 9 8
7
6 5
4
3
FPR
TPR
Fig. 6. MICC-F600: ROC curve of TPR vs FPR varying N.
5.5 6 6.5 7 7.5 8
0 0.1 0.2 0.3 0.4
16 15 13 14
12 10 11 9 8 7 6 5 4 3
FN FP
Fig. 7. MICC-F600: ROC curve of FPvs FNvarying N.
Table 1
Comparison of different sample-set sampling strategies: our method vs Kanazawa et al.[28].
(%) N ¼ 8 N ¼9 N ¼ 10
Ours [28] Ours [28] Ours [28]
TPR 82.11 79.60 81.60 76.61 80.79 78.81
FPR 9.54 12.20 7.27 8.68 6.59 7.27
FP 0.30 0.24 0.31 0.24 0.31 0.41
FN 6.34 8.59 6.59 8.47 6.62 12.27
the values of N. In particular, if we consider the results obtained with N¼9 (the“set up value”), we can observe a growth in terms of TPR from 76.61% to 81.60%. This is due to the fact that the estimate of the geometric transformation between the original and the copied area, is more accurate and stable than in[28].
4.3.2. A qualitative analysis
Hereafter, we show inFig. 8some examples to qualita- tively evaluate the results achieved by the proposed method. It can be appreciated how the technique is able to accurately segment source and destination patches, also in very challenging cases. The shapes of the copied areas are not usually regular (see for exampleFig. 8e–g). Often, the original and the cloned area are very close to each other (Fig. 8b, d and e). Furthermore, images contain multiple copy-pasted couples (e.g.Fig. 8a and e) and also cases with multiple cloning (e.g. Fig. 8h). Finally, it is interesting to notice that a specific situation like patch flipping (Fig. 8c, in which the two horses have been flipped) is managed properly too.
4.4. Comparison with our previous method (Amerini et al.
[6])
After having adequately designed and set-up the pro- posed method, we have performed a comparison with our previous work (Amerini et al. [6]), both on the basis of MICC-F600 and MICC-F2000 datasets. In fact, the two methods share the same SIFT extraction and matching procedure, but differs substantially in the clustering phase:
the proposed method, based on an improved variant of J- Linkage, carries out clustering in the domain of the transformation parameters, while the second one [6]
implements a classical spatial clustering in the image domain (agglomerative hierarchical clustering). Table 2 shows the results of the comparison in terms of TPR and FPR (a comparison on patch localization is not feasible because the method in[6]does not deal with that).
The proposed technique achieves superior perfor- mances: 12% of improvement for TPR and 5.2% of reduc- tion for FPR. Such a gain is mainly due to the capacity to handle forged images containing pasted areas partially
overlapped or very close to the original regions. This issue is well evidenced inFig. 9. The situation in Fig. 9 (top), though clustering is not correct, does not affect detection performances because the image is rightly labeled as forged anyway; but in the case in Fig. 9 (bottom), the image is wrongly assigned as authentic, being the source and destination areas too close to be distinguished as separated. It is interesting to evidence that in the case of MICC-F2000 dataset (seeTable 2), the performance is high for both techniques; this confirms that such a dataset is less challenging and that the proposed method still out- performs the previous one, though with a reduced gap both in TPR and FPR.
4.5. Comparisons on patch localization with other relevant methods
To make a comparison on the issue of patch localiza- tion, we have used the SATS-130 dataset[24]. In fact, such a dataset allows a complete benchmarking with several algorithms, since the authors of this dataset have reported in their paper [24] about the performance in terms of patch localization (FP and FN) of the most relevant methods.
In Table 3, we report the results of three of these methods, with and without the usage of the SATS (same affine transformation selection) approach, as proposed by the authors in[24]. SATS is a post-processing method that can smoothly replace the widely used shift-vectors. In particular it can detect arbitrary variations in rotation and scaling in the duplicated region. These methods are claimed to be scale and rotation invariant, so they are comparable with the proposed approach; for sake of

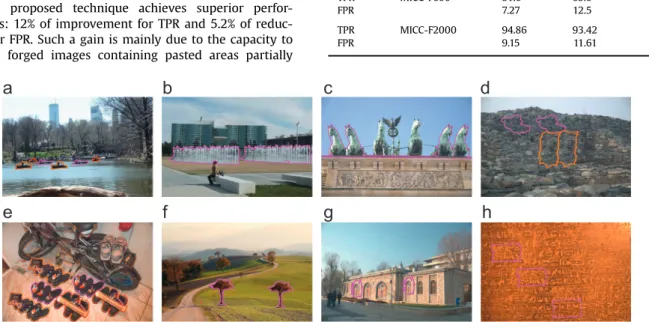

Fig. 8. Examples of patch localization on the MICC-F600 dataset.
Table 2
Comparison between our proposed method and[6].
(%) Dataset Ours Amerini et al.[6]
TPR MICC-F600 81.6 69.0
FPR 7.27 12.5
TPR MICC-F2000 94.86 93.42
FPR 9.15 11.61
conciseness only the best performing three have been taken into account and hereafter briefly explained. The first technique (i.e. INT2[21]) proposed a method to detect duplicated regions even when the copied portion have experienced reflection, rotation or scaling. To achieve this, overlapping blocks of pixels are re-sampled into log-polar coordinates, and then summed along the angle axis, to obtain a one-dimensional descriptor invariant to reflection and rotation; moreover, scaling in rectangular coordinates results in a simple translation of the descriptor. The method named INT4[22], achieves robustness to copied region rotation by firstly reducing the image dimension through a Gaussian pyramid and then extracting four features for each circle block. The feature vectors are then lexicographically sorted and similar vectors will be matched according to a certain threshold value. Finally, the technique denominated MOM3[23]uses the Zernike moments feature vectors to grant copy-move localization in the presence of copied patch rotation.
It is immediate to observe that the proposed method outperforms all the others, in both fashions (with and without SATS approach), by obtaining a FParound zero and a FNof 16.34%.
5. Conclusion
In this paper a new technique based on SIFT features to detect and localize copy-move forgeries has been pre- sented. The main novelty of the work consists in introdu- cing a clustering procedure which operates in the domain of the geometric transformation; such a procedure has been properly improved to deal with multiple cloning too.
Experimental tests have been carried out on different datasets containing various typologies of fake images and also original ones. Results confirm that the proposed method outperforms other similar state-of-the-art techni- ques both in terms of copy-move forgery detection relia- bility and of precision in the localization of the manipulated patches.
Acknowledgments
This work was partially supported by the REWIND Project, funded by the FET programme under the 7FP of the EC, and by the SECURE! Project, funded by the POR CreO FESR 2007- 2013 programme of the Tuscany Region (Italy).
References
[1]B. Mahdian, S. Saic, A bibliography on blind methods for identifying image forgery, Signal Processing: Image Communication 25 (6) (2010) 389–399.
[2]J.A. Redi, W. Taktak, J.-L. Dugelay, Digital image forensics: a booklet for beginners, Multimedia Tools and Applications 51 (1) (2011) 133–162.
[3]H. Farid, A survey of image forgery detection, IEEE Signal Processing Magazine 2 (26) (2009) 16–25.
[4]D.G. Lowe, Distinctive image features from scale-invariant key- points, International Journal of Computer Vision 60 (2) (2004) 91–110.

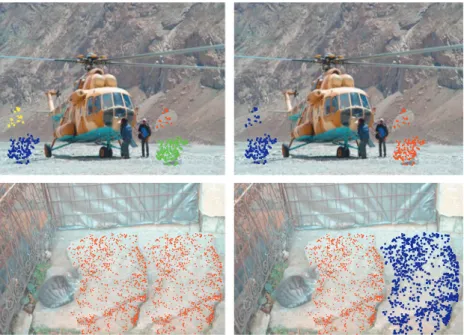

Fig. 9. Two example of the results obtained with different clustering strategies: (left) in the spatial domain (HAC) and (right) in the transformation parameter domain (the proposed method).
Table 3
Test on the SATS-130 dataset: patch localization.
Method FP(%) FN(%)
INT2[21] 4 96
INT4[22] 24 66
MOM3[23] 0.4 88
INT2[21]+ SATS[24] 0 22
INT4[22]+ SATS[24] 0 41
MOM3[23]+ SATS[24] 0 23
Our method 0.66 16.34
[5] I. Amerini, L. Ballan, R. Caldelli, A. Del Bimbo, G. Serra, Geometric tampering estimation by means of a SIFT-based forensic analysis, in:
Proceedings of the IEEE ICASSP, Dallas, TX, USA, 2010.
[6]I. Amerini, L. Ballan, R. Caldelli, A. Del Bimbo, G. Serra, A SIFT-based forensic method for copy move attack detection and transformation recovery, IEEE Transactions on Information Forensics and Security 6 (3) (2011) 1099–1110.
[7] R. Toldo, A. Fusiello, Robust multiple structures estimation with J- Linkage, in: Proceedings of the ECCV, Marseille, France, 2008.
[8] A. Popescu, H. Farid, Exposing digital forgeries by detecting dupli- cated image regions, Technical Report TR2004-515, Dartmouth College, Computer Science, 2004.
[9]Y. Huang, W. Lu, W. Sun, D. Long, Improved DCT-based detection of copy-move forgery in images, Forensic Science International 206 (1–
3) (2011) 178–184.
[10] J. Fridrich, D. Soukal, J. Lukás, Detection of copy-move forgery in digital images, in: Proceedings of the DFRWS, Cleveland, OH, USA, 2003.
[11] G. Li, Q. Wu, D. Tu, S. J. Sun, A sorted neighborhood approach for detecting duplicated regions in image forgeries based on DWT and SVD, in: Proceedings of the IEEE ICME, Beijing, China, 2007.
[12]Z. He, W. Sun, W. Lu, H. Lu, Digital image splicing detection based on approximate run length, Pattern Recognition Letters 32 (12) (2011) 1591–1597.
[13]Z. Lin, J. He, X. Tang, C.-K. Tang, Fast, Automatic and fine-grained tampered JPEG image detection via DCT coefficient analysis, Pattern Recognition 42 (11) (2009) 2492–2501.
[14]Z. He, W. Lu, W. Sun, J. Huang, Digital image splicing detection based on markov features in DCT and DWT domain, Pattern Recognition 45 (12) (2012) 4292–4299.
[15] M. Bashar, K. Noda, N. Ohnishi, K. Mori, Exploring duplicated regions in natural images, IEEE Transactions on Image Processing, in press, http://dx.doi.org/10.1109/TIP.2010.2046599.
[16] W. Luo, J. Huang, G. Qiu, Robust detection of region-duplication forgery in digital image, in: Proceedings of the ICPR, Washington, DC, USA, 2006.
[17] H.-J. Lin, C.-W. Wang, Y.-T. Kao, Fast copy-move forgery detection, WSEAS Transactions on Signal Processing 5 (5) (2009) 188–197.
[18]B. Mahdian, S. Saic, Detection of copy-move forgery using a method based on blur moment invariants, Forensic Science International 171 (2–3) (2007) 180–189.
[19] S. Bayram, H. Taha Sencar, N. Memon, An efficient and robust method for detecting copy-move forgery, in: Proceedings of the IEEE ICASSP, Washington, DC, USA, 2009.
[20] W. Li, N. Yu, Rotation robust detection of copy-move forgery, in:
Proceedings of the IEEE ICIP, Hong Kong, China, 2010.
[21] S. Bravo-Solorio, A. K. Nandi, Passive method for detecting dupli- cated regions affected by reflection, rotation and scaling, in: Pro- ceedings of the EUSIPCO, Glasgow, Scotland, 2009.
[22] J. Wang, G. Liu, H. Li, Y. Dai, Z. Wang, Detection of image region duplication forgery using model with circle block, in: Proceedings of the MINES, Washington, DC, USA, 2009.
[23] S.-J. Ryu, M.-J. Lee, H.-K. Lee, Detection of copy-rotate-move forgery using Zernike moments, in: Proceedings of the International Work- shop on Information Hiding, Calgary, Canada, 2010.
[24] V. Christlein, C. Riess, E. Angelopoulou, On rotation invariance in copy-move forgery detection, in: Proceedings of the IEEE WIFS, Seattle, WA, USA, 2010.
[25]X. Pan, S. Lyu, Region duplication detection using image feature matching, IEEE Transactions on Information Forensics and Security 5 (4) (2010) 857–867.
[26]B.L. Shivakumar, S. Baboo, Detection of region duplication forgery in digital images using SURF, International Journal of Computer Science Issues 8 (4) (2011) 199–205.
[27]P. Kakar, N. Sudha, Exposing postprocessed copy-paste forgeries through transform-invariant features, IEEE Transactions on Informa- tion Forensics and Security 7 (3) (2012) 1018–1028.
[28] Y. Kanazawa, H. Kawakami, Detection of planar regions with uncalibrated stereo using distribution of feature points, in: Proceed- ings of the BMVC, Kingston, UK, 2004.
[29]R.I. Hartley, A. Zisserman, Multiple View Geometry in Computer Vision, Cambridge University Press, 2004.
[30]T. -T Ng, S.-F. Chang, J. Hsu, M. Pepeljugoski, Columbia Photographic Images and Photorealistic Computer Graphics Dataset, ADVENT, Columbia University, 2004.
